#include <TravelingWaveRep.h>

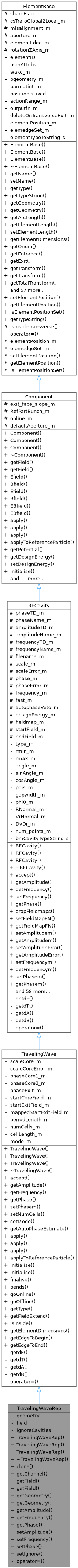

Inheritance diagram for TravelingWaveRep:

Collaboration diagram for TravelingWaveRep:

Public Member Functions
	TravelingWaveRep (const std::string &name)
	Constructor with given name.

	TravelingWaveRep ()

	TravelingWaveRep (const TravelingWaveRep &)

virtual	~TravelingWaveRep ()

virtual ElementBase *	clone () const
	Return clone.

virtual Channel *	getChannel (const std::string &aKey, bool=false)
	Construct a read/write channel.

virtual AcceleratingField &	getField ()
	Get field.

virtual const AcceleratingField &	getField () const
	Get field.

virtual StraightGeometry &	getGeometry ()
	Get geometry.

virtual const StraightGeometry &	getGeometry () const
	Get geometry.

virtual double	getAmplitude () const
	Get amplitude.

virtual double	getFrequency () const
	Get frequency.

virtual double	getPhase () const
	Get phase.

virtual void	setAmplitude (double V)
	Set amplitude.

virtual void	setFrequency (double f)
	Set frequency.

virtual void	setPhase (double phi)
	Set phase.

virtual void	accept (BeamlineVisitor &) const override
	Apply visitor to TravelingWave.

virtual void	setPhasem (double phase) override

void	setNumCells (int NumCells)

void	setMode (double mode)

virtual double	getAutoPhaseEstimate (const double &E0, const double &t0, const double &q, const double &m) override

virtual bool	apply (const std::shared_ptr< ParticleContainer_t > &pc) override
	Applies the Traveling Wave RF Cavity field to all particles inside the RF cavity Note: The field is applied in three regions: the core region, the exit region, and the transition region in between. The field in the transition region is calculated as the superposition of two fields from the core region, which are phase-shifted by 90 degrees and spatially shifted by one cell length. This approach allows for a smooth transition of the field from the core to the exit region, while maintaining the correct phase relationship between the fields.

virtual bool	apply (const size_t &i, const double &t, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) override
	Apply to particle i.

virtual bool	apply (const Vector_t< double, 3 > &R, const Vector_t< double, 3 > &P, const double &t, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) override
	Apply to particle with position R and momentum P.

virtual bool	applyToReferenceParticle (const Vector_t< double, 3 > &R, const Vector_t< double, 3 > &P, const double &t, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) override
	Apply to reference particle with position R and momemtum P.

virtual void	initialise (PartBunch_t *bunch, double &startField, double &endField) override

virtual void	initialise (PartBunch_t *bunch, std::shared_ptr< AbstractTimeDependence > freq_atd, std::shared_ptr< AbstractTimeDependence > ampl_atd, std::shared_ptr< AbstractTimeDependence > phase_atd) override

virtual void	finalise () override

virtual bool	bends () const override

virtual void	goOnline (const double &kineticEnergy) override

virtual void	goOffline () override

virtual ElementType	getType () const override
	Get element type std::string.

virtual void	getFieldExtend (double &zBegin, double &zEnd) const override
	Return the field-support interval of the traveling-wave structure.

virtual bool	isInside (const Vector_t< double, 3 > &r) const override

virtual void	getElementDimensions (double &begin, double &end) const override
	Return the nominal body extent of the element.

virtual CoordinateSystemTrafo	getEdgeToBegin () const override

virtual CoordinateSystemTrafo	getEdgeToEnd () const override

void	dropFieldmaps ()

virtual void	setFieldMapFN (const std::string &fmapfn)
	Set the name of the field map.

virtual std::string	getFieldMapFN () const

virtual void	setAmplitudem (double vPeak)

virtual double	getAmplitudem () const

virtual void	setAmplitudeError (double vPeakError)

virtual double	getAmplitudeError () const

virtual void	setFrequencym (double freq)

virtual double	getFrequencym () const

virtual double	getPhasem () const

double	getPhasem (double t) const

virtual void	setPhaseError (double phaseError)

virtual double	getPhaseError () const

void	setCavityType (const std::string &type)

CavityType	getCavityType () const

std::string	getCavityTypeString () const

virtual void	setFast (bool fast)

virtual bool	getFast () const

virtual void	setAutophaseVeto (bool veto=true)

virtual bool	getAutophaseVeto () const

virtual double	getAutoPhaseEstimateFallback (double E0, double t0, double q, double m)

virtual std::pair< double, double >	trackOnAxisParticle (const double &p0, const double &t0, const double &dt, const double &q, const double &mass, std::ofstream *out=nullptr)

virtual void	setDesignEnergy (const double &ekin, bool changeable=true) override

virtual double	getDesignEnergy () const override

void	setRmin (double rmin)

virtual double	getRmin () const

void	setRmax (double rmax)

virtual double	getRmax () const

void	setAzimuth (double angle)

virtual double	getAzimuth () const

void	setPerpenDistance (double pdis)

virtual double	getPerpenDistance () const

void	setGapWidth (double gapwidth)

virtual double	getGapWidth () const

void	setPhi0 (double phi0)

virtual double	getPhi0 () const

virtual double	getCosAzimuth () const

virtual double	getSinAzimuth () const

virtual double	getCycFrequency () const

void	getMomentaKick (const double normalRadius, double momentum[], const double t, const double dtCorrt, const int PID, const double restMass, const int chargenumber)
	used in OPAL-cycl

double	spline (double z, double *za)

void	setAmplitudeModel (std::shared_ptr< AbstractTimeDependence > time_dep)

void	setAmplitudeModelName (std::string name)

std::string	getAmplitudeModelName ()

void	setPhaseModel (std::shared_ptr< AbstractTimeDependence > time_dep)

void	setPhaseModelName (std::string name)

std::string	getPhaseModelName ()

void	setFrequencyModel (std::shared_ptr< AbstractTimeDependence > time_dep)

void	setFrequencyModelName (std::string name)

std::string	getFrequencyModelName ()

virtual double	getElementLength () const override
	Return the nominal body length of the cavity.

EVector	Efield (const Point3D &P) const
	Return the field in a point.

EVector	Efield (const Point3D &P, double t) const
	Return the field in a point.

BVector	Bfield (const Point3D &P) const
	Return the field in a point.

BVector	Bfield (const Point3D &P, double t) const
	Return the field in a point.

EBVectors	EBfield (const Point3D &P) const
	Return the field in a point.

EBVectors	EBfield (const Point3D &P, double t) const
	Return the field in a point.

virtual bool	getPotential (const Vector_t< double, 3 > &, const double &, Vector_t< double, 3 > &, double &)
	Calculate the four-potential at some position relative to the component.

virtual bool	Online ()

virtual const ElementBase &	getDesign () const
	Return design element.

virtual void	trackBunch (PartBunch_t &bunch, const PartData &, bool revBeam, bool revTrack) const
	Track a borrowed particle bunch through a non-standard component.

virtual void	trackMap (FVps< double, 6 > &map, const PartData &, bool revBeam, bool revTrack) const
	Track a map.

void	setExitFaceSlope (const double &)

virtual const std::string &	getName () const
	Get element name.

virtual void	setName (const std::string &name)
	Set element name.

std::string	getTypeString () const

virtual double	getArcLength () const
	Get arc length.

virtual void	setElementLength (double length)
	Set design length.

virtual double	getOrigin () const
	Get origin position.

virtual double	getEntrance () const
	Get entrance position.

virtual double	getExit () const
	Get exit position.

virtual Euclid3D	getTransform (double fromS, double toS) const
	Get transform.

virtual Euclid3D	getTransform (double s) const
	Get transform.

virtual Euclid3D	getTotalTransform () const
	Get transform.

virtual Euclid3D	getEntranceFrame () const
	Get transform.

virtual Euclid3D	getExitFrame () const
	Get transform.

virtual Euclid3D	getEntrancePatch () const
	Get patch.

virtual Euclid3D	getExitPatch () const
	Get patch.

virtual double	getAttribute (const std::string &aKey) const
	Get attribute value.

virtual bool	hasAttribute (const std::string &aKey) const
	Test for existence of an attribute.

virtual void	removeAttribute (const std::string &aKey)
	Remove an existing attribute.

virtual void	setAttribute (const std::string &aKey, double val)
	Set value of an attribute.

virtual const ConstChannel *	getConstChannel (const std::string &aKey) const
	Construct a read-only channel.

virtual ElementBase *	copyStructure ()
	Make a structural copy.

bool	isSharable () const
	Test if the element can be shared.

virtual void	makeSharable ()
	Set sharable flag.

bool	update (const AttributeSet &)
	Update element.

virtual void	setBoundaryGeometry (BoundaryGeometry *geo)

virtual BoundaryGeometry *	getBoundaryGeometry () const
	return the attached boundary geometrt object if there is any

virtual bool	hasBoundaryGeometry () const

virtual void	setWake (WakeFunction *wf)
	attach a wake field to the element

virtual WakeFunction *	getWake () const
	return the attached wake object if there is any

virtual bool	hasWake () const

virtual void	setParticleMatterInteraction (ParticleMatterInteractionHandler *spys)

virtual ParticleMatterInteractionHandler *	getParticleMatterInteraction () const

virtual bool	hasParticleMatterInteraction () const

void	setCSTrafoGlobal2Local (const CoordinateSystemTrafo &ori)

CoordinateSystemTrafo	getCSTrafoGlobal2Local () const

void	releasePosition ()

void	fixPosition ()

bool	isPositioned () const

virtual Port	getEntryPort () const
	Return the entrance port of the canonical local chart.

virtual Port	getBodyPort () const
	Return the body port of the canonical local chart.

virtual Port	getExitPort () const
	Return the exit port of the canonical local chart.

PlacementPose	getPlacementPose () const
	Return the nominal rigid placement transform of the element.

void	setPlacementPose (const PlacementPose &pose)
	Set the nominal rigid placement transform of the element.

Misalignment	getPlacementMisalignment () const
	Return the local nominal-to-actual correction stored for the element.

ElementGeometry	getPlacementGeometry () const
	Return the bridge geometry ports assembled from legacy edge state.

SupportPlacement	getPlacementSupport () const
	Return the support-frame bridge object. The default is the body frame.

PlacedElement	getPlacedElement () const
	Return a placed-element view assembled from the current bridge objects.

void	setAperture (const ApertureType &type, const std::vector< double > &args)

std::pair< ApertureType, std::vector< double > >	getAperture () const

void	setMisalignment (const CoordinateSystemTrafo &cst)

void	getMisalignment (double &x, double &y, double &s) const

CoordinateSystemTrafo	getMisalignment () const

void	setActionRange (const std::queue< std::pair< double, double > > &range)

void	setCurrentSCoordinate (double s)

void	setRotationAboutZ (double rotation)
	Set rotation about z axis in bend frame.

double	getRotationAboutZ () const

virtual BoundingBox	getBoundingBoxInLabCoords () const

virtual int	getRequiredNumberOfTimeSteps () const

void	setOutputFN (std::string fn)
	Set output filename.

std::string	getOutputFN () const
	Get output filename.

void	setFlagDeleteOnTransverseExit (bool=true)

bool	getFlagDeleteOnTransverseExit () const


void	setElementPosition (double elemedge)
	Access to ELEMEDGE attribute.

double	getElementPosition () const

bool	isElementPositionSet () const

Static Public Member Functions
static void	setIgnore (bool ignore=false)
	Set ignore switch.

static std::string	getTypeString (ElementType type)

Protected Member Functions
bool	isInsideTransverse (const Vector_t< double, 3 > &r) const

Protected Attributes
std::shared_ptr< AbstractTimeDependence >	phaseTD_m

std::string	phaseName_m

std::shared_ptr< AbstractTimeDependence >	amplitudeTD_m

std::string	amplitudeName_m

std::shared_ptr< AbstractTimeDependence >	frequencyTD_m

std::string	frequencyName_m

std::string	filename_m

double	scale_m

double	scaleError_m

double	phase_m

double	phaseError_m

double	frequency_m

bool	fast_m

bool	autophaseVeto_m

double	designEnergy_m

Fieldmap *	fieldmap_m

double	startField_m

double	endField_m

double	exit_face_slope_m

PartBunch_t *	RefPartBunch_m

bool	online_m

bool	shareFlag

CoordinateSystemTrafo	csTrafoGlobal2Local_m

CoordinateSystemTrafo	misalignment_m

std::pair< ApertureType, std::vector< double > >	aperture_m

double	elementEdge_m

double	rotationZAxis_m

Static Protected Attributes
static const std::vector< double >	defaultAperture_m = std::vector<double>({1e6, 1e6, 1.0})

Private Member Functions
void	operator= (const TravelingWaveRep &)

double	getdE (const int &i, const int &I, const std::vector< double > &t, const double &phi, const std::vector< std::pair< double, double > > &F) const

double	getdT (const int &i, const int &I, const std::vector< double > &E, const std::vector< std::pair< double, double > > &F, const double mass) const

double	getdA (const int &i, const int &I, const std::vector< double > &t, const double &phi, const std::vector< std::pair< double, double > > &F) const

double	getdB (const int &i, const int &I, const std::vector< double > &t, const double &phi, const std::vector< std::pair< double, double > > &F) const

Private Attributes
StraightGeometry	geometry
	The cavity's geometry.

AcceleratingField	field
	The cavity's field.

double	scaleCore_m

double	scaleCoreError_m

double	phaseCore1_m

double	phaseCore2_m

double	phaseExit_m

double	startCoreField_m

double	startExitField_m

double	mappedStartExitField_m

double	periodLength_m

int	numCells_m

double	cellLength_m

double	mode_m

CavityType	type_m

double	rmin_m

double	rmax_m

double	angle_m

double	sinAngle_m

double	cosAngle_m

double	pdis_m

double	gapwidth_m

double	phi0_m

std::unique_ptr< double[]>	RNormal_m

std::unique_ptr< double[]>	VrNormal_m

std::unique_ptr< double[]>	DvDr_m

int	num_points_m

std::string	elementID

AttributeSet	userAttribs

WakeFunction *	wake_m

BoundaryGeometry *	bgeometry_m

ParticleMatterInteractionHandler *	parmatint_m

bool	positionIsFixed

std::queue< std::pair< double, double > >	actionRange_m

std::string	outputfn_m

bool	deleteOnTransverseExit_m = true


double	elementPosition_m
	ELEMEDGE attribute.

bool	elemedgeSet_m

Static Private Attributes
static bool	ignoreCavities = false
	Cavities are ignored (amplitude = 0) when this switch is set.

static const BiMap< CavityType, std::string >	bmCavityTypeString_s

static const std::map< ElementType, std::string >	elementTypeToString_s

Detailed Description

Definition at line 25 of file TravelingWaveRep.h.

Constructor & Destructor Documentation

◆ TravelingWaveRep() [1/3]

TravelingWaveRep::TravelingWaveRep ( const std::string & name )

explicit

Constructor with given name.

Definition at line 42 of file TravelingWaveRep.cpp.

◆ TravelingWaveRep() [2/3]

TravelingWaveRep::TravelingWaveRep ( )

Definition at line 38 of file TravelingWaveRep.cpp.

Referenced by clone().

◆ TravelingWaveRep() [3/3]

TravelingWaveRep::TravelingWaveRep ( const TravelingWaveRep & right )

Definition at line 40 of file TravelingWaveRep.cpp.

◆ ~TravelingWaveRep()

TravelingWaveRep::~TravelingWaveRep ( )

virtual

Definition at line 44 of file TravelingWaveRep.cpp.

Member Function Documentation

◆ accept()

void TravelingWave::accept ( BeamlineVisitor & visitor ) const

overridevirtualinherited

Apply visitor to TravelingWave.

Reimplemented from RFCavity.

Definition at line 53 of file TravelingWave.cpp.

References BeamlineVisitor::visitTravelingWave().

Here is the call graph for this function:

◆ apply() [1/3]

bool TravelingWave::apply	(	const size_t &	i,
		const double &	t,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)

overridevirtualinherited

Apply to particle i.

Parameters

i	Particle index
t	Time
E	Electric Field
B	Magnetic Field

Returns: true if particle is out-of-bounds (lost), false otherwise

Reimplemented from RFCavity.

Definition at line 114 of file TravelingWave.cpp.

References TravelingWave::apply(), PartBunch< T, Dim >::R(), and Component::RefPartBunch_m.

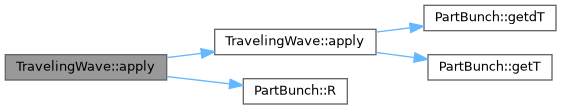

Here is the call graph for this function:

◆ apply() [2/3]

bool TravelingWave::apply ( const std::shared_ptr< ParticleContainer_t > & pc )

overridevirtualinherited

Applies the Traveling Wave RF Cavity field to all particles inside the RF cavity Note: The field is applied in three regions: the core region, the exit region, and the transition region in between. The field in the transition region is calculated as the superposition of two fields from the core region, which are phase-shifted by 90 degrees and spatially shifted by one cell length. This approach allows for a smooth transition of the field from the core to the exit region, while maintaining the correct phase relationship between the fields.

Reimplemented from RFCavity.

Definition at line 66 of file TravelingWave.cpp.

References TravelingWave::cellLength_m, RFCavity::endField_m, RFCavity::fieldmap_m, RFCavity::frequency_m, PartBunch< T, Dim >::getdT(), PartBunch< T, Dim >::getT(), TravelingWave::mappedStartExitField_m, TravelingWave::periodLength_m, RFCavity::phase_m, TravelingWave::phaseCore1_m, TravelingWave::phaseCore2_m, RFCavity::phaseError_m, TravelingWave::phaseExit_m, Component::RefPartBunch_m, RFCavity::scale_m, TravelingWave::scaleCore_m, TravelingWave::scaleCoreError_m, RFCavity::scaleError_m, TravelingWave::startCoreField_m, TravelingWave::startExitField_m, and RFCavity::startField_m.

Referenced by TravelingWave::apply().

Here is the call graph for this function:

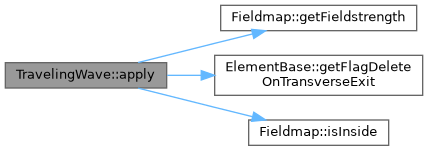

◆ apply() [3/3]

bool TravelingWave::apply	(	const Vector_t< double, 3 > &	R,
		const Vector_t< double, 3 > &	P,
		const double &	t,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)

overridevirtualinherited

Apply to particle with position R and momentum P.

Parameters

R	Position
P	Momentum
t	Time
E	Electric Field
B	Magnetic Field

Returns: true if particle is out-of-bounds (lost), false otherwise

Reimplemented from RFCavity.

Definition at line 125 of file TravelingWave.cpp.

References TravelingWave::cellLength_m, RFCavity::endField_m, RFCavity::fieldmap_m, RFCavity::frequency_m, Fieldmap::getFieldstrength(), ElementBase::getFlagDeleteOnTransverseExit(), Fieldmap::isInside(), TravelingWave::mappedStartExitField_m, TravelingWave::periodLength_m, RFCavity::phase_m, TravelingWave::phaseCore1_m, TravelingWave::phaseCore2_m, RFCavity::phaseError_m, TravelingWave::phaseExit_m, RFCavity::scale_m, TravelingWave::scaleCore_m, TravelingWave::scaleCoreError_m, RFCavity::scaleError_m, TravelingWave::startCoreField_m, TravelingWave::startExitField_m, and RFCavity::startField_m.

Here is the call graph for this function:

◆ applyToReferenceParticle()

bool TravelingWave::applyToReferenceParticle	(	const Vector_t< double, 3 > &	R,
		const Vector_t< double, 3 > &	P,
		const double &	t,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)

overridevirtualinherited

Apply to reference particle with position R and momemtum P.

Parameters

R	Position
P	Momentum
t	Time
E	Electric Field
B	Magnetic Field

Returns: true if particle is out-of-bounds (lost), false otherwise

Reimplemented from RFCavity.

Definition at line 183 of file TravelingWave.cpp.

References TravelingWave::cellLength_m, RFCavity::endField_m, RFCavity::fieldmap_m, RFCavity::frequency_m, Fieldmap::getFieldstrength(), Fieldmap::isInside(), TravelingWave::mappedStartExitField_m, TravelingWave::periodLength_m, RFCavity::phase_m, TravelingWave::phaseCore1_m, TravelingWave::phaseCore2_m, TravelingWave::phaseExit_m, RFCavity::scale_m, TravelingWave::scaleCore_m, TravelingWave::startCoreField_m, TravelingWave::startExitField_m, and RFCavity::startField_m.

Here is the call graph for this function:

◆ bends()

bool TravelingWave::bends ( ) const

overridevirtualinherited

Reimplemented from RFCavity.

Definition at line 290 of file TravelingWave.cpp.

◆ Bfield() [1/2]

BVector Component::Bfield ( const Point3D & P ) const

inlineinherited

Return the field in a point.

Definition at line 234 of file Component.h.

References EMField::Bfield(), and Component::getField().

Here is the call graph for this function:

◆ Bfield() [2/2]

BVector Component::Bfield	(	const Point3D &	P,
		double	t
	)		const

inlineinherited

Return the field in a point.

Definition at line 240 of file Component.h.

References EMField::Bfield(), and Component::getField().

Here is the call graph for this function:

◆ clone()

ElementBase * TravelingWaveRep::clone ( ) const

virtual

Return clone.

Implements ElementBase.

Definition at line 46 of file TravelingWaveRep.cpp.

References TravelingWaveRep().

Here is the call graph for this function:

◆ copyStructure()

ElementBase * ElementBase::copyStructure ( )

virtualinherited

Make a structural copy.

Reimplemented in TBeamline< T >.

Definition at line 194 of file ElementBase.cpp.

References ElementBase::clone(), and ElementBase::isSharable().

Referenced by Sequence::copy(), Line::parse(), SequenceParser::parseMember(), and Replacer::visitFlaggedElmPtr().

Here is the call graph for this function:

◆ dropFieldmaps()

void RFCavity::dropFieldmaps ( )

inlineinherited

Definition at line 325 of file RFCavity.h.

References RFCavity::fieldmap_m.

Referenced by OpalCavity::update().

◆ EBfield() [1/2]

EBVectors Component::EBfield ( const Point3D & P ) const

inlineinherited

Return the field in a point.

Definition at line 244 of file Component.h.

References EMField::EBfield(), and Component::getField().

Here is the call graph for this function:

◆ EBfield() [2/2]

EBVectors Component::EBfield	(	const Point3D &	P,
		double	t
	)		const

inlineinherited

Return the field in a point.

Definition at line 246 of file Component.h.

References EMField::EBfield(), and Component::getField().

Here is the call graph for this function:

◆ Efield() [1/2]

EVector Component::Efield ( const Point3D & P ) const

inlineinherited

Return the field in a point.

Definition at line 232 of file Component.h.

References EMField::Efield(), and Component::getField().

Here is the call graph for this function:

◆ Efield() [2/2]

EVector Component::Efield	(	const Point3D &	P,
		double	t
	)		const

inlineinherited

Return the field in a point.

Definition at line 236 of file Component.h.

References EMField::Efield(), and Component::getField().

Here is the call graph for this function:

◆ finalise()

void TravelingWave::finalise ( )

overridevirtualinherited

Reimplemented from RFCavity.

Definition at line 288 of file TravelingWave.cpp.

◆ fixPosition()

void ElementBase::fixPosition ( )

inlineinherited

Definition at line 597 of file ElementBase.h.

References ElementBase::positionIsFixed.

Referenced by OpalElement::update(), OpalRBend::update(), and OpalSBend::update().

◆ getAmplitude()

double TravelingWaveRep::getAmplitude ( ) const

virtual

Get amplitude.

Implements TravelingWave.

Definition at line 66 of file TravelingWaveRep.cpp.

References field, ConstEzField::getEz(), and ignoreCavities.

Here is the call graph for this function:

◆ getAmplitudeError()

double RFCavity::getAmplitudeError ( ) const

inlinevirtualinherited

Definition at line 335 of file RFCavity.h.

References RFCavity::scaleError_m.

◆ getAmplitudem()

double RFCavity::getAmplitudem ( ) const

inlinevirtualinherited

Definition at line 331 of file RFCavity.h.

References RFCavity::scale_m.

Referenced by CavityAutophaser::getPhaseAtMaxEnergy().

◆ getAmplitudeModelName()

std::string RFCavity::getAmplitudeModelName ( )

inlineinherited

Definition at line 369 of file RFCavity.h.

References RFCavity::amplitudeName_m.

◆ getAperture()

std::pair< ApertureType, std::vector< double > > ElementBase::getAperture ( ) const

inlineinherited

Definition at line 582 of file ElementBase.h.

References ElementBase::aperture_m.

Referenced by MeshGenerator::add(), Solenoid::getSupportEnvelope(), and MeshGenerator::getTransverseSupport().

◆ getArcLength()

double ElementBase::getArcLength ( ) const

inlinevirtualinherited

Get arc length.

Reimplemented in MarkerRep, and TBeamline< T >.

Definition at line 479 of file ElementBase.h.

References BGeometryBase::getArcLength(), and ElementBase::getGeometry().

Referenced by BeamlineGeometry::getArcLength(), and TBeamline< T >::getTransform().

Here is the call graph for this function:

◆ getAttribute()

double ElementBase::getAttribute ( const std::string & aKey ) const

virtualinherited

Get attribute value.

Definition at line 147 of file ElementBase.cpp.

References ElementBase::getConstChannel().

Here is the call graph for this function:

◆ getAutoPhaseEstimate()

double TravelingWave::getAutoPhaseEstimate	(	const double &	E0,
		const double &	t0,
		const double &	q,
		const double &	m
	)

overridevirtualinherited

Reimplemented from RFCavity.

Definition at line 311 of file TravelingWave.cpp.

References Units::deg2rad, RFCavity::fieldmap_m, RFCavity::frequency_m, TravelingWave::getdA(), TravelingWave::getdB(), TravelingWave::getdE(), TravelingWave::getdT(), Fieldmap::getOnaxisEz(), TravelingWave::mode_m, TravelingWave::numCells_m, RFCavity::phase_m, TravelingWave::phaseCore1_m, TravelingWave::phaseCore2_m, TravelingWave::phaseExit_m, Physics::pi, Units::rad2deg, RFCavity::scale_m, TravelingWave::scaleCore_m, and Physics::two_pi.

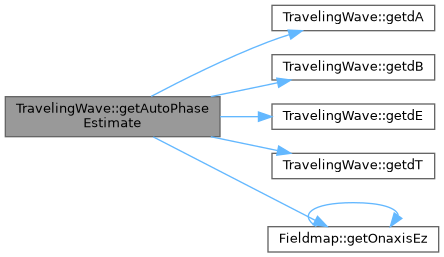

Here is the call graph for this function:

◆ getAutoPhaseEstimateFallback()

double RFCavity::getAutoPhaseEstimateFallback	(	double	E0,
		double	t0,
		double	q,
		double	m
	)

virtualinherited

Definition at line 483 of file RFCavity.cpp.

References Util::getBetaGamma(), Util::getKineticEnergy(), RFCavity::getPhasem(), Physics::pi, Units::rad2deg, RFCavity::setPhasem(), RFCavity::trackOnAxisParticle(), and Physics::two_pi.

Referenced by RFCavity::getAutoPhaseEstimate().

Here is the call graph for this function:

◆ getAutophaseVeto()

bool RFCavity::getAutophaseVeto ( ) const

inlinevirtualinherited

Definition at line 361 of file RFCavity.h.

References RFCavity::autophaseVeto_m.

Referenced by ParallelTracker::autophaseCavities(), CavityAutophaser::getPhaseAtMaxEnergy(), CavityAutophaser::guessCavityPhase(), and CavityAutophaser::optimizeCavityPhase().

◆ getAzimuth()

double RFCavity::getAzimuth ( ) const

virtualinherited

Definition at line 307 of file RFCavity.cpp.

References RFCavity::angle_m.

◆ getBodyPort()

Port ElementBase::getBodyPort ( ) const

inlinevirtualinherited

Return the body port of the canonical local chart.

The body port \(p_{i,\mathrm{body}}\) is the identity port of the element's canonical local chart. Its rigid transform is therefore the identity element of \(SE(3)\) in the first redesign stage.

Definition at line 547 of file ElementBase.h.

Referenced by ElementBase::getPlacementGeometry(), and TEST_F().

◆ getBoundaryGeometry()

BoundaryGeometry * ElementBase::getBoundaryGeometry ( ) const

inlinevirtualinherited

return the attached boundary geometrt object if there is any

Definition at line 513 of file ElementBase.h.

References ElementBase::bgeometry_m.

◆ getBoundingBoxInLabCoords()

BoundingBox ElementBase::getBoundingBoxInLabCoords ( ) const

virtualinherited

Definition at line 264 of file ElementBase.cpp.

References ElementBase::aperture_m, ElementBase::csTrafoGlobal2Local_m, BoundingBox::getBoundingBox(), ElementBase::getEdgeToBegin(), ElementBase::getEdgeToEnd(), and CoordinateSystemTrafo::transformFrom().

Here is the call graph for this function:

◆ getCavityType()

CavityType RFCavity::getCavityType ( ) const

inlineinherited

Definition at line 353 of file RFCavity.h.

References RFCavity::type_m.

◆ getCavityTypeString()

std::string RFCavity::getCavityTypeString ( ) const

inherited

Definition at line 328 of file RFCavity.cpp.

References RFCavity::bmCavityTypeString_s, BiMap< Left, Right >::left, and RFCavity::type_m.

◆ getChannel()

Channel * TravelingWaveRep::getChannel	(	const std::string &	aKey,
		bool	create = `false`
	)

virtual

Construct a read/write channel.

Reimplemented from ElementBase.

Definition at line 48 of file TravelingWaveRep.cpp.

References ElementBase::getChannel().

Here is the call graph for this function:

◆ getConstChannel()

const ConstChannel * ElementBase::getConstChannel ( const std::string & aKey ) const

virtualinherited

Construct a read-only channel.

Definition at line 186 of file ElementBase.cpp.

References ElementBase::getChannel().

Referenced by ElementBase::getAttribute(), and ElementBase::hasAttribute().

Here is the call graph for this function:

◆ getCosAzimuth()

double RFCavity::getCosAzimuth ( ) const

virtualinherited

Definition at line 311 of file RFCavity.cpp.

References RFCavity::cosAngle_m.

◆ getCSTrafoGlobal2Local()

CoordinateSystemTrafo ElementBase::getCSTrafoGlobal2Local ( ) const

inlineinherited

Definition at line 529 of file ElementBase.h.

References ElementBase::csTrafoGlobal2Local_m.

Referenced by Monitor::driftToCorrectPositionAndSave(), ElementBase::getPlacementPose(), OpalRBend::update(), and OpalSBend::update().

◆ getCycFrequency()

double RFCavity::getCycFrequency ( ) const

virtualinherited

Definition at line 345 of file RFCavity.cpp.

References RFCavity::frequency_m.

◆ getdA()

double TravelingWave::getdA	(	const int &	i,
		const int &	I,
		const std::vector< double > &	t,
		const double &	phi,
		const std::vector< std::pair< double, double > > &	F
	)		const

inlineprivateinherited

Definition at line 181 of file TravelingWave.h.

References RFCavity::frequency_m.

Referenced by TravelingWave::getAutoPhaseEstimate().

◆ getdB()

double TravelingWave::getdB	(	const int &	i,
		const int &	I,
		const std::vector< double > &	t,
		const double &	phi,
		const std::vector< std::pair< double, double > > &	F
	)		const

inlineprivateinherited

Definition at line 194 of file TravelingWave.h.

References RFCavity::frequency_m.

Referenced by TravelingWave::getAutoPhaseEstimate().

◆ getdE()

double TravelingWave::getdE	(	const int &	i,
		const int &	I,
		const std::vector< double > &	t,
		const double &	phi,
		const std::vector< std::pair< double, double > > &	F
	)		const

inlineprivateinherited

Definition at line 141 of file TravelingWave.h.

References RFCavity::frequency_m.

Referenced by TravelingWave::getAutoPhaseEstimate().

◆ getDesign()

const ElementBase & Component::getDesign ( ) const

virtualinherited

Return design element.

Definition at line 33 of file Component.cpp.

◆ getDesignEnergy()

double RFCavity::getDesignEnergy ( ) const

inlineoverridevirtualinherited

Reimplemented from Component.

Definition at line 323 of file RFCavity.h.

References RFCavity::designEnergy_m.

Referenced by OrbitThreader::getMaxDesignEnergy(), and CavityAutophaser::getPhaseAtMaxEnergy().

◆ getdT()

double TravelingWave::getdT	(	const int &	i,
		const int &	I,
		const std::vector< double > &	E,
		const std::vector< std::pair< double, double > > &	F,
		const double	mass
	)		const

inlineprivateinherited

Definition at line 154 of file TravelingWave.h.

References Physics::c.

Referenced by TravelingWave::getAutoPhaseEstimate().

◆ getEdgeToBegin()

CoordinateSystemTrafo TravelingWave::getEdgeToBegin ( ) const

inlineoverridevirtualinherited

Reimplemented from RFCavity.

Definition at line 220 of file TravelingWave.h.

◆ getEdgeToEnd()

CoordinateSystemTrafo TravelingWave::getEdgeToEnd ( ) const

inlineoverridevirtualinherited

Reimplemented from RFCavity.

Definition at line 225 of file TravelingWave.h.

References RFCavity::getElementLength().

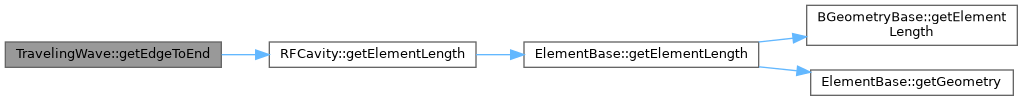

Here is the call graph for this function:

◆ getElementDimensions()

void TravelingWave::getElementDimensions	(	double &	begin,
		double &	end
	)		const

overridevirtualinherited

Return the nominal body extent of the element.

The first placement redesign stage distinguishes between the nominal body extent and the field-support extent. The body extent is the canonical longitudinal interval of the placed hardware, \([z_\mathrm{body}^{\mathrm{begin}}, z_\mathrm{body}^{\mathrm{end}}]\), and therefore drives ports, placement, and visualization. By default it coincides with the geometry length \([0, L]\) in the local chart.

Reimplemented from RFCavity.

Definition at line 304 of file TravelingWave.cpp.

References RFCavity::getElementLength().

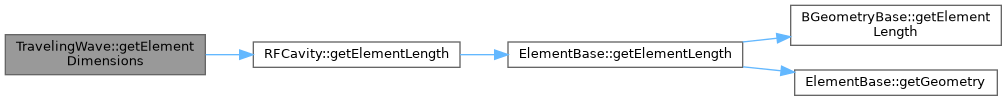

Here is the call graph for this function:

◆ getElementLength()

double RFCavity::getElementLength ( ) const

overridevirtualinherited

Return the nominal body length of the cavity.

The body length is the placed hardware extent configured on the cavity geometry. It is independent of the field-support extent returned by getFieldExtend().

Reimplemented from ElementBase.

Definition at line 716 of file RFCavity.cpp.

References ElementBase::getElementLength().

Referenced by RFCavity::getEdgeToEnd(), TravelingWave::getEdgeToEnd(), RFCavity::getElementDimensions(), and TravelingWave::getElementDimensions().

Here is the call graph for this function:

◆ getElementPosition()

double ElementBase::getElementPosition ( ) const

inlineinherited

Definition at line 618 of file ElementBase.h.

References ElementBase::elemedgeSet_m, ElementBase::elementPosition_m, and ElementBase::getName().

Here is the call graph for this function:

◆ getEntrance()

double ElementBase::getEntrance ( ) const

inlinevirtualinherited

Get entrance position.

Reimplemented in TBeamline< T >.

Definition at line 487 of file ElementBase.h.

References BGeometryBase::getEntrance(), and ElementBase::getGeometry().

Referenced by BendBase::getDesignPath(), and BeamlineGeometry::getEntrance().

Here is the call graph for this function:

◆ getEntranceFrame()

Euclid3D ElementBase::getEntranceFrame ( ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 499 of file ElementBase.h.

References BGeometryBase::getEntranceFrame(), and ElementBase::getGeometry().

Referenced by BendBase::getChordLength(), BendBase::getEdgeToBegin(), and BeamlineGeometry::getEntranceFrame().

Here is the call graph for this function:

◆ getEntrancePatch()

Euclid3D ElementBase::getEntrancePatch ( ) const

inlinevirtualinherited

Get patch.

Definition at line 503 of file ElementBase.h.

References BGeometryBase::getEntrancePatch(), and ElementBase::getGeometry().

Here is the call graph for this function:

◆ getEntryPort()

Port ElementBase::getEntryPort ( ) const

inlinevirtualinherited

Return the entrance port of the canonical local chart.

In the placement-note language, this is the marked entrance port \(p_{i,\mathrm{entry}}\) of element \(i\). For straight elements in the bridge stage, the body-to-entry transform is taken from the legacy getEdgeToBegin() result.

Definition at line 545 of file ElementBase.h.

References ElementBase::getEdgeToBegin().

Referenced by ElementBase::getPlacementGeometry(), and TEST_F().

Here is the call graph for this function:

◆ getExit()

double ElementBase::getExit ( ) const

inlinevirtualinherited

Get exit position.

Reimplemented in TBeamline< T >.

Definition at line 489 of file ElementBase.h.

References BGeometryBase::getExit(), and ElementBase::getGeometry().

Referenced by BendBase::getDesignPath(), and BeamlineGeometry::getExit().

Here is the call graph for this function:

◆ getExitFrame()

Euclid3D ElementBase::getExitFrame ( ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 501 of file ElementBase.h.

References BGeometryBase::getExitFrame(), and ElementBase::getGeometry().

Referenced by BendBase::getChordLength(), BendBase::getEdgeToEnd(), and BeamlineGeometry::getExitFrame().

Here is the call graph for this function:

◆ getExitPatch()

Euclid3D ElementBase::getExitPatch ( ) const

inlinevirtualinherited

Get patch.

Definition at line 505 of file ElementBase.h.

References BGeometryBase::getExitPatch(), and ElementBase::getGeometry().

Here is the call graph for this function:

◆ getExitPort()

Port ElementBase::getExitPort ( ) const

inlinevirtualinherited

Return the exit port of the canonical local chart.

In the placement-note language, this is the marked exit port \(p_{i,\mathrm{exit}}\). For straight elements in the bridge stage, the body-to-exit transform is taken from the legacy getEdgeToEnd() result.

Definition at line 549 of file ElementBase.h.

References ElementBase::getEdgeToEnd().

Referenced by ElementBase::getPlacementGeometry(), and TEST_F().

Here is the call graph for this function:

◆ getFast()

bool RFCavity::getFast ( ) const

inlinevirtualinherited

Definition at line 357 of file RFCavity.h.

References RFCavity::fast_m.

◆ getField() [1/2]

AcceleratingField & TravelingWaveRep::getField ( )

virtual

Get field.

Implements Component.

Definition at line 58 of file TravelingWaveRep.cpp.

References field.

◆ getField() [2/2]

const AcceleratingField & TravelingWaveRep::getField ( ) const

virtual

Get field.

Implements Component.

Definition at line 60 of file TravelingWaveRep.cpp.

References field.

◆ getFieldExtend()

void TravelingWave::getFieldExtend	(	double &	zBegin,
		double &	zEnd
	)		const

overridevirtualinherited

Return the field-support interval of the traveling-wave structure.

The field-support extent covers the entry, core, and exit field regions including the half-period fringe offsets. It is distinct from the nominal body extent used for placement and visualization.

Reimplemented from RFCavity.

Definition at line 299 of file TravelingWave.cpp.

References RFCavity::endField_m, and RFCavity::startField_m.

◆ getFieldMapFN()

std::string RFCavity::getFieldMapFN ( ) const

virtualinherited

Definition at line 330 of file RFCavity.cpp.

References RFCavity::filename_m.

◆ getFlagDeleteOnTransverseExit()

bool ElementBase::getFlagDeleteOnTransverseExit ( ) const

inlineinherited

Definition at line 634 of file ElementBase.h.

References ElementBase::deleteOnTransverseExit_m.

Referenced by BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), Corrector::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), RFCavity::apply(), Solenoid::apply(), and TravelingWave::apply().

◆ getFrequency()

double TravelingWaveRep::getFrequency ( ) const

virtual

Get frequency.

Implements TravelingWave.

Definition at line 68 of file TravelingWaveRep.cpp.

References field, and OscillatingField< Field >::getFrequency().

Here is the call graph for this function:

◆ getFrequencym()

double RFCavity::getFrequencym ( ) const

inlinevirtualinherited

Definition at line 341 of file RFCavity.h.

References RFCavity::frequency_m.

Referenced by CavityAutophaser::getPhaseAtMaxEnergy(), and CavityAutophaser::optimizeCavityPhase().

◆ getFrequencyModelName()

std::string RFCavity::getFrequencyModelName ( )

inlineinherited

Definition at line 385 of file RFCavity.h.

References RFCavity::frequencyName_m.

◆ getGapWidth()

double RFCavity::getGapWidth ( ) const

virtualinherited

Definition at line 315 of file RFCavity.cpp.

References RFCavity::gapwidth_m.

◆ getGeometry() [1/2]

StraightGeometry & TravelingWaveRep::getGeometry ( )

virtual

Get geometry.

Implements ElementBase.

Definition at line 62 of file TravelingWaveRep.cpp.

References geometry.

◆ getGeometry() [2/2]

const StraightGeometry & TravelingWaveRep::getGeometry ( ) const

virtual

Get geometry.

Implements ElementBase.

Definition at line 64 of file TravelingWaveRep.cpp.

References geometry.

◆ getMisalignment() [1/2]

CoordinateSystemTrafo ElementBase::getMisalignment ( ) const

inlineinherited

Definition at line 593 of file ElementBase.h.

References ElementBase::misalignment_m.

Referenced by ElementBase::getPlacementMisalignment().

◆ getMisalignment() [2/2]

void ElementBase::getMisalignment	(	double &	x,
		double &	y,
		double &	s
	)		const

inherited

◆ getMomentaKick()

void RFCavity::getMomentaKick	(	const double	normalRadius,
		double	momentum[],
		const double	t,
		const double	dtCorrt,
		const int	PID,
		const double	restMass,
		const int	chargenumber
	)

inherited

used in OPAL-cycl

Is called from OPAL-cycl and can handle time dependent frequency, amplitude and phase

At the moment (test) only the frequency is time dependent

B field effects

Definition at line 357 of file RFCavity.cpp.

References Physics::c, RFCavity::cosAngle_m, Units::deg2rad, Units::eV2MeV, RFCavity::frequency_m, RFCavity::frequencyTD_m, RFCavity::gapwidth_m, ElementBase::getName(), gmsg, Units::mm2m, Units::MVpm2Vpm, Units::ns2s, RFCavity::phi0_m, Units::rad2deg, RFCavity::rmax_m, RFCavity::rmin_m, RFCavity::scale_m, RFCavity::sinAngle_m, RFCavity::spline(), and Physics::two_pi.

Here is the call graph for this function:

◆ getName()

const std::string & ElementBase::getName ( ) const

virtualinherited

◆ getOrigin()

double ElementBase::getOrigin ( ) const

inlinevirtualinherited

Get origin position.

Reimplemented in TBeamline< T >.

Definition at line 485 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getOrigin().

Referenced by BeamlineGeometry::getOrigin().

Here is the call graph for this function:

◆ getOutputFN()

std::string ElementBase::getOutputFN ( ) const

inherited

Get output filename.

Definition at line 138 of file ElementBase.cpp.

References ElementBase::getName(), and ElementBase::outputfn_m.

Referenced by Probe::doInitialise(), PluginElement::initialise(), and Monitor::initialise().

Here is the call graph for this function:

◆ getParticleMatterInteraction()

ParticleMatterInteractionHandler * ElementBase::getParticleMatterInteraction ( ) const

inlinevirtualinherited

Definition at line 517 of file ElementBase.h.

References ElementBase::parmatint_m.

◆ getPerpenDistance()

double RFCavity::getPerpenDistance ( ) const

virtualinherited

Definition at line 313 of file RFCavity.cpp.

References RFCavity::pdis_m.

◆ getPhase()

double TravelingWaveRep::getPhase ( ) const

virtual

Get phase.

Implements TravelingWave.

Definition at line 70 of file TravelingWaveRep.cpp.

References field, and OscillatingField< Field >::getPhase().

Here is the call graph for this function:

◆ getPhaseError()

double RFCavity::getPhaseError ( ) const

inlinevirtualinherited

Definition at line 351 of file RFCavity.h.

References RFCavity::phaseError_m.

◆ getPhasem() [1/2]

double RFCavity::getPhasem ( ) const

inlinevirtualinherited

Definition at line 345 of file RFCavity.h.

References RFCavity::phase_m.

Referenced by RFCavity::getAutoPhaseEstimateFallback(), CavityAutophaser::getPhaseAtMaxEnergy(), CavityAutophaser::guessCavityPhase(), CavityAutophaser::optimizeCavityPhase(), and CavityAutophaser::track().

◆ getPhasem() [2/2]

double RFCavity::getPhasem ( double t ) const

inlineinherited

Definition at line 347 of file RFCavity.h.

References RFCavity::frequency_m, and RFCavity::phase_m.

◆ getPhaseModelName()

std::string RFCavity::getPhaseModelName ( )

inlineinherited

Definition at line 377 of file RFCavity.h.

References RFCavity::phaseName_m.

◆ getPhi0()

double RFCavity::getPhi0 ( ) const

virtualinherited

Definition at line 317 of file RFCavity.cpp.

References RFCavity::phi0_m.

◆ getPlacedElement()

PlacedElement ElementBase::getPlacedElement ( ) const

inlineinherited

Return a placed-element view assembled from the current bridge objects.

Definition at line 571 of file ElementBase.h.

References ElementBase::getPlacementGeometry(), ElementBase::getPlacementMisalignment(), ElementBase::getPlacementPose(), and ElementBase::getPlacementSupport().

Referenced by MeshGenerator::add(), and TEST_F().

Here is the call graph for this function:

◆ getPlacementGeometry()

ElementGeometry ElementBase::getPlacementGeometry ( ) const

inlineinherited

Return the bridge geometry ports assembled from legacy edge state.

The first redesign stage defines a minimal explicit port contract with three named body-relative ports: \(p_{i,\mathrm{entry}}\), \(p_{i,\mathrm{body}}\), \(p_{i,\mathrm{exit}}\). The default bridge preserves current OPALX behavior by deriving those ports from getEntryPort(), getBodyPort(), and getExitPort(), whose straight-element implementations are backed by the legacy getEdgeToBegin() and getEdgeToEnd() methods.

Definition at line 563 of file ElementBase.h.

References ElementBase::getBodyPort(), ElementBase::getEntryPort(), and ElementBase::getExitPort().

Referenced by ElementBase::getPlacedElement().

Here is the call graph for this function:

◆ getPlacementMisalignment()

Misalignment ElementBase::getPlacementMisalignment ( ) const

inlineinherited

Return the local nominal-to-actual correction stored for the element.

Definition at line 559 of file ElementBase.h.

References ElementBase::getMisalignment().

Referenced by ElementBase::getPlacedElement().

Here is the call graph for this function:

◆ getPlacementPose()

PlacementPose ElementBase::getPlacementPose ( ) const

inlineinherited

Return the nominal rigid placement transform of the element.

This is the bridge from the legacy stored CoordinateSystemTrafo to the new placement vocabulary. It preserves current nominal placement semantics and does not apply misalignment.

Definition at line 551 of file ElementBase.h.

References ElementBase::getCSTrafoGlobal2Local().

Referenced by ElementBase::getPlacedElement().

Here is the call graph for this function:

◆ getPlacementSupport()

SupportPlacement ElementBase::getPlacementSupport ( ) const

inlineinherited

Return the support-frame bridge object. The default is the body frame.

Definition at line 567 of file ElementBase.h.

Referenced by ElementBase::getPlacedElement().

◆ getPotential()

virtual bool Component::getPotential	(	const Vector_t< double, 3 > &	,
		const double &	,
		Vector_t< double, 3 > &	,
		double &
	)

inlinevirtualinherited

Calculate the four-potential at some position relative to the component.

Parameters

R	position in the local coordinate system of the component
t	time
A	filled with the calculated magnetic vector potential
phi	filled with the calculated electric potential Note that any existing values in A and phi may be overwritten by this method.

Returns: true if particle is outside the field map, else false Default for component is to return false and make no change to A and phi

Definition at line 155 of file Component.h.

◆ getRequiredNumberOfTimeSteps()

int ElementBase::getRequiredNumberOfTimeSteps ( ) const

inlinevirtualinherited

Reimplemented in BendBase, Drift, Laser, Marker, and Monitor.

Definition at line 628 of file ElementBase.h.

◆ getRmax()

double RFCavity::getRmax ( ) const

virtualinherited

Definition at line 305 of file RFCavity.cpp.

References RFCavity::rmax_m.

◆ getRmin()

double RFCavity::getRmin ( ) const

virtualinherited

Definition at line 303 of file RFCavity.cpp.

References RFCavity::rmin_m.

◆ getRotationAboutZ()

double ElementBase::getRotationAboutZ ( ) const

inlineinherited

Definition at line 609 of file ElementBase.h.

References ElementBase::rotationZAxis_m.

Referenced by OpalBeamline::compileCompatibilityPlacement().

◆ getSinAzimuth()

double RFCavity::getSinAzimuth ( ) const

virtualinherited

Definition at line 309 of file RFCavity.cpp.

References RFCavity::sinAngle_m.

◆ getTotalTransform()

Euclid3D ElementBase::getTotalTransform ( ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 495 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getTotalTransform().

Referenced by BeamlineGeometry::getTotalTransform().

Here is the call graph for this function:

◆ getTransform() [1/2]

Euclid3D ElementBase::getTransform	(	double	fromS,
		double	toS
	)		const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 491 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getTransform().

Referenced by BendBase::getDesignPath(), BeamlineGeometry::getTransform(), TBeamline< T >::getTransform(), and BeamlineGeometry::getTransform().

Here is the call graph for this function:

◆ getTransform() [2/2]

Euclid3D ElementBase::getTransform ( double s ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 497 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getTransform().

Here is the call graph for this function:

◆ getType()

ElementType TravelingWave::getType ( ) const

overridevirtualinherited

Get element type std::string.

Reimplemented from RFCavity.

Definition at line 309 of file TravelingWave.cpp.

References TRAVELINGWAVE.

◆ getTypeString() [1/2]

std::string ElementBase::getTypeString ( ) const

inlineinherited

Definition at line 611 of file ElementBase.h.

References ElementBase::getType(), and ElementBase::getTypeString().

Referenced by ElementBase::getTypeString().

Here is the call graph for this function:

◆ getTypeString() [2/2]

std::string ElementBase::getTypeString ( ElementType type )

staticinherited

Definition at line 192 of file ElementBase.cpp.

References ElementBase::elementTypeToString_s.

◆ getWake()

WakeFunction * ElementBase::getWake ( ) const

inlinevirtualinherited

return the attached wake object if there is any

Definition at line 509 of file ElementBase.h.

References ElementBase::wake_m.

◆ goOffline()

void TravelingWave::goOffline ( )

overridevirtualinherited

Reimplemented from RFCavity.

Definition at line 297 of file TravelingWave.cpp.

References RFCavity::filename_m.

◆ goOnline()

void TravelingWave::goOnline ( const double & kineticEnergy )

overridevirtualinherited

Reimplemented from RFCavity.

Definition at line 292 of file TravelingWave.cpp.

References RFCavity::filename_m, and Component::online_m.

◆ hasAttribute()

bool ElementBase::hasAttribute ( const std::string & aKey ) const

virtualinherited

Test for existence of an attribute.

Definition at line 159 of file ElementBase.cpp.

References ElementBase::getConstChannel().

Here is the call graph for this function:

◆ hasBoundaryGeometry()

bool ElementBase::hasBoundaryGeometry ( ) const

inlinevirtualinherited

Definition at line 515 of file ElementBase.h.

References ElementBase::bgeometry_m.

◆ hasParticleMatterInteraction()

bool ElementBase::hasParticleMatterInteraction ( ) const

inlinevirtualinherited

Definition at line 521 of file ElementBase.h.

References ElementBase::parmatint_m.

◆ hasWake()

bool ElementBase::hasWake ( ) const

inlinevirtualinherited

Definition at line 511 of file ElementBase.h.

References ElementBase::wake_m.

◆ initialise() [1/2]

void TravelingWave::initialise	(	PartBunch_t *	bunch,
		double &	startField,
		double &	endField
	)

overridevirtualinherited

Reimplemented from RFCavity.

Definition at line 240 of file TravelingWave.cpp.

References TravelingWave::cellLength_m, RFCavity::endField_m, gmsg, RFCavity::initialise(), TravelingWave::mappedStartExitField_m, TravelingWave::mode_m, TravelingWave::numCells_m, TravelingWave::periodLength_m, RFCavity::phase_m, TravelingWave::phaseCore1_m, TravelingWave::phaseCore2_m, TravelingWave::phaseExit_m, Physics::pi, Component::RefPartBunch_m, RFCavity::scale_m, TravelingWave::scaleCore_m, TravelingWave::scaleCoreError_m, RFCavity::scaleError_m, TravelingWave::startCoreField_m, TravelingWave::startExitField_m, RFCavity::startField_m, and Physics::two_pi.

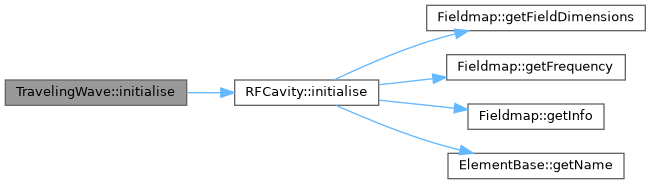

Here is the call graph for this function:

◆ initialise() [2/2]

void TravelingWave::initialise	(	PartBunch_t *	bunch,
		std::shared_ptr< AbstractTimeDependence >	freq_atd,
		std::shared_ptr< AbstractTimeDependence >	ampl_atd,
		std::shared_ptr< AbstractTimeDependence >	phase_atd
	)

overridevirtualinherited

Reimplemented from RFCavity.

Definition at line 280 of file TravelingWave.cpp.

References gmsg.

◆ isElementPositionSet()

bool ElementBase::isElementPositionSet ( ) const

inlineinherited

Definition at line 626 of file ElementBase.h.

References ElementBase::elemedgeSet_m.

◆ isInside()

bool TravelingWave::isInside ( const Vector_t< double, 3 > & r ) const

overridevirtualinherited

Reimplemented from RFCavity.

Definition at line 469 of file TravelingWave.cpp.

References ElementBase::isInsideTransverse(), TravelingWave::periodLength_m, and TravelingWave::startExitField_m.

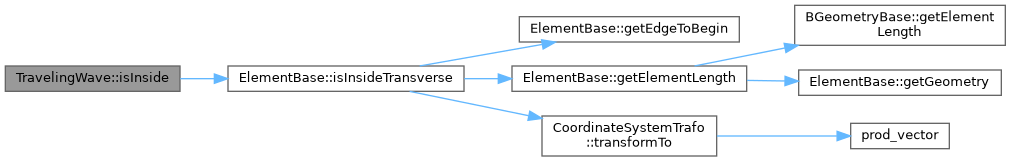

Here is the call graph for this function:

◆ isInsideTransverse()

bool ElementBase::isInsideTransverse ( const Vector_t< double, 3 > & r ) const

protectedinherited

Definition at line 233 of file ElementBase.cpp.

References ElementBase::aperture_m, CONIC_ELLIPTICAL, CONIC_RECTANGULAR, ELLIPTICAL, ElementBase::getEdgeToBegin(), ElementBase::getElementLength(), RECTANGULAR, and CoordinateSystemTrafo::transformTo().

Referenced by BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), Component::apply(), Corrector::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), Component::applyToReferenceParticle(), BendBase::applyToReferenceParticle(), ConstantEFieldCavity::applyToReferenceParticle(), Multipole::applyToReferenceParticle(), ElementBase::isInside(), BendBase::isInside(), Monitor::isInside(), Multipole::isInside(), RFCavity::isInside(), Solenoid::isInside(), and TravelingWave::isInside().

Here is the call graph for this function:

◆ isPositioned()

bool ElementBase::isPositioned ( ) const

inlineinherited

Definition at line 599 of file ElementBase.h.

References ElementBase::positionIsFixed.

Referenced by OpalRBend::update(), and OpalSBend::update().

◆ isSharable()

bool ElementBase::isSharable ( ) const

inlineinherited

Test if the element can be shared.

Definition at line 507 of file ElementBase.h.

References ElementBase::shareFlag.

Referenced by ElementBase::copyStructure(), and Sequence::updateList().

◆ makeSharable()

void ElementBase::makeSharable ( )

virtualinherited

Set sharable flag.

Reimplemented in TBeamline< T >.

Definition at line 202 of file ElementBase.cpp.

References ElementBase::shareFlag.

Referenced by OpalMarker::OpalMarker().

◆ Online()

bool Component::Online ( )

virtualinherited

Definition at line 47 of file Component.cpp.

References Component::online_m.

◆ operator=()

void TravelingWaveRep::operator= ( const TravelingWaveRep & )

private

◆ releasePosition()

void ElementBase::releasePosition ( )

inlineinherited

Definition at line 595 of file ElementBase.h.

References ElementBase::positionIsFixed.

Referenced by OpalRBend::update(), and OpalSBend::update().

◆ removeAttribute()

void ElementBase::removeAttribute ( const std::string & aKey )

virtualinherited

Remove an existing attribute.

Definition at line 170 of file ElementBase.cpp.

References AttributeSet::removeAttribute(), and ElementBase::userAttribs.

Here is the call graph for this function:

◆ setActionRange()

void ElementBase::setActionRange ( const std::queue< std::pair< double, double > > & range )

inlineinherited

Definition at line 601 of file ElementBase.h.

References ElementBase::actionRange_m, and ElementBase::elementEdge_m.

◆ setAmplitude()

void TravelingWaveRep::setAmplitude ( double V )

virtual

Set amplitude.

Definition at line 72 of file TravelingWaveRep.cpp.

References field, and ConstEzField::setEz().

Referenced by OpalTravelingWave::update().

Here is the call graph for this function:

◆ setAmplitudeError()

void RFCavity::setAmplitudeError ( double vPeakError )

inlinevirtualinherited

Definition at line 333 of file RFCavity.h.

References RFCavity::scaleError_m.

Referenced by OpalCavity::update(), and OpalTravelingWave::update().

◆ setAmplitudem()

void RFCavity::setAmplitudem ( double vPeak )

inlinevirtualinherited

Definition at line 329 of file RFCavity.h.

References RFCavity::scale_m.

Referenced by CavityAutophaser::getPhaseAtMaxEnergy(), OpalCavity::update(), and OpalTravelingWave::update().

◆ setAmplitudeModel()

void RFCavity::setAmplitudeModel ( std::shared_ptr< AbstractTimeDependence > time_dep )

inlineinherited

Definition at line 363 of file RFCavity.h.

References RFCavity::amplitudeTD_m.

Referenced by RFCavity::initialise().

◆ setAmplitudeModelName()

void RFCavity::setAmplitudeModelName ( std::string name )

inlineinherited

Definition at line 367 of file RFCavity.h.

References RFCavity::amplitudeName_m.

Referenced by OpalCavity::update().

◆ setAperture()

void ElementBase::setAperture	(	const ApertureType &	type,
		const std::vector< double > &	args
	)

inlineinherited

Definition at line 577 of file ElementBase.h.

References ElementBase::aperture_m.

Referenced by Component::Component(), TEST_F(), TEST_F(), TEST_F(), OpalElement::update(), OpalRBend::update(), and OpalSBend::update().

◆ setAttribute()

void ElementBase::setAttribute	(	const std::string &	aKey,
		double	val
	)

virtualinherited

Set value of an attribute.

Definition at line 172 of file ElementBase.cpp.

References ElementBase::getChannel(), and Channel::isSettable().

Referenced by ElementBase::update(), and OpalElement::updateUnknown().

Here is the call graph for this function:

◆ setAutophaseVeto()

void RFCavity::setAutophaseVeto ( bool veto = true )

inlinevirtualinherited

Definition at line 359 of file RFCavity.h.

References RFCavity::autophaseVeto_m.

Referenced by CavityAutophaser::getPhaseAtMaxEnergy(), OpalCavity::update(), OpalTravelingWave::update(), and ParallelTracker::updateRFElement().

◆ setAzimuth()

void RFCavity::setAzimuth ( double angle )

inherited

Definition at line 295 of file RFCavity.cpp.

References RFCavity::angle_m.

Referenced by OpalCavity::update().

◆ setBoundaryGeometry()

void ElementBase::setBoundaryGeometry ( BoundaryGeometry * geo )

virtualinherited

attach a boundary geometry field to the element

Definition at line 216 of file ElementBase.cpp.

References ElementBase::bgeometry_m.

◆ setCavityType()

void RFCavity::setCavityType ( const std::string & type )

inherited

Definition at line 319 of file RFCavity.cpp.

References RFCavity::bmCavityTypeString_s, BiMap< Left, Right >::right, SW, and RFCavity::type_m.

Referenced by OpalCavity::update().

◆ setCSTrafoGlobal2Local()

void ElementBase::setCSTrafoGlobal2Local ( const CoordinateSystemTrafo & ori )

inlineinherited

Definition at line 523 of file ElementBase.h.

References ElementBase::csTrafoGlobal2Local_m, and ElementBase::positionIsFixed.

Referenced by ElementBase::setPlacementPose(), TEST_F(), OpalElement::update(), OpalRBend::update(), and OpalSBend::update().

◆ setCurrentSCoordinate()

void ElementBase::setCurrentSCoordinate ( double s )

inherited

Definition at line 224 of file ElementBase.cpp.

References ElementBase::actionRange_m, and ElementBase::elementEdge_m.

◆ setDesignEnergy()

void RFCavity::setDesignEnergy	(	const double &	ekin,
		bool	changeable = `true`
	)

inlineoverridevirtualinherited

Reimplemented from Component.

Definition at line 321 of file RFCavity.h.

References RFCavity::designEnergy_m.

Referenced by OpalCavity::update(), and OpalTravelingWave::update().

◆ setElementLength()

void ElementBase::setElementLength ( double length )

inlinevirtualinherited

Set design length.

Reimplemented in MultipoleT, and ConstantEFieldCavityRep.

Definition at line 483 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::setElementLength().

Referenced by MultipoleT::setElementLength(), SequenceMember::setLength(), BendBase::setLength(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), OpalCavity::update(), OpalMonitor::update(), OpalMultipole::update(), OpalProbe::update(), OpalQuadrupole::update(), OpalSolenoid::update(), and OpalTravelingWave::update().

Here is the call graph for this function:

◆ setElementPosition()

void ElementBase::setElementPosition ( double elemedge )

inlineinherited

Access to ELEMEDGE attribute.

Definition at line 613 of file ElementBase.h.

References ElementBase::elemedgeSet_m, and ElementBase::elementPosition_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and OpalElement::update().

◆ setExitFaceSlope()

void Component::setExitFaceSlope ( const double & m )

inlineinherited

Definition at line 250 of file Component.h.

References Component::exit_face_slope_m.

◆ setFast()

void RFCavity::setFast ( bool fast )

inlinevirtualinherited

Definition at line 355 of file RFCavity.h.

References RFCavity::fast_m.

Referenced by OpalCavity::update(), and OpalTravelingWave::update().

◆ setFieldMapFN()

void RFCavity::setFieldMapFN ( const std::string & fmapfn )

inlinevirtualinherited

Set the name of the field map.

Definition at line 327 of file RFCavity.h.

References RFCavity::filename_m.

Referenced by OpalCavity::update(), and OpalTravelingWave::update().

◆ setFlagDeleteOnTransverseExit()

void ElementBase::setFlagDeleteOnTransverseExit ( bool flag = true )

inlineinherited

Definition at line 630 of file ElementBase.h.

References ElementBase::deleteOnTransverseExit_m.

Referenced by OpalElement::update().

◆ setFrequency()

void TravelingWaveRep::setFrequency ( double f )

virtual

Set frequency.

Definition at line 74 of file TravelingWaveRep.cpp.

References field, and OscillatingField< Field >::setFrequency().

Referenced by OpalTravelingWave::update().

Here is the call graph for this function:

◆ setFrequencym()

void RFCavity::setFrequencym ( double freq )

inlinevirtualinherited

Definition at line 339 of file RFCavity.h.

References RFCavity::frequency_m.

Referenced by OpalCavity::update(), and OpalTravelingWave::update().

◆ setFrequencyModel()

void RFCavity::setFrequencyModel ( std::shared_ptr< AbstractTimeDependence > time_dep )

inlineinherited

Definition at line 379 of file RFCavity.h.

References RFCavity::frequencyTD_m.

Referenced by RFCavity::initialise().

◆ setFrequencyModelName()

void RFCavity::setFrequencyModelName ( std::string name )

inlineinherited

Definition at line 383 of file RFCavity.h.

References RFCavity::frequencyName_m.

Referenced by OpalCavity::update().

◆ setGapWidth()

void RFCavity::setGapWidth ( double gapwidth )

inherited

Definition at line 299 of file RFCavity.cpp.

References RFCavity::gapwidth_m.

Referenced by OpalCavity::update().

◆ setIgnore()

void TravelingWaveRep::setIgnore ( bool ignore = false )

static

Set ignore switch.

Definition at line 78 of file TravelingWaveRep.cpp.

References ignoreCavities.

◆ setMisalignment()

void ElementBase::setMisalignment ( const CoordinateSystemTrafo & cst )

inlineinherited

Definition at line 591 of file ElementBase.h.

References ElementBase::misalignment_m.

Referenced by TEST_F(), and OpalElement::update().

◆ setMode()

void TravelingWave::setMode ( double mode )

inlineinherited

Definition at line 218 of file TravelingWave.h.

References TravelingWave::mode_m.

Referenced by OpalTravelingWave::update().

◆ setName()

void ElementBase::setName ( const std::string & name )

virtualinherited

Set element name.

Definition at line 134 of file ElementBase.cpp.

References ElementBase::elementID.

Referenced by Sequence::insertDrifts(), and VariableRFCavity::operator=().

◆ setNumCells()

void TravelingWave::setNumCells ( int NumCells )

inlineinherited

Definition at line 216 of file TravelingWave.h.

References TravelingWave::numCells_m.

Referenced by OpalTravelingWave::update().

◆ setOutputFN()

void ElementBase::setOutputFN ( std::string fn )

inherited

Set output filename.

Definition at line 136 of file ElementBase.cpp.

References ElementBase::outputfn_m.

Referenced by OpalMonitor::update(), and OpalProbe::update().

◆ setParticleMatterInteraction()

void ElementBase::setParticleMatterInteraction ( ParticleMatterInteractionHandler * spys )

virtualinherited

Definition at line 220 of file ElementBase.cpp.

References ElementBase::parmatint_m.

◆ setPerpenDistance()

void RFCavity::setPerpenDistance ( double pdis )

inherited

Definition at line 297 of file RFCavity.cpp.

References RFCavity::pdis_m.

Referenced by OpalCavity::update().

◆ setPhase()

void TravelingWaveRep::setPhase ( double phi )

virtual

Set phase.

Definition at line 76 of file TravelingWaveRep.cpp.

References field, and OscillatingField< Field >::setPhase().

Referenced by OpalTravelingWave::update().

Here is the call graph for this function:

◆ setPhaseError()

void RFCavity::setPhaseError ( double phaseError )

inlinevirtualinherited

Definition at line 349 of file RFCavity.h.

References RFCavity::phaseError_m.

Referenced by OpalCavity::update(), and OpalTravelingWave::update().

◆ setPhasem()

void TravelingWave::setPhasem ( double phase )

inlineoverridevirtualinherited

Reimplemented from RFCavity.

Definition at line 207 of file TravelingWave.h.

References TravelingWave::mode_m, TravelingWave::numCells_m, RFCavity::phase_m, TravelingWave::phaseCore1_m, TravelingWave::phaseCore2_m, TravelingWave::phaseExit_m, Physics::pi, and Physics::two_pi.

Referenced by OpalTravelingWave::update().

◆ setPhaseModel()

void RFCavity::setPhaseModel ( std::shared_ptr< AbstractTimeDependence > time_dep )

inlineinherited

Definition at line 371 of file RFCavity.h.

References RFCavity::phaseTD_m.

Referenced by RFCavity::initialise().

◆ setPhaseModelName()

void RFCavity::setPhaseModelName ( std::string name )

inlineinherited

Definition at line 375 of file RFCavity.h.

References RFCavity::phaseName_m.

Referenced by OpalCavity::update().

◆ setPhi0()

void RFCavity::setPhi0 ( double phi0 )

inherited

Definition at line 301 of file RFCavity.cpp.

References RFCavity::phi0_m.

Referenced by OpalCavity::update().

◆ setPlacementPose()

void ElementBase::setPlacementPose ( const PlacementPose & pose )

inlineinherited

Set the nominal rigid placement transform of the element.

This bridge setter preserves the existing storage model by delegating to setCSTrafoGlobal2Local().

Definition at line 555 of file ElementBase.h.

References PlacementPose::getParentToNominal(), and ElementBase::setCSTrafoGlobal2Local().

Here is the call graph for this function:

◆ setRmax()

void RFCavity::setRmax ( double rmax )

inherited

Definition at line 293 of file RFCavity.cpp.

References RFCavity::rmax_m.

Referenced by OpalCavity::update().

◆ setRmin()

void RFCavity::setRmin ( double rmin )

inherited

Definition at line 291 of file RFCavity.cpp.

References RFCavity::rmin_m.

Referenced by OpalCavity::update().

◆ setRotationAboutZ()

void ElementBase::setRotationAboutZ ( double rotation )

inlineinherited

Set rotation about z axis in bend frame.

Definition at line 607 of file ElementBase.h.

References ElementBase::rotationZAxis_m.

Referenced by OpalElement::update().

◆ setWake()

void ElementBase::setWake ( WakeFunction * wf )

virtualinherited

attach a wake field to the element

Definition at line 212 of file ElementBase.cpp.

References ElementBase::wake_m.

◆ spline()

double RFCavity::spline	(	double	z,
		double *	za
	)

inherited

Definition at line 417 of file RFCavity.cpp.

References RFCavity::DvDr_m, RFCavity::num_points_m, RFCavity::RNormal_m, and RFCavity::VrNormal_m.

Referenced by RFCavity::getMomentaKick().

◆ trackBunch()

void Component::trackBunch	(	PartBunch_t &	bunch,
		const PartData &	,
		bool	revBeam,
		bool	revTrack
	)		const

virtualinherited

Track a borrowed particle bunch through a non-standard component.

The default implementation throws a LogicalError.

Parameters

bunch Particle bunch to track. The component does not take ownership.

Definition at line 35 of file Component.cpp.

References ElementBase::getName().

Referenced by Tracker::visitComponent().

Here is the call graph for this function:

◆ trackMap()

void Component::trackMap	(	FVps< double, 6 > &	map,
		const PartData &	,
		bool	revBeam,
		bool	revTrack
	)		const

virtualinherited

Track a map.

Definition at line 39 of file Component.cpp.

References ElementBase::getName().

Here is the call graph for this function:

◆ trackOnAxisParticle()

std::pair< double, double > RFCavity::trackOnAxisParticle	(	const double &	p0,
		const double &	t0,
		const double &	dt,
		const double &	q,
		const double &	mass,
		std::ofstream *	out = `nullptr`
	)

virtualinherited

Definition at line 659 of file RFCavity.cpp.

References RFCavity::applyToReferenceParticle(), Physics::c, dot(), RFCavity::endField_m, Util::getGamma(), Util::getKineticEnergy(), PartData::getM(), PartData::getQ(), PartBunch< T, Dim >::getReference(), BorisPusher::kick(), BorisPusher::push(), Component::RefPartBunch_m, and RFCavity::startField_m.

Referenced by RFCavity::getAutoPhaseEstimateFallback(), and CavityAutophaser::track().

Here is the call graph for this function:

◆ update()

bool ElementBase::update ( const AttributeSet & set )

inherited

Update element.

Definition at line 204 of file ElementBase.cpp.

References AttributeSet::begin(), AttributeSet::end(), and ElementBase::setAttribute().

Referenced by Monitor::driftToCorrectPositionAndSave().

Here is the call graph for this function:

Member Data Documentation

◆ actionRange_m

std::queue<std::pair<double, double> > ElementBase::actionRange_m

privateinherited

Definition at line 469 of file ElementBase.h.

Referenced by ElementBase::setActionRange(), and ElementBase::setCurrentSCoordinate().

◆ amplitudeName_m

std::string RFCavity::amplitudeName_m

protectedinherited

Definition at line 202 of file RFCavity.h.

Referenced by RFCavity::getAmplitudeModelName(), and RFCavity::setAmplitudeModelName().

◆ amplitudeTD_m

std::shared_ptr<AbstractTimeDependence> RFCavity::amplitudeTD_m

protectedinherited

Definition at line 201 of file RFCavity.h.

Referenced by RFCavity::setAmplitudeModel().

◆ angle_m

double RFCavity::angle_m

privateinherited

Definition at line 230 of file RFCavity.h.

Referenced by RFCavity::getAzimuth(), RFCavity::initialise(), and RFCavity::setAzimuth().

◆ aperture_m

std::pair<ApertureType, std::vector<double> > ElementBase::aperture_m

protectedinherited

Definition at line 440 of file ElementBase.h.

Referenced by ElementBase::getAperture(), ElementBase::getBoundingBoxInLabCoords(), ElementBase::isInsideTransverse(), and ElementBase::setAperture().

◆ autophaseVeto_m

bool RFCavity::autophaseVeto_m

protectedinherited

Definition at line 215 of file RFCavity.h.

Referenced by RFCavity::getAutophaseVeto(), and RFCavity::setAutophaseVeto().

◆ bgeometry_m

BoundaryGeometry* ElementBase::bgeometry_m

privateinherited

Definition at line 460 of file ElementBase.h.

Referenced by ElementBase::getBoundaryGeometry(), ElementBase::hasBoundaryGeometry(), and ElementBase::setBoundaryGeometry().

◆ bmCavityTypeString_s

const BiMap< CavityType, std::string > RFCavity::bmCavityTypeString_s

staticprivateinherited

Initial value:

= []() {
    BiMap<CavityType, std::string> bimap;
    bimap.insert(CavityType::SW, "STANDING");
    bimap.insert(CavityType::SGSW, "SINGLEGAP");
    return bimap;
}()

Definition at line 32 of file RFCavity.h.

Referenced by RFCavity::getCavityTypeString(), and RFCavity::setCavityType().

◆ cellLength_m

double TravelingWave::cellLength_m

privateinherited

Definition at line 119 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), and TravelingWave::initialise().

◆ cosAngle_m

double RFCavity::cosAngle_m

privateinherited

Definition at line 232 of file RFCavity.h.

Referenced by RFCavity::getCosAzimuth(), RFCavity::getMomentaKick(), and RFCavity::initialise().

◆ csTrafoGlobal2Local_m

CoordinateSystemTrafo ElementBase::csTrafoGlobal2Local_m

protectedinherited

Definition at line 437 of file ElementBase.h.

Referenced by Monitor::applyToReferenceParticle(), ElementBase::getBoundingBoxInLabCoords(), ElementBase::getCSTrafoGlobal2Local(), and ElementBase::setCSTrafoGlobal2Local().

◆ defaultAperture_m

const std::vector< double > Component::defaultAperture_m = std::vector<double>({1e6, 1e6, 1.0})

staticprotectedinherited

Definition at line 221 of file Component.h.

Referenced by Component::Component().

◆ deleteOnTransverseExit_m

bool ElementBase::deleteOnTransverseExit_m = true

privateinherited

Definition at line 473 of file ElementBase.h.

Referenced by ElementBase::getFlagDeleteOnTransverseExit(), and ElementBase::setFlagDeleteOnTransverseExit().

◆ designEnergy_m

double RFCavity::designEnergy_m

protectedinherited

Definition at line 217 of file RFCavity.h.

Referenced by RFCavity::getDesignEnergy(), and RFCavity::setDesignEnergy().

◆ DvDr_m

std::unique_ptr<double[]> RFCavity::DvDr_m

privateinherited

Definition at line 239 of file RFCavity.h.

Referenced by RFCavity::initialise(), and RFCavity::spline().

◆ elemedgeSet_m

bool ElementBase::elemedgeSet_m

privateinherited

Definition at line 467 of file ElementBase.h.

Referenced by ElementBase::getElementPosition(), ElementBase::isElementPositionSet(), and ElementBase::setElementPosition().

◆ elementEdge_m

double ElementBase::elementEdge_m

protectedinherited

Definition at line 442 of file ElementBase.h.

Referenced by ElementBase::setActionRange(), and ElementBase::setCurrentSCoordinate().

◆ elementID

std::string ElementBase::elementID

privateinherited

Definition at line 451 of file ElementBase.h.

Referenced by ElementBase::getName(), and ElementBase::setName().

◆ elementPosition_m

double ElementBase::elementPosition_m

privateinherited

ELEMEDGE attribute.

Definition at line 466 of file ElementBase.h.

Referenced by ElementBase::getElementPosition(), and ElementBase::setElementPosition().

◆ elementTypeToString_s

const std::map< ElementType, std::string > ElementBase::elementTypeToString_s

staticprivateinherited

Initial value:

= {
        {ElementType::ANY, "Any"},
        {ElementType::BEAMLINE, "Beamline"},
        {ElementType::DRIFT, "Drift"},
        {ElementType::LASER, "Laser"},
        {ElementType::MARKER, "Marker"},
        {ElementType::MONITOR, "Monitor"},
        {ElementType::MULTIPOLE, "Multipole"},
        {ElementType::RFCAVITY, "RFCavity"},
        {ElementType::TRAVELINGWAVE, "TravelingWave"},
        {ElementType::SBEND, "SBEND"},
        {ElementType::RBEND, "RBEND"},
        {ElementType::RBEND3D, "RBEND3D"},
        {ElementType::RING, "Ring"},
        {ElementType::SOURCE, "SOURCE"},
        {ElementType::SOLENOID, "SOLENOID"},
        {ElementType::PROBE, "Probe"},
        {ElementType::VACUUM, "Vacuum"},
        {ElementType::CONSTANTEFIELDCAVITY, "ConstantEFieldCavity"}}

Definition at line 73 of file ElementBase.h.

Referenced by ElementBase::getTypeString().

◆ endField_m

double RFCavity::endField_m

protectedinherited

end point of field support(m)

Definition at line 221 of file RFCavity.h.

Referenced by RFCavity::apply(), TravelingWave::apply(), RFCavity::apply(), TravelingWave::apply(), RFCavity::applyToReferenceParticle(), TravelingWave::applyToReferenceParticle(), RFCavity::getFieldExtend(), TravelingWave::getFieldExtend(), RFCavity::initialise(), TravelingWave::initialise(), TestTravelingWave::setEndField(), TestRFCavity::setEndField(), and RFCavity::trackOnAxisParticle().

◆ exit_face_slope_m

double Component::exit_face_slope_m

protectedinherited

Definition at line 222 of file Component.h.

Referenced by Component::setExitFaceSlope().

◆ fast_m

bool RFCavity::fast_m

protectedinherited

Definition at line 214 of file RFCavity.h.

Referenced by RFCavity::getFast(), RFCavity::initialise(), and RFCavity::setFast().

◆ field

AcceleratingField TravelingWaveRep::field

private

The cavity's field.

Definition at line 98 of file TravelingWaveRep.h.

Referenced by getAmplitude(), getField(), getField(), getFrequency(), getPhase(), setAmplitude(), setFrequency(), and setPhase().

◆ fieldmap_m

Fieldmap* RFCavity::fieldmap_m

protectedinherited

Definition at line 219 of file RFCavity.h.

Referenced by RFCavity::apply(), TravelingWave::apply(), RFCavity::apply(), TravelingWave::apply(), RFCavity::applyToReferenceParticle(), TravelingWave::applyToReferenceParticle(), RFCavity::dropFieldmaps(), RFCavity::getAutoPhaseEstimate(), TravelingWave::getAutoPhaseEstimate(), RFCavity::initialise(), RFCavity::isInside(), TestRFCavity::setFieldmap(), and TestTravelingWave::setFieldmap().

◆ filename_m

std::string RFCavity::filename_m

protectedinherited

The name of the inputfile

Definition at line 206 of file RFCavity.h.

Referenced by RFCavity::getFieldMapFN(), RFCavity::goOffline(), TravelingWave::goOffline(), RFCavity::goOnline(), TravelingWave::goOnline(), RFCavity::initialise(), RFCavity::initialise(), and RFCavity::setFieldMapFN().

◆ frequency_m

double RFCavity::frequency_m

protectedinherited

◆ frequencyName_m

std::string RFCavity::frequencyName_m

protectedinherited

Definition at line 204 of file RFCavity.h.

Referenced by RFCavity::getFrequencyModelName(), RFCavity::initialise(), and RFCavity::setFrequencyModelName().

◆ frequencyTD_m

std::shared_ptr<AbstractTimeDependence> RFCavity::frequencyTD_m

protectedinherited

Definition at line 203 of file RFCavity.h.

Referenced by RFCavity::getMomentaKick(), and RFCavity::setFrequencyModel().

◆ gapwidth_m

double RFCavity::gapwidth_m

privateinherited

Definition at line 234 of file RFCavity.h.

Referenced by RFCavity::getGapWidth(), RFCavity::getMomentaKick(), and RFCavity::setGapWidth().

◆ geometry

StraightGeometry TravelingWaveRep::geometry

private

The cavity's geometry.

Definition at line 95 of file TravelingWaveRep.h.

Referenced by getGeometry(), and getGeometry().

◆ ignoreCavities

bool TravelingWaveRep::ignoreCavities = false

staticprivate

Cavities are ignored (amplitude = 0) when this switch is set.

Definition at line 101 of file TravelingWaveRep.h.

Referenced by getAmplitude(), and setIgnore().

◆ mappedStartExitField_m

double TravelingWave::mappedStartExitField_m

privateinherited

Definition at line 115 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), and TravelingWave::initialise().

◆ misalignment_m

CoordinateSystemTrafo ElementBase::misalignment_m

protectedinherited

Definition at line 438 of file ElementBase.h.

Referenced by ElementBase::getMisalignment(), and ElementBase::setMisalignment().

◆ mode_m

double TravelingWave::mode_m

privateinherited

Definition at line 120 of file TravelingWave.h.

Referenced by TravelingWave::getAutoPhaseEstimate(), TravelingWave::initialise(), TravelingWave::setMode(), and TravelingWave::setPhasem().

◆ num_points_m

int RFCavity::num_points_m

privateinherited

Definition at line 240 of file RFCavity.h.

Referenced by RFCavity::initialise(), and RFCavity::spline().

◆ numCells_m

int TravelingWave::numCells_m

privateinherited

Definition at line 118 of file TravelingWave.h.

Referenced by TravelingWave::getAutoPhaseEstimate(), TravelingWave::initialise(), TravelingWave::setNumCells(), and TravelingWave::setPhasem().

◆ online_m

bool Component::online_m

protectedinherited

◆ outputfn_m

std::string ElementBase::outputfn_m

privateinherited

The name of the outputfile

Definition at line 471 of file ElementBase.h.

Referenced by ElementBase::getOutputFN(), and ElementBase::setOutputFN().

◆ parmatint_m

ParticleMatterInteractionHandler* ElementBase::parmatint_m

privateinherited

Definition at line 462 of file ElementBase.h.

Referenced by ElementBase::getParticleMatterInteraction(), ElementBase::hasParticleMatterInteraction(), and ElementBase::setParticleMatterInteraction().

◆ pdis_m

double RFCavity::pdis_m

privateinherited

Definition at line 233 of file RFCavity.h.

Referenced by RFCavity::getPerpenDistance(), and RFCavity::setPerpenDistance().

◆ periodLength_m

double TravelingWave::periodLength_m

privateinherited

Definition at line 117 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), TravelingWave::initialise(), and TravelingWave::isInside().

◆ phase_m

double RFCavity::phase_m

protectedinherited

phase shift of time varying field (rad)

Definition at line 210 of file RFCavity.h.

Referenced by RFCavity::apply(), TravelingWave::apply(), RFCavity::apply(), TravelingWave::apply(), RFCavity::applyToReferenceParticle(), TravelingWave::applyToReferenceParticle(), TravelingWave::getAutoPhaseEstimate(), RFCavity::getPhasem(), RFCavity::getPhasem(), TravelingWave::initialise(), TestRFCavity::setPhaseInternal(), TestTravelingWave::setPhaseInternal(), RFCavity::setPhasem(), and TravelingWave::setPhasem().

◆ phaseCore1_m

double TravelingWave::phaseCore1_m

privateinherited

Definition at line 109 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), TravelingWave::getAutoPhaseEstimate(), TravelingWave::initialise(), and TravelingWave::setPhasem().

◆ phaseCore2_m

double TravelingWave::phaseCore2_m

privateinherited

Definition at line 110 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), TravelingWave::getAutoPhaseEstimate(), TravelingWave::initialise(), and TravelingWave::setPhasem().

◆ phaseError_m

double RFCavity::phaseError_m

protectedinherited

phase shift error (rad)

Definition at line 211 of file RFCavity.h.

Referenced by RFCavity::apply(), TravelingWave::apply(), RFCavity::apply(), TravelingWave::apply(), RFCavity::getPhaseError(), and RFCavity::setPhaseError().

◆ phaseExit_m

double TravelingWave::phaseExit_m

privateinherited

Definition at line 111 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), TravelingWave::getAutoPhaseEstimate(), TravelingWave::initialise(), and TravelingWave::setPhasem().

◆ phaseName_m

std::string RFCavity::phaseName_m

protectedinherited

Definition at line 200 of file RFCavity.h.

Referenced by RFCavity::getPhaseModelName(), and RFCavity::setPhaseModelName().

◆ phaseTD_m

std::shared_ptr<AbstractTimeDependence> RFCavity::phaseTD_m

protectedinherited

Definition at line 199 of file RFCavity.h.

Referenced by RFCavity::setPhaseModel().

◆ phi0_m

double RFCavity::phi0_m

privateinherited

Definition at line 235 of file RFCavity.h.

Referenced by RFCavity::getMomentaKick(), RFCavity::getPhi0(), and RFCavity::setPhi0().

◆ positionIsFixed

bool ElementBase::positionIsFixed

privateinherited

Definition at line 464 of file ElementBase.h.

Referenced by ElementBase::fixPosition(), ElementBase::isPositioned(), ElementBase::releasePosition(), and ElementBase::setCSTrafoGlobal2Local().

◆ RefPartBunch_m

PartBunch_t* Component::RefPartBunch_m

protectedinherited

Definition at line 225 of file Component.h.

Referenced by Corrector::apply(), VerticalFFAMagnet::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Monitor::apply(), Multipole::apply(), MultipoleT::apply(), RFCavity::apply(), ScalingFFAMagnet::apply(), Solenoid::apply(), TravelingWave::apply(), VariableRFCavity::apply(), Ring::apply(), Monitor::apply(), MultipoleT::apply(), RFCavity::apply(), TravelingWave::apply(), VariableRFCavity::apply(), Corrector::apply(), Monitor::applyToReferenceParticle(), BendBase::calcDesignRadius(), BendBase::calcFieldAmplitude(), BendBase::calcGamma(), Monitor::driftToCorrectPositionAndSave(), VerticalFFAMagnet::finalise(), MultipoleT::finalise(), ScalingFFAMagnet::finalise(), VariableRFCavity::finalise(), Corrector::goOnline(), PluginElement::initialise(), Corrector::initialise(), VerticalFFAMagnet::initialise(), BendBase::initialise(), ConstantEFieldCavity::initialise(), Drift::initialise(), Laser::initialise(), Marker::initialise(), Monitor::initialise(), Multipole::initialise(), MultipoleT::initialise(), RFCavity::initialise(), ScalingFFAMagnet::initialise(), Solenoid::initialise(), TravelingWave::initialise(), VariableRFCavity::initialise(), RFCavity::initialise(), VariableRFCavity::initNull(), Multipole::isFocusing(), MultipoleT::MultipoleT(), ScalingFFAMagnet::ScalingFFAMagnet(), Corrector::setDesignEnergy(), Ring::setRefPartBunch(), RFCavity::trackOnAxisParticle(), and VerticalFFAMagnet::VerticalFFAMagnet().

◆ rmax_m

double RFCavity::rmax_m

privateinherited

Definition at line 229 of file RFCavity.h.

Referenced by RFCavity::getMomentaKick(), RFCavity::getRmax(), and RFCavity::setRmax().

◆ rmin_m

double RFCavity::rmin_m

privateinherited

Definition at line 228 of file RFCavity.h.

Referenced by RFCavity::getMomentaKick(), RFCavity::getRmin(), and RFCavity::setRmin().

◆ RNormal_m

std::unique_ptr<double[]> RFCavity::RNormal_m

privateinherited

Definition at line 237 of file RFCavity.h.

Referenced by RFCavity::initialise(), and RFCavity::spline().

◆ rotationZAxis_m

double ElementBase::rotationZAxis_m

protectedinherited

Definition at line 444 of file ElementBase.h.

Referenced by ElementBase::getRotationAboutZ(), and ElementBase::setRotationAboutZ().

◆ scale_m

double RFCavity::scale_m

protectedinherited

scale multiplier

Definition at line 208 of file RFCavity.h.

Referenced by RFCavity::apply(), TravelingWave::apply(), RFCavity::apply(), TravelingWave::apply(), RFCavity::applyToReferenceParticle(), TravelingWave::applyToReferenceParticle(), RFCavity::getAmplitudem(), RFCavity::getAutoPhaseEstimate(), TravelingWave::getAutoPhaseEstimate(), RFCavity::getMomentaKick(), TravelingWave::initialise(), RFCavity::setAmplitudem(), TestRFCavity::setScale(), and TestTravelingWave::setScale().

◆ scaleCore_m

double TravelingWave::scaleCore_m

privateinherited

Definition at line 106 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), TravelingWave::getAutoPhaseEstimate(), TravelingWave::initialise(), and TestTravelingWave::setScaleCore().

◆ scaleCoreError_m

double TravelingWave::scaleCoreError_m

privateinherited

Definition at line 107 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::initialise(), and TestTravelingWave::setScaleCoreError().

◆ scaleError_m

double RFCavity::scaleError_m

protectedinherited

additive scale error

Definition at line 209 of file RFCavity.h.

Referenced by RFCavity::apply(), TravelingWave::apply(), RFCavity::apply(), TravelingWave::apply(), RFCavity::getAmplitudeError(), TravelingWave::initialise(), RFCavity::setAmplitudeError(), and TestTravelingWave::setScaleError().

◆ shareFlag

bool ElementBase::shareFlag

mutableprotectedinherited

Definition at line 435 of file ElementBase.h.

Referenced by Beamline::Beamline(), Beamline::Beamline(), Beamline::Beamline(), ElementBase::isSharable(), and ElementBase::makeSharable().

◆ sinAngle_m

double RFCavity::sinAngle_m

privateinherited

Definition at line 231 of file RFCavity.h.

Referenced by RFCavity::getMomentaKick(), RFCavity::getSinAzimuth(), and RFCavity::initialise().

◆ startCoreField_m

double TravelingWave::startCoreField_m

privateinherited

starting point of field(m)

Definition at line 113 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), and TravelingWave::initialise().

◆ startExitField_m

double TravelingWave::startExitField_m

privateinherited

Definition at line 114 of file TravelingWave.h.

Referenced by TravelingWave::apply(), TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), TravelingWave::initialise(), and TravelingWave::isInside().

◆ startField_m

double RFCavity::startField_m

protectedinherited

starting point of field(m)

Definition at line 220 of file RFCavity.h.

Referenced by RFCavity::apply(), TravelingWave::apply(), RFCavity::apply(), TravelingWave::apply(), RFCavity::applyToReferenceParticle(), TravelingWave::applyToReferenceParticle(), RFCavity::getFieldExtend(), TravelingWave::getFieldExtend(), RFCavity::initialise(), TravelingWave::initialise(), TestTravelingWave::setStartField(), TestRFCavity::setStartField(), and RFCavity::trackOnAxisParticle().

◆ type_m

CavityType RFCavity::type_m

privateinherited

Definition at line 224 of file RFCavity.h.

Referenced by RFCavity::getCavityType(), RFCavity::getCavityTypeString(), and RFCavity::setCavityType().

◆ userAttribs

AttributeSet ElementBase::userAttribs

privateinherited

Definition at line 456 of file ElementBase.h.

Referenced by ElementBase::getChannel(), and ElementBase::removeAttribute().

◆ VrNormal_m

std::unique_ptr<double[]> RFCavity::VrNormal_m

privateinherited

Definition at line 238 of file RFCavity.h.

Referenced by RFCavity::initialise(), and RFCavity::spline().

◆ wake_m

WakeFunction* ElementBase::wake_m

privateinherited

Definition at line 458 of file ElementBase.h.

Referenced by ElementBase::getWake(), ElementBase::hasWake(), and ElementBase::setWake().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TravelingWaveRep() [1/3]

◆ TravelingWaveRep() [2/3]

◆ TravelingWaveRep() [3/3]

◆ ~TravelingWaveRep()

Member Function Documentation

◆ accept()

◆ apply() [1/3]

◆ apply() [2/3]

◆ apply() [3/3]

◆ applyToReferenceParticle()

◆ bends()

◆ Bfield() [1/2]

◆ Bfield() [2/2]

◆ clone()

◆ copyStructure()

◆ dropFieldmaps()

◆ EBfield() [1/2]

◆ EBfield() [2/2]

◆ Efield() [1/2]

◆ Efield() [2/2]

◆ finalise()

◆ fixPosition()

◆ getAmplitude()

◆ getAmplitudeError()

◆ getAmplitudem()

◆ getAmplitudeModelName()

◆ getAperture()

◆ getArcLength()

◆ getAttribute()

◆ getAutoPhaseEstimate()

◆ getAutoPhaseEstimateFallback()

◆ getAutophaseVeto()

◆ getAzimuth()

◆ getBodyPort()

◆ getBoundaryGeometry()

◆ getBoundingBoxInLabCoords()

◆ getCavityType()

◆ getCavityTypeString()

◆ getChannel()

◆ getConstChannel()

◆ getCosAzimuth()

◆ getCSTrafoGlobal2Local()

◆ getCycFrequency()

◆ getdA()

◆ getdB()

◆ getdE()

◆ getDesign()

◆ getDesignEnergy()

◆ getdT()

◆ getEdgeToBegin()

◆ getEdgeToEnd()

◆ getElementDimensions()

◆ getElementLength()

◆ getElementPosition()

◆ getEntrance()

◆ getEntranceFrame()

◆ getEntrancePatch()

◆ getEntryPort()

◆ getExit()

◆ getExitFrame()

◆ getExitPatch()

◆ getExitPort()

◆ getFast()

◆ getField() [1/2]

◆ getField() [2/2]

◆ getFieldExtend()

◆ getFieldMapFN()

◆ getFlagDeleteOnTransverseExit()

◆ getFrequency()

◆ getFrequencym()
