AbstractTimeDependence Class Reference

#include <AbstractTimeDependence.h>

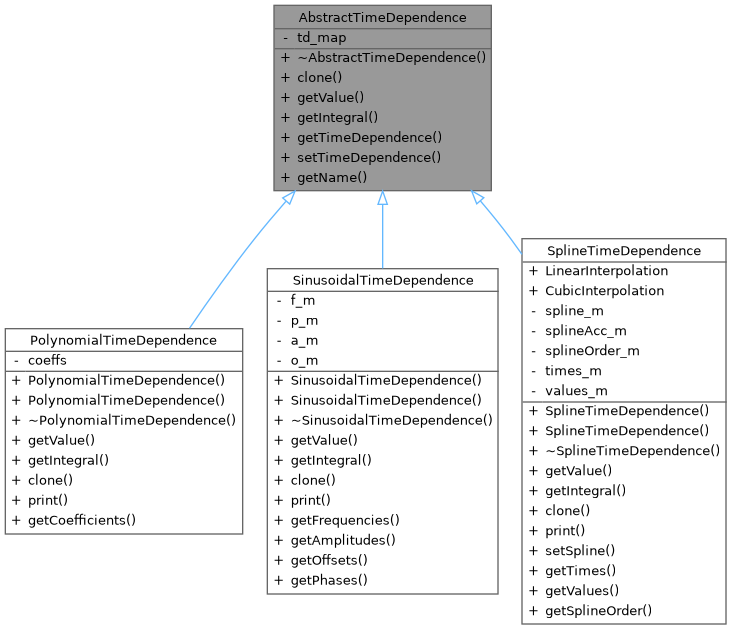

Inheritance diagram for AbstractTimeDependence:

Collaboration diagram for AbstractTimeDependence:

Public Member Functions
virtual	~AbstractTimeDependence ()=default
virtual AbstractTimeDependence *	clone ()=0
virtual double	getValue (double time)=0
virtual double	getIntegral (double time)=0

Static Public Member Functions
static std::shared_ptr< AbstractTimeDependence >	getTimeDependence (const std::string &name)
static void	setTimeDependence (const std::string &name, std::shared_ptr< AbstractTimeDependence > time_dep)
static std::string	getName (const std::shared_ptr< AbstractTimeDependence > &time_dep)

Static Private Attributes
static std::map< std::string, std::shared_ptr< AbstractTimeDependence > >	td_map

Detailed Description

Time dependence abstraction for field parameters that vary slowly with time; for example, in RF cavities for synchrotrons the RF frequency varies to match the time-of-flight of the particles

This base class stores a mapping of string to time dependence. At Visit time, we do a map look-up to assign the appropriate TimeDependence to the relevant field Elements.

Definition at line 33 of file AbstractTimeDependence.h.

Constructor & Destructor Documentation

~AbstractTimeDependence()

virtual AbstractTimeDependence::~AbstractTimeDependence ( )

virtualdefault

Destructor does nothing

Member Function Documentation

clone()

virtual AbstractTimeDependence * AbstractTimeDependence::clone ( )

pure virtual

Inheritable copy constructor

Returns

new AbstractTimeDependence that is a copy of this. User owns returned memory.

Implemented in PolynomialTimeDependence, SinusoidalTimeDependence, and SplineTimeDependence.

getIntegral()

virtual double AbstractTimeDependence::getIntegral ( double  time )

pure virtual

getIntegral(time) returns the integral from 0 to time of the function.

Implemented in PolynomialTimeDependence, SinusoidalTimeDependence, and SplineTimeDependence.

getName()

std::string AbstractTimeDependence::getName ( const std::shared_ptr< AbstractTimeDependence > &  time_dep )

static

Get the name corresponding to a given time_dep

Parameters

time_dep

time dependence to lookup

Returns

name corresponding to the time dependence. Note that this just does a dumb loop over the stored map values; so O(N).

Exceptions

GeneralOpalException

if time_dep is not recognised

Definition at line 40 of file AbstractTimeDependence.cpp.

References td_map.

Referenced by TEST(), and TEST().

getTimeDependence()

std::shared_ptr< AbstractTimeDependence > AbstractTimeDependence::getTimeDependence ( const std::string &  name )

static

Look up the time dependence that has a given name

Parameters

name	name of the time dependence

Returns

shared_ptr to the appropriate time dependence.

Exceptions

GeneralOpalException

if name is not recognised

Definition at line 24 of file AbstractTimeDependence.cpp.

References td_map.

Referenced by MultipoleT::initialiseTimeDependencies(), VariableRFCavity::initialiseTimeDependencies(), TEST(), TEST(), TEST(), TEST(), TEST(), TEST(), TEST(), TEST(), and TEST().

getValue()

virtual double AbstractTimeDependence::getValue ( double  time )

pure virtual

getValue(time) returns the value as a function of time.

This could represent RF voltage or frequency, magnetic field strength etc

Implemented in PolynomialTimeDependence, SinusoidalTimeDependence, and SplineTimeDependence.

setTimeDependence()

void AbstractTimeDependence::setTimeDependence ( const std::string &  name, std::shared_ptr< AbstractTimeDependence >  time_dep  )

static

Add a value to the lookup table

Parameters

name	name of the time dependence. If name already exists in the map, it is overwritten with the new value.
time_dep	shared_ptr to the time dependence.

Definition at line 35 of file AbstractTimeDependence.cpp.

References td_map.

Referenced by TEST(), TEST(), TEST(), TEST(), TEST_F(), TEST_F(), TEST_F(), OpalPolynomialTimeDependence::update(), OpalSinusoidalTimeDependence::update(), and OpalSplineTimeDependence::update().

Member Data Documentation

td_map

std::map< std::string, std::shared_ptr< AbstractTimeDependence > > AbstractTimeDependence::td_map

staticprivate

Initial value:

=
        std::map<std::string, std::shared_ptr<AbstractTimeDependence> >()

Definition at line 87 of file AbstractTimeDependence.h.

Referenced by getName(), getTimeDependence(), and setTimeDependence().

---

The documentation for this class was generated from the following files:

• AbstractTimeDependence.h
• AbstractTimeDependence.cpp
