SinusoidalTimeDependence Class Reference

#include <SinusoidalTimeDependence.h>

Inheritance diagram for SinusoidalTimeDependence:

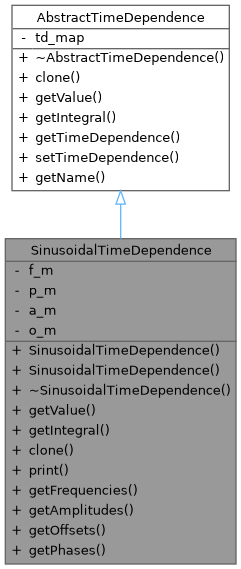

Collaboration diagram for SinusoidalTimeDependence:

Public Member Functions
	SinusoidalTimeDependence (const std::vector< double > &f, const std::vector< double > &p, const std::vector< double > &a, const std::vector< double > &o)
	SinusoidalTimeDependence ()=default
	~SinusoidalTimeDependence () override=default
double	getValue (double time) override
double	getIntegral (double time) override
SinusoidalTimeDependence *	clone () override
Inform &	print (Inform &os) const
const std::vector< double > &	getFrequencies () const
const std::vector< double > &	getAmplitudes () const
const std::vector< double > &	getOffsets () const
const std::vector< double > &	getPhases () const

Static Public Member Functions
static std::shared_ptr< AbstractTimeDependence >	getTimeDependence (const std::string &name)
static void	setTimeDependence (const std::string &name, std::shared_ptr< AbstractTimeDependence > time_dep)
static std::string	getName (const std::shared_ptr< AbstractTimeDependence > &time_dep)

Private Attributes
std::vector< double >	f_m
std::vector< double >	p_m
std::vector< double >	a_m
std::vector< double >	o_m

Static Private Attributes
static std::map< std::string, std::shared_ptr< AbstractTimeDependence > >	td_map

Detailed Description

Time dependence that follows sum of a set of sinusoids sigma_over_i(a[i] / 2 * sin(2 * pi * f[i] * t + p[i]) + o[i]) a is the peak to peak amplitude, f is the frequency, p is the phase offset, o is the DC offset, t is the time.

Definition at line 32 of file SinusoidalTimeDependence.h.

Constructor & Destructor Documentation

SinusoidalTimeDependence() [1/2]

SinusoidalTimeDependence::SinusoidalTimeDependence	(	const std::vector< double > &	f,
		const std::vector< double > &	p,
		const std::vector< double > &	a,
		const std::vector< double > &	o
	)

Constructor

Parameters

f	the frequencies in Hz; can be of arbitrary length
p	the phase offsets in radians; can be of arbitrary length
a	the peak-to-peak amplitude; can be of arbitrary length
o	the DC offset; can be of arbitrary length (user is responsible for issues like floating point precision).

Definition at line 24 of file SinusoidalTimeDependence.cpp.

SinusoidalTimeDependence() [2/2]

SinusoidalTimeDependence::SinusoidalTimeDependence ( )

default

Default Constructor makes a 0 length polynomial

Referenced by clone().

~SinusoidalTimeDependence()

SinusoidalTimeDependence::~SinusoidalTimeDependence ( )

overridedefault

Destructor does default

Member Function Documentation

clone()

SinusoidalTimeDependence * SinusoidalTimeDependence::clone ( )

overridevirtual

Inheritable clone function

Returns

new SinusoidalTimeDependence that is a copy of this. User owns returned memory.

Implements AbstractTimeDependence.

Definition at line 74 of file SinusoidalTimeDependence.cpp.

References a_m, f_m, o_m, p_m, and SinusoidalTimeDependence().

Referenced by TEST().

Here is the call graph for this function:

getAmplitudes()

const std::vector< double > & SinusoidalTimeDependence::getAmplitudes ( ) const

inline

Definition at line 74 of file SinusoidalTimeDependence.h.

References a_m.

getFrequencies()

const std::vector< double > & SinusoidalTimeDependence::getFrequencies ( ) const

inline

Definition at line 73 of file SinusoidalTimeDependence.h.

References f_m.

getIntegral()

double SinusoidalTimeDependence::getIntegral ( double  time )

overridevirtual

Return the integral from 0 to time

Parameters

time	simulation time in seconds

Implements AbstractTimeDependence.

Definition at line 51 of file SinusoidalTimeDependence.cpp.

References a_m, f_m, o_m, p_m, and Physics::two_pi.

getName()

std::string AbstractTimeDependence::getName ( const std::shared_ptr< AbstractTimeDependence > &  time_dep )

staticinherited

Get the name corresponding to a given time_dep

Parameters

time_dep

time dependence to lookup

Returns

name corresponding to the time dependence. Note that this just does a dumb loop over the stored map values; so O(N).

Exceptions

GeneralOpalException

if time_dep is not recognised

Definition at line 40 of file AbstractTimeDependence.cpp.

References AbstractTimeDependence::td_map.

Referenced by TEST(), and TEST().

getOffsets()

const std::vector< double > & SinusoidalTimeDependence::getOffsets ( ) const

inline

Definition at line 75 of file SinusoidalTimeDependence.h.

References o_m.

getPhases()

const std::vector< double > & SinusoidalTimeDependence::getPhases ( ) const

inline

Definition at line 76 of file SinusoidalTimeDependence.h.

References p_m.

getTimeDependence()

std::shared_ptr< AbstractTimeDependence > AbstractTimeDependence::getTimeDependence ( const std::string &  name )

staticinherited

Look up the time dependence that has a given name

Parameters

name	name of the time dependence

Returns

shared_ptr to the appropriate time dependence.

Exceptions

GeneralOpalException

if name is not recognised

Definition at line 24 of file AbstractTimeDependence.cpp.

References AbstractTimeDependence::td_map.

Referenced by MultipoleT::initialiseTimeDependencies(), VariableRFCavity::initialiseTimeDependencies(), TEST(), TEST(), TEST(), TEST(), TEST(), TEST(), TEST(), TEST(), and TEST().

getValue()

double SinusoidalTimeDependence::getValue ( double  time )

overridevirtual

Return the sinusoidal value

Parameters

time	simulation time in seconds

Implements AbstractTimeDependence.

Definition at line 29 of file SinusoidalTimeDependence.cpp.

References a_m, f_m, o_m, p_m, and Physics::pi.

Referenced by TEST().

print()

Inform & SinusoidalTimeDependence::print

(

Inform &

os

)

const

Print the sinusoidals

Parameters

os	"Inform" stream to which the sinusoidals are printed.

Definition at line 78 of file SinusoidalTimeDependence.cpp.

References a_m, f_m, o_m, and p_m.

Referenced by operator<<().

setTimeDependence()

void AbstractTimeDependence::setTimeDependence ( const std::string &  name, std::shared_ptr< AbstractTimeDependence >  time_dep  )

staticinherited

Add a value to the lookup table

Parameters

name	name of the time dependence. If name already exists in the map, it is overwritten with the new value.
time_dep	shared_ptr to the time dependence.

Definition at line 35 of file AbstractTimeDependence.cpp.

References AbstractTimeDependence::td_map.

Referenced by TEST(), TEST(), TEST(), TEST(), TEST_F(), TEST_F(), TEST_F(), OpalPolynomialTimeDependence::update(), OpalSinusoidalTimeDependence::update(), and OpalSplineTimeDependence::update().

Member Data Documentation

a_m

std::vector<double> SinusoidalTimeDependence::a_m

private

Definition at line 81 of file SinusoidalTimeDependence.h.

Referenced by clone(), getAmplitudes(), getIntegral(), getValue(), and print().

f_m

std::vector<double> SinusoidalTimeDependence::f_m

private

Definition at line 79 of file SinusoidalTimeDependence.h.

Referenced by clone(), getFrequencies(), getIntegral(), getValue(), and print().

o_m

std::vector<double> SinusoidalTimeDependence::o_m

private

Definition at line 82 of file SinusoidalTimeDependence.h.

Referenced by clone(), getIntegral(), getOffsets(), getValue(), and print().

p_m

std::vector<double> SinusoidalTimeDependence::p_m

private

Definition at line 80 of file SinusoidalTimeDependence.h.

Referenced by clone(), getIntegral(), getPhases(), getValue(), and print().

td_map

std::map< std::string, std::shared_ptr< AbstractTimeDependence > > AbstractTimeDependence::td_map

staticprivateinherited

Initial value:

=
        std::map<std::string, std::shared_ptr<AbstractTimeDependence> >()

Definition at line 87 of file AbstractTimeDependence.h.

Referenced by AbstractTimeDependence::getName(), AbstractTimeDependence::getTimeDependence(), and AbstractTimeDependence::setTimeDependence().

---

The documentation for this class was generated from the following files:

• SinusoidalTimeDependence.h
• SinusoidalTimeDependence.cpp
