PolynomialTimeDependence Class Reference

#include <PolynomialTimeDependence.h>

Inheritance diagram for PolynomialTimeDependence:

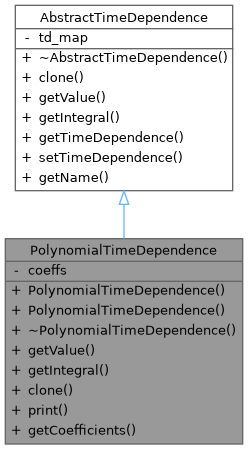

Collaboration diagram for PolynomialTimeDependence:

Public Member Functions
	PolynomialTimeDependence (const std::vector< double > &ptd)
	PolynomialTimeDependence ()=default
	~PolynomialTimeDependence () override=default
double	getValue (double time) override
double	getIntegral (double time) override
PolynomialTimeDependence *	clone () override
Inform &	print (Inform &os) const
const std::vector< double > &	getCoefficients () const

Static Public Member Functions
static std::shared_ptr< AbstractTimeDependence >	getTimeDependence (const std::string &name)
static void	setTimeDependence (const std::string &name, std::shared_ptr< AbstractTimeDependence > time_dep)
static std::string	getName (const std::shared_ptr< AbstractTimeDependence > &time_dep)

Private Attributes
std::vector< double >	coeffs

Static Private Attributes
static std::map< std::string, std::shared_ptr< AbstractTimeDependence > >	td_map

Detailed Description

Time dependence that follows a polynomial, like p_0 + p_1*t + p_2*t^2 + ... + p_i*t^i + ...

Definition at line 29 of file PolynomialTimeDependence.h.

Constructor & Destructor Documentation

PolynomialTimeDependence() [1/2]

PolynomialTimeDependence::PolynomialTimeDependence ( const std::vector< double > &  ptd )

inlineexplicit

Constructor

Parameters

ptd	the polynomial coefficients p_i; can be of arbitrary length (user is responsible for issues like floating point precision).

Definition at line 36 of file PolynomialTimeDependence.h.

PolynomialTimeDependence() [2/2]

PolynomialTimeDependence::PolynomialTimeDependence ( )

default

Default Constructor makes a 0 length polynomial

Referenced by clone().

~PolynomialTimeDependence()

PolynomialTimeDependence::~PolynomialTimeDependence ( )

overridedefault

Destructor does nothing

Member Function Documentation

clone()

PolynomialTimeDependence * PolynomialTimeDependence::clone ( )

overridevirtual

Inheritable copy constructor

Returns

new PolynomialTimeDependence that is a copy of this. User owns returned memory.

Implements AbstractTimeDependence.

Definition at line 20 of file PolynomialTimeDependence.cpp.

References coeffs, and PolynomialTimeDependence().

Referenced by TEST(), and TEST().

Here is the call graph for this function:

getCoefficients()

const std::vector< double > & PolynomialTimeDependence::getCoefficients ( ) const

inline

Return the polynomial coefficients

Definition at line 64 of file PolynomialTimeDependence.h.

References coeffs.

getIntegral()

double PolynomialTimeDependence::getIntegral ( double  time )

overridevirtual

Return the integral of the polynomial from 0 to time

Implements AbstractTimeDependence.

Definition at line 36 of file PolynomialTimeDependence.cpp.

References coeffs.

getName()

std::string AbstractTimeDependence::getName ( const std::shared_ptr< AbstractTimeDependence > &  time_dep )

staticinherited

Get the name corresponding to a given time_dep

Parameters

time_dep

time dependence to lookup

Returns

name corresponding to the time dependence. Note that this just does a dumb loop over the stored map values; so O(N).

Exceptions

GeneralOpalException

if time_dep is not recognised

Definition at line 40 of file AbstractTimeDependence.cpp.

References AbstractTimeDependence::td_map.

Referenced by TEST(), and TEST().

getTimeDependence()

std::shared_ptr< AbstractTimeDependence > AbstractTimeDependence::getTimeDependence ( const std::string &  name )

staticinherited

Look up the time dependence that has a given name

Parameters

name	name of the time dependence

Returns

shared_ptr to the appropriate time dependence.

Exceptions

GeneralOpalException

if name is not recognised

Definition at line 24 of file AbstractTimeDependence.cpp.

References AbstractTimeDependence::td_map.

Referenced by MultipoleT::initialiseTimeDependencies(), VariableRFCavity::initialiseTimeDependencies(), TEST(), TEST(), TEST(), TEST(), TEST(), TEST(), TEST(), TEST(), and TEST().

getValue()

double PolynomialTimeDependence::getValue ( double  time )

overridevirtual

Return the polynomial Sum_i p_i t^i; returns 0 if p is of 0 length

Implements AbstractTimeDependence.

Definition at line 26 of file PolynomialTimeDependence.cpp.

References coeffs.

Referenced by TEST().

print()

Inform & PolynomialTimeDependence::print

(

Inform &

os

)

const

Print the polynomials

Parameters

os	"Inform" stream to which the polynomials are printed.

Definition at line 46 of file PolynomialTimeDependence.cpp.

References coeffs.

Referenced by operator<<().

setTimeDependence()

void AbstractTimeDependence::setTimeDependence ( const std::string &  name, std::shared_ptr< AbstractTimeDependence >  time_dep  )

staticinherited

Add a value to the lookup table

Parameters

name	name of the time dependence. If name already exists in the map, it is overwritten with the new value.
time_dep	shared_ptr to the time dependence.

Definition at line 35 of file AbstractTimeDependence.cpp.

References AbstractTimeDependence::td_map.

Referenced by TEST(), TEST(), TEST(), TEST(), TEST_F(), TEST_F(), TEST_F(), OpalPolynomialTimeDependence::update(), OpalSinusoidalTimeDependence::update(), and OpalSplineTimeDependence::update().

Member Data Documentation

coeffs

std::vector<double> PolynomialTimeDependence::coeffs

private

Definition at line 67 of file PolynomialTimeDependence.h.

Referenced by clone(), getCoefficients(), getIntegral(), getValue(), and print().

td_map

std::map< std::string, std::shared_ptr< AbstractTimeDependence > > AbstractTimeDependence::td_map

staticprivateinherited

Initial value:

=
        std::map<std::string, std::shared_ptr<AbstractTimeDependence> >()

Definition at line 87 of file AbstractTimeDependence.h.

Referenced by AbstractTimeDependence::getName(), AbstractTimeDependence::getTimeDependence(), and AbstractTimeDependence::setTimeDependence().

---

The documentation for this class was generated from the following files:

• PolynomialTimeDependence.h
• PolynomialTimeDependence.cpp
