Channel Class Reference

Abstract interface for read/write access to variable. More...

#include <Channel.h>

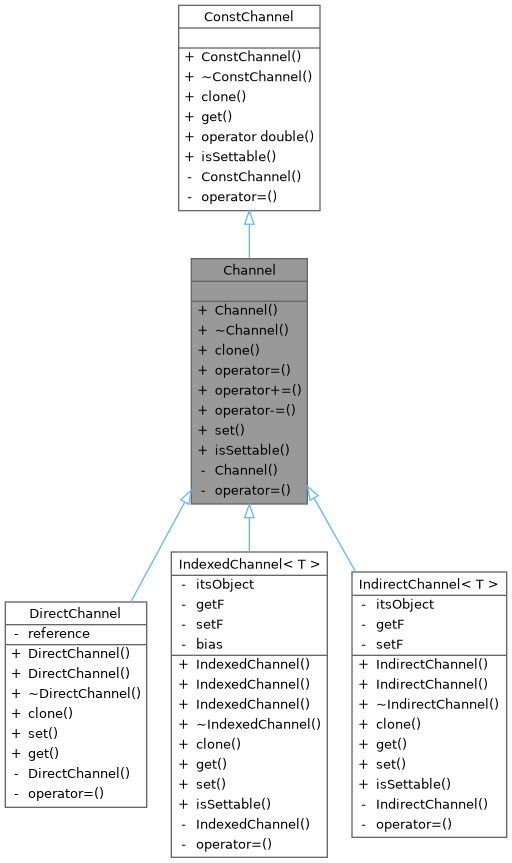

Inheritance diagram for Channel:

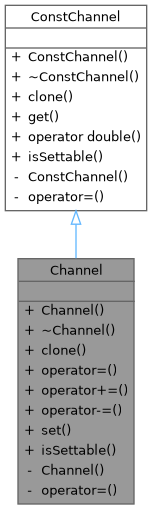

Collaboration diagram for Channel:

Public Member Functions
	Channel ()
virtual	~Channel ()
virtual Channel *	clone () const =0
	Duplicate the channel.
double	operator= (double value)
	Assign [b]value[/b] to channel.
double	operator+= (double value)
	Add and assign [b]value[/b] to channel.
double	operator-= (double value)
	Subtract and assign [b]value[/b] to channel.
virtual bool	set (double value)=0
	Store [b]value[/b] into channel.
virtual bool	isSettable () const
	Test if settable.
virtual bool	get (double &value) const =0
	Read channel.
	operator double () const
	Read channel.

Private Member Functions
	Channel (const Channel &)
const Channel &	operator= (const Channel &)

Detailed Description

Abstract interface for read/write access to variable.

Definition at line 30 of file Channel.h.

Constructor & Destructor Documentation

Channel() [1/2]

Channel::Channel

(

)

Definition at line 26 of file Channel.cpp.

~Channel()

Channel::~Channel ( )

virtual

Definition at line 28 of file Channel.cpp.

Channel() [2/2]

Channel::Channel ( const Channel &  )

private

Member Function Documentation

clone()

virtual Channel * Channel::clone ( ) const

pure virtual

Duplicate the channel.

Implements ConstChannel.

Implemented in DirectChannel, IndexedChannel< T >, and IndirectChannel< T >.

get()

virtual bool ConstChannel::get ( double &  value ) const

pure virtualinherited

Read channel.

Implemented in DirectChannel, IndexedChannel< T >, and IndirectChannel< T >.

Referenced by ConstChannel::operator double(), operator+=(), and operator-=().

isSettable()

bool Channel::isSettable ( ) const

virtual

Test if settable.

Reimplemented from ConstChannel.

Reimplemented in IndexedChannel< T >, and IndirectChannel< T >.

Definition at line 30 of file Channel.cpp.

Referenced by ElementBase::setAttribute().

operator double()

ConstChannel::operator double ( ) const

inlineinherited

Read channel.

Definition at line 43 of file ConstChannel.h.

References ConstChannel::get().

Here is the call graph for this function:

operator+=()

double Channel::operator+= ( double  value )

inline

Add and assign [b]value[/b] to channel.

Definition at line 45 of file Channel.h.

References ConstChannel::get(), and set().

Here is the call graph for this function:

operator-=()

double Channel::operator-= ( double  value )

inline

Subtract and assign [b]value[/b] to channel.

Definition at line 54 of file Channel.h.

References ConstChannel::get(), and set().

Here is the call graph for this function:

operator=() [1/2]

const Channel & Channel::operator= ( const Channel &  )

private

operator=() [2/2]

double Channel::operator= ( double  value )

inline

Assign [b]value[/b] to channel.

Definition at line 39 of file Channel.h.

References set().

Here is the call graph for this function:

set()

virtual bool Channel::set ( double  value )

pure virtual

Store [b]value[/b] into channel.

Implemented in DirectChannel, IndexedChannel< T >, and IndirectChannel< T >.

Referenced by operator+=(), operator-=(), and operator=().

---

The documentation for this class was generated from the following files:

• Channel.h
• Channel.cpp
