Misalignment Class Reference

Local nominal-to-actual correction transform. More...

#include <Misalignment.h>

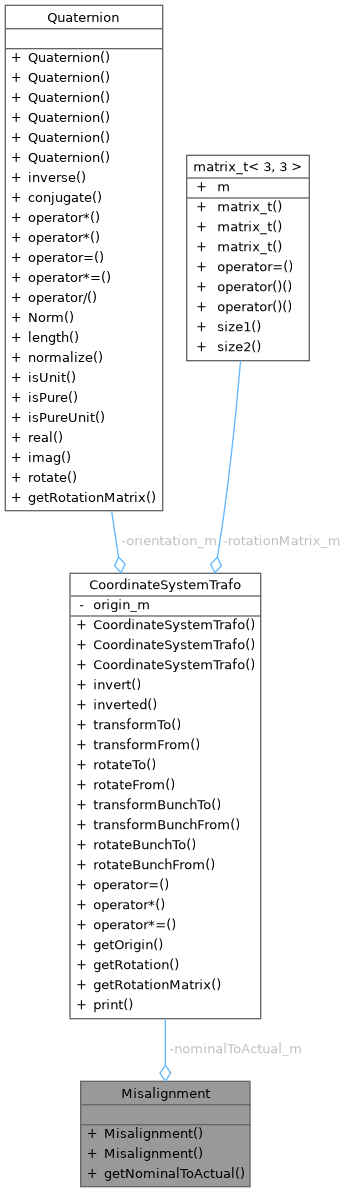

Collaboration diagram for Misalignment:

Public Member Functions
	Misalignment ()=default
	Misalignment (const CoordinateSystemTrafo &nominalToActual)
const CoordinateSystemTrafo &	getNominalToActual () const

Private Attributes
CoordinateSystemTrafo	nominalToActual_m

Detailed Description

Local nominal-to-actual correction transform.

The transform maps coordinates from the nominal element body frame into the actual body frame after local survey or misalignment corrections.

Definition at line 13 of file Misalignment.h.

Constructor & Destructor Documentation

Misalignment() [1/2]

Misalignment::Misalignment ( )

default

Misalignment() [2/2]

Misalignment::Misalignment ( const CoordinateSystemTrafo &  nominalToActual )

inlineexplicit

Definition at line 16 of file Misalignment.h.

Member Function Documentation

getNominalToActual()

const CoordinateSystemTrafo & Misalignment::getNominalToActual ( ) const

inline

Definition at line 19 of file Misalignment.h.

References nominalToActual_m.

Referenced by PlacedElement::getActualBodyTransform(), OpalBeamline::getMisalignment(), TEST_F(), and TEST_F().

Member Data Documentation

nominalToActual_m

CoordinateSystemTrafo Misalignment::nominalToActual_m

private

Definition at line 22 of file Misalignment.h.

Referenced by getNominalToActual().

---

The documentation for this class was generated from the following file:

• Misalignment.h
