Abstract base class for all field maps. It acts as a factory for creating specific field map types based on the file content and manages a cache of loaded field maps. More...

#include <Fieldmap.h>

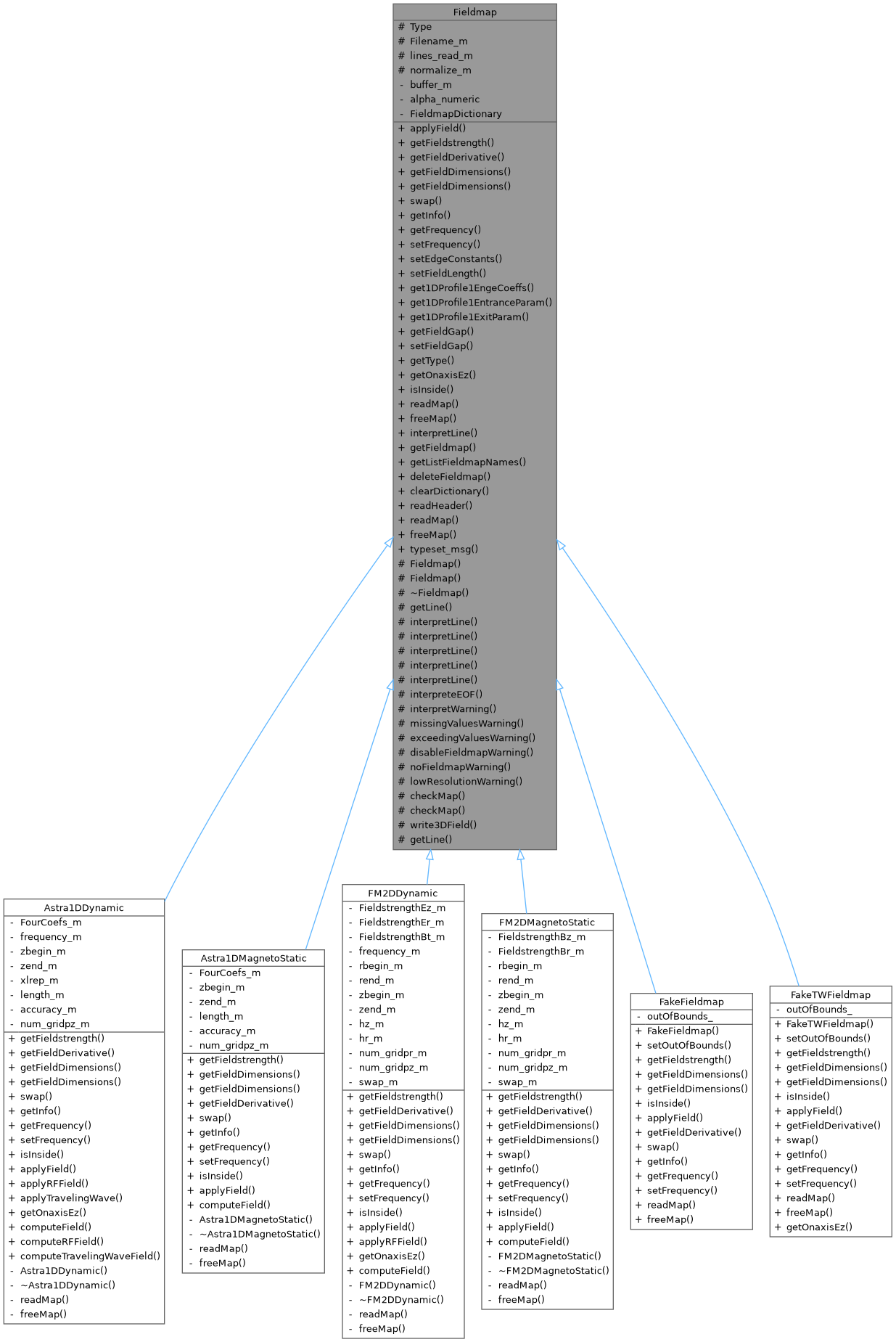

Inheritance diagram for Fieldmap:

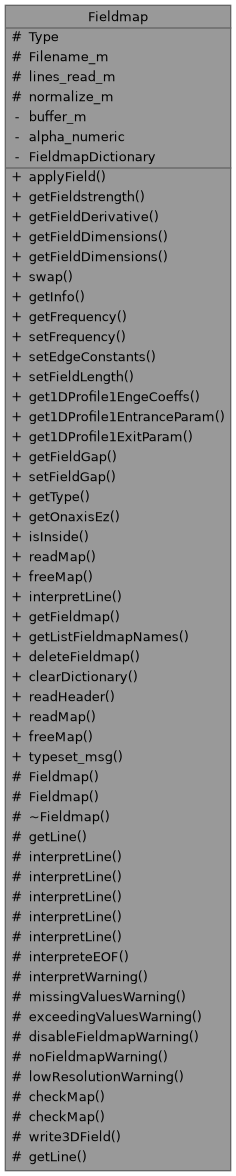

Collaboration diagram for Fieldmap:

Classes
struct	FieldmapDescription

struct	TypeParseTraits

struct	TypeParseTraits< double >

struct	TypeParseTraits< int >

struct	TypeParseTraits< std::string >

struct	TypeParseTraits< unsigned int >

Public Member Functions
virtual void	applyField (std::shared_ptr< ParticleContainer_t > pc, double scale=1.0)=0
	Apply the FM to all the particles.

virtual bool	getFieldstrength (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) const =0
	Get the field strength at a given point.

virtual bool	getFieldDerivative (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B, const DiffDirection &dir) const =0
	Get the field derivative with respect to a direction.

virtual void	getFieldDimensions (double &zBegin, double &zEnd) const =0
	Get the longitudinal dimensions of the field.

virtual void	getFieldDimensions (double &xIni, double &xFinal, double &yIni, double &yFinal, double &zIni, double &zFinal) const =0
	Get the full 3D bounding box of the field.

virtual void	swap ()=0
	Swap coordinates (implementation dependent).

virtual void	getInfo (Inform *msg)=0
	Print info about the field map.

virtual double	getFrequency () const =0
	Get the frequency.

virtual void	setFrequency (double freq)=0
	Set the frequency.

virtual void	setEdgeConstants (const double &bendAngle, const double &entranceAngle, const double &exitAngle)

virtual void	setFieldLength (const double &)

virtual void	get1DProfile1EngeCoeffs (std::vector< double > &engeCoeffsEntry, std::vector< double > &engeCoeffsExit)

virtual void	get1DProfile1EntranceParam (double &entranceParameter1, double &entranceParameter2, double &entranceParameter3)

virtual void	get1DProfile1ExitParam (double &exitParameter1, double &exitParameter2, double &exitParameter3)

virtual double	getFieldGap ()

virtual void	setFieldGap (double gap)

MapType	getType ()

virtual void	getOnaxisEz (std::vector< std::pair< double, double > > &onaxis)

virtual bool	isInside (const Vector_t< double, 3 > &) const =0
	Check if a point is inside the field map.

virtual void	readMap ()=0
	Pure virtual method to read the map data. Called by the public static readMap().

virtual void	freeMap ()=0
	Pure virtual method to free the map data.

template<class T >
bool	interpretLine (std::ifstream &in, T &value, const bool &file_length_known)
	Parses a single value of type T from a line in the stream.

Static Public Member Functions
static Fieldmap *	getFieldmap (std::string Filename, bool fast=false)
	Get a field map instance. Use this factory method to obtain a field map. It checks the cache (FieldmapDictionary) first.

static std::vector< std::string >	getListFieldmapNames ()
	Get a list of all loaded field map names.

static void	deleteFieldmap (std::string Filename)
	Delete a specific field map from the cache and memory.

static void	clearDictionary ()
	Clear the entire field map cache.

static MapType	readHeader (std::string Filename)
	Read the header of a field map file to determine its type.

static void	readMap (std::string Filename)
	Trigger the actual reading of the field map data.

static void	freeMap (std::string Filename)
	Decrease reference count or delete field map if unused.

static std::string	typeset_msg (const std::string &msg, const std::string &title)

Protected Member Functions
	Fieldmap ()=delete

	Fieldmap (const std::string &aFilename)

virtual	~Fieldmap ()

void	getLine (std::ifstream &in, std::string &buffer)

template<class S >
bool	interpretLine (std::ifstream &in, S &value, const bool &file_length_known=true)

template<class S , class T >
bool	interpretLine (std::ifstream &in, S &value1, T &value2, const bool &file_length_known=true)
	Parses two values (types S, T) from a line.

template<class S , class T , class U >
bool	interpretLine (std::ifstream &in, S &value1, T &value2, U &value3, const bool &file_length_known=true)
	Parses three values (types S, T, U) from a line.

template<class S , class T , class U , class V >
bool	interpretLine (std::ifstream &in, S &value1, T &value2, U &value3, V &value4, const bool &file_length_known=true)
	Parses four values (types S, T, U, V) from a line.

template<class S >
bool	interpretLine (std::ifstream &in, S &value1, S &value2, S &value3, S &value4, S &value5, S &value6, const bool &file_length_known=true)
	Parses six values of the same type S from a line.

bool	interpreteEOF (std::ifstream &in)

void	interpretWarning (const std::ios_base::iostate &state, const bool &read_all, const std::string &error_msg, const std::string &found)

void	missingValuesWarning ()

void	exceedingValuesWarning ()

void	disableFieldmapWarning ()

void	noFieldmapWarning ()

void	lowResolutionWarning (double squareError, double maxError)

void	checkMap (unsigned int accuracy, std::pair< double, double > fieldDimensions, double deltaZ, const std::vector< double > &fourierCoefficients, gsl_spline splineCoefficients, gsl_interp_accel splineAccelerator)

void	checkMap (unsigned int accuracy, double length, const std::vector< double > &zSampling, const std::vector< double > &fourierCoefficients, gsl_spline splineCoefficients, gsl_interp_accel splineAccelerator)

void	write3DField (unsigned int nx, unsigned int ny, unsigned int nz, const std::pair< double, double > &xrange, const std::pair< double, double > &yrange, const std::pair< double, double > &zrange, const std::vector< Vector_t< double, 3 > > &ef, const std::vector< Vector_t< double, 3 > > &bf)

Static Protected Member Functions
static void	getLine (std::ifstream &in, int &lines_read, std::string &buffer)

Protected Attributes
MapType	Type

std::string	Filename_m

int	lines_read_m

bool	normalize_m

Static Private Attributes
static char	buffer_m [256]

static std::string	alpha_numeric

static std::map< std::string, FieldmapDescription >	FieldmapDictionary

Detailed Description

Abstract base class for all field maps. It acts as a factory for creating specific field map types based on the file content and manages a cache of loaded field maps.

Definition at line 62 of file Fieldmap.h.

Constructor & Destructor Documentation

◆ Fieldmap() [1/2]

Fieldmap::Fieldmap ( )

protecteddelete

◆ Fieldmap() [2/2]

Fieldmap::Fieldmap ( const std::string & aFilename )

inlineprotected

Definition at line 227 of file Fieldmap.h.

◆ ~Fieldmap()

virtual Fieldmap::~Fieldmap ( )

inlineprotectedvirtual

Definition at line 230 of file Fieldmap.h.

Member Function Documentation

◆ applyField()

virtual void Fieldmap::applyField	(	std::shared_ptr< ParticleContainer_t >	pc,
		double	scale = `1.0`
	)

pure virtual

Apply the FM to all the particles.

Parameters

pc	Particle container
scale	Scaling factor applied to the field (default 1.0)

Implemented in Astra1DMagnetoStatic, FM2DMagnetoStatic, Astra1DDynamic, FM2DDynamic, FakeFieldmap, and FakeTWFieldmap.

Referenced by Solenoid::apply().

◆ checkMap() [1/2]

void Fieldmap::checkMap	(	unsigned int	accuracy,
		double	length,
		const std::vector< double > &	zSampling,
		const std::vector< double > &	fourierCoefficients,
		gsl_spline *	splineCoefficients,
		gsl_interp_accel *	splineAccelerator
	)

protected

Definition at line 346 of file Fieldmap.cpp.

References checkMap(), Util::combineFilePath(), Filename_m, OpalData::getInstance(), gsl_spline_eval(), lowResolutionWarning(), and Physics::two_pi.

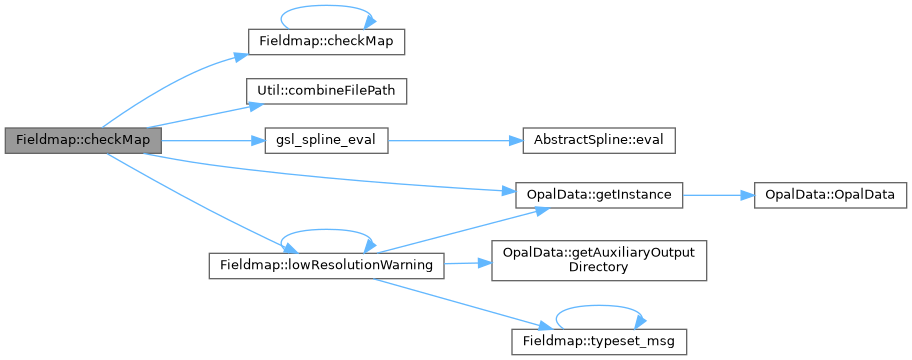

Here is the call graph for this function:

◆ checkMap() [2/2]

void Fieldmap::checkMap	(	unsigned int	accuracy,
		std::pair< double, double >	fieldDimensions,
		double	deltaZ,
		const std::vector< double > &	fourierCoefficients,
		gsl_spline *	splineCoefficients,
		gsl_interp_accel *	splineAccelerator
	)

protected

Definition at line 330 of file Fieldmap.cpp.

References checkMap().

Referenced by checkMap(), and checkMap().

Here is the call graph for this function:

◆ clearDictionary()

void Fieldmap::clearDictionary ( )

static

Clear the entire field map cache.

Definition at line 160 of file Fieldmap.cpp.

References clearDictionary(), and FieldmapDictionary.

Referenced by clearDictionary().

Here is the call graph for this function:

◆ deleteFieldmap()

void Fieldmap::deleteFieldmap ( std::string Filename )

static

Delete a specific field map from the cache and memory.

Parameters

Filename The filename of the map to delete.

Definition at line 158 of file Fieldmap.cpp.

References deleteFieldmap(), and freeMap().

Referenced by deleteFieldmap().

Here is the call graph for this function:

◆ disableFieldmapWarning()

void Fieldmap::disableFieldmapWarning ( )

protected

Definition at line 489 of file Fieldmap.cpp.

References disableFieldmapWarning(), and Filename_m.

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), disableFieldmapWarning(), FM2DDynamic::FM2DDynamic(), and FM2DMagnetoStatic::FM2DMagnetoStatic().

Here is the call graph for this function:

◆ exceedingValuesWarning()

void Fieldmap::exceedingValuesWarning ( )

protected

Definition at line 479 of file Fieldmap.cpp.

References exceedingValuesWarning(), Filename_m, and lines_read_m.

Referenced by exceedingValuesWarning(), and interpreteEOF().

Here is the call graph for this function:

◆ freeMap() [1/2]

virtual void Fieldmap::freeMap ( )

pure virtual

Pure virtual method to free the map data.

Implemented in Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, FM2DMagnetoStatic, FakeFieldmap, and FakeTWFieldmap.

Referenced by deleteFieldmap().

◆ freeMap() [2/2]

void Fieldmap::freeMap ( std::string Filename )

static

Decrease reference count or delete field map if unused.

Parameters

Filename The file to free.

Definition at line 311 of file Fieldmap.cpp.

References FieldmapDictionary, and freeMap().

Referenced by freeMap(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ get1DProfile1EngeCoeffs()

void Fieldmap::get1DProfile1EngeCoeffs	(	std::vector< double > &	engeCoeffsEntry,
		std::vector< double > &	engeCoeffsExit
	)

virtual

Definition at line 590 of file Fieldmap.cpp.

References get1DProfile1EngeCoeffs().

Referenced by get1DProfile1EngeCoeffs().

Here is the call graph for this function:

◆ get1DProfile1EntranceParam()

void Fieldmap::get1DProfile1EntranceParam	(	double &	entranceParameter1,
		double &	entranceParameter2,
		double &	entranceParameter3
	)

virtual

Definition at line 593 of file Fieldmap.cpp.

References get1DProfile1EntranceParam().

Referenced by get1DProfile1EntranceParam().

Here is the call graph for this function:

◆ get1DProfile1ExitParam()

void Fieldmap::get1DProfile1ExitParam	(	double &	exitParameter1,
		double &	exitParameter2,
		double &	exitParameter3
	)

virtual

Definition at line 597 of file Fieldmap.cpp.

References get1DProfile1ExitParam().

Referenced by get1DProfile1ExitParam().

Here is the call graph for this function:

◆ getFieldDerivative()

virtual bool Fieldmap::getFieldDerivative	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B,
		const DiffDirection &	dir
	)		const

pure virtual

Get the field derivative with respect to a direction.

Parameters

R	Position [m].
E	Output derivative of Electric field.
B	Output derivative of Magnetic field.
dir	Direction of derivative (DX, DY, DZ).

Returns: true if R is outside, false otherwise.

Implemented in FakeFieldmap, FakeTWFieldmap, Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, and FM2DMagnetoStatic.

Referenced by TEST_F(), and TEST_F().

◆ getFieldDimensions() [1/2]

virtual void Fieldmap::getFieldDimensions	(	double &	xIni,
		double &	xFinal,
		double &	yIni,
		double &	yFinal,
		double &	zIni,
		double &	zFinal
	)		const

pure virtual

Get the full 3D bounding box of the field.

Parameters

xIni	Output minimum x [m].
xFinal	Output maximum x [m].
yIni	Output minimum y [m].
yFinal	Output maximum y [m].
zIni	Output minimum z [m].
zFinal	Output maximum z [m].

Implemented in Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, FM2DMagnetoStatic, FakeTWFieldmap, and FakeFieldmap.

◆ getFieldDimensions() [2/2]

virtual void Fieldmap::getFieldDimensions	(	double &	zBegin,
		double &	zEnd
	)		const

pure virtual

Get the longitudinal dimensions of the field.

Parameters

zBegin	Output start of field [m].
zEnd	Output end of field [m].

Implemented in Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, FM2DMagnetoStatic, FakeFieldmap, and FakeTWFieldmap.

Referenced by Solenoid::getSupportEnvelope(), RFCavity::initialise(), Solenoid::initialise(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ getFieldGap()

double Fieldmap::getFieldGap ( )

virtual

Definition at line 600 of file Fieldmap.cpp.

References getFieldGap().

Referenced by getFieldGap().

Here is the call graph for this function:

◆ getFieldmap()

Fieldmap * Fieldmap::getFieldmap	(	std::string	Filename,
		bool	fast = `false`
	)

static

Get a field map instance. Use this factory method to obtain a field map. It checks the cache (FieldmapDictionary) first.

Factory method to obtain a Fieldmap instance.

Parameters

Filename	The path to the field map file.
fast	If true, load a "fast" version if available (implementation dependent).

Returns: Pointer to the Fieldmap instance.

Checks the FieldmapDictionary cache to see if the file is already loaded. If not, it calls readHeader() to determine the map type, instantiates the corresponding subclass, and adds it to the dictionary.

Parameters

Filename	Absolute path to the fieldmap file.
fast	Not implemented. Previously attempted to load a "fast" version.

Returns: Fieldmap* Pointer to the managed fieldmap instance.

Found matching entry?

Return fieldmap pointer

Determine fieldmap type

Based on type:

Create new fieldmap object by parsing the fieldmap file
Create new FieldmapDescription object for this fieldmap
Insert FieldmapDescription into FieldmapDictionary
Return pointer to the fieldmap

Definition at line 72 of file Fieldmap.cpp.

References FieldmapDictionary, getFieldmap(), readHeader(), T2DDynamic, T2DMagnetoStatic, TAstraDynamic, and TAstraMagnetoStatic.

Referenced by getFieldmap().

Here is the call graph for this function:

◆ getFieldstrength()

virtual bool Fieldmap::getFieldstrength	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)		const

pure virtual

Get the field strength at a given point.

Parameters

R	Position [m] relative to the field map origin.
E	Output Electric field [MV/m].
B	Output Magnetic field [T].

Returns: true if R is outside of the field map, false otherwise.

Implemented in FakeFieldmap, FakeTWFieldmap, Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, and FM2DMagnetoStatic.

◆ getFrequency()

virtual double Fieldmap::getFrequency ( ) const

pure virtual

Get the frequency.

Returns: Frequency [MHz].

Implemented in Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, FM2DMagnetoStatic, FakeFieldmap, and FakeTWFieldmap.

Referenced by RFCavity::initialise(), TEST_F(), and TEST_F().

◆ getInfo()

virtual void Fieldmap::getInfo ( Inform * msg )

pure virtual

Print info about the field map.

Implemented in FakeFieldmap, FakeTWFieldmap, Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, and FM2DMagnetoStatic.

Referenced by RFCavity::initialise(), Solenoid::initialise(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ getLine() [1/2]

void Fieldmap::getLine	(	std::ifstream &	in,
		int &	lines_read,
		std::string &	buffer
	)

staticprotected

Definition at line 414 of file Fieldmap.cpp.

References alpha_numeric, buffer_m, getLine(), and READ_BUFFER_LENGTH.

Here is the call graph for this function:

◆ getLine() [2/2]

void Fieldmap::getLine	(	std::ifstream &	in,
		std::string &	buffer
	)

inlineprotected

Definition at line 237 of file Fieldmap.h.

References getLine(), and lines_read_m.

Referenced by getLine(), getLine(), interpretLine(), interpretLine(), interpretLine(), interpretLine(), interpretLine(), readHeader(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), FM2DDynamic::readMap(), and FM2DMagnetoStatic::readMap().

Here is the call graph for this function:

◆ getListFieldmapNames()

std::vector< std::string > Fieldmap::getListFieldmapNames ( )

static

Get a list of all loaded field map names.

Returns: Vector of filenames.

Definition at line 149 of file Fieldmap.cpp.

References FieldmapDictionary, and getListFieldmapNames().

Referenced by getListFieldmapNames().

Here is the call graph for this function:

◆ getOnaxisEz()

void Fieldmap::getOnaxisEz ( std::vector< std::pair< double, double > > & onaxis )

virtual

Reimplemented in Astra1DDynamic, FM2DDynamic, and FakeTWFieldmap.

Definition at line 588 of file Fieldmap.cpp.

References getOnaxisEz().

Referenced by RFCavity::getAutoPhaseEstimate(), TravelingWave::getAutoPhaseEstimate(), and getOnaxisEz().

Here is the call graph for this function:

◆ getType()

MapType Fieldmap::getType ( )

inline

Definition at line 206 of file Fieldmap.h.

References Type.

Referenced by TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ interpreteEOF()

bool Fieldmap::interpreteEOF ( std::ifstream & in )

protected

Definition at line 436 of file Fieldmap.cpp.

References alpha_numeric, buffer_m, exceedingValuesWarning(), interpreteEOF(), lines_read_m, and READ_BUFFER_LENGTH.

Referenced by FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), and interpreteEOF().

Here is the call graph for this function:

◆ interpretLine() [1/6]

template<class S >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value,
		const bool &	file_length_known = `true`
	)

protected

Referenced by interpretLine(), interpretLine(), interpretLine(), interpretLine(), and interpretLine().

◆ interpretLine() [2/6]

template<class S >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		S &	value2,
		S &	value3,
		S &	value4,
		S &	value5,
		S &	value6,
		const bool &	file_length_known = `true`
	)

protected

Parses six values of the same type S from a line.

See also: interpretLine<T>

Definition at line 176 of file Fieldmap.hpp.

References getLine(), interpretLine(), interpretWarning(), and missingValuesWarning().

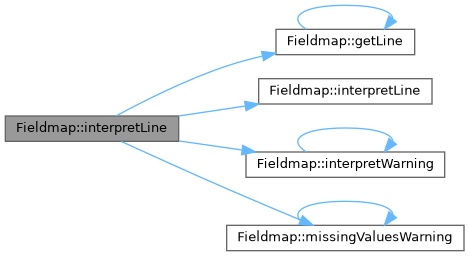

Here is the call graph for this function:

◆ interpretLine() [3/6]

template<class S , class T >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		T &	value2,
		const bool &	file_length_known = `true`
	)

protected

Parses two values (types S, T) from a line.

See also: interpretLine<T>

Definition at line 55 of file Fieldmap.hpp.

References getLine(), interpretLine(), interpretWarning(), and missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [4/6]

template<class S , class T , class U >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		T &	value2,
		U &	value3,
		const bool &	file_length_known = `true`
	)

protected

Parses three values (types S, T, U) from a line.

See also: interpretLine<T>

Definition at line 92 of file Fieldmap.hpp.

References getLine(), interpretLine(), interpretWarning(), and missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [5/6]

template<class S , class T , class U , class V >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		T &	value2,
		U &	value3,
		V &	value4,
		const bool &	file_length_known = `true`
	)

protected

Parses four values (types S, T, U, V) from a line.

See also: interpretLine<T>

Definition at line 132 of file Fieldmap.hpp.

References getLine(), interpretLine(), interpretWarning(), and missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [6/6]

template<class T >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		T &	value,
		const bool &	file_length_known
	)

Parses a single value of type T from a line in the stream.

Reads a line using getLine(), then attempts to extract one value. Validates that the extraction matches the type and that no unexpected data remains on the line.

Parameters

in	Input file stream.
value	Output variable reference.
file_length_known	If false, EOF is acceptable.

Returns: true if successful, false if EOF (and permitted).

Definition at line 23 of file Fieldmap.hpp.

References getLine(), interpretLine(), interpretWarning(), and missingValuesWarning().

Here is the call graph for this function:

◆ interpretWarning()

void Fieldmap::interpretWarning	(	const std::ios_base::iostate &	state,
		const bool &	read_all,
		const std::string &	error_msg,
		const std::string &	found
	)

protected

Definition at line 452 of file Fieldmap.cpp.

References Filename_m, interpretWarning(), and lines_read_m.

Referenced by interpretLine(), interpretLine(), interpretLine(), interpretLine(), interpretLine(), and interpretWarning().

Here is the call graph for this function:

◆ isInside()

virtual bool Fieldmap::isInside ( const Vector_t< double, 3 > & ) const

pure virtual

Check if a point is inside the field map.

Implemented in FakeFieldmap, FakeTWFieldmap, Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, and FM2DMagnetoStatic.

Referenced by TravelingWave::apply(), TravelingWave::applyToReferenceParticle(), RFCavity::isInside(), and Solenoid::isInside().

◆ lowResolutionWarning()

void Fieldmap::lowResolutionWarning	(	double	squareError,
		double	maxError
	)

protected

Definition at line 503 of file Fieldmap.cpp.

References Filename_m, OpalData::getAuxiliaryOutputDirectory(), OpalData::getInstance(), lowResolutionWarning(), and typeset_msg().

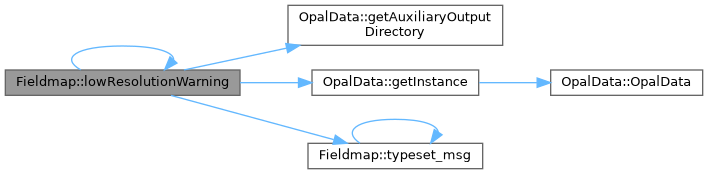

Referenced by checkMap(), and lowResolutionWarning().

Here is the call graph for this function:

◆ missingValuesWarning()

void Fieldmap::missingValuesWarning ( )

protected

Definition at line 470 of file Fieldmap.cpp.

References Filename_m, lines_read_m, and missingValuesWarning().

Referenced by interpretLine(), interpretLine(), interpretLine(), interpretLine(), interpretLine(), and missingValuesWarning().

Here is the call graph for this function:

◆ noFieldmapWarning()

void Fieldmap::noFieldmapWarning ( )

protected

Definition at line 496 of file Fieldmap.cpp.

References Filename_m, and noFieldmapWarning().

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), and noFieldmapWarning().

Here is the call graph for this function:

◆ readHeader()

MapType Fieldmap::readHeader ( std::string Filename )

static

Read the header of a field map file to determine its type.

Determines the fieldmap type.

Parameters

Filename The file to check.

Returns: The MapType determined from the file header.; MapType

Definition at line 174 of file Fieldmap.cpp.

References getLine(), lines_read_m, readHeader(), T1DDynamic, T1DElectroStatic, T1DMagnetoStatic, T1DProfile1, T2DDynamic, T2DElectroStatic, T2DMagnetoStatic, T3DDynamic, T3DDynamicH5Block, T3DElectroStatic, T3DMagnetoStatic, T3DMagnetoStatic_Extended, T3DMagnetoStaticH5Block, TAstraDynamic, TAstraElectroStatic, TAstraMagnetoStatic, and UNKNOWN.

Referenced by getFieldmap(), and readHeader().

Here is the call graph for this function:

◆ readMap() [1/2]

virtual void Fieldmap::readMap ( )

pure virtual

Pure virtual method to read the map data. Called by the public static readMap().

Implemented in Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, FM2DMagnetoStatic, FakeFieldmap, and FakeTWFieldmap.

◆ readMap() [2/2]

void Fieldmap::readMap ( std::string Filename )

static

Trigger the actual reading of the field map data.

Parameters

Filename The file to read.

Definition at line 301 of file Fieldmap.cpp.

References FieldmapDictionary, and readMap().

Referenced by readMap(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ setEdgeConstants()

void Fieldmap::setEdgeConstants	(	const double &	bendAngle,
		const double &	entranceAngle,
		const double &	exitAngle
	)

virtual

Definition at line 408 of file Fieldmap.cpp.

References setEdgeConstants().

Referenced by setEdgeConstants().

Here is the call graph for this function:

◆ setFieldGap()

void Fieldmap::setFieldGap ( double gap )

virtual

Definition at line 602 of file Fieldmap.cpp.

References setFieldGap().

Referenced by setFieldGap().

Here is the call graph for this function:

◆ setFieldLength()

void Fieldmap::setFieldLength ( const double & )

virtual

Definition at line 412 of file Fieldmap.cpp.

References setFieldLength().

Referenced by setFieldLength().

Here is the call graph for this function:

◆ setFrequency()

virtual void Fieldmap::setFrequency ( double freq )

pure virtual

Set the frequency.

Parameters

freq	Frequency [MHz].

Implemented in Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, FM2DMagnetoStatic, FakeFieldmap, and FakeTWFieldmap.

Referenced by TEST_F(), and TEST_F().

◆ swap()

virtual void Fieldmap::swap ( )

pure virtual

Swap coordinates (implementation dependent).

Implemented in Astra1DDynamic, Astra1DMagnetoStatic, FM2DDynamic, FM2DMagnetoStatic, FakeFieldmap, and FakeTWFieldmap.

◆ typeset_msg()

std::string Fieldmap::typeset_msg	(	const std::string &	msg,
		const std::string &	title
	)

static

Definition at line 527 of file Fieldmap.cpp.

References typeset_msg().

Referenced by FM2DMagnetoStatic::freeMap(), lowResolutionWarning(), FM2DMagnetoStatic::readMap(), and typeset_msg().

Here is the call graph for this function:

◆ write3DField()

void Fieldmap::write3DField	(	unsigned int	nx,
		unsigned int	ny,
		unsigned int	nz,
		const std::pair< double, double > &	xrange,
		const std::pair< double, double > &	yrange,
		const std::pair< double, double > &	zrange,
		const std::vector< Vector_t< double, 3 > > &	ef,
		const std::vector< Vector_t< double, 3 > > &	bf
	)

protected

Definition at line 604 of file Fieldmap.cpp.

References Util::combineFilePath(), Filename_m, OpalData::getAuxiliaryOutputDirectory(), OpalData::getInstance(), and write3DField().

Referenced by write3DField().

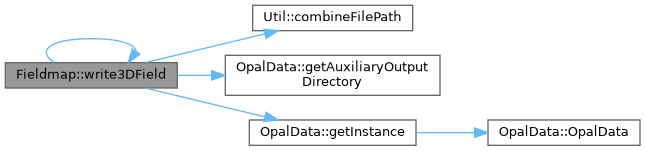

Here is the call graph for this function:

Member Data Documentation

◆ alpha_numeric

std::string Fieldmap::alpha_numeric

staticprivate

Definition at line 302 of file Fieldmap.h.

Referenced by getLine(), and interpreteEOF().

◆ buffer_m

char Fieldmap::buffer_m

staticprivate

Definition at line 301 of file Fieldmap.h.

Referenced by getLine(), and interpreteEOF().

◆ FieldmapDictionary

std::map< std::string, Fieldmap::FieldmapDescription > Fieldmap::FieldmapDictionary

staticprivate

Initial value:

=

std::map<std::string, Fieldmap::FieldmapDescription>()

Definition at line 313 of file Fieldmap.h.

Referenced by clearDictionary(), freeMap(), getFieldmap(), getListFieldmapNames(), and readMap().

◆ Filename_m

std::string Fieldmap::Filename_m

protected

◆ lines_read_m

int Fieldmap::lines_read_m

protected

Definition at line 234 of file Fieldmap.h.

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), exceedingValuesWarning(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), getLine(), interpreteEOF(), interpretWarning(), missingValuesWarning(), and readHeader().

◆ normalize_m

bool Fieldmap::normalize_m

protected

Definition at line 236 of file Fieldmap.h.

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), FM2DDynamic::readMap(), and FM2DMagnetoStatic::readMap().

◆ Type

MapType Fieldmap::Type

protected

Definition at line 231 of file Fieldmap.h.

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), and getType().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Fieldmap() [1/2]

◆ Fieldmap() [2/2]

◆ ~Fieldmap()

Member Function Documentation

◆ applyField()

◆ checkMap() [1/2]

◆ checkMap() [2/2]

◆ clearDictionary()

◆ deleteFieldmap()

◆ disableFieldmapWarning()

◆ exceedingValuesWarning()

◆ freeMap() [1/2]

◆ freeMap() [2/2]

◆ get1DProfile1EngeCoeffs()

◆ get1DProfile1EntranceParam()

◆ get1DProfile1ExitParam()

◆ getFieldDerivative()

◆ getFieldDimensions() [1/2]

◆ getFieldDimensions() [2/2]

◆ getFieldGap()

◆ getFieldmap()

◆ getFieldstrength()

◆ getFrequency()

◆ getInfo()

◆ getLine() [1/2]

◆ getLine() [2/2]

◆ getListFieldmapNames()

◆ getOnaxisEz()

◆ getType()

◆ interpreteEOF()

◆ interpretLine() [1/6]

◆ interpretLine() [2/6]

◆ interpretLine() [3/6]

◆ interpretLine() [4/6]

◆ interpretLine() [5/6]

◆ interpretLine() [6/6]

◆ interpretWarning()

◆ isInside()

◆ lowResolutionWarning()

◆ missingValuesWarning()

◆ noFieldmapWarning()

◆ readHeader()

◆ readMap() [1/2]

◆ readMap() [2/2]

◆ setEdgeConstants()

◆ setFieldGap()

◆ setFieldLength()

◆ setFrequency()

◆ swap()

◆ typeset_msg()

◆ write3DField()

Member Data Documentation

◆ alpha_numeric

◆ buffer_m

◆ FieldmapDictionary

◆ Filename_m

◆ lines_read_m

◆ normalize_m

◆ Type
