#include <FM2DMagnetoStatic.h>

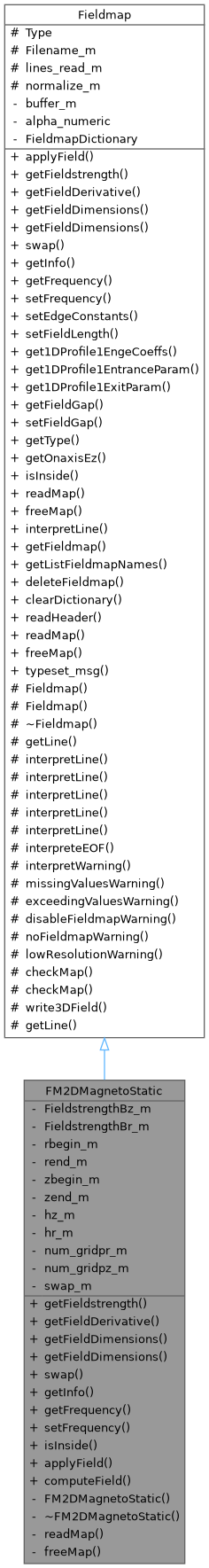

Inheritance diagram for FM2DMagnetoStatic:

Collaboration diagram for FM2DMagnetoStatic:

Public Member Functions
virtual bool	getFieldstrength (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) const override
	Get the field strength at a given point.

virtual bool	getFieldDerivative (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B, const DiffDirection &dir) const override
	Get the field derivative with respect to a direction.

virtual void	getFieldDimensions (double &zBegin, double &zEnd) const override
	Get the longitudinal dimensions of the field.

virtual void	getFieldDimensions (double &xIni, double &xFinal, double &yIni, double &yFinal, double &zIni, double &zFinal) const override
	Get the full 3D bounding box of the field.

virtual void	swap () override
	Swap coordinates.

virtual void	getInfo (Inform *msg) override
	Print info about the field map.

virtual double	getFrequency () const override
	Get the frequency.

virtual void	setFrequency (double freq) override
	Set the frequency.

bool	isInside (const Vector_t< double, 3 > &r) const override
	Checks if the given coordinate is inside the volume covered by the fieldmap.

void	applyField (std::shared_ptr< ParticleContainer_t > pc, double scale=1.0) override
	Apply the FM to all the particles.

virtual void	setEdgeConstants (const double &bendAngle, const double &entranceAngle, const double &exitAngle)

virtual void	setFieldLength (const double &)

virtual void	get1DProfile1EngeCoeffs (std::vector< double > &engeCoeffsEntry, std::vector< double > &engeCoeffsExit)

virtual void	get1DProfile1EntranceParam (double &entranceParameter1, double &entranceParameter2, double &entranceParameter3)

virtual void	get1DProfile1ExitParam (double &exitParameter1, double &exitParameter2, double &exitParameter3)

virtual double	getFieldGap ()

virtual void	setFieldGap (double gap)

MapType	getType ()

virtual void	getOnaxisEz (std::vector< std::pair< double, double > > &onaxis)

template<class T >
bool	interpretLine (std::ifstream &in, T &value, const bool &file_length_known)
	Parses a single value of type T from a line in the stream.

Static Public Member Functions
template<class ViewType >
static KOKKOS_INLINE_FUNCTION void	computeField (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &B, const ViewType &Bz, const ViewType &Br, double hr, double hz, double zbegin, int num_gridpr, int num_gridpz)
	Computes the magnetic field B at the position R by interpolating from the fieldmap specified by Bz, Br, hr, hz, zbegin, num_gridpr, and num_gridpz. This is done via bilinear interpolation on the grid defined by hr and hz.

static Fieldmap *	getFieldmap (std::string Filename, bool fast=false)
	Get a field map instance. Use this factory method to obtain a field map. It checks the cache (FieldmapDictionary) first.

static std::vector< std::string >	getListFieldmapNames ()
	Get a list of all loaded field map names.

static void	deleteFieldmap (std::string Filename)
	Delete a specific field map from the cache and memory.

static void	clearDictionary ()
	Clear the entire field map cache.

static MapType	readHeader (std::string Filename)
	Read the header of a field map file to determine its type.

static void	readMap (std::string Filename)
	Trigger the actual reading of the field map data.

static void	freeMap (std::string Filename)
	Decrease reference count or delete field map if unused.

static std::string	typeset_msg (const std::string &msg, const std::string &title)

Protected Member Functions
void	getLine (std::ifstream &in, std::string &buffer)

template<class S >
bool	interpretLine (std::ifstream &in, S &value, const bool &file_length_known=true)

template<class S , class T >
bool	interpretLine (std::ifstream &in, S &value1, T &value2, const bool &file_length_known=true)
	Parses two values (types S, T) from a line.

template<class S , class T , class U >
bool	interpretLine (std::ifstream &in, S &value1, T &value2, U &value3, const bool &file_length_known=true)
	Parses three values (types S, T, U) from a line.

template<class S , class T , class U , class V >
bool	interpretLine (std::ifstream &in, S &value1, T &value2, U &value3, V &value4, const bool &file_length_known=true)
	Parses four values (types S, T, U, V) from a line.

template<class S >
bool	interpretLine (std::ifstream &in, S &value1, S &value2, S &value3, S &value4, S &value5, S &value6, const bool &file_length_known=true)
	Parses six values of the same type S from a line.

bool	interpreteEOF (std::ifstream &in)

void	interpretWarning (const std::ios_base::iostate &state, const bool &read_all, const std::string &error_msg, const std::string &found)

void	missingValuesWarning ()

void	exceedingValuesWarning ()

void	disableFieldmapWarning ()

void	noFieldmapWarning ()

void	lowResolutionWarning (double squareError, double maxError)

void	checkMap (unsigned int accuracy, std::pair< double, double > fieldDimensions, double deltaZ, const std::vector< double > &fourierCoefficients, gsl_spline splineCoefficients, gsl_interp_accel splineAccelerator)

void	checkMap (unsigned int accuracy, double length, const std::vector< double > &zSampling, const std::vector< double > &fourierCoefficients, gsl_spline splineCoefficients, gsl_interp_accel splineAccelerator)

void	write3DField (unsigned int nx, unsigned int ny, unsigned int nz, const std::pair< double, double > &xrange, const std::pair< double, double > &yrange, const std::pair< double, double > &zrange, const std::vector< Vector_t< double, 3 > > &ef, const std::vector< Vector_t< double, 3 > > &bf)

Static Protected Member Functions
static void	getLine (std::ifstream &in, int &lines_read, std::string &buffer)

Protected Attributes
MapType	Type

std::string	Filename_m

int	lines_read_m

bool	normalize_m

Private Member Functions
	FM2DMagnetoStatic (std::string aFilename)
	Constructor for 2D magnetostatic field map. Parses the file header to read grid parameters:

	~FM2DMagnetoStatic ()

void	readMap () override
	Pure virtual method to read the map data. Called by the public static readMap().

void	freeMap () override
	Pure virtual method to free the map data.

Private Attributes
Kokkos::DualView< double * >	FieldstrengthBz_m
	Fieldstrengths.

Kokkos::DualView< double * >	FieldstrengthBr_m

double	rbegin_m
	Radius Bounds.

double	rend_m

double	zbegin_m
	Z Bounds relative to element edge.

double	zend_m

double	hz_m
	Grid.

double	hr_m

int	num_gridpr_m

int	num_gridpz_m

bool	swap_m

Static Private Attributes
static char	buffer_m [256]

static std::string	alpha_numeric

static std::map< std::string, FieldmapDescription >	FieldmapDictionary

Friends
class	Fieldmap

Detailed Description

Definition at line 9 of file FM2DMagnetoStatic.h.

Constructor & Destructor Documentation

◆ FM2DMagnetoStatic()

FM2DMagnetoStatic::FM2DMagnetoStatic ( std::string aFilename )

private

Constructor for 2D magnetostatic field map. Parses the file header to read grid parameters:

Orientation (XZ or ZX)
Grid boundaries and number of points (zbegin_m, zend_m, rbegin_m, rend_m)
Unit conversion from cm to m
Grid spacing (hz_m, hr_m)
Number of gridpoints (num_gridpz_m, num_gridpr_m)

Parse rbegin_m, rend_m and num_gridpr_m(-1)

Parse rbegin_m, zend_m and num_gridpz_m(-1)

Parse rbegin_m, rend_m and num_gridpr_m(-1)

Definition at line 21 of file FM2DMagnetoStatic.cpp.

References Units::cm2m, Fieldmap::disableFieldmapWarning(), Fieldmap::Filename_m, FM2DMagnetoStatic(), hr_m, hz_m, Fieldmap::interpreteEOF(), Fieldmap::lines_read_m, Fieldmap::noFieldmapWarning(), Fieldmap::normalize_m, num_gridpr_m, num_gridpz_m, rbegin_m, rend_m, swap_m, T2DMagnetoStatic, Util::toUpper(), Fieldmap::Type, zbegin_m, and zend_m.

Referenced by FM2DMagnetoStatic().

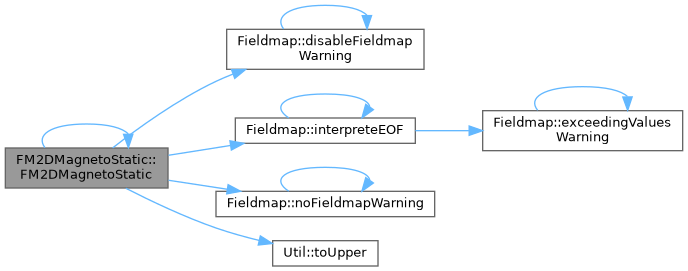

Here is the call graph for this function:

◆ ~FM2DMagnetoStatic()

FM2DMagnetoStatic::~FM2DMagnetoStatic ( )

private

Definition at line 110 of file FM2DMagnetoStatic.cpp.

References freeMap(), and ~FM2DMagnetoStatic().

Referenced by ~FM2DMagnetoStatic().

Here is the call graph for this function:

Member Function Documentation

◆ applyField()

void FM2DMagnetoStatic::applyField	(	std::shared_ptr< ParticleContainer_t >	pc,
		double	scale = `1.0`
	)

overridevirtual

Apply the FM to all the particles.

Parameters

pc	Particle container

Implements Fieldmap.

Definition at line 194 of file FM2DMagnetoStatic.cpp.

References applyField(), computeField(), FieldstrengthBr_m, FieldstrengthBz_m, hr_m, hz_m, num_gridpr_m, num_gridpz_m, rend_m, zbegin_m, and zend_m.

Referenced by applyField().

Here is the call graph for this function:

◆ checkMap() [1/2]

void Fieldmap::checkMap	(	unsigned int	accuracy,
		double	length,
		const std::vector< double > &	zSampling,
		const std::vector< double > &	fourierCoefficients,
		gsl_spline *	splineCoefficients,
		gsl_interp_accel *	splineAccelerator
	)

protectedinherited

Definition at line 346 of file Fieldmap.cpp.

References Fieldmap::checkMap(), Util::combineFilePath(), Fieldmap::Filename_m, OpalData::getInstance(), gsl_spline_eval(), Fieldmap::lowResolutionWarning(), and Physics::two_pi.

Here is the call graph for this function:

◆ checkMap() [2/2]

void Fieldmap::checkMap	(	unsigned int	accuracy,
		std::pair< double, double >	fieldDimensions,
		double	deltaZ,
		const std::vector< double > &	fourierCoefficients,
		gsl_spline *	splineCoefficients,
		gsl_interp_accel *	splineAccelerator
	)

protectedinherited

Definition at line 330 of file Fieldmap.cpp.

References Fieldmap::checkMap().

Referenced by Fieldmap::checkMap(), and Fieldmap::checkMap().

Here is the call graph for this function:

◆ clearDictionary()

void Fieldmap::clearDictionary ( )

staticinherited

Clear the entire field map cache.

Definition at line 160 of file Fieldmap.cpp.

References Fieldmap::clearDictionary(), and Fieldmap::FieldmapDictionary.

Referenced by Fieldmap::clearDictionary().

Here is the call graph for this function:

◆ computeField()

template<class ViewType >

static KOKKOS_INLINE_FUNCTION void FM2DMagnetoStatic::computeField	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	B,
		const ViewType &	Bz,
		const ViewType &	Br,
		double	hr,
		double	hz,
		double	zbegin,
		int	num_gridpr,
		int	num_gridpz
	)

inlinestatic

Computes the magnetic field B at the position R by interpolating from the fieldmap specified by Bz, Br, hr, hz, zbegin, num_gridpr, and num_gridpz. This is done via bilinear interpolation on the grid defined by hr and hz.

Parameters

R	Position [m] relative to the element edge
B	Output magnetic field [T]
Bz	Longitudinal value of the fieldmap [T]
Br	Radial value of the fieldmap [T]
hr	Radial grid spacing [m]
hz	Longitudinal grid spacing [m]
zbegin	Start of the fieldmap relative to the element edge [m]
num_gridpr	Number of radial grid points in the fieldmap
num_gridpz	Number of longitudinal grid points in the fieldmap

Note: We need to pass the fieldmap data as arguments to this function because the 'this' pointer cannot be captured in a GPU kernel, and thus we cannot access member variables directly.

Definition at line 109 of file FM2DMagnetoStatic.h.

Referenced by applyField(), and getFieldstrength().

◆ deleteFieldmap()

void Fieldmap::deleteFieldmap ( std::string Filename )

staticinherited

Delete a specific field map from the cache and memory.

Parameters

Filename The filename of the map to delete.

Definition at line 158 of file Fieldmap.cpp.

References Fieldmap::deleteFieldmap(), and Fieldmap::freeMap().

Referenced by Fieldmap::deleteFieldmap().

Here is the call graph for this function:

◆ disableFieldmapWarning()

void Fieldmap::disableFieldmapWarning ( )

protectedinherited

Definition at line 489 of file Fieldmap.cpp.

References Fieldmap::disableFieldmapWarning(), and Fieldmap::Filename_m.

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), Fieldmap::disableFieldmapWarning(), FM2DDynamic::FM2DDynamic(), and FM2DMagnetoStatic().

Here is the call graph for this function:

◆ exceedingValuesWarning()

void Fieldmap::exceedingValuesWarning ( )

protectedinherited

Definition at line 479 of file Fieldmap.cpp.

References Fieldmap::exceedingValuesWarning(), Fieldmap::Filename_m, and Fieldmap::lines_read_m.

Referenced by Fieldmap::exceedingValuesWarning(), and Fieldmap::interpreteEOF().

Here is the call graph for this function:

◆ freeMap() [1/2]

void FM2DMagnetoStatic::freeMap ( )

overrideprivatevirtual

Pure virtual method to free the map data.

Implements Fieldmap.

Definition at line 180 of file FM2DMagnetoStatic.cpp.

References FieldstrengthBr_m, FieldstrengthBz_m, Fieldmap::Filename_m, freeMap(), and Fieldmap::typeset_msg().

Referenced by freeMap(), and ~FM2DMagnetoStatic().

Here is the call graph for this function:

◆ freeMap() [2/2]

void Fieldmap::freeMap ( std::string Filename )

staticinherited

Decrease reference count or delete field map if unused.

Parameters

Filename The file to free.

Definition at line 311 of file Fieldmap.cpp.

References Fieldmap::FieldmapDictionary, and Fieldmap::freeMap().

Referenced by Fieldmap::freeMap(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ get1DProfile1EngeCoeffs()

void Fieldmap::get1DProfile1EngeCoeffs	(	std::vector< double > &	engeCoeffsEntry,
		std::vector< double > &	engeCoeffsExit
	)

virtualinherited

Definition at line 590 of file Fieldmap.cpp.

References Fieldmap::get1DProfile1EngeCoeffs().

Referenced by Fieldmap::get1DProfile1EngeCoeffs().

Here is the call graph for this function:

◆ get1DProfile1EntranceParam()

void Fieldmap::get1DProfile1EntranceParam	(	double &	entranceParameter1,
		double &	entranceParameter2,
		double &	entranceParameter3
	)

virtualinherited

Definition at line 593 of file Fieldmap.cpp.

References Fieldmap::get1DProfile1EntranceParam().

Referenced by Fieldmap::get1DProfile1EntranceParam().

Here is the call graph for this function:

◆ get1DProfile1ExitParam()

void Fieldmap::get1DProfile1ExitParam	(	double &	exitParameter1,
		double &	exitParameter2,
		double &	exitParameter3
	)

virtualinherited

Definition at line 597 of file Fieldmap.cpp.

References Fieldmap::get1DProfile1ExitParam().

Referenced by Fieldmap::get1DProfile1ExitParam().

Here is the call graph for this function:

◆ getFieldDerivative()

bool FM2DMagnetoStatic::getFieldDerivative	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B,
		const DiffDirection &	dir
	)		const

overridevirtual

Get the field derivative with respect to a direction.

Get the derivative of the field at position R.

Parameters

R	Position [m].
E	Output derivative of Electric field.
B	Output derivative of Magnetic field.
dir	Direction of derivative (DX, DY, DZ).

Returns: true if R is outside, false otherwise.

Parameters

R	Position
E	Electric Field (unused)
B	Derivate of the magnetic field

Note: Not implemented yet

Implements Fieldmap.

Definition at line 258 of file FM2DMagnetoStatic.cpp.

References getFieldDerivative().

Referenced by getFieldDerivative().

Here is the call graph for this function:

◆ getFieldDimensions() [1/2]

void FM2DMagnetoStatic::getFieldDimensions	(	double &	xIni,
		double &	xFinal,
		double &	yIni,
		double &	yFinal,
		double &	zIni,
		double &	zFinal
	)		const

overridevirtual

Get the full 3D bounding box of the field.

Parameters

xIni	Output minimum x [m].
xFinal	Output maximum x [m].
yIni	Output minimum y [m].
yFinal	Output maximum y [m].
zIni	Output minimum z [m].
zFinal	Output maximum z [m].

Implements Fieldmap.

Definition at line 269 of file FM2DMagnetoStatic.cpp.

References getFieldDimensions(), rbegin_m, rend_m, zbegin_m, and zend_m.

Here is the call graph for this function:

◆ getFieldDimensions() [2/2]

void FM2DMagnetoStatic::getFieldDimensions	(	double &	zBegin,
		double &	zEnd
	)		const

overridevirtual

Get the longitudinal dimensions of the field.

Parameters

zBegin	Output start of field [m].
zEnd	Output end of field [m].

Implements Fieldmap.

Definition at line 264 of file FM2DMagnetoStatic.cpp.

References getFieldDimensions(), zbegin_m, and zend_m.

Referenced by getFieldDimensions(), and getFieldDimensions().

Here is the call graph for this function:

◆ getFieldGap()

double Fieldmap::getFieldGap ( )

virtualinherited

Definition at line 600 of file Fieldmap.cpp.

References Fieldmap::getFieldGap().

Referenced by Fieldmap::getFieldGap().

Here is the call graph for this function:

◆ getFieldmap()

Fieldmap * Fieldmap::getFieldmap	(	std::string	Filename,
		bool	fast = `false`
	)

staticinherited

Get a field map instance. Use this factory method to obtain a field map. It checks the cache (FieldmapDictionary) first.

Factory method to obtain a Fieldmap instance.

Parameters

Filename	The path to the field map file.
fast	If true, load a "fast" version if available (implementation dependent).

Returns: Pointer to the Fieldmap instance.

Checks the FieldmapDictionary cache to see if the file is already loaded. If not, it calls readHeader() to determine the map type, instantiates the corresponding subclass, and adds it to the dictionary.

Parameters

Filename	Absolute path to the fieldmap file.
fast	Not implemented. Previously attempted to load a "fast" version.

Returns: Fieldmap* Pointer to the managed fieldmap instance.

Found matching entry?

Return fieldmap pointer

Determine fieldmap type

Based on type:

Create new fieldmap object by parsing the fieldmap file
Create new FieldmapDescription object for this fieldmap
Insert FieldmapDescription into FieldmapDictionary
Return pointer to the fieldmap

Definition at line 72 of file Fieldmap.cpp.

References Fieldmap::FieldmapDictionary, Fieldmap::getFieldmap(), Fieldmap::readHeader(), T2DDynamic, T2DMagnetoStatic, TAstraDynamic, and TAstraMagnetoStatic.

Referenced by Fieldmap::getFieldmap().

Here is the call graph for this function:

◆ getFieldstrength()

bool FM2DMagnetoStatic::getFieldstrength	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)		const

overridevirtual

Get the field strength at a given point.

Get the fieldstrength at position R.

Parameters

R	Position [m] relative to the field map origin.
E	Output Electric field [MV/m].
B	Output Magnetic field [T].

Returns: true if R is outside of the field map, false otherwise.

Parameters

R	Position
E	Electric Field (unused)
B	Magnetic Field

Returns: true if R is outside of the field map, false otherwise.

Implements Fieldmap.

Definition at line 236 of file FM2DMagnetoStatic.cpp.

References computeField(), FieldstrengthBr_m, FieldstrengthBz_m, getFieldstrength(), hr_m, hz_m, isInside(), num_gridpr_m, num_gridpz_m, and zbegin_m.

Referenced by getFieldstrength().

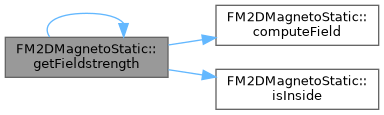

Here is the call graph for this function:

◆ getFrequency()

double FM2DMagnetoStatic::getFrequency ( ) const

overridevirtual

Get the frequency.

Returns: Frequency [MHz].

Note: Not implemented yet

Implements Fieldmap.

Definition at line 293 of file FM2DMagnetoStatic.cpp.

References getFrequency().

Referenced by getFrequency().

Here is the call graph for this function:

◆ getInfo()

void FM2DMagnetoStatic::getInfo ( Inform * msg )

overridevirtual

Print info about the field map.

Implements Fieldmap.

Definition at line 288 of file FM2DMagnetoStatic.cpp.

References Fieldmap::Filename_m, getInfo(), zbegin_m, and zend_m.

Referenced by getInfo().

Here is the call graph for this function:

◆ getLine() [1/2]

void Fieldmap::getLine	(	std::ifstream &	in,
		int &	lines_read,
		std::string &	buffer
	)

staticprotectedinherited

Definition at line 414 of file Fieldmap.cpp.

References Fieldmap::alpha_numeric, Fieldmap::buffer_m, Fieldmap::getLine(), and READ_BUFFER_LENGTH.

Here is the call graph for this function:

◆ getLine() [2/2]

void Fieldmap::getLine	(	std::ifstream &	in,
		std::string &	buffer
	)

inlineprotectedinherited

Definition at line 237 of file Fieldmap.h.

References Fieldmap::getLine(), and Fieldmap::lines_read_m.

Referenced by Fieldmap::getLine(), Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::readHeader(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), FM2DDynamic::readMap(), and readMap().

Here is the call graph for this function:

◆ getListFieldmapNames()

std::vector< std::string > Fieldmap::getListFieldmapNames ( )

staticinherited

Get a list of all loaded field map names.

Returns: Vector of filenames.

Definition at line 149 of file Fieldmap.cpp.

References Fieldmap::FieldmapDictionary, and Fieldmap::getListFieldmapNames().

Referenced by Fieldmap::getListFieldmapNames().

Here is the call graph for this function:

◆ getOnaxisEz()

void Fieldmap::getOnaxisEz ( std::vector< std::pair< double, double > > & onaxis )

virtualinherited

Reimplemented in Astra1DDynamic, FM2DDynamic, and FakeTWFieldmap.

Definition at line 588 of file Fieldmap.cpp.

References Fieldmap::getOnaxisEz().

Referenced by RFCavity::getAutoPhaseEstimate(), TravelingWave::getAutoPhaseEstimate(), and Fieldmap::getOnaxisEz().

Here is the call graph for this function:

◆ getType()

MapType Fieldmap::getType ( )

inlineinherited

Definition at line 206 of file Fieldmap.h.

References Fieldmap::Type.

Referenced by TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ interpreteEOF()

bool Fieldmap::interpreteEOF ( std::ifstream & in )

protectedinherited

Definition at line 436 of file Fieldmap.cpp.

References Fieldmap::alpha_numeric, Fieldmap::buffer_m, Fieldmap::exceedingValuesWarning(), Fieldmap::interpreteEOF(), Fieldmap::lines_read_m, and READ_BUFFER_LENGTH.

Referenced by FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic(), and Fieldmap::interpreteEOF().

Here is the call graph for this function:

◆ interpretLine() [1/6]

template<class S >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value,
		const bool &	file_length_known = `true`
	)

protectedinherited

Referenced by Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), and Fieldmap::interpretLine().

◆ interpretLine() [2/6]

template<class S >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		S &	value2,
		S &	value3,
		S &	value4,
		S &	value5,
		S &	value6,
		const bool &	file_length_known = `true`
	)

protectedinherited

Parses six values of the same type S from a line.

See also: interpretLine<T>

Definition at line 176 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [3/6]

template<class S , class T >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		T &	value2,
		const bool &	file_length_known = `true`
	)

protectedinherited

Parses two values (types S, T) from a line.

See also: interpretLine<T>

Definition at line 55 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [4/6]

template<class S , class T , class U >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		T &	value2,
		U &	value3,
		const bool &	file_length_known = `true`
	)

protectedinherited

Parses three values (types S, T, U) from a line.

See also: interpretLine<T>

Definition at line 92 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [5/6]

template<class S , class T , class U , class V >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		T &	value2,
		U &	value3,
		V &	value4,
		const bool &	file_length_known = `true`
	)

protectedinherited

Parses four values (types S, T, U, V) from a line.

See also: interpretLine<T>

Definition at line 132 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [6/6]

template<class T >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		T &	value,
		const bool &	file_length_known
	)

inherited

Parses a single value of type T from a line in the stream.

Reads a line using getLine(), then attempts to extract one value. Validates that the extraction matches the type and that no unexpected data remains on the line.

Parameters

in	Input file stream.
value	Output variable reference.
file_length_known	If false, EOF is acceptable.

Returns: true if successful, false if EOF (and permitted).

Definition at line 23 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretWarning()

void Fieldmap::interpretWarning	(	const std::ios_base::iostate &	state,
		const bool &	read_all,
		const std::string &	error_msg,
		const std::string &	found
	)

protectedinherited

Definition at line 452 of file Fieldmap.cpp.

References Fieldmap::Filename_m, Fieldmap::interpretWarning(), and Fieldmap::lines_read_m.

Referenced by Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), and Fieldmap::interpretWarning().

Here is the call graph for this function:

◆ isInside()

bool FM2DMagnetoStatic::isInside ( const Vector_t< double, 3 > & r ) const

inlineoverridevirtual

Checks if the given coordinate is inside the volume covered by the fieldmap.

Parameters

r	Coordinate

Note: This cannot be called inside a GPU kernel (implicit capture of the 'this' pointer not allowed on device)

Implements Fieldmap.

Definition at line 84 of file FM2DMagnetoStatic.h.

References rend_m, zbegin_m, and zend_m.

Referenced by getFieldstrength().

◆ lowResolutionWarning()

void Fieldmap::lowResolutionWarning	(	double	squareError,
		double	maxError
	)

protectedinherited

Definition at line 503 of file Fieldmap.cpp.

References Fieldmap::Filename_m, OpalData::getAuxiliaryOutputDirectory(), OpalData::getInstance(), Fieldmap::lowResolutionWarning(), and Fieldmap::typeset_msg().

Referenced by Fieldmap::checkMap(), and Fieldmap::lowResolutionWarning().

Here is the call graph for this function:

◆ missingValuesWarning()

void Fieldmap::missingValuesWarning ( )

protectedinherited

Definition at line 470 of file Fieldmap.cpp.

References Fieldmap::Filename_m, Fieldmap::lines_read_m, and Fieldmap::missingValuesWarning().

Referenced by Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ noFieldmapWarning()

void Fieldmap::noFieldmapWarning ( )

protectedinherited

Definition at line 496 of file Fieldmap.cpp.

References Fieldmap::Filename_m, and Fieldmap::noFieldmapWarning().

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic(), and Fieldmap::noFieldmapWarning().

Here is the call graph for this function:

◆ readHeader()

MapType Fieldmap::readHeader ( std::string Filename )

staticinherited

Read the header of a field map file to determine its type.

Determines the fieldmap type.

Parameters

Filename The file to check.

Returns: The MapType determined from the file header.; MapType

Definition at line 174 of file Fieldmap.cpp.

References Fieldmap::getLine(), Fieldmap::lines_read_m, Fieldmap::readHeader(), T1DDynamic, T1DElectroStatic, T1DMagnetoStatic, T1DProfile1, T2DDynamic, T2DElectroStatic, T2DMagnetoStatic, T3DDynamic, T3DDynamicH5Block, T3DElectroStatic, T3DMagnetoStatic, T3DMagnetoStatic_Extended, T3DMagnetoStaticH5Block, TAstraDynamic, TAstraElectroStatic, TAstraMagnetoStatic, and UNKNOWN.

Referenced by Fieldmap::getFieldmap(), and Fieldmap::readHeader().

Here is the call graph for this function:

◆ readMap() [1/2]

void FM2DMagnetoStatic::readMap ( )

overrideprivatevirtual

Pure virtual method to read the map data. Called by the public static readMap().

Implements Fieldmap.

Definition at line 112 of file FM2DMagnetoStatic.cpp.

References FieldstrengthBr_m, FieldstrengthBz_m, Fieldmap::Filename_m, Fieldmap::getLine(), Fieldmap::normalize_m, num_gridpr_m, num_gridpz_m, readMap(), swap_m, and Fieldmap::typeset_msg().

Referenced by readMap().

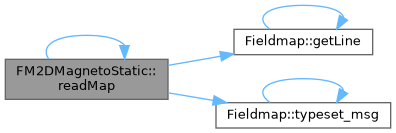

Here is the call graph for this function:

◆ readMap() [2/2]

void Fieldmap::readMap ( std::string Filename )

staticinherited

Trigger the actual reading of the field map data.

Parameters

Filename The file to read.

Definition at line 301 of file Fieldmap.cpp.

References Fieldmap::FieldmapDictionary, and Fieldmap::readMap().

Referenced by Fieldmap::readMap(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ setEdgeConstants()

void Fieldmap::setEdgeConstants	(	const double &	bendAngle,
		const double &	entranceAngle,
		const double &	exitAngle
	)

virtualinherited

Definition at line 408 of file Fieldmap.cpp.

References Fieldmap::setEdgeConstants().

Referenced by Fieldmap::setEdgeConstants().

Here is the call graph for this function:

◆ setFieldGap()

void Fieldmap::setFieldGap ( double gap )

virtualinherited

Definition at line 602 of file Fieldmap.cpp.

References Fieldmap::setFieldGap().

Referenced by Fieldmap::setFieldGap().

Here is the call graph for this function:

◆ setFieldLength()

void Fieldmap::setFieldLength ( const double & )

virtualinherited

Definition at line 412 of file Fieldmap.cpp.

References Fieldmap::setFieldLength().

Referenced by Fieldmap::setFieldLength().

Here is the call graph for this function:

◆ setFrequency()

void FM2DMagnetoStatic::setFrequency ( double freq )

overridevirtual

Set the frequency.

Parameters

freq	Frequency [MHz].

Note: Not implemented yet

Implements Fieldmap.

Definition at line 298 of file FM2DMagnetoStatic.cpp.

References setFrequency().

Referenced by setFrequency().

Here is the call graph for this function:

◆ swap()

void FM2DMagnetoStatic::swap ( )

overridevirtual

Swap coordinates.

Implements Fieldmap.

Definition at line 281 of file FM2DMagnetoStatic.cpp.

References swap(), and swap_m.

Referenced by swap().

Here is the call graph for this function:

◆ typeset_msg()

std::string Fieldmap::typeset_msg	(	const std::string &	msg,
		const std::string &	title
	)

staticinherited

Definition at line 527 of file Fieldmap.cpp.

References Fieldmap::typeset_msg().

Referenced by freeMap(), Fieldmap::lowResolutionWarning(), readMap(), and Fieldmap::typeset_msg().

Here is the call graph for this function:

◆ write3DField()

void Fieldmap::write3DField	(	unsigned int	nx,
		unsigned int	ny,
		unsigned int	nz,
		const std::pair< double, double > &	xrange,
		const std::pair< double, double > &	yrange,
		const std::pair< double, double > &	zrange,
		const std::vector< Vector_t< double, 3 > > &	ef,
		const std::vector< Vector_t< double, 3 > > &	bf
	)

protectedinherited

Definition at line 604 of file Fieldmap.cpp.

References Util::combineFilePath(), Fieldmap::Filename_m, OpalData::getAuxiliaryOutputDirectory(), OpalData::getInstance(), and Fieldmap::write3DField().

Referenced by Fieldmap::write3DField().

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ Fieldmap

friend class Fieldmap

friend

Definition at line 177 of file FM2DMagnetoStatic.h.

Member Data Documentation

◆ alpha_numeric

std::string Fieldmap::alpha_numeric

staticprivateinherited

Definition at line 302 of file Fieldmap.h.

Referenced by Fieldmap::getLine(), and Fieldmap::interpreteEOF().

◆ buffer_m

char Fieldmap::buffer_m

staticprivateinherited

Definition at line 301 of file Fieldmap.h.

Referenced by Fieldmap::getLine(), and Fieldmap::interpreteEOF().

◆ FieldmapDictionary

std::map< std::string, Fieldmap::FieldmapDescription > Fieldmap::FieldmapDictionary

staticprivateinherited

Initial value:

=

std::map<std::string, Fieldmap::FieldmapDescription>()

Definition at line 313 of file Fieldmap.h.

Referenced by Fieldmap::clearDictionary(), Fieldmap::freeMap(), Fieldmap::getFieldmap(), Fieldmap::getListFieldmapNames(), and Fieldmap::readMap().

◆ FieldstrengthBr_m

Kokkos::DualView<double*> FM2DMagnetoStatic::FieldstrengthBr_m

private

Definition at line 160 of file FM2DMagnetoStatic.h.

Referenced by applyField(), freeMap(), getFieldstrength(), and readMap().

◆ FieldstrengthBz_m

Kokkos::DualView<double*> FM2DMagnetoStatic::FieldstrengthBz_m

private

Fieldstrengths.

Definition at line 159 of file FM2DMagnetoStatic.h.

Referenced by applyField(), freeMap(), getFieldstrength(), and readMap().

◆ Filename_m

std::string Fieldmap::Filename_m

protectedinherited

◆ hr_m

double FM2DMagnetoStatic::hr_m

private

Definition at line 172 of file FM2DMagnetoStatic.h.

Referenced by applyField(), FM2DMagnetoStatic(), and getFieldstrength().

◆ hz_m

double FM2DMagnetoStatic::hz_m

private

Grid.

Definition at line 171 of file FM2DMagnetoStatic.h.

Referenced by applyField(), FM2DMagnetoStatic(), and getFieldstrength().

◆ lines_read_m

int Fieldmap::lines_read_m

protectedinherited

Definition at line 234 of file Fieldmap.h.

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), Fieldmap::exceedingValuesWarning(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic(), Fieldmap::getLine(), Fieldmap::interpreteEOF(), Fieldmap::interpretWarning(), Fieldmap::missingValuesWarning(), and Fieldmap::readHeader().

◆ normalize_m

bool Fieldmap::normalize_m

protectedinherited

Definition at line 236 of file Fieldmap.h.

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), FM2DDynamic::readMap(), and readMap().

◆ num_gridpr_m

int FM2DMagnetoStatic::num_gridpr_m

private

Definition at line 173 of file FM2DMagnetoStatic.h.

Referenced by applyField(), FM2DMagnetoStatic(), getFieldstrength(), and readMap().

◆ num_gridpz_m

int FM2DMagnetoStatic::num_gridpz_m

private

Definition at line 174 of file FM2DMagnetoStatic.h.

Referenced by applyField(), FM2DMagnetoStatic(), getFieldstrength(), and readMap().

◆ rbegin_m

double FM2DMagnetoStatic::rbegin_m

private

Radius Bounds.

Definition at line 163 of file FM2DMagnetoStatic.h.

Referenced by FM2DMagnetoStatic(), and getFieldDimensions().

◆ rend_m

double FM2DMagnetoStatic::rend_m

private

Definition at line 164 of file FM2DMagnetoStatic.h.

Referenced by applyField(), FM2DMagnetoStatic(), getFieldDimensions(), and isInside().

◆ swap_m

bool FM2DMagnetoStatic::swap_m

private

Definition at line 176 of file FM2DMagnetoStatic.h.

Referenced by FM2DMagnetoStatic(), readMap(), and swap().

◆ Type

MapType Fieldmap::Type

protectedinherited

Definition at line 231 of file Fieldmap.h.

Referenced by Astra1DDynamic::Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic(), and Fieldmap::getType().

◆ zbegin_m

double FM2DMagnetoStatic::zbegin_m

private

Z Bounds relative to element edge.

Definition at line 167 of file FM2DMagnetoStatic.h.

Referenced by applyField(), FM2DMagnetoStatic(), getFieldDimensions(), getFieldDimensions(), getFieldstrength(), getInfo(), and isInside().

◆ zend_m

double FM2DMagnetoStatic::zend_m

private

Definition at line 168 of file FM2DMagnetoStatic.h.

Referenced by applyField(), FM2DMagnetoStatic(), getFieldDimensions(), getFieldDimensions(), getInfo(), and isInside().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ FM2DMagnetoStatic()

◆ ~FM2DMagnetoStatic()

Member Function Documentation

◆ applyField()

◆ checkMap() [1/2]

◆ checkMap() [2/2]

◆ clearDictionary()

◆ computeField()

◆ deleteFieldmap()

◆ disableFieldmapWarning()

◆ exceedingValuesWarning()

◆ freeMap() [1/2]

◆ freeMap() [2/2]

◆ get1DProfile1EngeCoeffs()

◆ get1DProfile1EntranceParam()

◆ get1DProfile1ExitParam()

◆ getFieldDerivative()

◆ getFieldDimensions() [1/2]

◆ getFieldDimensions() [2/2]

◆ getFieldGap()

◆ getFieldmap()

◆ getFieldstrength()

◆ getFrequency()

◆ getInfo()

◆ getLine() [1/2]

◆ getLine() [2/2]

◆ getListFieldmapNames()

◆ getOnaxisEz()

◆ getType()

◆ interpreteEOF()

◆ interpretLine() [1/6]

◆ interpretLine() [2/6]

◆ interpretLine() [3/6]

◆ interpretLine() [4/6]

◆ interpretLine() [5/6]

◆ interpretLine() [6/6]

◆ interpretWarning()

◆ isInside()

◆ lowResolutionWarning()

◆ missingValuesWarning()

◆ noFieldmapWarning()

◆ readHeader()

◆ readMap() [1/2]

◆ readMap() [2/2]

◆ setEdgeConstants()

◆ setFieldGap()

◆ setFieldLength()

◆ setFrequency()

◆ swap()

◆ typeset_msg()

◆ write3DField()

Friends And Related Symbol Documentation

◆ Fieldmap

Member Data Documentation

◆ alpha_numeric

◆ buffer_m

◆ FieldmapDictionary

◆ FieldstrengthBr_m

◆ FieldstrengthBz_m

◆ Filename_m

◆ hr_m

◆ hz_m

◆ lines_read_m

◆ normalize_m

◆ num_gridpr_m

◆ num_gridpz_m

◆ rbegin_m

◆ rend_m

◆ swap_m
