GSLSpline.h File Reference

#include "CubicSpline.h"
#include "LinearSpline.h"

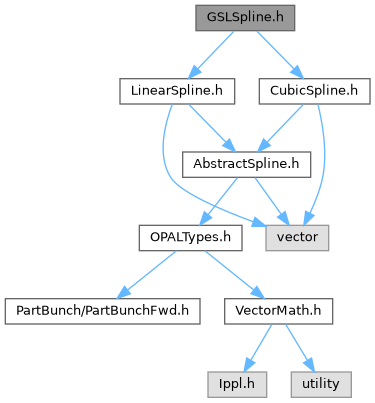

Include dependency graph for GSLSpline.h:

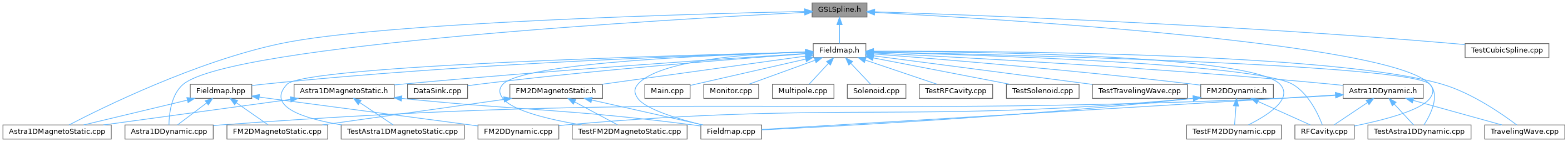

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
using	gsl_spline = AbstractSpline
	GSL-compatible spline type alias.
using	gsl_interp_accel = AbstractSpline::Accelerator
	GSL-compatible accelerator type alias.

Functions
gsl_spline *	gsl_spline_alloc (const int type, size_t)
	Allocate a spline instance (size ignored).
gsl_interp_accel *	gsl_interp_accel_alloc ()
	Allocate an interpolation accelerator.
void	gsl_spline_init (gsl_spline *spline, const double *x, const double *y, const size_t n)
	Initialize a spline with tabulated data.
double	gsl_spline_eval (const gsl_spline *spline, const double x, gsl_interp_accel *accel)
	Evaluate a spline at x using an accelerator.
double	gsl_spline_eval_integ (const gsl_spline *spline, const double xa, const double xb, gsl_interp_accel *accel)
	Evaluate the integral of a spline at x using an accelerator.
void	gsl_spline_free (const gsl_spline *spline)
	Free a spline instance.
void	gsl_interp_accel_free (const gsl_interp_accel *accel)
	Free an accelerator instance.
void	gsl_interp_accel_reset (gsl_interp_accel *accel)
	Reset an accelerator to the initial state.

Variables
constexpr int	gsl_interp_linear = 1
	GSL linear interpolation type identifiers.
constexpr int	gsl_interp_cspline = 0

Typedef Documentation

gsl_interp_accel

using gsl_interp_accel = AbstractSpline::Accelerator

GSL-compatible accelerator type alias.

Definition at line 32 of file GSLSpline.h.

gsl_spline

using gsl_spline = AbstractSpline

GSL-compatible spline type alias.

Definition at line 29 of file GSLSpline.h.

Function Documentation

gsl_interp_accel_alloc()

gsl_interp_accel * gsl_interp_accel_alloc ( )

inline

Allocate an interpolation accelerator.

Returns

Output: accelerator pointer.

Definition at line 50 of file GSLSpline.h.

Referenced by RFCavity::getAutoPhaseEstimate(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), and TEST_F().

gsl_interp_accel_free()

void gsl_interp_accel_free ( const gsl_interp_accel *  accel )

inline

Free an accelerator instance.

Parameters

accel

Input: accelerator to release (can be null).

Definition at line 87 of file GSLSpline.h.

Referenced by RFCavity::getAutoPhaseEstimate(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), and TEST_F().

gsl_interp_accel_reset()

void gsl_interp_accel_reset ( gsl_interp_accel *  accel )

inline

Reset an accelerator to the initial state.

Parameters

accel

Input/Output: accelerator to reset.

Definition at line 91 of file GSLSpline.h.

References AbstractSpline::Accelerator::reset().

Referenced by TEST_F().

Here is the call graph for this function:

gsl_spline_alloc()

gsl_spline * gsl_spline_alloc ( const int  type, size_t    )

inline

Allocate a spline instance (size ignored).

Parameters

type	Input: interpolation type
size	Input: number of points (unused).

Returns

Output: spline pointer.

Definition at line 38 of file GSLSpline.h.

References gsl_interp_cspline, and gsl_interp_linear.

Referenced by RFCavity::getAutoPhaseEstimate(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), and TEST_F().

gsl_spline_eval()

double gsl_spline_eval ( const gsl_spline *  spline, const double  x, gsl_interp_accel *  accel  )

inline

Evaluate a spline at x using an accelerator.

Parameters

spline	Input: spline to evaluate.
x	Input: x-coordinate.
accel	Input/Output: accelerator cache.

Returns

Output: interpolated value.

Definition at line 66 of file GSLSpline.h.

References AbstractSpline::eval().

Referenced by Fieldmap::checkMap(), RFCavity::getAutoPhaseEstimate(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), and TEST_F().

Here is the call graph for this function:

gsl_spline_eval_integ()

double gsl_spline_eval_integ ( const gsl_spline *  spline, const double  xa, const double  xb, gsl_interp_accel *  accel  )

inline

Evaluate the integral of a spline at x using an accelerator.

Parameters

spline	Input: spline to evaluate.
xa	Input: lower bound x-coordinate.
xb	Input: upper bound x-coordinate.
accel	Input/Output: accelerator cache.

Returns

Output: integrated value.

Definition at line 76 of file GSLSpline.h.

References AbstractSpline::evalIntegral().

Referenced by TEST_F().

Here is the call graph for this function:

gsl_spline_free()

void gsl_spline_free ( const gsl_spline *  spline )

inline

Free a spline instance.

Parameters

spline

Input: spline to release (can be null).

Definition at line 83 of file GSLSpline.h.

Referenced by RFCavity::getAutoPhaseEstimate(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), and TEST_F().

gsl_spline_init()

void gsl_spline_init ( gsl_spline *  spline, const double *  x, const double *  y, const size_t  n  )

inline

Initialize a spline with tabulated data.

Parameters

spline	Input/Output: spline to initialize.
x	Input: strictly increasing x-coordinates.
y	Input: y-values corresponding to x.
n	Input: number of samples.

Definition at line 57 of file GSLSpline.h.

References AbstractSpline::init().

Referenced by RFCavity::getAutoPhaseEstimate(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), and TEST_F().

Here is the call graph for this function:

Variable Documentation

gsl_interp_cspline

constexpr int gsl_interp_cspline = 0

constexpr

Definition at line 26 of file GSLSpline.h.

Referenced by RFCavity::getAutoPhaseEstimate(), gsl_spline_alloc(), Astra1DDynamic::readMap(), Astra1DMagnetoStatic::readMap(), and TEST_F().

gsl_interp_linear

constexpr int gsl_interp_linear = 1

constexpr

GSL linear interpolation type identifiers.

Definition at line 25 of file GSLSpline.h.

Referenced by gsl_spline_alloc().
