#include <Astra1DDynamic.h>

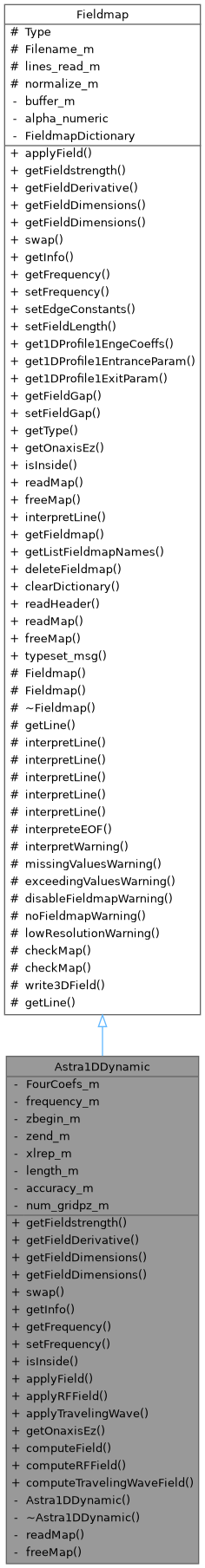

Inheritance diagram for Astra1DDynamic:

Collaboration diagram for Astra1DDynamic:

Public Member Functions
virtual bool	getFieldstrength (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) const override
	Get the field strength at a given point.

virtual bool	getFieldDerivative (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B, const DiffDirection &dir) const override
	Get the field derivative with respect to a direction.

virtual void	getFieldDimensions (double &zBegin, double &zEnd) const override
	Get the longitudinal dimensions of the field.

virtual void	getFieldDimensions (double &xIni, double &xFinal, double &yIni, double &yFinal, double &zIni, double &zFinal) const override
	Get the full 3D bounding box of the field.

virtual void	swap () override
	Swap coordinates.

virtual void	getInfo (Inform *msg) override
	Print info about the field map.

virtual double	getFrequency () const override
	Get the frequency.

virtual void	setFrequency (double freq) override
	Set the frequency.

bool	isInside (const Vector_t< double, 3 > &r) const override
	Checks if the given coordinate is inside the volume covered by the fieldmap.

void	applyField (std::shared_ptr< ParticleContainer_t > pc, double) override
	Apply the FM to all the particles.

void	applyRFField (std::shared_ptr< ParticleContainer_t > pc, double electricScale, double magneticScale, double startField, double endField)
	Apply RF-scaled Astra1DDynamic field to all particles.

void	applyTravelingWave (std::shared_ptr< ParticleContainer_t > pc, double entryElectricScale, double entryMagneticScale, double core1ElectricScale, double core1MagneticScale, double core2ElectricScale, double core2MagneticScale, double exitElectricScale, double exitMagneticScale, double startField, double startCoreField, double startExitField, double mappedStartExitField, double periodLength, double cellLength, double elementLength)
	Apply the traveling-wave RF field map to all particles.

virtual void	getOnaxisEz (std::vector< std::pair< double, double > > &F) override

virtual void	setEdgeConstants (const double &bendAngle, const double &entranceAngle, const double &exitAngle)

virtual void	setFieldLength (const double &)

virtual void	get1DProfile1EngeCoeffs (std::vector< double > &engeCoeffsEntry, std::vector< double > &engeCoeffsExit)

virtual void	get1DProfile1EntranceParam (double &entranceParameter1, double &entranceParameter2, double &entranceParameter3)

virtual void	get1DProfile1ExitParam (double &exitParameter1, double &exitParameter2, double &exitParameter3)

virtual double	getFieldGap ()

virtual void	setFieldGap (double gap)

MapType	getType ()

template<class T >
bool	interpretLine (std::ifstream &in, T &value, const bool &file_length_known)
	Parses a single value of type T from a line in the stream.

Static Public Member Functions
template<class ViewType >
static KOKKOS_INLINE_FUNCTION void	computeField (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B, const ViewType &FourCoefs, double zbegin, double length, double xlrep, int accuracy)

template<class ViewType >
static KOKKOS_INLINE_FUNCTION void	computeRFField (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B, const ViewType &FourCoefs, double zbegin, double zend, double length, double xlrep, int accuracy, double electricScale, double magneticScale, double startField, double endField)

template<class ViewType >
static KOKKOS_INLINE_FUNCTION void	computeTravelingWaveField (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B, const ViewType &FourCoefs, double zbegin, double zend, double length, double xlrep, int accuracy, double entryElectricScale, double entryMagneticScale, double core1ElectricScale, double core1MagneticScale, double core2ElectricScale, double core2MagneticScale, double exitElectricScale, double exitMagneticScale, double startCoreField, double startExitField, double mappedStartExitField, double periodLength, double cellLength, double elementLength)

static Fieldmap *	getFieldmap (std::string Filename, bool fast=false)
	Get a field map instance. Use this factory method to obtain a field map. It checks the cache (FieldmapDictionary) first.

static std::vector< std::string >	getListFieldmapNames ()
	Get a list of all loaded field map names.

static void	deleteFieldmap (std::string Filename)
	Delete a specific field map from the cache and memory.

static void	clearDictionary ()
	Clear the entire field map cache.

static MapType	readHeader (std::string Filename)
	Read the header of a field map file to determine its type.

static void	readMap (std::string Filename)
	Trigger the actual reading of the field map data.

static void	freeMap (std::string Filename)
	Decrease reference count or delete field map if unused.

static std::string	typeset_msg (const std::string &msg, const std::string &title)

Protected Member Functions
void	getLine (std::ifstream &in, std::string &buffer)

template<class S >
bool	interpretLine (std::ifstream &in, S &value, const bool &file_length_known=true)

template<class S , class T >
bool	interpretLine (std::ifstream &in, S &value1, T &value2, const bool &file_length_known=true)
	Parses two values (types S, T) from a line.

template<class S , class T , class U >
bool	interpretLine (std::ifstream &in, S &value1, T &value2, U &value3, const bool &file_length_known=true)
	Parses three values (types S, T, U) from a line.

template<class S , class T , class U , class V >
bool	interpretLine (std::ifstream &in, S &value1, T &value2, U &value3, V &value4, const bool &file_length_known=true)
	Parses four values (types S, T, U, V) from a line.

template<class S >
bool	interpretLine (std::ifstream &in, S &value1, S &value2, S &value3, S &value4, S &value5, S &value6, const bool &file_length_known=true)
	Parses six values of the same type S from a line.

bool	interpreteEOF (std::ifstream &in)

void	interpretWarning (const std::ios_base::iostate &state, const bool &read_all, const std::string &error_msg, const std::string &found)

void	missingValuesWarning ()

void	exceedingValuesWarning ()

void	disableFieldmapWarning ()

void	noFieldmapWarning ()

void	lowResolutionWarning (double squareError, double maxError)

void	checkMap (unsigned int accuracy, std::pair< double, double > fieldDimensions, double deltaZ, const std::vector< double > &fourierCoefficients, gsl_spline splineCoefficients, gsl_interp_accel splineAccelerator)

void	checkMap (unsigned int accuracy, double length, const std::vector< double > &zSampling, const std::vector< double > &fourierCoefficients, gsl_spline splineCoefficients, gsl_interp_accel splineAccelerator)

void	write3DField (unsigned int nx, unsigned int ny, unsigned int nz, const std::pair< double, double > &xrange, const std::pair< double, double > &yrange, const std::pair< double, double > &zrange, const std::vector< Vector_t< double, 3 > > &ef, const std::vector< Vector_t< double, 3 > > &bf)

Static Protected Member Functions
static void	getLine (std::ifstream &in, int &lines_read, std::string &buffer)

Protected Attributes
MapType	Type

std::string	Filename_m

int	lines_read_m

bool	normalize_m

Private Member Functions
	Astra1DDynamic (const std::string &filename)

	~Astra1DDynamic ()

void	readMap () override
	Pure virtual method to read the map data. Called by the public static readMap().

void	freeMap () override
	Pure virtual method to free the map data.

Private Attributes
Kokkos::DualView< double * >	FourCoefs_m
	Fourier coefficients of Ez(z) (device-accessible) Stored as: [a0, a1, b1, a2, b2, ..., aN, bN] and used in the reconstruction Ez(z) = a0 + sum_l [ a_l cos(lkz) - b_l sin(lkz) ].

double	frequency_m

double	zbegin_m
	Z Bounds relative to element edge.

double	zend_m

double	xlrep_m
	Wave number (omega / c)

double	length_m
	Effective periodic length of the field map [m].

int	accuracy_m
	Number of Fourier modes used.

int	num_gridpz_m
	Number of grid points in z-direction (input sampling)

Static Private Attributes
static char	buffer_m [256]

static std::string	alpha_numeric

static std::map< std::string, FieldmapDescription >	FieldmapDictionary

Friends
class	Fieldmap
	Allow Fieldmap factory access.

Detailed Description

Definition at line 10 of file Astra1DDynamic.h.

Constructor & Destructor Documentation

◆ Astra1DDynamic()

Astra1DDynamic::Astra1DDynamic ( const std::string & filename )

private

Definition at line 16 of file Astra1DDynamic.cpp.

References accuracy_m, Astra1DDynamic(), Physics::c, Fieldmap::disableFieldmapWarning(), Fieldmap::Filename_m, frequency_m, length_m, Fieldmap::lines_read_m, Units::MHz2Hz, Fieldmap::noFieldmapWarning(), Fieldmap::normalize_m, num_gridpz_m, TAstraDynamic, Util::toUpper(), Physics::two_pi, Fieldmap::Type, xlrep_m, zbegin_m, and zend_m.

Referenced by Astra1DDynamic().

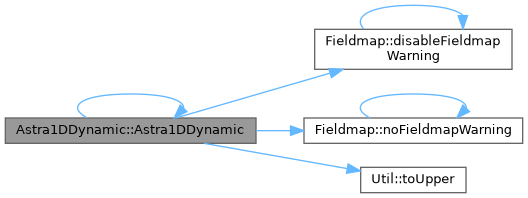

Here is the call graph for this function:

◆ ~Astra1DDynamic()

Astra1DDynamic::~Astra1DDynamic ( )

private

Definition at line 95 of file Astra1DDynamic.cpp.

References freeMap(), and ~Astra1DDynamic().

Referenced by ~Astra1DDynamic().

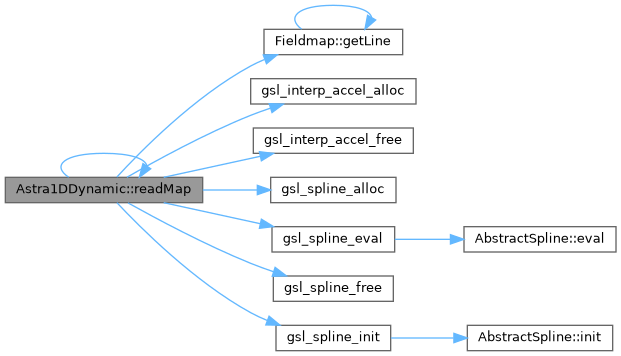

Here is the call graph for this function:

Member Function Documentation

◆ applyField()

void Astra1DDynamic::applyField	(	std::shared_ptr< ParticleContainer_t >	pc,
		double
	)

overridevirtual

Apply the FM to all the particles.

Parameters

pc	Particle container
pc	Particle container
scale	Scaling factor for the field (currently not used)

Implements Fieldmap.

Definition at line 280 of file Astra1DDynamic.cpp.

References accuracy_m, applyField(), computeField(), FourCoefs_m, length_m, xlrep_m, zbegin_m, and zend_m.

Referenced by applyField().

Here is the call graph for this function:

◆ applyRFField()

void Astra1DDynamic::applyRFField	(	std::shared_ptr< ParticleContainer_t >	pc,
		double	electricScale,
		double	magneticScale,
		double	startField,
		double	endField
	)

Apply RF-scaled Astra1DDynamic field to all particles.

Used by RFCavity. The static fieldmap is evaluated on device and then scaled with the RF electric and magnetic phase factors.

Parameters

pc	Particle container.
electricScale	Scale factor applied to E.
magneticScale	Scale factor applied to B.
startField	Longitudinal start of the cavity field region.
endField	Longitudinal end of the cavity field region.

Definition at line 309 of file Astra1DDynamic.cpp.

References accuracy_m, applyRFField(), computeRFField(), FourCoefs_m, length_m, xlrep_m, zbegin_m, and zend_m.

Referenced by applyRFField().

Here is the call graph for this function:

◆ applyTravelingWave()

void Astra1DDynamic::applyTravelingWave	(	std::shared_ptr< ParticleContainer_t >	pc,
		double	entryElectricScale,
		double	entryMagneticScale,
		double	core1ElectricScale,
		double	core1MagneticScale,
		double	core2ElectricScale,
		double	core2MagneticScale,
		double	exitElectricScale,
		double	exitMagneticScale,
		double	startField,
		double	startCoreField,
		double	startExitField,
		double	mappedStartExitField,
		double	periodLength,
		double	cellLength,
		double	elementLength
	)

Apply the traveling-wave RF field map to all particles.

This is the device-safe path used by TravelingWave. It avoids calling the virtual Fieldmap::getFieldstrength() interface inside a Kokkos kernel and reproduces the traveling-wave cavity region logic directly on device.

The cavity is split into three longitudinal regions:

entry region: direct field-map application with entry phase/scale
core region: superposition of two periodically shifted field contributions
exit region: remapped field-map application with exit phase/scale

Parameters

pc	Particle container.
entryElectricScale	Scale factor applied to E in the entry region.
entryMagneticScale	Scale factor applied to B in the entry region.
core1ElectricScale	Scale factor applied to the first core contribution in E.
core1MagneticScale	Scale factor applied to the first core contribution in B.
core2ElectricScale	Scale factor applied to the second core contribution in E.
core2MagneticScale	Scale factor applied to the second core contribution in B.
exitElectricScale	Scale factor applied to E in the exit region.
exitMagneticScale	Scale factor applied to B in the exit region.
startField	Longitudinal beginning of the full traveling-wave structure.
startCoreField	Longitudinal beginning of the periodic core region.
startExitField	Longitudinal beginning of the exit region.
mappedStartExitField	Shift used to remap the exit region into field-map coordinates.
periodLength	Period length of the base field-map cell.
cellLength	Cell-to-cell longitudinal shift in the core region.
elementLength	Total longitudinal length of the traveling-wave element.

Definition at line 334 of file Astra1DDynamic.cpp.

References accuracy_m, applyTravelingWave(), computeTravelingWaveField(), FourCoefs_m, length_m, xlrep_m, zbegin_m, and zend_m.

Referenced by applyTravelingWave().

Here is the call graph for this function:

◆ checkMap() [1/2]

void Fieldmap::checkMap	(	unsigned int	accuracy,
		double	length,
		const std::vector< double > &	zSampling,
		const std::vector< double > &	fourierCoefficients,
		gsl_spline *	splineCoefficients,
		gsl_interp_accel *	splineAccelerator
	)

protectedinherited

Definition at line 346 of file Fieldmap.cpp.

References Fieldmap::checkMap(), Util::combineFilePath(), Fieldmap::Filename_m, OpalData::getInstance(), gsl_spline_eval(), Fieldmap::lowResolutionWarning(), and Physics::two_pi.

Here is the call graph for this function:

◆ checkMap() [2/2]

void Fieldmap::checkMap	(	unsigned int	accuracy,
		std::pair< double, double >	fieldDimensions,
		double	deltaZ,
		const std::vector< double > &	fourierCoefficients,
		gsl_spline *	splineCoefficients,
		gsl_interp_accel *	splineAccelerator
	)

protectedinherited

Definition at line 330 of file Fieldmap.cpp.

References Fieldmap::checkMap().

Referenced by Fieldmap::checkMap(), and Fieldmap::checkMap().

Here is the call graph for this function:

◆ clearDictionary()

void Fieldmap::clearDictionary ( )

staticinherited

Clear the entire field map cache.

Definition at line 160 of file Fieldmap.cpp.

References Fieldmap::clearDictionary(), and Fieldmap::FieldmapDictionary.

Referenced by Fieldmap::clearDictionary().

Here is the call graph for this function:

◆ computeField()

template<class ViewType >

static KOKKOS_INLINE_FUNCTION void Astra1DDynamic::computeField	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B,
		const ViewType &	FourCoefs,
		double	zbegin,
		double	length,
		double	xlrep,
		int	accuracy
	)

inlinestatic

Definition at line 91 of file Astra1DDynamic.h.

References Physics::c, Physics::pi, and Physics::two_pi.

Referenced by applyField(), computeRFField(), computeTravelingWaveField(), and getFieldstrength().

◆ computeRFField()

template<class ViewType >

static KOKKOS_INLINE_FUNCTION void Astra1DDynamic::computeRFField	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B,
		const ViewType &	FourCoefs,
		double	zbegin,
		double	zend,
		double	length,
		double	xlrep,
		int	accuracy,
		double	electricScale,
		double	magneticScale,
		double	startField,
		double	endField
	)

inlinestatic

Definition at line 134 of file Astra1DDynamic.h.

References computeField().

Referenced by applyRFField().

Here is the call graph for this function:

◆ computeTravelingWaveField()

template<class ViewType >

static KOKKOS_INLINE_FUNCTION void Astra1DDynamic::computeTravelingWaveField	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B,
		const ViewType &	FourCoefs,
		double	zbegin,
		double	zend,
		double	length,
		double	xlrep,
		int	accuracy,
		double	entryElectricScale,
		double	entryMagneticScale,
		double	core1ElectricScale,
		double	core1MagneticScale,
		double	core2ElectricScale,
		double	core2MagneticScale,
		double	exitElectricScale,
		double	exitMagneticScale,
		double	startCoreField,
		double	startExitField,
		double	mappedStartExitField,
		double	periodLength,
		double	cellLength,
		double	elementLength
	)

inlinestatic

Definition at line 156 of file Astra1DDynamic.h.

References computeField().

Referenced by applyTravelingWave().

Here is the call graph for this function:

◆ deleteFieldmap()

void Fieldmap::deleteFieldmap ( std::string Filename )

staticinherited

Delete a specific field map from the cache and memory.

Parameters

Filename The filename of the map to delete.

Definition at line 158 of file Fieldmap.cpp.

References Fieldmap::deleteFieldmap(), and Fieldmap::freeMap().

Referenced by Fieldmap::deleteFieldmap().

Here is the call graph for this function:

◆ disableFieldmapWarning()

void Fieldmap::disableFieldmapWarning ( )

protectedinherited

Definition at line 489 of file Fieldmap.cpp.

References Fieldmap::disableFieldmapWarning(), and Fieldmap::Filename_m.

Referenced by Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), Fieldmap::disableFieldmapWarning(), FM2DDynamic::FM2DDynamic(), and FM2DMagnetoStatic::FM2DMagnetoStatic().

Here is the call graph for this function:

◆ exceedingValuesWarning()

void Fieldmap::exceedingValuesWarning ( )

protectedinherited

Definition at line 479 of file Fieldmap.cpp.

References Fieldmap::exceedingValuesWarning(), Fieldmap::Filename_m, and Fieldmap::lines_read_m.

Referenced by Fieldmap::exceedingValuesWarning(), and Fieldmap::interpreteEOF().

Here is the call graph for this function:

◆ freeMap() [1/2]

void Astra1DDynamic::freeMap ( )

overrideprivatevirtual

Pure virtual method to free the map data.

Implements Fieldmap.

Definition at line 264 of file Astra1DDynamic.cpp.

References Fieldmap::Filename_m, FourCoefs_m, and freeMap().

Referenced by freeMap(), and ~Astra1DDynamic().

Here is the call graph for this function:

◆ freeMap() [2/2]

void Fieldmap::freeMap ( std::string Filename )

staticinherited

Decrease reference count or delete field map if unused.

Parameters

Filename The file to free.

Definition at line 311 of file Fieldmap.cpp.

References Fieldmap::FieldmapDictionary, and Fieldmap::freeMap().

Referenced by Fieldmap::freeMap(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ get1DProfile1EngeCoeffs()

void Fieldmap::get1DProfile1EngeCoeffs	(	std::vector< double > &	engeCoeffsEntry,
		std::vector< double > &	engeCoeffsExit
	)

virtualinherited

Definition at line 590 of file Fieldmap.cpp.

References Fieldmap::get1DProfile1EngeCoeffs().

Referenced by Fieldmap::get1DProfile1EngeCoeffs().

Here is the call graph for this function:

◆ get1DProfile1EntranceParam()

void Fieldmap::get1DProfile1EntranceParam	(	double &	entranceParameter1,
		double &	entranceParameter2,
		double &	entranceParameter3
	)

virtualinherited

Definition at line 593 of file Fieldmap.cpp.

References Fieldmap::get1DProfile1EntranceParam().

Referenced by Fieldmap::get1DProfile1EntranceParam().

Here is the call graph for this function:

◆ get1DProfile1ExitParam()

void Fieldmap::get1DProfile1ExitParam	(	double &	exitParameter1,
		double &	exitParameter2,
		double &	exitParameter3
	)

virtualinherited

Definition at line 597 of file Fieldmap.cpp.

References Fieldmap::get1DProfile1ExitParam().

Referenced by Fieldmap::get1DProfile1ExitParam().

Here is the call graph for this function:

◆ getFieldDerivative()

bool Astra1DDynamic::getFieldDerivative	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B,
		const DiffDirection &	dir
	)		const

overridevirtual

Get the field derivative with respect to a direction.

Get the derivative of the field at position R.

Parameters

R	Position [m].
E	Output derivative of Electric field.
B	Output derivative of Magnetic field.
dir	Direction of derivative (DX, DY, DZ).

Returns: true if R is outside, false otherwise.

Parameters

R	Position
E	Electric Field
B	Derivate of the magnetic field (unused)

Implements Fieldmap.

Definition at line 384 of file Astra1DDynamic.cpp.

References accuracy_m, FourCoefs_m, getFieldDerivative(), length_m, Physics::pi, Physics::two_pi, and zbegin_m.

Referenced by getFieldDerivative().

Here is the call graph for this function:

◆ getFieldDimensions() [1/2]

void Astra1DDynamic::getFieldDimensions	(	double &	xIni,
		double &	xFinal,
		double &	yIni,
		double &	yFinal,
		double &	zIni,
		double &	zFinal
	)		const

overridevirtual

Get the full 3D bounding box of the field.

Parameters

xIni	Output minimum x [m].
xFinal	Output maximum x [m].
yIni	Output minimum y [m].
yFinal	Output maximum y [m].
zIni	Output minimum z [m].
zFinal	Output maximum z [m].

Implements Fieldmap.

Definition at line 408 of file Astra1DDynamic.cpp.

References getFieldDimensions().

Here is the call graph for this function:

◆ getFieldDimensions() [2/2]

void Astra1DDynamic::getFieldDimensions	(	double &	zBegin,
		double &	zEnd
	)		const

overridevirtual

Get the longitudinal dimensions of the field.

Parameters

zBegin	Output start of field [m].
zEnd	Output end of field [m].

Implements Fieldmap.

Definition at line 403 of file Astra1DDynamic.cpp.

References getFieldDimensions(), zbegin_m, and zend_m.

Referenced by getFieldDimensions(), and getFieldDimensions().

Here is the call graph for this function:

◆ getFieldGap()

double Fieldmap::getFieldGap ( )

virtualinherited

Definition at line 600 of file Fieldmap.cpp.

References Fieldmap::getFieldGap().

Referenced by Fieldmap::getFieldGap().

Here is the call graph for this function:

◆ getFieldmap()

Fieldmap * Fieldmap::getFieldmap	(	std::string	Filename,
		bool	fast = `false`
	)

staticinherited

Get a field map instance. Use this factory method to obtain a field map. It checks the cache (FieldmapDictionary) first.

Factory method to obtain a Fieldmap instance.

Parameters

Filename	The path to the field map file.
fast	If true, load a "fast" version if available (implementation dependent).

Returns: Pointer to the Fieldmap instance.

Checks the FieldmapDictionary cache to see if the file is already loaded. If not, it calls readHeader() to determine the map type, instantiates the corresponding subclass, and adds it to the dictionary.

Parameters

Filename	Absolute path to the fieldmap file.
fast	Not implemented. Previously attempted to load a "fast" version.

Returns: Fieldmap* Pointer to the managed fieldmap instance.

Found matching entry?

Return fieldmap pointer

Determine fieldmap type

Based on type:

Create new fieldmap object by parsing the fieldmap file
Create new FieldmapDescription object for this fieldmap
Insert FieldmapDescription into FieldmapDictionary
Return pointer to the fieldmap

Definition at line 72 of file Fieldmap.cpp.

References Fieldmap::FieldmapDictionary, Fieldmap::getFieldmap(), Fieldmap::readHeader(), T2DDynamic, T2DMagnetoStatic, TAstraDynamic, and TAstraMagnetoStatic.

Referenced by Fieldmap::getFieldmap().

Here is the call graph for this function:

◆ getFieldstrength()

bool Astra1DDynamic::getFieldstrength	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)		const

overridevirtual

Get the field strength at a given point.

Parameters

R	Position [m] relative to the field map origin.
E	Output Electric field [MV/m].
B	Output Magnetic field [T].

Returns: true if R is outside of the field map, false otherwise.

Implements Fieldmap.

Definition at line 365 of file Astra1DDynamic.cpp.

References accuracy_m, computeField(), FourCoefs_m, getFieldstrength(), isInside(), length_m, xlrep_m, and zbegin_m.

Referenced by getFieldstrength().

Here is the call graph for this function:

◆ getFrequency()

double Astra1DDynamic::getFrequency ( ) const

overridevirtual

Get the frequency.

Returns: Frequency [MHz].

Note: Not implemented yet

Implements Fieldmap.

Definition at line 421 of file Astra1DDynamic.cpp.

References frequency_m, and getFrequency().

Referenced by getFrequency().

Here is the call graph for this function:

◆ getInfo()

void Astra1DDynamic::getInfo ( Inform * msg )

overridevirtual

Print info about the field map.

Implements Fieldmap.

Definition at line 416 of file Astra1DDynamic.cpp.

References Fieldmap::Filename_m, getInfo(), zbegin_m, and zend_m.

Referenced by getInfo().

Here is the call graph for this function:

◆ getLine() [1/2]

void Fieldmap::getLine	(	std::ifstream &	in,
		int &	lines_read,
		std::string &	buffer
	)

staticprotectedinherited

Definition at line 414 of file Fieldmap.cpp.

References Fieldmap::alpha_numeric, Fieldmap::buffer_m, Fieldmap::getLine(), and READ_BUFFER_LENGTH.

Here is the call graph for this function:

◆ getLine() [2/2]

void Fieldmap::getLine	(	std::ifstream &	in,
		std::string &	buffer
	)

inlineprotectedinherited

Definition at line 237 of file Fieldmap.h.

References Fieldmap::getLine(), and Fieldmap::lines_read_m.

Referenced by Fieldmap::getLine(), Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::readHeader(), readMap(), Astra1DMagnetoStatic::readMap(), FM2DDynamic::readMap(), and FM2DMagnetoStatic::readMap().

Here is the call graph for this function:

◆ getListFieldmapNames()

std::vector< std::string > Fieldmap::getListFieldmapNames ( )

staticinherited

Get a list of all loaded field map names.

Returns: Vector of filenames.

Definition at line 149 of file Fieldmap.cpp.

References Fieldmap::FieldmapDictionary, and Fieldmap::getListFieldmapNames().

Referenced by Fieldmap::getListFieldmapNames().

Here is the call graph for this function:

◆ getOnaxisEz()

void Astra1DDynamic::getOnaxisEz ( std::vector< std::pair< double, double > > & F )

overridevirtual

Reimplemented from Fieldmap.

Definition at line 430 of file Astra1DDynamic.cpp.

References Fieldmap::Filename_m, getOnaxisEz(), and num_gridpz_m.

Referenced by getOnaxisEz().

Here is the call graph for this function:

◆ getType()

MapType Fieldmap::getType ( )

inlineinherited

Definition at line 206 of file Fieldmap.h.

References Fieldmap::Type.

Referenced by TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ interpreteEOF()

bool Fieldmap::interpreteEOF ( std::ifstream & in )

protectedinherited

Definition at line 436 of file Fieldmap.cpp.

References Fieldmap::alpha_numeric, Fieldmap::buffer_m, Fieldmap::exceedingValuesWarning(), Fieldmap::interpreteEOF(), Fieldmap::lines_read_m, and READ_BUFFER_LENGTH.

Referenced by FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), and Fieldmap::interpreteEOF().

Here is the call graph for this function:

◆ interpretLine() [1/6]

template<class S >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value,
		const bool &	file_length_known = `true`
	)

protectedinherited

Referenced by Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), and Fieldmap::interpretLine().

◆ interpretLine() [2/6]

template<class S >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		S &	value2,
		S &	value3,
		S &	value4,
		S &	value5,
		S &	value6,
		const bool &	file_length_known = `true`
	)

protectedinherited

Parses six values of the same type S from a line.

See also: interpretLine<T>

Definition at line 176 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [3/6]

template<class S , class T >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		T &	value2,
		const bool &	file_length_known = `true`
	)

protectedinherited

Parses two values (types S, T) from a line.

See also: interpretLine<T>

Definition at line 55 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [4/6]

template<class S , class T , class U >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		T &	value2,
		U &	value3,
		const bool &	file_length_known = `true`
	)

protectedinherited

Parses three values (types S, T, U) from a line.

See also: interpretLine<T>

Definition at line 92 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [5/6]

template<class S , class T , class U , class V >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		S &	value1,
		T &	value2,
		U &	value3,
		V &	value4,
		const bool &	file_length_known = `true`
	)

protectedinherited

Parses four values (types S, T, U, V) from a line.

See also: interpretLine<T>

Definition at line 132 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretLine() [6/6]

template<class T >

bool Fieldmap::interpretLine	(	std::ifstream &	in,
		T &	value,
		const bool &	file_length_known
	)

inherited

Parses a single value of type T from a line in the stream.

Reads a line using getLine(), then attempts to extract one value. Validates that the extraction matches the type and that no unexpected data remains on the line.

Parameters

in	Input file stream.
value	Output variable reference.
file_length_known	If false, EOF is acceptable.

Returns: true if successful, false if EOF (and permitted).

Definition at line 23 of file Fieldmap.hpp.

References Fieldmap::getLine(), Fieldmap::interpretLine(), Fieldmap::interpretWarning(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ interpretWarning()

void Fieldmap::interpretWarning	(	const std::ios_base::iostate &	state,
		const bool &	read_all,
		const std::string &	error_msg,
		const std::string &	found
	)

protectedinherited

Definition at line 452 of file Fieldmap.cpp.

References Fieldmap::Filename_m, Fieldmap::interpretWarning(), and Fieldmap::lines_read_m.

Referenced by Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), and Fieldmap::interpretWarning().

Here is the call graph for this function:

◆ isInside()

bool Astra1DDynamic::isInside ( const Vector_t< double, 3 > & r ) const

inlineoverridevirtual

Checks if the given coordinate is inside the volume covered by the fieldmap.

Parameters

r	Coordinate

Note: This cannot be called inside a GPU kernel (implicit capture of the 'this' pointer not allowed on device)

Implements Fieldmap.

Definition at line 85 of file Astra1DDynamic.h.

References zbegin_m, and zend_m.

Referenced by getFieldstrength().

◆ lowResolutionWarning()

void Fieldmap::lowResolutionWarning	(	double	squareError,
		double	maxError
	)

protectedinherited

Definition at line 503 of file Fieldmap.cpp.

References Fieldmap::Filename_m, OpalData::getAuxiliaryOutputDirectory(), OpalData::getInstance(), Fieldmap::lowResolutionWarning(), and Fieldmap::typeset_msg().

Referenced by Fieldmap::checkMap(), and Fieldmap::lowResolutionWarning().

Here is the call graph for this function:

◆ missingValuesWarning()

void Fieldmap::missingValuesWarning ( )

protectedinherited

Definition at line 470 of file Fieldmap.cpp.

References Fieldmap::Filename_m, Fieldmap::lines_read_m, and Fieldmap::missingValuesWarning().

Referenced by Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), Fieldmap::interpretLine(), and Fieldmap::missingValuesWarning().

Here is the call graph for this function:

◆ noFieldmapWarning()

void Fieldmap::noFieldmapWarning ( )

protectedinherited

Definition at line 496 of file Fieldmap.cpp.

References Fieldmap::Filename_m, and Fieldmap::noFieldmapWarning().

Referenced by Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), and Fieldmap::noFieldmapWarning().

Here is the call graph for this function:

◆ readHeader()

MapType Fieldmap::readHeader ( std::string Filename )

staticinherited

Read the header of a field map file to determine its type.

Determines the fieldmap type.

Parameters

Filename The file to check.

Returns: The MapType determined from the file header.; MapType

Definition at line 174 of file Fieldmap.cpp.

References Fieldmap::getLine(), Fieldmap::lines_read_m, Fieldmap::readHeader(), T1DDynamic, T1DElectroStatic, T1DMagnetoStatic, T1DProfile1, T2DDynamic, T2DElectroStatic, T2DMagnetoStatic, T3DDynamic, T3DDynamicH5Block, T3DElectroStatic, T3DMagnetoStatic, T3DMagnetoStatic_Extended, T3DMagnetoStaticH5Block, TAstraDynamic, TAstraElectroStatic, TAstraMagnetoStatic, and UNKNOWN.

Referenced by Fieldmap::getFieldmap(), and Fieldmap::readHeader().

Here is the call graph for this function:

◆ readMap() [1/2]

void Astra1DDynamic::readMap ( )

overrideprivatevirtual

Pure virtual method to read the map data. Called by the public static readMap().

Implements Fieldmap.

Definition at line 97 of file Astra1DDynamic.cpp.

References accuracy_m, Fieldmap::Filename_m, FourCoefs_m, Fieldmap::getLine(), gsl_interp_accel_alloc(), gsl_interp_accel_free(), gsl_interp_cspline, gsl_spline_alloc(), gsl_spline_eval(), gsl_spline_free(), gsl_spline_init(), Fieldmap::normalize_m, num_gridpz_m, readMap(), Physics::two_pi, Units::Vpm2MVpm, zbegin_m, and zend_m.

Referenced by readMap().

Here is the call graph for this function:

◆ readMap() [2/2]

void Fieldmap::readMap ( std::string Filename )

staticinherited

Trigger the actual reading of the field map data.

Parameters

Filename The file to read.

Definition at line 301 of file Fieldmap.cpp.

References Fieldmap::FieldmapDictionary, and Fieldmap::readMap().

Referenced by Fieldmap::readMap(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ setEdgeConstants()

void Fieldmap::setEdgeConstants	(	const double &	bendAngle,
		const double &	entranceAngle,
		const double &	exitAngle
	)

virtualinherited

Definition at line 408 of file Fieldmap.cpp.

References Fieldmap::setEdgeConstants().

Referenced by Fieldmap::setEdgeConstants().

Here is the call graph for this function:

◆ setFieldGap()

void Fieldmap::setFieldGap ( double gap )

virtualinherited

Definition at line 602 of file Fieldmap.cpp.

References Fieldmap::setFieldGap().

Referenced by Fieldmap::setFieldGap().

Here is the call graph for this function:

◆ setFieldLength()

void Fieldmap::setFieldLength ( const double & )

virtualinherited

Definition at line 412 of file Fieldmap.cpp.

References Fieldmap::setFieldLength().

Referenced by Fieldmap::setFieldLength().

Here is the call graph for this function:

◆ setFrequency()

void Astra1DDynamic::setFrequency ( double freq )

overridevirtual

Set the frequency.

Parameters

freq	Frequency [MHz].

Note: Not implemented yet

Implements Fieldmap.

Definition at line 423 of file Astra1DDynamic.cpp.

References frequency_m, and setFrequency().

Referenced by setFrequency().

Here is the call graph for this function:

◆ swap()

void Astra1DDynamic::swap ( )

overridevirtual

Swap coordinates.

Implements Fieldmap.

Definition at line 414 of file Astra1DDynamic.cpp.

References swap().

Referenced by swap().

Here is the call graph for this function:

◆ typeset_msg()

std::string Fieldmap::typeset_msg	(	const std::string &	msg,
		const std::string &	title
	)

staticinherited

Definition at line 527 of file Fieldmap.cpp.

References Fieldmap::typeset_msg().

Referenced by FM2DMagnetoStatic::freeMap(), Fieldmap::lowResolutionWarning(), FM2DMagnetoStatic::readMap(), and Fieldmap::typeset_msg().

Here is the call graph for this function:

◆ write3DField()

void Fieldmap::write3DField	(	unsigned int	nx,
		unsigned int	ny,
		unsigned int	nz,
		const std::pair< double, double > &	xrange,
		const std::pair< double, double > &	yrange,
		const std::pair< double, double > &	zrange,
		const std::vector< Vector_t< double, 3 > > &	ef,
		const std::vector< Vector_t< double, 3 > > &	bf
	)

protectedinherited

Definition at line 604 of file Fieldmap.cpp.

References Util::combineFilePath(), Fieldmap::Filename_m, OpalData::getAuxiliaryOutputDirectory(), OpalData::getInstance(), and Fieldmap::write3DField().

Referenced by Fieldmap::write3DField().

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ Fieldmap

friend class Fieldmap

friend

Allow Fieldmap factory access.

Definition at line 323 of file Astra1DDynamic.h.

Member Data Documentation

◆ accuracy_m

int Astra1DDynamic::accuracy_m

private

Number of Fourier modes used.

Definition at line 317 of file Astra1DDynamic.h.

Referenced by applyField(), applyRFField(), applyTravelingWave(), Astra1DDynamic(), getFieldDerivative(), getFieldstrength(), and readMap().

◆ alpha_numeric

std::string Fieldmap::alpha_numeric

staticprivateinherited

Definition at line 302 of file Fieldmap.h.

Referenced by Fieldmap::getLine(), and Fieldmap::interpreteEOF().

◆ buffer_m

char Fieldmap::buffer_m

staticprivateinherited

Definition at line 301 of file Fieldmap.h.

Referenced by Fieldmap::getLine(), and Fieldmap::interpreteEOF().

◆ FieldmapDictionary

std::map< std::string, Fieldmap::FieldmapDescription > Fieldmap::FieldmapDictionary

staticprivateinherited

Initial value:

=

std::map<std::string, Fieldmap::FieldmapDescription>()

Definition at line 313 of file Fieldmap.h.

Referenced by Fieldmap::clearDictionary(), Fieldmap::freeMap(), Fieldmap::getFieldmap(), Fieldmap::getListFieldmapNames(), and Fieldmap::readMap().

◆ Filename_m

std::string Fieldmap::Filename_m

protectedinherited

◆ FourCoefs_m

Kokkos::DualView<double*> Astra1DDynamic::FourCoefs_m

private

Fourier coefficients of Ez(z) (device-accessible) Stored as: [a0, a1, b1, a2, b2, ..., aN, bN] and used in the reconstruction Ez(z) = a0 + sum_l [ a_l cos(l*kz) - b_l sin(l*kz) ].

Definition at line 302 of file Astra1DDynamic.h.

Referenced by applyField(), applyRFField(), applyTravelingWave(), freeMap(), getFieldDerivative(), getFieldstrength(), and readMap().

◆ frequency_m

double Astra1DDynamic::frequency_m

private

Definition at line 304 of file Astra1DDynamic.h.

Referenced by Astra1DDynamic(), getFrequency(), and setFrequency().

◆ length_m

double Astra1DDynamic::length_m

private

Effective periodic length of the field map [m].

Definition at line 314 of file Astra1DDynamic.h.

Referenced by applyField(), applyRFField(), applyTravelingWave(), Astra1DDynamic(), getFieldDerivative(), and getFieldstrength().

◆ lines_read_m

int Fieldmap::lines_read_m

protectedinherited

Definition at line 234 of file Fieldmap.h.

Referenced by Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), Fieldmap::exceedingValuesWarning(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), Fieldmap::getLine(), Fieldmap::interpreteEOF(), Fieldmap::interpretWarning(), Fieldmap::missingValuesWarning(), and Fieldmap::readHeader().

◆ normalize_m

bool Fieldmap::normalize_m

protectedinherited

Definition at line 236 of file Fieldmap.h.

Referenced by Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), readMap(), Astra1DMagnetoStatic::readMap(), FM2DDynamic::readMap(), and FM2DMagnetoStatic::readMap().

◆ num_gridpz_m

int Astra1DDynamic::num_gridpz_m

private

Number of grid points in z-direction (input sampling)

Definition at line 320 of file Astra1DDynamic.h.

Referenced by Astra1DDynamic(), getOnaxisEz(), and readMap().

◆ Type

MapType Fieldmap::Type

protectedinherited

Definition at line 231 of file Fieldmap.h.

Referenced by Astra1DDynamic(), Astra1DMagnetoStatic::Astra1DMagnetoStatic(), FM2DDynamic::FM2DDynamic(), FM2DMagnetoStatic::FM2DMagnetoStatic(), and Fieldmap::getType().

◆ xlrep_m

double Astra1DDynamic::xlrep_m

private

Wave number (omega / c)

Definition at line 311 of file Astra1DDynamic.h.

Referenced by applyField(), applyRFField(), applyTravelingWave(), Astra1DDynamic(), and getFieldstrength().

◆ zbegin_m

double Astra1DDynamic::zbegin_m

private

Z Bounds relative to element edge.

Start position of field map [m]

Definition at line 307 of file Astra1DDynamic.h.

Referenced by applyField(), applyRFField(), applyTravelingWave(), Astra1DDynamic(), getFieldDerivative(), getFieldDimensions(), getFieldstrength(), getInfo(), isInside(), and readMap().

◆ zend_m

double Astra1DDynamic::zend_m

private

End position of field map [m]

Definition at line 308 of file Astra1DDynamic.h.

Referenced by applyField(), applyRFField(), applyTravelingWave(), Astra1DDynamic(), getFieldDimensions(), getInfo(), isInside(), and readMap().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Astra1DDynamic()

◆ ~Astra1DDynamic()

Member Function Documentation

◆ applyField()

◆ applyRFField()

◆ applyTravelingWave()

◆ checkMap() [1/2]

◆ checkMap() [2/2]

◆ clearDictionary()

◆ computeField()

◆ computeRFField()

◆ computeTravelingWaveField()

◆ deleteFieldmap()

◆ disableFieldmapWarning()

◆ exceedingValuesWarning()

◆ freeMap() [1/2]

◆ freeMap() [2/2]

◆ get1DProfile1EngeCoeffs()

◆ get1DProfile1EntranceParam()

◆ get1DProfile1ExitParam()

◆ getFieldDerivative()

◆ getFieldDimensions() [1/2]

◆ getFieldDimensions() [2/2]

◆ getFieldGap()

◆ getFieldmap()

◆ getFieldstrength()

◆ getFrequency()

◆ getInfo()

◆ getLine() [1/2]

◆ getLine() [2/2]

◆ getListFieldmapNames()

◆ getOnaxisEz()

◆ getType()

◆ interpreteEOF()

◆ interpretLine() [1/6]

◆ interpretLine() [2/6]

◆ interpretLine() [3/6]

◆ interpretLine() [4/6]

◆ interpretLine() [5/6]

◆ interpretLine() [6/6]

◆ interpretWarning()

◆ isInside()

◆ lowResolutionWarning()

◆ missingValuesWarning()

◆ noFieldmapWarning()

◆ readHeader()

◆ readMap() [1/2]

◆ readMap() [2/2]

◆ setEdgeConstants()

◆ setFieldGap()

◆ setFieldLength()

◆ setFrequency()

◆ swap()

◆ typeset_msg()

◆ write3DField()

Friends And Related Symbol Documentation

◆ Fieldmap

Member Data Documentation

◆ accuracy_m

◆ alpha_numeric

◆ buffer_m

◆ FieldmapDictionary

◆ Filename_m

◆ FourCoefs_m

◆ frequency_m

◆ length_m

◆ lines_read_m

◆ normalize_m

◆ num_gridpz_m
