#include <ScalingFFAMagnet.h>

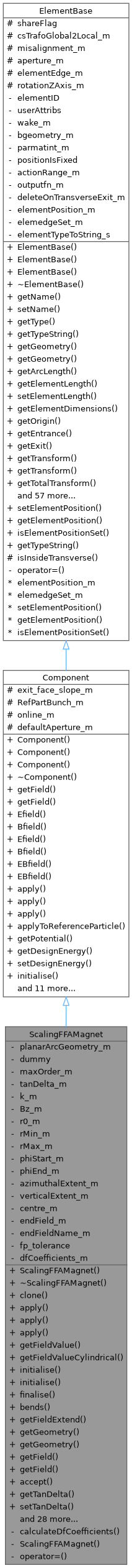

Inheritance diagram for ScalingFFAMagnet:

Collaboration diagram for ScalingFFAMagnet:

Public Member Functions
	ScalingFFAMagnet (const std::string &name)

	~ScalingFFAMagnet ()

ScalingFFAMagnet *	clone () const override

bool	apply (const std::shared_ptr< ParticleContainer_t > &pc) override

bool	apply (const size_t &i, const double &t, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) override
	Apply to particle i.

bool	apply (const Vector_t< double, 3 > &R, const Vector_t< double, 3 > &P, const double &t, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) override

bool	getFieldValue (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &B) const

bool	getFieldValueCylindrical (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &B) const

void	initialise (PartBunch_t *bunch, double &startField, double &endField) override

void	initialise ()

void	finalise () override

bool	bends () const override

void	getFieldExtend (double &, double &) const override

BGeometryBase &	getGeometry () override

const BGeometryBase &	getGeometry () const override

EMField &	getField () override

const EMField &	getField () const override

void	accept (BeamlineVisitor &visitor) const override

double	getTanDelta () const

void	setTanDelta (double tanDelta)

double	getFieldIndex () const

void	setFieldIndex (double k)

double	getDipoleConstant () const

void	setDipoleConstant (double Bz)

double	getR0 () const

void	setR0 (double r0)

Vector_t< double, 3 >	getCentre () const

void	setCentre (Vector_t< double, 3 > centre)

endfieldmodel::EndFieldModel *	getEndField () const

void	setEndField (endfieldmodel::EndFieldModel *endField)

size_t	getMaxOrder () const

void	setMaxOrder (size_t maxOrder)

double	getPhiStart () const

void	setPhiStart (double phiStart)

double	getPhiEnd () const

void	setPhiEnd (double phiEnd)

double	getRMin () const

void	setRMin (double rMin)

double	getRMax () const

void	setRMax (double rMax)

double	getAzimuthalExtent () const

void	setAzimuthalExtent (double azimuthalExtent)

double	getVerticalExtent () const

void	setVerticalExtent (double verticalExtent)

std::vector< std::vector< double > >	getDfCoefficients ()

void	setupEndField ()

void	setEndFieldName (std::string name)

std::string	getEndFieldName () const

EVector	Efield (const Point3D &P) const
	Return the field in a point.

EVector	Efield (const Point3D &P, double t) const
	Return the field in a point.

BVector	Bfield (const Point3D &P) const
	Return the field in a point.

BVector	Bfield (const Point3D &P, double t) const
	Return the field in a point.

EBVectors	EBfield (const Point3D &P) const
	Return the field in a point.

EBVectors	EBfield (const Point3D &P, double t) const
	Return the field in a point.

virtual bool	applyToReferenceParticle (const Vector_t< double, 3 > &R, const Vector_t< double, 3 > &P, const double &t, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B)
	Apply to reference particle with position R and momemtum P.

virtual bool	getPotential (const Vector_t< double, 3 > &, const double &, Vector_t< double, 3 > &, double &)
	Calculate the four-potential at some position relative to the component.

virtual double	getDesignEnergy () const

virtual void	setDesignEnergy (const double &energy, bool changeable=true)

virtual void	goOnline (const double &kineticEnergy)

virtual void	goOffline ()

virtual bool	Online ()

virtual ElementType	getType () const
	Get element type std::string.

virtual const ElementBase &	getDesign () const
	Return design element.

virtual void	trackBunch (PartBunch_t &bunch, const PartData &, bool revBeam, bool revTrack) const
	Track a borrowed particle bunch through a non-standard component.

virtual void	trackMap (FVps< double, 6 > &map, const PartData &, bool revBeam, bool revTrack) const
	Track a map.

void	setExitFaceSlope (const double &)

virtual const std::string &	getName () const
	Get element name.

virtual void	setName (const std::string &name)
	Set element name.

std::string	getTypeString () const

virtual double	getArcLength () const
	Get arc length.

virtual double	getElementLength () const
	Get design length.

virtual void	setElementLength (double length)
	Set design length.

virtual void	getElementDimensions (double &begin, double &end) const
	Return the nominal body extent of the element.

virtual double	getOrigin () const
	Get origin position.

virtual double	getEntrance () const
	Get entrance position.

virtual double	getExit () const
	Get exit position.

virtual Euclid3D	getTransform (double fromS, double toS) const
	Get transform.

virtual Euclid3D	getTransform (double s) const
	Get transform.

virtual Euclid3D	getTotalTransform () const
	Get transform.

virtual Euclid3D	getEntranceFrame () const
	Get transform.

virtual Euclid3D	getExitFrame () const
	Get transform.

virtual Euclid3D	getEntrancePatch () const
	Get patch.

virtual Euclid3D	getExitPatch () const
	Get patch.

virtual double	getAttribute (const std::string &aKey) const
	Get attribute value.

virtual bool	hasAttribute (const std::string &aKey) const
	Test for existence of an attribute.

virtual void	removeAttribute (const std::string &aKey)
	Remove an existing attribute.

virtual void	setAttribute (const std::string &aKey, double val)
	Set value of an attribute.

virtual Channel *	getChannel (const std::string &aKey, bool create=false)
	Construct a read/write channel.

virtual const ConstChannel *	getConstChannel (const std::string &aKey) const
	Construct a read-only channel.

virtual ElementBase *	copyStructure ()
	Make a structural copy.

bool	isSharable () const
	Test if the element can be shared.

virtual void	makeSharable ()
	Set sharable flag.

bool	update (const AttributeSet &)
	Update element.

virtual void	setBoundaryGeometry (BoundaryGeometry *geo)

virtual BoundaryGeometry *	getBoundaryGeometry () const
	return the attached boundary geometrt object if there is any

virtual bool	hasBoundaryGeometry () const

virtual void	setWake (WakeFunction *wf)
	attach a wake field to the element

virtual WakeFunction *	getWake () const
	return the attached wake object if there is any

virtual bool	hasWake () const

virtual void	setParticleMatterInteraction (ParticleMatterInteractionHandler *spys)

virtual ParticleMatterInteractionHandler *	getParticleMatterInteraction () const

virtual bool	hasParticleMatterInteraction () const

void	setCSTrafoGlobal2Local (const CoordinateSystemTrafo &ori)

CoordinateSystemTrafo	getCSTrafoGlobal2Local () const

void	releasePosition ()

void	fixPosition ()

bool	isPositioned () const

virtual CoordinateSystemTrafo	getEdgeToBegin () const

virtual CoordinateSystemTrafo	getEdgeToEnd () const

virtual Port	getEntryPort () const
	Return the entrance port of the canonical local chart.

virtual Port	getBodyPort () const
	Return the body port of the canonical local chart.

virtual Port	getExitPort () const
	Return the exit port of the canonical local chart.

PlacementPose	getPlacementPose () const
	Return the nominal rigid placement transform of the element.

void	setPlacementPose (const PlacementPose &pose)
	Set the nominal rigid placement transform of the element.

Misalignment	getPlacementMisalignment () const
	Return the local nominal-to-actual correction stored for the element.

ElementGeometry	getPlacementGeometry () const
	Return the bridge geometry ports assembled from legacy edge state.

SupportPlacement	getPlacementSupport () const
	Return the support-frame bridge object. The default is the body frame.

PlacedElement	getPlacedElement () const
	Return a placed-element view assembled from the current bridge objects.

void	setAperture (const ApertureType &type, const std::vector< double > &args)

std::pair< ApertureType, std::vector< double > >	getAperture () const

virtual bool	isInside (const Vector_t< double, 3 > &r) const

void	setMisalignment (const CoordinateSystemTrafo &cst)

void	getMisalignment (double &x, double &y, double &s) const

CoordinateSystemTrafo	getMisalignment () const

void	setActionRange (const std::queue< std::pair< double, double > > &range)

void	setCurrentSCoordinate (double s)

void	setRotationAboutZ (double rotation)
	Set rotation about z axis in bend frame.

double	getRotationAboutZ () const

virtual BoundingBox	getBoundingBoxInLabCoords () const

virtual int	getRequiredNumberOfTimeSteps () const

void	setOutputFN (std::string fn)
	Set output filename.

std::string	getOutputFN () const
	Get output filename.

void	setFlagDeleteOnTransverseExit (bool=true)

bool	getFlagDeleteOnTransverseExit () const


void	setElementPosition (double elemedge)
	Access to ELEMEDGE attribute.

double	getElementPosition () const

bool	isElementPositionSet () const

Static Public Member Functions
static std::string	getTypeString (ElementType type)

Protected Member Functions
bool	isInsideTransverse (const Vector_t< double, 3 > &r) const

Protected Attributes
double	exit_face_slope_m

PartBunch_t *	RefPartBunch_m

bool	online_m

bool	shareFlag

CoordinateSystemTrafo	csTrafoGlobal2Local_m

CoordinateSystemTrafo	misalignment_m

std::pair< ApertureType, std::vector< double > >	aperture_m

double	elementEdge_m

double	rotationZAxis_m

Static Protected Attributes
static const std::vector< double >	defaultAperture_m = std::vector<double>({1e6, 1e6, 1.0})

Private Member Functions
void	calculateDfCoefficients ()

	ScalingFFAMagnet (const ScalingFFAMagnet &right)

ScalingFFAMagnet &	operator= (const ScalingFFAMagnet &rhs)

Private Attributes
PlanarArcGeometry	planarArcGeometry_m

BMultipoleField	dummy

size_t	maxOrder_m = 0

double	tanDelta_m = 0.

double	k_m = 0.

double	Bz_m = 0.

double	r0_m = 0.

double	rMin_m = 0.

double	rMax_m = 0.

double	phiStart_m = 0.

double	phiEnd_m = 0.

double	azimuthalExtent_m = 0.

double	verticalExtent_m = 0.

Vector_t< double, 3 >	centre_m

endfieldmodel::EndFieldModel *	endField_m = nullptr

std::string	endFieldName_m = ""

const double	fp_tolerance = 1e-18

std::vector< std::vector< double > >	dfCoefficients_m

std::string	elementID

AttributeSet	userAttribs

WakeFunction *	wake_m

BoundaryGeometry *	bgeometry_m

ParticleMatterInteractionHandler *	parmatint_m

bool	positionIsFixed

std::queue< std::pair< double, double > >	actionRange_m

std::string	outputfn_m

bool	deleteOnTransverseExit_m = true


double	elementPosition_m
	ELEMEDGE attribute.

bool	elemedgeSet_m

Static Private Attributes
static const std::map< ElementType, std::string >	elementTypeToString_s

Detailed Description

Sector bending magnet with an FFA-style field index and spiral end shape

Note about placement and end field; in order to get a user-defined end field shape, we do a lookup from user defined end fields, which is pulled from the EndFieldModel object and done by setupEndField(). Because end fields tie into the geometry, this has to be done before placements; but it also needs to be done after parsing has finished. setupEndField() is called by e.g. ParallelCyclotronTracker just before the object is handed to OpalRing for placement.

Definition at line 47 of file ScalingFFAMagnet.h.

Constructor & Destructor Documentation

◆ ScalingFFAMagnet() [1/2]

ScalingFFAMagnet::ScalingFFAMagnet ( const std::string & name )

explicit

Construct a new ScalingFFAMagnet

Parameters

name	User-defined name of the ScalingFFAMagnet

Definition at line 33 of file ScalingFFAMagnet.cpp.

◆ ~ScalingFFAMagnet()

ScalingFFAMagnet::~ScalingFFAMagnet ( )

Destructor - deletes map

Definition at line 61 of file ScalingFFAMagnet.cpp.

References endField_m.

◆ ScalingFFAMagnet() [2/2]

ScalingFFAMagnet::ScalingFFAMagnet ( const ScalingFFAMagnet & right )

private

Copy constructor

Definition at line 36 of file ScalingFFAMagnet.cpp.

References Bz_m, endfieldmodel::EndFieldModel::clone(), endField_m, r0_m, and Component::RefPartBunch_m.

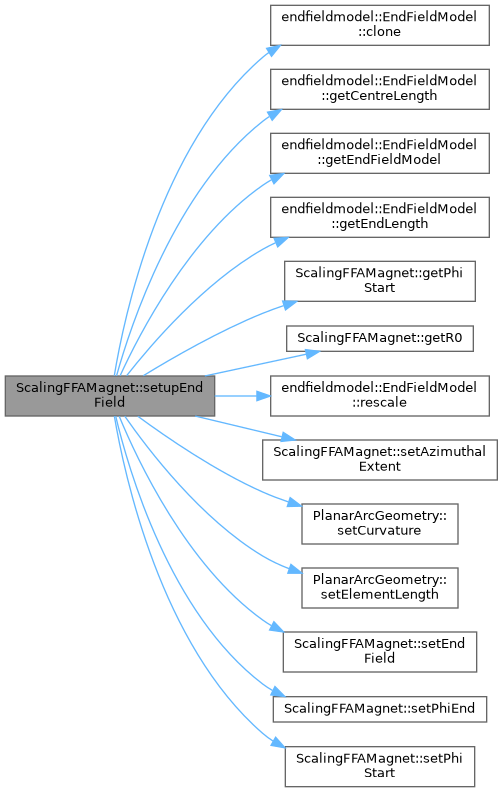

Here is the call graph for this function:

Member Function Documentation

◆ accept()

void ScalingFFAMagnet::accept ( BeamlineVisitor & visitor ) const

overridevirtual

Accept a beamline visitor

Implements ElementBase.

Definition at line 102 of file ScalingFFAMagnet.cpp.

References BeamlineVisitor::visitScalingFFAMagnet().

Here is the call graph for this function:

◆ apply() [1/3]

bool ScalingFFAMagnet::apply	(	const size_t &	i,
		const double &	t,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)

overridevirtual

Apply to particle i.

Parameters

i	Particle index
t	Time
E	Electric Field
B	Magnetic Field

Returns: true if particle is out-of-bounds (lost), false otherwise

Reimplemented from Component.

Definition at line 75 of file ScalingFFAMagnet.cpp.

References apply(), PartBunch< T, Dim >::R(), and Component::RefPartBunch_m.

Here is the call graph for this function:

◆ apply() [2/3]

bool ScalingFFAMagnet::apply ( const std::shared_ptr< ParticleContainer_t > & pc )

overridevirtual

Calculate the field at the position of the ith particle

Parameters

i	index of the particle event override; field is calculated at this position
t	time at which the field is to be calculated
E	calculated electric field - always 0 (no E-field)
B	calculated magnetic field

Returns: true if particle is outside the field map

Reimplemented from Component.

Definition at line 73 of file ScalingFFAMagnet.cpp.

Referenced by apply().

◆ apply() [3/3]

bool ScalingFFAMagnet::apply	(	const Vector_t< double, 3 > &	R,
		const Vector_t< double, 3 > &	P,
		const double &	t,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)

overridevirtual

Calculate the field at some arbitrary position

Parameters

R	position in the local coordinate system of the bend
P	not used
t	not used
E	not used
B	calculated magnetic field

Returns: true if particle is outside the field map, else false

Reimplemented from Component.

Definition at line 170 of file ScalingFFAMagnet.cpp.

References getFieldValue().

Here is the call graph for this function:

◆ applyToReferenceParticle()

bool Component::applyToReferenceParticle	(	const Vector_t< double, 3 > &	R,
		const Vector_t< double, 3 > &	P,
		const double &	t,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)

virtualinherited

Apply to reference particle with position R and momemtum P.

Parameters

R	Position
P	Momentum
t	Time
E	Electric Field
B	Magnetic Field

Returns: true if particle is out-of-bounds (lost), false otherwise

Reimplemented in BendBase, ConstantEFieldCavity, Monitor, Multipole, PluginElement, RFCavity, Solenoid, TravelingWave, and VariableRFCavity.

Definition at line 114 of file Component.cpp.

References ElementBase::getElementLength(), and ElementBase::isInsideTransverse().

Here is the call graph for this function:

◆ bends()

bool ScalingFFAMagnet::bends ( ) const

inlineoverridevirtual

Return true - ScalingFFAMagnet always bends the reference particle

Implements Component.

Definition at line 96 of file ScalingFFAMagnet.cpp.

◆ Bfield() [1/2]

BVector Component::Bfield ( const Point3D & P ) const

inlineinherited

Return the field in a point.

Definition at line 234 of file Component.h.

References EMField::Bfield(), and Component::getField().

Here is the call graph for this function:

◆ Bfield() [2/2]

BVector Component::Bfield	(	const Point3D &	P,
		double	t
	)		const

inlineinherited

Return the field in a point.

Definition at line 240 of file Component.h.

References EMField::Bfield(), and Component::getField().

Here is the call graph for this function:

◆ calculateDfCoefficients()

void ScalingFFAMagnet::calculateDfCoefficients ( )

private

Calculate the df coefficients, ready for field generation

Must be called following any update to the the field parameters, in order for correct field to be calculated.

Definition at line 176 of file ScalingFFAMagnet.cpp.

References dfCoefficients_m, k_m, maxOrder_m, and tanDelta_m.

Referenced by initialise().

◆ clone()

ScalingFFAMagnet * ScalingFFAMagnet::clone ( ) const

overridevirtual

Inheritable copy constructor

Implements ElementBase.

Definition at line 63 of file ScalingFFAMagnet.cpp.

References initialise().

Here is the call graph for this function:

◆ copyStructure()

ElementBase * ElementBase::copyStructure ( )

virtualinherited

Make a structural copy.

Reimplemented in TBeamline< T >.

Definition at line 194 of file ElementBase.cpp.

References ElementBase::clone(), and ElementBase::isSharable().

Referenced by Sequence::copy(), Line::parse(), SequenceParser::parseMember(), and Replacer::visitFlaggedElmPtr().

Here is the call graph for this function:

◆ EBfield() [1/2]

EBVectors Component::EBfield ( const Point3D & P ) const

inlineinherited

Return the field in a point.

Definition at line 244 of file Component.h.

References EMField::EBfield(), and Component::getField().

Here is the call graph for this function:

◆ EBfield() [2/2]

EBVectors Component::EBfield	(	const Point3D &	P,
		double	t
	)		const

inlineinherited

Return the field in a point.

Definition at line 246 of file Component.h.

References EMField::EBfield(), and Component::getField().

Here is the call graph for this function:

◆ Efield() [1/2]

EVector Component::Efield ( const Point3D & P ) const

inlineinherited

Return the field in a point.

Definition at line 232 of file Component.h.

References EMField::Efield(), and Component::getField().

Here is the call graph for this function:

◆ Efield() [2/2]

EVector Component::Efield	(	const Point3D &	P,
		double	t
	)		const

inlineinherited

Return the field in a point.

Definition at line 236 of file Component.h.

References EMField::Efield(), and Component::getField().

Here is the call graph for this function:

◆ finalise()

void ScalingFFAMagnet::finalise ( )

overridevirtual

Finalise the ScalingFFAMagnet - sets bunch to nullptr

Implements Component.

Definition at line 94 of file ScalingFFAMagnet.cpp.

References Component::RefPartBunch_m.

◆ fixPosition()

void ElementBase::fixPosition ( )

inlineinherited

Definition at line 597 of file ElementBase.h.

References ElementBase::positionIsFixed.

Referenced by OpalElement::update(), OpalRBend::update(), and OpalSBend::update().

◆ getAperture()

std::pair< ApertureType, std::vector< double > > ElementBase::getAperture ( ) const

inlineinherited

Definition at line 582 of file ElementBase.h.

References ElementBase::aperture_m.

Referenced by MeshGenerator::add(), Solenoid::getSupportEnvelope(), and MeshGenerator::getTransverseSupport().

◆ getArcLength()

double ElementBase::getArcLength ( ) const

inlinevirtualinherited

Get arc length.

Reimplemented in MarkerRep, and TBeamline< T >.

Definition at line 479 of file ElementBase.h.

References BGeometryBase::getArcLength(), and ElementBase::getGeometry().

Referenced by BeamlineGeometry::getArcLength(), and TBeamline< T >::getTransform().

Here is the call graph for this function:

◆ getAttribute()

double ElementBase::getAttribute ( const std::string & aKey ) const

virtualinherited

Get attribute value.

Definition at line 147 of file ElementBase.cpp.

References ElementBase::getConstChannel().

Here is the call graph for this function:

◆ getAzimuthalExtent()

double ScalingFFAMagnet::getAzimuthalExtent ( ) const

inline

Get the maximum azimuthal displacement from \psi=0

Definition at line 231 of file ScalingFFAMagnet.h.

References azimuthalExtent_m.

◆ getBodyPort()

Port ElementBase::getBodyPort ( ) const

inlinevirtualinherited

Return the body port of the canonical local chart.

The body port \(p_{i,\mathrm{body}}\) is the identity port of the element's canonical local chart. Its rigid transform is therefore the identity element of \(SE(3)\) in the first redesign stage.

Definition at line 547 of file ElementBase.h.

Referenced by ElementBase::getPlacementGeometry(), and TEST_F().

◆ getBoundaryGeometry()

BoundaryGeometry * ElementBase::getBoundaryGeometry ( ) const

inlinevirtualinherited

return the attached boundary geometrt object if there is any

Definition at line 513 of file ElementBase.h.

References ElementBase::bgeometry_m.

◆ getBoundingBoxInLabCoords()

BoundingBox ElementBase::getBoundingBoxInLabCoords ( ) const

virtualinherited

Definition at line 264 of file ElementBase.cpp.

References ElementBase::aperture_m, ElementBase::csTrafoGlobal2Local_m, BoundingBox::getBoundingBox(), ElementBase::getEdgeToBegin(), ElementBase::getEdgeToEnd(), and CoordinateSystemTrafo::transformFrom().

Here is the call graph for this function:

◆ getCentre()

Vector_t< double, 3 > ScalingFFAMagnet::getCentre ( ) const

inline

Get the centre of the sector

Definition at line 170 of file ScalingFFAMagnet.h.

References centre_m.

◆ getChannel()

Channel * ElementBase::getChannel	(	const std::string &	aKey,
		bool	create = `false`
	)

virtualinherited

Construct a read/write channel.

Reimplemented in LaserRep, RBendRep, SBendRep, DriftRep, MonitorRep, MultipoleRep, ProbeRep, RFCavityRep, SolenoidRep, TravelingWaveRep, and ConstantEFieldCavityRep.

Definition at line 182 of file ElementBase.cpp.

References AttributeSet::getChannel(), and ElementBase::userAttribs.

Referenced by LaserRep::getChannel(), RBendRep::getChannel(), SBendRep::getChannel(), DriftRep::getChannel(), MonitorRep::getChannel(), MultipoleRep::getChannel(), ProbeRep::getChannel(), RFCavityRep::getChannel(), SolenoidRep::getChannel(), TravelingWaveRep::getChannel(), ConstantEFieldCavityRep::getChannel(), ElementBase::getConstChannel(), and ElementBase::setAttribute().

Here is the call graph for this function:

◆ getConstChannel()

const ConstChannel * ElementBase::getConstChannel ( const std::string & aKey ) const

virtualinherited

Construct a read-only channel.

Definition at line 186 of file ElementBase.cpp.

References ElementBase::getChannel().

Referenced by ElementBase::getAttribute(), and ElementBase::hasAttribute().

Here is the call graph for this function:

◆ getCSTrafoGlobal2Local()

CoordinateSystemTrafo ElementBase::getCSTrafoGlobal2Local ( ) const

inlineinherited

Definition at line 529 of file ElementBase.h.

References ElementBase::csTrafoGlobal2Local_m.

Referenced by Monitor::driftToCorrectPositionAndSave(), ElementBase::getPlacementPose(), OpalRBend::update(), and OpalSBend::update().

◆ getDesign()

const ElementBase & Component::getDesign ( ) const

virtualinherited

Return design element.

Definition at line 33 of file Component.cpp.

◆ getDesignEnergy()

double Component::getDesignEnergy ( ) const

inlinevirtualinherited

Reimplemented in BendBase, and RFCavity.

Definition at line 254 of file Component.h.

◆ getDfCoefficients()

std::vector< std::vector< double > > ScalingFFAMagnet::getDfCoefficients ( )

inline

Return the calculated df coefficients

Definition at line 246 of file ScalingFFAMagnet.h.

References dfCoefficients_m.

◆ getDipoleConstant()

double ScalingFFAMagnet::getDipoleConstant ( ) const

inline

Get the dipole constant B_0

Definition at line 158 of file ScalingFFAMagnet.h.

References Bz_m.

◆ getEdgeToBegin()

CoordinateSystemTrafo ElementBase::getEdgeToBegin ( ) const

inlinevirtualinherited

Reimplemented in BendBase, RFCavity, Solenoid, and TravelingWave.

Definition at line 533 of file ElementBase.h.

Referenced by ElementBase::getBoundingBoxInLabCoords(), ElementBase::getEntryPort(), and ElementBase::isInsideTransverse().

◆ getEdgeToEnd()

CoordinateSystemTrafo ElementBase::getEdgeToEnd ( ) const

inlinevirtualinherited

Reimplemented in BendBase, RFCavity, Solenoid, and TravelingWave.

Definition at line 538 of file ElementBase.h.

References ElementBase::getElementLength().

Referenced by ElementBase::getBoundingBoxInLabCoords(), and ElementBase::getExitPort().

Here is the call graph for this function:

◆ getElementDimensions()

virtual void ElementBase::getElementDimensions	(	double &	begin,
		double &	end
	)		const

inlinevirtualinherited

Return the nominal body extent of the element.

The first placement redesign stage distinguishes between the nominal body extent and the field-support extent. The body extent is the canonical longitudinal interval of the placed hardware, \([z_\mathrm{body}^{\mathrm{begin}}, z_\mathrm{body}^{\mathrm{end}}]\), and therefore drives ports, placement, and visualization. By default it coincides with the geometry length \([0, L]\) in the local chart.

Reimplemented in RFCavity, TravelingWave, and Solenoid.

Definition at line 178 of file ElementBase.h.

References ElementBase::getElementLength().

Referenced by MeshGenerator::add().

Here is the call graph for this function:

◆ getElementLength()

double ElementBase::getElementLength ( ) const

inlinevirtualinherited

Get design length.

Reimplemented in MarkerRep, TBeamline< T >, and RFCavity.

Definition at line 481 of file ElementBase.h.

References BGeometryBase::getElementLength(), and ElementBase::getGeometry().

Referenced by MeshGenerator::add(), ConstantEFieldCavity::apply(), Multipole::apply(), VariableRFCavity::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), VariableRFCavity::apply(), Component::apply(), Corrector::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), VariableRFCavity::apply(), Component::applyToReferenceParticle(), ConstantEFieldCavity::applyToReferenceParticle(), Multipole::applyToReferenceParticle(), ElementBase::getEdgeToEnd(), Solenoid::getEdgeToEnd(), ElementBase::getElementDimensions(), Solenoid::getElementDimensions(), BeamlineGeometry::getElementLength(), RFCavity::getElementLength(), Corrector::getFieldExtend(), BendBase::getFieldExtend(), ConstantEFieldCavity::getFieldExtend(), Drift::getFieldExtend(), Laser::getFieldExtend(), Multipole::getFieldExtend(), MultipoleT::getFieldExtend(), VariableRFCavity::getFieldExtend(), BendBase::getLength(), Corrector::initialise(), BendBase::initialise(), ConstantEFieldCavity::initialise(), Drift::initialise(), Laser::initialise(), Multipole::initialise(), ElementBase::isInside(), BendBase::isInside(), Monitor::isInside(), Multipole::isInside(), ElementBase::isInsideTransverse(), and TEST_F().

Here is the call graph for this function:

◆ getElementPosition()

double ElementBase::getElementPosition ( ) const

inlineinherited

Definition at line 618 of file ElementBase.h.

References ElementBase::elemedgeSet_m, ElementBase::elementPosition_m, and ElementBase::getName().

Here is the call graph for this function:

◆ getEndField()

endfieldmodel::EndFieldModel * ScalingFFAMagnet::getEndField ( ) const

inline

Get the fringe field

Returns the fringe field model; ScalingFFAMagnet retains ownership of the returned memory.

Definition at line 180 of file ScalingFFAMagnet.h.

References endField_m.

◆ getEndFieldName()

std::string ScalingFFAMagnet::getEndFieldName ( ) const

inline

Return the end field name.

Definition at line 266 of file ScalingFFAMagnet.h.

References endFieldName_m.

◆ getEntrance()

double ElementBase::getEntrance ( ) const

inlinevirtualinherited

Get entrance position.

Reimplemented in TBeamline< T >.

Definition at line 487 of file ElementBase.h.

References BGeometryBase::getEntrance(), and ElementBase::getGeometry().

Referenced by BendBase::getDesignPath(), and BeamlineGeometry::getEntrance().

Here is the call graph for this function:

◆ getEntranceFrame()

Euclid3D ElementBase::getEntranceFrame ( ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 499 of file ElementBase.h.

References BGeometryBase::getEntranceFrame(), and ElementBase::getGeometry().

Referenced by BendBase::getChordLength(), BendBase::getEdgeToBegin(), and BeamlineGeometry::getEntranceFrame().

Here is the call graph for this function:

◆ getEntrancePatch()

Euclid3D ElementBase::getEntrancePatch ( ) const

inlinevirtualinherited

Get patch.

Definition at line 503 of file ElementBase.h.

References BGeometryBase::getEntrancePatch(), and ElementBase::getGeometry().

Here is the call graph for this function:

◆ getEntryPort()

Port ElementBase::getEntryPort ( ) const

inlinevirtualinherited

Return the entrance port of the canonical local chart.

In the placement-note language, this is the marked entrance port \(p_{i,\mathrm{entry}}\) of element \(i\). For straight elements in the bridge stage, the body-to-entry transform is taken from the legacy getEdgeToBegin() result.

Definition at line 545 of file ElementBase.h.

References ElementBase::getEdgeToBegin().

Referenced by ElementBase::getPlacementGeometry(), and TEST_F().

Here is the call graph for this function:

◆ getExit()

double ElementBase::getExit ( ) const

inlinevirtualinherited

Get exit position.

Reimplemented in TBeamline< T >.

Definition at line 489 of file ElementBase.h.

References BGeometryBase::getExit(), and ElementBase::getGeometry().

Referenced by BendBase::getDesignPath(), and BeamlineGeometry::getExit().

Here is the call graph for this function:

◆ getExitFrame()

Euclid3D ElementBase::getExitFrame ( ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 501 of file ElementBase.h.

References BGeometryBase::getExitFrame(), and ElementBase::getGeometry().

Referenced by BendBase::getChordLength(), BendBase::getEdgeToEnd(), and BeamlineGeometry::getExitFrame().

Here is the call graph for this function:

◆ getExitPatch()

Euclid3D ElementBase::getExitPatch ( ) const

inlinevirtualinherited

Get patch.

Definition at line 505 of file ElementBase.h.

References BGeometryBase::getExitPatch(), and ElementBase::getGeometry().

Here is the call graph for this function:

◆ getExitPort()

Port ElementBase::getExitPort ( ) const

inlinevirtualinherited

Return the exit port of the canonical local chart.

In the placement-note language, this is the marked exit port \(p_{i,\mathrm{exit}}\). For straight elements in the bridge stage, the body-to-exit transform is taken from the legacy getEdgeToEnd() result.

Definition at line 549 of file ElementBase.h.

References ElementBase::getEdgeToEnd().

Referenced by ElementBase::getPlacementGeometry(), and TEST_F().

Here is the call graph for this function:

◆ getField() [1/2]

const EMField & ScalingFFAMagnet::getField ( ) const

overridevirtual

Return a dummy (0.) field value (what is this for?)

Implements Component.

Definition at line 71 of file ScalingFFAMagnet.cpp.

References dummy.

◆ getField() [2/2]

EMField & ScalingFFAMagnet::getField ( )

overridevirtual

Return a dummy (0.) field value (what is this for?)

Implements Component.

Definition at line 69 of file ScalingFFAMagnet.cpp.

References dummy.

◆ getFieldExtend()

void ScalingFFAMagnet::getFieldExtend	(	double &	,
		double &
	)		const

inlineoverridevirtual

Not implemented

Implements Component.

Definition at line 128 of file ScalingFFAMagnet.h.

◆ getFieldIndex()

double ScalingFFAMagnet::getFieldIndex ( ) const

inline

Get the field index k

Definition at line 152 of file ScalingFFAMagnet.h.

References k_m.

◆ getFieldValue()

bool ScalingFFAMagnet::getFieldValue	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	B
	)		const

Calculate the field at some arbitrary position in cartesian coordinates

Parameters

R	position in the local coordinate system of the bend, in cartesian coordinates defined like (x, y, z)
B	calculated magnetic field defined like (Bx, By, Bz)

Returns: true if particle is outside the field map, else false

Definition at line 106 of file ScalingFFAMagnet.cpp.

References centre_m, and getFieldValueCylindrical().

Referenced by apply().

Here is the call graph for this function:

◆ getFieldValueCylindrical()

bool ScalingFFAMagnet::getFieldValueCylindrical	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	B
	)		const

Calculate the field at some arbitrary position in cylindrical coordinates

Parameters

R	position in the local coordinate system of the bend, in cylindrical polar coordinates defined like (r, y, phi)
B	calculated magnetic field defined like (Br, By, Bphi)

Returns: true if particle is outside the field map, else false

Definition at line 121 of file ScalingFFAMagnet.cpp.

References azimuthalExtent_m, Bz_m, dfCoefficients_m, endField_m, endfieldmodel::EndFieldModel::function(), k_m, maxOrder_m, phiStart_m, r0_m, rMax_m, tanDelta_m, and verticalExtent_m.

Referenced by getFieldValue().

Here is the call graph for this function:

◆ getFlagDeleteOnTransverseExit()

bool ElementBase::getFlagDeleteOnTransverseExit ( ) const

inlineinherited

Definition at line 634 of file ElementBase.h.

References ElementBase::deleteOnTransverseExit_m.

Referenced by BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), Corrector::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), RFCavity::apply(), Solenoid::apply(), and TravelingWave::apply().

◆ getGeometry() [1/2]

const BGeometryBase & ScalingFFAMagnet::getGeometry ( ) const

overridevirtual

Return the cell geometry

Implements ElementBase.

Definition at line 100 of file ScalingFFAMagnet.cpp.

References planarArcGeometry_m.

◆ getGeometry() [2/2]

BGeometryBase & ScalingFFAMagnet::getGeometry ( )

overridevirtual

Return the cell geometry

Implements ElementBase.

Definition at line 98 of file ScalingFFAMagnet.cpp.

References planarArcGeometry_m.

◆ getMaxOrder()

size_t ScalingFFAMagnet::getMaxOrder ( ) const

inline

Get the maximum power of y modelled in the off-midplane expansion;

Definition at line 191 of file ScalingFFAMagnet.h.

References maxOrder_m.

◆ getMisalignment() [1/2]

CoordinateSystemTrafo ElementBase::getMisalignment ( ) const

inlineinherited

Definition at line 593 of file ElementBase.h.

References ElementBase::misalignment_m.

Referenced by ElementBase::getPlacementMisalignment().

◆ getMisalignment() [2/2]

void ElementBase::getMisalignment	(	double &	x,
		double &	y,
		double &	s
	)		const

inherited

◆ getName()

const std::string & ElementBase::getName ( ) const

virtualinherited

◆ getOrigin()

double ElementBase::getOrigin ( ) const

inlinevirtualinherited

Get origin position.

Reimplemented in TBeamline< T >.

Definition at line 485 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getOrigin().

Referenced by BeamlineGeometry::getOrigin().

Here is the call graph for this function:

◆ getOutputFN()

std::string ElementBase::getOutputFN ( ) const

inherited

Get output filename.

Definition at line 138 of file ElementBase.cpp.

References ElementBase::getName(), and ElementBase::outputfn_m.

Referenced by Probe::doInitialise(), PluginElement::initialise(), and Monitor::initialise().

Here is the call graph for this function:

◆ getParticleMatterInteraction()

ParticleMatterInteractionHandler * ElementBase::getParticleMatterInteraction ( ) const

inlinevirtualinherited

Definition at line 517 of file ElementBase.h.

References ElementBase::parmatint_m.

◆ getPhiEnd()

double ScalingFFAMagnet::getPhiEnd ( ) const

inline

Get the offset of the magnet end from the start

Definition at line 207 of file ScalingFFAMagnet.h.

References phiEnd_m.

◆ getPhiStart()

double ScalingFFAMagnet::getPhiStart ( ) const

inline

Get the offset of the magnet centre from the start

Definition at line 199 of file ScalingFFAMagnet.h.

References phiStart_m.

Referenced by setupEndField().

◆ getPlacedElement()

PlacedElement ElementBase::getPlacedElement ( ) const

inlineinherited

Return a placed-element view assembled from the current bridge objects.

Definition at line 571 of file ElementBase.h.

References ElementBase::getPlacementGeometry(), ElementBase::getPlacementMisalignment(), ElementBase::getPlacementPose(), and ElementBase::getPlacementSupport().

Referenced by MeshGenerator::add(), and TEST_F().

Here is the call graph for this function:

◆ getPlacementGeometry()

ElementGeometry ElementBase::getPlacementGeometry ( ) const

inlineinherited

Return the bridge geometry ports assembled from legacy edge state.

The first redesign stage defines a minimal explicit port contract with three named body-relative ports: \(p_{i,\mathrm{entry}}\), \(p_{i,\mathrm{body}}\), \(p_{i,\mathrm{exit}}\). The default bridge preserves current OPALX behavior by deriving those ports from getEntryPort(), getBodyPort(), and getExitPort(), whose straight-element implementations are backed by the legacy getEdgeToBegin() and getEdgeToEnd() methods.

Definition at line 563 of file ElementBase.h.

References ElementBase::getBodyPort(), ElementBase::getEntryPort(), and ElementBase::getExitPort().

Referenced by ElementBase::getPlacedElement().

Here is the call graph for this function:

◆ getPlacementMisalignment()

Misalignment ElementBase::getPlacementMisalignment ( ) const

inlineinherited

Return the local nominal-to-actual correction stored for the element.

Definition at line 559 of file ElementBase.h.

References ElementBase::getMisalignment().

Referenced by ElementBase::getPlacedElement().

Here is the call graph for this function:

◆ getPlacementPose()

PlacementPose ElementBase::getPlacementPose ( ) const

inlineinherited

Return the nominal rigid placement transform of the element.

This is the bridge from the legacy stored CoordinateSystemTrafo to the new placement vocabulary. It preserves current nominal placement semantics and does not apply misalignment.

Definition at line 551 of file ElementBase.h.

References ElementBase::getCSTrafoGlobal2Local().

Referenced by ElementBase::getPlacedElement().

Here is the call graph for this function:

◆ getPlacementSupport()

SupportPlacement ElementBase::getPlacementSupport ( ) const

inlineinherited

Return the support-frame bridge object. The default is the body frame.

Definition at line 567 of file ElementBase.h.

Referenced by ElementBase::getPlacedElement().

◆ getPotential()

virtual bool Component::getPotential	(	const Vector_t< double, 3 > &	,
		const double &	,
		Vector_t< double, 3 > &	,
		double &
	)

inlinevirtualinherited

Calculate the four-potential at some position relative to the component.

Parameters

R	position in the local coordinate system of the component
t	time
A	filled with the calculated magnetic vector potential
phi	filled with the calculated electric potential Note that any existing values in A and phi may be overwritten by this method.

Returns: true if particle is outside the field map, else false Default for component is to return false and make no change to A and phi

Definition at line 155 of file Component.h.

◆ getR0()

double ScalingFFAMagnet::getR0 ( ) const

inline

Get the radius constant R_0

Definition at line 164 of file ScalingFFAMagnet.h.

References r0_m.

Referenced by setupEndField().

◆ getRequiredNumberOfTimeSteps()

int ElementBase::getRequiredNumberOfTimeSteps ( ) const

inlinevirtualinherited

Reimplemented in BendBase, Drift, Laser, Marker, and Monitor.

Definition at line 628 of file ElementBase.h.

◆ getRMax()

double ScalingFFAMagnet::getRMax ( ) const

inline

Get the maximum radius

Definition at line 223 of file ScalingFFAMagnet.h.

References rMax_m.

◆ getRMin()

double ScalingFFAMagnet::getRMin ( ) const

inline

Get the maximum radius

Definition at line 215 of file ScalingFFAMagnet.h.

References rMin_m.

◆ getRotationAboutZ()

double ElementBase::getRotationAboutZ ( ) const

inlineinherited

Definition at line 609 of file ElementBase.h.

References ElementBase::rotationZAxis_m.

Referenced by OpalBeamline::compileCompatibilityPlacement().

◆ getTanDelta()

double ScalingFFAMagnet::getTanDelta ( ) const

inline

Get tan delta - delta is the spiral angle

Definition at line 146 of file ScalingFFAMagnet.h.

References tanDelta_m.

◆ getTotalTransform()

Euclid3D ElementBase::getTotalTransform ( ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 495 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getTotalTransform().

Referenced by BeamlineGeometry::getTotalTransform().

Here is the call graph for this function:

◆ getTransform() [1/2]

Euclid3D ElementBase::getTransform	(	double	fromS,
		double	toS
	)		const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 491 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getTransform().

Referenced by BendBase::getDesignPath(), BeamlineGeometry::getTransform(), TBeamline< T >::getTransform(), and BeamlineGeometry::getTransform().

Here is the call graph for this function:

◆ getTransform() [2/2]

Euclid3D ElementBase::getTransform ( double s ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 497 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getTransform().

Here is the call graph for this function:

◆ getType()

ElementType Component::getType ( ) const

virtualinherited

Get element type std::string.

Implements ElementBase.

Reimplemented in Corrector, ConstantEFieldCavity, Drift, Laser, Marker, Monitor, Multipole, Probe, RBend, RFCavity, SBend, Solenoid, and TravelingWave.

Definition at line 49 of file Component.cpp.

References ANY.

Referenced by ParallelTracker::visitComponent().

◆ getTypeString() [1/2]

std::string ElementBase::getTypeString ( ) const

inlineinherited

Definition at line 611 of file ElementBase.h.

References ElementBase::getType(), and ElementBase::getTypeString().

Referenced by ElementBase::getTypeString().

Here is the call graph for this function:

◆ getTypeString() [2/2]

std::string ElementBase::getTypeString ( ElementType type )

staticinherited

Definition at line 192 of file ElementBase.cpp.

References ElementBase::elementTypeToString_s.

◆ getVerticalExtent()

double ScalingFFAMagnet::getVerticalExtent ( ) const

inline

Get the maximum vertical displacement from the midplane

Definition at line 239 of file ScalingFFAMagnet.h.

References verticalExtent_m.

◆ getWake()

WakeFunction * ElementBase::getWake ( ) const

inlinevirtualinherited

return the attached wake object if there is any

Definition at line 509 of file ElementBase.h.

References ElementBase::wake_m.

◆ goOffline()

void Component::goOffline ( )

virtualinherited

Reimplemented in PluginElement, Monitor, RFCavity, Solenoid, and TravelingWave.

Definition at line 45 of file Component.cpp.

References Component::online_m.

◆ goOnline()

void Component::goOnline ( const double & kineticEnergy )

virtualinherited

Reimplemented in Corrector, Monitor, RFCavity, Solenoid, and TravelingWave.

Definition at line 43 of file Component.cpp.

References Component::online_m.

Referenced by PluginElement::initialise().

◆ hasAttribute()

bool ElementBase::hasAttribute ( const std::string & aKey ) const

virtualinherited

Test for existence of an attribute.

Definition at line 159 of file ElementBase.cpp.

References ElementBase::getConstChannel().

Here is the call graph for this function:

◆ hasBoundaryGeometry()

bool ElementBase::hasBoundaryGeometry ( ) const

inlinevirtualinherited

Definition at line 515 of file ElementBase.h.

References ElementBase::bgeometry_m.

◆ hasParticleMatterInteraction()

bool ElementBase::hasParticleMatterInteraction ( ) const

inlinevirtualinherited

Definition at line 521 of file ElementBase.h.

References ElementBase::parmatint_m.

◆ hasWake()

bool ElementBase::hasWake ( ) const

inlinevirtualinherited

Definition at line 511 of file ElementBase.h.

References ElementBase::wake_m.

◆ initialise() [1/2]

void ScalingFFAMagnet::initialise ( )

Initialise the ScalingFFAMagnet

Sets up the field expansion and the geometry; call after changing any field parameters

Definition at line 86 of file ScalingFFAMagnet.cpp.

References calculateDfCoefficients().

Referenced by initialise().

Here is the call graph for this function:

◆ initialise() [2/2]

void ScalingFFAMagnet::initialise	(	PartBunch_t *	bunch,
		double &	startField,
		double &	endField
	)

overridevirtual

Initialise the ScalingFFAMagnet

Parameters

bunch	the global bunch object
startField	not used
endField	not used

Implements Component.

Definition at line 88 of file ScalingFFAMagnet.cpp.

References initialise(), and Component::RefPartBunch_m.

Referenced by clone().

Here is the call graph for this function:

◆ isElementPositionSet()

bool ElementBase::isElementPositionSet ( ) const

inlineinherited

Definition at line 626 of file ElementBase.h.

References ElementBase::elemedgeSet_m.

◆ isInside()

bool ElementBase::isInside ( const Vector_t< double, 3 > & r ) const

inlinevirtualinherited

Reimplemented in BendBase, Monitor, Multipole, RFCavity, Solenoid, and TravelingWave.

Definition at line 586 of file ElementBase.h.

References ElementBase::getElementLength(), and ElementBase::isInsideTransverse().

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ isInsideTransverse()

bool ElementBase::isInsideTransverse ( const Vector_t< double, 3 > & r ) const

protectedinherited

Definition at line 233 of file ElementBase.cpp.

References ElementBase::aperture_m, CONIC_ELLIPTICAL, CONIC_RECTANGULAR, ELLIPTICAL, ElementBase::getEdgeToBegin(), ElementBase::getElementLength(), RECTANGULAR, and CoordinateSystemTrafo::transformTo().

Referenced by BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), Component::apply(), Corrector::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), Component::applyToReferenceParticle(), BendBase::applyToReferenceParticle(), ConstantEFieldCavity::applyToReferenceParticle(), Multipole::applyToReferenceParticle(), ElementBase::isInside(), BendBase::isInside(), Monitor::isInside(), Multipole::isInside(), RFCavity::isInside(), Solenoid::isInside(), and TravelingWave::isInside().

Here is the call graph for this function:

◆ isPositioned()

bool ElementBase::isPositioned ( ) const

inlineinherited

Definition at line 599 of file ElementBase.h.

References ElementBase::positionIsFixed.

Referenced by OpalRBend::update(), and OpalSBend::update().

◆ isSharable()

bool ElementBase::isSharable ( ) const

inlineinherited

Test if the element can be shared.

Definition at line 507 of file ElementBase.h.

References ElementBase::shareFlag.

Referenced by ElementBase::copyStructure(), and Sequence::updateList().

◆ makeSharable()

void ElementBase::makeSharable ( )

virtualinherited

Set sharable flag.

Reimplemented in TBeamline< T >.

Definition at line 202 of file ElementBase.cpp.

References ElementBase::shareFlag.

Referenced by OpalMarker::OpalMarker().

◆ Online()

bool Component::Online ( )

virtualinherited

Definition at line 47 of file Component.cpp.

References Component::online_m.

◆ operator=()

ScalingFFAMagnet & ScalingFFAMagnet::operator= ( const ScalingFFAMagnet & rhs )

private

◆ releasePosition()

void ElementBase::releasePosition ( )

inlineinherited

Definition at line 595 of file ElementBase.h.

References ElementBase::positionIsFixed.

Referenced by OpalRBend::update(), and OpalSBend::update().

◆ removeAttribute()

void ElementBase::removeAttribute ( const std::string & aKey )

virtualinherited

Remove an existing attribute.

Definition at line 170 of file ElementBase.cpp.

References AttributeSet::removeAttribute(), and ElementBase::userAttribs.

Here is the call graph for this function:

◆ setActionRange()

void ElementBase::setActionRange ( const std::queue< std::pair< double, double > > & range )

inlineinherited

Definition at line 601 of file ElementBase.h.

References ElementBase::actionRange_m, and ElementBase::elementEdge_m.

◆ setAperture()

void ElementBase::setAperture	(	const ApertureType &	type,
		const std::vector< double > &	args
	)

inlineinherited

Definition at line 577 of file ElementBase.h.

References ElementBase::aperture_m.

Referenced by Component::Component(), TEST_F(), TEST_F(), TEST_F(), OpalElement::update(), OpalRBend::update(), and OpalSBend::update().

◆ setAttribute()

void ElementBase::setAttribute	(	const std::string &	aKey,
		double	val
	)

virtualinherited

Set value of an attribute.

Definition at line 172 of file ElementBase.cpp.

References ElementBase::getChannel(), and Channel::isSettable().

Referenced by ElementBase::update(), and OpalElement::updateUnknown().

Here is the call graph for this function:

◆ setAzimuthalExtent()

void ScalingFFAMagnet::setAzimuthalExtent ( double azimuthalExtent )

inline

Set the maximum azimuthal displacement from \psi=0

Definition at line 235 of file ScalingFFAMagnet.h.

References azimuthalExtent_m.

Referenced by setupEndField().

◆ setBoundaryGeometry()

void ElementBase::setBoundaryGeometry ( BoundaryGeometry * geo )

virtualinherited

attach a boundary geometry field to the element

Definition at line 216 of file ElementBase.cpp.

References ElementBase::bgeometry_m.

◆ setCentre()

void ScalingFFAMagnet::setCentre ( Vector_t< double, 3 > centre )

inline

Set the centre of the sector

Definition at line 173 of file ScalingFFAMagnet.h.

References centre_m.

◆ setCSTrafoGlobal2Local()

void ElementBase::setCSTrafoGlobal2Local ( const CoordinateSystemTrafo & ori )

inlineinherited

Definition at line 523 of file ElementBase.h.

References ElementBase::csTrafoGlobal2Local_m, and ElementBase::positionIsFixed.

Referenced by ElementBase::setPlacementPose(), TEST_F(), OpalElement::update(), OpalRBend::update(), and OpalSBend::update().

◆ setCurrentSCoordinate()

void ElementBase::setCurrentSCoordinate ( double s )

inherited

Definition at line 224 of file ElementBase.cpp.

References ElementBase::actionRange_m, and ElementBase::elementEdge_m.

◆ setDesignEnergy()

void Component::setDesignEnergy	(	const double &	energy,
		bool	changeable = `true`
	)

inlinevirtualinherited

Reimplemented in Corrector, RFCavity, and BendBase.

Definition at line 252 of file Component.h.

◆ setDipoleConstant()

void ScalingFFAMagnet::setDipoleConstant ( double Bz )

inline

Set the dipole constant B_0

Definition at line 161 of file ScalingFFAMagnet.h.

References Bz_m.

◆ setElementLength()

void ElementBase::setElementLength ( double length )

inlinevirtualinherited

Set design length.

Reimplemented in MultipoleT, and ConstantEFieldCavityRep.

Definition at line 483 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::setElementLength().

Referenced by MultipoleT::setElementLength(), SequenceMember::setLength(), BendBase::setLength(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), OpalCavity::update(), OpalMonitor::update(), OpalMultipole::update(), OpalProbe::update(), OpalQuadrupole::update(), OpalSolenoid::update(), and OpalTravelingWave::update().

Here is the call graph for this function:

◆ setElementPosition()

void ElementBase::setElementPosition ( double elemedge )

inlineinherited

Access to ELEMEDGE attribute.

Definition at line 613 of file ElementBase.h.

References ElementBase::elemedgeSet_m, and ElementBase::elementPosition_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and OpalElement::update().

◆ setEndField()

void ScalingFFAMagnet::setEndField ( endfieldmodel::EndFieldModel * endField )

Set the fringe field

endField: the new fringe field; ScalingFFAMagnet takes ownership of the memory associated with endField.

Definition at line 201 of file ScalingFFAMagnet.cpp.

References endField_m.

Referenced by setupEndField().

◆ setEndFieldName()

void ScalingFFAMagnet::setEndFieldName ( std::string name )

inline

Set the end field name.

Called during parsing of the input file; OPAL looks for the endFieldName when setupEndField() is called.

Definition at line 263 of file ScalingFFAMagnet.h.

References endFieldName_m.

◆ setExitFaceSlope()

void Component::setExitFaceSlope ( const double & m )

inlineinherited

Definition at line 250 of file Component.h.

References Component::exit_face_slope_m.

◆ setFieldIndex()

void ScalingFFAMagnet::setFieldIndex ( double k )

inline

Set the field index k

Definition at line 155 of file ScalingFFAMagnet.h.

References k_m.

◆ setFlagDeleteOnTransverseExit()

void ElementBase::setFlagDeleteOnTransverseExit ( bool flag = true )

inlineinherited

Definition at line 630 of file ElementBase.h.

References ElementBase::deleteOnTransverseExit_m.

Referenced by OpalElement::update().

◆ setMaxOrder()

void ScalingFFAMagnet::setMaxOrder ( size_t maxOrder )

inline

Set the maximum power of y modelled in the off-midplane expansion;

Definition at line 195 of file ScalingFFAMagnet.h.

References maxOrder_m.

◆ setMisalignment()

void ElementBase::setMisalignment ( const CoordinateSystemTrafo & cst )

inlineinherited

Definition at line 591 of file ElementBase.h.

References ElementBase::misalignment_m.

Referenced by TEST_F(), and OpalElement::update().

◆ setName()

void ElementBase::setName ( const std::string & name )

virtualinherited

Set element name.

Definition at line 134 of file ElementBase.cpp.

References ElementBase::elementID.

Referenced by Sequence::insertDrifts(), and VariableRFCavity::operator=().

◆ setOutputFN()

void ElementBase::setOutputFN ( std::string fn )

inherited

Set output filename.

Definition at line 136 of file ElementBase.cpp.

References ElementBase::outputfn_m.

Referenced by OpalMonitor::update(), and OpalProbe::update().

◆ setParticleMatterInteraction()

void ElementBase::setParticleMatterInteraction ( ParticleMatterInteractionHandler * spys )

virtualinherited

Definition at line 220 of file ElementBase.cpp.

References ElementBase::parmatint_m.

◆ setPhiEnd()

void ScalingFFAMagnet::setPhiEnd ( double phiEnd )

inline

Set the offset of the magnet end from the start

Definition at line 211 of file ScalingFFAMagnet.h.

References phiEnd_m.

Referenced by setupEndField().

◆ setPhiStart()

void ScalingFFAMagnet::setPhiStart ( double phiStart )

inline

Set the offset of the magnet centre from the start

Definition at line 203 of file ScalingFFAMagnet.h.

References phiStart_m.

Referenced by setupEndField().

◆ setPlacementPose()

void ElementBase::setPlacementPose ( const PlacementPose & pose )

inlineinherited

Set the nominal rigid placement transform of the element.

This bridge setter preserves the existing storage model by delegating to setCSTrafoGlobal2Local().

Definition at line 555 of file ElementBase.h.

References PlacementPose::getParentToNominal(), and ElementBase::setCSTrafoGlobal2Local().

Here is the call graph for this function:

◆ setR0()

void ScalingFFAMagnet::setR0 ( double r0 )

inline

Set the radius constant R_0

Definition at line 167 of file ScalingFFAMagnet.h.

References r0_m.

◆ setRMax()

void ScalingFFAMagnet::setRMax ( double rMax )

inline

Set the maximum radius

Definition at line 227 of file ScalingFFAMagnet.h.

References rMax_m.

◆ setRMin()

void ScalingFFAMagnet::setRMin ( double rMin )

inline

Set the maximum radius

Definition at line 219 of file ScalingFFAMagnet.h.

References rMin_m.

◆ setRotationAboutZ()

void ElementBase::setRotationAboutZ ( double rotation )

inlineinherited

Set rotation about z axis in bend frame.

Definition at line 607 of file ElementBase.h.

References ElementBase::rotationZAxis_m.

Referenced by OpalElement::update().

◆ setTanDelta()

void ScalingFFAMagnet::setTanDelta ( double tanDelta )

inline

Set tan delta - delta is the spiral angle

Definition at line 149 of file ScalingFFAMagnet.h.

References tanDelta_m.

◆ setupEndField()

void ScalingFFAMagnet::setupEndField ( )

setupEndField does some end field and geometry set-up

This is normally called just before the magnet is placed; can only set up the end field after everything has been parsed from input (otherwise OPAL may not know about an end field model).

sets PhiStart, PhiEnd, AzimuthalExtent and the end field model itself.

Definition at line 211 of file ScalingFFAMagnet.cpp.

References azimuthalExtent_m, endfieldmodel::EndFieldModel::clone(), endFieldName_m, endfieldmodel::EndFieldModel::getCentreLength(), endfieldmodel::EndFieldModel::getEndFieldModel(), endfieldmodel::EndFieldModel::getEndLength(), getPhiStart(), getR0(), Units::m2mm, phiEnd_m, phiStart_m, planarArcGeometry_m, r0_m, endfieldmodel::EndFieldModel::rescale(), setAzimuthalExtent(), PlanarArcGeometry::setCurvature(), PlanarArcGeometry::setElementLength(), setEndField(), setPhiEnd(), and setPhiStart().

Here is the call graph for this function:

◆ setVerticalExtent()

void ScalingFFAMagnet::setVerticalExtent ( double verticalExtent )

inline

Set the maximum vertical displacement from the midplane

Definition at line 243 of file ScalingFFAMagnet.h.

References verticalExtent_m.

◆ setWake()

void ElementBase::setWake ( WakeFunction * wf )

virtualinherited

attach a wake field to the element

Definition at line 212 of file ElementBase.cpp.

References ElementBase::wake_m.

◆ trackBunch()

void Component::trackBunch	(	PartBunch_t &	bunch,
		const PartData &	,
		bool	revBeam,
		bool	revTrack
	)		const

virtualinherited

Track a borrowed particle bunch through a non-standard component.

The default implementation throws a LogicalError.

Parameters

bunch Particle bunch to track. The component does not take ownership.

Definition at line 35 of file Component.cpp.

References ElementBase::getName().

Referenced by Tracker::visitComponent().

Here is the call graph for this function:

◆ trackMap()

void Component::trackMap	(	FVps< double, 6 > &	map,
		const PartData &	,
		bool	revBeam,
		bool	revTrack
	)		const

virtualinherited

Track a map.

Definition at line 39 of file Component.cpp.

References ElementBase::getName().

Here is the call graph for this function:

◆ update()

bool ElementBase::update ( const AttributeSet & set )

inherited

Update element.

Definition at line 204 of file ElementBase.cpp.

References AttributeSet::begin(), AttributeSet::end(), and ElementBase::setAttribute().

Referenced by Monitor::driftToCorrectPositionAndSave().

Here is the call graph for this function:

Member Data Documentation

◆ actionRange_m

std::queue<std::pair<double, double> > ElementBase::actionRange_m

privateinherited

Definition at line 469 of file ElementBase.h.

Referenced by ElementBase::setActionRange(), and ElementBase::setCurrentSCoordinate().

◆ aperture_m

std::pair<ApertureType, std::vector<double> > ElementBase::aperture_m

protectedinherited

Definition at line 440 of file ElementBase.h.

Referenced by ElementBase::getAperture(), ElementBase::getBoundingBoxInLabCoords(), ElementBase::isInsideTransverse(), and ElementBase::setAperture().

◆ azimuthalExtent_m

double ScalingFFAMagnet::azimuthalExtent_m = 0.

private

Definition at line 292 of file ScalingFFAMagnet.h.

Referenced by getAzimuthalExtent(), getFieldValueCylindrical(), setAzimuthalExtent(), and setupEndField().

◆ bgeometry_m

BoundaryGeometry* ElementBase::bgeometry_m

privateinherited

Definition at line 460 of file ElementBase.h.

Referenced by ElementBase::getBoundaryGeometry(), ElementBase::hasBoundaryGeometry(), and ElementBase::setBoundaryGeometry().

◆ Bz_m

double ScalingFFAMagnet::Bz_m = 0.

private

Definition at line 286 of file ScalingFFAMagnet.h.

Referenced by getDipoleConstant(), getFieldValueCylindrical(), ScalingFFAMagnet(), and setDipoleConstant().

◆ centre_m

Vector_t<double, 3> ScalingFFAMagnet::centre_m

private

Definition at line 294 of file ScalingFFAMagnet.h.

Referenced by getCentre(), getFieldValue(), and setCentre().

◆ csTrafoGlobal2Local_m

CoordinateSystemTrafo ElementBase::csTrafoGlobal2Local_m

protectedinherited

Definition at line 437 of file ElementBase.h.

Referenced by Monitor::applyToReferenceParticle(), ElementBase::getBoundingBoxInLabCoords(), ElementBase::getCSTrafoGlobal2Local(), and ElementBase::setCSTrafoGlobal2Local().

◆ defaultAperture_m

const std::vector< double > Component::defaultAperture_m = std::vector<double>({1e6, 1e6, 1.0})

staticprotectedinherited

Definition at line 221 of file Component.h.

Referenced by Component::Component().

◆ deleteOnTransverseExit_m

bool ElementBase::deleteOnTransverseExit_m = true

privateinherited

Definition at line 473 of file ElementBase.h.

Referenced by ElementBase::getFlagDeleteOnTransverseExit(), and ElementBase::setFlagDeleteOnTransverseExit().

◆ dfCoefficients_m

std::vector<std::vector<double> > ScalingFFAMagnet::dfCoefficients_m

private

Definition at line 298 of file ScalingFFAMagnet.h.

Referenced by calculateDfCoefficients(), getDfCoefficients(), and getFieldValueCylindrical().

◆ dummy

BMultipoleField ScalingFFAMagnet::dummy

private

Definition at line 281 of file ScalingFFAMagnet.h.

Referenced by getField(), and getField().

◆ elemedgeSet_m

bool ElementBase::elemedgeSet_m

privateinherited

Definition at line 467 of file ElementBase.h.

Referenced by ElementBase::getElementPosition(), ElementBase::isElementPositionSet(), and ElementBase::setElementPosition().

◆ elementEdge_m

double ElementBase::elementEdge_m

protectedinherited

Definition at line 442 of file ElementBase.h.

Referenced by ElementBase::setActionRange(), and ElementBase::setCurrentSCoordinate().

◆ elementID

std::string ElementBase::elementID

privateinherited

Definition at line 451 of file ElementBase.h.

Referenced by ElementBase::getName(), and ElementBase::setName().

◆ elementPosition_m

double ElementBase::elementPosition_m

privateinherited

ELEMEDGE attribute.

Definition at line 466 of file ElementBase.h.

Referenced by ElementBase::getElementPosition(), and ElementBase::setElementPosition().

◆ elementTypeToString_s

const std::map< ElementType, std::string > ElementBase::elementTypeToString_s

staticprivateinherited

Initial value:

= {
        {ElementType::ANY, "Any"},
        {ElementType::BEAMLINE, "Beamline"},
        {ElementType::DRIFT, "Drift"},
        {ElementType::LASER, "Laser"},
        {ElementType::MARKER, "Marker"},
        {ElementType::MONITOR, "Monitor"},
        {ElementType::MULTIPOLE, "Multipole"},
        {ElementType::RFCAVITY, "RFCavity"},
        {ElementType::TRAVELINGWAVE, "TravelingWave"},
        {ElementType::SBEND, "SBEND"},
        {ElementType::RBEND, "RBEND"},
        {ElementType::RBEND3D, "RBEND3D"},
        {ElementType::RING, "Ring"},
        {ElementType::SOURCE, "SOURCE"},
        {ElementType::SOLENOID, "SOLENOID"},
        {ElementType::PROBE, "Probe"},
        {ElementType::VACUUM, "Vacuum"},
        {ElementType::CONSTANTEFIELDCAVITY, "ConstantEFieldCavity"}}

Definition at line 73 of file ElementBase.h.

Referenced by ElementBase::getTypeString().

◆ endField_m

endfieldmodel::EndFieldModel* ScalingFFAMagnet::endField_m = nullptr

private

Definition at line 295 of file ScalingFFAMagnet.h.

Referenced by getEndField(), getFieldValueCylindrical(), ScalingFFAMagnet(), setEndField(), and ~ScalingFFAMagnet().

◆ endFieldName_m

std::string ScalingFFAMagnet::endFieldName_m = ""

private

Definition at line 296 of file ScalingFFAMagnet.h.

Referenced by getEndFieldName(), setEndFieldName(), and setupEndField().

◆ exit_face_slope_m

double Component::exit_face_slope_m

protectedinherited

Definition at line 222 of file Component.h.

Referenced by Component::setExitFaceSlope().

◆ fp_tolerance

const double ScalingFFAMagnet::fp_tolerance = 1e-18

private

Definition at line 297 of file ScalingFFAMagnet.h.

◆ k_m

double ScalingFFAMagnet::k_m = 0.

private

Definition at line 285 of file ScalingFFAMagnet.h.

Referenced by calculateDfCoefficients(), getFieldIndex(), getFieldValueCylindrical(), and setFieldIndex().

◆ maxOrder_m

size_t ScalingFFAMagnet::maxOrder_m = 0

private

Definition at line 283 of file ScalingFFAMagnet.h.

Referenced by calculateDfCoefficients(), getFieldValueCylindrical(), getMaxOrder(), and setMaxOrder().

◆ misalignment_m

CoordinateSystemTrafo ElementBase::misalignment_m

protectedinherited

Definition at line 438 of file ElementBase.h.

Referenced by ElementBase::getMisalignment(), and ElementBase::setMisalignment().

◆ online_m

bool Component::online_m

protectedinherited

◆ outputfn_m

std::string ElementBase::outputfn_m

privateinherited

The name of the outputfile

Definition at line 471 of file ElementBase.h.

Referenced by ElementBase::getOutputFN(), and ElementBase::setOutputFN().

◆ parmatint_m

ParticleMatterInteractionHandler* ElementBase::parmatint_m

privateinherited

Definition at line 462 of file ElementBase.h.

Referenced by ElementBase::getParticleMatterInteraction(), ElementBase::hasParticleMatterInteraction(), and ElementBase::setParticleMatterInteraction().

◆ phiEnd_m

double ScalingFFAMagnet::phiEnd_m = 0.

private

Definition at line 291 of file ScalingFFAMagnet.h.

Referenced by getPhiEnd(), setPhiEnd(), and setupEndField().

◆ phiStart_m

double ScalingFFAMagnet::phiStart_m = 0.

private

Definition at line 290 of file ScalingFFAMagnet.h.

Referenced by getFieldValueCylindrical(), getPhiStart(), setPhiStart(), and setupEndField().

◆ planarArcGeometry_m

PlanarArcGeometry ScalingFFAMagnet::planarArcGeometry_m

private

Definition at line 280 of file ScalingFFAMagnet.h.

Referenced by getGeometry(), getGeometry(), and setupEndField().

◆ positionIsFixed

bool ElementBase::positionIsFixed

privateinherited

Definition at line 464 of file ElementBase.h.

Referenced by ElementBase::fixPosition(), ElementBase::isPositioned(), ElementBase::releasePosition(), and ElementBase::setCSTrafoGlobal2Local().

◆ r0_m

double ScalingFFAMagnet::r0_m = 0.

private

Definition at line 287 of file ScalingFFAMagnet.h.

Referenced by getFieldValueCylindrical(), getR0(), ScalingFFAMagnet(), setR0(), and setupEndField().

◆ RefPartBunch_m

PartBunch_t* Component::RefPartBunch_m

protectedinherited

Definition at line 225 of file Component.h.

Referenced by Corrector::apply(), VerticalFFAMagnet::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Monitor::apply(), Multipole::apply(), MultipoleT::apply(), RFCavity::apply(), apply(), Solenoid::apply(), TravelingWave::apply(), VariableRFCavity::apply(), Ring::apply(), Monitor::apply(), MultipoleT::apply(), RFCavity::apply(), TravelingWave::apply(), VariableRFCavity::apply(), Corrector::apply(), Monitor::applyToReferenceParticle(), BendBase::calcDesignRadius(), BendBase::calcFieldAmplitude(), BendBase::calcGamma(), Monitor::driftToCorrectPositionAndSave(), VerticalFFAMagnet::finalise(), MultipoleT::finalise(), finalise(), VariableRFCavity::finalise(), Corrector::goOnline(), PluginElement::initialise(), Corrector::initialise(), VerticalFFAMagnet::initialise(), BendBase::initialise(), ConstantEFieldCavity::initialise(), Drift::initialise(), Laser::initialise(), Marker::initialise(), Monitor::initialise(), Multipole::initialise(), MultipoleT::initialise(), RFCavity::initialise(), initialise(), Solenoid::initialise(), TravelingWave::initialise(), VariableRFCavity::initialise(), RFCavity::initialise(), VariableRFCavity::initNull(), Multipole::isFocusing(), MultipoleT::MultipoleT(), ScalingFFAMagnet(), Corrector::setDesignEnergy(), Ring::setRefPartBunch(), RFCavity::trackOnAxisParticle(), and VerticalFFAMagnet::VerticalFFAMagnet().

◆ rMax_m

double ScalingFFAMagnet::rMax_m = 0.

private

Definition at line 289 of file ScalingFFAMagnet.h.

Referenced by getFieldValueCylindrical(), getRMax(), and setRMax().

◆ rMin_m

double ScalingFFAMagnet::rMin_m = 0.

private

Definition at line 288 of file ScalingFFAMagnet.h.

Referenced by getRMin(), and setRMin().

◆ rotationZAxis_m

double ElementBase::rotationZAxis_m

protectedinherited

Definition at line 444 of file ElementBase.h.

Referenced by ElementBase::getRotationAboutZ(), and ElementBase::setRotationAboutZ().

◆ shareFlag

bool ElementBase::shareFlag

mutableprotectedinherited

Definition at line 435 of file ElementBase.h.

Referenced by Beamline::Beamline(), Beamline::Beamline(), Beamline::Beamline(), ElementBase::isSharable(), and ElementBase::makeSharable().

◆ tanDelta_m

double ScalingFFAMagnet::tanDelta_m = 0.

private

Definition at line 284 of file ScalingFFAMagnet.h.

Referenced by calculateDfCoefficients(), getFieldValueCylindrical(), getTanDelta(), and setTanDelta().

◆ userAttribs

AttributeSet ElementBase::userAttribs

privateinherited

Definition at line 456 of file ElementBase.h.

Referenced by ElementBase::getChannel(), and ElementBase::removeAttribute().

◆ verticalExtent_m

double ScalingFFAMagnet::verticalExtent_m = 0.

private

Definition at line 293 of file ScalingFFAMagnet.h.

Referenced by getFieldValueCylindrical(), getVerticalExtent(), and setVerticalExtent().

◆ wake_m

WakeFunction* ElementBase::wake_m

privateinherited

Definition at line 458 of file ElementBase.h.

Referenced by ElementBase::getWake(), ElementBase::hasWake(), and ElementBase::setWake().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ScalingFFAMagnet() [1/2]

◆ ~ScalingFFAMagnet()

◆ ScalingFFAMagnet() [2/2]

Member Function Documentation

◆ accept()

◆ apply() [1/3]

◆ apply() [2/3]

◆ apply() [3/3]

◆ applyToReferenceParticle()

◆ bends()

◆ Bfield() [1/2]

◆ Bfield() [2/2]

◆ calculateDfCoefficients()

◆ clone()

◆ copyStructure()

◆ EBfield() [1/2]

◆ EBfield() [2/2]

◆ Efield() [1/2]

◆ Efield() [2/2]

◆ finalise()

◆ fixPosition()

◆ getAperture()

◆ getArcLength()

◆ getAttribute()

◆ getAzimuthalExtent()

◆ getBodyPort()

◆ getBoundaryGeometry()

◆ getBoundingBoxInLabCoords()

◆ getCentre()

◆ getChannel()

◆ getConstChannel()

◆ getCSTrafoGlobal2Local()

◆ getDesign()

◆ getDesignEnergy()

◆ getDfCoefficients()

◆ getDipoleConstant()

◆ getEdgeToBegin()

◆ getEdgeToEnd()

◆ getElementDimensions()

◆ getElementLength()

◆ getElementPosition()

◆ getEndField()

◆ getEndFieldName()

◆ getEntrance()

◆ getEntranceFrame()

◆ getEntrancePatch()

◆ getEntryPort()

◆ getExit()

◆ getExitFrame()

◆ getExitPatch()

◆ getExitPort()

◆ getField() [1/2]

◆ getField() [2/2]

◆ getFieldExtend()

◆ getFieldIndex()

◆ getFieldValue()

◆ getFieldValueCylindrical()

◆ getFlagDeleteOnTransverseExit()

◆ getGeometry() [1/2]

◆ getGeometry() [2/2]

◆ getMaxOrder()

◆ getMisalignment() [1/2]

◆ getMisalignment() [2/2]

◆ getName()

◆ getOrigin()

◆ getOutputFN()

◆ getParticleMatterInteraction()

◆ getPhiEnd()

◆ getPhiStart()

◆ getPlacedElement()
