Ring describes a ring type geometry for tracking. More...

#include <Ring.h>

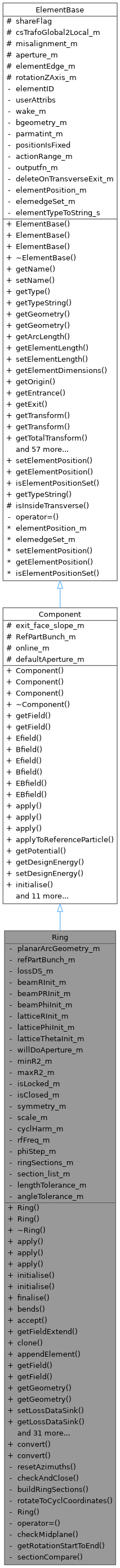

Inheritance diagram for Ring:

Collaboration diagram for Ring:

Public Member Functions
	Ring (std::string ring)

	Ring (const Ring &ring)

virtual	~Ring ()

virtual bool	apply (const std::shared_ptr< ParticleContainer_t > &pc) override

virtual bool	apply (const size_t &id, const double &t, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) override
	Apply to particle i.

virtual bool	apply (const Vector_t< double, 3 > &R, const Vector_t< double, 3 > &P, const double &t, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B) override

virtual void	initialise (PartBunch_t *bunch, double &startField, double &endField) override

virtual void	initialise (PartBunch_t *bunch)

virtual void	finalise () override

virtual bool	bends () const override

virtual void	accept (BeamlineVisitor &visitor) const override

virtual void	getFieldExtend (double &zBegin, double &zEnd) const override

virtual ElementBase *	clone () const override

void	appendElement (const Component &element)

virtual EMField &	getField () override

virtual const EMField &	getField () const override

virtual PlanarArcGeometry &	getGeometry () override

virtual const PlanarArcGeometry &	getGeometry () const override

void	setLossDataSink (LossDataSink *sink)

PartBunch_t *	getLossDataSink () const

void	setRefPartBunch (PartBunch_t *bunch)

PartBunch_t *	getRefPartBunch () const

void	setHarmonicNumber (double cyclHarm)

double	getHarmonicNumber ()

void	setRFFreq (double rfFreq)

double	getRFFreq () const

void	setBeamRInit (double rInit)

double	getBeamRInit () const

void	setBeamPhiInit (double phiInit)

double	getBeamPhiInit () const

void	setBeamPRInit (double pRInit)

double	getBeamPRInit () const

void	setLatticeRInit (double rInit)

double	getLatticeRInit () const

void	setLatticePhiInit (double phiInit)

double	getLatticePhiInit () const

Vector_t< double, 3 >	getNextPosition () const

Vector_t< double, 3 >	getNextNormal () const

void	setLatticeThetaInit (double thetaInit)

double	getLatticeThetaInit () const

void	setSymmetry (double symmetry)

void	setScale (double scale)

double	getSymmetry () const

void	setIsClosed (bool isClosed)

double	getIsClosed () const

void	setRingAperture (double minR, double maxR)

double	getRingMinR () const

double	getRingMaxR () const

void	lockRing ()

RingSection *	getLastSectionPlaced () const

std::vector< RingSection * >	getSectionsAt (const Vector_t< double, 3 > &pos)

EVector	Efield (const Point3D &P) const
	Return the field in a point.

EVector	Efield (const Point3D &P, double t) const
	Return the field in a point.

BVector	Bfield (const Point3D &P) const
	Return the field in a point.

BVector	Bfield (const Point3D &P, double t) const
	Return the field in a point.

EBVectors	EBfield (const Point3D &P) const
	Return the field in a point.

EBVectors	EBfield (const Point3D &P, double t) const
	Return the field in a point.

virtual bool	applyToReferenceParticle (const Vector_t< double, 3 > &R, const Vector_t< double, 3 > &P, const double &t, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B)
	Apply to reference particle with position R and momemtum P.

virtual bool	getPotential (const Vector_t< double, 3 > &, const double &, Vector_t< double, 3 > &, double &)
	Calculate the four-potential at some position relative to the component.

virtual double	getDesignEnergy () const

virtual void	setDesignEnergy (const double &energy, bool changeable=true)

virtual void	goOnline (const double &kineticEnergy)

virtual void	goOffline ()

virtual bool	Online ()

virtual ElementType	getType () const
	Get element type std::string.

virtual const ElementBase &	getDesign () const
	Return design element.

virtual void	trackBunch (PartBunch_t &bunch, const PartData &, bool revBeam, bool revTrack) const
	Track a borrowed particle bunch through a non-standard component.

virtual void	trackMap (FVps< double, 6 > &map, const PartData &, bool revBeam, bool revTrack) const
	Track a map.

void	setExitFaceSlope (const double &)

virtual const std::string &	getName () const
	Get element name.

virtual void	setName (const std::string &name)
	Set element name.

std::string	getTypeString () const

virtual double	getArcLength () const
	Get arc length.

virtual double	getElementLength () const
	Get design length.

virtual void	setElementLength (double length)
	Set design length.

virtual void	getElementDimensions (double &begin, double &end) const
	Return the nominal body extent of the element.

virtual double	getOrigin () const
	Get origin position.

virtual double	getEntrance () const
	Get entrance position.

virtual double	getExit () const
	Get exit position.

virtual Euclid3D	getTransform (double fromS, double toS) const
	Get transform.

virtual Euclid3D	getTransform (double s) const
	Get transform.

virtual Euclid3D	getTotalTransform () const
	Get transform.

virtual Euclid3D	getEntranceFrame () const
	Get transform.

virtual Euclid3D	getExitFrame () const
	Get transform.

virtual Euclid3D	getEntrancePatch () const
	Get patch.

virtual Euclid3D	getExitPatch () const
	Get patch.

virtual double	getAttribute (const std::string &aKey) const
	Get attribute value.

virtual bool	hasAttribute (const std::string &aKey) const
	Test for existence of an attribute.

virtual void	removeAttribute (const std::string &aKey)
	Remove an existing attribute.

virtual void	setAttribute (const std::string &aKey, double val)
	Set value of an attribute.

virtual Channel *	getChannel (const std::string &aKey, bool create=false)
	Construct a read/write channel.

virtual const ConstChannel *	getConstChannel (const std::string &aKey) const
	Construct a read-only channel.

virtual ElementBase *	copyStructure ()
	Make a structural copy.

bool	isSharable () const
	Test if the element can be shared.

virtual void	makeSharable ()
	Set sharable flag.

bool	update (const AttributeSet &)
	Update element.

virtual void	setBoundaryGeometry (BoundaryGeometry *geo)

virtual BoundaryGeometry *	getBoundaryGeometry () const
	return the attached boundary geometrt object if there is any

virtual bool	hasBoundaryGeometry () const

virtual void	setWake (WakeFunction *wf)
	attach a wake field to the element

virtual WakeFunction *	getWake () const
	return the attached wake object if there is any

virtual bool	hasWake () const

virtual void	setParticleMatterInteraction (ParticleMatterInteractionHandler *spys)

virtual ParticleMatterInteractionHandler *	getParticleMatterInteraction () const

virtual bool	hasParticleMatterInteraction () const

void	setCSTrafoGlobal2Local (const CoordinateSystemTrafo &ori)

CoordinateSystemTrafo	getCSTrafoGlobal2Local () const

void	releasePosition ()

void	fixPosition ()

bool	isPositioned () const

virtual CoordinateSystemTrafo	getEdgeToBegin () const

virtual CoordinateSystemTrafo	getEdgeToEnd () const

virtual Port	getEntryPort () const
	Return the entrance port of the canonical local chart.

virtual Port	getBodyPort () const
	Return the body port of the canonical local chart.

virtual Port	getExitPort () const
	Return the exit port of the canonical local chart.

PlacementPose	getPlacementPose () const
	Return the nominal rigid placement transform of the element.

void	setPlacementPose (const PlacementPose &pose)
	Set the nominal rigid placement transform of the element.

Misalignment	getPlacementMisalignment () const
	Return the local nominal-to-actual correction stored for the element.

ElementGeometry	getPlacementGeometry () const
	Return the bridge geometry ports assembled from legacy edge state.

SupportPlacement	getPlacementSupport () const
	Return the support-frame bridge object. The default is the body frame.

PlacedElement	getPlacedElement () const
	Return a placed-element view assembled from the current bridge objects.

void	setAperture (const ApertureType &type, const std::vector< double > &args)

std::pair< ApertureType, std::vector< double > >	getAperture () const

virtual bool	isInside (const Vector_t< double, 3 > &r) const

void	setMisalignment (const CoordinateSystemTrafo &cst)

void	getMisalignment (double &x, double &y, double &s) const

CoordinateSystemTrafo	getMisalignment () const

void	setActionRange (const std::queue< std::pair< double, double > > &range)

void	setCurrentSCoordinate (double s)

void	setRotationAboutZ (double rotation)
	Set rotation about z axis in bend frame.

double	getRotationAboutZ () const

virtual BoundingBox	getBoundingBoxInLabCoords () const

virtual int	getRequiredNumberOfTimeSteps () const

void	setOutputFN (std::string fn)
	Set output filename.

std::string	getOutputFN () const
	Get output filename.

void	setFlagDeleteOnTransverseExit (bool=true)

bool	getFlagDeleteOnTransverseExit () const


void	setElementPosition (double elemedge)
	Access to ELEMEDGE attribute.

double	getElementPosition () const

bool	isElementPositionSet () const

Static Public Member Functions
static Vector_t< double, 3 >	convert (const Vector3D &vec)

static Vector3D	convert (const Vector_t< double, 3 > &vec)

static std::string	getTypeString (ElementType type)

Protected Member Functions
bool	isInsideTransverse (const Vector_t< double, 3 > &r) const

Protected Attributes
double	exit_face_slope_m

PartBunch_t *	RefPartBunch_m

bool	online_m

bool	shareFlag

CoordinateSystemTrafo	csTrafoGlobal2Local_m

CoordinateSystemTrafo	misalignment_m

std::pair< ApertureType, std::vector< double > >	aperture_m

double	elementEdge_m

double	rotationZAxis_m

Static Protected Attributes
static const std::vector< double >	defaultAperture_m = std::vector<double>({1e6, 1e6, 1.0})

Private Member Functions
void	resetAzimuths ()

void	checkAndClose ()

void	buildRingSections ()

void	rotateToCyclCoordinates (Euclid3D &euclid3d) const

	Ring ()

Ring &	operator= (const Ring &ring)

void	checkMidplane (Euclid3D delta) const

Rotation3D	getRotationStartToEnd (Euclid3D delta) const

Static Private Member Functions
static bool	sectionCompare (RingSection const const sec1, RingSection const const sec2)

Private Attributes
PlanarArcGeometry	planarArcGeometry_m

PartBunch_t *	refPartBunch_m

LossDataSink *	lossDS_m

double	beamRInit_m

double	beamPRInit_m

double	beamPhiInit_m

double	latticeRInit_m

double	latticePhiInit_m

double	latticeThetaInit_m

bool	willDoAperture_m = false

double	minR2_m

double	maxR2_m

bool	isLocked_m

bool	isClosed_m

int	symmetry_m

double	scale_m = 1.

double	cyclHarm_m

double	rfFreq_m

double	phiStep_m

std::vector< RingSectionList >	ringSections_m

RingSectionList	section_list_m

std::string	elementID

AttributeSet	userAttribs

WakeFunction *	wake_m

BoundaryGeometry *	bgeometry_m

ParticleMatterInteractionHandler *	parmatint_m

bool	positionIsFixed

std::queue< std::pair< double, double > >	actionRange_m

std::string	outputfn_m

bool	deleteOnTransverseExit_m = true


double	elementPosition_m
	ELEMEDGE attribute.

bool	elemedgeSet_m

Static Private Attributes
static const double	lengthTolerance_m = 1e-2

static const double	angleTolerance_m = 1e-2

static const std::map< ElementType, std::string >	elementTypeToString_s

Detailed Description

Ring describes a ring type geometry for tracking.

Ring describes a ring type geometry for tracking. Ring provides the necessary interfaces for e.g. OPAL-CYCL to track through the ring geometry, while enabling the user to add arbitrary field elements in a closed geometry.

Ring uses similar routines to OPAL-T OpalBeamline class to set up geometry; note that as OPAL-CYCL places the beam in an x-y geometry we place in an x-y geometry for Ring (i.e. the axis of the ring is by default the z-axis). So far only placement of elements in the midplane is supported. It is not possible to give vertical displacements or rotations, or add elements that might create vertical displacements and rotations.

Also aim to maintain backwards compatibility with Cyclotron (i.e. use ParallelCyclotronTracker)

Definition at line 62 of file Ring.h.

Constructor & Destructor Documentation

◆ Ring() [1/3]

Ring::Ring ( std::string ring )

Constructor

Parameters

ring	Name of the ring as defined in the input file

Definition at line 47 of file Ring.cpp.

References setRefPartBunch().

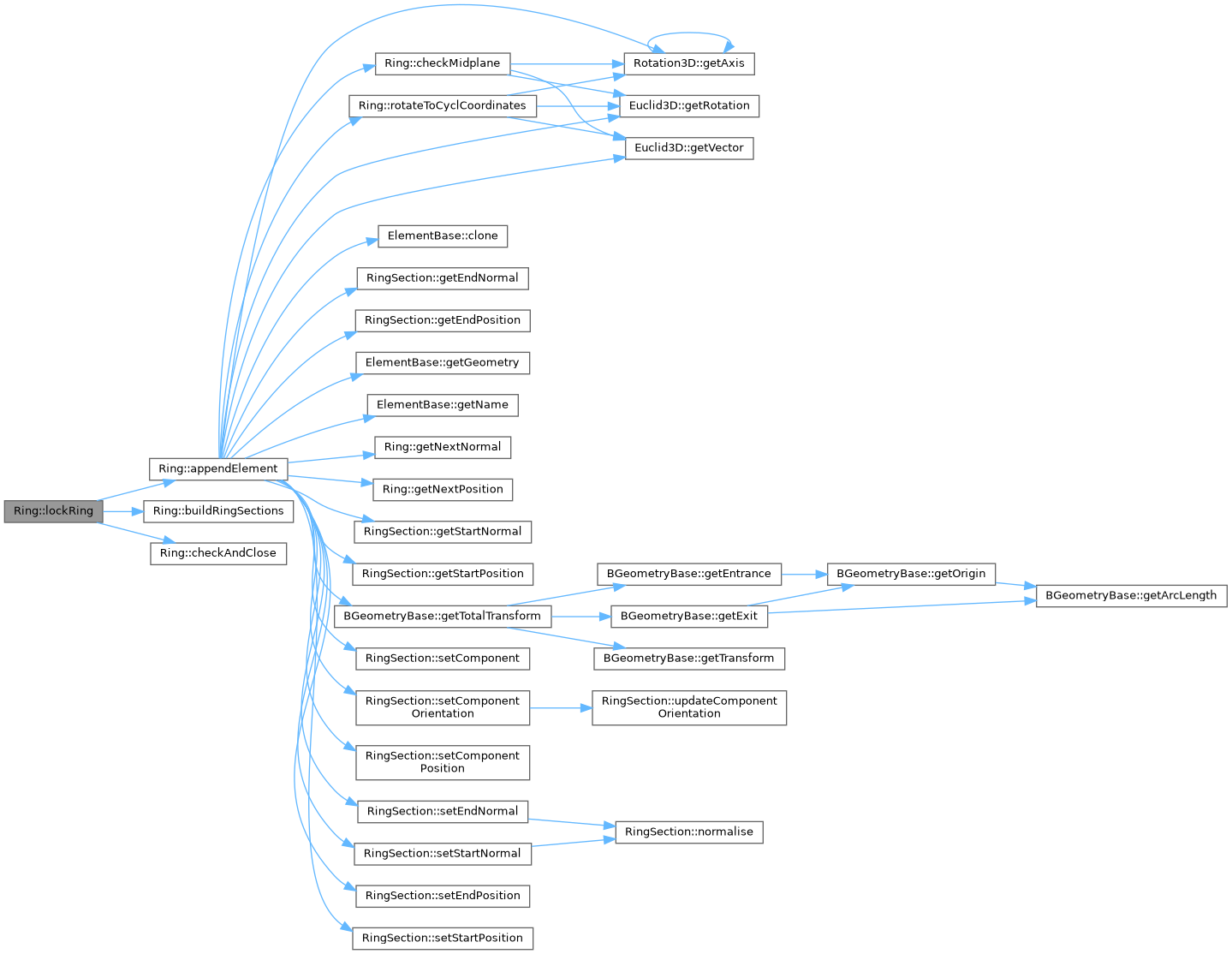

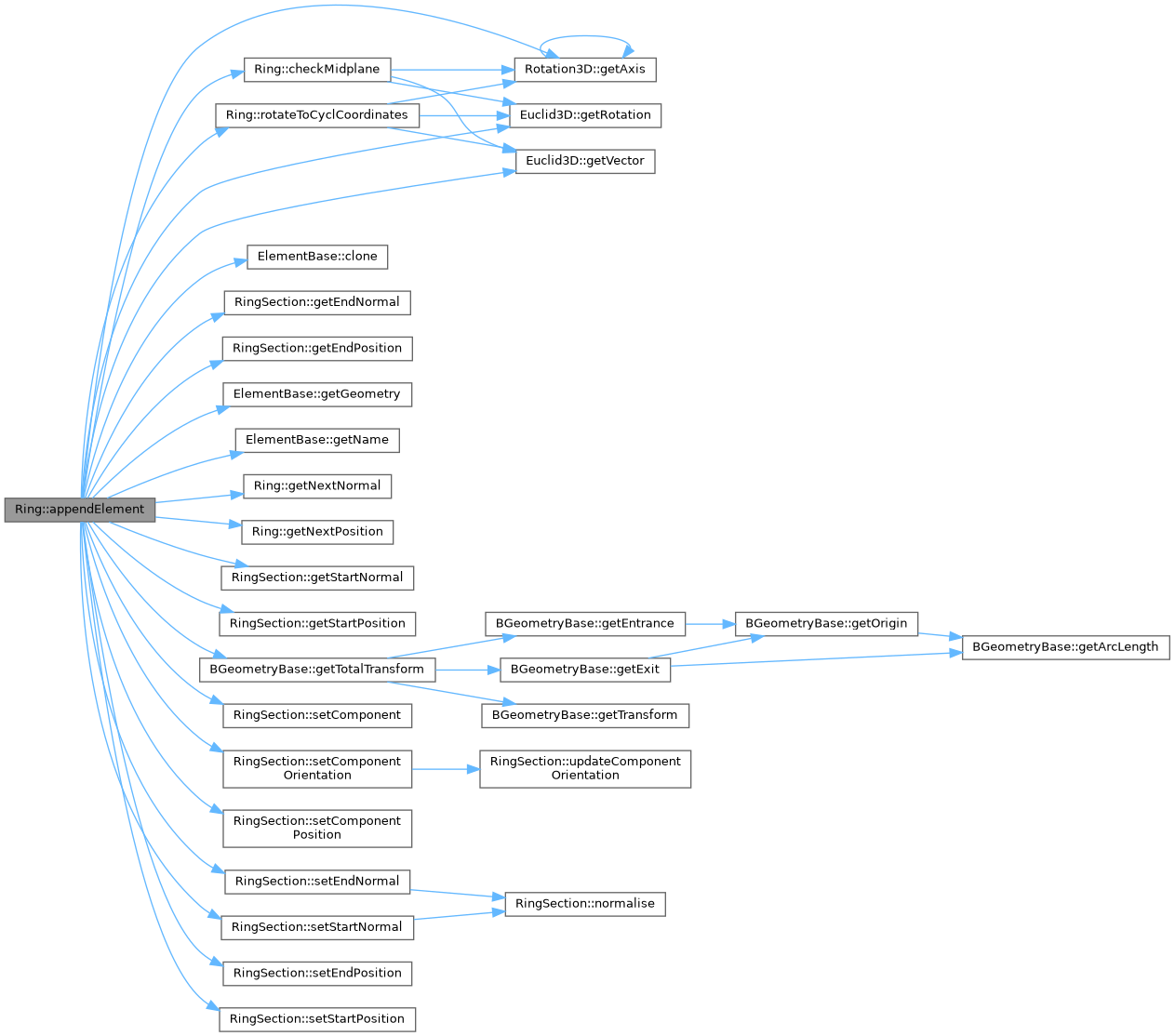

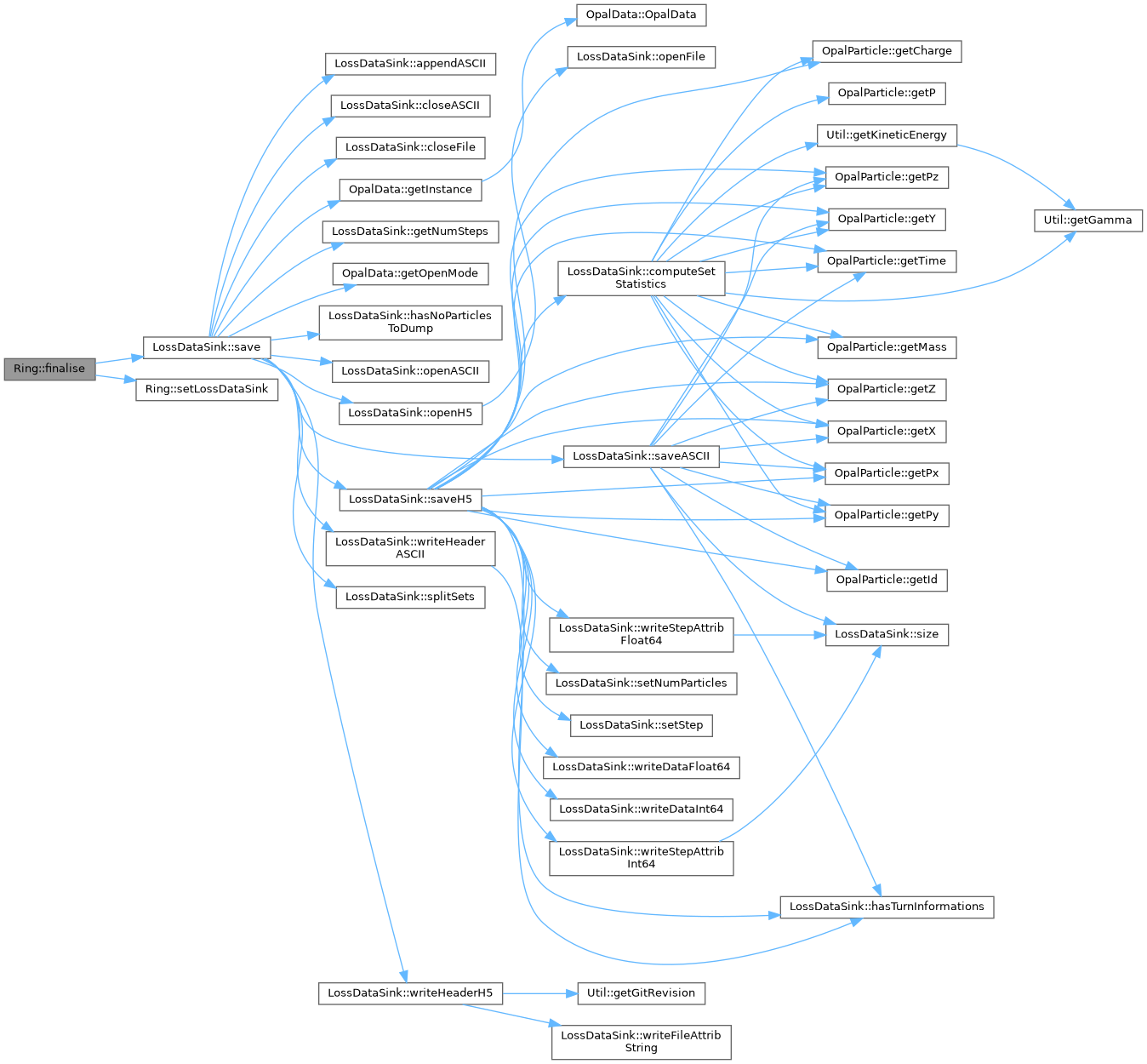

Here is the call graph for this function:

◆ Ring() [2/3]

Ring::Ring ( const Ring & ring )

Copy constructor

Can't copy LossDataSink so throw exception if this is set

Definition at line 71 of file Ring.cpp.

References buildRingSections(), lossDS_m, refPartBunch_m, section_list_m, and setRefPartBunch().

Here is the call graph for this function:

◆ ~Ring()

Ring::~Ring ( )

virtual

Destructor - deletes lossDS_m if not nullptr

Definition at line 102 of file Ring.cpp.

References section_list_m.

◆ Ring() [3/3]

Ring::Ring ( )

private

Disabled

Referenced by clone().

Member Function Documentation

◆ accept()

void Ring::accept ( BeamlineVisitor & visitor ) const

overridevirtual

Accept the BeamlineVisitor

Just calls visitRing function on the visitor. I guess the point of this function is that it enables us to store a pointer to the visitor object or something

Implements ElementBase.

Definition at line 69 of file Ring.cpp.

References BeamlineVisitor::visitRing().

Here is the call graph for this function:

◆ appendElement()

void Ring::appendElement ( const Component & element )

Add element to the ring

Add element to the ring. Elements are assumed to occupy a region of space defined by a (flat) plane at the start and a plane at the end, both infinite in extent. The position and rotation of these planes are defined according to the Component geometry given by element.getGeometry().

Caller owns memory allocated to element - Ring makes a copy.

Throws an exception if the geometry would bend the element out of the midplane (elements out of midplane are not yet supported). Note that BeamlineGeometry considers midplane to be x-z, whereas Ring considers midplane to be x-y; we apply a rotation during set up.

The element is assumed to extend not beyond the element geometry; Ring applies a bounding box based on the element geometry, if there are field maps expanding outside this region they may get cut.

Definition at line 253 of file Ring.cpp.

References checkMidplane(), ElementBase::clone(), Rotation3D::getAxis(), RingSection::getEndNormal(), RingSection::getEndPosition(), ElementBase::getGeometry(), ElementBase::getName(), getNextNormal(), getNextPosition(), Euclid3D::getRotation(), RingSection::getStartNormal(), RingSection::getStartPosition(), BGeometryBase::getTotalTransform(), Euclid3D::getVector(), isLocked_m, rotateToCyclCoordinates(), section_list_m, RingSection::setComponent(), RingSection::setComponentOrientation(), RingSection::setComponentPosition(), RingSection::setEndNormal(), RingSection::setEndPosition(), RingSection::setStartNormal(), and RingSection::setStartPosition().

Referenced by lockRing().

Here is the call graph for this function:

◆ apply() [1/3]

bool Ring::apply	(	const size_t &	i,
		const double &	t,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)

overridevirtual

Apply to particle i.

Parameters

i	Particle index
t	Time
E	Electric Field
B	Magnetic Field

Returns: true if particle is out-of-bounds (lost), false otherwise

Reimplemented from Component.

Definition at line 109 of file Ring.cpp.

References apply(), PartBunch< T, Dim >::R(), and Component::RefPartBunch_m.

Here is the call graph for this function:

◆ apply() [2/3]

bool Ring::apply ( const std::shared_ptr< ParticleContainer_t > & pc )

overridevirtual

Overwrite data in vector E and B with electric and magnetic field

Parameters

i	index of item in RefPartBunch_m - particle bunch
t	time
E	array where electric field vector is stored - any existing data is overwritten
B	array where magnetic field vector is stored - any existing data is overwritten

Returns: false if particle is outside of the field map apertures, else true. If particle is off the field maps, then set flag on the particle "Bin" data to -1 and store in LossDataSink

Reimplemented from Component.

Definition at line 107 of file Ring.cpp.

Referenced by apply().

◆ apply() [3/3]

bool Ring::apply	(	const Vector_t< double, 3 > &	R,
		const Vector_t< double, 3 > &	P,
		const double &	t,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)

overridevirtual

Overwrite data in vector E and B with electromagnetic field at point R

Parameters

R	3 vector position at which the field is found in Cartesian coordinates (i.e. x, y, z with z=vertical)
P	3 vector momentum
centroid	unknown, but not used - bunch mean maybe?
t	time
E	vector where electric field vector will be stored - any existing data is overwritten
B	vector where magnetic field vector will be stored - any existing data is overwritten

Returns: false if particle is outside of the ring aperture, else true. If particle is off the field maps, then set flag on the particle "Bin" data to -1

Reimplemented from Component.

Definition at line 140 of file Ring.cpp.

References getSectionsAt(), maxR2_m, refPartBunch_m, scale_m, and willDoAperture_m.

Here is the call graph for this function:

◆ applyToReferenceParticle()

bool Component::applyToReferenceParticle	(	const Vector_t< double, 3 > &	R,
		const Vector_t< double, 3 > &	P,
		const double &	t,
		Vector_t< double, 3 > &	E,
		Vector_t< double, 3 > &	B
	)

virtualinherited

Apply to reference particle with position R and momemtum P.

Parameters

R	Position
P	Momentum
t	Time
E	Electric Field
B	Magnetic Field

Returns: true if particle is out-of-bounds (lost), false otherwise

Reimplemented in BendBase, ConstantEFieldCavity, Monitor, Multipole, PluginElement, RFCavity, Solenoid, TravelingWave, and VariableRFCavity.

Definition at line 114 of file Component.cpp.

References ElementBase::getElementLength(), and ElementBase::isInsideTransverse().

Here is the call graph for this function:

◆ bends()

virtual bool Ring::bends ( ) const

inlineoverridevirtual

Returns true - Ring is assumed to bend particles, being a ring

Implements Component.

Definition at line 142 of file Ring.h.

◆ Bfield() [1/2]

BVector Component::Bfield ( const Point3D & P ) const

inlineinherited

Return the field in a point.

Definition at line 234 of file Component.h.

References EMField::Bfield(), and Component::getField().

Here is the call graph for this function:

◆ Bfield() [2/2]

BVector Component::Bfield	(	const Point3D &	P,
		double	t
	)		const

inlineinherited

Return the field in a point.

Definition at line 240 of file Component.h.

References EMField::Bfield(), and Component::getField().

Here is the call graph for this function:

◆ buildRingSections()

void Ring::buildRingSections ( )

private

Definition at line 367 of file Ring.cpp.

References phiStep_m, Physics::pi, ringSections_m, and section_list_m.

Referenced by lockRing(), and Ring().

◆ checkAndClose()

void Ring::checkAndClose ( )

private

Definition at line 353 of file Ring.cpp.

References angleTolerance_m, lengthTolerance_m, and section_list_m.

Referenced by lockRing().

◆ checkMidplane()

void Ring::checkMidplane ( Euclid3D delta ) const

private

Definition at line 217 of file Ring.cpp.

References angleTolerance_m, Rotation3D::getAxis(), Euclid3D::getRotation(), Euclid3D::getVector(), and lengthTolerance_m.

Referenced by appendElement().

Here is the call graph for this function:

◆ clone()

virtual ElementBase * Ring::clone ( ) const

inlineoverridevirtual

Inherited copy constructor

Implements ElementBase.

Definition at line 156 of file Ring.h.

References Ring().

Here is the call graph for this function:

◆ convert() [1/2]

Vector_t< double, 3 > Ring::convert ( const Vector3D & vec )

inlinestatic

Convert from a Vector3D to a Vector_t<double, 3>

Definition at line 416 of file Ring.h.

◆ convert() [2/2]

Vector3D Ring::convert ( const Vector_t< double, 3 > & vec )

inlinestatic

Convert from a Vector_t<double, 3> to a Vector3D

Definition at line 420 of file Ring.h.

◆ copyStructure()

ElementBase * ElementBase::copyStructure ( )

virtualinherited

Make a structural copy.

Reimplemented in TBeamline< T >.

Definition at line 194 of file ElementBase.cpp.

References ElementBase::clone(), and ElementBase::isSharable().

Referenced by Sequence::copy(), Line::parse(), SequenceParser::parseMember(), and Replacer::visitFlaggedElmPtr().

Here is the call graph for this function:

◆ EBfield() [1/2]

EBVectors Component::EBfield ( const Point3D & P ) const

inlineinherited

Return the field in a point.

Definition at line 244 of file Component.h.

References EMField::EBfield(), and Component::getField().

Here is the call graph for this function:

◆ EBfield() [2/2]

EBVectors Component::EBfield	(	const Point3D &	P,
		double	t
	)		const

inlineinherited

Return the field in a point.

Definition at line 246 of file Component.h.

References EMField::EBfield(), and Component::getField().

Here is the call graph for this function:

◆ Efield() [1/2]

EVector Component::Efield ( const Point3D & P ) const

inlineinherited

Return the field in a point.

Definition at line 232 of file Component.h.

References EMField::Efield(), and Component::getField().

Here is the call graph for this function:

◆ Efield() [2/2]

EVector Component::Efield	(	const Point3D &	P,
		double	t
	)		const

inlineinherited

Return the field in a point.

Definition at line 236 of file Component.h.

References EMField::Efield(), and Component::getField().

Here is the call graph for this function:

◆ finalise()

void Ring::finalise ( )

overridevirtual

Clean up the Ring

Ring relinquishes RefPartBunch_t pointer and deletes LossDataSink

Implements Component.

Definition at line 191 of file Ring.cpp.

References lossDS_m, Component::online_m, LossDataSink::save(), and setLossDataSink().

Here is the call graph for this function:

◆ fixPosition()

void ElementBase::fixPosition ( )

inlineinherited

Definition at line 597 of file ElementBase.h.

References ElementBase::positionIsFixed.

Referenced by OpalElement::update(), OpalRBend::update(), and OpalSBend::update().

◆ getAperture()

std::pair< ApertureType, std::vector< double > > ElementBase::getAperture ( ) const

inlineinherited

Definition at line 582 of file ElementBase.h.

References ElementBase::aperture_m.

Referenced by MeshGenerator::add(), Solenoid::getSupportEnvelope(), and MeshGenerator::getTransverseSupport().

◆ getArcLength()

double ElementBase::getArcLength ( ) const

inlinevirtualinherited

Get arc length.

Reimplemented in MarkerRep, and TBeamline< T >.

Definition at line 479 of file ElementBase.h.

References BGeometryBase::getArcLength(), and ElementBase::getGeometry().

Referenced by BeamlineGeometry::getArcLength(), and TBeamline< T >::getTransform().

Here is the call graph for this function:

◆ getAttribute()

double ElementBase::getAttribute ( const std::string & aKey ) const

virtualinherited

Get attribute value.

Definition at line 147 of file ElementBase.cpp.

References ElementBase::getConstChannel().

Here is the call graph for this function:

◆ getBeamPhiInit()

double Ring::getBeamPhiInit ( ) const

inline

Get the initial beam azimuthal angle

Definition at line 246 of file Ring.h.

References beamPhiInit_m.

◆ getBeamPRInit()

double Ring::getBeamPRInit ( ) const

inline

Get the initial beam radial momentum

Definition at line 252 of file Ring.h.

References beamPRInit_m.

◆ getBeamRInit()

double Ring::getBeamRInit ( ) const

inline

Get the initial beam radius

Definition at line 240 of file Ring.h.

References beamRInit_m.

◆ getBodyPort()

Port ElementBase::getBodyPort ( ) const

inlinevirtualinherited

Return the body port of the canonical local chart.

The body port \(p_{i,\mathrm{body}}\) is the identity port of the element's canonical local chart. Its rigid transform is therefore the identity element of \(SE(3)\) in the first redesign stage.

Definition at line 547 of file ElementBase.h.

Referenced by ElementBase::getPlacementGeometry(), and TEST_F().

◆ getBoundaryGeometry()

BoundaryGeometry * ElementBase::getBoundaryGeometry ( ) const

inlinevirtualinherited

return the attached boundary geometrt object if there is any

Definition at line 513 of file ElementBase.h.

References ElementBase::bgeometry_m.

◆ getBoundingBoxInLabCoords()

BoundingBox ElementBase::getBoundingBoxInLabCoords ( ) const

virtualinherited

Definition at line 264 of file ElementBase.cpp.

References ElementBase::aperture_m, ElementBase::csTrafoGlobal2Local_m, BoundingBox::getBoundingBox(), ElementBase::getEdgeToBegin(), ElementBase::getEdgeToEnd(), and CoordinateSystemTrafo::transformFrom().

Here is the call graph for this function:

◆ getChannel()

Channel * ElementBase::getChannel	(	const std::string &	aKey,
		bool	create = `false`
	)

virtualinherited

Construct a read/write channel.

Reimplemented in LaserRep, RBendRep, SBendRep, DriftRep, MonitorRep, MultipoleRep, ProbeRep, RFCavityRep, SolenoidRep, TravelingWaveRep, and ConstantEFieldCavityRep.

Definition at line 182 of file ElementBase.cpp.

References AttributeSet::getChannel(), and ElementBase::userAttribs.

Referenced by LaserRep::getChannel(), RBendRep::getChannel(), SBendRep::getChannel(), DriftRep::getChannel(), MonitorRep::getChannel(), MultipoleRep::getChannel(), ProbeRep::getChannel(), RFCavityRep::getChannel(), SolenoidRep::getChannel(), TravelingWaveRep::getChannel(), ConstantEFieldCavityRep::getChannel(), ElementBase::getConstChannel(), and ElementBase::setAttribute().

Here is the call graph for this function:

◆ getConstChannel()

const ConstChannel * ElementBase::getConstChannel ( const std::string & aKey ) const

virtualinherited

Construct a read-only channel.

Definition at line 186 of file ElementBase.cpp.

References ElementBase::getChannel().

Referenced by ElementBase::getAttribute(), and ElementBase::hasAttribute().

Here is the call graph for this function:

◆ getCSTrafoGlobal2Local()

CoordinateSystemTrafo ElementBase::getCSTrafoGlobal2Local ( ) const

inlineinherited

Definition at line 529 of file ElementBase.h.

References ElementBase::csTrafoGlobal2Local_m.

Referenced by Monitor::driftToCorrectPositionAndSave(), ElementBase::getPlacementPose(), OpalRBend::update(), and OpalSBend::update().

◆ getDesign()

const ElementBase & Component::getDesign ( ) const

virtualinherited

Return design element.

Definition at line 33 of file Component.cpp.

◆ getDesignEnergy()

double Component::getDesignEnergy ( ) const

inlinevirtualinherited

Reimplemented in BendBase, and RFCavity.

Definition at line 254 of file Component.h.

◆ getEdgeToBegin()

CoordinateSystemTrafo ElementBase::getEdgeToBegin ( ) const

inlinevirtualinherited

Reimplemented in BendBase, RFCavity, Solenoid, and TravelingWave.

Definition at line 533 of file ElementBase.h.

Referenced by ElementBase::getBoundingBoxInLabCoords(), ElementBase::getEntryPort(), and ElementBase::isInsideTransverse().

◆ getEdgeToEnd()

CoordinateSystemTrafo ElementBase::getEdgeToEnd ( ) const

inlinevirtualinherited

Reimplemented in BendBase, RFCavity, Solenoid, and TravelingWave.

Definition at line 538 of file ElementBase.h.

References ElementBase::getElementLength().

Referenced by ElementBase::getBoundingBoxInLabCoords(), and ElementBase::getExitPort().

Here is the call graph for this function:

◆ getElementDimensions()

virtual void ElementBase::getElementDimensions	(	double &	begin,
		double &	end
	)		const

inlinevirtualinherited

Return the nominal body extent of the element.

The first placement redesign stage distinguishes between the nominal body extent and the field-support extent. The body extent is the canonical longitudinal interval of the placed hardware, \([z_\mathrm{body}^{\mathrm{begin}}, z_\mathrm{body}^{\mathrm{end}}]\), and therefore drives ports, placement, and visualization. By default it coincides with the geometry length \([0, L]\) in the local chart.

Reimplemented in RFCavity, TravelingWave, and Solenoid.

Definition at line 178 of file ElementBase.h.

References ElementBase::getElementLength().

Referenced by MeshGenerator::add().

Here is the call graph for this function:

◆ getElementLength()

double ElementBase::getElementLength ( ) const

inlinevirtualinherited

Get design length.

Reimplemented in MarkerRep, TBeamline< T >, and RFCavity.

Definition at line 481 of file ElementBase.h.

References BGeometryBase::getElementLength(), and ElementBase::getGeometry().

Referenced by MeshGenerator::add(), ConstantEFieldCavity::apply(), Multipole::apply(), VariableRFCavity::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), VariableRFCavity::apply(), Component::apply(), Corrector::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), VariableRFCavity::apply(), Component::applyToReferenceParticle(), ConstantEFieldCavity::applyToReferenceParticle(), Multipole::applyToReferenceParticle(), ElementBase::getEdgeToEnd(), Solenoid::getEdgeToEnd(), ElementBase::getElementDimensions(), Solenoid::getElementDimensions(), BeamlineGeometry::getElementLength(), RFCavity::getElementLength(), Corrector::getFieldExtend(), BendBase::getFieldExtend(), ConstantEFieldCavity::getFieldExtend(), Drift::getFieldExtend(), Laser::getFieldExtend(), Multipole::getFieldExtend(), MultipoleT::getFieldExtend(), VariableRFCavity::getFieldExtend(), BendBase::getLength(), Corrector::initialise(), BendBase::initialise(), ConstantEFieldCavity::initialise(), Drift::initialise(), Laser::initialise(), Multipole::initialise(), ElementBase::isInside(), BendBase::isInside(), Monitor::isInside(), Multipole::isInside(), ElementBase::isInsideTransverse(), and TEST_F().

Here is the call graph for this function:

◆ getElementPosition()

double ElementBase::getElementPosition ( ) const

inlineinherited

Definition at line 618 of file ElementBase.h.

References ElementBase::elemedgeSet_m, ElementBase::elementPosition_m, and ElementBase::getName().

Here is the call graph for this function:

◆ getEntrance()

double ElementBase::getEntrance ( ) const

inlinevirtualinherited

Get entrance position.

Reimplemented in TBeamline< T >.

Definition at line 487 of file ElementBase.h.

References BGeometryBase::getEntrance(), and ElementBase::getGeometry().

Referenced by BendBase::getDesignPath(), and BeamlineGeometry::getEntrance().

Here is the call graph for this function:

◆ getEntranceFrame()

Euclid3D ElementBase::getEntranceFrame ( ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 499 of file ElementBase.h.

References BGeometryBase::getEntranceFrame(), and ElementBase::getGeometry().

Referenced by BendBase::getChordLength(), BendBase::getEdgeToBegin(), and BeamlineGeometry::getEntranceFrame().

Here is the call graph for this function:

◆ getEntrancePatch()

Euclid3D ElementBase::getEntrancePatch ( ) const

inlinevirtualinherited

Get patch.

Definition at line 503 of file ElementBase.h.

References BGeometryBase::getEntrancePatch(), and ElementBase::getGeometry().

Here is the call graph for this function:

◆ getEntryPort()

Port ElementBase::getEntryPort ( ) const

inlinevirtualinherited

Return the entrance port of the canonical local chart.

In the placement-note language, this is the marked entrance port \(p_{i,\mathrm{entry}}\) of element \(i\). For straight elements in the bridge stage, the body-to-entry transform is taken from the legacy getEdgeToBegin() result.

Definition at line 545 of file ElementBase.h.

References ElementBase::getEdgeToBegin().

Referenced by ElementBase::getPlacementGeometry(), and TEST_F().

Here is the call graph for this function:

◆ getExit()

double ElementBase::getExit ( ) const

inlinevirtualinherited

Get exit position.

Reimplemented in TBeamline< T >.

Definition at line 489 of file ElementBase.h.

References BGeometryBase::getExit(), and ElementBase::getGeometry().

Referenced by BendBase::getDesignPath(), and BeamlineGeometry::getExit().

Here is the call graph for this function:

◆ getExitFrame()

Euclid3D ElementBase::getExitFrame ( ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 501 of file ElementBase.h.

References BGeometryBase::getExitFrame(), and ElementBase::getGeometry().

Referenced by BendBase::getChordLength(), BendBase::getEdgeToEnd(), and BeamlineGeometry::getExitFrame().

Here is the call graph for this function:

◆ getExitPatch()

Euclid3D ElementBase::getExitPatch ( ) const

inlinevirtualinherited

Get patch.

Definition at line 505 of file ElementBase.h.

References BGeometryBase::getExitPatch(), and ElementBase::getGeometry().

Here is the call graph for this function:

◆ getExitPort()

Port ElementBase::getExitPort ( ) const

inlinevirtualinherited

Return the exit port of the canonical local chart.

In the placement-note language, this is the marked exit port \(p_{i,\mathrm{exit}}\). For straight elements in the bridge stage, the body-to-exit transform is taken from the legacy getEdgeToEnd() result.

Definition at line 549 of file ElementBase.h.

References ElementBase::getEdgeToEnd().

Referenced by ElementBase::getPlacementGeometry(), and TEST_F().

Here is the call graph for this function:

◆ getField() [1/2]

virtual const EMField & Ring::getField ( ) const

inlineoverridevirtual

Not implemented, throws an exception

Implements Component.

Definition at line 185 of file Ring.h.

◆ getField() [2/2]

virtual EMField & Ring::getField ( )

inlineoverridevirtual

Not implemented, throws an exception

Implements Component.

Definition at line 180 of file Ring.h.

◆ getFieldExtend()

void Ring::getFieldExtend	(	double &	zBegin,
		double &	zEnd
	)		const

overridevirtual

Not implemented - always throws an exception

Implements Component.

Definition at line 177 of file Ring.cpp.

◆ getFlagDeleteOnTransverseExit()

bool ElementBase::getFlagDeleteOnTransverseExit ( ) const

inlineinherited

Definition at line 634 of file ElementBase.h.

References ElementBase::deleteOnTransverseExit_m.

Referenced by BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), Corrector::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), RFCavity::apply(), Solenoid::apply(), and TravelingWave::apply().

◆ getGeometry() [1/2]

virtual const PlanarArcGeometry & Ring::getGeometry ( ) const

inlineoverridevirtual

Not implemented

Implements ElementBase.

Definition at line 193 of file Ring.h.

References planarArcGeometry_m.

◆ getGeometry() [2/2]

virtual PlanarArcGeometry & Ring::getGeometry ( )

inlineoverridevirtual

Not implemented

Implements ElementBase.

Definition at line 190 of file Ring.h.

References planarArcGeometry_m.

◆ getHarmonicNumber()

double Ring::getHarmonicNumber ( )

inline

Get the harmonic number for RF (number of bunches in the ring)

Definition at line 227 of file Ring.h.

References cyclHarm_m.

◆ getIsClosed()

double Ring::getIsClosed ( ) const

inline

Get flag for closure checking

Definition at line 297 of file Ring.h.

References isClosed_m.

◆ getLastSectionPlaced()

RingSection * Ring::getLastSectionPlaced ( ) const

Get the last section placed or nullptr if no sections were placed yet

Definition at line 381 of file Ring.cpp.

References section_list_m.

◆ getLatticePhiInit()

double Ring::getLatticePhiInit ( ) const

inline

Get the initial element's azimuthal angle

Definition at line 264 of file Ring.h.

References latticePhiInit_m.

◆ getLatticeRInit()

double Ring::getLatticeRInit ( ) const

inline

Get the initial element's radius

Definition at line 258 of file Ring.h.

References latticeRInit_m.

◆ getLatticeThetaInit()

double Ring::getLatticeThetaInit ( ) const

inline

Get the first element's horizontal angle

Get the angle in the ring plane with respect to the tangent vector

Definition at line 282 of file Ring.h.

References latticeThetaInit_m.

◆ getLossDataSink()

PartBunch_t * Ring::getLossDataSink ( ) const

Get pointer to lossDataSink.

Ring still owns the memory to which lossDataSink points.

◆ getMisalignment() [1/2]

CoordinateSystemTrafo ElementBase::getMisalignment ( ) const

inlineinherited

Definition at line 593 of file ElementBase.h.

References ElementBase::misalignment_m.

Referenced by ElementBase::getPlacementMisalignment().

◆ getMisalignment() [2/2]

void ElementBase::getMisalignment	(	double &	x,
		double &	y,
		double &	s
	)		const

inherited

◆ getName()

const std::string & ElementBase::getName ( ) const

virtualinherited

◆ getNextNormal()

Vector_t< double, 3 > Ring::getNextNormal ( ) const

Get the initial element's start normal in cartesian coordinates

Definition at line 244 of file Ring.cpp.

References latticePhiInit_m, latticeThetaInit_m, and section_list_m.

Referenced by appendElement().

◆ getNextPosition()

Vector_t< double, 3 > Ring::getNextPosition ( ) const

Get the initial element's start position in cartesian coordinates

Definition at line 235 of file Ring.cpp.

References latticePhiInit_m, latticeRInit_m, and section_list_m.

Referenced by appendElement().

◆ getOrigin()

double ElementBase::getOrigin ( ) const

inlinevirtualinherited

Get origin position.

Reimplemented in TBeamline< T >.

Definition at line 485 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getOrigin().

Referenced by BeamlineGeometry::getOrigin().

Here is the call graph for this function:

◆ getOutputFN()

std::string ElementBase::getOutputFN ( ) const

inherited

Get output filename.

Definition at line 138 of file ElementBase.cpp.

References ElementBase::getName(), and ElementBase::outputfn_m.

Referenced by Probe::doInitialise(), PluginElement::initialise(), and Monitor::initialise().

Here is the call graph for this function:

◆ getParticleMatterInteraction()

ParticleMatterInteractionHandler * ElementBase::getParticleMatterInteraction ( ) const

inlinevirtualinherited

Definition at line 517 of file ElementBase.h.

References ElementBase::parmatint_m.

◆ getPlacedElement()

PlacedElement ElementBase::getPlacedElement ( ) const

inlineinherited

Return a placed-element view assembled from the current bridge objects.

Definition at line 571 of file ElementBase.h.

References ElementBase::getPlacementGeometry(), ElementBase::getPlacementMisalignment(), ElementBase::getPlacementPose(), and ElementBase::getPlacementSupport().

Referenced by MeshGenerator::add(), and TEST_F().

Here is the call graph for this function:

◆ getPlacementGeometry()

ElementGeometry ElementBase::getPlacementGeometry ( ) const

inlineinherited

Return the bridge geometry ports assembled from legacy edge state.

The first redesign stage defines a minimal explicit port contract with three named body-relative ports: \(p_{i,\mathrm{entry}}\), \(p_{i,\mathrm{body}}\), \(p_{i,\mathrm{exit}}\). The default bridge preserves current OPALX behavior by deriving those ports from getEntryPort(), getBodyPort(), and getExitPort(), whose straight-element implementations are backed by the legacy getEdgeToBegin() and getEdgeToEnd() methods.

Definition at line 563 of file ElementBase.h.

References ElementBase::getBodyPort(), ElementBase::getEntryPort(), and ElementBase::getExitPort().

Referenced by ElementBase::getPlacedElement().

Here is the call graph for this function:

◆ getPlacementMisalignment()

Misalignment ElementBase::getPlacementMisalignment ( ) const

inlineinherited

Return the local nominal-to-actual correction stored for the element.

Definition at line 559 of file ElementBase.h.

References ElementBase::getMisalignment().

Referenced by ElementBase::getPlacedElement().

Here is the call graph for this function:

◆ getPlacementPose()

PlacementPose ElementBase::getPlacementPose ( ) const

inlineinherited

Return the nominal rigid placement transform of the element.

This is the bridge from the legacy stored CoordinateSystemTrafo to the new placement vocabulary. It preserves current nominal placement semantics and does not apply misalignment.

Definition at line 551 of file ElementBase.h.

References ElementBase::getCSTrafoGlobal2Local().

Referenced by ElementBase::getPlacedElement().

Here is the call graph for this function:

◆ getPlacementSupport()

SupportPlacement ElementBase::getPlacementSupport ( ) const

inlineinherited

Return the support-frame bridge object. The default is the body frame.

Definition at line 567 of file ElementBase.h.

Referenced by ElementBase::getPlacedElement().

◆ getPotential()

virtual bool Component::getPotential	(	const Vector_t< double, 3 > &	,
		const double &	,
		Vector_t< double, 3 > &	,
		double &
	)

inlinevirtualinherited

Calculate the four-potential at some position relative to the component.

Parameters

R	position in the local coordinate system of the component
t	time
A	filled with the calculated magnetic vector potential
phi	filled with the calculated electric potential Note that any existing values in A and phi may be overwritten by this method.

Returns: true if particle is outside the field map, else false Default for component is to return false and make no change to A and phi

Definition at line 155 of file Component.h.

◆ getRefPartBunch()

PartBunch_t * Ring::getRefPartBunch ( ) const

Get pointer to RefPartBunch_t from the bunch.

Ring does not own this memory (so neither does caller).

◆ getRequiredNumberOfTimeSteps()

int ElementBase::getRequiredNumberOfTimeSteps ( ) const

inlinevirtualinherited

Reimplemented in BendBase, Drift, Laser, Marker, and Monitor.

Definition at line 628 of file ElementBase.h.

◆ getRFFreq()

double Ring::getRFFreq ( ) const

inline

Get the nominal RF frequency

Definition at line 234 of file Ring.h.

References rfFreq_m.

◆ getRingMaxR()

double Ring::getRingMaxR ( ) const

inline

Get the ring maximum

Definition at line 309 of file Ring.h.

References maxR2_m.

◆ getRingMinR()

double Ring::getRingMinR ( ) const

inline

Get the ring minimum

Definition at line 306 of file Ring.h.

References minR2_m.

◆ getRotationAboutZ()

double ElementBase::getRotationAboutZ ( ) const

inlineinherited

Definition at line 609 of file ElementBase.h.

References ElementBase::rotationZAxis_m.

Referenced by OpalBeamline::compileCompatibilityPlacement().

◆ getRotationStartToEnd()

Rotation3D Ring::getRotationStartToEnd ( Euclid3D delta ) const

private

Definition at line 206 of file Ring.cpp.

References Euclid3D::getRotation(), and Rotation3D::ZRotation().

Here is the call graph for this function:

◆ getSectionsAt()

std::vector< RingSection * > Ring::getSectionsAt ( const Vector_t< double, 3 > & pos )

Get the list of sections at position pos

Definition at line 202 of file Ring.cpp.

References section_list_m.

Referenced by apply().

◆ getSymmetry()

double Ring::getSymmetry ( ) const

inline

Get the rotational symmetry of the ring (number of cells)

Definition at line 291 of file Ring.h.

References symmetry_m.

◆ getTotalTransform()

Euclid3D ElementBase::getTotalTransform ( ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 495 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getTotalTransform().

Referenced by BeamlineGeometry::getTotalTransform().

Here is the call graph for this function:

◆ getTransform() [1/2]

Euclid3D ElementBase::getTransform	(	double	fromS,
		double	toS
	)		const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 491 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getTransform().

Referenced by BendBase::getDesignPath(), BeamlineGeometry::getTransform(), TBeamline< T >::getTransform(), and BeamlineGeometry::getTransform().

Here is the call graph for this function:

◆ getTransform() [2/2]

Euclid3D ElementBase::getTransform ( double s ) const

inlinevirtualinherited

Get transform.

Reimplemented in TBeamline< T >.

Definition at line 497 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::getTransform().

Here is the call graph for this function:

◆ getType()

ElementType Component::getType ( ) const

virtualinherited

Get element type std::string.

Implements ElementBase.

Reimplemented in Corrector, ConstantEFieldCavity, Drift, Laser, Marker, Monitor, Multipole, Probe, RBend, RFCavity, SBend, Solenoid, and TravelingWave.

Definition at line 49 of file Component.cpp.

References ANY.

Referenced by ParallelTracker::visitComponent().

◆ getTypeString() [1/2]

std::string ElementBase::getTypeString ( ) const

inlineinherited

Definition at line 611 of file ElementBase.h.

References ElementBase::getType(), and ElementBase::getTypeString().

Referenced by ElementBase::getTypeString().

Here is the call graph for this function:

◆ getTypeString() [2/2]

std::string ElementBase::getTypeString ( ElementType type )

staticinherited

Definition at line 192 of file ElementBase.cpp.

References ElementBase::elementTypeToString_s.

◆ getWake()

WakeFunction * ElementBase::getWake ( ) const

inlinevirtualinherited

return the attached wake object if there is any

Definition at line 509 of file ElementBase.h.

References ElementBase::wake_m.

◆ goOffline()

void Component::goOffline ( )

virtualinherited

Reimplemented in PluginElement, Monitor, RFCavity, Solenoid, and TravelingWave.

Definition at line 45 of file Component.cpp.

References Component::online_m.

◆ goOnline()

void Component::goOnline ( const double & kineticEnergy )

virtualinherited

Reimplemented in Corrector, Monitor, RFCavity, Solenoid, and TravelingWave.

Definition at line 43 of file Component.cpp.

References Component::online_m.

Referenced by PluginElement::initialise().

◆ hasAttribute()

bool ElementBase::hasAttribute ( const std::string & aKey ) const

virtualinherited

Test for existence of an attribute.

Definition at line 159 of file ElementBase.cpp.

References ElementBase::getConstChannel().

Here is the call graph for this function:

◆ hasBoundaryGeometry()

bool ElementBase::hasBoundaryGeometry ( ) const

inlinevirtualinherited

Definition at line 515 of file ElementBase.h.

References ElementBase::bgeometry_m.

◆ hasParticleMatterInteraction()

bool ElementBase::hasParticleMatterInteraction ( ) const

inlinevirtualinherited

Definition at line 521 of file ElementBase.h.

References ElementBase::parmatint_m.

◆ hasWake()

bool ElementBase::hasWake ( ) const

inlinevirtualinherited

Definition at line 511 of file ElementBase.h.

References ElementBase::wake_m.

◆ initialise() [1/2]

void Ring::initialise ( PartBunch_t * bunch )

virtual

Initialise the Ring - set the bunch and allocate a new LossDataSink

Parameters

bunch the particle bunch. Ring borrows this pointer (caller owns memory)

Definition at line 181 of file Ring.cpp.

References ElementBase::getName(), Component::online_m, setLossDataSink(), and setRefPartBunch().

Here is the call graph for this function:

◆ initialise() [2/2]

void Ring::initialise	(	PartBunch_t *	bunch,
		double &	startField,
		double &	endField
	)

overridevirtual

Initialise the Ring

Parameters

bunch	the particle bunch. Ring borrows this pointer (caller owns memory)
startField	- not used
endField	- not used
scaleFactor	- not used

Implements Component.

Definition at line 187 of file Ring.cpp.

References initialise().

Referenced by initialise().

Here is the call graph for this function:

◆ isElementPositionSet()

bool ElementBase::isElementPositionSet ( ) const

inlineinherited

Definition at line 626 of file ElementBase.h.

References ElementBase::elemedgeSet_m.

◆ isInside()

bool ElementBase::isInside ( const Vector_t< double, 3 > & r ) const

inlinevirtualinherited

Reimplemented in BendBase, Monitor, Multipole, RFCavity, Solenoid, and TravelingWave.

Definition at line 586 of file ElementBase.h.

References ElementBase::getElementLength(), and ElementBase::isInsideTransverse().

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ isInsideTransverse()

bool ElementBase::isInsideTransverse ( const Vector_t< double, 3 > & r ) const

protectedinherited

Definition at line 233 of file ElementBase.cpp.

References ElementBase::aperture_m, CONIC_ELLIPTICAL, CONIC_RECTANGULAR, ELLIPTICAL, ElementBase::getEdgeToBegin(), ElementBase::getElementLength(), RECTANGULAR, and CoordinateSystemTrafo::transformTo().

Referenced by BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), Component::apply(), Corrector::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Multipole::apply(), Component::applyToReferenceParticle(), BendBase::applyToReferenceParticle(), ConstantEFieldCavity::applyToReferenceParticle(), Multipole::applyToReferenceParticle(), ElementBase::isInside(), BendBase::isInside(), Monitor::isInside(), Multipole::isInside(), RFCavity::isInside(), Solenoid::isInside(), and TravelingWave::isInside().

Here is the call graph for this function:

◆ isPositioned()

bool ElementBase::isPositioned ( ) const

inlineinherited

Definition at line 599 of file ElementBase.h.

References ElementBase::positionIsFixed.

Referenced by OpalRBend::update(), and OpalSBend::update().

◆ isSharable()

bool ElementBase::isSharable ( ) const

inlineinherited

Test if the element can be shared.

Definition at line 507 of file ElementBase.h.

References ElementBase::shareFlag.

Referenced by ElementBase::copyStructure(), and Sequence::updateList().

◆ lockRing()

void Ring::lockRing ( )

Lock the ring

Lock the ring; apply closure checks and symmetry properties as required. Impose rule that start must be before end and switch objects around if this is not the case. Sort by startPosition azimuthal angle.

Sets isLocked_m to true. New elements can no longer be added (as it may break the symmetry/bound checking)

Definition at line 309 of file Ring.cpp.

References appendElement(), buildRingSections(), checkAndClose(), isClosed_m, isLocked_m, section_list_m, and symmetry_m.

Here is the call graph for this function:

◆ makeSharable()

void ElementBase::makeSharable ( )

virtualinherited

Set sharable flag.

Reimplemented in TBeamline< T >.

Definition at line 202 of file ElementBase.cpp.

References ElementBase::shareFlag.

Referenced by OpalMarker::OpalMarker().

◆ Online()

bool Component::Online ( )

virtualinherited

Definition at line 47 of file Component.cpp.

References Component::online_m.

◆ operator=()

Ring & Ring::operator= ( const Ring & ring )

private

Disabled

◆ releasePosition()

void ElementBase::releasePosition ( )

inlineinherited

Definition at line 595 of file ElementBase.h.

References ElementBase::positionIsFixed.

Referenced by OpalRBend::update(), and OpalSBend::update().

◆ removeAttribute()

void ElementBase::removeAttribute ( const std::string & aKey )

virtualinherited

Remove an existing attribute.

Definition at line 170 of file ElementBase.cpp.

References AttributeSet::removeAttribute(), and ElementBase::userAttribs.

Here is the call graph for this function:

◆ resetAzimuths()

void Ring::resetAzimuths ( )

private

Definition at line 338 of file Ring.cpp.

References section_list_m.

◆ rotateToCyclCoordinates()

void Ring::rotateToCyclCoordinates ( Euclid3D & euclid3d ) const

private

Definition at line 227 of file Ring.cpp.

References Rotation3D::getAxis(), Euclid3D::getRotation(), and Euclid3D::getVector().

Referenced by appendElement().

Here is the call graph for this function:

◆ sectionCompare()

bool Ring::sectionCompare	(	RingSection const *const	sec1,
		RingSection const *const	sec2
	)

staticprivate

Definition at line 388 of file Ring.cpp.

◆ setActionRange()

void ElementBase::setActionRange ( const std::queue< std::pair< double, double > > & range )

inlineinherited

Definition at line 601 of file ElementBase.h.

References ElementBase::actionRange_m, and ElementBase::elementEdge_m.

◆ setAperture()

void ElementBase::setAperture	(	const ApertureType &	type,
		const std::vector< double > &	args
	)

inlineinherited

Definition at line 577 of file ElementBase.h.

References ElementBase::aperture_m.

Referenced by Component::Component(), TEST_F(), TEST_F(), TEST_F(), OpalElement::update(), OpalRBend::update(), and OpalSBend::update().

◆ setAttribute()

void ElementBase::setAttribute	(	const std::string &	aKey,
		double	val
	)

virtualinherited

Set value of an attribute.

Definition at line 172 of file ElementBase.cpp.

References ElementBase::getChannel(), and Channel::isSettable().

Referenced by ElementBase::update(), and OpalElement::updateUnknown().

Here is the call graph for this function:

◆ setBeamPhiInit()

void Ring::setBeamPhiInit ( double phiInit )

inline

Set the initial beam azimuthal angle

Definition at line 243 of file Ring.h.

References beamPhiInit_m.

Referenced by OpalRingDefinition::update().

◆ setBeamPRInit()

void Ring::setBeamPRInit ( double pRInit )

inline

Set the initial beam radial momentum

Definition at line 249 of file Ring.h.

References beamPRInit_m.

Referenced by OpalRingDefinition::update().

◆ setBeamRInit()

void Ring::setBeamRInit ( double rInit )

inline

Set the initial beam radius

Definition at line 237 of file Ring.h.

References beamRInit_m.

Referenced by OpalRingDefinition::update().

◆ setBoundaryGeometry()

void ElementBase::setBoundaryGeometry ( BoundaryGeometry * geo )

virtualinherited

attach a boundary geometry field to the element

Definition at line 216 of file ElementBase.cpp.

References ElementBase::bgeometry_m.

◆ setCSTrafoGlobal2Local()

void ElementBase::setCSTrafoGlobal2Local ( const CoordinateSystemTrafo & ori )

inlineinherited

Definition at line 523 of file ElementBase.h.

References ElementBase::csTrafoGlobal2Local_m, and ElementBase::positionIsFixed.

Referenced by ElementBase::setPlacementPose(), TEST_F(), OpalElement::update(), OpalRBend::update(), and OpalSBend::update().

◆ setCurrentSCoordinate()

void ElementBase::setCurrentSCoordinate ( double s )

inherited

Definition at line 224 of file ElementBase.cpp.

References ElementBase::actionRange_m, and ElementBase::elementEdge_m.

◆ setDesignEnergy()

void Component::setDesignEnergy	(	const double &	energy,
		bool	changeable = `true`
	)

inlinevirtualinherited

Reimplemented in Corrector, RFCavity, and BendBase.

Definition at line 252 of file Component.h.

◆ setElementLength()

void ElementBase::setElementLength ( double length )

inlinevirtualinherited

Set design length.

Reimplemented in MultipoleT, and ConstantEFieldCavityRep.

Definition at line 483 of file ElementBase.h.

References ElementBase::getGeometry(), and BGeometryBase::setElementLength().

Referenced by MultipoleT::setElementLength(), SequenceMember::setLength(), BendBase::setLength(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), OpalCavity::update(), OpalMonitor::update(), OpalMultipole::update(), OpalProbe::update(), OpalQuadrupole::update(), OpalSolenoid::update(), and OpalTravelingWave::update().

Here is the call graph for this function:

◆ setElementPosition()

void ElementBase::setElementPosition ( double elemedge )

inlineinherited

Access to ELEMEDGE attribute.

Definition at line 613 of file ElementBase.h.

References ElementBase::elemedgeSet_m, and ElementBase::elementPosition_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and OpalElement::update().

◆ setExitFaceSlope()

void Component::setExitFaceSlope ( const double & m )

inlineinherited

Definition at line 250 of file Component.h.

References Component::exit_face_slope_m.

◆ setFlagDeleteOnTransverseExit()

void ElementBase::setFlagDeleteOnTransverseExit ( bool flag = true )

inlineinherited

Definition at line 630 of file ElementBase.h.

References ElementBase::deleteOnTransverseExit_m.

Referenced by OpalElement::update().

◆ setHarmonicNumber()

void Ring::setHarmonicNumber ( double cyclHarm )

inline

Set the harmonic number for RF (number of bunches in the ring)

Definition at line 224 of file Ring.h.

References cyclHarm_m.

Referenced by OpalRingDefinition::update().

◆ setIsClosed()

void Ring::setIsClosed ( bool isClosed )

inline

Set flag for closure checking

Definition at line 294 of file Ring.h.

References isClosed_m.

Referenced by OpalRingDefinition::update().

◆ setLatticePhiInit()

void Ring::setLatticePhiInit ( double phiInit )

inline

Set the initial element's azimuthal angle

Definition at line 261 of file Ring.h.

References latticePhiInit_m.

Referenced by OpalRingDefinition::update().

◆ setLatticeRInit()

void Ring::setLatticeRInit ( double rInit )

inline

Set the initial element's radius

Definition at line 255 of file Ring.h.

References latticeRInit_m.

Referenced by OpalRingDefinition::update().

◆ setLatticeThetaInit()

void Ring::setLatticeThetaInit ( double thetaInit )

inline

Set the first element's horizontal angle

Set the angle in the ring plane with respect to the tangent vector

Definition at line 276 of file Ring.h.

References latticeThetaInit_m.

Referenced by OpalRingDefinition::update().

◆ setLossDataSink()

void Ring::setLossDataSink ( LossDataSink * sink )

Set LossDataSink to sink.

Parameters

sink	The LossDataSink. Ring takes ownership of memory allocated to sink

Definition at line 172 of file Ring.cpp.

References lossDS_m.

Referenced by finalise(), and initialise().

◆ setMisalignment()

void ElementBase::setMisalignment ( const CoordinateSystemTrafo & cst )

inlineinherited

Definition at line 591 of file ElementBase.h.

References ElementBase::misalignment_m.

Referenced by TEST_F(), and OpalElement::update().

◆ setName()

void ElementBase::setName ( const std::string & name )

virtualinherited

Set element name.

Definition at line 134 of file ElementBase.cpp.

References ElementBase::elementID.

Referenced by Sequence::insertDrifts(), and VariableRFCavity::operator=().

◆ setOutputFN()

void ElementBase::setOutputFN ( std::string fn )

inherited

Set output filename.

Definition at line 136 of file ElementBase.cpp.

References ElementBase::outputfn_m.

Referenced by OpalMonitor::update(), and OpalProbe::update().

◆ setParticleMatterInteraction()

void ElementBase::setParticleMatterInteraction ( ParticleMatterInteractionHandler * spys )

virtualinherited

Definition at line 220 of file ElementBase.cpp.

References ElementBase::parmatint_m.

◆ setPlacementPose()

void ElementBase::setPlacementPose ( const PlacementPose & pose )

inlineinherited

Set the nominal rigid placement transform of the element.

This bridge setter preserves the existing storage model by delegating to setCSTrafoGlobal2Local().

Definition at line 555 of file ElementBase.h.

References PlacementPose::getParentToNominal(), and ElementBase::setCSTrafoGlobal2Local().

Here is the call graph for this function:

◆ setRefPartBunch()

void Ring::setRefPartBunch ( PartBunch_t * bunch )

Set RefPartBunch_t to bunch.

Parameters

sink	The Bunch. Ring borrows memory allocated to bunch.

Note for compliance with style guide and compatibility with parent two pointer to RefPartBunch_t are stored; this keeps them aligned

Definition at line 197 of file Ring.cpp.

References Component::RefPartBunch_m, and refPartBunch_m.

Referenced by initialise(), Ring(), and Ring().

◆ setRFFreq()

void Ring::setRFFreq ( double rfFreq )

inline

Set the nominal RF frequency

Definition at line 231 of file Ring.h.

References rfFreq_m.

Referenced by OpalRingDefinition::update().

◆ setRingAperture()

void Ring::setRingAperture	(	double	minR,
		double	maxR
	)

Set the ring aperture limits

minR; the minimum radius allowed during tracking. Throws if minR < 0
maxR; the maximum radius allowed during tracking. Throws if maxR < 0 Sets willDoRingAperture_m to true.

Definition at line 392 of file Ring.cpp.

References maxR2_m, minR2_m, and willDoAperture_m.

Referenced by OpalRingDefinition::update().

◆ setRotationAboutZ()

void ElementBase::setRotationAboutZ ( double rotation )

inlineinherited

Set rotation about z axis in bend frame.

Definition at line 607 of file ElementBase.h.

References ElementBase::rotationZAxis_m.

Referenced by OpalElement::update().

◆ setScale()

void Ring::setScale ( double scale )

inline

Set the scaling factor for the fields

Definition at line 288 of file Ring.h.

References scale_m.

Referenced by OpalRingDefinition::update().

◆ setSymmetry()

void Ring::setSymmetry ( double symmetry )

inline

Set the rotational symmetry of the ring (number of cells)

Definition at line 285 of file Ring.h.

References symmetry_m.

Referenced by OpalRingDefinition::update().

◆ setWake()

void ElementBase::setWake ( WakeFunction * wf )

virtualinherited

attach a wake field to the element

Definition at line 212 of file ElementBase.cpp.

References ElementBase::wake_m.

◆ trackBunch()

void Component::trackBunch	(	PartBunch_t &	bunch,
		const PartData &	,
		bool	revBeam,
		bool	revTrack
	)		const

virtualinherited

Track a borrowed particle bunch through a non-standard component.

The default implementation throws a LogicalError.

Parameters

bunch Particle bunch to track. The component does not take ownership.

Definition at line 35 of file Component.cpp.

References ElementBase::getName().

Referenced by Tracker::visitComponent().

Here is the call graph for this function:

◆ trackMap()

void Component::trackMap	(	FVps< double, 6 > &	map,
		const PartData &	,
		bool	revBeam,
		bool	revTrack
	)		const

virtualinherited

Track a map.

Definition at line 39 of file Component.cpp.

References ElementBase::getName().

Here is the call graph for this function:

◆ update()

bool ElementBase::update ( const AttributeSet & set )

inherited

Update element.

Definition at line 204 of file ElementBase.cpp.

References AttributeSet::begin(), AttributeSet::end(), and ElementBase::setAttribute().

Referenced by Monitor::driftToCorrectPositionAndSave().

Here is the call graph for this function:

Member Data Documentation

◆ actionRange_m

std::queue<std::pair<double, double> > ElementBase::actionRange_m

privateinherited

Definition at line 469 of file ElementBase.h.

Referenced by ElementBase::setActionRange(), and ElementBase::setCurrentSCoordinate().

◆ angleTolerance_m

const double Ring::angleTolerance_m = 1e-2

staticprivate

Definition at line 413 of file Ring.h.

Referenced by checkAndClose(), and checkMidplane().

◆ aperture_m

std::pair<ApertureType, std::vector<double> > ElementBase::aperture_m

protectedinherited

Definition at line 440 of file ElementBase.h.

Referenced by ElementBase::getAperture(), ElementBase::getBoundingBoxInLabCoords(), ElementBase::isInsideTransverse(), and ElementBase::setAperture().

◆ beamPhiInit_m

double Ring::beamPhiInit_m

private

Definition at line 375 of file Ring.h.

Referenced by getBeamPhiInit(), and setBeamPhiInit().

◆ beamPRInit_m

double Ring::beamPRInit_m

private

Definition at line 374 of file Ring.h.

Referenced by getBeamPRInit(), and setBeamPRInit().

◆ beamRInit_m

double Ring::beamRInit_m

private

Definition at line 373 of file Ring.h.

Referenced by getBeamRInit(), and setBeamRInit().

◆ bgeometry_m

BoundaryGeometry* ElementBase::bgeometry_m

privateinherited

Definition at line 460 of file ElementBase.h.

Referenced by ElementBase::getBoundaryGeometry(), ElementBase::hasBoundaryGeometry(), and ElementBase::setBoundaryGeometry().

◆ csTrafoGlobal2Local_m

CoordinateSystemTrafo ElementBase::csTrafoGlobal2Local_m

protectedinherited

Definition at line 437 of file ElementBase.h.

Referenced by Monitor::applyToReferenceParticle(), ElementBase::getBoundingBoxInLabCoords(), ElementBase::getCSTrafoGlobal2Local(), and ElementBase::setCSTrafoGlobal2Local().

◆ cyclHarm_m

double Ring::cyclHarm_m

private

Definition at line 401 of file Ring.h.

Referenced by getHarmonicNumber(), and setHarmonicNumber().

◆ defaultAperture_m

const std::vector< double > Component::defaultAperture_m = std::vector<double>({1e6, 1e6, 1.0})

staticprotectedinherited

Definition at line 221 of file Component.h.

Referenced by Component::Component().

◆ deleteOnTransverseExit_m

bool ElementBase::deleteOnTransverseExit_m = true

privateinherited

Definition at line 473 of file ElementBase.h.

Referenced by ElementBase::getFlagDeleteOnTransverseExit(), and ElementBase::setFlagDeleteOnTransverseExit().

◆ elemedgeSet_m

bool ElementBase::elemedgeSet_m

privateinherited

Definition at line 467 of file ElementBase.h.

Referenced by ElementBase::getElementPosition(), ElementBase::isElementPositionSet(), and ElementBase::setElementPosition().

◆ elementEdge_m

double ElementBase::elementEdge_m

protectedinherited

Definition at line 442 of file ElementBase.h.

Referenced by ElementBase::setActionRange(), and ElementBase::setCurrentSCoordinate().

◆ elementID

std::string ElementBase::elementID

privateinherited

Definition at line 451 of file ElementBase.h.

Referenced by ElementBase::getName(), and ElementBase::setName().

◆ elementPosition_m

double ElementBase::elementPosition_m

privateinherited

ELEMEDGE attribute.

Definition at line 466 of file ElementBase.h.

Referenced by ElementBase::getElementPosition(), and ElementBase::setElementPosition().

◆ elementTypeToString_s

const std::map< ElementType, std::string > ElementBase::elementTypeToString_s

staticprivateinherited

Initial value:

= {
        {ElementType::ANY, "Any"},
        {ElementType::BEAMLINE, "Beamline"},
        {ElementType::DRIFT, "Drift"},
        {ElementType::LASER, "Laser"},
        {ElementType::MARKER, "Marker"},
        {ElementType::MONITOR, "Monitor"},
        {ElementType::MULTIPOLE, "Multipole"},
        {ElementType::RFCAVITY, "RFCavity"},
        {ElementType::TRAVELINGWAVE, "TravelingWave"},
        {ElementType::SBEND, "SBEND"},
        {ElementType::RBEND, "RBEND"},
        {ElementType::RBEND3D, "RBEND3D"},
        {ElementType::RING, "Ring"},
        {ElementType::SOURCE, "SOURCE"},
        {ElementType::SOLENOID, "SOLENOID"},
        {ElementType::PROBE, "Probe"},
        {ElementType::VACUUM, "Vacuum"},
        {ElementType::CONSTANTEFIELDCAVITY, "ConstantEFieldCavity"}}

Definition at line 73 of file ElementBase.h.

Referenced by ElementBase::getTypeString().

◆ exit_face_slope_m

double Component::exit_face_slope_m

protectedinherited

Definition at line 222 of file Component.h.

Referenced by Component::setExitFaceSlope().

◆ isClosed_m

bool Ring::isClosed_m

private

Definition at line 393 of file Ring.h.

Referenced by getIsClosed(), lockRing(), and setIsClosed().

◆ isLocked_m

bool Ring::isLocked_m

private

Definition at line 389 of file Ring.h.

Referenced by appendElement(), and lockRing().

◆ latticePhiInit_m

double Ring::latticePhiInit_m

private

Definition at line 379 of file Ring.h.

Referenced by getLatticePhiInit(), getNextNormal(), getNextPosition(), and setLatticePhiInit().

◆ latticeRInit_m

double Ring::latticeRInit_m

private

Definition at line 378 of file Ring.h.

Referenced by getLatticeRInit(), getNextPosition(), and setLatticeRInit().

◆ latticeThetaInit_m

double Ring::latticeThetaInit_m

private

Definition at line 380 of file Ring.h.

Referenced by getLatticeThetaInit(), getNextNormal(), and setLatticeThetaInit().

◆ lengthTolerance_m

const double Ring::lengthTolerance_m = 1e-2

staticprivate

Definition at line 412 of file Ring.h.

Referenced by checkAndClose(), and checkMidplane().

◆ lossDS_m

LossDataSink* Ring::lossDS_m

private

Definition at line 370 of file Ring.h.

Referenced by finalise(), Ring(), and setLossDataSink().

◆ maxR2_m

double Ring::maxR2_m

private

Definition at line 386 of file Ring.h.

Referenced by apply(), getRingMaxR(), and setRingAperture().

◆ minR2_m

double Ring::minR2_m

private

Definition at line 385 of file Ring.h.

Referenced by getRingMinR(), and setRingAperture().

◆ misalignment_m

CoordinateSystemTrafo ElementBase::misalignment_m

protectedinherited

Definition at line 438 of file ElementBase.h.

Referenced by ElementBase::getMisalignment(), and ElementBase::setMisalignment().

◆ online_m

bool Component::online_m

protectedinherited

◆ outputfn_m

std::string ElementBase::outputfn_m

privateinherited

The name of the outputfile

Definition at line 471 of file ElementBase.h.

Referenced by ElementBase::getOutputFN(), and ElementBase::setOutputFN().

◆ parmatint_m

ParticleMatterInteractionHandler* ElementBase::parmatint_m

privateinherited

Definition at line 462 of file ElementBase.h.

Referenced by ElementBase::getParticleMatterInteraction(), ElementBase::hasParticleMatterInteraction(), and ElementBase::setParticleMatterInteraction().

◆ phiStep_m

double Ring::phiStep_m

private

Definition at line 407 of file Ring.h.

Referenced by buildRingSections().

◆ planarArcGeometry_m

PlanarArcGeometry Ring::planarArcGeometry_m

private

Definition at line 359 of file Ring.h.

Referenced by getGeometry(), and getGeometry().

◆ positionIsFixed

bool ElementBase::positionIsFixed

privateinherited

Definition at line 464 of file ElementBase.h.

Referenced by ElementBase::fixPosition(), ElementBase::isPositioned(), ElementBase::releasePosition(), and ElementBase::setCSTrafoGlobal2Local().

◆ RefPartBunch_m

PartBunch_t* Component::RefPartBunch_m

protectedinherited

Definition at line 225 of file Component.h.

Referenced by Corrector::apply(), VerticalFFAMagnet::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Monitor::apply(), Multipole::apply(), MultipoleT::apply(), RFCavity::apply(), ScalingFFAMagnet::apply(), Solenoid::apply(), TravelingWave::apply(), VariableRFCavity::apply(), apply(), Monitor::apply(), MultipoleT::apply(), RFCavity::apply(), TravelingWave::apply(), VariableRFCavity::apply(), Corrector::apply(), Monitor::applyToReferenceParticle(), BendBase::calcDesignRadius(), BendBase::calcFieldAmplitude(), BendBase::calcGamma(), Monitor::driftToCorrectPositionAndSave(), VerticalFFAMagnet::finalise(), MultipoleT::finalise(), ScalingFFAMagnet::finalise(), VariableRFCavity::finalise(), Corrector::goOnline(), PluginElement::initialise(), Corrector::initialise(), VerticalFFAMagnet::initialise(), BendBase::initialise(), ConstantEFieldCavity::initialise(), Drift::initialise(), Laser::initialise(), Marker::initialise(), Monitor::initialise(), Multipole::initialise(), MultipoleT::initialise(), RFCavity::initialise(), ScalingFFAMagnet::initialise(), Solenoid::initialise(), TravelingWave::initialise(), VariableRFCavity::initialise(), RFCavity::initialise(), VariableRFCavity::initNull(), Multipole::isFocusing(), MultipoleT::MultipoleT(), ScalingFFAMagnet::ScalingFFAMagnet(), Corrector::setDesignEnergy(), setRefPartBunch(), RFCavity::trackOnAxisParticle(), and VerticalFFAMagnet::VerticalFFAMagnet().

◆ refPartBunch_m

PartBunch_t* Ring::refPartBunch_m

private

Definition at line 365 of file Ring.h.

Referenced by apply(), Ring(), and setRefPartBunch().

◆ rfFreq_m

double Ring::rfFreq_m

private

Definition at line 404 of file Ring.h.

Referenced by getRFFreq(), and setRFFreq().

◆ ringSections_m

std::vector<RingSectionList> Ring::ringSections_m

private

Definition at line 408 of file Ring.h.

Referenced by buildRingSections().

◆ rotationZAxis_m

double ElementBase::rotationZAxis_m

protectedinherited

Definition at line 444 of file ElementBase.h.

Referenced by ElementBase::getRotationAboutZ(), and ElementBase::setRotationAboutZ().

◆ scale_m

double Ring::scale_m = 1.

private

Definition at line 398 of file Ring.h.

Referenced by apply(), and setScale().

◆ section_list_m

RingSectionList Ring::section_list_m

private

Definition at line 409 of file Ring.h.

Referenced by appendElement(), buildRingSections(), checkAndClose(), getLastSectionPlaced(), getNextNormal(), getNextPosition(), getSectionsAt(), lockRing(), resetAzimuths(), Ring(), and ~Ring().

◆ shareFlag

bool ElementBase::shareFlag

mutableprotectedinherited

Definition at line 435 of file ElementBase.h.

Referenced by Beamline::Beamline(), Beamline::Beamline(), Beamline::Beamline(), ElementBase::isSharable(), and ElementBase::makeSharable().

◆ symmetry_m

int Ring::symmetry_m

private

Definition at line 396 of file Ring.h.

Referenced by getSymmetry(), lockRing(), and setSymmetry().

◆ userAttribs

AttributeSet ElementBase::userAttribs

privateinherited

Definition at line 456 of file ElementBase.h.

Referenced by ElementBase::getChannel(), and ElementBase::removeAttribute().

◆ wake_m

WakeFunction* ElementBase::wake_m

privateinherited

Definition at line 458 of file ElementBase.h.

Referenced by ElementBase::getWake(), ElementBase::hasWake(), and ElementBase::setWake().

◆ willDoAperture_m

bool Ring::willDoAperture_m = false

private

Definition at line 384 of file Ring.h.

Referenced by apply(), and setRingAperture().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Ring() [1/3]

◆ Ring() [2/3]

◆ ~Ring()

◆ Ring() [3/3]

Member Function Documentation

◆ accept()

◆ appendElement()

◆ apply() [1/3]

◆ apply() [2/3]

◆ apply() [3/3]

◆ applyToReferenceParticle()

◆ bends()

◆ Bfield() [1/2]

◆ Bfield() [2/2]

◆ buildRingSections()

◆ checkAndClose()

◆ checkMidplane()

◆ clone()

◆ convert() [1/2]

◆ convert() [2/2]

◆ copyStructure()

◆ EBfield() [1/2]

◆ EBfield() [2/2]

◆ Efield() [1/2]

◆ Efield() [2/2]

◆ finalise()

◆ fixPosition()

◆ getAperture()

◆ getArcLength()

◆ getAttribute()

◆ getBeamPhiInit()

◆ getBeamPRInit()

◆ getBeamRInit()

◆ getBodyPort()

◆ getBoundaryGeometry()

◆ getBoundingBoxInLabCoords()

◆ getChannel()

◆ getConstChannel()

◆ getCSTrafoGlobal2Local()

◆ getDesign()

◆ getDesignEnergy()

◆ getEdgeToBegin()

◆ getEdgeToEnd()

◆ getElementDimensions()

◆ getElementLength()

◆ getElementPosition()

◆ getEntrance()

◆ getEntranceFrame()

◆ getEntrancePatch()

◆ getEntryPort()

◆ getExit()

◆ getExitFrame()

◆ getExitPatch()

◆ getExitPort()

◆ getField() [1/2]

◆ getField() [2/2]

◆ getFieldExtend()

◆ getFlagDeleteOnTransverseExit()

◆ getGeometry() [1/2]

◆ getGeometry() [2/2]

◆ getHarmonicNumber()

◆ getIsClosed()

◆ getLastSectionPlaced()

◆ getLatticePhiInit()

◆ getLatticeRInit()

◆ getLatticeThetaInit()

◆ getLossDataSink()

◆ getMisalignment() [1/2]

◆ getMisalignment() [2/2]
