Implements the sampling method for the flat-top distribution. x and y coordinates are uniformly distributed inside a circle and number of particles entering domain in [t, t+dt] follows flattop profile. More...

#include <FlatTop.h>

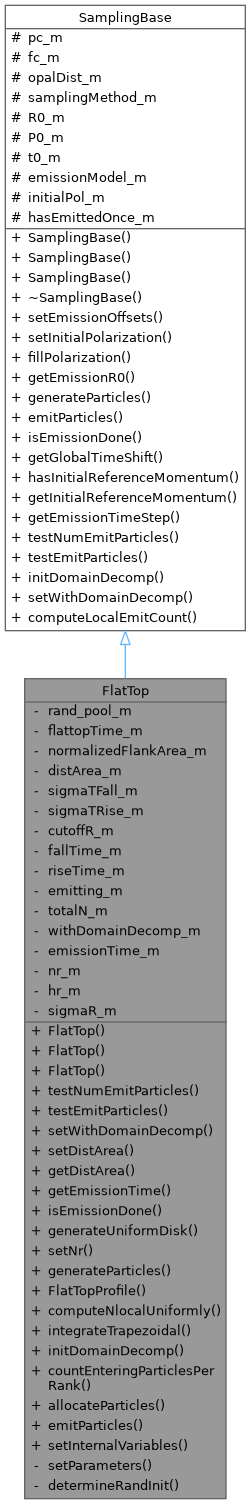

Inheritance diagram for FlatTop:

Collaboration diagram for FlatTop:

Public Member Functions
	FlatTop (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc, Distribution_t *opalDist)
	Constructor for FlatTop.

	FlatTop (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc, bool emitting, double sigmaTFall, double sigmaTRise, Vector_t< double, 3 > cutoff, double tPulseLengthFWHM, Vector_t< double, 3 > sigmaR)
	Constructor for FlatTop.

	FlatTop (std::shared_ptr< ParticleContainer_t > pc, bool emitting, double sigmaTFall, double sigmaTRise, Vector_t< double, 3 > cutoff, double tPulseLengthFWHM, Vector_t< double, 3 > sigmaR)
	Constructor for FlatTop.

void	testNumEmitParticles (size_type nsteps, double dt) override
	Tests the number of emitted particles over a given number of steps.

void	testEmitParticles (size_type nsteps, double dt) override
	Tests particle emission over a given number of steps.

void	setWithDomainDecomp (bool withDomainDecomp) override
	Sets whether to use domain decomposition.

void	setDistArea (double distArea)
	Sets the total area of the distribution.

double	getDistArea ()
	Returns the total area of the distribution.

double	getEmissionTime ()
	Returns the total emission time.

bool	isEmissionDone (double t) const override
	Whether this sampler has finished all emission (no more particles will be created).

void	generateUniformDisk (size_type nlocal, size_t nNew, double dt)
	Generates particles (x,y) uniformly on a disk distribution.

void	setNr (Vector_t< double, 3 > nr)
	Sets the number of grid points per direction.

void	generateParticles (size_t &numberOfParticles, Vector_t< double, 3 > nr) override
	Generates particles with a given number and grid configuration.

double	FlatTopProfile (double t)
	Computes the flat-top profile value at a given time.

size_t	computeNlocalUniformly (size_t nglobal)
	Computes the local number of particles uniformly distributed among ranks.

double	integrateTrapezoidal (double x1, double x2, double y1, double y2)
	Integrates using the trapezoidal rule.

void	initDomainDecomp (double BoxIncr) override
	Initializes the domain decomposition.

size_type	countEnteringParticlesPerRank (double t0, double tf)
	Counts the number of particles entering per rank in a given time interval.

void	allocateParticles (size_t numberOfParticles)
	Allocates memory for a given number of particles.

void	emitParticles (double t, double dt) override
	Emits new particles within a given time interval.

void	setInternalVariables (bool emitting, double sigmaTFall, double sigmaTRise, Vector_t< double, 3 > cutoff, double tPulseLengthFWHM, Vector_t< double, 3 > sigmaR)

void	setEmissionOffsets (ippl::Vector< double, 3 > R0, ippl::Vector< double, 3 > P0, double t0, const std::string &emissionModel="NONE")

void	setInitialPolarization (const ippl::Vector< double, 3 > &pol)

void	fillPolarization (size_t startIdx, size_t count)

Vector_t< double, 3 >	getEmissionR0 () const

virtual double	getGlobalTimeShift () const
	Optional tracker time shift needed before the first emitted particles are born.

virtual bool	hasInitialReferenceMomentum () const
	Optional initial reference momentum in the source-local frame.

virtual Vector_t< double, 3 >	getInitialReferenceMomentum () const

virtual double	getEmissionTimeStep () const
	Optional OPAL-like tracker time step while this sampler is still emitting.

virtual void	testNumEmitParticles (size_t, double)

virtual void	testEmitParticles (size_t, double)

size_t	computeLocalEmitCount (size_t totalToSample) const
	Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Protected Attributes
std::shared_ptr< ParticleContainer_t >	pc_m

std::shared_ptr< FieldContainer_t >	fc_m

Distribution_t *	opalDist_m = nullptr

std::string	samplingMethod_m

Vector_t< double, 3 >	R0_m = 0.0
	Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Vector_t< double, 3 >	P0_m = 0.0

double	t0_m = 0.0

std::string	emissionModel_m = "NONE"

Vector_t< double, 3 >	initialPol_m = 0.0

bool	hasEmittedOnce_m = false
	For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Private Types
using	size_type = ippl::detail::size_type

Private Member Functions
void	setParameters (Distribution_t *opalDist)
	Sets distribution parameters.

Static Private Member Functions
static size_t	determineRandInit ()
	Determines the random seed initialization.

Private Attributes
GeneratorPool	rand_pool_m
	Random number generator pool.

double	flattopTime_m
	Time duration of when the time profile is flat.

double	normalizedFlankArea_m
	Normalized area of the distribution flanks.

double	distArea_m
	Total area of the flattop distribution.

double	sigmaTFall_m
	Standard deviation for fall time profile.

double	sigmaTRise_m
	Standard deviation for rise time profile.

Vector_t< double, 3 >	cutoffR_m
	Cutoff radius.

double	fallTime_m
	Time duration for the fall phase.

double	riseTime_m
	Time duration for the rise phase.

bool	emitting_m
	Flag for particle emission status.

size_type	totalN_m
	Total number of particles.

bool	withDomainDecomp_m
	Flag for domain decomposition.

double	emissionTime_m
	Total emission time.

Vector_t< double, 3 >	nr_m
	Number of grid points per direction.

Vector_t< double, 3 >	hr_m
	Grid spacing.

Vector_t< double, 3 >	sigmaR_m

Detailed Description

Implements the sampling method for the flat-top distribution. x and y coordinates are uniformly distributed inside a circle and number of particles entering domain in [t, t+dt] follows flattop profile.

The FlatTop distribution is f(t)/Z = exp[ -((t-riseTime_m)/sigma)^2/2 ] t < riseTime 1.0 riseTime < t < t<riseTime + flattopTime exp[ -((t-(fallTime_m + flattopTime_m))/sigmaTFall_m)^2/2 ] t>riseTime

flattopTime where Z is the normalizing factor.

Definition at line 33 of file FlatTop.h.

Member Typedef Documentation

◆ size_type

using FlatTop::size_type = ippl::detail::size_type

private

Definition at line 114 of file FlatTop.h.

Constructor & Destructor Documentation

◆ FlatTop() [1/3]

FlatTop::FlatTop	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc,
		Distribution_t *	opalDist
	)

Constructor for FlatTop.

Parameters

pc	Shared pointer to ParticleContainer.
fc	Shared pointer to FieldContainer.
opalDist	Borrowed Distribution.

Definition at line 10 of file FlatTop.cpp.

References setParameters().

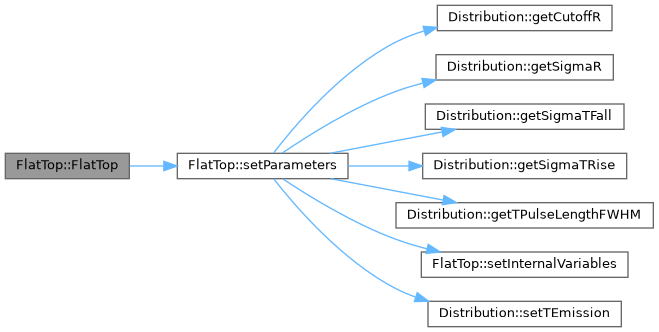

Here is the call graph for this function:

◆ FlatTop() [2/3]

FlatTop::FlatTop	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc,
		bool	emitting,
		double	sigmaTFall,
		double	sigmaTRise,
		Vector_t< double, 3 >	cutoff,
		double	tPulseLengthFWHM,
		Vector_t< double, 3 >	sigmaR
	)

Constructor for FlatTop.

Parameters

pc	Shared pointer to ParticleContainer.
fc	Shared pointer to FieldContainer.
emitting	Flag indicating whether the distribution is emitting.
sigmaTFall	Standard deviation of fall in flat-top profile.
sigmaTRise	Standard deviation of rise in flat-top profile.
cutoff	Cutoff multiplier for position distribution R.
tPulseLengthFWHM	Time length of the pulse in FWHM.
sigmaR	Standard deviation for position distribution.

Definition at line 17 of file FlatTop.cpp.

References setInternalVariables().

Here is the call graph for this function:

◆ FlatTop() [3/3]

FlatTop::FlatTop	(	std::shared_ptr< ParticleContainer_t >	pc,
		bool	emitting,
		double	sigmaTFall,
		double	sigmaTRise,
		Vector_t< double, 3 >	cutoff,
		double	tPulseLengthFWHM,
		Vector_t< double, 3 >	sigmaR
	)

Constructor for FlatTop.

Parameters

pc	Shared pointer to ParticleContainer.
emitting	Flag indicating whether the distribution is emitting.
sigmaTFall	Standard deviation of fall in flat-top profile.
sigmaTRise	Standard deviation of rise in flat-top profile.
cutoff	Cutoff multiplier for position distribution R.
tPulseLengthFWHM	Time span of the flat-top profile.
sigmaR	Standard deviation for position distribution R.

Definition at line 25 of file FlatTop.cpp.

References setInternalVariables().

Here is the call graph for this function:

Member Function Documentation

◆ allocateParticles()

void FlatTop::allocateParticles ( size_t numberOfParticles )

Allocates memory for a given number of particles.

Parameters

numberOfParticles Number of particles to allocate.

Definition at line 350 of file FlatTop.cpp.

References totalN_m.

Referenced by generateParticles(), and TEST_F().

◆ computeLocalEmitCount()

size_t SamplingBase::computeLocalEmitCount ( size_t totalToSample ) const

inherited

Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Parameters

totalToSample Global number of particles to emit this timestep.

Returns: Local number of particles this rank should create/emit.

Definition at line 6 of file SamplingBase.cpp.

References SamplingBase::pc_m.

Referenced by countEnteringParticlesPerRank(), FromFile::generateParticles(), Gaussian::generateParticles(), and MultiVariateGaussian::generateParticles().

◆ computeNlocalUniformly()

size_t FlatTop::computeNlocalUniformly ( size_t nglobal )

Computes the local number of particles uniformly distributed among ranks.

Parameters

nglobal Total global number of particles.

Returns: Number of local particles.

Definition at line 222 of file FlatTop.cpp.

Referenced by countEnteringParticlesPerRank().

◆ countEnteringParticlesPerRank()

FlatTop::size_type FlatTop::countEnteringParticlesPerRank	(	double	t0,
		double	tf
	)

Counts the number of particles entering per rank in a given time interval.

Parameters

t0	Start time.
tf	End time.

Returns: Number of entering particles per rank.

Definition at line 263 of file FlatTop.cpp.

References SamplingBase::computeLocalEmitCount(), computeNlocalUniformly(), distArea_m, FlatTopProfile(), integrateTrapezoidal(), SamplingBase::pc_m, and totalN_m.

Referenced by emitParticles(), TEST_F(), and testNumEmitParticles().

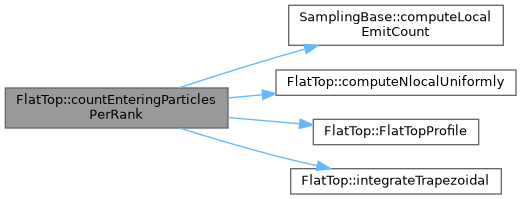

Here is the call graph for this function:

◆ determineRandInit()

size_t FlatTop::determineRandInit ( )

staticprivate

Determines the random seed initialization.

Returns: The seed value.

Definition at line 35 of file FlatTop.cpp.

References gmsg, and Options::seed.

◆ emitParticles()

void FlatTop::emitParticles	(	double	t,
		double	dt
	)

overridevirtual

Emits new particles within a given time interval.

Parameters

t	Start time.
dt	Time step.

Reimplemented from SamplingBase.

Definition at line 360 of file FlatTop.cpp.

References countEnteringParticlesPerRank(), SamplingBase::fillPolarization(), generateUniformDisk(), SamplingBase::pc_m, and SamplingBase::t0_m.

Referenced by testEmitParticles().

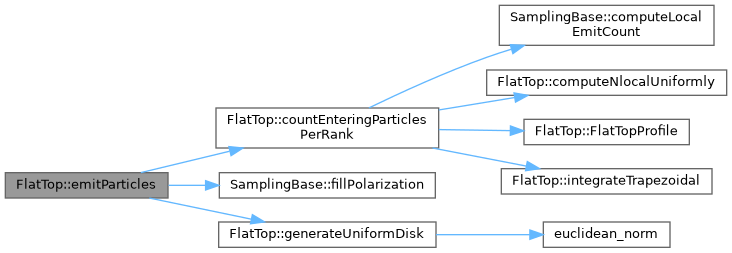

Here is the call graph for this function:

◆ fillPolarization()

void SamplingBase::fillPolarization	(	size_t	startIdx,
		size_t	count
	)

inlineinherited

Fill the Pol particle attribute with initialPol_m on the half-open range [startIdx, startIdx + count). No-op when the container does not store spin. Must be called after the particles have been created and before they are pushed downstream.

Definition at line 63 of file SamplingBase.hpp.

References SamplingBase::initialPol_m, and SamplingBase::pc_m.

Referenced by emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), and MultiVariateGaussian::generateParticles().

◆ FlatTopProfile()

double FlatTop::FlatTopProfile ( double t )

Computes the flat-top profile value at a given time.

Parameters

t	Time value.

Returns: Profile value at time t.

Definition at line 204 of file FlatTop.cpp.

References fallTime_m, flattopTime_m, riseTime_m, sigmaTFall_m, and sigmaTRise_m.

Referenced by countEnteringParticlesPerRank(), and TEST_F().

◆ generateParticles()

void FlatTop::generateParticles	(	size_t &	numberOfParticles,
		Vector_t< double, 3 >	nr
	)

overridevirtual

Generates particles with a given number and grid configuration.

Parameters

numberOfParticles	Number of particles to generate.
nr	Number of grid points in each dimension.

Reimplemented from SamplingBase.

Definition at line 183 of file FlatTop.cpp.

References allocateParticles(), nr, and setNr().

Here is the call graph for this function:

◆ generateUniformDisk()

void FlatTop::generateUniformDisk	(	size_type	nlocal,
		size_t	nNew,
		double	dt
	)

Generates particles (x,y) uniformly on a disk distribution.

Each new particle is assigned a fractional per-particle dt sampled uniformly in (0, dt), representing the fraction of the next integration step the particle will experience (as if born at a random time within the current emission interval).

Parameters

nlocal	Number of local particles.
nNew	Number of new particles to generate.
dt	Global timestep; used to sample fractional per-particle dt.

Definition at line 88 of file FlatTop.cpp.

References Physics::c, SamplingBase::emissionModel_m, euclidean_norm(), SamplingBase::P0_m, SamplingBase::pc_m, Physics::pi, SamplingBase::R0_m, rand_pool_m, and sigmaR_m.

Referenced by emitParticles(), TEST_F(), and testNumEmitParticles().

Here is the call graph for this function:

◆ getDistArea()

double FlatTop::getDistArea ( )

inline

Returns the total area of the distribution.

Definition at line 103 of file FlatTop.h.

References distArea_m.

Referenced by TEST_F().

◆ getEmissionR0()

Vector_t< double, 3 > SamplingBase::getEmissionR0 ( ) const

inlineinherited

Definition at line 78 of file SamplingBase.hpp.

References SamplingBase::R0_m.

◆ getEmissionTime()

double FlatTop::getEmissionTime ( )

inline

Returns the total emission time.

Definition at line 108 of file FlatTop.h.

References emissionTime_m.

◆ getEmissionTimeStep()

virtual double SamplingBase::getEmissionTimeStep ( ) const

inlinevirtualinherited

Optional OPAL-like tracker time step while this sampler is still emitting.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 102 of file SamplingBase.hpp.

◆ getGlobalTimeShift()

virtual double SamplingBase::getGlobalTimeShift ( ) const

inlinevirtualinherited

Optional tracker time shift needed before the first emitted particles are born.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 92 of file SamplingBase.hpp.

◆ getInitialReferenceMomentum()

virtual Vector_t< double, 3 > SamplingBase::getInitialReferenceMomentum ( ) const

inlinevirtualinherited

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 97 of file SamplingBase.hpp.

◆ hasInitialReferenceMomentum()

virtual bool SamplingBase::hasInitialReferenceMomentum ( ) const

inlinevirtualinherited

Optional initial reference momentum in the source-local frame.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 95 of file SamplingBase.hpp.

◆ initDomainDecomp()

void FlatTop::initDomainDecomp ( double BoxIncr )

overridevirtual

Initializes the domain decomposition.

Parameters

BoxIncr Box increment factor.

Reimplemented from SamplingBase.

Definition at line 242 of file FlatTop.cpp.

References Physics::c, emissionTime_m, SamplingBase::fc_m, hr_m, nr_m, SamplingBase::pc_m, and sigmaR_m.

◆ integrateTrapezoidal()

double FlatTop::integrateTrapezoidal	(	double	x1,
		double	x2,
		double	y1,
		double	y2
	)

Integrates using the trapezoidal rule.

Parameters

x1	begining of interval [x1,x2].
x2	end of interval [x1,x2].
y1	value of f(x1).
y2	value of f(x2).

Returns: Integrated result.

Definition at line 238 of file FlatTop.cpp.

Referenced by countEnteringParticlesPerRank().

◆ isEmissionDone()

bool FlatTop::isEmissionDone ( double t ) const

inlineoverridevirtual

Whether this sampler has finished all emission (no more particles will be created).

Parameters

t	Current simulation time (s).

Reimplemented from SamplingBase.

Definition at line 111 of file FlatTop.h.

References emissionTime_m, and SamplingBase::t0_m.

◆ setDistArea()

void FlatTop::setDistArea ( double distArea )

inline

Sets the total area of the distribution.

Definition at line 97 of file FlatTop.h.

References distArea_m.

◆ setEmissionOffsets()

void SamplingBase::setEmissionOffsets	(	ippl::Vector< double, 3 >	R0,
		ippl::Vector< double, 3 >	P0,
		double	t0,
		const std::string &	emissionModel = `"NONE"`
	)

inlineinherited

Definition at line 48 of file SamplingBase.hpp.

References SamplingBase::emissionModel_m, SamplingBase::P0_m, SamplingBase::R0_m, and SamplingBase::t0_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ setInitialPolarization()

void SamplingBase::setInitialPolarization ( const ippl::Vector< double, 3 > & pol )

inlineinherited

Definition at line 57 of file SamplingBase.hpp.

References SamplingBase::initialPol_m.

◆ setInternalVariables()

void FlatTop::setInternalVariables	(	bool	emitting,
		double	sigmaTFall,
		double	sigmaTRise,
		Vector_t< double, 3 >	cutoff,
		double	tPulseLengthFWHM,
		Vector_t< double, 3 >	sigmaR
	)

Definition at line 58 of file FlatTop.cpp.

References cutoffR_m, distArea_m, emissionTime_m, emitting_m, fallTime_m, flattopTime_m, normalizedFlankArea_m, riseTime_m, sigmaR_m, sigmaTFall_m, sigmaTRise_m, and Physics::two_pi.

Referenced by FlatTop(), FlatTop(), and setParameters().

◆ setNr()

void FlatTop::setNr ( Vector_t< double, 3 > nr )

Sets the number of grid points per direction.

Parameters

nr	Vector specifying the number of grid points.

Definition at line 181 of file FlatTop.cpp.

References nr, and nr_m.

Referenced by generateParticles().

◆ setParameters()

void FlatTop::setParameters ( Distribution_t * opalDist )

private

Sets distribution parameters.

Parameters

opalDist Shared pointer to the distribution object.

Definition at line 47 of file FlatTop.cpp.

References emissionTime_m, Distribution::emitting_m, SamplingBase::fc_m, Distribution::getCutoffR(), Distribution::getSigmaR(), Distribution::getSigmaTFall(), Distribution::getSigmaTRise(), Distribution::getTPulseLengthFWHM(), SamplingBase::opalDist_m, setInternalVariables(), and Distribution::setTEmission().

Referenced by FlatTop().

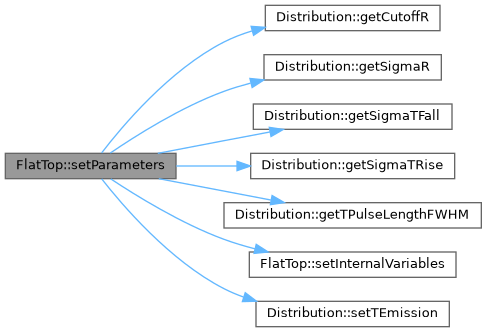

Here is the call graph for this function:

◆ setWithDomainDecomp()

void FlatTop::setWithDomainDecomp ( bool withDomainDecomp )

overridevirtual

Sets whether to use domain decomposition.

Parameters

withDomainDecomp Boolean flag for domain decomposition.

Reimplemented from SamplingBase.

Definition at line 33 of file FlatTop.cpp.

References withDomainDecomp_m.

Referenced by TEST_F().

◆ testEmitParticles() [1/2]

virtual void SamplingBase::testEmitParticles	(	size_t	,
		double
	)

inlinevirtualinherited

Definition at line 108 of file SamplingBase.hpp.

◆ testEmitParticles() [2/2]

void FlatTop::testEmitParticles	(	size_type	nsteps,
		double	dt
	)

override

Tests particle emission over a given number of steps.

Parameters

nsteps	Number of time steps to simulate.
dt	Time step size.

Definition at line 440 of file FlatTop.cpp.

References emitParticles().

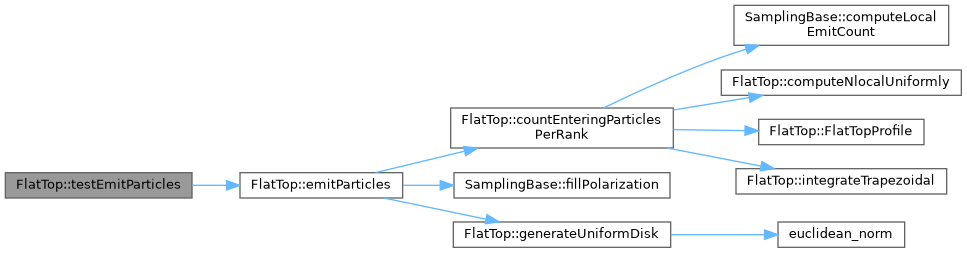

Here is the call graph for this function:

◆ testNumEmitParticles() [1/2]

virtual void SamplingBase::testNumEmitParticles	(	size_t	,
		double
	)

inlinevirtualinherited

Definition at line 105 of file SamplingBase.hpp.

◆ testNumEmitParticles() [2/2]

void FlatTop::testNumEmitParticles	(	size_type	nsteps,
		double	dt
	)

override

Tests the number of emitted particles over a given number of steps.

Parameters

nsteps	Number of time steps to simulate.
dt	Time step size.

Definition at line 394 of file FlatTop.cpp.

References Physics::c, countEnteringParticlesPerRank(), emissionTime_m, generateUniformDisk(), and SamplingBase::pc_m.

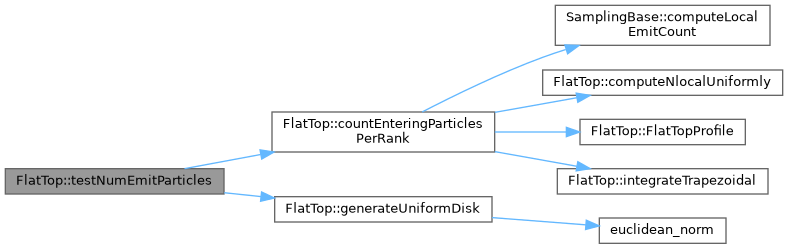

Here is the call graph for this function:

Member Data Documentation

◆ cutoffR_m

Vector_t<double, 3> FlatTop::cutoffR_m

private

Cutoff radius.

Definition at line 121 of file FlatTop.h.

Referenced by setInternalVariables().

◆ distArea_m

double FlatTop::distArea_m

private

Total area of the flattop distribution.

Definition at line 118 of file FlatTop.h.

Referenced by countEnteringParticlesPerRank(), getDistArea(), setDistArea(), and setInternalVariables().

◆ emissionModel_m

std::string SamplingBase::emissionModel_m = "NONE"

protectedinherited

Definition at line 25 of file SamplingBase.hpp.

Referenced by OpalFlatTop::generateLocalParticles(), EmittedFromFile::generateParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

◆ emissionTime_m

double FlatTop::emissionTime_m

private

Total emission time.

Definition at line 127 of file FlatTop.h.

Referenced by getEmissionTime(), initDomainDecomp(), isEmissionDone(), setInternalVariables(), setParameters(), and testNumEmitParticles().

◆ emitting_m

bool FlatTop::emitting_m

private

Flag for particle emission status.

Definition at line 124 of file FlatTop.h.

Referenced by setInternalVariables().

◆ fallTime_m

double FlatTop::fallTime_m

private

Time duration for the fall phase.

Definition at line 122 of file FlatTop.h.

Referenced by FlatTopProfile(), and setInternalVariables().

◆ fc_m

std::shared_ptr<FieldContainer_t> SamplingBase::fc_m

protectedinherited

Definition at line 18 of file SamplingBase.hpp.

Referenced by initDomainDecomp(), OpalFlatTop::initDomainDecomp(), setParameters(), and OpalFlatTop::setParameters().

◆ flattopTime_m

double FlatTop::flattopTime_m

private

Time duration of when the time profile is flat.

Definition at line 116 of file FlatTop.h.

Referenced by FlatTopProfile(), and setInternalVariables().

◆ hasEmittedOnce_m

bool SamplingBase::hasEmittedOnce_m = false

protectedinherited

For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Definition at line 33 of file SamplingBase.hpp.

Referenced by FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), and SamplingBase::isEmissionDone().

◆ hr_m

Vector_t<double, 3> FlatTop::hr_m

private

Grid spacing.

Definition at line 129 of file FlatTop.h.

Referenced by initDomainDecomp().

◆ initialPol_m

Vector_t<double, 3> SamplingBase::initialPol_m = 0.0

protectedinherited

Initial polarization vector P applied to every particle this sampler creates. Rest-frame Pauli expectations along lab-frame axes; |Pol| in [0, 1]. Ignored when the container does not have a spin attribute (hasSpin() == false).

Definition at line 30 of file SamplingBase.hpp.

Referenced by SamplingBase::fillPolarization(), and SamplingBase::setInitialPolarization().

◆ normalizedFlankArea_m

double FlatTop::normalizedFlankArea_m

private

Normalized area of the distribution flanks.

Definition at line 117 of file FlatTop.h.

Referenced by setInternalVariables().

◆ nr_m

Vector_t<double, 3> FlatTop::nr_m

private

Number of grid points per direction.

Definition at line 128 of file FlatTop.h.

Referenced by initDomainDecomp(), and setNr().

◆ opalDist_m

Distribution_t* SamplingBase::opalDist_m = nullptr

protectedinherited

Definition at line 19 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), EmittedFromFile::generateParticles(), MultiVariateGaussian::MultiVariateGaussian(), and setParameters().

◆ P0_m

Vector_t<double, 3> SamplingBase::P0_m = 0.0

protectedinherited

Definition at line 23 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), EmittedFromFile::generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

◆ pc_m

std::shared_ptr<ParticleContainer_t> SamplingBase::pc_m

protectedinherited

◆ R0_m

Vector_t<double, 3> SamplingBase::R0_m = 0.0

protectedinherited

Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Definition at line 22 of file SamplingBase.hpp.

Referenced by EmittedFromFile::generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), generateUniformDisk(), SamplingBase::getEmissionR0(), and SamplingBase::setEmissionOffsets().

◆ rand_pool_m

GeneratorPool FlatTop::rand_pool_m

private

Random number generator pool.

Definition at line 115 of file FlatTop.h.

Referenced by generateUniformDisk().

◆ riseTime_m

double FlatTop::riseTime_m

private

Time duration for the rise phase.

Definition at line 123 of file FlatTop.h.

Referenced by FlatTopProfile(), and setInternalVariables().

◆ samplingMethod_m

std::string SamplingBase::samplingMethod_m

protectedinherited

Definition at line 20 of file SamplingBase.hpp.

◆ sigmaR_m

Vector_t<double, 3> FlatTop::sigmaR_m

private

Definition at line 130 of file FlatTop.h.

Referenced by generateUniformDisk(), initDomainDecomp(), and setInternalVariables().

◆ sigmaTFall_m

double FlatTop::sigmaTFall_m

private

Standard deviation for fall time profile.

Definition at line 119 of file FlatTop.h.

Referenced by FlatTopProfile(), and setInternalVariables().

◆ sigmaTRise_m

double FlatTop::sigmaTRise_m

private

Standard deviation for rise time profile.

Definition at line 120 of file FlatTop.h.

Referenced by FlatTopProfile(), and setInternalVariables().

◆ t0_m

double SamplingBase::t0_m = 0.0

protectedinherited

Definition at line 24 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), emitParticles(), FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), EmittedFromFile::getGlobalTimeShift(), OpalFlatTop::getGlobalTimeShift(), isEmissionDone(), SamplingBase::setEmissionOffsets(), and OpalFlatTop::toBirthTime().

◆ totalN_m

size_type FlatTop::totalN_m

private

Total number of particles.

Definition at line 125 of file FlatTop.h.

Referenced by allocateParticles(), and countEnteringParticlesPerRank().

◆ withDomainDecomp_m

bool FlatTop::withDomainDecomp_m

private

Flag for domain decomposition.

Definition at line 126 of file FlatTop.h.

Referenced by setWithDomainDecomp().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ size_type

Constructor & Destructor Documentation

◆ FlatTop() [1/3]

◆ FlatTop() [2/3]

◆ FlatTop() [3/3]

Member Function Documentation

◆ allocateParticles()

◆ computeLocalEmitCount()

◆ computeNlocalUniformly()

◆ countEnteringParticlesPerRank()

◆ determineRandInit()

◆ emitParticles()

◆ fillPolarization()

◆ FlatTopProfile()

◆ generateParticles()

◆ generateUniformDisk()

◆ getDistArea()

◆ getEmissionR0()

◆ getEmissionTime()

◆ getEmissionTimeStep()

◆ getGlobalTimeShift()

◆ getInitialReferenceMomentum()

◆ hasInitialReferenceMomentum()

◆ initDomainDecomp()

◆ integrateTrapezoidal()

◆ isEmissionDone()

◆ setDistArea()

◆ setEmissionOffsets()

◆ setInitialPolarization()

◆ setInternalVariables()

◆ setNr()

◆ setParameters()

◆ setWithDomainDecomp()

◆ testEmitParticles() [1/2]

◆ testEmitParticles() [2/2]

◆ testNumEmitParticles() [1/2]

◆ testNumEmitParticles() [2/2]

Member Data Documentation

◆ cutoffR_m

◆ distArea_m

◆ emissionModel_m

◆ emissionTime_m

◆ emitting_m

◆ fallTime_m

◆ fc_m

◆ flattopTime_m

◆ hasEmittedOnce_m

◆ hr_m

◆ initialPol_m

◆ normalizedFlankArea_m

◆ nr_m

◆ opalDist_m

◆ P0_m

◆ pc_m

◆ R0_m

◆ rand_pool_m

◆ riseTime_m

◆ samplingMethod_m

◆ sigmaR_m

◆ sigmaTFall_m

◆ sigmaTRise_m

◆ t0_m

◆ totalN_m

◆ withDomainDecomp_m
