ParticleContainer< T, Dim > Class Template Reference

Container for all per-particle (and per-simulation) fields tracked during OPALX tracking. More...

#include <ParticleContainer.hpp>

Inherits ippl::ParticleBase< ippl::ParticleSpatialLayout< T, 3 >, Kokkos::DefaultExecutionSpace::memory_space >.

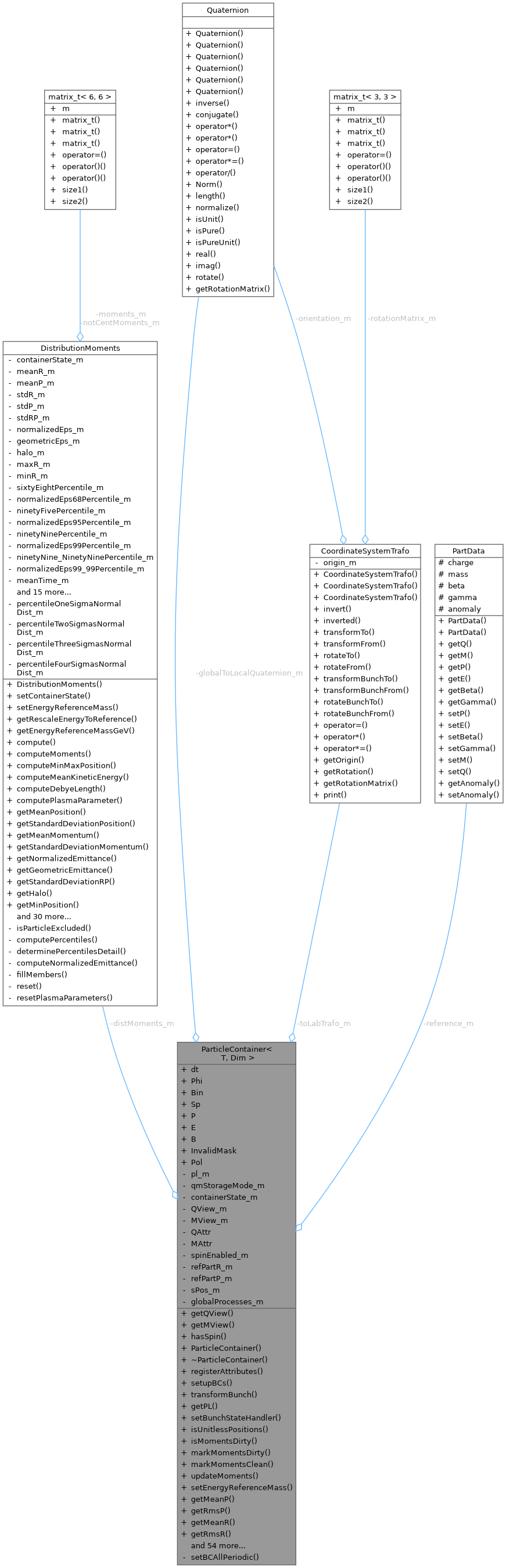

Collaboration diagram for ParticleContainer< T, Dim >:

Public Types
enum class	QMStorageMode { SingleValue , Attributes }
using	bin_index_type = short int
	Defines which type to use as a particle bin.
using	qm_view_type = typename ippl::ParticleAttrib< double >::view_type
	View types of Q and M values.
using	spin_vector_type = ippl::Vector< float, 3 >

Public Member Functions
qm_view_type	getQView () const
qm_view_type	getMView () const
bool	hasSpin () const
	ParticleContainer (Mesh_t< Dim > &mesh, FieldLayout_t< Dim > &FL, bool spinEnabled=false)
	~ParticleContainer ()
void	registerAttributes ()
void	setupBCs ()

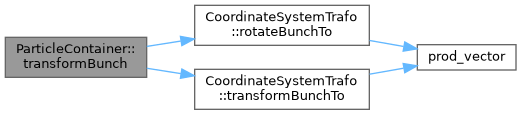

void	transformBunch (const CoordinateSystemTrafo &trafo)
	Apply coordinate transform to local particles: translate R, rotate P, E, B.
PLayout_t< T, Dim > &	getPL ()
void	setBunchStateHandler (std::shared_ptr< BunchStateHandler > handler)
bool	isUnitlessPositions () const
bool	isMomentsDirty () const
void	markMomentsDirty ()
void	markMomentsClean ()

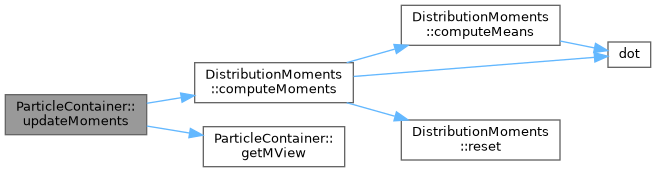

void	updateMoments ()
void	setEnergyReferenceMass (double referenceMassGeV, bool rescaleToReference=true)
Vector_t< double, 3 >	getMeanP () const
Vector_t< double, 3 >	getRmsP () const
Vector_t< double, 3 >	getMeanR () const
Vector_t< double, 3 >	getRmsR () const
Vector_t< double, 3 >	getRmsRP () const
void	computeMinMaxR ()
Vector_t< double, 3 >	getMinR () const
Vector_t< double, 3 >	getMaxR () const
matrix6x6_t	getCovMatrix () const
double	getMeanKineticEnergy () const
double	getStdKineticEnergy () const
Vector_t< double, 6 >	getMeans () const
Vector_t< double, 6 >	getCentroid () const
Vector_t< double, 3 >	getNormEmit () const
Vector_t< double, 3 >	getGeometricEmit () const
double	getDx () const
double	getDDx () const
double	getDy () const
double	getDDy () const
double	getDebyeLength () const
double	getMeanGammaZ () const
double	getTemperature () const
double	getPlasmaParameter () const
double	computeDebyeLength (double density)
void	setQ (double q)
	Set particle charge for the active Q storage mode.
double	getChargePerParticle () const
	Get charge per particle [Cb].
double	getTotalCharge () const
	Get total charge [Cb] in this container.
void	setM (double m)
	Set particle mass for the active M storage mode.
double	getMassPerParticle () const
	Get mass per particle [GeV].
double	getTotalMass () const
	Get total mass [GeV] in this container.
const Vector_t< double, Dim > &	getRefPartR () const
	Get the reference particle position (const).
Vector_t< double, Dim > &	getRefPartR ()
	Get the reference particle position.
void	setRefPartR (const Vector_t< double, Dim > &refPartR)
	Set the reference particle position.
const Vector_t< double, Dim > &	getRefPartP () const
	Get the reference particle momentum (const).
Vector_t< double, Dim > &	getRefPartP ()
	Get the reference particle momentum.
void	setRefPartP (const Vector_t< double, Dim > &refPartP)
	Set the reference particle momentum.

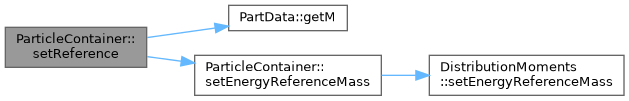

void	setReference (const PartData *ref)
	Set reference particle data.
const PartData *	getReference () const
	Get reference particle data.
void	set_sPos (double sPos)
	Set longitudinal position along design trajectory.
double	get_sPos () const
	Get longitudinal position along design trajectory.
void	setGlobalToLocalQuaternion (const Quaternion_t &globalToLocalQuaternion)
	Set global-to-local rotation quaternion.
Quaternion_t	getGlobalToLocalQuaternion () const
	Get global-to-local rotation quaternion.
const CoordinateSystemTrafo &	getToLabTrafo () const
	Get local-to-lab coordinate transformation (const).
CoordinateSystemTrafo &	getToLabTrafo ()
	Get local-to-lab coordinate transformation.
void	setToLabTrafo (const CoordinateSystemTrafo &toLabTrafo)
	Set local-to-lab coordinate transformation.

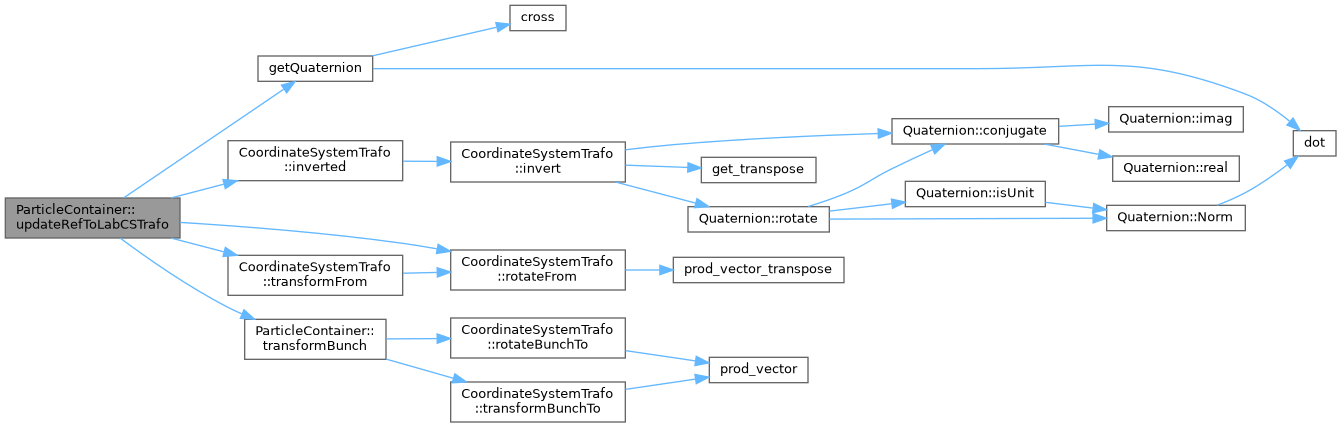

void	updateRefToLabCSTrafo (double bunchDT)
	Advance reference/lab transform state and map bunch accordingly.
template<typename Pusher >
void	applyFractionalStep (const Pusher &pusher, double tau, double pathLengthTarget)
	Apply a fractional Boris step and update reference/lab transform state.
void	scaleDtByCharge ()
	Scale particle time-step weights by charge before scatter.
void	unscaleDtByCharge ()
	Restore original dt values after scaleDtByCharge().
void	switchToUnitlessPositions ()
	Transform positions to unitless coordinates using each particle's dt[i].
void	switchOffUnitlessPositions ()
	Restore physical positions from unitless form using each particle's dt[i].
QMStorageMode	getQMStorageMode () const
void	setGlobalProcesses (std::vector< std::unique_ptr< GlobalProcess > > processes)
const std::vector< std::unique_ptr< GlobalProcess > > &	getGlobalProcesses () const

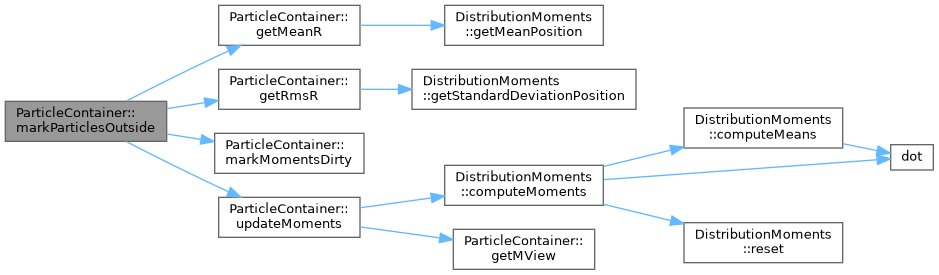

size_type	markParticlesOutside (double sigmasAway)
	Mark particles whose position is more than sigmasAway standard deviations from the bunch mean in any spatial dimension.
void	createParticles (size_type numParticles)
	Create/allocate a specified number of particles.
void	allocateParticles (size_type numParticles)
size_type	deleteInvalidParticles ()
	Delete particles currently marked in InvalidMask.

Public Attributes
ippl::ParticleAttrib< double >	dt
	timestep in [s]
ippl::ParticleAttrib< double >	Phi
	the scalar potential in [Cb/s]
ippl::ParticleAttrib< bin_index_type >	Bin
	the energy bin the particle is in
short	Sp = 0
	the particle specis
Base::particle_position_type	P
	particle momenta [\beta\gamma]
Base::particle_position_type	E
	electric field at particle position
Base::particle_position_type	B
	electric field for gun simulation with bins
ippl::ParticleAttrib< bool >	InvalidMask
	particle deletion mask (indicates which particles are deleted every timestep)
ippl::ParticleAttrib< spin_vector_type >	Pol

Private Types
using	Base = ippl::ParticleBase< ippl::ParticleSpatialLayout< T, Dim >, Kokkos::DefaultExecutionSpace::memory_space >
	Alias for the ippl::ParticleBase specialization this container inherits from.

Private Member Functions
void	setBCAllPeriodic ()

Private Attributes
PLayout_t< T, Dim >	pl_m
QMStorageMode	qmStorageMode_m = QMStorageMode::SingleValue
DistributionMoments	distMoments_m
std::shared_ptr< BunchStateHandler::ContainerState >	containerState_m
qm_view_type	QView_m
qm_view_type	MView_m
ippl::ParticleAttrib< double >	QAttr
ippl::ParticleAttrib< double >	MAttr
bool	spinEnabled_m = false
Vector_t< double, Dim >	refPartR_m
Vector_t< double, Dim >	refPartP_m
Quaternion_t	globalToLocalQuaternion_m
CoordinateSystemTrafo	toLabTrafo_m
const PartData *	reference_m = nullptr
double	sPos_m = 0.0
std::vector< std::unique_ptr< GlobalProcess > >	globalProcesses_m
	Global physics processes attached to this container.

Detailed Description

template<typename T, unsigned Dim = 3>
class ParticleContainer< T, Dim >

Container for all per-particle (and per-simulation) fields tracked during OPALX tracking.

The values tracked in Kokkos::Views during the simulation are: R - Position (from base class) P - Momentum [beta*gamma] dt - Time step Phi- Scalar potential Bin- Energy bin E - Electric field B - Magnetic field

Charge (Q) and mass (M):

• Default: QM_MODE="SINGLE" -> QMStorageMode=SingleValue
  • Q and M are stored as a single shared value per container (memory-efficient).
  • Access via getQView() / getMView() returns the shared views.
• Alternative: QM_MODE="ATTRIBUTES" -> QMStorageMode=Attributes
  • Q and M are stored as per-particle attributes.
  • Access via getQView() / getMView() returns the per-particle attribute views.

Access to Q/M should be done with getQView() / getMView(). They automatically select the correct underlying storage mode.

Definition at line 62 of file ParticleContainer.hpp.

Member Typedef Documentation

Base

template<typename T , unsigned Dim = 3>

using ParticleContainer< T, Dim >::Base = ippl::ParticleBase< ippl::ParticleSpatialLayout<T, Dim>, Kokkos::DefaultExecutionSpace::memory_space>

private

Alias for the ippl::ParticleBase specialization this container inherits from.

The second template argument is a parameter pack of Kokkos view properties forwarded to the optional ID attribute's storage. IPPL gates the ID attribute on sizeof...(IDProperties) > 0, so passing any property here turns IDs ON; an empty pack would leave them disabled. We pass Kokkos::DefaultExecutionSpace::memory_space so the ID view lives in the same space as the rest of the bunch (host or device, matching the build backend). With IDs enabled, IPPL auto-assigns globally unique std::int64_t IDs in Base::create().

Definition at line 76 of file ParticleContainer.hpp.

bin_index_type

template<typename T , unsigned Dim = 3>

using ParticleContainer< T, Dim >::bin_index_type = short int

Defines which type to use as a particle bin.

Definition at line 93 of file ParticleContainer.hpp.

qm_view_type

template<typename T , unsigned Dim = 3>

using ParticleContainer< T, Dim >::qm_view_type = typename ippl::ParticleAttrib<double>::view_type

View types of Q and M values.

Definition at line 96 of file ParticleContainer.hpp.

spin_vector_type

template<typename T , unsigned Dim = 3>

using ParticleContainer< T, Dim >::spin_vector_type = ippl::Vector<float, 3>

Per-particle polarization vector type: 3D vector in single precision, |Pol| in [0, 1]. Polarization observables are typically ~1% accurate, so float storage is sufficient and halves the memory footprint versus the codebase's standard double attributes. Dynamics kernels should still compute in double and cast back on store.

Definition at line 102 of file ParticleContainer.hpp.

Member Enumeration Documentation

QMStorageMode

template<typename T , unsigned Dim = 3>

enum class ParticleContainer::QMStorageMode

strong

Enumerator
SingleValue
Attributes

Definition at line 90 of file ParticleContainer.hpp.

Constructor & Destructor Documentation

ParticleContainer()

template<typename T , unsigned Dim = 3>

ParticleContainer< T, Dim >::ParticleContainer ( Mesh_t< Dim > &  mesh, FieldLayout_t< Dim > &  FL, bool  spinEnabled = false  )

inline

Definition at line 161 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::MView_m, ParticleContainer< T, Dim >::pl_m, ParticleContainer< T, Dim >::QView_m, ParticleContainer< T, Dim >::registerAttributes(), and ParticleContainer< T, Dim >::setupBCs().

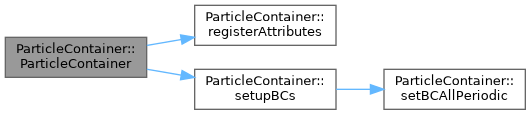

Here is the call graph for this function:

~ParticleContainer()

template<typename T , unsigned Dim = 3>

ParticleContainer< T, Dim >::~ParticleContainer ( )

inline

Definition at line 177 of file ParticleContainer.hpp.

Member Function Documentation

allocateParticles()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::allocateParticles ( size_type  numParticles )

inline

Definition at line 703 of file ParticleContainer.hpp.

applyFractionalStep()

template<typename T , unsigned Dim = 3>

template<typename Pusher >

void ParticleContainer< T, Dim >::applyFractionalStep ( const Pusher &  pusher, double  tau, double  pathLengthTarget  )

inline

Apply a fractional Boris step and update reference/lab transform state.

Definition at line 462 of file ParticleContainer.hpp.

References Physics::c, getQuaternion(), CoordinateSystemTrafo::inverted(), ParticleContainer< T, Dim >::P, ParticleContainer< T, Dim >::refPartP_m, ParticleContainer< T, Dim >::refPartR_m, CoordinateSystemTrafo::rotateFrom(), ParticleContainer< T, Dim >::sPos_m, ParticleContainer< T, Dim >::toLabTrafo_m, and CoordinateSystemTrafo::transformFrom().

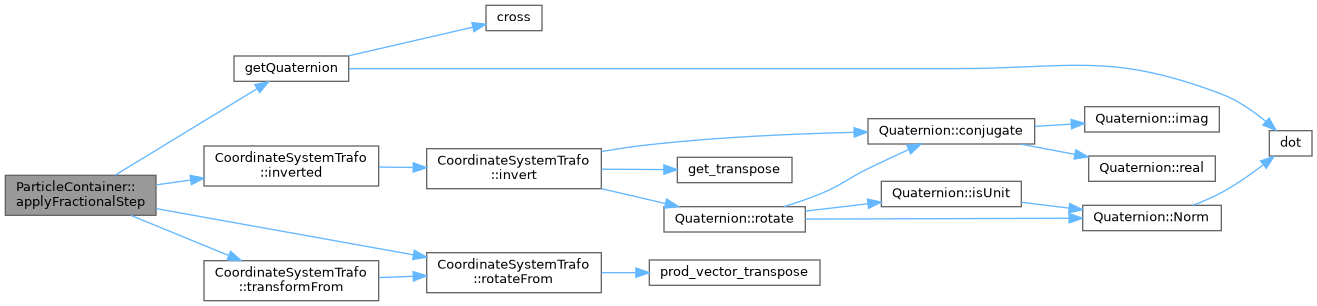

Here is the call graph for this function:

computeDebyeLength()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::computeDebyeLength ( double  density )

inline

Definition at line 301 of file ParticleContainer.hpp.

References DistributionMoments::computeDebyeLength(), ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getDebyeLength().

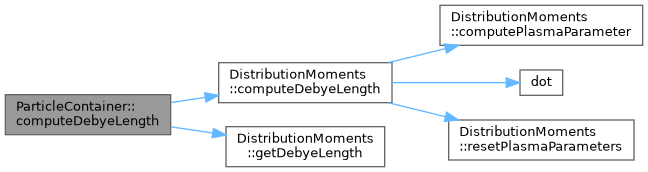

Here is the call graph for this function:

computeMinMaxR()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::computeMinMaxR ( )

inline

Definition at line 262 of file ParticleContainer.hpp.

References DistributionMoments::computeMinMaxPosition(), and ParticleContainer< T, Dim >::distMoments_m.

Here is the call graph for this function:

createParticles()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::createParticles ( size_type  numParticles )

inline

Create/allocate a specified number of particles.

This function creates a given number of particles in the container. It's a wrapper around the non destructive IPPL particle create function, but will print out a warning if the create call led to unnecessary reallocation (i.e. if the new total number of particles exceeds the previous capacity).

Note

The underlying create is a collective call, so all MPI ranks must call this function. IPPL automatically handles the short-circuit if internal capacity is sufficient.

Parameters

numParticles

The number of particles to create.

Todo:

: can probably be removed later, after my flattop debugging

Definition at line 655 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::B, ParticleContainer< T, Dim >::Bin, ParticleContainer< T, Dim >::dt, ParticleContainer< T, Dim >::E, ParticleContainer< T, Dim >::InvalidMask, and ParticleContainer< T, Dim >::Phi.

deleteInvalidParticles()

template<typename T , unsigned Dim = 3>

size_type ParticleContainer< T, Dim >::deleteInvalidParticles ( )

inline

Delete particles currently marked in InvalidMask.

This is the only ParticleContainer function that is allowed to compact the IPPL particle arrays. All deletion producers must only update InvalidMask.

Returns

Global number of particles deleted (across all MPI ranks).

Definition at line 732 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::InvalidMask, and ParticleContainer< T, Dim >::markMomentsDirty().

Here is the call graph for this function:

get_sPos()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::get_sPos ( ) const

inline

Get longitudinal position along design trajectory.

Definition at line 427 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::sPos_m.

getCentroid()

template<typename T , unsigned Dim = 3>

Vector_t< double, 6 > ParticleContainer< T, Dim >::getCentroid ( ) const

inline

Definition at line 279 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getCentroid().

Here is the call graph for this function:

getChargePerParticle()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getChargePerParticle ( ) const

inline

Get charge per particle [Cb].

Definition at line 335 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::Attributes, ParticleContainer< T, Dim >::QAttr, ParticleContainer< T, Dim >::qmStorageMode_m, and ParticleContainer< T, Dim >::QView_m.

Referenced by ParticleContainer< T, Dim >::getTotalCharge().

getCovMatrix()

template<typename T , unsigned Dim = 3>

matrix6x6_t ParticleContainer< T, Dim >::getCovMatrix ( ) const

inline

Definition at line 271 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getMoments6x6().

Here is the call graph for this function:

getDDx()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getDDx ( ) const

inline

Definition at line 287 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getDDx().

Here is the call graph for this function:

getDDy()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getDDy ( ) const

inline

Definition at line 291 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getDDy().

Here is the call graph for this function:

getDebyeLength()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getDebyeLength ( ) const

inline

Definition at line 293 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getDebyeLength().

Here is the call graph for this function:

getDx()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getDx ( ) const

inline

Definition at line 285 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getDx().

Here is the call graph for this function:

getDy()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getDy ( ) const

inline

Definition at line 289 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getDy().

Here is the call graph for this function:

getGeometricEmit()

template<typename T , unsigned Dim = 3>

Vector_t< double, 3 > ParticleContainer< T, Dim >::getGeometricEmit ( ) const

inline

Definition at line 283 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getGeometricEmittance().

Here is the call graph for this function:

getGlobalProcesses()

template<typename T , unsigned Dim = 3>

const std::vector< std::unique_ptr< GlobalProcess > > & ParticleContainer< T, Dim >::getGlobalProcesses ( ) const

inline

Definition at line 584 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::globalProcesses_m.

getGlobalToLocalQuaternion()

template<typename T , unsigned Dim = 3>

Quaternion_t ParticleContainer< T, Dim >::getGlobalToLocalQuaternion ( ) const

inline

Get global-to-local rotation quaternion.

Definition at line 435 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::globalToLocalQuaternion_m.

getMassPerParticle()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getMassPerParticle ( ) const

inline

Get mass per particle [GeV].

Definition at line 375 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::Attributes, ParticleContainer< T, Dim >::MAttr, ParticleContainer< T, Dim >::MView_m, and ParticleContainer< T, Dim >::qmStorageMode_m.

Referenced by ParticleContainer< T, Dim >::getTotalMass().

getMaxR()

template<typename T , unsigned Dim = 3>

Vector_t< double, 3 > ParticleContainer< T, Dim >::getMaxR ( ) const

inline

Definition at line 269 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getMaxPosition().

Here is the call graph for this function:

getMeanGammaZ()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getMeanGammaZ ( ) const

inline

Definition at line 295 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getMeanGammaZ().

Here is the call graph for this function:

getMeanKineticEnergy()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getMeanKineticEnergy ( ) const

inline

Definition at line 273 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getMeanKineticEnergy().

Here is the call graph for this function:

getMeanP()

template<typename T , unsigned Dim = 3>

Vector_t< double, 3 > ParticleContainer< T, Dim >::getMeanP ( ) const

inline

Definition at line 252 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getMeanMomentum().

Here is the call graph for this function:

getMeanR()

template<typename T , unsigned Dim = 3>

Vector_t< double, 3 > ParticleContainer< T, Dim >::getMeanR ( ) const

inline

Definition at line 256 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getMeanPosition().

Referenced by ParticleContainer< T, Dim >::markParticlesOutside().

Here is the call graph for this function:

getMeans()

template<typename T , unsigned Dim = 3>

Vector_t< double, 6 > ParticleContainer< T, Dim >::getMeans ( ) const

inline

Definition at line 277 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getMeans().

Here is the call graph for this function:

getMinR()

template<typename T , unsigned Dim = 3>

Vector_t< double, 3 > ParticleContainer< T, Dim >::getMinR ( ) const

inline

Definition at line 267 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getMinPosition().

Here is the call graph for this function:

getMView()

template<typename T , unsigned Dim = 3>

qm_view_type ParticleContainer< T, Dim >::getMView ( ) const

inline

Mass view in [GeV]. In SingleValue mode this is a rank-1 view of length 1. In Attributes mode this is the per-particle attribute view.

Definition at line 118 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::Attributes, ParticleContainer< T, Dim >::MAttr, ParticleContainer< T, Dim >::MView_m, and ParticleContainer< T, Dim >::qmStorageMode_m.

Referenced by ParticleContainer< T, Dim >::updateMoments().

getNormEmit()

template<typename T , unsigned Dim = 3>

Vector_t< double, 3 > ParticleContainer< T, Dim >::getNormEmit ( ) const

inline

Definition at line 281 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getNormalizedEmittance().

Here is the call graph for this function:

getPL()

template<typename T , unsigned Dim = 3>

PLayout_t< T, Dim > & ParticleContainer< T, Dim >::getPL ( )

inline

Definition at line 207 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::pl_m.

getPlasmaParameter()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getPlasmaParameter ( ) const

inline

Definition at line 299 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getPlasmaParameter().

Here is the call graph for this function:

getQMStorageMode()

template<typename T , unsigned Dim = 3>

QMStorageMode ParticleContainer< T, Dim >::getQMStorageMode ( ) const

inline

Definition at line 578 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::qmStorageMode_m.

getQView()

template<typename T , unsigned Dim = 3>

qm_view_type ParticleContainer< T, Dim >::getQView ( ) const

inline

Charge view in [Cb]. In SingleValue mode this is a rank-1 view of length 1. In Attributes mode this is the per-particle attribute view.

Definition at line 108 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::Attributes, ParticleContainer< T, Dim >::QAttr, ParticleContainer< T, Dim >::qmStorageMode_m, and ParticleContainer< T, Dim >::QView_m.

getReference()

template<typename T , unsigned Dim = 3>

const PartData * ParticleContainer< T, Dim >::getReference ( ) const

inline

Get reference particle data.

Definition at line 421 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::reference_m.

Referenced by ParallelTracker::kickParticles().

getRefPartP() [1/2]

template<typename T , unsigned Dim = 3>

Vector_t< double, Dim > & ParticleContainer< T, Dim >::getRefPartP ( )

inline

Get the reference particle momentum.

Definition at line 406 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::refPartP_m.

getRefPartP() [2/2]

template<typename T , unsigned Dim = 3>

const Vector_t< double, Dim > & ParticleContainer< T, Dim >::getRefPartP ( ) const

inline

Get the reference particle momentum (const).

Definition at line 403 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::refPartP_m.

getRefPartR() [1/2]

template<typename T , unsigned Dim = 3>

Vector_t< double, Dim > & ParticleContainer< T, Dim >::getRefPartR ( )

inline

Get the reference particle position.

Definition at line 397 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::refPartR_m.

getRefPartR() [2/2]

template<typename T , unsigned Dim = 3>

const Vector_t< double, Dim > & ParticleContainer< T, Dim >::getRefPartR ( ) const

inline

Get the reference particle position (const).

Definition at line 394 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::refPartR_m.

getRmsP()

template<typename T , unsigned Dim = 3>

Vector_t< double, 3 > ParticleContainer< T, Dim >::getRmsP ( ) const

inline

Definition at line 254 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getStandardDeviationMomentum().

Here is the call graph for this function:

getRmsR()

template<typename T , unsigned Dim = 3>

Vector_t< double, 3 > ParticleContainer< T, Dim >::getRmsR ( ) const

inline

Definition at line 258 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getStandardDeviationPosition().

Referenced by ParticleContainer< T, Dim >::markParticlesOutside().

Here is the call graph for this function:

getRmsRP()

template<typename T , unsigned Dim = 3>

Vector_t< double, 3 > ParticleContainer< T, Dim >::getRmsRP ( ) const

inline

Definition at line 260 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getStandardDeviationRP().

Here is the call graph for this function:

getStdKineticEnergy()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getStdKineticEnergy ( ) const

inline

Definition at line 275 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getStdKineticEnergy().

Here is the call graph for this function:

getTemperature()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getTemperature ( ) const

inline

Definition at line 297 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::getTemperature().

Here is the call graph for this function:

getToLabTrafo() [1/2]

template<typename T , unsigned Dim = 3>

CoordinateSystemTrafo & ParticleContainer< T, Dim >::getToLabTrafo ( )

inline

Get local-to-lab coordinate transformation.

Definition at line 441 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::toLabTrafo_m.

getToLabTrafo() [2/2]

template<typename T , unsigned Dim = 3>

const CoordinateSystemTrafo & ParticleContainer< T, Dim >::getToLabTrafo ( ) const

inline

Get local-to-lab coordinate transformation (const).

Definition at line 438 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::toLabTrafo_m.

getTotalCharge()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getTotalCharge ( ) const

inline

Get total charge [Cb] in this container.

Definition at line 351 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::getChargePerParticle().

Here is the call graph for this function:

getTotalMass()

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::getTotalMass ( ) const

inline

Get total mass [GeV] in this container.

Definition at line 391 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::getMassPerParticle().

Here is the call graph for this function:

hasSpin()

template<typename T , unsigned Dim = 3>

bool ParticleContainer< T, Dim >::hasSpin ( ) const

inline

Returns true when per-particle spin storage was enabled at construction (enabled per beam when the BEAM has POLARIZATION set).

Definition at line 159 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::spinEnabled_m.

Referenced by Decay::apply().

isMomentsDirty()

template<typename T , unsigned Dim = 3>

bool ParticleContainer< T, Dim >::isMomentsDirty ( ) const

inline

Definition at line 223 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::containerState_m.

isUnitlessPositions()

template<typename T , unsigned Dim = 3>

bool ParticleContainer< T, Dim >::isUnitlessPositions ( ) const

inline

Definition at line 221 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::containerState_m.

markMomentsClean()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::markMomentsClean ( )

inline

Definition at line 225 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::containerState_m.

markMomentsDirty()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::markMomentsDirty ( )

inline

Definition at line 224 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::containerState_m.

Referenced by ParticleContainer< T, Dim >::deleteInvalidParticles(), ParallelTracker::kickParticles(), ParticleContainer< T, Dim >::markParticlesOutside(), and ParallelTracker::pushParticles().

markParticlesOutside()

template<typename T , unsigned Dim = 3>

size_type ParticleContainer< T, Dim >::markParticlesOutside ( double  sigmasAway )

inline

Mark particles whose position is more than sigmasAway standard deviations from the bunch mean in any spatial dimension.

Recomputes distribution moments, then ORs the outlier decision into InvalidMask. Deletion is intentionally deferred to deleteInvalidParticles().

Parameters

sigmasAway

Number of standard deviations defining the boundary.

Returns

Global number of newly marked particles (across all MPI ranks).

Definition at line 598 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::getMeanR(), ParticleContainer< T, Dim >::getRmsR(), ParticleContainer< T, Dim >::InvalidMask, ParticleContainer< T, Dim >::markMomentsDirty(), and ParticleContainer< T, Dim >::updateMoments().

Here is the call graph for this function:

registerAttributes()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::registerAttributes ( )

inline

Definition at line 179 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::Attributes, ParticleContainer< T, Dim >::B, ParticleContainer< T, Dim >::Bin, ParticleContainer< T, Dim >::dt, ParticleContainer< T, Dim >::E, ParticleContainer< T, Dim >::InvalidMask, ParticleContainer< T, Dim >::MAttr, ParticleContainer< T, Dim >::P, ParticleContainer< T, Dim >::Phi, ParticleContainer< T, Dim >::Pol, ParticleContainer< T, Dim >::QAttr, ParticleContainer< T, Dim >::qmStorageMode_m, and ParticleContainer< T, Dim >::spinEnabled_m.

Referenced by ParticleContainer< T, Dim >::ParticleContainer().

scaleDtByCharge()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::scaleDtByCharge ( )

inline

Scale particle time-step weights by charge before scatter.

Multiplies each local dt[i] by the corresponding charge used for deposition. In QMStorageMode::Attributes, the per-particle QAttr(i) is used. In QMStorageMode::SingleValue, the shared scalar QView_m(0) is used.

Definition at line 484 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::Attributes, ParticleContainer< T, Dim >::dt, ParticleContainer< T, Dim >::QAttr, ParticleContainer< T, Dim >::qmStorageMode_m, and ParticleContainer< T, Dim >::QView_m.

set_sPos()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::set_sPos ( double  sPos )

inline

Set longitudinal position along design trajectory.

Definition at line 424 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::sPos_m.

setBCAllPeriodic()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setBCAllPeriodic ( )

inlineprivate

Definition at line 780 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::setupBCs().

setBunchStateHandler()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setBunchStateHandler ( std::shared_ptr< BunchStateHandler >  handler )

inline

Definition at line 209 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::containerState_m, ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::setContainerState().

Here is the call graph for this function:

setEnergyReferenceMass()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setEnergyReferenceMass ( double  referenceMassGeV, bool  rescaleToReference = true  )

inline

Definition at line 248 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::distMoments_m, and DistributionMoments::setEnergyReferenceMass().

Referenced by ParticleContainer< T, Dim >::setReference().

Here is the call graph for this function:

setGlobalProcesses()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setGlobalProcesses ( std::vector< std::unique_ptr< GlobalProcess > >  processes )

inline

Definition at line 580 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::globalProcesses_m.

setGlobalToLocalQuaternion()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setGlobalToLocalQuaternion ( const Quaternion_t &  globalToLocalQuaternion )

inline

Set global-to-local rotation quaternion.

Definition at line 430 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::globalToLocalQuaternion_m.

setM()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setM ( double  m )

inline

Set particle mass for the active M storage mode.

Parameters

m	Mass value in [GeV].

In QMStorageMode::Attributes, this assigns m to every local particle. In QMStorageMode::SingleValue, this updates the shared scalar mass view.

Definition at line 360 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::Attributes, ParticleContainer< T, Dim >::MAttr, ParticleContainer< T, Dim >::MView_m, and ParticleContainer< T, Dim >::qmStorageMode_m.

setQ()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setQ ( double  q )

inline

Set particle charge for the active Q storage mode.

Parameters

q	Charge value in [Cb].

In QMStorageMode::Attributes, this assigns q to every local particle. In QMStorageMode::SingleValue, this updates the shared scalar charge view.

Definition at line 318 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::Attributes, ParticleContainer< T, Dim >::QAttr, ParticleContainer< T, Dim >::qmStorageMode_m, and ParticleContainer< T, Dim >::QView_m.

setReference()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setReference ( const PartData *  ref )

inline

Set reference particle data.

Definition at line 412 of file ParticleContainer.hpp.

References Units::eV2GeV, PartData::getM(), ParticleContainer< T, Dim >::reference_m, and ParticleContainer< T, Dim >::setEnergyReferenceMass().

Here is the call graph for this function:

setRefPartP()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setRefPartP ( const Vector_t< double, Dim > &  refPartP )

inline

Set the reference particle momentum.

Definition at line 409 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::refPartP_m.

setRefPartR()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setRefPartR ( const Vector_t< double, Dim > &  refPartR )

inline

Set the reference particle position.

Definition at line 400 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::refPartR_m.

setToLabTrafo()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setToLabTrafo ( const CoordinateSystemTrafo &  toLabTrafo )

inline

Set local-to-lab coordinate transformation.

Definition at line 444 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::toLabTrafo_m.

setupBCs()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::setupBCs ( )

inline

Definition at line 197 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::setBCAllPeriodic().

Referenced by ParticleContainer< T, Dim >::ParticleContainer().

Here is the call graph for this function:

switchOffUnitlessPositions()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::switchOffUnitlessPositions ( )

inline

Restore physical positions from unitless form using each particle's dt[i].

Applies \( R_i = R'_i \, c \, dt_i \).

Exceptions

OpalException

if this container is not currently in unitless positions.

Definition at line 563 of file ParticleContainer.hpp.

References Physics::c, and ParticleContainer< T, Dim >::containerState_m.

Referenced by ParallelTracker::pushParticles().

switchToUnitlessPositions()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::switchToUnitlessPositions ( )

inline

Transform positions to unitless coordinates using each particle's dt[i].

Applies \( R'_i = R_i / (c \, dt_i) \). Requires valid non-zero dt values per particle.

Exceptions

OpalException

if this container is already in unitless positions.

Definition at line 540 of file ParticleContainer.hpp.

References Physics::c, and ParticleContainer< T, Dim >::containerState_m.

Referenced by ParallelTracker::pushParticles().

transformBunch()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::transformBunch ( const CoordinateSystemTrafo &  trafo )

inline

Apply coordinate transform to local particles: translate R, rotate P, E, B.

Definition at line 200 of file ParticleContainer.hpp.

References CoordinateSystemTrafo::rotateBunchTo(), and CoordinateSystemTrafo::transformBunchTo().

Referenced by ParticleContainer< T, Dim >::updateRefToLabCSTrafo().

Here is the call graph for this function:

unscaleDtByCharge()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::unscaleDtByCharge ( )

inline

Restore original dt values after scaleDtByCharge().

Divides each local dt[i] by the same charge factor applied in scaleDtByCharge().

Definition at line 512 of file ParticleContainer.hpp.

References ParticleContainer< T, Dim >::Attributes, ParticleContainer< T, Dim >::dt, ParticleContainer< T, Dim >::QAttr, ParticleContainer< T, Dim >::qmStorageMode_m, and ParticleContainer< T, Dim >::QView_m.

updateMoments()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::updateMoments ( )

inline

Definition at line 227 of file ParticleContainer.hpp.

References DistributionMoments::computeMoments(), ParticleContainer< T, Dim >::containerState_m, ParticleContainer< T, Dim >::distMoments_m, and ParticleContainer< T, Dim >::getMView().

Referenced by ParticleContainer< T, Dim >::markParticlesOutside().

Here is the call graph for this function:

updateRefToLabCSTrafo()

template<typename T , unsigned Dim = 3>

void ParticleContainer< T, Dim >::updateRefToLabCSTrafo ( double  bunchDT )

inline

Advance reference/lab transform state and map bunch accordingly.

Definition at line 447 of file ParticleContainer.hpp.

References getQuaternion(), CoordinateSystemTrafo::inverted(), ParticleContainer< T, Dim >::P, ParticleContainer< T, Dim >::refPartP_m, ParticleContainer< T, Dim >::refPartR_m, CoordinateSystemTrafo::rotateFrom(), ParticleContainer< T, Dim >::sPos_m, ParticleContainer< T, Dim >::toLabTrafo_m, ParticleContainer< T, Dim >::transformBunch(), and CoordinateSystemTrafo::transformFrom().

Here is the call graph for this function:

Member Data Documentation

B

template<typename T , unsigned Dim = 3>

Base::particle_position_type ParticleContainer< T, Dim >::B

electric field for gun simulation with bins

magnetic field at particle position

Definition at line 147 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::createParticles(), ParallelTracker::kickParticles(), and ParticleContainer< T, Dim >::registerAttributes().

Bin

template<typename T , unsigned Dim = 3>

ippl::ParticleAttrib<bin_index_type> ParticleContainer< T, Dim >::Bin

the energy bin the particle is in

Definition at line 132 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::createParticles(), and ParticleContainer< T, Dim >::registerAttributes().

containerState_m

template<typename T , unsigned Dim = 3>

std::shared_ptr<BunchStateHandler::ContainerState> ParticleContainer< T, Dim >::containerState_m

private

Per-container state slot allocated by the handler at setBunchStateHandler. Owned here as the only strong reference; the handler keeps a weak_ptr, so destroying this container automatically releases the slot. The slot's own methods handle MPI consistency, so no direct handler reference is needed.

Definition at line 792 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::isMomentsDirty(), ParticleContainer< T, Dim >::isUnitlessPositions(), ParticleContainer< T, Dim >::markMomentsClean(), ParticleContainer< T, Dim >::markMomentsDirty(), ParticleContainer< T, Dim >::setBunchStateHandler(), ParticleContainer< T, Dim >::switchOffUnitlessPositions(), ParticleContainer< T, Dim >::switchToUnitlessPositions(), and ParticleContainer< T, Dim >::updateMoments().

distMoments_m

template<typename T , unsigned Dim = 3>

DistributionMoments ParticleContainer< T, Dim >::distMoments_m

private

Definition at line 786 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::computeDebyeLength(), ParticleContainer< T, Dim >::computeMinMaxR(), ParticleContainer< T, Dim >::getCentroid(), ParticleContainer< T, Dim >::getCovMatrix(), ParticleContainer< T, Dim >::getDDx(), ParticleContainer< T, Dim >::getDDy(), ParticleContainer< T, Dim >::getDebyeLength(), ParticleContainer< T, Dim >::getDx(), ParticleContainer< T, Dim >::getDy(), ParticleContainer< T, Dim >::getGeometricEmit(), ParticleContainer< T, Dim >::getMaxR(), ParticleContainer< T, Dim >::getMeanGammaZ(), ParticleContainer< T, Dim >::getMeanKineticEnergy(), ParticleContainer< T, Dim >::getMeanP(), ParticleContainer< T, Dim >::getMeanR(), ParticleContainer< T, Dim >::getMeans(), ParticleContainer< T, Dim >::getMinR(), ParticleContainer< T, Dim >::getNormEmit(), ParticleContainer< T, Dim >::getPlasmaParameter(), ParticleContainer< T, Dim >::getRmsP(), ParticleContainer< T, Dim >::getRmsR(), ParticleContainer< T, Dim >::getRmsRP(), ParticleContainer< T, Dim >::getStdKineticEnergy(), ParticleContainer< T, Dim >::getTemperature(), ParticleContainer< T, Dim >::setBunchStateHandler(), ParticleContainer< T, Dim >::setEnergyReferenceMass(), and ParticleContainer< T, Dim >::updateMoments().

dt

template<typename T , unsigned Dim = 3>

ippl::ParticleAttrib<double> ParticleContainer< T, Dim >::dt

timestep in [s]

Definition at line 126 of file ParticleContainer.hpp.

Referenced by Decay::apply(), ParticleContainer< T, Dim >::createParticles(), ParallelTracker::kickParticles(), ParticleContainer< T, Dim >::registerAttributes(), ParticleContainer< T, Dim >::scaleDtByCharge(), and ParticleContainer< T, Dim >::unscaleDtByCharge().

E

template<typename T , unsigned Dim = 3>

Base::particle_position_type ParticleContainer< T, Dim >::E

electric field at particle position

Definition at line 141 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::createParticles(), ParallelTracker::kickParticles(), and ParticleContainer< T, Dim >::registerAttributes().

globalProcesses_m

template<typename T , unsigned Dim = 3>

std::vector<std::unique_ptr<GlobalProcess> > ParticleContainer< T, Dim >::globalProcesses_m

private

Global physics processes attached to this container.

Definition at line 822 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::getGlobalProcesses(), and ParticleContainer< T, Dim >::setGlobalProcesses().

globalToLocalQuaternion_m

template<typename T , unsigned Dim = 3>

Quaternion_t ParticleContainer< T, Dim >::globalToLocalQuaternion_m

private

Definition at line 810 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::getGlobalToLocalQuaternion(), and ParticleContainer< T, Dim >::setGlobalToLocalQuaternion().

InvalidMask

template<typename T , unsigned Dim = 3>

ippl::ParticleAttrib<bool> ParticleContainer< T, Dim >::InvalidMask

particle deletion mask (indicates which particles are deleted every timestep)

Definition at line 150 of file ParticleContainer.hpp.

Referenced by Decay::apply(), ParticleContainer< T, Dim >::createParticles(), ParticleContainer< T, Dim >::deleteInvalidParticles(), ParticleContainer< T, Dim >::markParticlesOutside(), and ParticleContainer< T, Dim >::registerAttributes().

MAttr

template<typename T , unsigned Dim = 3>

ippl::ParticleAttrib<double> ParticleContainer< T, Dim >::MAttr

private

Definition at line 800 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::getMassPerParticle(), ParticleContainer< T, Dim >::getMView(), ParticleContainer< T, Dim >::registerAttributes(), and ParticleContainer< T, Dim >::setM().

MView_m

template<typename T , unsigned Dim = 3>

qm_view_type ParticleContainer< T, Dim >::MView_m

private

Definition at line 796 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::getMassPerParticle(), ParticleContainer< T, Dim >::getMView(), ParticleContainer< T, Dim >::ParticleContainer(), and ParticleContainer< T, Dim >::setM().

P

template<typename T , unsigned Dim = 3>

Base::particle_position_type ParticleContainer< T, Dim >::P

particle momenta [\beta\gamma]

Definition at line 138 of file ParticleContainer.hpp.

Referenced by Decay::apply(), ParticleContainer< T, Dim >::applyFractionalStep(), ParallelTracker::kickParticles(), ParallelTracker::pushParticles(), ParticleContainer< T, Dim >::registerAttributes(), and ParticleContainer< T, Dim >::updateRefToLabCSTrafo().

Phi

template<typename T , unsigned Dim = 3>

ippl::ParticleAttrib<double> ParticleContainer< T, Dim >::Phi

the scalar potential in [Cb/s]

Definition at line 129 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::createParticles(), and ParticleContainer< T, Dim >::registerAttributes().

pl_m

template<typename T , unsigned Dim = 3>

PLayout_t<T, Dim> ParticleContainer< T, Dim >::pl_m

private

Definition at line 782 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::getPL(), and ParticleContainer< T, Dim >::ParticleContainer().

Pol

template<typename T , unsigned Dim = 3>

ippl::ParticleAttrib<spin_vector_type> ParticleContainer< T, Dim >::Pol

Per-particle polarization vector P (rest-frame Pauli expectation values along lab-frame axes; |Pol| in [0, 1]). Registered only when spinEnabled_m is true. Storage is float to halve memory; kernels should compute in double and cast.

Definition at line 155 of file ParticleContainer.hpp.

Referenced by Decay::apply(), and ParticleContainer< T, Dim >::registerAttributes().

QAttr

template<typename T , unsigned Dim = 3>

ippl::ParticleAttrib<double> ParticleContainer< T, Dim >::QAttr

private

Definition at line 799 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::getChargePerParticle(), ParticleContainer< T, Dim >::getQView(), ParticleContainer< T, Dim >::registerAttributes(), ParticleContainer< T, Dim >::scaleDtByCharge(), ParticleContainer< T, Dim >::setQ(), and ParticleContainer< T, Dim >::unscaleDtByCharge().

qmStorageMode_m

template<typename T , unsigned Dim = 3>

QMStorageMode ParticleContainer< T, Dim >::qmStorageMode_m = QMStorageMode::SingleValue

private

Definition at line 784 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::getChargePerParticle(), ParticleContainer< T, Dim >::getMassPerParticle(), ParticleContainer< T, Dim >::getMView(), ParticleContainer< T, Dim >::getQMStorageMode(), ParticleContainer< T, Dim >::getQView(), ParticleContainer< T, Dim >::registerAttributes(), ParticleContainer< T, Dim >::scaleDtByCharge(), ParticleContainer< T, Dim >::setM(), ParticleContainer< T, Dim >::setQ(), and ParticleContainer< T, Dim >::unscaleDtByCharge().

QView_m

template<typename T , unsigned Dim = 3>

qm_view_type ParticleContainer< T, Dim >::QView_m

private

Definition at line 795 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::getChargePerParticle(), ParticleContainer< T, Dim >::getQView(), ParticleContainer< T, Dim >::ParticleContainer(), ParticleContainer< T, Dim >::scaleDtByCharge(), ParticleContainer< T, Dim >::setQ(), and ParticleContainer< T, Dim >::unscaleDtByCharge().

reference_m

template<typename T , unsigned Dim = 3>

const PartData* ParticleContainer< T, Dim >::reference_m = nullptr

private

Definition at line 816 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::getReference(), and ParticleContainer< T, Dim >::setReference().

refPartP_m

template<typename T , unsigned Dim = 3>

Vector_t<double, Dim> ParticleContainer< T, Dim >::refPartP_m

private

Definition at line 807 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::applyFractionalStep(), ParticleContainer< T, Dim >::getRefPartP(), ParticleContainer< T, Dim >::getRefPartP(), ParticleContainer< T, Dim >::setRefPartP(), and ParticleContainer< T, Dim >::updateRefToLabCSTrafo().

refPartR_m

template<typename T , unsigned Dim = 3>

Vector_t<double, Dim> ParticleContainer< T, Dim >::refPartR_m

private

Definition at line 806 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::applyFractionalStep(), ParticleContainer< T, Dim >::getRefPartR(), ParticleContainer< T, Dim >::getRefPartR(), ParticleContainer< T, Dim >::setRefPartR(), and ParticleContainer< T, Dim >::updateRefToLabCSTrafo().

Sp

template<typename T , unsigned Dim = 3>

short ParticleContainer< T, Dim >::Sp = 0

the particle specis

Definition at line 135 of file ParticleContainer.hpp.

spinEnabled_m

template<typename T , unsigned Dim = 3>

bool ParticleContainer< T, Dim >::spinEnabled_m = false

private

Definition at line 803 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::hasSpin(), and ParticleContainer< T, Dim >::registerAttributes().

sPos_m

template<typename T , unsigned Dim = 3>

double ParticleContainer< T, Dim >::sPos_m = 0.0

private

Definition at line 819 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::applyFractionalStep(), ParticleContainer< T, Dim >::get_sPos(), ParticleContainer< T, Dim >::set_sPos(), and ParticleContainer< T, Dim >::updateRefToLabCSTrafo().

toLabTrafo_m

template<typename T , unsigned Dim = 3>

CoordinateSystemTrafo ParticleContainer< T, Dim >::toLabTrafo_m

private

Definition at line 813 of file ParticleContainer.hpp.

Referenced by ParticleContainer< T, Dim >::applyFractionalStep(), ParticleContainer< T, Dim >::getToLabTrafo(), ParticleContainer< T, Dim >::getToLabTrafo(), ParticleContainer< T, Dim >::setToLabTrafo(), and ParticleContainer< T, Dim >::updateRefToLabCSTrafo().

---

The documentation for this class was generated from the following files:

• PartBunchFwd.h
• ParticleContainer.hpp
