Generating particles following a Gaussian distribution. More...

#include <Gaussian.h>

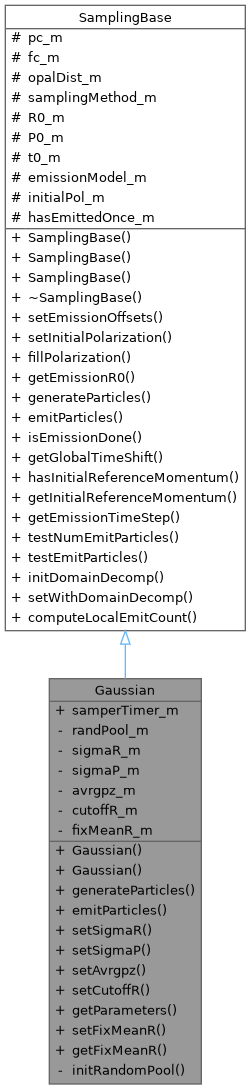

Inheritance diagram for Gaussian:

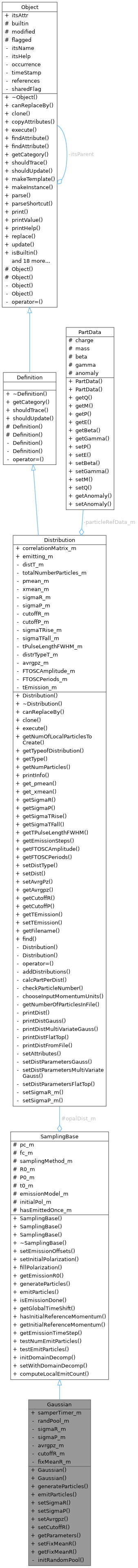

Collaboration diagram for Gaussian:

Public Member Functions
	Gaussian (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc, Distribution_t *opalDist)
	Constructor for the Gaussian sampler.

	Gaussian (std::shared_ptr< ParticleContainer_t > pc, const Vector_t< double, 3 > &sigmaR, const Vector_t< double, 3 > &sigmaP, double avrgpz, const Vector_t< double, 3 > &cutoffR, bool fix_meanR=true)
	Constructor for the Gaussian sampler without field container and distribution object.

void	generateParticles (size_t &numberOfParticles, Vector_t< double, 3 > nr) override
	Generates particles with a Gaussian distribution.

void	emitParticles (double t, double dt) override
	Time-stepped emission hook for one-shot delayed injection.

void	setSigmaR (const Vector_t< double, 3 > &sigmaR)

void	setSigmaP (const Vector_t< double, 3 > &sigmaP)

void	setAvrgpz (double avrgpz)

void	setCutoffR (const Vector_t< double, 3 > &cutoffR)

void	getParameters (Vector_t< double, 3 > &sigmaR, Vector_t< double, 3 > &sigmaP, double &avrgpz, Vector_t< double, 3 > &cutoffR) const

void	setFixMeanR (bool fixMeanR)

void	getFixMeanR (bool &fixMeanR) const

void	setEmissionOffsets (ippl::Vector< double, 3 > R0, ippl::Vector< double, 3 > P0, double t0, const std::string &emissionModel="NONE")

void	setInitialPolarization (const ippl::Vector< double, 3 > &pol)

void	fillPolarization (size_t startIdx, size_t count)

Vector_t< double, 3 >	getEmissionR0 () const

virtual bool	isEmissionDone (double t) const
	Whether this sampler has finished all emission (no more particles will be created).

virtual double	getGlobalTimeShift () const
	Optional tracker time shift needed before the first emitted particles are born.

virtual bool	hasInitialReferenceMomentum () const
	Optional initial reference momentum in the source-local frame.

virtual Vector_t< double, 3 >	getInitialReferenceMomentum () const

virtual double	getEmissionTimeStep () const
	Optional OPAL-like tracker time step while this sampler is still emitting.

virtual void	testNumEmitParticles (size_t, double)

virtual void	testEmitParticles (size_t, double)

virtual void	initDomainDecomp (double)

virtual void	setWithDomainDecomp (bool)

size_t	computeLocalEmitCount (size_t totalToSample) const
	Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Public Attributes
IpplTimings::TimerRef	samperTimer_m
	Timer for performance profiling.

Protected Attributes
std::shared_ptr< ParticleContainer_t >	pc_m

std::shared_ptr< FieldContainer_t >	fc_m

Distribution_t *	opalDist_m = nullptr

std::string	samplingMethod_m

Vector_t< double, 3 >	R0_m = 0.0
	Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Vector_t< double, 3 >	P0_m = 0.0

double	t0_m = 0.0

std::string	emissionModel_m = "NONE"

Vector_t< double, 3 >	initialPol_m = 0.0

bool	hasEmittedOnce_m = false
	For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Private Member Functions
void	initRandomPool ()
	Initializes the random number generator pool.

Private Attributes
GeneratorPool	randPool_m
	Pool of random number generators for parallel sampling.

Vector_t< double, 3 >	sigmaR_m
	Standard deviations for position and momentum distributions.

Vector_t< double, 3 >	sigmaP_m

double	avrgpz_m
	Average momentum in the z-direction.

Vector_t< double, 3 >	cutoffR_m
	Cutoff multiplier for position distribution.

bool	fixMeanR_m = true
	Flag to exactly fix the mean position of particles after sampling.

Detailed Description

Generating particles following a Gaussian distribution.

This function samples particle positions R and momenta P given following normal distributions a normal distribution R ~ N ( [0, 0, 0 ], sdR) P ~ N ( [0, 0, avrgpz], sdP) where sdR = [SigmaR[0] 0 0 0 SigmaR[1] 0 0 0 SigmaR[2]]

and sdP = [SigmaP[0] 0 0 0 SigmaP[1] 0 0 0 SigmaP[2]].

Here, R is sampled in a bounded domains R \in [-CutoffR*SigmaR, CutoffR*SigmaR]^3 and corrected by translation to ensure mean = [0,0,0].

Parameters

numberOfParticles	The total number of particles to generate.
nr	The number of grid points in each dimension (not used here).

Definition at line 38 of file Gaussian.h.

Constructor & Destructor Documentation

◆ Gaussian() [1/2]

Gaussian::Gaussian	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc,
		Distribution_t *	opalDist
	)

Constructor for the Gaussian sampler.

Constructs a Gaussian sampler.

Parameters

pc	Shared pointer to the particle container.
fc	Shared pointer to the field container.
opalDist	Borrowed distribution object.

Definition at line 15 of file Gaussian.cpp.

References Distribution::getAvrgpz(), Distribution::getCutoffR(), Distribution::getSigmaP(), Distribution::getSigmaR(), initRandomPool(), samperTimer_m, setAvrgpz(), setCutoffR(), setSigmaP(), and setSigmaR().

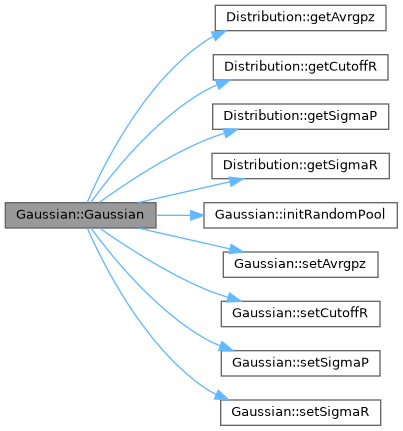

Here is the call graph for this function:

◆ Gaussian() [2/2]

Gaussian::Gaussian	(	std::shared_ptr< ParticleContainer_t >	pc,
		const Vector_t< double, 3 > &	sigmaR,
		const Vector_t< double, 3 > &	sigmaP,
		double	avrgpz,
		const Vector_t< double, 3 > &	cutoffR,
		bool	fix_meanR = `true`
	)

Constructor for the Gaussian sampler without field container and distribution object.

Parameters

pc	Shared pointer to the particle container.
sigmaR	Standard deviation for position distribution.
sigmaP	Standard deviation for momentum distribution.
avrgpz	Average momentum in the z-direction.
cutoffR	Cutoff multiplier for position distribution.
fix_meanR	Flag to exactly fix the mean position of particles after sampling.

Definition at line 27 of file Gaussian.cpp.

References initRandomPool(), samperTimer_m, setAvrgpz(), setCutoffR(), setFixMeanR(), setSigmaP(), and setSigmaR().

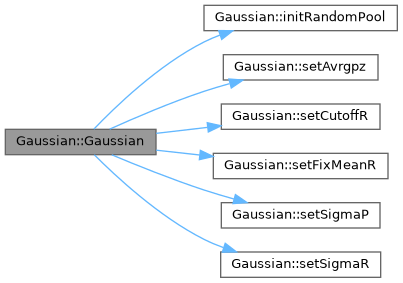

Here is the call graph for this function:

Member Function Documentation

◆ computeLocalEmitCount()

size_t SamplingBase::computeLocalEmitCount ( size_t totalToSample ) const

inherited

Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Parameters

totalToSample Global number of particles to emit this timestep.

Returns: Local number of particles this rank should create/emit.

Definition at line 6 of file SamplingBase.cpp.

References SamplingBase::pc_m.

Referenced by FlatTop::countEnteringParticlesPerRank(), FromFile::generateParticles(), generateParticles(), and MultiVariateGaussian::generateParticles().

◆ emitParticles()

void Gaussian::emitParticles	(	double	t,
		double	dt
	)

overridevirtual

Time-stepped emission hook for one-shot delayed injection.

For GAUSS, this emits once when [t, t+dt] crosses t0 for sources with t0 > 0. Initial sampling at t0 == 0 is handled via generateParticles.

Reimplemented from SamplingBase.

Definition at line 187 of file Gaussian.cpp.

References generateParticles(), Distribution::getNumParticles(), SamplingBase::hasEmittedOnce_m, SamplingBase::opalDist_m, SamplingBase::pc_m, and SamplingBase::t0_m.

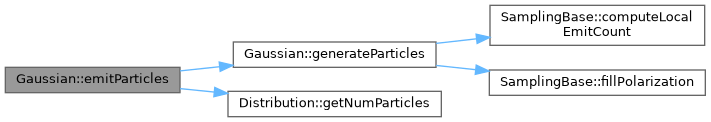

Here is the call graph for this function:

◆ fillPolarization()

void SamplingBase::fillPolarization	(	size_t	startIdx,
		size_t	count
	)

inlineinherited

Fill the Pol particle attribute with initialPol_m on the half-open range [startIdx, startIdx + count). No-op when the container does not store spin. Must be called after the particles have been created and before they are pushed downstream.

Definition at line 63 of file SamplingBase.hpp.

References SamplingBase::initialPol_m, and SamplingBase::pc_m.

Referenced by FlatTop::emitParticles(), FromFile::generateParticles(), generateParticles(), and MultiVariateGaussian::generateParticles().

◆ generateParticles()

void Gaussian::generateParticles	(	size_t &	numberOfParticles,
		Vector_t< double, 3 >	nr
	)

overridevirtual

Generates particles with a Gaussian distribution.

Generates particles following a Gaussian distribution.

Parameters

numberOfParticles	The total number of particles to generate.
nr	the number of grid cells in R (used in domain decomposition).
numberOfParticles	The total number of particles to generate.
nr	The number of grid points in each dimension (not used here).

Reimplemented from SamplingBase.

Definition at line 64 of file Gaussian.cpp.

References avrgpz_m, SamplingBase::computeLocalEmitCount(), cutoffR_m, SamplingBase::emissionModel_m, SamplingBase::fillPolarization(), fixMeanR_m, SamplingBase::hasEmittedOnce_m, SamplingBase::P0_m, SamplingBase::pc_m, SamplingBase::R0_m, randPool_m, samperTimer_m, sigmaP_m, sigmaR_m, and SamplingBase::t0_m.

Referenced by emitParticles(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ getEmissionR0()

Vector_t< double, 3 > SamplingBase::getEmissionR0 ( ) const

inlineinherited

Definition at line 78 of file SamplingBase.hpp.

References SamplingBase::R0_m.

◆ getEmissionTimeStep()

virtual double SamplingBase::getEmissionTimeStep ( ) const

inlinevirtualinherited

Optional OPAL-like tracker time step while this sampler is still emitting.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 102 of file SamplingBase.hpp.

◆ getFixMeanR()

void Gaussian::getFixMeanR ( bool & fixMeanR ) const

inline

Definition at line 104 of file Gaussian.h.

References fixMeanR_m.

◆ getGlobalTimeShift()

virtual double SamplingBase::getGlobalTimeShift ( ) const

inlinevirtualinherited

Optional tracker time shift needed before the first emitted particles are born.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 92 of file SamplingBase.hpp.

◆ getInitialReferenceMomentum()

virtual Vector_t< double, 3 > SamplingBase::getInitialReferenceMomentum ( ) const

inlinevirtualinherited

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 97 of file SamplingBase.hpp.

◆ getParameters()

void Gaussian::getParameters	(	Vector_t< double, 3 > &	sigmaR,
		Vector_t< double, 3 > &	sigmaP,
		double &	avrgpz,
		Vector_t< double, 3 > &	cutoffR
	)		const

inline

Definition at line 93 of file Gaussian.h.

References avrgpz_m, cutoffR_m, sigmaP_m, and sigmaR_m.

◆ hasInitialReferenceMomentum()

virtual bool SamplingBase::hasInitialReferenceMomentum ( ) const

inlinevirtualinherited

Optional initial reference momentum in the source-local frame.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 95 of file SamplingBase.hpp.

◆ initDomainDecomp()

virtual void SamplingBase::initDomainDecomp ( double )

inlinevirtualinherited

Reimplemented in FlatTop, and OpalFlatTop.

Definition at line 110 of file SamplingBase.hpp.

◆ initRandomPool()

void Gaussian::initRandomPool ( )

private

Initializes the random number generator pool.

Definition at line 42 of file Gaussian.cpp.

References gmsg, randPool_m, and Options::seed.

Referenced by Gaussian(), and Gaussian().

◆ isEmissionDone()

virtual bool SamplingBase::isEmissionDone ( double t ) const

inlinevirtualinherited

Whether this sampler has finished all emission (no more particles will be created).

Parameters

t	Current simulation time (s).

Reimplemented in FlatTop, EmittedFromFile, and OpalFlatTop.

Definition at line 86 of file SamplingBase.hpp.

References SamplingBase::hasEmittedOnce_m.

◆ setAvrgpz()

void Gaussian::setAvrgpz ( double avrgpz )

inline

Definition at line 89 of file Gaussian.h.

References avrgpz_m.

Referenced by Gaussian(), and Gaussian().

◆ setCutoffR()

void Gaussian::setCutoffR ( const Vector_t< double, 3 > & cutoffR )

inline

Definition at line 91 of file Gaussian.h.

References cutoffR_m.

Referenced by Gaussian(), and Gaussian().

◆ setEmissionOffsets()

void SamplingBase::setEmissionOffsets	(	ippl::Vector< double, 3 >	R0,
		ippl::Vector< double, 3 >	P0,
		double	t0,
		const std::string &	emissionModel = `"NONE"`
	)

inlineinherited

Definition at line 48 of file SamplingBase.hpp.

References SamplingBase::emissionModel_m, SamplingBase::P0_m, SamplingBase::R0_m, and SamplingBase::t0_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ setFixMeanR()

void Gaussian::setFixMeanR ( bool fixMeanR )

inline

Definition at line 102 of file Gaussian.h.

References fixMeanR_m.

Referenced by Gaussian().

◆ setInitialPolarization()

void SamplingBase::setInitialPolarization ( const ippl::Vector< double, 3 > & pol )

inlineinherited

Definition at line 57 of file SamplingBase.hpp.

References SamplingBase::initialPol_m.

◆ setSigmaP()

void Gaussian::setSigmaP ( const Vector_t< double, 3 > & sigmaP )

inline

Definition at line 87 of file Gaussian.h.

References sigmaP_m.

Referenced by Gaussian(), and Gaussian().

◆ setSigmaR()

void Gaussian::setSigmaR ( const Vector_t< double, 3 > & sigmaR )

inline

Definition at line 85 of file Gaussian.h.

References sigmaR_m.

Referenced by Gaussian(), and Gaussian().

◆ setWithDomainDecomp()

virtual void SamplingBase::setWithDomainDecomp ( bool )

inlinevirtualinherited

Reimplemented in FlatTop, and OpalFlatTop.

Definition at line 112 of file SamplingBase.hpp.

◆ testEmitParticles()

virtual void SamplingBase::testEmitParticles	(	size_t	,
		double
	)

inlinevirtualinherited

Definition at line 108 of file SamplingBase.hpp.

◆ testNumEmitParticles()

virtual void SamplingBase::testNumEmitParticles	(	size_t	,
		double
	)

inlinevirtualinherited

Definition at line 105 of file SamplingBase.hpp.

Member Data Documentation

◆ avrgpz_m

double Gaussian::avrgpz_m

private

Average momentum in the z-direction.

Definition at line 126 of file Gaussian.h.

Referenced by generateParticles(), getParameters(), and setAvrgpz().

◆ cutoffR_m

Vector_t<double, 3> Gaussian::cutoffR_m

private

Cutoff multiplier for position distribution.

Definition at line 131 of file Gaussian.h.

Referenced by generateParticles(), getParameters(), and setCutoffR().

◆ emissionModel_m

std::string SamplingBase::emissionModel_m = "NONE"

protectedinherited

Definition at line 25 of file SamplingBase.hpp.

Referenced by OpalFlatTop::generateLocalParticles(), EmittedFromFile::generateParticles(), FromFile::generateParticles(), generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

◆ fc_m

std::shared_ptr<FieldContainer_t> SamplingBase::fc_m

protectedinherited

Definition at line 18 of file SamplingBase.hpp.

Referenced by FlatTop::initDomainDecomp(), OpalFlatTop::initDomainDecomp(), FlatTop::setParameters(), and OpalFlatTop::setParameters().

◆ fixMeanR_m

bool Gaussian::fixMeanR_m = true

private

Flag to exactly fix the mean position of particles after sampling.

Definition at line 136 of file Gaussian.h.

Referenced by generateParticles(), getFixMeanR(), and setFixMeanR().

◆ hasEmittedOnce_m

bool SamplingBase::hasEmittedOnce_m = false

protectedinherited

For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Definition at line 33 of file SamplingBase.hpp.

Referenced by FromFile::emitParticles(), emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), generateParticles(), MultiVariateGaussian::generateParticles(), and SamplingBase::isEmissionDone().

◆ initialPol_m

Vector_t<double, 3> SamplingBase::initialPol_m = 0.0

protectedinherited

Initial polarization vector P applied to every particle this sampler creates. Rest-frame Pauli expectations along lab-frame axes; |Pol| in [0, 1]. Ignored when the container does not have a spin attribute (hasSpin() == false).

Definition at line 30 of file SamplingBase.hpp.

Referenced by SamplingBase::fillPolarization(), and SamplingBase::setInitialPolarization().

◆ opalDist_m

Distribution_t* SamplingBase::opalDist_m = nullptr

protectedinherited

Definition at line 19 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), FromFile::emitParticles(), emitParticles(), MultiVariateGaussian::emitParticles(), EmittedFromFile::generateParticles(), MultiVariateGaussian::MultiVariateGaussian(), and FlatTop::setParameters().

◆ P0_m

Vector_t<double, 3> SamplingBase::P0_m = 0.0

protectedinherited

Definition at line 23 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), EmittedFromFile::generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

◆ pc_m

std::shared_ptr<ParticleContainer_t> SamplingBase::pc_m

protectedinherited

◆ R0_m

Vector_t<double, 3> SamplingBase::R0_m = 0.0

protectedinherited

Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Definition at line 22 of file SamplingBase.hpp.

Referenced by EmittedFromFile::generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), SamplingBase::getEmissionR0(), and SamplingBase::setEmissionOffsets().

◆ randPool_m

GeneratorPool Gaussian::randPool_m

private

Pool of random number generators for parallel sampling.

Definition at line 115 of file Gaussian.h.

Referenced by generateParticles(), and initRandomPool().

◆ samperTimer_m

IpplTimings::TimerRef Gaussian::samperTimer_m

Timer for performance profiling.

Definition at line 43 of file Gaussian.h.

Referenced by Gaussian(), Gaussian(), and generateParticles().

◆ samplingMethod_m

std::string SamplingBase::samplingMethod_m

protectedinherited

Definition at line 20 of file SamplingBase.hpp.

◆ sigmaP_m

Vector_t<double, 3> Gaussian::sigmaP_m

private

Definition at line 121 of file Gaussian.h.

Referenced by generateParticles(), getParameters(), and setSigmaP().

◆ sigmaR_m

Vector_t<double, 3> Gaussian::sigmaR_m

private

Standard deviations for position and momentum distributions.

Definition at line 120 of file Gaussian.h.

Referenced by generateParticles(), getParameters(), and setSigmaR().

◆ t0_m

double SamplingBase::t0_m = 0.0

protectedinherited

Definition at line 24 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), FlatTop::emitParticles(), FromFile::emitParticles(), emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), generateParticles(), MultiVariateGaussian::generateParticles(), EmittedFromFile::getGlobalTimeShift(), OpalFlatTop::getGlobalTimeShift(), FlatTop::isEmissionDone(), SamplingBase::setEmissionOffsets(), and OpalFlatTop::toBirthTime().

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Gaussian() [1/2]

◆ Gaussian() [2/2]

Member Function Documentation

◆ computeLocalEmitCount()

◆ emitParticles()

◆ fillPolarization()

◆ generateParticles()

◆ getEmissionR0()

◆ getEmissionTimeStep()

◆ getFixMeanR()

◆ getGlobalTimeShift()

◆ getInitialReferenceMomentum()

◆ getParameters()

◆ hasInitialReferenceMomentum()

◆ initDomainDecomp()

◆ initRandomPool()

◆ isEmissionDone()

◆ setAvrgpz()

◆ setCutoffR()

◆ setEmissionOffsets()

◆ setFixMeanR()

◆ setInitialPolarization()

◆ setSigmaP()

◆ setSigmaR()

◆ setWithDomainDecomp()

◆ testEmitParticles()

◆ testNumEmitParticles()

Member Data Documentation

◆ avrgpz_m

◆ cutoffR_m

◆ emissionModel_m

◆ fc_m

◆ fixMeanR_m

◆ hasEmittedOnce_m

◆ initialPol_m

◆ opalDist_m

◆ P0_m

◆ pc_m

◆ R0_m

◆ randPool_m

◆ samperTimer_m

◆ samplingMethod_m

◆ sigmaP_m

◆ sigmaR_m

◆ t0_m
