Implements an old-OPAL-compatible flat-top emitter with precomputed birth times. More...

#include <OpalFlatTop.h>

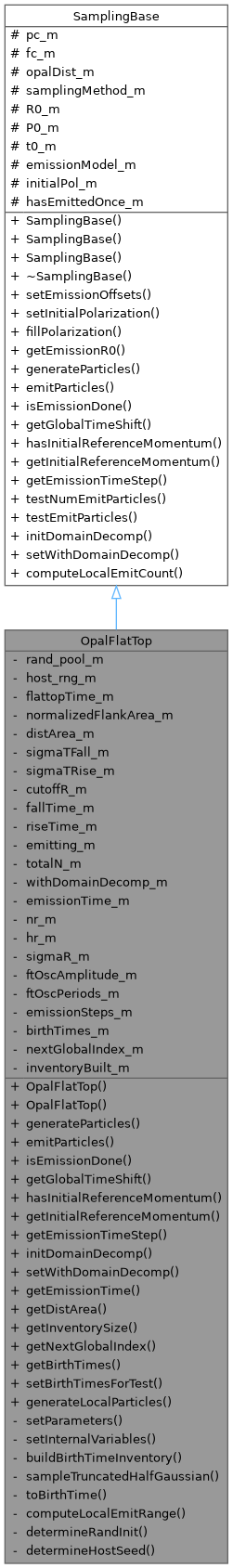

Inheritance diagram for OpalFlatTop:

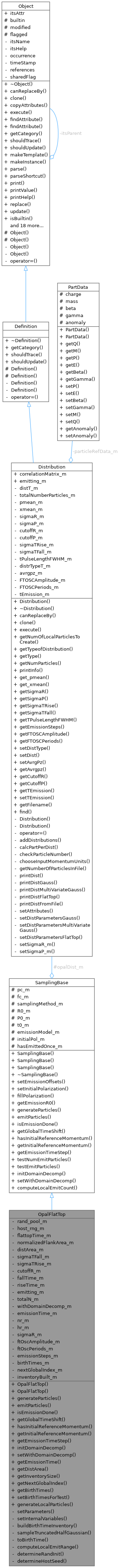

Collaboration diagram for OpalFlatTop:

Public Member Functions
	OpalFlatTop (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc, Distribution_t *opalDist)
	Constructor for OpalFlatTop.

	OpalFlatTop (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc, bool emitting, double sigmaTFall, double sigmaTRise, Vector_t< double, 3 > cutoff, double tPulseLengthFWHM, Vector_t< double, 3 > sigmaR, double ftOscAmplitude=0.0, double ftOscPeriods=0.0)
	Constructor for OpalFlatTop with parameters passed directly.

void	generateParticles (size_t &numberOfParticles, Vector_t< double, 3 > nr) override
	Builds the global birth-time inventory for the requested particles.

void	emitParticles (double t, double dt) override
	Emits all particles whose birth times fall into the current step.

bool	isEmissionDone (double) const override
	Returns whether all precomputed particles have been emitted.

double	getGlobalTimeShift () const override
	Returns the global time shift needed to center old-OPAL pulse times.

bool	hasInitialReferenceMomentum () const override
	Reports that this sampler provides an initial reference momentum.

Vector_t< double, 3 >	getInitialReferenceMomentum () const override
	Returns the initial reference momentum used by the tracker.

double	getEmissionTimeStep () const override
	Returns the preferred emission time step.

void	initDomainDecomp (double BoxIncr) override
	Initializes a domain decomposition large enough for the emitted bunch.

void	setWithDomainDecomp (bool withDomainDecomp) override
	Sets whether to use domain decomposition during emission.

double	getEmissionTime () const
	Returns the total emission time.

double	getDistArea () const
	Returns the total area of the normalized flat-top distribution.

size_t	getInventorySize () const
	Returns the number of precomputed birth times.

size_t	getNextGlobalIndex () const
	Returns the next global inventory index to be emitted.

const std::vector< double > &	getBirthTimes () const
	Returns the sorted global birth-time inventory.

void	setBirthTimesForTest (std::vector< double > birthTimes)
	Replaces the birth-time inventory for tests.

void	generateLocalParticles (size_type nlocalBefore, size_t globalBegin, size_t nNew, double tStart, double dt)
	Generates the local particles assigned to this rank for one emission step.

void	setEmissionOffsets (ippl::Vector< double, 3 > R0, ippl::Vector< double, 3 > P0, double t0, const std::string &emissionModel="NONE")

void	setInitialPolarization (const ippl::Vector< double, 3 > &pol)

void	fillPolarization (size_t startIdx, size_t count)

Vector_t< double, 3 >	getEmissionR0 () const

virtual void	testNumEmitParticles (size_t, double)

virtual void	testEmitParticles (size_t, double)

size_t	computeLocalEmitCount (size_t totalToSample) const
	Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Protected Attributes
std::shared_ptr< ParticleContainer_t >	pc_m

std::shared_ptr< FieldContainer_t >	fc_m

Distribution_t *	opalDist_m = nullptr

std::string	samplingMethod_m

Vector_t< double, 3 >	R0_m = 0.0
	Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Vector_t< double, 3 >	P0_m = 0.0

double	t0_m = 0.0

std::string	emissionModel_m = "NONE"

Vector_t< double, 3 >	initialPol_m = 0.0

bool	hasEmittedOnce_m = false
	For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Private Types
using	size_type = ippl::detail::size_type

Private Member Functions
void	setParameters (Distribution_t *opalDist)
	Reads distribution parameters from the OPALX Distribution object.

void	setInternalVariables (bool emitting, double sigmaTFall, double sigmaTRise, Vector_t< double, 3 > cutoff, double tPulseLengthFWHM, Vector_t< double, 3 > sigmaR, double ftOscAmplitude, double ftOscPeriods)
	Sets derived flat-top profile and emission parameters.

void	buildBirthTimeInventory (size_t numberOfParticles)
	Builds and sorts the global particle birth-time inventory.

double	sampleTruncatedHalfGaussian (double sigma, double limit)
	Samples an absolute value from a Gaussian truncated at a limit.

double	toBirthTime (double opalPulseTime) const
	Converts old-OPAL pulse time to tracker birth time.

std::pair< size_t, size_t >	computeLocalEmitRange (size_t totalToEmit) const
	Computes the local contiguous subrange of a global emission batch.

Static Private Member Functions
static size_t	determineRandInit ()
	Determines the device random seed initialization.

static size_t	determineHostSeed ()
	Determines the host random seed initialization.

Private Attributes
OpalFlatTopGeneratorPool	rand_pool_m
	Device random number generator pool.

std::mt19937_64	host_rng_m
	Host generator used to sample birth times.

double	flattopTime_m = 0.0
	Time duration of the flat profile section.

double	normalizedFlankArea_m = 0.0
	Area of one normalized truncated Gaussian flank.

double	distArea_m = 0.0
	Total area of the flat-top distribution.

double	sigmaTFall_m = 0.0
	Standard deviation of the falling flank.

double	sigmaTRise_m = 0.0
	Standard deviation of the rising flank.

Vector_t< double, 3 >	cutoffR_m
	Cutoff multipliers for distribution support.

double	fallTime_m = 0.0
	Duration represented by the falling flank.

double	riseTime_m = 0.0
	Duration represented by the rising flank.

bool	emitting_m = false
	Flag for particle emission status.

size_t	totalN_m = 0
	Total number of particles in the inventory.

bool	withDomainDecomp_m = false
	Flag for domain decomposition.

double	emissionTime_m = 0.0
	Total emission time.

Vector_t< double, 3 >	nr_m
	Number of grid points per direction.

Vector_t< double, 3 >	hr_m
	Grid spacing.

Vector_t< double, 3 >	sigmaR_m
	Semi-axis lengths of the transverse disk.

double	ftOscAmplitude_m = 0.0
	Flat-top oscillation amplitude in percent.

double	ftOscPeriods_m = 0.0
	Number of oscillation periods across the flat top.

size_t	emissionSteps_m = 100
	Number of steps used to derive emission dt.

std::vector< double >	birthTimes_m
	Sorted global particle birth times.

size_t	nextGlobalIndex_m = 0
	First global birth-time index not emitted yet.

bool	inventoryBuilt_m = false
	True once birthTimes_m is ready for emission.

Detailed Description

Implements an old-OPAL-compatible flat-top emitter with precomputed birth times.

x and y coordinates are sampled uniformly on an elliptical disk. The number of particles emitted in each time interval follows the flat-top time profile:

f(t)/Z = exp(-((t - riseTime_m) / sigmaTRise_m)^2 / 2), t < riseTime 1.0, riseTime <= t <= riseTime + flattopTime exp(-((t - (fallTime_m + flattopTime_m)) / sigmaTFall_m)^2 / 2), t > riseTime + flattopTime

where Z is the normalizing factor. Unlike FlatTop, this sampler builds a sorted global inventory of particle birth times before tracking starts and emits the matching slice during each tracker step.

Definition at line 43 of file OpalFlatTop.h.

Member Typedef Documentation

◆ size_type

using OpalFlatTop::size_type = ippl::detail::size_type

private

Definition at line 181 of file OpalFlatTop.h.

Constructor & Destructor Documentation

◆ OpalFlatTop() [1/2]

OpalFlatTop::OpalFlatTop	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc,
		Distribution_t *	opalDist
	)

Constructor for OpalFlatTop.

Parameters

pc	Shared pointer to ParticleContainer.
fc	Shared pointer to FieldContainer.
opalDist	Borrowed Distribution.

Definition at line 13 of file OpalFlatTop.cpp.

References setParameters().

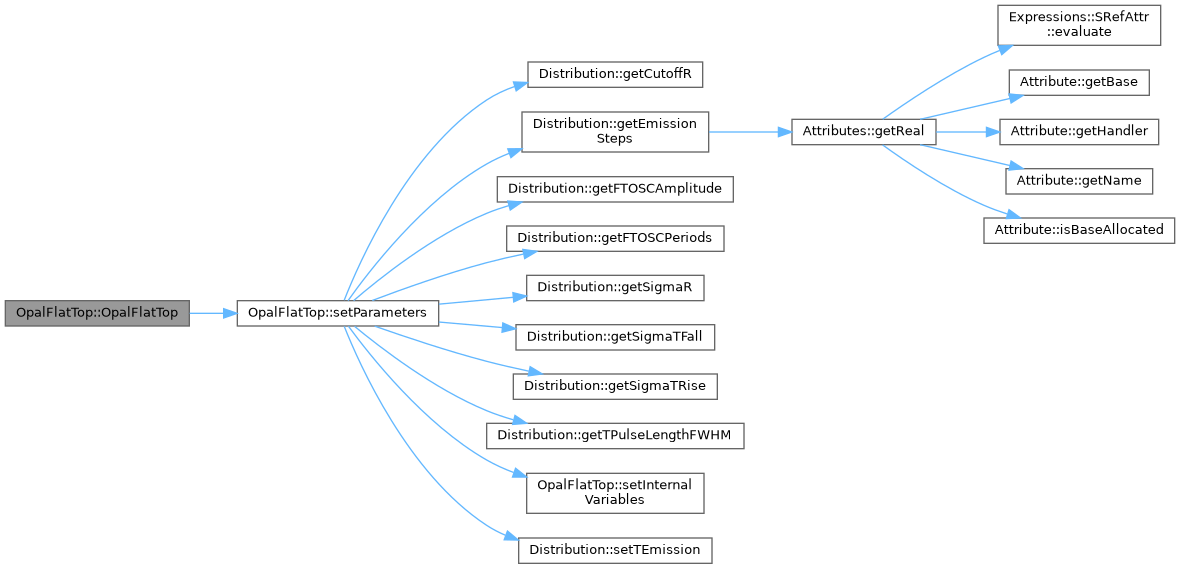

Here is the call graph for this function:

◆ OpalFlatTop() [2/2]

OpalFlatTop::OpalFlatTop	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc,
		bool	emitting,
		double	sigmaTFall,
		double	sigmaTRise,
		Vector_t< double, 3 >	cutoff,
		double	tPulseLengthFWHM,
		Vector_t< double, 3 >	sigmaR,
		double	ftOscAmplitude = `0.0`,
		double	ftOscPeriods = `0.0`
	)

Constructor for OpalFlatTop with parameters passed directly.

This is primarily intended for tests or callers that do not need a full Distribution object.

Parameters

pc	Shared pointer to ParticleContainer.
fc	Shared pointer to FieldContainer.
emitting	Flag indicating whether the distribution is emitting.
sigmaTFall	Standard deviation of the falling flank in the time profile.
sigmaTRise	Standard deviation of the rising flank in the time profile.
cutoff	Cutoff multiplier for the spatial and longitudinal distributions.
tPulseLengthFWHM	Time length of the pulse in FWHM.
sigmaR	Semi-axis lengths for the transverse emission disk.
ftOscAmplitude	Optional flat-top oscillation amplitude in percent.
ftOscPeriods	Optional number of oscillation periods across the flat top.

Definition at line 22 of file OpalFlatTop.cpp.

References setInternalVariables().

Here is the call graph for this function:

Member Function Documentation

◆ buildBirthTimeInventory()

void OpalFlatTop::buildBirthTimeInventory ( size_t numberOfParticles )

private

Builds and sorts the global particle birth-time inventory.

Parameters

numberOfParticles Number of birth times to generate.

Definition at line 111 of file OpalFlatTop.cpp.

References birthTimes_m, cutoffR_m, distArea_m, fallTime_m, flattopTime_m, ftOscAmplitude_m, ftOscPeriods_m, host_rng_m, inventoryBuilt_m, nextGlobalIndex_m, normalizedFlankArea_m, sampleTruncatedHalfGaussian(), sigmaTFall_m, sigmaTRise_m, toBirthTime(), and Physics::two_pi.

Referenced by generateParticles().

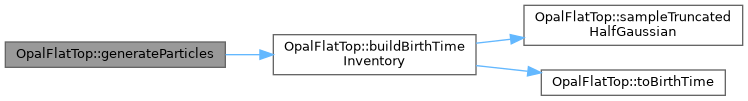

Here is the call graph for this function:

◆ computeLocalEmitCount()

size_t SamplingBase::computeLocalEmitCount ( size_t totalToSample ) const

inherited

Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Parameters

totalToSample Global number of particles to emit this timestep.

Returns: Local number of particles this rank should create/emit.

Definition at line 6 of file SamplingBase.cpp.

References SamplingBase::pc_m.

Referenced by FlatTop::countEnteringParticlesPerRank(), FromFile::generateParticles(), Gaussian::generateParticles(), and MultiVariateGaussian::generateParticles().

◆ computeLocalEmitRange()

std::pair< size_t, size_t > OpalFlatTop::computeLocalEmitRange ( size_t totalToEmit ) const

private

Computes the local contiguous subrange of a global emission batch.

Parameters

totalToEmit Number of particles emitted globally in the current step.

Returns: Pair of local offset into the global batch and local particle count.

Definition at line 207 of file OpalFlatTop.cpp.

References SamplingBase::pc_m.

Referenced by emitParticles().

◆ determineHostSeed()

size_t OpalFlatTop::determineHostSeed ( )

staticprivate

Determines the host random seed initialization.

Returns: Seed value for host-side birth-time sampling.

Definition at line 45 of file OpalFlatTop.cpp.

References Options::seed.

◆ determineRandInit()

size_t OpalFlatTop::determineRandInit ( )

staticprivate

Determines the device random seed initialization.

Returns: Seed value for the per-rank Kokkos random pool.

Definition at line 33 of file OpalFlatTop.cpp.

References gmsg, and Options::seed.

◆ emitParticles()

void OpalFlatTop::emitParticles	(	double	t,
		double	dt
	)

overridevirtual

Emits all particles whose birth times fall into the current step.

Parameters

t	Start time of the current tracker step.
dt	Time step size.

Reimplemented from SamplingBase.

Definition at line 268 of file OpalFlatTop.cpp.

References birthTimes_m, computeLocalEmitRange(), generateLocalParticles(), inventoryBuilt_m, nextGlobalIndex_m, and SamplingBase::pc_m.

Referenced by TEST_F(), TEST_F(), and TEST_F().

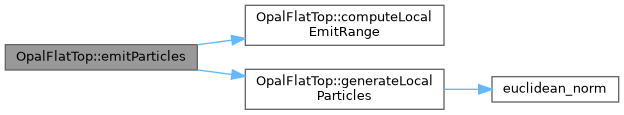

Here is the call graph for this function:

◆ fillPolarization()

void SamplingBase::fillPolarization	(	size_t	startIdx,
		size_t	count
	)

inlineinherited

Fill the Pol particle attribute with initialPol_m on the half-open range [startIdx, startIdx + count). No-op when the container does not store spin. Must be called after the particles have been created and before they are pushed downstream.

Definition at line 63 of file SamplingBase.hpp.

References SamplingBase::initialPol_m, and SamplingBase::pc_m.

Referenced by FlatTop::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), and MultiVariateGaussian::generateParticles().

◆ generateLocalParticles()

void OpalFlatTop::generateLocalParticles	(	size_type	nlocalBefore,
		size_t	globalBegin,
		size_t	nNew,
		double	tStart,
		double	dt
	)

Generates the local particles assigned to this rank for one emission step.

Particles are sampled on the transverse disk, assigned a per-particle fractional step based on their birth time, and drifted for half of that effective step.

Parameters

nlocalBefore	Local particle count before allocation.
globalBegin	First global birth-time index assigned to this rank.
nNew	Number of local particles to generate.
tStart	Start time of the current tracker step.
dt	Time step size.

Definition at line 303 of file OpalFlatTop.cpp.

References birthTimes_m, Physics::c, SamplingBase::emissionModel_m, euclidean_norm(), SamplingBase::P0_m, SamplingBase::pc_m, SamplingBase::R0_m, rand_pool_m, sigmaR_m, and Physics::two_pi.

Referenced by emitParticles().

Here is the call graph for this function:

◆ generateParticles()

void OpalFlatTop::generateParticles	(	size_t &	numberOfParticles,
		Vector_t< double, 3 >	nr
	)

overridevirtual

Builds the global birth-time inventory for the requested particles.

Parameters

numberOfParticles	Number of particles to generate.
nr	Number of grid points in each direction.

Reimplemented from SamplingBase.

Definition at line 93 of file OpalFlatTop.cpp.

References buildBirthTimeInventory(), emitting_m, nr, nr_m, and totalN_m.

Referenced by TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ getBirthTimes()

const std::vector< double > & OpalFlatTop::getBirthTimes ( ) const

inline

Returns the sorted global birth-time inventory.

Definition at line 171 of file OpalFlatTop.h.

References birthTimes_m.

Referenced by TEST_F().

◆ getDistArea()

double OpalFlatTop::getDistArea ( ) const

inline

Returns the total area of the normalized flat-top distribution.

Definition at line 156 of file OpalFlatTop.h.

References distArea_m.

◆ getEmissionR0()

Vector_t< double, 3 > SamplingBase::getEmissionR0 ( ) const

inlineinherited

Definition at line 78 of file SamplingBase.hpp.

References SamplingBase::R0_m.

◆ getEmissionTime()

double OpalFlatTop::getEmissionTime ( ) const

inline

Returns the total emission time.

Definition at line 151 of file OpalFlatTop.h.

References emissionTime_m.

Referenced by TEST_F().

◆ getEmissionTimeStep()

double OpalFlatTop::getEmissionTimeStep ( ) const

inlineoverridevirtual

Returns the preferred emission time step.

Returns: emissionTime divided by the configured number of emission steps.

Reimplemented from SamplingBase.

Definition at line 130 of file OpalFlatTop.h.

References emissionSteps_m, and emissionTime_m.

Referenced by TEST_F().

◆ getGlobalTimeShift()

double OpalFlatTop::getGlobalTimeShift ( ) const

inlineoverridevirtual

Returns the global time shift needed to center old-OPAL pulse times.

Returns: Non-negative shift from source time to the midpoint of the emission window.

Reimplemented from SamplingBase.

Definition at line 109 of file OpalFlatTop.h.

References emissionTime_m, and SamplingBase::t0_m.

Referenced by TEST_F(), and TEST_F().

◆ getInitialReferenceMomentum()

Vector_t< double, 3 > OpalFlatTop::getInitialReferenceMomentum ( ) const

overridevirtual

Returns the initial reference momentum used by the tracker.

Returns: P0 for EMISSIONMODEL NONE, or the ASTRA half-sphere reference momentum.

Reimplemented from SamplingBase.

Definition at line 200 of file OpalFlatTop.cpp.

References SamplingBase::emissionModel_m, euclidean_norm(), and SamplingBase::P0_m.

Referenced by TEST_F().

Here is the call graph for this function:

◆ getInventorySize()

size_t OpalFlatTop::getInventorySize ( ) const

inline

Returns the number of precomputed birth times.

Definition at line 161 of file OpalFlatTop.h.

References birthTimes_m.

◆ getNextGlobalIndex()

size_t OpalFlatTop::getNextGlobalIndex ( ) const

inline

Returns the next global inventory index to be emitted.

Definition at line 166 of file OpalFlatTop.h.

References nextGlobalIndex_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ hasInitialReferenceMomentum()

bool OpalFlatTop::hasInitialReferenceMomentum ( ) const

inlineoverridevirtual

Reports that this sampler provides an initial reference momentum.

Reimplemented from SamplingBase.

Definition at line 116 of file OpalFlatTop.h.

Referenced by TEST_F().

◆ initDomainDecomp()

void OpalFlatTop::initDomainDecomp ( double BoxIncr )

overridevirtual

Initializes a domain decomposition large enough for the emitted bunch.

Parameters

BoxIncr Percentage by which to enlarge the computed mesh box.

Reimplemented from SamplingBase.

Definition at line 383 of file OpalFlatTop.cpp.

References Physics::c, emissionTime_m, SamplingBase::fc_m, hr_m, nr_m, SamplingBase::pc_m, and sigmaR_m.

◆ isEmissionDone()

bool OpalFlatTop::isEmissionDone ( double ) const

inlineoverridevirtual

Returns whether all precomputed particles have been emitted.

Returns: True if the inventory exists and the next global index is past its end.

Reimplemented from SamplingBase.

Definition at line 100 of file OpalFlatTop.h.

References birthTimes_m, inventoryBuilt_m, and nextGlobalIndex_m.

Referenced by TEST_F().

◆ sampleTruncatedHalfGaussian()

double OpalFlatTop::sampleTruncatedHalfGaussian	(	double	sigma,
		double	limit
	)

private

Samples an absolute value from a Gaussian truncated at a limit.

Parameters

sigma	Standard deviation of the Gaussian.
limit	Maximum accepted absolute value.

Returns: Sampled non-negative time offset.

Definition at line 182 of file OpalFlatTop.cpp.

References host_rng_m.

Referenced by buildBirthTimeInventory().

◆ setBirthTimesForTest()

void OpalFlatTop::setBirthTimesForTest ( std::vector< double > birthTimes )

Replaces the birth-time inventory for tests.

Parameters

birthTimes Birth times to sort and install as the active inventory.

Definition at line 411 of file OpalFlatTop.cpp.

References birthTimes_m, inventoryBuilt_m, nextGlobalIndex_m, and totalN_m.

Referenced by TEST_F(), and TEST_F().

◆ setEmissionOffsets()

void SamplingBase::setEmissionOffsets	(	ippl::Vector< double, 3 >	R0,
		ippl::Vector< double, 3 >	P0,
		double	t0,
		const std::string &	emissionModel = `"NONE"`
	)

inlineinherited

Definition at line 48 of file SamplingBase.hpp.

References SamplingBase::emissionModel_m, SamplingBase::P0_m, SamplingBase::R0_m, and SamplingBase::t0_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ setInitialPolarization()

void SamplingBase::setInitialPolarization ( const ippl::Vector< double, 3 > & pol )

inlineinherited

Definition at line 57 of file SamplingBase.hpp.

References SamplingBase::initialPol_m.

◆ setInternalVariables()

void OpalFlatTop::setInternalVariables	(	bool	emitting,
		double	sigmaTFall,
		double	sigmaTRise,
		Vector_t< double, 3 >	cutoff,
		double	tPulseLengthFWHM,
		Vector_t< double, 3 >	sigmaR,
		double	ftOscAmplitude,
		double	ftOscPeriods
	)

private

Sets derived flat-top profile and emission parameters.

Parameters

emitting	Flag indicating whether the distribution is emitting.
sigmaTFall	Standard deviation of the falling flank.
sigmaTRise	Standard deviation of the rising flank.
cutoff	Cutoff multiplier for distribution support.
tPulseLengthFWHM	Time length of the pulse in FWHM.
sigmaR	Semi-axis lengths for the transverse emission disk.
ftOscAmplitude	Flat-top oscillation amplitude in percent.
ftOscPeriods	Number of oscillation periods across the flat top.

Definition at line 66 of file OpalFlatTop.cpp.

References cutoffR_m, distArea_m, emissionTime_m, emitting_m, fallTime_m, flattopTime_m, ftOscAmplitude_m, ftOscPeriods_m, normalizedFlankArea_m, riseTime_m, sigmaR_m, sigmaTFall_m, sigmaTRise_m, Physics::two_pi, and withDomainDecomp_m.

Referenced by OpalFlatTop(), and setParameters().

◆ setParameters()

void OpalFlatTop::setParameters ( Distribution_t * opalDist )

private

Reads distribution parameters from the OPALX Distribution object.

Parameters

opalDist Borrowed Distribution object.

Definition at line 52 of file OpalFlatTop.cpp.

References emissionSteps_m, emissionTime_m, Distribution::emitting_m, SamplingBase::fc_m, Distribution::getCutoffR(), Distribution::getEmissionSteps(), Distribution::getFTOSCAmplitude(), Distribution::getFTOSCPeriods(), Distribution::getSigmaR(), Distribution::getSigmaTFall(), Distribution::getSigmaTRise(), Distribution::getTPulseLengthFWHM(), setInternalVariables(), and Distribution::setTEmission().

Referenced by OpalFlatTop().

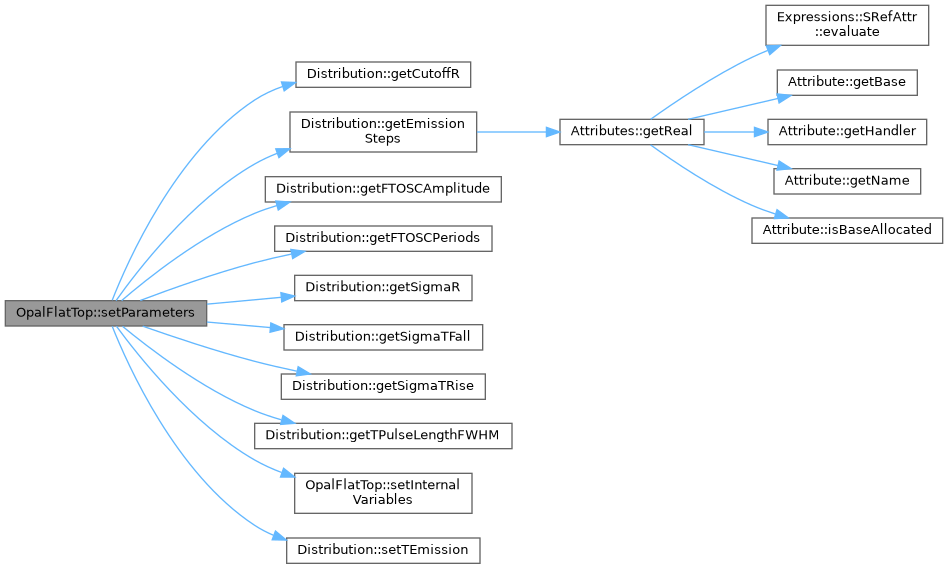

Here is the call graph for this function:

◆ setWithDomainDecomp()

void OpalFlatTop::setWithDomainDecomp ( bool withDomainDecomp )

overridevirtual

Sets whether to use domain decomposition during emission.

Parameters

withDomainDecomp Boolean flag for domain decomposition.

Reimplemented from SamplingBase.

Definition at line 407 of file OpalFlatTop.cpp.

References withDomainDecomp_m.

◆ testEmitParticles()

virtual void SamplingBase::testEmitParticles	(	size_t	,
		double
	)

inlinevirtualinherited

Definition at line 108 of file SamplingBase.hpp.

◆ testNumEmitParticles()

virtual void SamplingBase::testNumEmitParticles	(	size_t	,
		double
	)

inlinevirtualinherited

Definition at line 105 of file SamplingBase.hpp.

◆ toBirthTime()

double OpalFlatTop::toBirthTime ( double opalPulseTime ) const

private

Converts old-OPAL pulse time to tracker birth time.

Parameters

opalPulseTime Time coordinate in the old-OPAL pulse convention.

Returns: Birth time in the OPALX tracker convention.

Definition at line 196 of file OpalFlatTop.cpp.

References emissionTime_m, and SamplingBase::t0_m.

Referenced by buildBirthTimeInventory().

Member Data Documentation

◆ birthTimes_m

std::vector<double> OpalFlatTop::birthTimes_m

private

Sorted global particle birth times.

Definition at line 205 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), emitParticles(), generateLocalParticles(), getBirthTimes(), getInventorySize(), isEmissionDone(), and setBirthTimesForTest().

◆ cutoffR_m

Vector_t<double, 3> OpalFlatTop::cutoffR_m

private

Cutoff multipliers for distribution support.

Definition at line 191 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), and setInternalVariables().

◆ distArea_m

double OpalFlatTop::distArea_m = 0.0

private

Total area of the flat-top distribution.

Definition at line 188 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), getDistArea(), and setInternalVariables().

◆ emissionModel_m

std::string SamplingBase::emissionModel_m = "NONE"

protectedinherited

Definition at line 25 of file SamplingBase.hpp.

Referenced by generateLocalParticles(), EmittedFromFile::generateParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

◆ emissionSteps_m

size_t OpalFlatTop::emissionSteps_m = 100

private

Number of steps used to derive emission dt.

Definition at line 203 of file OpalFlatTop.h.

Referenced by getEmissionTimeStep(), and setParameters().

◆ emissionTime_m

double OpalFlatTop::emissionTime_m = 0.0

private

Total emission time.

Definition at line 197 of file OpalFlatTop.h.

Referenced by getEmissionTime(), getEmissionTimeStep(), getGlobalTimeShift(), initDomainDecomp(), setInternalVariables(), setParameters(), and toBirthTime().

◆ emitting_m

bool OpalFlatTop::emitting_m = false

private

Flag for particle emission status.

Definition at line 194 of file OpalFlatTop.h.

Referenced by generateParticles(), and setInternalVariables().

◆ fallTime_m

double OpalFlatTop::fallTime_m = 0.0

private

Duration represented by the falling flank.

Definition at line 192 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), and setInternalVariables().

◆ fc_m

std::shared_ptr<FieldContainer_t> SamplingBase::fc_m

protectedinherited

Definition at line 18 of file SamplingBase.hpp.

Referenced by FlatTop::initDomainDecomp(), initDomainDecomp(), FlatTop::setParameters(), and setParameters().

◆ flattopTime_m

double OpalFlatTop::flattopTime_m = 0.0

private

Time duration of the flat profile section.

Definition at line 186 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), and setInternalVariables().

◆ ftOscAmplitude_m

double OpalFlatTop::ftOscAmplitude_m = 0.0

private

Flat-top oscillation amplitude in percent.

Definition at line 201 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), and setInternalVariables().

◆ ftOscPeriods_m

double OpalFlatTop::ftOscPeriods_m = 0.0

private

Number of oscillation periods across the flat top.

Definition at line 202 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), and setInternalVariables().

◆ hasEmittedOnce_m

bool SamplingBase::hasEmittedOnce_m = false

protectedinherited

For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Definition at line 33 of file SamplingBase.hpp.

Referenced by FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), and SamplingBase::isEmissionDone().

◆ host_rng_m

std::mt19937_64 OpalFlatTop::host_rng_m

private

Host generator used to sample birth times.

Definition at line 184 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), and sampleTruncatedHalfGaussian().

◆ hr_m

Vector_t<double, 3> OpalFlatTop::hr_m

private

Grid spacing.

Definition at line 199 of file OpalFlatTop.h.

Referenced by initDomainDecomp().

◆ initialPol_m

Vector_t<double, 3> SamplingBase::initialPol_m = 0.0

protectedinherited

Initial polarization vector P applied to every particle this sampler creates. Rest-frame Pauli expectations along lab-frame axes; |Pol| in [0, 1]. Ignored when the container does not have a spin attribute (hasSpin() == false).

Definition at line 30 of file SamplingBase.hpp.

Referenced by SamplingBase::fillPolarization(), and SamplingBase::setInitialPolarization().

◆ inventoryBuilt_m

bool OpalFlatTop::inventoryBuilt_m = false

private

True once birthTimes_m is ready for emission.

Definition at line 207 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), emitParticles(), isEmissionDone(), and setBirthTimesForTest().

◆ nextGlobalIndex_m

size_t OpalFlatTop::nextGlobalIndex_m = 0

private

First global birth-time index not emitted yet.

Definition at line 206 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), emitParticles(), getNextGlobalIndex(), isEmissionDone(), and setBirthTimesForTest().

◆ normalizedFlankArea_m

double OpalFlatTop::normalizedFlankArea_m = 0.0

private

Area of one normalized truncated Gaussian flank.

Definition at line 187 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), and setInternalVariables().

◆ nr_m

Vector_t<double, 3> OpalFlatTop::nr_m

private

Number of grid points per direction.

Definition at line 198 of file OpalFlatTop.h.

Referenced by generateParticles(), and initDomainDecomp().

◆ opalDist_m

Distribution_t* SamplingBase::opalDist_m = nullptr

protectedinherited

Definition at line 19 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), EmittedFromFile::generateParticles(), MultiVariateGaussian::MultiVariateGaussian(), and FlatTop::setParameters().

◆ P0_m

Vector_t<double, 3> SamplingBase::P0_m = 0.0

protectedinherited

Definition at line 23 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), EmittedFromFile::generateLocalParticles(), generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

◆ pc_m

std::shared_ptr<ParticleContainer_t> SamplingBase::pc_m

protectedinherited

◆ R0_m

Vector_t<double, 3> SamplingBase::R0_m = 0.0

protectedinherited

Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Definition at line 22 of file SamplingBase.hpp.

Referenced by EmittedFromFile::generateLocalParticles(), generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), SamplingBase::getEmissionR0(), and SamplingBase::setEmissionOffsets().

◆ rand_pool_m

OpalFlatTopGeneratorPool OpalFlatTop::rand_pool_m

private

Device random number generator pool.

Definition at line 183 of file OpalFlatTop.h.

Referenced by generateLocalParticles().

◆ riseTime_m

double OpalFlatTop::riseTime_m = 0.0

private

Duration represented by the rising flank.

Definition at line 193 of file OpalFlatTop.h.

Referenced by setInternalVariables().

◆ samplingMethod_m

std::string SamplingBase::samplingMethod_m

protectedinherited

Definition at line 20 of file SamplingBase.hpp.

◆ sigmaR_m

Vector_t<double, 3> OpalFlatTop::sigmaR_m

private

Semi-axis lengths of the transverse disk.

Definition at line 200 of file OpalFlatTop.h.

Referenced by generateLocalParticles(), initDomainDecomp(), and setInternalVariables().

◆ sigmaTFall_m

double OpalFlatTop::sigmaTFall_m = 0.0

private

Standard deviation of the falling flank.

Definition at line 189 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), and setInternalVariables().

◆ sigmaTRise_m

double OpalFlatTop::sigmaTRise_m = 0.0

private

Standard deviation of the rising flank.

Definition at line 190 of file OpalFlatTop.h.

Referenced by buildBirthTimeInventory(), and setInternalVariables().

◆ t0_m

double SamplingBase::t0_m = 0.0

protectedinherited

Definition at line 24 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), FlatTop::emitParticles(), FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), EmittedFromFile::getGlobalTimeShift(), getGlobalTimeShift(), FlatTop::isEmissionDone(), SamplingBase::setEmissionOffsets(), and toBirthTime().

◆ totalN_m

size_t OpalFlatTop::totalN_m = 0

private

Total number of particles in the inventory.

Definition at line 195 of file OpalFlatTop.h.

Referenced by generateParticles(), and setBirthTimesForTest().

◆ withDomainDecomp_m

bool OpalFlatTop::withDomainDecomp_m = false

private

Flag for domain decomposition.

Definition at line 196 of file OpalFlatTop.h.

Referenced by setInternalVariables(), and setWithDomainDecomp().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ size_type

Constructor & Destructor Documentation

◆ OpalFlatTop() [1/2]

◆ OpalFlatTop() [2/2]

Member Function Documentation

◆ buildBirthTimeInventory()

◆ computeLocalEmitCount()

◆ computeLocalEmitRange()

◆ determineHostSeed()

◆ determineRandInit()

◆ emitParticles()

◆ fillPolarization()

◆ generateLocalParticles()

◆ generateParticles()

◆ getBirthTimes()

◆ getDistArea()

◆ getEmissionR0()

◆ getEmissionTime()

◆ getEmissionTimeStep()

◆ getGlobalTimeShift()

◆ getInitialReferenceMomentum()

◆ getInventorySize()

◆ getNextGlobalIndex()

◆ hasInitialReferenceMomentum()

◆ initDomainDecomp()

◆ isEmissionDone()

◆ sampleTruncatedHalfGaussian()

◆ setBirthTimesForTest()

◆ setEmissionOffsets()

◆ setInitialPolarization()

◆ setInternalVariables()

◆ setParameters()

◆ setWithDomainDecomp()

◆ testEmitParticles()

◆ testNumEmitParticles()

◆ toBirthTime()

Member Data Documentation

◆ birthTimes_m

◆ cutoffR_m

◆ distArea_m

◆ emissionModel_m

◆ emissionSteps_m

◆ emissionTime_m

◆ emitting_m

◆ fallTime_m

◆ fc_m

◆ flattopTime_m

◆ ftOscAmplitude_m

◆ ftOscPeriods_m

◆ hasEmittedOnce_m

◆ host_rng_m

◆ hr_m

◆ initialPol_m

◆ inventoryBuilt_m

◆ nextGlobalIndex_m

◆ normalizedFlankArea_m

◆ nr_m

◆ opalDist_m

◆ P0_m

◆ pc_m

◆ R0_m

◆ rand_pool_m

◆ riseTime_m

◆ samplingMethod_m

◆ sigmaR_m

◆ sigmaTFall_m

◆ sigmaTRise_m

◆ t0_m

◆ totalN_m

◆ withDomainDecomp_m
