Public Member Functions | Private Attributes | List of all members
FieldContainer< T, Dim > Class Template Reference

#include <FieldContainer.hpp>

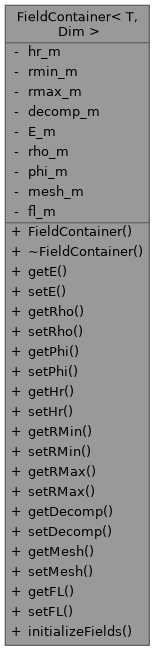

Collaboration diagram for FieldContainer< T, Dim >:
Collaboration graph

Public Member Functions

 FieldContainer (Vector_t< T, Dim > &hr, Vector_t< T, Dim > &rmin, Vector_t< T, Dim > &rmax, std::array< bool, Dim > decomp, ippl::NDIndex< Dim > domain, Vector_t< T, Dim > origin, bool isAllPeriodic)

 ~FieldContainer ()

VField_t< T, Dim > & getE ()

void setE (VField_t< T, Dim > &E)

Field_t< Dim > & getRho ()

void setRho (Field_t< Dim > &rho)

Field< T, Dim > & getPhi ()

void setPhi (Field< T, Dim > &phi)

Vector_t< double, Dim > & getHr ()

void setHr (const Vector_t< double, Dim > &hr)

Vector_t< double, Dim > & getRMin ()

void setRMin (const Vector_t< double, Dim > &rmin)

Vector_t< double, Dim > & getRMax ()

void setRMax (const Vector_t< double, Dim > &rmax)

std::array< bool, Dim > getDecomp ()

void setDecomp (std::array< bool, Dim > decomp)

Mesh_t< Dim > & getMesh ()

void setMesh (Mesh_t< Dim > &mesh)

FieldLayout_t< Dim > & getFL ()

void setFL (std::shared_ptr< FieldLayout_t< Dim > > &fl)

void initializeFields (std::string stype_m="")


Private Attributes

Vector_t< double, Dim > hr_m

Vector_t< double, Dim > rmin_m

Vector_t< double, Dim > rmax_m

std::array< bool, Dim > decomp_m

VField_t< T, Dim > E_m

Field_t< Dim > rho_m

Field< T, Dim > phi_m

Mesh_t< Dim > mesh_m

FieldLayout_t< Dim > fl_m


Detailed Description

template<typename T, unsigned Dim = 3>
class FieldContainer< T, Dim >

Definition at line 34 of file FieldContainer.hpp.

Constructor & Destructor Documentation

◆ FieldContainer()

template<typename T , unsigned Dim = 3>
FieldContainer< T, Dim >::FieldContainer ( Vector_t< T, Dim > &  hr,
Vector_t< T, Dim > &  rmin,
Vector_t< T, Dim > &  rmax,
std::array< bool, Dim >  decomp,
ippl::NDIndex< Dim >  domain,
Vector_t< T, Dim >  origin,
bool  isAllPeriodic
)
inline

Definition at line 36 of file FieldContainer.hpp.

◆ ~FieldContainer()

template<typename T , unsigned Dim = 3>
FieldContainer< T, Dim >::~FieldContainer ( )
inline

Definition at line 47 of file FieldContainer.hpp.

Member Function Documentation

◆ getDecomp()

template<typename T , unsigned Dim = 3>
std::array< bool, Dim > FieldContainer< T, Dim >::getDecomp ( )
inline

Definition at line 79 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::decomp_m.

◆ getE()

template<typename T , unsigned Dim = 3>
VField_t< T, Dim > & FieldContainer< T, Dim >::getE ( )
inline

Definition at line 61 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::E_m.

◆ getFL()

template<typename T , unsigned Dim = 3>
FieldLayout_t< Dim > & FieldContainer< T, Dim >::getFL ( )
inline

Definition at line 85 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::fl_m.

◆ getHr()

template<typename T , unsigned Dim = 3>
Vector_t< double, Dim > & FieldContainer< T, Dim >::getHr ( )
inline

Definition at line 70 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::hr_m.

◆ getMesh()

template<typename T , unsigned Dim = 3>
Mesh_t< Dim > & FieldContainer< T, Dim >::getMesh ( )
inline

Definition at line 82 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::mesh_m.

◆ getPhi()

template<typename T , unsigned Dim = 3>
Field< T, Dim > & FieldContainer< T, Dim >::getPhi ( )
inline

Definition at line 67 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::phi_m.

◆ getRho()

template<typename T , unsigned Dim = 3>
Field_t< Dim > & FieldContainer< T, Dim >::getRho ( )
inline

Definition at line 64 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::rho_m.

◆ getRMax()

template<typename T , unsigned Dim = 3>
Vector_t< double, Dim > & FieldContainer< T, Dim >::getRMax ( )
inline

Definition at line 76 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::rmax_m.

◆ getRMin()

template<typename T , unsigned Dim = 3>
Vector_t< double, Dim > & FieldContainer< T, Dim >::getRMin ( )
inline

Definition at line 73 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::rmin_m.

◆ initializeFields()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::initializeFields ( std::string  stype_m = "")
inline

Definition at line 88 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::E_m, FieldContainer< T, Dim >::fl_m, FieldContainer< T, Dim >::mesh_m, FieldContainer< T, Dim >::phi_m, and FieldContainer< T, Dim >::rho_m.

◆ setDecomp()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::setDecomp ( std::array< bool, Dim >  decomp)
inline

Definition at line 80 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::decomp_m.

◆ setE()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::setE ( VField_t< T, Dim > &  E)
inline

Definition at line 62 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::E_m.

◆ setFL()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::setFL ( std::shared_ptr< FieldLayout_t< Dim > > &  fl)
inline

Definition at line 86 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::fl_m.

◆ setHr()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::setHr ( const Vector_t< double, Dim > &  hr)
inline

Definition at line 71 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::hr_m.

◆ setMesh()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::setMesh ( Mesh_t< Dim > &  mesh)
inline

Definition at line 83 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::mesh_m.

◆ setPhi()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::setPhi ( Field< T, Dim > &  phi)
inline

Definition at line 68 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::phi_m.

◆ setRho()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::setRho ( Field_t< Dim > &  rho)
inline

Definition at line 65 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::rho_m.

◆ setRMax()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::setRMax ( const Vector_t< double, Dim > &  rmax)
inline

Definition at line 77 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::rmax_m.

◆ setRMin()

template<typename T , unsigned Dim = 3>
void FieldContainer< T, Dim >::setRMin ( const Vector_t< double, Dim > &  rmin)
inline

Definition at line 74 of file FieldContainer.hpp.

References FieldContainer< T, Dim >::rmin_m.

Member Data Documentation

◆ decomp_m

template<typename T , unsigned Dim = 3>
std::array<bool, Dim> FieldContainer< T, Dim >::decomp_m
private

Definition at line 53 of file FieldContainer.hpp.

Referenced by FieldContainer< T, Dim >::getDecomp(), and FieldContainer< T, Dim >::setDecomp().

◆ E_m

template<typename T , unsigned Dim = 3>
VField_t<T, Dim> FieldContainer< T, Dim >::E_m
private

Definition at line 54 of file FieldContainer.hpp.

Referenced by FieldContainer< T, Dim >::getE(), FieldContainer< T, Dim >::initializeFields(), and FieldContainer< T, Dim >::setE().

◆ fl_m

template<typename T , unsigned Dim = 3>
FieldLayout_t<Dim> FieldContainer< T, Dim >::fl_m
private

Definition at line 58 of file FieldContainer.hpp.

Referenced by FieldContainer< T, Dim >::getFL(), FieldContainer< T, Dim >::initializeFields(), and FieldContainer< T, Dim >::setFL().

◆ hr_m

template<typename T , unsigned Dim = 3>
Vector_t<double, Dim> FieldContainer< T, Dim >::hr_m
private

Definition at line 50 of file FieldContainer.hpp.

Referenced by FieldContainer< T, Dim >::getHr(), and FieldContainer< T, Dim >::setHr().

◆ mesh_m

template<typename T , unsigned Dim = 3>
Mesh_t<Dim> FieldContainer< T, Dim >::mesh_m
private

Definition at line 57 of file FieldContainer.hpp.

Referenced by FieldContainer< T, Dim >::getMesh(), FieldContainer< T, Dim >::initializeFields(), and FieldContainer< T, Dim >::setMesh().

◆ phi_m

template<typename T , unsigned Dim = 3>
Field<T, Dim> FieldContainer< T, Dim >::phi_m
private

Definition at line 56 of file FieldContainer.hpp.

Referenced by FieldContainer< T, Dim >::getPhi(), FieldContainer< T, Dim >::initializeFields(), and FieldContainer< T, Dim >::setPhi().

◆ rho_m

template<typename T , unsigned Dim = 3>
Field_t<Dim> FieldContainer< T, Dim >::rho_m
private

Definition at line 55 of file FieldContainer.hpp.

Referenced by FieldContainer< T, Dim >::getRho(), FieldContainer< T, Dim >::initializeFields(), and FieldContainer< T, Dim >::setRho().

◆ rmax_m

template<typename T , unsigned Dim = 3>
Vector_t<double, Dim> FieldContainer< T, Dim >::rmax_m
private

Definition at line 52 of file FieldContainer.hpp.

Referenced by FieldContainer< T, Dim >::getRMax(), and FieldContainer< T, Dim >::setRMax().

◆ rmin_m

template<typename T , unsigned Dim = 3>
Vector_t<double, Dim> FieldContainer< T, Dim >::rmin_m
private

Definition at line 51 of file FieldContainer.hpp.

Referenced by FieldContainer< T, Dim >::getRMin(), and FieldContainer< T, Dim >::setRMin().

The documentation for this class was generated from the following file:
