#include <SamplingBase.hpp>

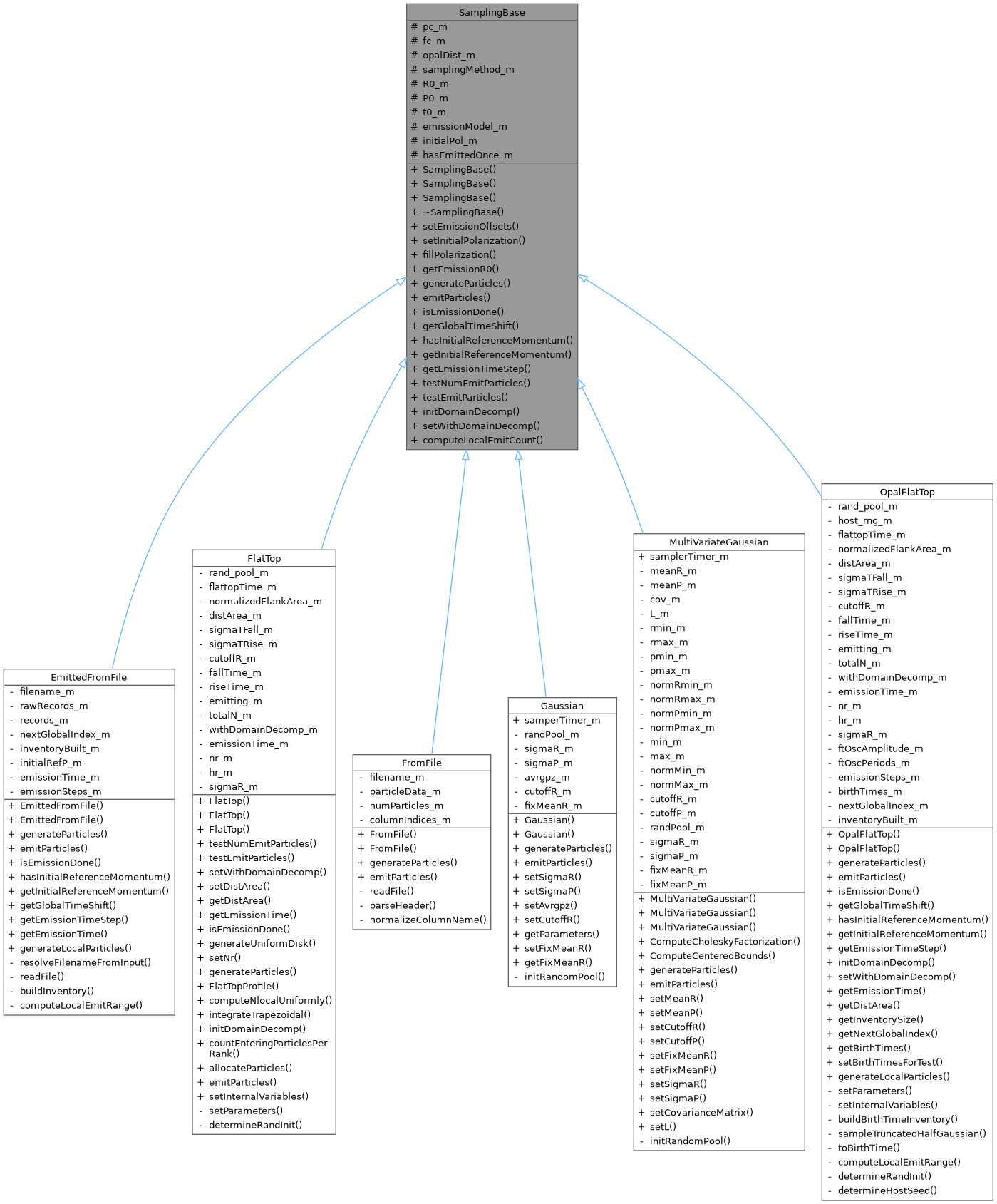

Inheritance diagram for SamplingBase:

Collaboration diagram for SamplingBase:

Public Member Functions
	SamplingBase (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc, Distribution_t *dist)

	SamplingBase (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc)

	SamplingBase (std::shared_ptr< ParticleContainer_t > pc)

virtual	~SamplingBase ()

void	setEmissionOffsets (ippl::Vector< double, 3 > R0, ippl::Vector< double, 3 > P0, double t0, const std::string &emissionModel="NONE")

void	setInitialPolarization (const ippl::Vector< double, 3 > &pol)

void	fillPolarization (size_t startIdx, size_t count)

Vector_t< double, 3 >	getEmissionR0 () const

virtual void	generateParticles (size_t &, Vector_t< double, 3 >)

virtual void	emitParticles (double, double)

virtual bool	isEmissionDone (double t) const
	Whether this sampler has finished all emission (no more particles will be created).

virtual double	getGlobalTimeShift () const
	Optional tracker time shift needed before the first emitted particles are born.

virtual bool	hasInitialReferenceMomentum () const
	Optional initial reference momentum in the source-local frame.

virtual Vector_t< double, 3 >	getInitialReferenceMomentum () const

virtual double	getEmissionTimeStep () const
	Optional OPAL-like tracker time step while this sampler is still emitting.

virtual void	testNumEmitParticles (size_t, double)

virtual void	testEmitParticles (size_t, double)

virtual void	initDomainDecomp (double)

virtual void	setWithDomainDecomp (bool)

size_t	computeLocalEmitCount (size_t totalToSample) const
	Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Protected Attributes
std::shared_ptr< ParticleContainer_t >	pc_m

std::shared_ptr< FieldContainer_t >	fc_m

Distribution_t *	opalDist_m = nullptr

std::string	samplingMethod_m

Vector_t< double, 3 >	R0_m = 0.0
	Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Vector_t< double, 3 >	P0_m = 0.0

double	t0_m = 0.0

std::string	emissionModel_m = "NONE"

Vector_t< double, 3 >	initialPol_m = 0.0

bool	hasEmittedOnce_m = false
	For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Detailed Description

Definition at line 15 of file SamplingBase.hpp.

Constructor & Destructor Documentation

◆ SamplingBase() [1/3]

SamplingBase::SamplingBase	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc,
		Distribution_t *	dist
	)

inline

Definition at line 36 of file SamplingBase.hpp.

◆ SamplingBase() [2/3]

SamplingBase::SamplingBase	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc
	)

inline

Definition at line 41 of file SamplingBase.hpp.

◆ SamplingBase() [3/3]

SamplingBase::SamplingBase ( std::shared_ptr< ParticleContainer_t > pc )

inline

Definition at line 44 of file SamplingBase.hpp.

◆ ~SamplingBase()

virtual SamplingBase::~SamplingBase ( )

inlinevirtual

Definition at line 46 of file SamplingBase.hpp.

Member Function Documentation

◆ computeLocalEmitCount()

size_t SamplingBase::computeLocalEmitCount ( size_t totalToSample ) const

Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Parameters

totalToSample Global number of particles to emit this timestep.

Returns: Local number of particles this rank should create/emit.

Definition at line 6 of file SamplingBase.cpp.

References pc_m.

Referenced by FlatTop::countEnteringParticlesPerRank(), FromFile::generateParticles(), Gaussian::generateParticles(), and MultiVariateGaussian::generateParticles().

◆ emitParticles()

virtual void SamplingBase::emitParticles	(	double	,
		double
	)

inlinevirtual

Reimplemented in EmittedFromFile, FlatTop, FromFile, Gaussian, MultiVariateGaussian, and OpalFlatTop.

Definition at line 82 of file SamplingBase.hpp.

◆ fillPolarization()

void SamplingBase::fillPolarization	(	size_t	startIdx,
		size_t	count
	)

inline

Fill the Pol particle attribute with initialPol_m on the half-open range [startIdx, startIdx + count). No-op when the container does not store spin. Must be called after the particles have been created and before they are pushed downstream.

Definition at line 63 of file SamplingBase.hpp.

References initialPol_m, and pc_m.

Referenced by FlatTop::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), and MultiVariateGaussian::generateParticles().

◆ generateParticles()

virtual void SamplingBase::generateParticles	(	size_t &	,
		Vector_t< double, 3 >
	)

inlinevirtual

Reimplemented in EmittedFromFile, FlatTop, FromFile, Gaussian, MultiVariateGaussian, and OpalFlatTop.

Definition at line 80 of file SamplingBase.hpp.

◆ getEmissionR0()

Vector_t< double, 3 > SamplingBase::getEmissionR0 ( ) const

inline

Definition at line 78 of file SamplingBase.hpp.

References R0_m.

◆ getEmissionTimeStep()

virtual double SamplingBase::getEmissionTimeStep ( ) const

inlinevirtual

Optional OPAL-like tracker time step while this sampler is still emitting.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 102 of file SamplingBase.hpp.

◆ getGlobalTimeShift()

virtual double SamplingBase::getGlobalTimeShift ( ) const

inlinevirtual

Optional tracker time shift needed before the first emitted particles are born.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 92 of file SamplingBase.hpp.

◆ getInitialReferenceMomentum()

virtual Vector_t< double, 3 > SamplingBase::getInitialReferenceMomentum ( ) const

inlinevirtual

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 97 of file SamplingBase.hpp.

◆ hasInitialReferenceMomentum()

virtual bool SamplingBase::hasInitialReferenceMomentum ( ) const

inlinevirtual

Optional initial reference momentum in the source-local frame.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 95 of file SamplingBase.hpp.

◆ initDomainDecomp()

virtual void SamplingBase::initDomainDecomp ( double )

inlinevirtual

Reimplemented in FlatTop, and OpalFlatTop.

Definition at line 110 of file SamplingBase.hpp.

◆ isEmissionDone()

virtual bool SamplingBase::isEmissionDone ( double t ) const

inlinevirtual

Whether this sampler has finished all emission (no more particles will be created).

Parameters

t	Current simulation time (s).

Reimplemented in FlatTop, EmittedFromFile, and OpalFlatTop.

Definition at line 86 of file SamplingBase.hpp.

References hasEmittedOnce_m.

◆ setEmissionOffsets()

void SamplingBase::setEmissionOffsets	(	ippl::Vector< double, 3 >	R0,
		ippl::Vector< double, 3 >	P0,
		double	t0,
		const std::string &	emissionModel = `"NONE"`
	)

inline

Definition at line 48 of file SamplingBase.hpp.

References emissionModel_m, P0_m, R0_m, and t0_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ setInitialPolarization()

void SamplingBase::setInitialPolarization ( const ippl::Vector< double, 3 > & pol )

inline

Definition at line 57 of file SamplingBase.hpp.

References initialPol_m.

◆ setWithDomainDecomp()

virtual void SamplingBase::setWithDomainDecomp ( bool )

inlinevirtual

Reimplemented in FlatTop, and OpalFlatTop.

Definition at line 112 of file SamplingBase.hpp.

◆ testEmitParticles()

virtual void SamplingBase::testEmitParticles	(	size_t	,
		double
	)

inlinevirtual

Definition at line 108 of file SamplingBase.hpp.

◆ testNumEmitParticles()

virtual void SamplingBase::testNumEmitParticles	(	size_t	,
		double
	)

inlinevirtual

Definition at line 105 of file SamplingBase.hpp.

Member Data Documentation

◆ emissionModel_m

std::string SamplingBase::emissionModel_m = "NONE"

protected

Definition at line 25 of file SamplingBase.hpp.

Referenced by OpalFlatTop::generateLocalParticles(), EmittedFromFile::generateParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and setEmissionOffsets().

◆ fc_m

std::shared_ptr<FieldContainer_t> SamplingBase::fc_m

protected

Definition at line 18 of file SamplingBase.hpp.

Referenced by FlatTop::initDomainDecomp(), OpalFlatTop::initDomainDecomp(), FlatTop::setParameters(), and OpalFlatTop::setParameters().

◆ hasEmittedOnce_m

bool SamplingBase::hasEmittedOnce_m = false

protected

For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Definition at line 33 of file SamplingBase.hpp.

Referenced by FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), and isEmissionDone().

◆ initialPol_m

Vector_t<double, 3> SamplingBase::initialPol_m = 0.0

protected

Initial polarization vector P applied to every particle this sampler creates. Rest-frame Pauli expectations along lab-frame axes; |Pol| in [0, 1]. Ignored when the container does not have a spin attribute (hasSpin() == false).

Definition at line 30 of file SamplingBase.hpp.

Referenced by fillPolarization(), and setInitialPolarization().

◆ opalDist_m

Distribution_t* SamplingBase::opalDist_m = nullptr

protected

Definition at line 19 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), EmittedFromFile::generateParticles(), MultiVariateGaussian::MultiVariateGaussian(), and FlatTop::setParameters().

◆ P0_m

Vector_t<double, 3> SamplingBase::P0_m = 0.0

protected

Definition at line 23 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), EmittedFromFile::generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and setEmissionOffsets().

◆ pc_m

std::shared_ptr<ParticleContainer_t> SamplingBase::pc_m

protected

◆ R0_m

Vector_t<double, 3> SamplingBase::R0_m = 0.0

protected

Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Definition at line 22 of file SamplingBase.hpp.

Referenced by EmittedFromFile::generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), getEmissionR0(), and setEmissionOffsets().

◆ samplingMethod_m

std::string SamplingBase::samplingMethod_m

protected

Definition at line 20 of file SamplingBase.hpp.

◆ t0_m

double SamplingBase::t0_m = 0.0

protected

Definition at line 24 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), FlatTop::emitParticles(), FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), EmittedFromFile::getGlobalTimeShift(), OpalFlatTop::getGlobalTimeShift(), FlatTop::isEmissionDone(), setEmissionOffsets(), and OpalFlatTop::toBirthTime().

The documentation for this class was generated from the following files:
