MultiVariateGaussian Class Reference

A particle generation method following multivariate Gaussian distribution. More...

#include <MultiVariateGaussian.h>

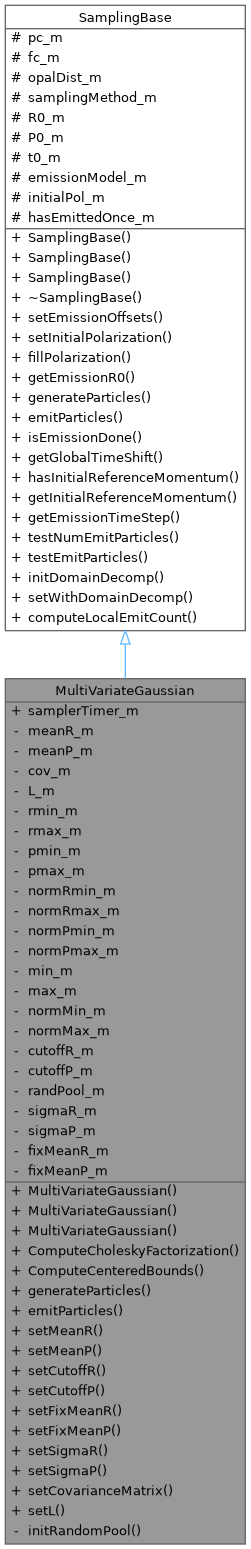

Inheritance diagram for MultiVariateGaussian:

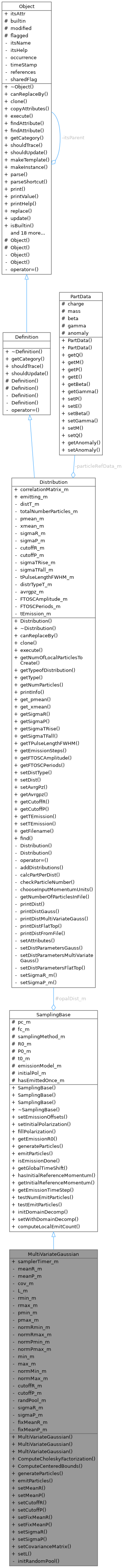

Collaboration diagram for MultiVariateGaussian:

Public Member Functions
	MultiVariateGaussian (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc, Distribution_t *opalDist)
	Constructor for MultiVariateGaussian.
	MultiVariateGaussian (std::shared_ptr< ParticleContainer_t > pc, const Vector_t< double, 3 > &meanR, const Vector_t< double, 3 > &meanP, const Vector_t< double, 3 > &sigmaR, const Vector_t< double, 3 > &sigmaP, const Vector_t< double, 3 > &cutoffR, const Vector_t< double, 3 > &cutoffP, bool fixMeanR=true, bool fixMeanP=true)
	Constructor for MultiVariateGaussian with specified parameters.
	MultiVariateGaussian (std::shared_ptr< ParticleContainer_t > pc, const Vector_t< double, 3 > &meanR, const Vector_t< double, 3 > &meanP, const Matrix_t &cov, const Vector_t< double, 3 > &cutoffR, const Vector_t< double, 3 > &cutoffP, bool fixMeanR=true, bool fixMeanP=true)
	Constructs the MultiVariateGaussian class.
void	ComputeCholeskyFactorization ()
	Computes the Cholesky factorization of the covariance matrix.
void	ComputeCenteredBounds ()
	Computes centered bounds for the particle distribution.
void	generateParticles (size_t &numberOfParticles, Vector_t< double, 3 > nr) override
	Generates particles based on the defined Gaussian distribution.
void	emitParticles (double t, double dt) override
	Time-stepped emission hook for one-shot delayed injection.
void	setMeanR (const Vector_t< double, 3 > &meanR)
void	setMeanP (const Vector_t< double, 3 > &meanP)
void	setCutoffR (const Vector_t< double, 3 > &cutoffR)
void	setCutoffP (const Vector_t< double, 3 > &cutoffP)
void	setFixMeanR (bool fixMeanR)
void	setFixMeanP (bool fixMeanP)
void	setSigmaR (const Vector_t< double, 3 > &sigmaR)
void	setSigmaP (const Vector_t< double, 3 > &sigmaP)
void	setCovarianceMatrix (const Matrix_t &cov)
void	setL (const Matrix_t &L)
void	setEmissionOffsets (ippl::Vector< double, 3 > R0, ippl::Vector< double, 3 > P0, double t0, const std::string &emissionModel="NONE")
void	setInitialPolarization (const ippl::Vector< double, 3 > &pol)
void	fillPolarization (size_t startIdx, size_t count)
Vector_t< double, 3 >	getEmissionR0 () const
virtual bool	isEmissionDone (double t) const
	Whether this sampler has finished all emission (no more particles will be created).
virtual double	getGlobalTimeShift () const
	Optional tracker time shift needed before the first emitted particles are born.
virtual bool	hasInitialReferenceMomentum () const
	Optional initial reference momentum in the source-local frame.
virtual Vector_t< double, 3 >	getInitialReferenceMomentum () const
virtual double	getEmissionTimeStep () const
	Optional OPAL-like tracker time step while this sampler is still emitting.
virtual void	testNumEmitParticles (size_t, double)
virtual void	testEmitParticles (size_t, double)
virtual void	initDomainDecomp (double)
virtual void	setWithDomainDecomp (bool)
size_t	computeLocalEmitCount (size_t totalToSample) const
	Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Public Attributes
IpplTimings::TimerRef	samplerTimer_m
	Timer for performance profiling.

Protected Attributes
std::shared_ptr< ParticleContainer_t >	pc_m
std::shared_ptr< FieldContainer_t >	fc_m
Distribution_t *	opalDist_m = nullptr
std::string	samplingMethod_m
Vector_t< double, 3 >	R0_m = 0.0
	Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).
Vector_t< double, 3 >	P0_m = 0.0
double	t0_m = 0.0
std::string	emissionModel_m = "NONE"
Vector_t< double, 3 >	initialPol_m = 0.0
bool	hasEmittedOnce_m = false
	For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Private Member Functions
void	initRandomPool ()
	Initializes the random number generator pool.

Private Attributes
Vector_t< double, 3 >	meanR_m
Vector_t< double, 3 >	meanP_m
Matrix_t	cov_m
Matrix_t	L_m
Vector_t< double, 3 >	rmin_m
Vector_t< double, 3 >	rmax_m
Vector_t< double, 3 >	pmin_m
Vector_t< double, 3 >	pmax_m
Vector_t< double, 3 >	normRmin_m
Vector_t< double, 3 >	normRmax_m
Vector_t< double, 3 >	normPmin_m
Vector_t< double, 3 >	normPmax_m
Vector_t< double, 6 >	min_m
	Min and Max bounds for all 6 dimensions (R0,P0,R1,P1,R2,P2).
Vector_t< double, 6 >	max_m
Vector_t< double, 6 >	normMin_m
Vector_t< double, 6 >	normMax_m
Vector_t< double, 3 >	cutoffR_m
	Cutoff multipliers for position and momentum distributions.
Vector_t< double, 3 >	cutoffP_m
GeneratorPool	randPool_m
	Pool of random number generators for parallel sampling.
Vector_t< double, 3 >	sigmaR_m
	Standard deviations for position and momentum distributions.
Vector_t< double, 3 >	sigmaP_m
bool	fixMeanR_m
	Flag to exactly fix the mean R and P of particles after sampling.
bool	fixMeanP_m

Detailed Description

A particle generation method following multivariate Gaussian distribution.

This class generates particles following a multivariate Gaussian distribution using Cholesky factorization and inverse transformation sampling.

Given covariance matrix cov_m = [ Cov(R0,R0), Cov(R0,P0), Cov(R0,R1), Cov(R0,P1), ...] whose values are read from opalDist_m->correlationMatrix_m. First, the Cholesky factorization is computed cov_m = L_m * L_m^T Then, normally distribution particles R=P~N(0,I) are transformed to multivariate using L_m.

Definition at line 29 of file MultiVariateGaussian.h.

Constructor & Destructor Documentation

MultiVariateGaussian() [1/3]

MultiVariateGaussian::MultiVariateGaussian	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc,
		Distribution_t *	opalDist
	)

Constructor for MultiVariateGaussian.

Constructs the MultiVariateGaussian class.

Parameters

pc	Shared pointer to the particle container.
fc	Shared pointer to the field container.
opalDist	Borrowed distribution.

Definition at line 13 of file MultiVariateGaussian.cpp.

References Distribution::correlationMatrix_m, cov_m, Distribution::getAvrgpz(), Distribution::getCutoffP(), Distribution::getCutoffR(), Distribution::getSigmaP(), Distribution::getSigmaR(), initRandomPool(), meanP_m, meanR_m, SamplingBase::opalDist_m, samplerTimer_m, setCutoffP(), setCutoffR(), setSigmaP(), and setSigmaR().

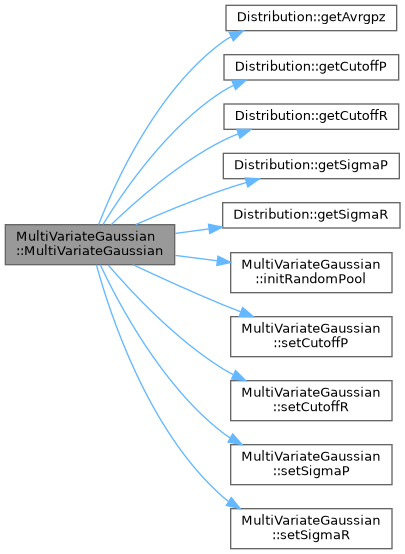

Here is the call graph for this function:

MultiVariateGaussian() [2/3]

MultiVariateGaussian::MultiVariateGaussian	(	std::shared_ptr< ParticleContainer_t >	pc,
		const Vector_t< double, 3 > &	meanR,
		const Vector_t< double, 3 > &	meanP,
		const Vector_t< double, 3 > &	sigmaR,
		const Vector_t< double, 3 > &	sigmaP,
		const Vector_t< double, 3 > &	cutoffR,
		const Vector_t< double, 3 > &	cutoffP,
		bool	fixMeanR = true,
		bool	fixMeanP = true
	)

Constructor for MultiVariateGaussian with specified parameters.

Parameters

meanR	Mean position vector.
meanP	Mean momentum vector.
sigmaR	Standard deviation for position distribution.
sigmaP	Standard deviation for momentum distribution.
cutoffR	Cutoff position vector.
cutoffP	Cutoff momentum vector.
fixMeanR	Boolean flag to fix mean position.
fixMeanP	Boolean flag to fix mean momentum.

Definition at line 37 of file MultiVariateGaussian.cpp.

References cov_m, initRandomPool(), samplerTimer_m, setCutoffP(), setCutoffR(), setFixMeanP(), setFixMeanR(), setMeanP(), setMeanR(), setSigmaP(), and setSigmaR().

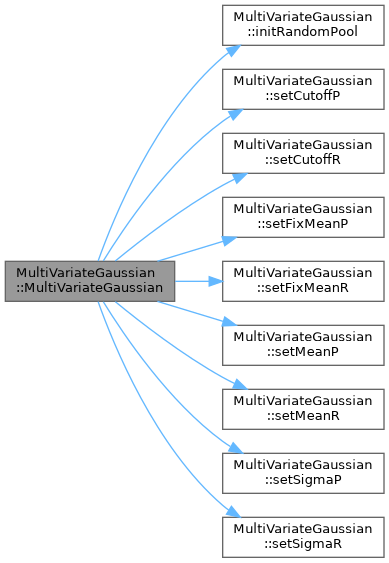

Here is the call graph for this function:

MultiVariateGaussian() [3/3]

MultiVariateGaussian::MultiVariateGaussian	(	std::shared_ptr< ParticleContainer_t >	pc,
		const Vector_t< double, 3 > &	meanR,
		const Vector_t< double, 3 > &	meanP,
		const Matrix_t &	cov,
		const Vector_t< double, 3 > &	cutoffR,
		const Vector_t< double, 3 > &	cutoffP,
		bool	fixMeanR = true,
		bool	fixMeanP = true
	)

Constructs the MultiVariateGaussian class.

Parameters

pc	Shared pointer to the particle container.
meanR	Mean position vector.
meanP	Mean momentum vector.
cov	Covariance matrix.
cutoffR	Cutoff position vector.
cutoffP	Cutoff momentum vector.
fixMeanR	Boolean flag to fix mean position.
fixMeanP	Boolean flag to fix mean momentum.

Definition at line 68 of file MultiVariateGaussian.cpp.

References cov_m, initRandomPool(), samplerTimer_m, setCutoffP(), setCutoffR(), setFixMeanP(), setFixMeanR(), setMeanP(), setMeanR(), setSigmaP(), and setSigmaR().

Here is the call graph for this function:

Member Function Documentation

ComputeCenteredBounds()

void MultiVariateGaussian::ComputeCenteredBounds

(

)

Computes centered bounds for the particle distribution.

Computes normalized boundaries for the multivariate Gaussian sampling.

Definition at line 142 of file MultiVariateGaussian.cpp.

References cutoffP_m, cutoffR_m, L_m, max_m, min_m, normMax_m, normMin_m, normPmax_m, normPmin_m, normRmax_m, normRmin_m, pmax_m, pmin_m, rmax_m, rmin_m, sigmaP_m, and sigmaR_m.

Referenced by generateParticles().

ComputeCholeskyFactorization()

void MultiVariateGaussian::ComputeCholeskyFactorization

(

)

Computes the Cholesky factorization of the covariance matrix.

Computes the Cholesky decomposition of the covariance matrix.

Definition at line 117 of file MultiVariateGaussian.cpp.

References cov_m, and L_m.

Referenced by generateParticles().

computeLocalEmitCount()

size_t SamplingBase::computeLocalEmitCount ( size_t  totalToSample ) const

inherited

Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Parameters

totalToSample

Global number of particles to emit this timestep.

Returns

Local number of particles this rank should create/emit.

Definition at line 6 of file SamplingBase.cpp.

References SamplingBase::pc_m.

Referenced by FlatTop::countEnteringParticlesPerRank(), FromFile::generateParticles(), Gaussian::generateParticles(), and generateParticles().

emitParticles()

void MultiVariateGaussian::emitParticles ( double  t, double  dt  )

overridevirtual

Time-stepped emission hook for one-shot delayed injection.

Like Gaussian, this emits once when [t, t+dt] crosses t0 for sources configured with t0 > 0 and a positive NPARTDIST. Initial sampling at t0 == 0 is handled via generateParticles.

Reimplemented from SamplingBase.

Definition at line 376 of file MultiVariateGaussian.cpp.

References generateParticles(), Distribution::getNumParticles(), SamplingBase::hasEmittedOnce_m, SamplingBase::opalDist_m, SamplingBase::pc_m, and SamplingBase::t0_m.

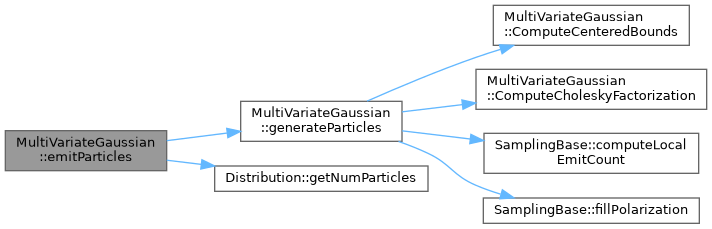

Here is the call graph for this function:

fillPolarization()

void SamplingBase::fillPolarization ( size_t  startIdx, size_t  count  )

inlineinherited

Fill the Pol particle attribute with initialPol_m on the half-open range [startIdx, startIdx + count). No-op when the container does not store spin. Must be called after the particles have been created and before they are pushed downstream.

Definition at line 63 of file SamplingBase.hpp.

References SamplingBase::initialPol_m, and SamplingBase::pc_m.

Referenced by FlatTop::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), and generateParticles().

generateParticles()

void MultiVariateGaussian::generateParticles ( size_t &  numberOfParticles, Vector_t< double, 3 >  nr  )

overridevirtual

Generates particles based on the defined Gaussian distribution.

Generates particles following a multivariate Gaussian distribution.

Parameters

numberOfParticles	Number of particles to generate.
nr	Vector specifying additional sampling parameters.

Reimplemented from SamplingBase.

Definition at line 190 of file MultiVariateGaussian.cpp.

References ComputeCenteredBounds(), ComputeCholeskyFactorization(), SamplingBase::computeLocalEmitCount(), SamplingBase::emissionModel_m, SamplingBase::fillPolarization(), fixMeanP_m, fixMeanR_m, SamplingBase::hasEmittedOnce_m, L_m, meanP_m, meanR_m, normPmax_m, normPmin_m, normRmax_m, normRmin_m, SamplingBase::P0_m, SamplingBase::pc_m, SamplingBase::R0_m, randPool_m, samplerTimer_m, and SamplingBase::t0_m.

Referenced by emitParticles(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

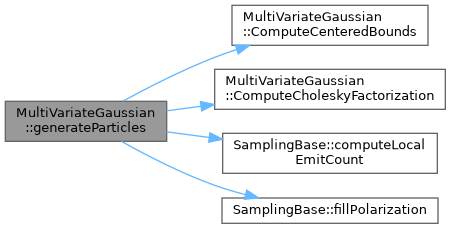

Here is the call graph for this function:

getEmissionR0()

Vector_t< double, 3 > SamplingBase::getEmissionR0 ( ) const

inlineinherited

Definition at line 78 of file SamplingBase.hpp.

References SamplingBase::R0_m.

getEmissionTimeStep()

virtual double SamplingBase::getEmissionTimeStep ( ) const

inlinevirtualinherited

Optional OPAL-like tracker time step while this sampler is still emitting.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 102 of file SamplingBase.hpp.

getGlobalTimeShift()

virtual double SamplingBase::getGlobalTimeShift ( ) const

inlinevirtualinherited

Optional tracker time shift needed before the first emitted particles are born.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 92 of file SamplingBase.hpp.

getInitialReferenceMomentum()

virtual Vector_t< double, 3 > SamplingBase::getInitialReferenceMomentum ( ) const

inlinevirtualinherited

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 97 of file SamplingBase.hpp.

hasInitialReferenceMomentum()

virtual bool SamplingBase::hasInitialReferenceMomentum ( ) const

inlinevirtualinherited

Optional initial reference momentum in the source-local frame.

Reimplemented in EmittedFromFile, and OpalFlatTop.

Definition at line 95 of file SamplingBase.hpp.

initDomainDecomp()

virtual void SamplingBase::initDomainDecomp ( double  )

inlinevirtualinherited

Reimplemented in FlatTop, and OpalFlatTop.

Definition at line 110 of file SamplingBase.hpp.

initRandomPool()

void MultiVariateGaussian::initRandomPool ( )

private

Initializes the random number generator pool.

Definition at line 98 of file MultiVariateGaussian.cpp.

References gmsg, randPool_m, and Options::seed.

Referenced by MultiVariateGaussian(), MultiVariateGaussian(), and MultiVariateGaussian().

isEmissionDone()

virtual bool SamplingBase::isEmissionDone ( double  t ) const

inlinevirtualinherited

Whether this sampler has finished all emission (no more particles will be created).

Parameters

t	Current simulation time (s).

Reimplemented in FlatTop, EmittedFromFile, and OpalFlatTop.

Definition at line 86 of file SamplingBase.hpp.

References SamplingBase::hasEmittedOnce_m.

setCovarianceMatrix()

void MultiVariateGaussian::setCovarianceMatrix ( const Matrix_t &  cov )

inline

Definition at line 122 of file MultiVariateGaussian.h.

References cov_m.

setCutoffP()

void MultiVariateGaussian::setCutoffP ( const Vector_t< double, 3 > &  cutoffP )

inline

Definition at line 113 of file MultiVariateGaussian.h.

References cutoffP_m.

Referenced by MultiVariateGaussian(), MultiVariateGaussian(), and MultiVariateGaussian().

setCutoffR()

void MultiVariateGaussian::setCutoffR ( const Vector_t< double, 3 > &  cutoffR )

inline

Definition at line 111 of file MultiVariateGaussian.h.

References cutoffR_m.

Referenced by MultiVariateGaussian(), MultiVariateGaussian(), and MultiVariateGaussian().

setEmissionOffsets()

void SamplingBase::setEmissionOffsets ( ippl::Vector< double, 3 >  R0, ippl::Vector< double, 3 >  P0, double  t0, const std::string &  emissionModel = "NONE"  )

inlineinherited

Definition at line 48 of file SamplingBase.hpp.

References SamplingBase::emissionModel_m, SamplingBase::P0_m, SamplingBase::R0_m, and SamplingBase::t0_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

setFixMeanP()

void MultiVariateGaussian::setFixMeanP ( bool  fixMeanP )

inline

Definition at line 117 of file MultiVariateGaussian.h.

References fixMeanP_m.

Referenced by MultiVariateGaussian(), and MultiVariateGaussian().

setFixMeanR()

void MultiVariateGaussian::setFixMeanR ( bool  fixMeanR )

inline

Definition at line 115 of file MultiVariateGaussian.h.

References fixMeanR_m.

Referenced by MultiVariateGaussian(), and MultiVariateGaussian().

setInitialPolarization()

void SamplingBase::setInitialPolarization ( const ippl::Vector< double, 3 > &  pol )

inlineinherited

Definition at line 57 of file SamplingBase.hpp.

References SamplingBase::initialPol_m.

setL()

void MultiVariateGaussian::setL ( const Matrix_t &  L )

inline

Definition at line 124 of file MultiVariateGaussian.h.

References L_m.

setMeanP()

void MultiVariateGaussian::setMeanP ( const Vector_t< double, 3 > &  meanP )

inline

Definition at line 109 of file MultiVariateGaussian.h.

References meanP_m.

Referenced by MultiVariateGaussian(), and MultiVariateGaussian().

setMeanR()

void MultiVariateGaussian::setMeanR ( const Vector_t< double, 3 > &  meanR )

inline

Definition at line 107 of file MultiVariateGaussian.h.

References meanR_m.

Referenced by MultiVariateGaussian(), and MultiVariateGaussian().

setSigmaP()

void MultiVariateGaussian::setSigmaP ( const Vector_t< double, 3 > &  sigmaP )

inline

Definition at line 120 of file MultiVariateGaussian.h.

References sigmaP_m.

Referenced by MultiVariateGaussian(), MultiVariateGaussian(), and MultiVariateGaussian().

setSigmaR()

void MultiVariateGaussian::setSigmaR ( const Vector_t< double, 3 > &  sigmaR )

inline

Definition at line 119 of file MultiVariateGaussian.h.

References sigmaR_m.

Referenced by MultiVariateGaussian(), MultiVariateGaussian(), and MultiVariateGaussian().

setWithDomainDecomp()

virtual void SamplingBase::setWithDomainDecomp ( bool  )

inlinevirtualinherited

Reimplemented in FlatTop, and OpalFlatTop.

Definition at line 112 of file SamplingBase.hpp.

testEmitParticles()

virtual void SamplingBase::testEmitParticles ( size_t  , double    )

inlinevirtualinherited

Definition at line 108 of file SamplingBase.hpp.

testNumEmitParticles()

virtual void SamplingBase::testNumEmitParticles ( size_t  , double    )

inlinevirtualinherited

Definition at line 105 of file SamplingBase.hpp.

Member Data Documentation

cov_m

Matrix_t MultiVariateGaussian::cov_m

private

Definition at line 135 of file MultiVariateGaussian.h.

Referenced by ComputeCholeskyFactorization(), MultiVariateGaussian(), MultiVariateGaussian(), MultiVariateGaussian(), and setCovarianceMatrix().

cutoffP_m

Vector_t<double, 3> MultiVariateGaussian::cutoffP_m

private

Definition at line 161 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds(), and setCutoffP().

cutoffR_m

Vector_t<double, 3> MultiVariateGaussian::cutoffR_m

private

Cutoff multipliers for position and momentum distributions.

Definition at line 160 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds(), and setCutoffR().

emissionModel_m

std::string SamplingBase::emissionModel_m = "NONE"

protectedinherited

Definition at line 25 of file SamplingBase.hpp.

Referenced by OpalFlatTop::generateLocalParticles(), EmittedFromFile::generateParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), generateParticles(), FlatTop::generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

fc_m

std::shared_ptr<FieldContainer_t> SamplingBase::fc_m

protectedinherited

Definition at line 18 of file SamplingBase.hpp.

Referenced by FlatTop::initDomainDecomp(), OpalFlatTop::initDomainDecomp(), FlatTop::setParameters(), and OpalFlatTop::setParameters().

fixMeanP_m

bool MultiVariateGaussian::fixMeanP_m

private

Definition at line 183 of file MultiVariateGaussian.h.

Referenced by generateParticles(), and setFixMeanP().

fixMeanR_m

bool MultiVariateGaussian::fixMeanR_m

private

Flag to exactly fix the mean R and P of particles after sampling.

Definition at line 182 of file MultiVariateGaussian.h.

Referenced by generateParticles(), and setFixMeanR().

hasEmittedOnce_m

bool SamplingBase::hasEmittedOnce_m = false

protectedinherited

For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Definition at line 33 of file SamplingBase.hpp.

Referenced by FromFile::emitParticles(), Gaussian::emitParticles(), emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), generateParticles(), and SamplingBase::isEmissionDone().

initialPol_m

Vector_t<double, 3> SamplingBase::initialPol_m = 0.0

protectedinherited

Initial polarization vector P applied to every particle this sampler creates. Rest-frame Pauli expectations along lab-frame axes; |Pol| in [0, 1]. Ignored when the container does not have a spin attribute (hasSpin() == false).

Definition at line 30 of file SamplingBase.hpp.

Referenced by SamplingBase::fillPolarization(), and SamplingBase::setInitialPolarization().

L_m

Matrix_t MultiVariateGaussian::L_m

private

Definition at line 140 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds(), ComputeCholeskyFactorization(), generateParticles(), and setL().

max_m

Vector_t<double, 6> MultiVariateGaussian::max_m

private

Definition at line 155 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds().

meanP_m

Vector_t<double, 3> MultiVariateGaussian::meanP_m

private

Definition at line 130 of file MultiVariateGaussian.h.

Referenced by generateParticles(), MultiVariateGaussian(), and setMeanP().

meanR_m

Vector_t<double, 3> MultiVariateGaussian::meanR_m

private

Definition at line 130 of file MultiVariateGaussian.h.

Referenced by generateParticles(), MultiVariateGaussian(), and setMeanR().

min_m

Vector_t<double, 6> MultiVariateGaussian::min_m

private

Min and Max bounds for all 6 dimensions (R0,P0,R1,P1,R2,P2).

Definition at line 155 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds().

normMax_m

Vector_t<double, 6> MultiVariateGaussian::normMax_m

private

Definition at line 155 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds().

normMin_m

Vector_t<double, 6> MultiVariateGaussian::normMin_m

private

Definition at line 155 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds().

normPmax_m

Vector_t<double, 3> MultiVariateGaussian::normPmax_m

private

Definition at line 150 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds(), and generateParticles().

normPmin_m

Vector_t<double, 3> MultiVariateGaussian::normPmin_m

private

Definition at line 150 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds(), and generateParticles().

normRmax_m

Vector_t<double, 3> MultiVariateGaussian::normRmax_m

private

Definition at line 150 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds(), and generateParticles().

normRmin_m

Vector_t<double, 3> MultiVariateGaussian::normRmin_m

private

Definition at line 150 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds(), and generateParticles().

opalDist_m

Distribution_t* SamplingBase::opalDist_m = nullptr

protectedinherited

Definition at line 19 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), FromFile::emitParticles(), Gaussian::emitParticles(), emitParticles(), EmittedFromFile::generateParticles(), MultiVariateGaussian(), and FlatTop::setParameters().

P0_m

Vector_t<double, 3> SamplingBase::P0_m = 0.0

protectedinherited

Definition at line 23 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), EmittedFromFile::generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), generateParticles(), FlatTop::generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

pc_m

std::shared_ptr<ParticleContainer_t> SamplingBase::pc_m

protectedinherited

Definition at line 17 of file SamplingBase.hpp.

Referenced by SamplingBase::computeLocalEmitCount(), EmittedFromFile::computeLocalEmitRange(), OpalFlatTop::computeLocalEmitRange(), FlatTop::countEnteringParticlesPerRank(), EmittedFromFile::emitParticles(), FlatTop::emitParticles(), FromFile::emitParticles(), Gaussian::emitParticles(), emitParticles(), OpalFlatTop::emitParticles(), SamplingBase::fillPolarization(), EmittedFromFile::generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), generateParticles(), FlatTop::generateUniformDisk(), FlatTop::initDomainDecomp(), OpalFlatTop::initDomainDecomp(), and FlatTop::testNumEmitParticles().

pmax_m

Vector_t<double, 3> MultiVariateGaussian::pmax_m

private

Definition at line 145 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds().

pmin_m

Vector_t<double, 3> MultiVariateGaussian::pmin_m

private

Definition at line 145 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds().

R0_m

Vector_t<double, 3> SamplingBase::R0_m = 0.0

protectedinherited

Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Definition at line 22 of file SamplingBase.hpp.

Referenced by EmittedFromFile::generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), generateParticles(), FlatTop::generateUniformDisk(), SamplingBase::getEmissionR0(), and SamplingBase::setEmissionOffsets().

randPool_m

GeneratorPool MultiVariateGaussian::randPool_m

private

Pool of random number generators for parallel sampling.

Definition at line 171 of file MultiVariateGaussian.h.

Referenced by generateParticles(), and initRandomPool().

rmax_m

Vector_t<double, 3> MultiVariateGaussian::rmax_m

private

Definition at line 145 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds().

rmin_m

Vector_t<double, 3> MultiVariateGaussian::rmin_m

private

Definition at line 145 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds().

samplerTimer_m

IpplTimings::TimerRef MultiVariateGaussian::samplerTimer_m

Timer for performance profiling.

Definition at line 105 of file MultiVariateGaussian.h.

Referenced by generateParticles(), MultiVariateGaussian(), MultiVariateGaussian(), and MultiVariateGaussian().

samplingMethod_m

std::string SamplingBase::samplingMethod_m

protectedinherited

Definition at line 20 of file SamplingBase.hpp.

sigmaP_m

Vector_t<double, 3> MultiVariateGaussian::sigmaP_m

private

Definition at line 177 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds(), and setSigmaP().

sigmaR_m

Vector_t<double, 3> MultiVariateGaussian::sigmaR_m

private

Standard deviations for position and momentum distributions.

Definition at line 176 of file MultiVariateGaussian.h.

Referenced by ComputeCenteredBounds(), and setSigmaR().

t0_m

double SamplingBase::t0_m = 0.0

protectedinherited

Definition at line 24 of file SamplingBase.hpp.

Referenced by EmittedFromFile::buildInventory(), FlatTop::emitParticles(), FromFile::emitParticles(), Gaussian::emitParticles(), emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), generateParticles(), EmittedFromFile::getGlobalTimeShift(), OpalFlatTop::getGlobalTimeShift(), FlatTop::isEmissionDone(), SamplingBase::setEmissionOffsets(), and OpalFlatTop::toBirthTime().

---

The documentation for this class was generated from the following files:

• MultiVariateGaussian.h
• MultiVariateGaussian.cpp
