Reads old-OPAL emitted distribution dumps and emits particles by file time. More...

#include <EmittedFromFile.h>

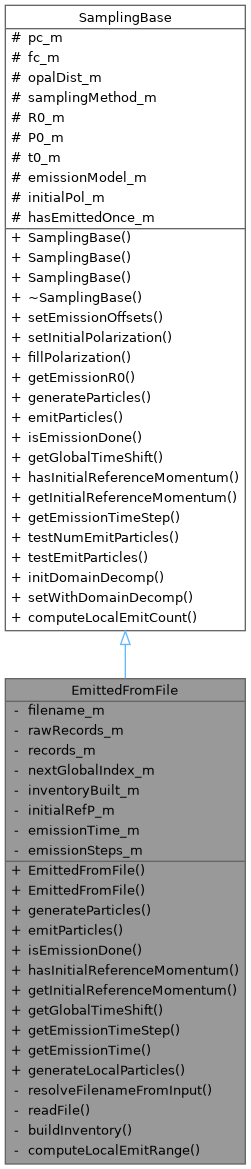

Inheritance diagram for EmittedFromFile:

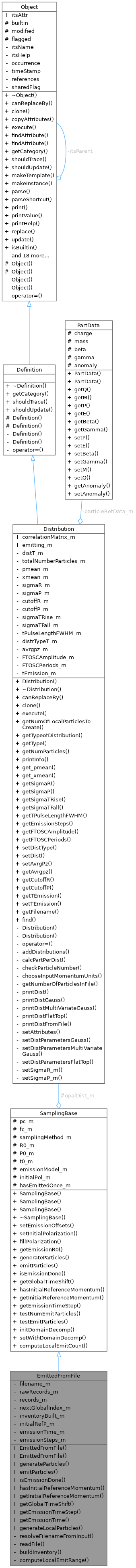

Collaboration diagram for EmittedFromFile:

Classes
struct	RawRecord
	Raw row parsed from an old-OPAL emitted distribution dump. More...

struct	Record
	Selected file row plus its converted tracker birth time. More...

Public Types
using	size_type = ippl::detail::size_type

Public Member Functions
	EmittedFromFile (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc, Distribution_t *opalDist)
	Constructor for EmittedFromFile.

	EmittedFromFile (std::shared_ptr< ParticleContainer_t > pc, std::shared_ptr< FieldContainer_t > fc, const std::string &filename)
	Convenience constructor that takes the filename directly.

void	generateParticles (size_t &numberOfParticles, Vector_t< double, 3 > nr) override
	Reads the selected file records and builds the birth-time inventory.

void	emitParticles (double t, double dt) override
	Emits all file records whose birth times fall into the current step.

bool	isEmissionDone (double) const override
	Returns whether all file records in the inventory have been emitted.

bool	hasInitialReferenceMomentum () const override
	Reports whether an initial reference momentum is available.

Vector_t< double, 3 >	getInitialReferenceMomentum () const override
	Returns the average initial reference momentum from selected records.

double	getGlobalTimeShift () const override
	Returns the global time shift needed to center old-OPAL file times.

double	getEmissionTimeStep () const override
	Returns the preferred emission time step.

double	getEmissionTime () const
	Returns the total emission time spanned by selected file records.

void	generateLocalParticles (size_type nlocalBefore, size_t globalBegin, size_t nNew, double tStart, double dt)
	Generates the local particles assigned to this rank for one emission step.

void	setEmissionOffsets (ippl::Vector< double, 3 > R0, ippl::Vector< double, 3 > P0, double t0, const std::string &emissionModel="NONE")

void	setInitialPolarization (const ippl::Vector< double, 3 > &pol)

void	fillPolarization (size_t startIdx, size_t count)

Vector_t< double, 3 >	getEmissionR0 () const

virtual void	testNumEmitParticles (size_t, double)

virtual void	testEmitParticles (size_t, double)

virtual void	initDomainDecomp (double)

virtual void	setWithDomainDecomp (bool)

size_t	computeLocalEmitCount (size_t totalToSample) const
	Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Protected Attributes
std::shared_ptr< ParticleContainer_t >	pc_m

std::shared_ptr< FieldContainer_t >	fc_m

Distribution_t *	opalDist_m = nullptr

std::string	samplingMethod_m

Vector_t< double, 3 >	R0_m = 0.0
	Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Vector_t< double, 3 >	P0_m = 0.0

double	t0_m = 0.0

std::string	emissionModel_m = "NONE"

Vector_t< double, 3 >	initialPol_m = 0.0

bool	hasEmittedOnce_m = false
	For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Private Member Functions
void	resolveFilenameFromInput ()
	Resolves relative file paths against the active input file directory.

void	readFile (const std::string &filename)
	Reads and parses an old-OPAL emitted particle file.

void	buildInventory (size_t requested)
	Selects records, converts file times to birth times, and sorts them.

std::pair< size_t, size_t >	computeLocalEmitRange (size_t totalToEmit) const
	Computes the local contiguous subrange of a global emission batch.

Private Attributes
std::string	filename_m
	File path to read emitted particle data from.

std::vector< RawRecord >	rawRecords_m
	Parsed file rows before selection and sorting.

std::vector< Record >	records_m
	Selected records sorted by tracker birth time.

size_t	nextGlobalIndex_m = 0
	First global record index not emitted yet.

bool	inventoryBuilt_m = false
	True once records_m is ready for emission.

Vector_t< double, 3 >	initialRefP_m = 0.0
	Average initial reference momentum.

double	emissionTime_m = 0.0
	Total emission time spanned by records_m.

size_t	emissionSteps_m = 100
	Number of steps used to derive emission dt.

Detailed Description

Reads old-OPAL emitted distribution dumps and emits particles by file time.

The data rows are interpreted positionally as x px y py t pz [optional-bin]. The file time is an old-OPAL pre-emission time, so a row with t = -6e-13 is emitted at t = +6e-13 when the source t0 is zero.

Definition at line 28 of file EmittedFromFile.h.

Class Documentation

◆ EmittedFromFile::RawRecord

struct EmittedFromFile::RawRecord

Raw row parsed from an old-OPAL emitted distribution dump.

Definition at line 139 of file EmittedFromFile.h.

Collaboration diagram for EmittedFromFile::RawRecord:

Class Members
double	fileTime = 0.0	Old-OPAL pre-emission time column.
double	px = 0.0	Horizontal momentum offset from the file.
double	py = 0.0	Vertical momentum offset from the file.
double	pz = 0.0	Longitudinal momentum offset from the file.
double	x = 0.0	Horizontal position from the file.
double	y = 0.0	Vertical position from the file.

◆ EmittedFromFile::Record

struct EmittedFromFile::Record

Selected file row plus its converted tracker birth time.

Definition at line 151 of file EmittedFromFile.h.

Collaboration diagram for EmittedFromFile::Record:

Class Members
double	birthTime = 0.0	Birth time in the OPALX tracker convention.
RawRecord	raw	Original parsed file row.

Member Typedef Documentation

◆ size_type

using EmittedFromFile::size_type = ippl::detail::size_type

Definition at line 30 of file EmittedFromFile.h.

Constructor & Destructor Documentation

◆ EmittedFromFile() [1/2]

EmittedFromFile::EmittedFromFile	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc,
		Distribution_t *	opalDist
	)

Constructor for EmittedFromFile.

Parameters

pc	Shared pointer to ParticleContainer.
fc	Shared pointer to FieldContainer.
opalDist	Borrowed Distribution.

Definition at line 67 of file EmittedFromFile.cpp.

References emissionSteps_m, filename_m, Distribution::getEmissionSteps(), Distribution::getFilename(), readFile(), and resolveFilenameFromInput().

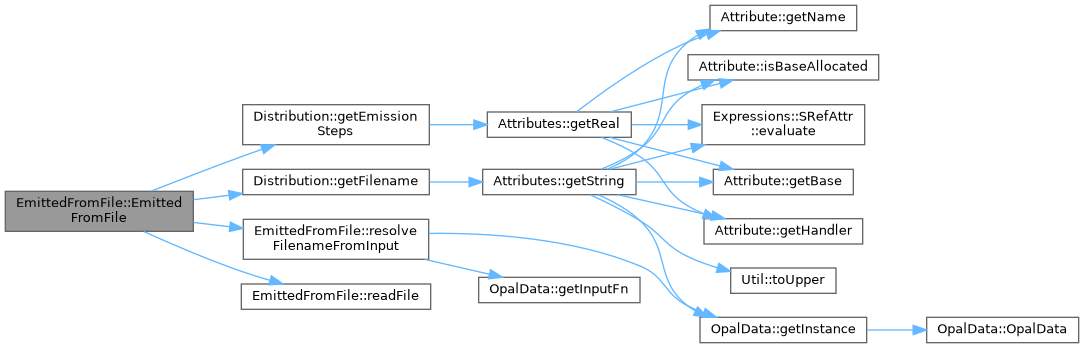

Here is the call graph for this function:

◆ EmittedFromFile() [2/2]

EmittedFromFile::EmittedFromFile	(	std::shared_ptr< ParticleContainer_t >	pc,
		std::shared_ptr< FieldContainer_t >	fc,
		const std::string &	filename
	)

Convenience constructor that takes the filename directly.

This is primarily intended for tests, where constructing a full OPALX Distribution object is unnecessary.

Parameters

pc	Shared pointer to ParticleContainer.
fc	Shared pointer to FieldContainer.
filename	Path to the emitted particle file.

Definition at line 83 of file EmittedFromFile.cpp.

References filename_m, and readFile().

Here is the call graph for this function:

Member Function Documentation

◆ buildInventory()

void EmittedFromFile::buildInventory ( size_t requested )

private

Selects records, converts file times to birth times, and sorts them.

Parameters

requested Number of records requested; zero selects all records.

Definition at line 223 of file EmittedFromFile.cpp.

References EmittedFromFile::Record::birthTime, emissionTime_m, EmittedFromFile::RawRecord::fileTime, initialRefP_m, inventoryBuilt_m, nextGlobalIndex_m, SamplingBase::opalDist_m, SamplingBase::P0_m, EmittedFromFile::RawRecord::px, EmittedFromFile::RawRecord::py, EmittedFromFile::RawRecord::pz, EmittedFromFile::Record::raw, rawRecords_m, records_m, Distribution::setTEmission(), and SamplingBase::t0_m.

Referenced by generateParticles().

Here is the call graph for this function:

◆ computeLocalEmitCount()

size_t SamplingBase::computeLocalEmitCount ( size_t totalToSample ) const

inherited

Computes the number of particles this rank should emit so that the global total equals totalToSample and no rank exceeds its capacity (space left).

Parameters

totalToSample Global number of particles to emit this timestep.

Returns: Local number of particles this rank should create/emit.

Definition at line 6 of file SamplingBase.cpp.

References SamplingBase::pc_m.

Referenced by FlatTop::countEnteringParticlesPerRank(), FromFile::generateParticles(), Gaussian::generateParticles(), and MultiVariateGaussian::generateParticles().

◆ computeLocalEmitRange()

std::pair< size_t, size_t > EmittedFromFile::computeLocalEmitRange ( size_t totalToEmit ) const

private

Computes the local contiguous subrange of a global emission batch.

Parameters

totalToEmit Number of particles emitted globally in the current step.

Returns: Pair of local offset into the global batch and local particle count.

Definition at line 279 of file EmittedFromFile.cpp.

References SamplingBase::pc_m.

Referenced by emitParticles().

◆ emitParticles()

void EmittedFromFile::emitParticles	(	double	t,
		double	dt
	)

overridevirtual

Emits all file records whose birth times fall into the current step.

Parameters

t	Start time of the current tracker step.
dt	Time step size.

Reimplemented from SamplingBase.

Definition at line 340 of file EmittedFromFile.cpp.

References computeLocalEmitRange(), generateLocalParticles(), inventoryBuilt_m, nextGlobalIndex_m, SamplingBase::pc_m, and records_m.

Referenced by TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ fillPolarization()

void SamplingBase::fillPolarization	(	size_t	startIdx,
		size_t	count
	)

inlineinherited

Fill the Pol particle attribute with initialPol_m on the half-open range [startIdx, startIdx + count). No-op when the container does not store spin. Must be called after the particles have been created and before they are pushed downstream.

Definition at line 63 of file SamplingBase.hpp.

References SamplingBase::initialPol_m, and SamplingBase::pc_m.

Referenced by FlatTop::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), and MultiVariateGaussian::generateParticles().

◆ generateLocalParticles()

void EmittedFromFile::generateLocalParticles	(	size_type	nlocalBefore,
		size_t	globalBegin,
		size_t	nNew,
		double	tStart,
		double	dt
	)

Generates the local particles assigned to this rank for one emission step.

Particle coordinates and momentum offsets come from the file. Each particle receives a per-particle fractional step based on its birth time and is drifted for half of that effective step.

Parameters

nlocalBefore	Local particle count before allocation.
globalBegin	First global record index assigned to this rank.
nNew	Number of local particles to generate.
tStart	Start time of the current tracker step.
dt	Time step size.

Definition at line 376 of file EmittedFromFile.cpp.

References EmittedFromFile::Record::birthTime, Physics::c, SamplingBase::P0_m, SamplingBase::pc_m, EmittedFromFile::RawRecord::px, EmittedFromFile::RawRecord::py, EmittedFromFile::RawRecord::pz, SamplingBase::R0_m, EmittedFromFile::Record::raw, records_m, EmittedFromFile::RawRecord::x, and EmittedFromFile::RawRecord::y.

Referenced by emitParticles().

◆ generateParticles()

void EmittedFromFile::generateParticles	(	size_t &	numberOfParticles,
		Vector_t< double, 3 >	nr
	)

overridevirtual

Reads the selected file records and builds the birth-time inventory.

Parameters

numberOfParticles	Number of particles requested by the caller.
nr	Number of grid points per direction (not used here).

Reimplemented from SamplingBase.

Definition at line 206 of file EmittedFromFile.cpp.

References buildInventory(), SamplingBase::emissionModel_m, Distribution::getNumParticles(), SamplingBase::opalDist_m, and records_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ getEmissionR0()

Vector_t< double, 3 > SamplingBase::getEmissionR0 ( ) const

inlineinherited

Definition at line 78 of file SamplingBase.hpp.

References SamplingBase::R0_m.

◆ getEmissionTime()

double EmittedFromFile::getEmissionTime ( ) const

inline

Returns the total emission time spanned by selected file records.

Definition at line 117 of file EmittedFromFile.h.

References emissionTime_m.

Referenced by TEST_F().

◆ getEmissionTimeStep()

double EmittedFromFile::getEmissionTimeStep ( ) const

inlineoverridevirtual

Returns the preferred emission time step.

Returns: emissionTime divided by the configured number of emission steps.

Reimplemented from SamplingBase.

Definition at line 108 of file EmittedFromFile.h.

References emissionSteps_m, and emissionTime_m.

Referenced by TEST_F().

◆ getGlobalTimeShift()

double EmittedFromFile::getGlobalTimeShift ( ) const

inlineoverridevirtual

Returns the global time shift needed to center old-OPAL file times.

Returns: Non-negative shift from source time to the midpoint of the emission window.

Reimplemented from SamplingBase.

Definition at line 99 of file EmittedFromFile.h.

References emissionTime_m, and SamplingBase::t0_m.

Referenced by TEST_F(), TEST_F(), and TEST_F().

◆ getInitialReferenceMomentum()

Vector_t< double, 3 > EmittedFromFile::getInitialReferenceMomentum ( ) const

inlineoverridevirtual

Returns the average initial reference momentum from selected records.

Reimplemented from SamplingBase.

Definition at line 92 of file EmittedFromFile.h.

References initialRefP_m.

Referenced by TEST_F(), and TEST_F().

◆ hasInitialReferenceMomentum()

bool EmittedFromFile::hasInitialReferenceMomentum ( ) const

inlineoverridevirtual

Reports whether an initial reference momentum is available.

Returns: True after the file inventory has been built.

Reimplemented from SamplingBase.

Definition at line 87 of file EmittedFromFile.h.

References inventoryBuilt_m.

Referenced by TEST_F().

◆ initDomainDecomp()

virtual void SamplingBase::initDomainDecomp ( double )

inlinevirtualinherited

Reimplemented in FlatTop, and OpalFlatTop.

Definition at line 110 of file SamplingBase.hpp.

◆ isEmissionDone()

bool EmittedFromFile::isEmissionDone ( double ) const

inlineoverridevirtual

Returns whether all file records in the inventory have been emitted.

Returns: True if the inventory exists and the next global index is past its end.

Reimplemented from SamplingBase.

Definition at line 78 of file EmittedFromFile.h.

References inventoryBuilt_m, nextGlobalIndex_m, and records_m.

Referenced by TEST_F().

◆ readFile()

void EmittedFromFile::readFile ( const std::string & filename )

private

Reads and parses an old-OPAL emitted particle file.

Accepted files may contain a leading particle count and header, or a comment header. Data rows are interpreted positionally as x px y py t pz [optional-bin].

Parameters

filename Path to the file to read.

Definition at line 109 of file EmittedFromFile.cpp.

References EmittedFromFile::RawRecord::fileTime, EmittedFromFile::RawRecord::px, EmittedFromFile::RawRecord::py, EmittedFromFile::RawRecord::pz, rawRecords_m, EmittedFromFile::RawRecord::x, and EmittedFromFile::RawRecord::y.

Referenced by EmittedFromFile(), and EmittedFromFile().

◆ resolveFilenameFromInput()

void EmittedFromFile::resolveFilenameFromInput ( )

private

Resolves relative file paths against the active input file directory.

Definition at line 94 of file EmittedFromFile.cpp.

References filename_m, OpalData::getInputFn(), and OpalData::getInstance().

Referenced by EmittedFromFile().

Here is the call graph for this function:

◆ setEmissionOffsets()

void SamplingBase::setEmissionOffsets	(	ippl::Vector< double, 3 >	R0,
		ippl::Vector< double, 3 >	P0,
		double	t0,
		const std::string &	emissionModel = `"NONE"`
	)

inlineinherited

Definition at line 48 of file SamplingBase.hpp.

References SamplingBase::emissionModel_m, SamplingBase::P0_m, SamplingBase::R0_m, and SamplingBase::t0_m.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

◆ setInitialPolarization()

void SamplingBase::setInitialPolarization ( const ippl::Vector< double, 3 > & pol )

inlineinherited

Definition at line 57 of file SamplingBase.hpp.

References SamplingBase::initialPol_m.

◆ setWithDomainDecomp()

virtual void SamplingBase::setWithDomainDecomp ( bool )

inlinevirtualinherited

Reimplemented in FlatTop, and OpalFlatTop.

Definition at line 112 of file SamplingBase.hpp.

◆ testEmitParticles()

virtual void SamplingBase::testEmitParticles	(	size_t	,
		double
	)

inlinevirtualinherited

Definition at line 108 of file SamplingBase.hpp.

◆ testNumEmitParticles()

virtual void SamplingBase::testNumEmitParticles	(	size_t	,
		double
	)

inlinevirtualinherited

Definition at line 105 of file SamplingBase.hpp.

Member Data Documentation

◆ emissionModel_m

std::string SamplingBase::emissionModel_m = "NONE"

protectedinherited

Definition at line 25 of file SamplingBase.hpp.

Referenced by OpalFlatTop::generateLocalParticles(), generateParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

◆ emissionSteps_m

size_t EmittedFromFile::emissionSteps_m = 100

private

Number of steps used to derive emission dt.

Definition at line 194 of file EmittedFromFile.h.

Referenced by EmittedFromFile(), and getEmissionTimeStep().

◆ emissionTime_m

double EmittedFromFile::emissionTime_m = 0.0

private

Total emission time spanned by records_m.

Definition at line 193 of file EmittedFromFile.h.

Referenced by buildInventory(), getEmissionTime(), getEmissionTimeStep(), and getGlobalTimeShift().

◆ fc_m

std::shared_ptr<FieldContainer_t> SamplingBase::fc_m

protectedinherited

Definition at line 18 of file SamplingBase.hpp.

Referenced by FlatTop::initDomainDecomp(), OpalFlatTop::initDomainDecomp(), FlatTop::setParameters(), and OpalFlatTop::setParameters().

◆ filename_m

std::string EmittedFromFile::filename_m

private

File path to read emitted particle data from.

Definition at line 187 of file EmittedFromFile.h.

Referenced by EmittedFromFile(), EmittedFromFile(), and resolveFilenameFromInput().

◆ hasEmittedOnce_m

bool SamplingBase::hasEmittedOnce_m = false

protectedinherited

For one-shot emitters (e.g. Gaussian at delayed t0): guard to avoid double sampling.

Definition at line 33 of file SamplingBase.hpp.

Referenced by FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), and SamplingBase::isEmissionDone().

◆ initialPol_m

Vector_t<double, 3> SamplingBase::initialPol_m = 0.0

protectedinherited

Initial polarization vector P applied to every particle this sampler creates. Rest-frame Pauli expectations along lab-frame axes; |Pol| in [0, 1]. Ignored when the container does not have a spin attribute (hasSpin() == false).

Definition at line 30 of file SamplingBase.hpp.

Referenced by SamplingBase::fillPolarization(), and SamplingBase::setInitialPolarization().

◆ initialRefP_m

Vector_t<double, 3> EmittedFromFile::initialRefP_m = 0.0

private

Average initial reference momentum.

Definition at line 192 of file EmittedFromFile.h.

Referenced by buildInventory(), and getInitialReferenceMomentum().

◆ inventoryBuilt_m

bool EmittedFromFile::inventoryBuilt_m = false

private

True once records_m is ready for emission.

Definition at line 191 of file EmittedFromFile.h.

Referenced by buildInventory(), emitParticles(), hasInitialReferenceMomentum(), and isEmissionDone().

◆ nextGlobalIndex_m

size_t EmittedFromFile::nextGlobalIndex_m = 0

private

First global record index not emitted yet.

Definition at line 190 of file EmittedFromFile.h.

Referenced by buildInventory(), emitParticles(), and isEmissionDone().

◆ opalDist_m

Distribution_t* SamplingBase::opalDist_m = nullptr

protectedinherited

Definition at line 19 of file SamplingBase.hpp.

Referenced by buildInventory(), FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), generateParticles(), MultiVariateGaussian::MultiVariateGaussian(), and FlatTop::setParameters().

◆ P0_m

Vector_t<double, 3> SamplingBase::P0_m = 0.0

protectedinherited

Definition at line 23 of file SamplingBase.hpp.

Referenced by buildInventory(), generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), OpalFlatTop::getInitialReferenceMomentum(), and SamplingBase::setEmissionOffsets().

◆ pc_m

std::shared_ptr<ParticleContainer_t> SamplingBase::pc_m

protectedinherited

◆ R0_m

Vector_t<double, 3> SamplingBase::R0_m = 0.0

protectedinherited

Emission source offset: position R0, momentum P0, start time t0 (applied in sample step).

Definition at line 22 of file SamplingBase.hpp.

Referenced by generateLocalParticles(), OpalFlatTop::generateLocalParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), FlatTop::generateUniformDisk(), SamplingBase::getEmissionR0(), and SamplingBase::setEmissionOffsets().

◆ rawRecords_m

std::vector<RawRecord> EmittedFromFile::rawRecords_m

private

Parsed file rows before selection and sorting.

Definition at line 188 of file EmittedFromFile.h.

Referenced by buildInventory(), and readFile().

◆ records_m

std::vector<Record> EmittedFromFile::records_m

private

Selected records sorted by tracker birth time.

Definition at line 189 of file EmittedFromFile.h.

Referenced by buildInventory(), emitParticles(), generateLocalParticles(), generateParticles(), and isEmissionDone().

◆ samplingMethod_m

std::string SamplingBase::samplingMethod_m

protectedinherited

Definition at line 20 of file SamplingBase.hpp.

◆ t0_m

double SamplingBase::t0_m = 0.0

protectedinherited

Definition at line 24 of file SamplingBase.hpp.

Referenced by buildInventory(), FlatTop::emitParticles(), FromFile::emitParticles(), Gaussian::emitParticles(), MultiVariateGaussian::emitParticles(), FromFile::generateParticles(), Gaussian::generateParticles(), MultiVariateGaussian::generateParticles(), getGlobalTimeShift(), OpalFlatTop::getGlobalTimeShift(), FlatTop::isEmissionDone(), SamplingBase::setEmissionOffsets(), and OpalFlatTop::toBirthTime().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Class Documentation

◆ EmittedFromFile::RawRecord

◆ EmittedFromFile::Record

Member Typedef Documentation

◆ size_type

Constructor & Destructor Documentation

◆ EmittedFromFile() [1/2]

◆ EmittedFromFile() [2/2]

Member Function Documentation

◆ buildInventory()

◆ computeLocalEmitCount()

◆ computeLocalEmitRange()

◆ emitParticles()

◆ fillPolarization()

◆ generateLocalParticles()

◆ generateParticles()

◆ getEmissionR0()

◆ getEmissionTime()

◆ getEmissionTimeStep()

◆ getGlobalTimeShift()

◆ getInitialReferenceMomentum()

◆ hasInitialReferenceMomentum()

◆ initDomainDecomp()

◆ isEmissionDone()

◆ readFile()

◆ resolveFilenameFromInput()

◆ setEmissionOffsets()

◆ setInitialPolarization()

◆ setWithDomainDecomp()

◆ testEmitParticles()

◆ testNumEmitParticles()

Member Data Documentation

◆ emissionModel_m

◆ emissionSteps_m

◆ emissionTime_m

◆ fc_m

◆ filename_m

◆ hasEmittedOnce_m

◆ initialPol_m

◆ initialRefP_m

◆ inventoryBuilt_m

◆ nextGlobalIndex_m

◆ opalDist_m

◆ P0_m

◆ pc_m

◆ R0_m

◆ rawRecords_m

◆ records_m

◆ samplingMethod_m

◆ t0_m
