#include <PartBunch.h>

Inherits ippl::PicManager< T, Dim, ParticleContainer< T, Dim >, FieldContainer< T, Dim >, LoadBalancer< T, Dim > >.

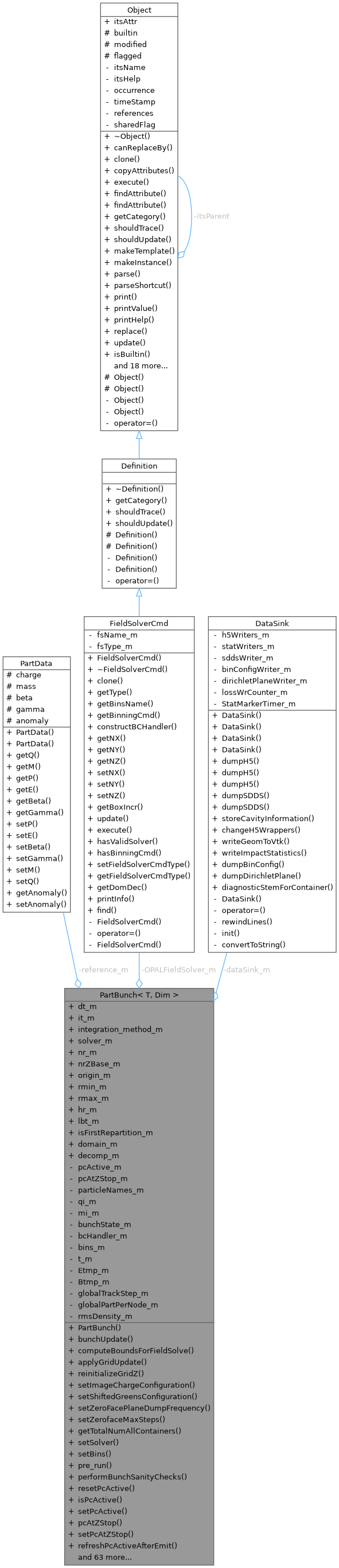

Collaboration diagram for PartBunch< T, Dim >:

Public Types
using	ParticleContainer_t = ParticleContainer< T, Dim >

using	FieldContainer_t = FieldContainer< T, Dim >

using	BinnedFieldSolver_t = BinnedFieldSolver< T, Dim >

using	LoadBalancer_t = LoadBalancer< T, Dim >

using	Base = ippl::ParticleBase< ippl::ParticleSpatialLayout< T, Dim >, Kokkos::DefaultExecutionSpace::memory_space >

using	CoordinateSelector_t = typename ParticleBinning::CoordinateSelector< ParticleContainer_t >

using	GammaSelector_t = typename ParticleBinning::GammaSelector< ParticleContainer_t >

using	AdaptBins_t = typename ParticleBinning::AdaptBinsBase< ParticleContainer_t >

using	binIndex_t = typename ParticleContainer_t::bin_index_type

using	BCHandler_t = BCHandler< Dim >

Public Member Functions

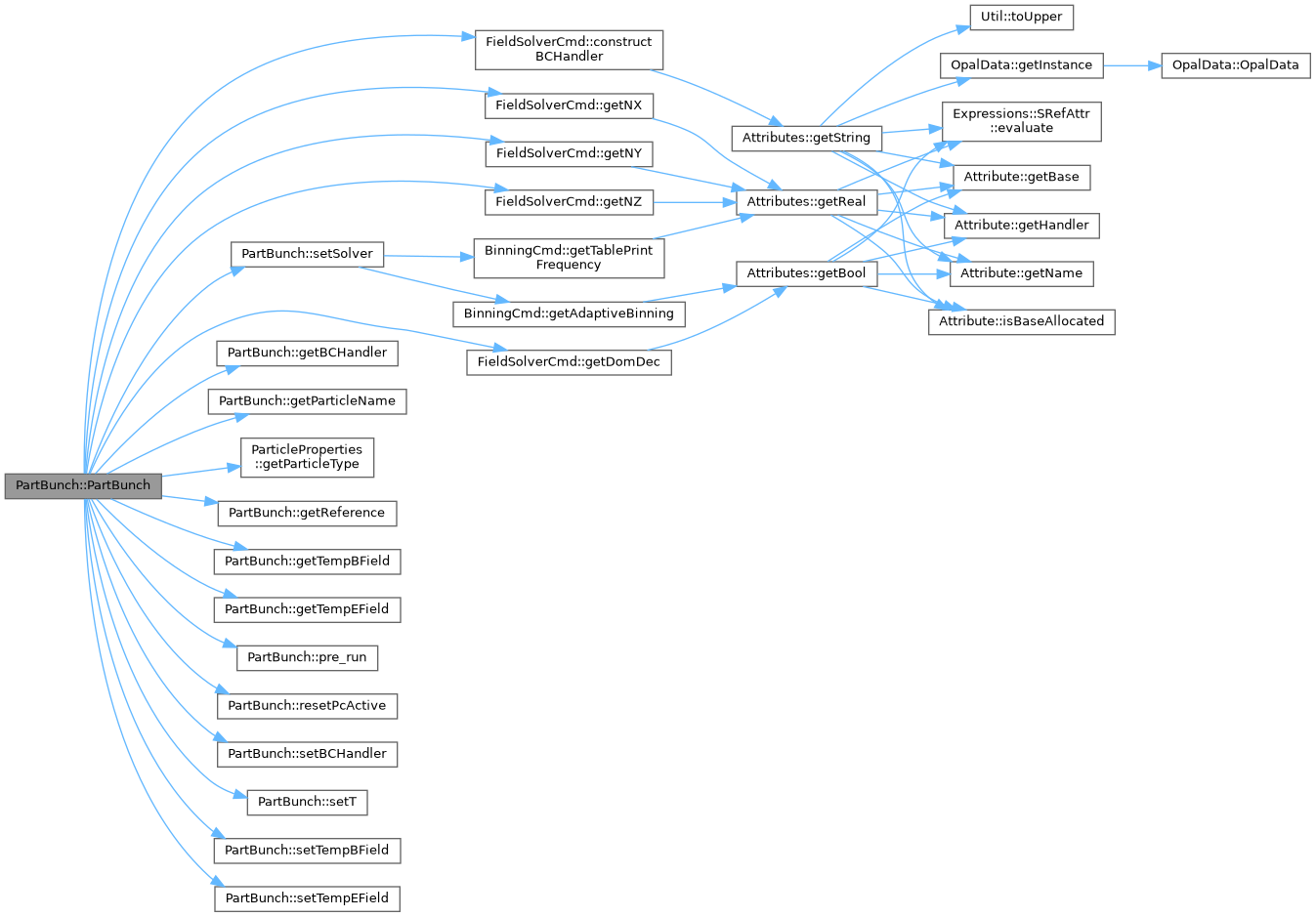

	PartBunch (std::vector< double > qi, std::vector< double > mi, const std::vector< Beam * > &beams, std::vector< size_t > totalParticlesPerBeam, double lbt, std::string integration_method, FieldSolverCmd OPALFieldSolver, DataSink dataSink)
	Construct a multi-beam bunch: mesh, solver, containers, and capacity.

void	bunchUpdate ()
	Refresh mesh from particle extents, update layouts, and recompute moments.

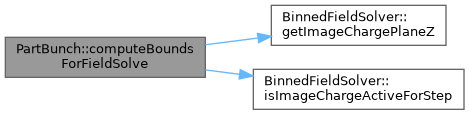

void	computeBoundsForFieldSolve (Vector_t< double, Dim > &lower, Vector_t< double, Dim > &upper)
	Computes the spatial bounds for the field solver based on the current particle distribution.

void	applyGridUpdate (const Vector_t< double, Dim > &lower, const Vector_t< double, Dim > &upper)
	Updates the mesh/grid and internal data structures to match the given spatial bounds.

void	reinitializeGridZ (int nrZ)
	Reinitialize the z dimension of the field grid to `nrZ` cells.

void	setImageChargeConfiguration (bool enabled, double zPlane)
	Set the image-charge configuration for the field solver.

void	setShiftedGreensConfiguration (bool enabled, double zPlane)
	Set the shifted Green's function Dirichlet-correction configuration.

void	setZeroFacePlaneDumpFrequency (int frequency)
	Configure diagnostic dump frequency for the ZEROFACE plane potential.

void	setZerofaceMaxSteps (int maxSteps)
	Set the maximum number of timesteps for which image charges are active (0 = unlimited).

size_t	getTotalNumAllContainers () const
	Sum of `getTotalNum()` over all particle containers.

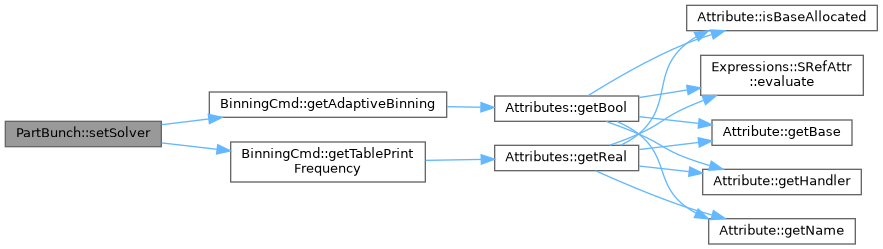

void	setSolver ()
	Build field solver and load balancer from `OPALFieldSolver_m`.

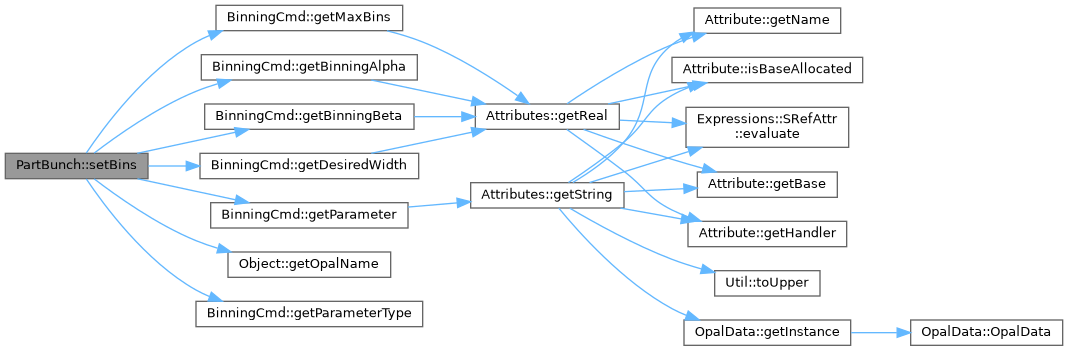

void	setBins ()
	Create adaptive bins from the binning command (VELOCITYZ / GAMMAZ).

void	pre_run () override
	Warm-up: zero rho and run the field solver once (skip full dumps).

void	performBunchSanityChecks () const
	Validate BC handler, solver wiring, field pointers, and layout extents.

void	resetPcActive ()
	At segment start: active if container is non-empty; inactive if empty.

bool	isPcActive (size_t i) const

void	setPcActive (size_t i)
	Force container `i` active (e.g. for containers with pending emission).

bool	pcAtZStop (size_t i) const

void	setPcAtZStop (size_t i)
	Deactivate container `i` until the next step-size segment (z-stop reached).

void	refreshPcActiveAfterEmit ()
	After emission: reactivate non-empty containers not marked at z-stop.

bool	anyPcActive () const

void	advance () override
	PicManager hook; throws (tracking does not use this path).

void	par2grid () override
	PicManager hook; throws (scatter handled elsewhere).

void	grid2par () override
	PicManager hook; throws (gather handled elsewhere).

std::shared_ptr< VField_t< T, Dim > >	getTempEField ()
	Scratch E field used by the binned solver path.

void	setTempEField (std::shared_ptr< VField_t< T, Dim > > Etmp)

std::shared_ptr< VField_t< T, Dim > >	getTempBField ()
	Scratch B field used by the binned solver path.

void	setTempBField (std::shared_ptr< VField_t< T, Dim > > Btmp)

std::shared_ptr< AdaptBins_t >	getBins ()
	Non-const access to adaptive binning state.

std::shared_ptr< AdaptBins_t >	getBins () const
	Const access to adaptive binning state.

void	setBins (std::shared_ptr< AdaptBins_t > bins)

void	setBCHandler (std::shared_ptr< BCHandler_t > bcHandler)

std::shared_ptr< BCHandler_t >	getBCHandler () const
	Current boundary-condition handler.

DataSink *	getDataSink () const

std::shared_ptr< BunchStateHandler >	getBunchStateHandler ()

std::shared_ptr< const BunchStateHandler >	getBunchStateHandler () const

void	updateMoments ()

void	calcBeamParameters ()
	Update moments and set `rmin_m` / `rmax_m` from the primary (first) container.

void	setCharge ()
	Set the per-particle charge for each particle container.

void	setMass ()
	Set the per-particle mass for each particle container.

double	getCharge (size_t containerIndex=0) const
	Get the total charge for a given particle container.

double	getChargePerParticle (size_t containerIndex=0) const
	Get the charge per particle for a given particle container.

double	getMassPerParticle (size_t containerIndex=0) const
	Get the mass per particle for a given particle container.

double	getQ (size_t containerIndex=0) const
	Alias for `getCharge(containerIndex)`.

double	getM (size_t containerIndex=0) const
	Get the total mass for a given particle container.

double	getTotalCharge () const
	Get the total charge across all particle containers.

double	getTotalMass () const
	Get the total mass across all particle containers.

double	getdE ()

const PartData *	getReference () const

void	setReference (const PartData *ref)
	Set inside TrackRun::execute.

void	gatherLoadBalanceStatistics ()

size_t	getLoadBalance (int p)

size_t	calcNumPartsOutside (Vector_t< double, Dim >)
	Stub; logs and returns 0.

void	calcLineDensity (unsigned int, std::vector< double > &, std::pair< double, double > &)
	Stub; logs only.

Vector_t< double, Dim >	getEExtrema ()
	Stub; logs and returns zero vector.

void	computeSelfFields ()
	Compute the bunch self-fields (binned when available).

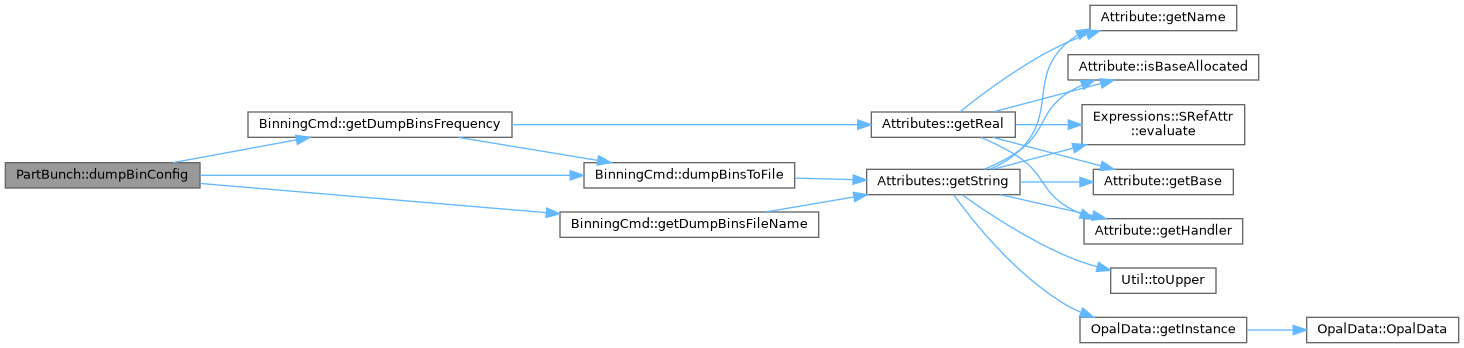

void	dumpBinConfig (bool preMerge)
	Write bin edges/counts to the data sink when configured.

Inform &	print (Inform &os)
	Human-readable dump of each container to `os`.

bool	hasFieldSolver () const

BinnedFieldSolver_t *	getFieldSolver ()
	Non-const pointer to the concrete BinnedFieldSolver.

const BinnedFieldSolver_t *	getFieldSolver () const
	Const overload of getFieldSolver().

std::string	getFieldSolverType ()
	Backend type string (e.g. FFT, OPEN, CG, NONE).

bool	hasBinning () const

int	getCurrentNBins () const
	Effective bin count for diagnostics (1 if binning inactive or still at max bins).

double	calcMeanPhi ()
	Compatibility stub; logs and returns 0.

std::string	getParticleName (size_t i) const
	Particle species name for container `i` (from BEAM PARTICLE input).

Vector_t< double, Dim >	R (size_t)
	Do not use; throws (access positions via `ParticleContainer::R`).

Vector_t< double, Dim >	P (size_t)
	Do not use; throws (access momenta via `ParticleContainer::P`).

void	get_bounds (Vector_t< double, Dim > &rmin, Vector_t< double, Dim > &rmax)
	Copy cached bunch extent (`rmin_m`, `rmax_m`) from calcBeamParameters.

void	setdT (double dt)
	Set the global time step.

double	getdT () const
	Get the global time step.

void	setT (double t)
	Set the current simulation time.

void	incrementT ()
	Advance time by one global time step.

double	getT () const
	Get the current simulation time.

Vector_t< double, Dim >	get_origin () const
	Cached minimum extent (`rmin_m`); prefer per-container min/max for multi-beam detail.

Vector_t< double, Dim >	get_maxExtent () const
	Cached maximum extent (`rmax_m`).

Vector_t< double, Dim >	get_halo () const
	Stub; logs and returns zero vector.

Vector_t< double, Dim >	get_hr () const
	Get mesh spacing.

void	setGlobalTrackStep (long long n)

long long	getGlobalTrackStep () const
	Current global tracking step.

void	incTrackSteps ()
	Increment `globalTrackStep_m` by one.

void	do_binaryRepart ()
	ORB/binary repartition when the load balancer requests it (primary container).

double	get_rmsDensity () const
	Legacy RMS density field (may be unused).

Public Attributes
double	dt_m
	Global time step \(\Delta t\) (s).

int	it_m
	Iteration counter (legacy / diagnostics).

std::string	integration_method_m
	Integrator name (e.g. leapfrog).

std::string	solver_m
	Field solver type string from input.

Vector_t< int, Dim >	nr_m
	Mesh cell count per dimension.

int	nrZBase_m = 0
	Base z grid count before any image-charge doubling; used to reset nr_m.

Vector_t< double, Dim >	origin_m
	Mesh origin (lab coordinates).

Vector_t< double, Dim >	rmin_m

Vector_t< double, Dim >	rmax_m
	Current bunch spatial maximum (from primary container stats).

Vector_t< double, Dim >	hr_m
	Mesh spacing (m).

double	lbt_m
	Load-balancer timescale parameter.

bool	isFirstRepartition_m
	True until the first ORB-style repartition completes.

ippl::NDIndex< Dim >	domain_m
	Global mesh index extent per dimension.

std::array< bool, Dim >	decomp_m
	Domain decomposition flags (per axis).

Private Attributes
std::vector< bool >	pcActive_m
	Per-container: participate in this track segment.

std::vector< bool >	pcAtZStop_m
	Per-container: frozen at current z-stop until next segment.

std::vector< std::string >	particleNames_m
	Per-container beam particle names.

std::vector< double >	qi_m
	Charge per macroparticle [C], one entry per container.

std::vector< double >	mi_m
	Mass per macroparticle [GeV], one entry per container.

const PartData *	reference_m = nullptr
	Reference particle data (set by TrackRun::execute).

std::shared_ptr< BunchStateHandler >	bunchState_m
	Bunch state: unitless flag, repartition flag, etc.

std::shared_ptr< BCHandler_t >	bcHandler_m
	Field boundary conditions.

std::shared_ptr< AdaptBins_t >	bins_m
	Adaptive velocity/gamma binning (optional).

FieldSolverCmd *	OPALFieldSolver_m
	Borrowed parsed FIELD_SOLVER command.

DataSink *	dataSink_m
	Borrowed diagnostics and dump output sink.

double	t_m
	Current simulation time (s).

std::shared_ptr< VField_t< T, Dim > >	Etmp_m

std::shared_ptr< VField_t< T, Dim > >	Btmp_m

long long	globalTrackStep_m
	Global integration step counter.

std::unique_ptr< size_t[]>	globalPartPerNode_m
	Per-rank particle counts for load-balance stats.

double	rmsDensity_m
	Legacy RMS density placeholder (may still appear in stats).

Detailed Description

template<typename T, unsigned Dim>
class PartBunch< T, Dim >

Definition at line 52 of file PartBunch.h.

Member Typedef Documentation

◆ AdaptBins_t

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::AdaptBins_t = typename ParticleBinning::AdaptBinsBase<ParticleContainer_t>

Definition at line 65 of file PartBunch.h.

◆ Base

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::Base = ippl::ParticleBase< ippl::ParticleSpatialLayout<T, Dim>, Kokkos::DefaultExecutionSpace::memory_space>

Definition at line 60 of file PartBunch.h.

◆ BCHandler_t

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::BCHandler_t = BCHandler<Dim>

Definition at line 68 of file PartBunch.h.

◆ binIndex_t

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::binIndex_t = typename ParticleContainer_t::bin_index_type

Definition at line 66 of file PartBunch.h.

◆ BinnedFieldSolver_t

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::BinnedFieldSolver_t = BinnedFieldSolver<T, Dim>

Definition at line 58 of file PartBunch.h.

◆ CoordinateSelector_t

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::CoordinateSelector_t = typename ParticleBinning::CoordinateSelector<ParticleContainer_t>

Definition at line 63 of file PartBunch.h.

◆ FieldContainer_t

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::FieldContainer_t = FieldContainer<T, Dim>

Definition at line 57 of file PartBunch.h.

◆ GammaSelector_t

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::GammaSelector_t = typename ParticleBinning::GammaSelector<ParticleContainer_t>

Definition at line 64 of file PartBunch.h.

◆ LoadBalancer_t

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::LoadBalancer_t = LoadBalancer<T, Dim>

Definition at line 59 of file PartBunch.h.

◆ ParticleContainer_t

template<typename T , unsigned Dim>

using PartBunch< T, Dim >::ParticleContainer_t = ParticleContainer<T, Dim>

Definition at line 56 of file PartBunch.h.

Constructor & Destructor Documentation

◆ PartBunch()

template<typename T , unsigned Dim>

PartBunch< T, Dim >::PartBunch	(	std::vector< double >	qi,
		std::vector< double >	mi,
		const std::vector< Beam * > &	beams,
		std::vector< size_t >	totalParticlesPerBeam,
		double	lbt,
		std::string	integration_method,
		FieldSolverCmd *	OPALFieldSolver,
		DataSink *	dataSink
	)

Construct a multi-beam bunch: mesh, solver, containers, and capacity.

Parameters

qi	Macrocharge per container (C).
mi	Macromass per container (GeV/c²).
beams	One `Beam` per container (reference particle, species).
totalParticlesPerBeam	Target macroparticle count per beam (for local allocation).
lbt	Load-balancer timescale.
integration_method	Integrator label (e.g. leapfrog).
OPALFieldSolver	Borrowed field solver command (mesh, BCs, optional binning).
dataSink	Borrowed non-null diagnostics output sink.

Todo:: if we want, we could also have a separate BunchStateHandler for each container later? But I think it could also make sense to only have one global handler.

Definition at line 22 of file PartBunch.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ advance()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::advance ( )

inlineoverride

PicManager hook; throws (tracking does not use this path).

Definition at line 286 of file PartBunch.h.

◆ anyPcActive()

template<typename T , unsigned Dim>

bool PartBunch< T, Dim >::anyPcActive ( ) const

inline

Returns: True if any container is active.

Definition at line 276 of file PartBunch.h.

References PartBunch< T, Dim >::pcActive_m.

Referenced by ParallelTracker::execute().

◆ applyGridUpdate()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::applyGridUpdate	(	const Vector_t< double, Dim > &	lower,
		const Vector_t< double, Dim > &	upper
	)

Updates the mesh/grid and internal data structures to match the given spatial bounds.

Sets the mesh spacing and origin for the field container based on the difference between lower and upper, updates references to domain boundaries, and applies these updates to the underlying mesh and field layout. Triggers a reevaluation of particle container layouts to ensure the grid matches the computed domain.

Parameters

[in]	lower	The minimum coordinates (origin) for the domain in all dimensions.
[in]	upper	The maximum coordinates for the domain in all dimensions.

Todo:: there might be a case where we can keep the moments clean if we know more about what exactly was changed due to update().

Definition at line 658 of file PartBunch.cpp.

◆ bunchUpdate()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::bunchUpdate ( )

Refresh mesh from particle extents, update layouts, and recompute moments.

Typical call sites

Track/TrackRun.cpp (initial layout)
PartBunch.cpp (space-charge path; review if still appropriate)
ParallelTracker.cpp (after position push / frame changes)

Definition at line 560 of file PartBunch.cpp.

References BinnedFieldSolver< T, Dim >::isImageChargeActiveForStep().

Referenced by ParallelTracker::computeSpaceChargeFields(), and ParallelTracker::execute().

Here is the call graph for this function:

◆ calcBeamParameters()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::calcBeamParameters ( )

Update moments and set rmin_m / rmax_m from the primary (first) container.

Note: Space-charge and mesh updates currently use container 0 only.

Definition at line 338 of file PartBunch.cpp.

References Dim.

Referenced by ParallelTracker::computeSpaceChargeFields(), and DataSink::dumpSDDS().

◆ calcLineDensity()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::calcLineDensity	(	unsigned int	,
		std::vector< double > &	,
		std::pair< double, double > &
	)

inline

Stub; logs only.

Definition at line 519 of file PartBunch.h.

References gmsg.

◆ calcMeanPhi()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::calcMeanPhi ( )

inline

Compatibility stub; logs and returns 0.

Definition at line 596 of file PartBunch.h.

References gmsg.

◆ calcNumPartsOutside()

template<typename T , unsigned Dim>

size_t PartBunch< T, Dim >::calcNumPartsOutside ( Vector_t< double, Dim > )

inline

Stub; logs and returns 0.

Definition at line 512 of file PartBunch.h.

References gmsg.

Referenced by DataSink::dumpSDDS().

◆ computeBoundsForFieldSolve()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::computeBoundsForFieldSolve	(	Vector_t< double, Dim > &	lower,
		Vector_t< double, Dim > &	upper
	)

Computes the spatial bounds for the field solver based on the current particle distribution.

Determines the minimum and maximum coordinates (lower, upper) in each dimension that encompass all particles in the current container. Adjusts these bounds if image-charge boundary conditions are enabled to ensure the domain includes both the real and mirrored charge distributions. Guarantees a minimal span (e.g., 1e-6) in each dimension for validity and applies an additional extension based on the field solver's box increment percentage.

Parameters

[out]	lower	The lowest coordinate per dimension after considering all particles and any boundary extensions.
[out]	upper	The highest coordinate per dimension after considering all particles and any boundary extensions.

Definition at line 593 of file PartBunch.cpp.

References Dim, BinnedFieldSolver< T, Dim >::getImageChargePlaneZ(), and BinnedFieldSolver< T, Dim >::isImageChargeActiveForStep().

Here is the call graph for this function:

◆ computeSelfFields()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::computeSelfFields ( )

Compute the bunch self-fields (binned when available).

The actual implementation lives in the solver object (see BinnedFieldSolver). ParallelTracker only orchestrates reference/beam-frame transforms and calls this delegator once per step.

Definition at line 719 of file PartBunch.cpp.

References BinnedFieldSolver< T, Dim >::computeSelfFields().

Referenced by ParallelTracker::computeSpaceChargeFields().

Here is the call graph for this function:

◆ do_binaryRepart()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::do_binaryRepart ( )

ORB/binary repartition when the load balancer requests it (primary container).

Definition at line 219 of file PartBunch.cpp.

◆ dumpBinConfig()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::dumpBinConfig ( bool preMerge )

Write bin edges/counts to the data sink when configured.

Parameters

preMerge True if called before a bin-merge step.

Definition at line 729 of file PartBunch.cpp.

References BinningCmd::dumpBinsToFile(), BinningCmd::getDumpBinsFileName(), and BinningCmd::getDumpBinsFrequency().

Here is the call graph for this function:

◆ gatherLoadBalanceStatistics()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::gatherLoadBalanceStatistics ( )

Definition at line 231 of file PartBunch.cpp.

Referenced by DataSink::dumpSDDS().

◆ get_bounds()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::get_bounds	(	Vector_t< double, Dim > &	rmin,
		Vector_t< double, Dim > &	rmax
	)

inline

Copy cached bunch extent (rmin_m, rmax_m) from calcBeamParameters.

Parameters

[out]	rmin	Lower corner.
[out]	rmax	Upper corner.

Definition at line 633 of file PartBunch.h.

References PartBunch< T, Dim >::rmax_m, and PartBunch< T, Dim >::rmin_m.

Referenced by Probe::doPreCheck(), and ParallelTracker::writePhaseSpace().

◆ get_halo()

template<typename T , unsigned Dim>

Vector_t< double, Dim > PartBunch< T, Dim >::get_halo ( ) const

inline

Stub; logs and returns zero vector.

Definition at line 660 of file PartBunch.h.

References gmsg.

Referenced by StatWriter::write().

◆ get_hr()

template<typename T , unsigned Dim>

Vector_t< double, Dim > PartBunch< T, Dim >::get_hr ( ) const

inline

Get mesh spacing.

Definition at line 667 of file PartBunch.h.

References PartBunch< T, Dim >::hr_m.

◆ get_maxExtent()

template<typename T , unsigned Dim>

Vector_t< double, Dim > PartBunch< T, Dim >::get_maxExtent ( ) const

inline

Cached maximum extent (rmax_m).

Definition at line 657 of file PartBunch.h.

References PartBunch< T, Dim >::rmax_m.

Referenced by H5PartWrapperForPT::writeStepHeader().

◆ get_origin()

template<typename T , unsigned Dim>

Vector_t< double, Dim > PartBunch< T, Dim >::get_origin ( ) const

inline

Cached minimum extent (rmin_m); prefer per-container min/max for multi-beam detail.

Definition at line 655 of file PartBunch.h.

References PartBunch< T, Dim >::rmin_m.

Referenced by H5PartWrapperForPT::writeStepHeader().

◆ get_rmsDensity()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::get_rmsDensity ( ) const

inline

Legacy RMS density field (may be unused).

Definition at line 682 of file PartBunch.h.

References PartBunch< T, Dim >::rmsDensity_m.

Referenced by StatWriter::write().

◆ getBCHandler()

template<typename T , unsigned Dim>

std::shared_ptr< BCHandler_t > PartBunch< T, Dim >::getBCHandler ( ) const

inline

Current boundary-condition handler.

Definition at line 331 of file PartBunch.h.

References PartBunch< T, Dim >::bcHandler_m.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ getBins() [1/2]

template<typename T , unsigned Dim>

std::shared_ptr< AdaptBins_t > PartBunch< T, Dim >::getBins ( )

inline

Non-const access to adaptive binning state.

Definition at line 319 of file PartBunch.h.

References PartBunch< T, Dim >::bins_m.

Referenced by PartBunch< T, Dim >::getCurrentNBins().

◆ getBins() [2/2]

template<typename T , unsigned Dim>

std::shared_ptr< AdaptBins_t > PartBunch< T, Dim >::getBins ( ) const

inline

Const access to adaptive binning state.

Definition at line 322 of file PartBunch.h.

References PartBunch< T, Dim >::bins_m.

◆ getBunchStateHandler() [1/2]

template<typename T , unsigned Dim>

std::shared_ptr< BunchStateHandler > PartBunch< T, Dim >::getBunchStateHandler ( )

inline

Definition at line 335 of file PartBunch.h.

References PartBunch< T, Dim >::bunchState_m.

◆ getBunchStateHandler() [2/2]

template<typename T , unsigned Dim>

std::shared_ptr< const BunchStateHandler > PartBunch< T, Dim >::getBunchStateHandler ( ) const

inline

Definition at line 336 of file PartBunch.h.

References PartBunch< T, Dim >::bunchState_m.

◆ getCharge()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getCharge ( size_t containerIndex = 0 ) const

inline

Get the total charge for a given particle container.

Parameters

containerIndex Index of the particle container.

Returns: qi_m[containerIndex] * getParticleContainers()[containerIndex]->getTotalNum().

Note: Throws if the number of particle containers and qi_m entries do not match, or if containerIndex is out of range.

Definition at line 387 of file PartBunch.h.

References PartBunch< T, Dim >::qi_m.

Referenced by PartBunch< T, Dim >::getQ().

◆ getChargePerParticle()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getChargePerParticle ( size_t containerIndex = 0 ) const

inline

Get the charge per particle for a given particle container.

Parameters

containerIndex Index of the particle container.

Returns: qi_m[containerIndex].

Note: Throws if containerIndex is out of range.

Definition at line 406 of file PartBunch.h.

References PartBunch< T, Dim >::qi_m.

Referenced by Multipole::isFocusing().

◆ getCurrentNBins()

template<typename T , unsigned Dim>

int PartBunch< T, Dim >::getCurrentNBins ( ) const

inline

Effective bin count for diagnostics (1 if binning inactive or still at max bins).

Definition at line 574 of file PartBunch.h.

References PartBunch< T, Dim >::bins_m, PartBunch< T, Dim >::getBins(), and PartBunch< T, Dim >::hasBinning().

Referenced by StatWriter::write().

Here is the call graph for this function:

◆ getDataSink()

template<typename T , unsigned Dim>

DataSink * PartBunch< T, Dim >::getDataSink ( ) const

inline

Definition at line 333 of file PartBunch.h.

References PartBunch< T, Dim >::dataSink_m.

◆ getdE()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getdE ( )

inline

Definition at line 490 of file PartBunch.h.

◆ getdT()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getdT ( ) const

inline

◆ getEExtrema()

template<typename T , unsigned Dim>

Vector_t< double, Dim > PartBunch< T, Dim >::getEExtrema ( )

inline

Stub; logs and returns zero vector.

Definition at line 527 of file PartBunch.h.

References gmsg.

◆ getFieldSolver() [1/2]

template<typename T , unsigned Dim>

PartBunch< T, Dim >::BinnedFieldSolver_t * PartBunch< T, Dim >::getFieldSolver ( )

Non-const pointer to the concrete BinnedFieldSolver.

Create adaptive bins from the binning command (VELOCITYZ / GAMMAZ).

Note: Definition in PartBunch.cpp; requires complete BinnedFieldSolver type.

Definition at line 277 of file PartBunch.cpp.

Referenced by ParallelTracker::execute(), and ParallelTracker::markBackwardParticlesAtSourcePlane().

◆ getFieldSolver() [2/2]

template<typename T , unsigned Dim>

const PartBunch< T, Dim >::BinnedFieldSolver_t * PartBunch< T, Dim >::getFieldSolver ( ) const

Const overload of getFieldSolver().

Definition at line 282 of file PartBunch.cpp.

◆ getFieldSolverType()

template<typename T , unsigned Dim>

std::string PartBunch< T, Dim >::getFieldSolverType ( )

Backend type string (e.g. FFT, OPEN, CG, NONE).

Definition at line 287 of file PartBunch.cpp.

◆ getGlobalTrackStep()

template<typename T , unsigned Dim>

long long PartBunch< T, Dim >::getGlobalTrackStep ( ) const

inline

Current global tracking step.

Definition at line 673 of file PartBunch.h.

References PartBunch< T, Dim >::globalTrackStep_m.

Referenced by Monitor::apply(), ParallelTracker::applyGlobalProcesses(), Monitor::applyToReferenceParticle(), ParallelTracker::dumpStats(), ParallelTracker::execute(), and H5PartWrapperForPT::writeStepHeader().

◆ getLoadBalance()

template<typename T , unsigned Dim>

size_t PartBunch< T, Dim >::getLoadBalance ( int p )

inline

Definition at line 509 of file PartBunch.h.

References PartBunch< T, Dim >::globalPartPerNode_m.

◆ getM()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getM ( size_t containerIndex = 0 ) const

inline

Get the total mass for a given particle container.

Parameters

containerIndex Index of the particle container.

Returns: mi_m[containerIndex] * getParticleContainers()[containerIndex]->getTotalNum().

Note: Throws if the number of particle containers and mi_m entries do not match, or if containerIndex is out of range.

Definition at line 440 of file PartBunch.h.

References PartBunch< T, Dim >::mi_m.

◆ getMassPerParticle()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getMassPerParticle ( size_t containerIndex = 0 ) const

inline

Get the mass per particle for a given particle container.

Parameters

containerIndex Index of the particle container.

Returns: mi_m[containerIndex].

Note: Throws if containerIndex is out of range.

Definition at line 419 of file PartBunch.h.

References PartBunch< T, Dim >::mi_m.

◆ getParticleName()

template<typename T , unsigned Dim>

std::string PartBunch< T, Dim >::getParticleName ( size_t i ) const

inline

Particle species name for container i (from BEAM PARTICLE input).

Definition at line 603 of file PartBunch.h.

References PartBunch< T, Dim >::particleNames_m.

Referenced by PartBunch< T, Dim >::PartBunch(), and StatWriter::write().

◆ getQ()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getQ ( size_t containerIndex = 0 ) const

inline

Alias for getCharge(containerIndex).

Parameters

containerIndex Index of the particle container.

Returns: Equivalent to getCharge(containerIndex).

Definition at line 431 of file PartBunch.h.

References PartBunch< T, Dim >::getCharge().

Here is the call graph for this function:

◆ getReference()

template<typename T , unsigned Dim>

const PartData * PartBunch< T, Dim >::getReference ( ) const

inline

Definition at line 494 of file PartBunch.h.

References PartBunch< T, Dim >::reference_m.

Referenced by ParallelTracker::autophaseCavities(), BendBase::calcDesignRadius(), BendBase::calcFieldAmplitude(), BendBase::calcGamma(), ParallelTracker::execute(), PartBunch< T, Dim >::PartBunch(), RFCavity::trackOnAxisParticle(), and Tracker::visitComponent().

◆ getT()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getT ( ) const

inline

◆ getTempBField()

template<typename T , unsigned Dim>

std::shared_ptr< VField_t< T, Dim > > PartBunch< T, Dim >::getTempBField ( )

inline

Scratch B field used by the binned solver path.

Definition at line 313 of file PartBunch.h.

References PartBunch< T, Dim >::Btmp_m.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ getTempEField()

template<typename T , unsigned Dim>

std::shared_ptr< VField_t< T, Dim > > PartBunch< T, Dim >::getTempEField ( )

inline

Scratch E field used by the binned solver path.

Definition at line 307 of file PartBunch.h.

References PartBunch< T, Dim >::Etmp_m.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ getTotalCharge()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getTotalCharge ( ) const

inline

Get the total charge across all particle containers.

Returns: sum_i(qi_m[i] * containers[i]->getTotalNum()).

Note: Throws if the number of particle containers and qi_m entries do not match.

Definition at line 457 of file PartBunch.h.

References PartBunch< T, Dim >::qi_m.

Referenced by RFCavity::initialise(), and DataSink::writeImpactStatistics().

◆ getTotalMass()

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::getTotalMass ( ) const

inline

Get the total mass across all particle containers.

Returns: sum_i(mi_m[i] * containers[i]->getTotalNum()).

Note: Throws if the number of particle containers and mi_m entries do not match.

Definition at line 476 of file PartBunch.h.

References PartBunch< T, Dim >::mi_m.

◆ getTotalNumAllContainers()

template<typename T , unsigned Dim>

size_t PartBunch< T, Dim >::getTotalNumAllContainers ( ) const

inline

Sum of getTotalNum() over all particle containers.

Definition at line 226 of file PartBunch.h.

Referenced by ParallelTracker::dumpStats(), ParallelTracker::execute(), ParallelTracker::printInitialContainerRefs(), and ParallelTracker::writePhaseSpace().

◆ grid2par()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::grid2par ( )

inlineoverride

PicManager hook; throws (gather handled elsewhere).

Definition at line 300 of file PartBunch.h.

◆ hasBinning()

template<typename T , unsigned Dim>

bool PartBunch< T, Dim >::hasBinning ( ) const

inline

Returns: True if adaptive binning is configured.

Definition at line 569 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getCurrentNBins().

◆ hasFieldSolver()

template<typename T , unsigned Dim>

bool PartBunch< T, Dim >::hasFieldSolver ( ) const

inline

Returns: True if a field solver instance is installed.

Definition at line 554 of file PartBunch.h.

Referenced by ParallelTracker::computeSpaceChargeFields(), and ParallelTracker::execute().

◆ incrementT()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::incrementT ( )

inline

Advance time by one global time step.

Definition at line 648 of file PartBunch.h.

References PartBunch< T, Dim >::dt_m, and PartBunch< T, Dim >::t_m.

Referenced by ParallelTracker::execute().

◆ incTrackSteps()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::incTrackSteps ( )

inline

Increment globalTrackStep_m by one.

Definition at line 676 of file PartBunch.h.

References PartBunch< T, Dim >::globalTrackStep_m.

Referenced by ParallelTracker::execute().

◆ isPcActive()

template<typename T , unsigned Dim>

bool PartBunch< T, Dim >::isPcActive ( size_t i ) const

inline

Parameters

i	Container index.

Returns: Whether container i participates in the current segment.

Definition at line 256 of file PartBunch.h.

References PartBunch< T, Dim >::pcActive_m.

Referenced by ParallelTracker::computeExternalFields(), ParallelTracker::deleteInvalidParticles(), ParallelTracker::evolveSpinTBMT(), ParallelTracker::execute(), ParallelTracker::markBackwardParticlesAtSourcePlane(), ParallelTracker::resetFields(), ParallelTracker::timeIntegration1(), ParallelTracker::timeIntegration2(), ParallelTracker::updateReferenceParticles(), and ParallelTracker::updateRefToLabCSTrafo().

◆ P()

template<typename T , unsigned Dim>

Vector_t< double, Dim > PartBunch< T, Dim >::P ( size_t )

inline

Do not use; throws (access momenta via ParticleContainer::P).

Definition at line 620 of file PartBunch.h.

Referenced by Corrector::apply(), PluginElement::changeWidth(), LF2< FieldFunction, Arguments >::doAdvance_m(), and Probe::doCheck().

◆ par2grid()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::par2grid ( )

inlineoverride

PicManager hook; throws (scatter handled elsewhere).

Definition at line 293 of file PartBunch.h.

◆ pcAtZStop()

template<typename T , unsigned Dim>

bool PartBunch< T, Dim >::pcAtZStop ( size_t i ) const

inline

Parameters

i	Container index.

Returns: Whether container i is frozen at the current z-stop.

Definition at line 267 of file PartBunch.h.

References PartBunch< T, Dim >::pcAtZStop_m.

Referenced by ParallelTracker::emitFromEmissionSources().

◆ performBunchSanityChecks()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::performBunchSanityChecks ( ) const

Validate BC handler, solver wiring, field pointers, and layout extents.

Exceptions

OpalException if initialization is inconsistent.

Definition at line 780 of file PartBunch.cpp.

Referenced by ParallelTracker::execute().

◆ pre_run()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::pre_run ( )

override

Warm-up: zero rho and run the field solver once (skip full dumps).

Definition at line 439 of file PartBunch.cpp.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ print()

template<typename T , unsigned Dim>

Inform & PartBunch< T, Dim >::print ( Inform & os )

Human-readable dump of each container to os.

Parameters

os	Output stream wrapper.

Returns: Reference to os.

Definition at line 460 of file PartBunch.cpp.

References ParticleContainer< T, Dim >::Attributes, Dim, Util::getEnergyString(), and Util::getLengthString().

Here is the call graph for this function:

◆ R()

template<typename T , unsigned Dim>

Vector_t< double, Dim > PartBunch< T, Dim >::R ( size_t )

inline

Do not use; throws (access positions via ParticleContainer::R).

Definition at line 611 of file PartBunch.h.

Referenced by Corrector::apply(), VerticalFFAMagnet::apply(), BendBase::apply(), ConstantEFieldCavity::apply(), Monitor::apply(), Multipole::apply(), RFCavity::apply(), ScalingFFAMagnet::apply(), Solenoid::apply(), TravelingWave::apply(), Ring::apply(), ParallelTracker::computeSpaceChargeFields(), LF2< FieldFunction, Arguments >::doAdvance_m(), Probe::doCheck(), ParallelTracker::emitFromEmissionSources(), and H5PartWrapperForPT::writeStepData().

◆ refreshPcActiveAfterEmit()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::refreshPcActiveAfterEmit ( )

After emission: reactivate non-empty containers not marked at z-stop.

Definition at line 198 of file PartBunch.cpp.

Referenced by ParallelTracker::emitFromEmissionSources().

◆ reinitializeGridZ()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::reinitializeGridZ ( int nrZ )

Reinitialize the z dimension of the field grid to nrZ cells.

Refresh mesh from particle extents, update layouts, and recompute moments.

Rebuilds the FieldLayout, all field arrays, the accumulation buffers, and the IPPL Poisson solver to match the new z extent. A no-op if nrZ equals the current z cell count. Called from bunchUpdate to double the z resolution while image charges are active.

Parameters

nrZ	Target number of z grid cells.

Definition at line 528 of file PartBunch.cpp.

References Dim.

◆ resetPcActive()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::resetPcActive ( )

At segment start: active if container is non-empty; inactive if empty.

Definition at line 166 of file PartBunch.cpp.

Referenced by ParallelTracker::execute(), and PartBunch< T, Dim >::PartBunch().

◆ setBCHandler()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setBCHandler ( std::shared_ptr< BCHandler_t > bcHandler )

inline

Parameters

bcHandler Boundary-condition handler for the mesh.

Definition at line 328 of file PartBunch.h.

References PartBunch< T, Dim >::bcHandler_m.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ setBins() [1/2]

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setBins ( )

Create adaptive bins from the binning command (VELOCITYZ / GAMMAZ).

Definition at line 292 of file PartBunch.cpp.

References GAMMAZ, BinningCmd::getBinningAlpha(), BinningCmd::getBinningBeta(), BinningCmd::getDesiredWidth(), BinningCmd::getMaxBins(), Object::getOpalName(), BinningCmd::getParameter(), BinningCmd::getParameterType(), and VELOCITYZ.

Here is the call graph for this function:

◆ setBins() [2/2]

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setBins ( std::shared_ptr< AdaptBins_t > bins )

inline

Parameters

bins	Adaptive binning object (or nullptr to clear).

Definition at line 325 of file PartBunch.h.

References PartBunch< T, Dim >::bins_m.

◆ setCharge()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setCharge ( )

inline

Set the per-particle charge for each particle container.

Note: Copies values from qi_m into each particle container via setQ.; Throws if the number of particle containers and qi_m entries do not match.

Definition at line 351 of file PartBunch.h.

References PartBunch< T, Dim >::qi_m.

◆ setdT()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setdT ( double dt )

inline

Set the global time step.

Definition at line 639 of file PartBunch.h.

References PartBunch< T, Dim >::dt_m.

Referenced by ParallelTracker::execute(), and ParallelTracker::selectDT().

◆ setGlobalTrackStep()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setGlobalTrackStep ( long long n )

inline

Parameters

n	Global step counter to store.

Definition at line 670 of file PartBunch.h.

References PartBunch< T, Dim >::globalTrackStep_m.

Referenced by H5PartWrapperForPT::readStepHeader().

◆ setImageChargeConfiguration()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setImageChargeConfiguration	(	bool	enabled,
		double	zPlane
	)

Set the image-charge configuration for the field solver.

Parameters

enabled	Enable image-charge scatter mirror when true.
zPlane	Mirror plane position in z [m].

Definition at line 696 of file PartBunch.cpp.

◆ setMass()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setMass ( )

inline

Set the per-particle mass for each particle container.

Note: Copies values from mi_m into each particle container via setM.; Throws if the number of particle containers and mi_m entries do not match.

Definition at line 368 of file PartBunch.h.

References PartBunch< T, Dim >::mi_m.

◆ setPcActive()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setPcActive ( size_t i )

inline

Force container i active (e.g. for containers with pending emission).

Definition at line 259 of file PartBunch.h.

References PartBunch< T, Dim >::pcActive_m.

Referenced by ParallelTracker::activateEmittingContainers().

◆ setPcAtZStop()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setPcAtZStop ( size_t i )

Deactivate container i until the next step-size segment (z-stop reached).

Definition at line 186 of file PartBunch.cpp.

Referenced by ParallelTracker::execute().

◆ setReference()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setReference ( const PartData * ref )

inline

Set inside TrackRun::execute.

Definition at line 497 of file PartBunch.h.

References Units::eV2GeV, PartData::getM(), and PartBunch< T, Dim >::reference_m.

Here is the call graph for this function:

◆ setShiftedGreensConfiguration()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setShiftedGreensConfiguration	(	bool	enabled,
		double	zPlane
	)

Set the shifted Green's function Dirichlet-correction configuration.

Alternative to setImageChargeConfiguration. Mutually exclusive with it. Requires the OPEN field solver (checked at runtime in the correction pass).

Parameters

enabled	Enable the shifted-Green's-function correction when true.
zPlane	Dirichlet plane position in z [m].

Definition at line 701 of file PartBunch.cpp.

◆ setSolver()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setSolver ( )

Build field solver and load balancer from OPALFieldSolver_m.

Definition at line 241 of file PartBunch.cpp.

References BinningCmd::getAdaptiveBinning(), and BinningCmd::getTablePrintFrequency().

Referenced by PartBunch< T, Dim >::PartBunch().

Here is the call graph for this function:

◆ setT()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setT ( double t )

inline

Set the current simulation time.

Definition at line 645 of file PartBunch.h.

References PartBunch< T, Dim >::t_m.

Referenced by ParallelTracker::execute(), ParallelTracker::findStartPositions(), PartBunch< T, Dim >::PartBunch(), and H5PartWrapperForPT::readStepHeader().

◆ setTempBField()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setTempBField ( std::shared_ptr< VField_t< T, Dim > > Btmp )

inline

Parameters

Btmp	Scratch B field matching the mesh layout.

Definition at line 316 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ setTempEField()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setTempEField ( std::shared_ptr< VField_t< T, Dim > > Etmp )

inline

Parameters

Etmp	Scratch E field matching the mesh layout.

Definition at line 310 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ setZerofaceMaxSteps()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setZerofaceMaxSteps ( int maxSteps )

Set the maximum number of timesteps for which image charges are active (0 = unlimited).

Definition at line 711 of file PartBunch.cpp.

◆ setZeroFacePlaneDumpFrequency()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::setZeroFacePlaneDumpFrequency ( int frequency )

Configure diagnostic dump frequency for the ZEROFACE plane potential.

Parameters

frequency Dump every n-th global timestep. 0 disables dumping.

Definition at line 706 of file PartBunch.cpp.

◆ updateMoments()

template<typename T , unsigned Dim>

void PartBunch< T, Dim >::updateMoments ( )

inline

Definition at line 338 of file PartBunch.h.

Referenced by DataSink::dumpSDDS(), and ParallelTracker::dumpStats().

Member Data Documentation

◆ bcHandler_m

template<typename T , unsigned Dim>

std::shared_ptr<BCHandler_t> PartBunch< T, Dim >::bcHandler_m

private

Field boundary conditions.

Definition at line 104 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getBCHandler(), and PartBunch< T, Dim >::setBCHandler().

◆ bins_m

template<typename T , unsigned Dim>

std::shared_ptr<AdaptBins_t> PartBunch< T, Dim >::bins_m

private

Adaptive velocity/gamma binning (optional).

Definition at line 105 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getBins(), PartBunch< T, Dim >::getBins(), PartBunch< T, Dim >::getCurrentNBins(), and PartBunch< T, Dim >::setBins().

◆ Btmp_m

template<typename T , unsigned Dim>

std::shared_ptr<VField_t<T, Dim> > PartBunch< T, Dim >::Btmp_m

private

Scratch B field for binned accumulation (same layout as mesh B).

Definition at line 114 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getTempBField().

◆ bunchState_m

template<typename T , unsigned Dim>

std::shared_ptr<BunchStateHandler> PartBunch< T, Dim >::bunchState_m

private

Bunch state: unitless flag, repartition flag, etc.

Definition at line 102 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getBunchStateHandler(), PartBunch< T, Dim >::getBunchStateHandler(), and PartBunch< T, Dim >::PartBunch().

◆ dataSink_m

template<typename T , unsigned Dim>

DataSink* PartBunch< T, Dim >::dataSink_m

private

Borrowed diagnostics and dump output sink.

Definition at line 107 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getDataSink(), and PartBunch< T, Dim >::PartBunch().

◆ decomp_m

template<typename T , unsigned Dim>

std::array<bool, Dim> PartBunch< T, Dim >::decomp_m

Domain decomposition flags (per axis).

Definition at line 89 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ domain_m

template<typename T , unsigned Dim>

ippl::NDIndex<Dim> PartBunch< T, Dim >::domain_m

Global mesh index extent per dimension.

Definition at line 88 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ dt_m

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::dt_m

Global time step \(\Delta t\) (s).

Definition at line 73 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getdT(), PartBunch< T, Dim >::incrementT(), PartBunch< T, Dim >::PartBunch(), and PartBunch< T, Dim >::setdT().

◆ Etmp_m

template<typename T , unsigned Dim>

std::shared_ptr<VField_t<T, Dim> > PartBunch< T, Dim >::Etmp_m

private

Scratch E field for binned accumulation (same layout as mesh E).

Definition at line 112 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getTempEField().

◆ globalPartPerNode_m

template<typename T , unsigned Dim>

std::unique_ptr<size_t[]> PartBunch< T, Dim >::globalPartPerNode_m

private

Per-rank particle counts for load-balance stats.

Definition at line 119 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getLoadBalance(), and PartBunch< T, Dim >::PartBunch().

◆ globalTrackStep_m

template<typename T , unsigned Dim>

long long PartBunch< T, Dim >::globalTrackStep_m

private

Global integration step counter.

Definition at line 116 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getGlobalTrackStep(), PartBunch< T, Dim >::incTrackSteps(), and PartBunch< T, Dim >::setGlobalTrackStep().

◆ hr_m

template<typename T , unsigned Dim>

Vector_t<double, Dim> PartBunch< T, Dim >::hr_m

Mesh spacing (m).

Definition at line 84 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::get_hr(), and PartBunch< T, Dim >::PartBunch().

◆ integration_method_m

template<typename T , unsigned Dim>

std::string PartBunch< T, Dim >::integration_method_m

Integrator name (e.g. leapfrog).

Definition at line 75 of file PartBunch.h.

◆ isFirstRepartition_m

template<typename T , unsigned Dim>

bool PartBunch< T, Dim >::isFirstRepartition_m

True until the first ORB-style repartition completes.

Definition at line 87 of file PartBunch.h.

◆ it_m

template<typename T , unsigned Dim>

int PartBunch< T, Dim >::it_m

Iteration counter (legacy / diagnostics).

Definition at line 74 of file PartBunch.h.

◆ lbt_m

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::lbt_m

Load-balancer timescale parameter.

Definition at line 86 of file PartBunch.h.

◆ mi_m

template<typename T , unsigned Dim>

std::vector<double> PartBunch< T, Dim >::mi_m

private

Mass per macroparticle [GeV], one entry per container.

Definition at line 97 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getM(), PartBunch< T, Dim >::getMassPerParticle(), PartBunch< T, Dim >::getTotalMass(), PartBunch< T, Dim >::PartBunch(), and PartBunch< T, Dim >::setMass().

◆ nr_m

template<typename T , unsigned Dim>

Vector_t<int, Dim> PartBunch< T, Dim >::nr_m

Mesh cell count per dimension.

Definition at line 77 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ nrZBase_m

template<typename T , unsigned Dim>

int PartBunch< T, Dim >::nrZBase_m = 0

Base z grid count before any image-charge doubling; used to reset nr_m.

Definition at line 78 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ OPALFieldSolver_m

template<typename T , unsigned Dim>

FieldSolverCmd* PartBunch< T, Dim >::OPALFieldSolver_m

private

Borrowed parsed FIELD_SOLVER command.

Definition at line 106 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ origin_m

template<typename T , unsigned Dim>

Vector_t<double, Dim> PartBunch< T, Dim >::origin_m

Mesh origin (lab coordinates).

Definition at line 79 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::PartBunch().

◆ particleNames_m

template<typename T , unsigned Dim>

std::vector<std::string> PartBunch< T, Dim >::particleNames_m

private

Per-container beam particle names.

Definition at line 94 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getParticleName(), and PartBunch< T, Dim >::PartBunch().

◆ pcActive_m

template<typename T , unsigned Dim>

std::vector<bool> PartBunch< T, Dim >::pcActive_m

private

Per-container: participate in this track segment.

Definition at line 92 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::anyPcActive(), PartBunch< T, Dim >::isPcActive(), and PartBunch< T, Dim >::setPcActive().

◆ pcAtZStop_m

template<typename T , unsigned Dim>

std::vector<bool> PartBunch< T, Dim >::pcAtZStop_m

private

Per-container: frozen at current z-stop until next segment.

Definition at line 93 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::pcAtZStop().

◆ qi_m

template<typename T , unsigned Dim>

std::vector<double> PartBunch< T, Dim >::qi_m

private

Charge per macroparticle [C], one entry per container.

Definition at line 96 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getCharge(), PartBunch< T, Dim >::getChargePerParticle(), PartBunch< T, Dim >::getTotalCharge(), PartBunch< T, Dim >::PartBunch(), and PartBunch< T, Dim >::setCharge().

◆ reference_m

template<typename T , unsigned Dim>

const PartData* PartBunch< T, Dim >::reference_m = nullptr

private

Reference particle data (set by TrackRun::execute).

Definition at line 99 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getReference(), and PartBunch< T, Dim >::setReference().

◆ rmax_m

template<typename T , unsigned Dim>

Vector_t<double, Dim> PartBunch< T, Dim >::rmax_m

Current bunch spatial maximum (from primary container stats).

Definition at line 83 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::get_bounds(), PartBunch< T, Dim >::get_maxExtent(), and PartBunch< T, Dim >::PartBunch().

◆ rmin_m

template<typename T , unsigned Dim>

Vector_t<double, Dim> PartBunch< T, Dim >::rmin_m

Current bunch spatial minimum (from primary container stats; see calcBeamParameters).

Definition at line 80 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::get_bounds(), PartBunch< T, Dim >::get_origin(), and PartBunch< T, Dim >::PartBunch().

◆ rmsDensity_m

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::rmsDensity_m

private

Legacy RMS density placeholder (may still appear in stats).

Definition at line 121 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::get_rmsDensity().

◆ solver_m

template<typename T , unsigned Dim>

std::string PartBunch< T, Dim >::solver_m

Field solver type string from input.

Definition at line 76 of file PartBunch.h.

◆ t_m

template<typename T , unsigned Dim>

double PartBunch< T, Dim >::t_m

private

Current simulation time (s).

Definition at line 109 of file PartBunch.h.

Referenced by PartBunch< T, Dim >::getT(), PartBunch< T, Dim >::incrementT(), and PartBunch< T, Dim >::setT().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Private Attributes

Detailed Description

Member Typedef Documentation

◆ AdaptBins_t

◆ Base

◆ BCHandler_t

◆ binIndex_t

◆ BinnedFieldSolver_t

◆ CoordinateSelector_t

◆ FieldContainer_t

◆ GammaSelector_t

◆ LoadBalancer_t

◆ ParticleContainer_t

Constructor & Destructor Documentation

◆ PartBunch()

Member Function Documentation

◆ advance()

◆ anyPcActive()

◆ applyGridUpdate()

◆ bunchUpdate()

◆ calcBeamParameters()

◆ calcLineDensity()

◆ calcMeanPhi()

◆ calcNumPartsOutside()

◆ computeBoundsForFieldSolve()

◆ computeSelfFields()

◆ do_binaryRepart()

◆ dumpBinConfig()

◆ gatherLoadBalanceStatistics()

◆ get_bounds()

◆ get_halo()

◆ get_hr()

◆ get_maxExtent()

◆ get_origin()

◆ get_rmsDensity()

◆ getBCHandler()

◆ getBins() [1/2]

◆ getBins() [2/2]

◆ getBunchStateHandler() [1/2]

◆ getBunchStateHandler() [2/2]

◆ getCharge()

◆ getChargePerParticle()

◆ getCurrentNBins()

◆ getDataSink()

◆ getdE()

◆ getdT()

◆ getEExtrema()

◆ getFieldSolver() [1/2]

◆ getFieldSolver() [2/2]

◆ getFieldSolverType()

◆ getGlobalTrackStep()

◆ getLoadBalance()

◆ getM()

◆ getMassPerParticle()

◆ getParticleName()

◆ getQ()

◆ getReference()

◆ getT()

◆ getTempBField()

◆ getTempEField()

◆ getTotalCharge()

◆ getTotalMass()

◆ getTotalNumAllContainers()

◆ grid2par()

◆ hasBinning()

◆ hasFieldSolver()

◆ incrementT()

◆ incTrackSteps()

◆ isPcActive()

◆ P()

◆ par2grid()

◆ pcAtZStop()

◆ performBunchSanityChecks()

◆ pre_run()

◆ print()

◆ R()

◆ refreshPcActiveAfterEmit()
