Implements the main time-based simulation loop for parallel tracking. More...

#include <ParallelTracker.h>

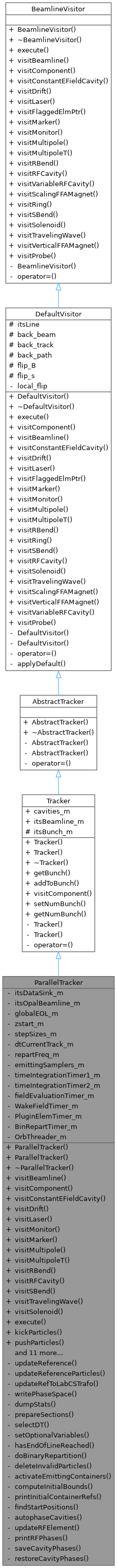

Inheritance diagram for ParallelTracker:

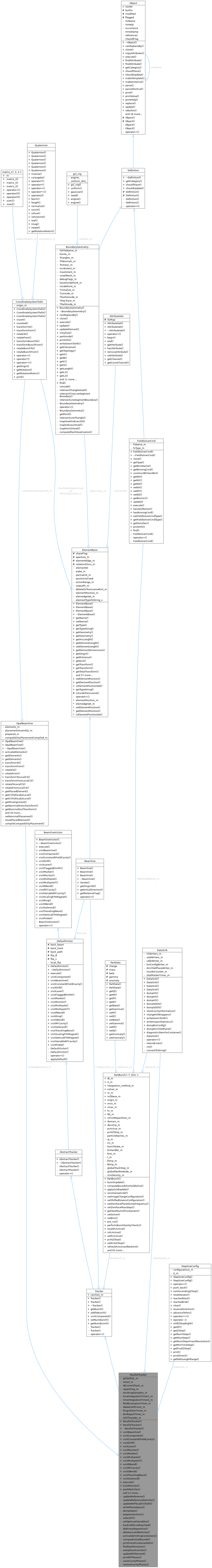

Collaboration diagram for ParallelTracker:

Public Types
enum	{ X , PX , Y , PY , T , PT }

Public Member Functions
	ParallelTracker (const Beamline &bl, bool revBeam)
	Construct tracker with beamline only (no bunch attached here).

	ParallelTracker (const Beamline &bl, PartBunch_t &bunch, DataSink *ds, bool revBeam, const std::vector< unsigned long long > &maxSTEPS, double zstart, const std::vector< double > &zstop, const std::vector< double > &dt, const std::vector< std::vector< std::shared_ptr< SamplingBase > > > &emittingSamplers={})
	Construct tracker with bunch, output sink, and step-size schedule.

virtual	~ParallelTracker ()
	Destructor; releases tracker resources.

virtual void	visitBeamline (const Beamline &)
	Visit the full beamline (iterates elements into OpalBeamline). Overrides DefaultVisitor.

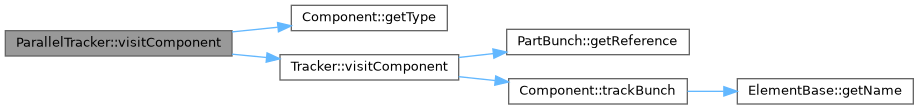

virtual void	visitComponent (const Component &)
	Visit a generic component using the base tracker behavior.

virtual void	visitConstantEFieldCavity (const ConstantEFieldCavity &)
	Apply the algorithm to a constant E-field cavity.

virtual void	visitDrift (const Drift &)
	Apply the algorithm to a drift.

virtual void	visitLaser (const Laser &)
	Reject laser tracking until dedicated laser tracking is implemented.

virtual void	visitMonitor (const Monitor &)
	Apply the algorithm to a monitor.

virtual void	visitMarker (const Marker &)
	Apply the algorithm to a marker.

virtual void	visitMultipole (const Multipole &)
	Apply the algorithm to a multipole.

virtual void	visitMultipoleT (const MultipoleT &)
	Apply the algorithm to a multipole (templated type).

virtual void	visitRBend (const RBend &)
	Apply the algorithm to a rectangular bend.

virtual void	visitRFCavity (const RFCavity &)
	Apply the algorithm to an RF cavity.

virtual void	visitSBend (const SBend &)
	Apply the algorithm to a sector bend.

virtual void	visitTravelingWave (const TravelingWave &)
	Apply the algorithm to a traveling wave cavity.

virtual void	visitSolenoid (const Solenoid &)
	Apply the algorithm to a solenoid.

virtual void	execute ()
	Run the main tracking loop until all step-size segments complete.

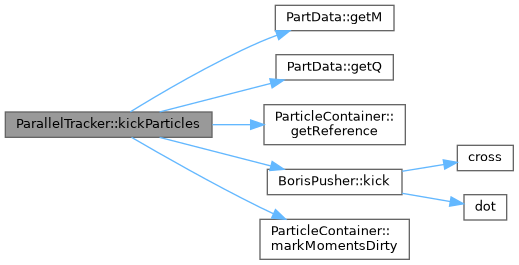

void	kickParticles (const BorisPusher &pusher, PartBunch_t::ParticleContainer_t &pc)
	Boris half-kick using E, B and per-particle dt on one container.

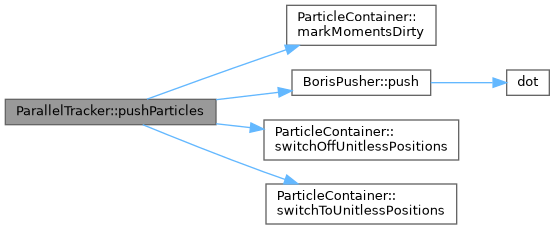

void	pushParticles (const BorisPusher &pusher, PartBunch_t::ParticleContainer_t &pc)
	Boris position push (unitless positions) on one container.

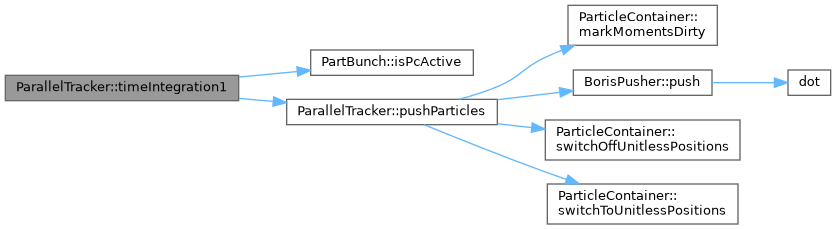

void	timeIntegration1 (BorisPusher &pusher)
	First half of the leapfrog step: push all active containers.

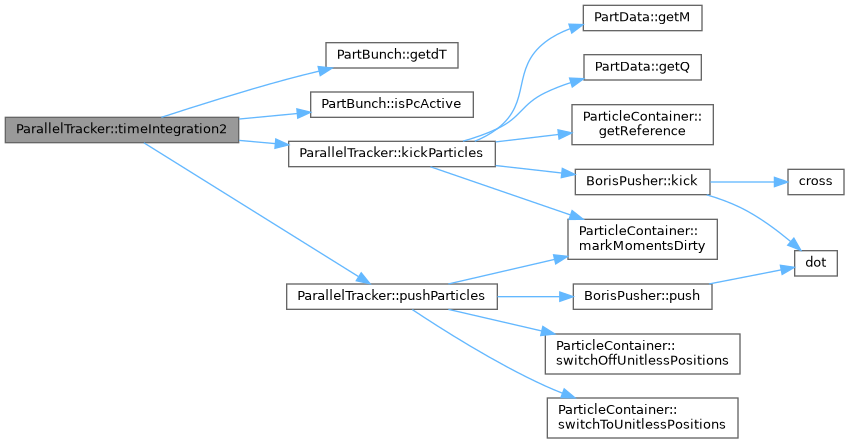

void	timeIntegration2 (BorisPusher &pusher)
	Second half: kick then push all active containers.

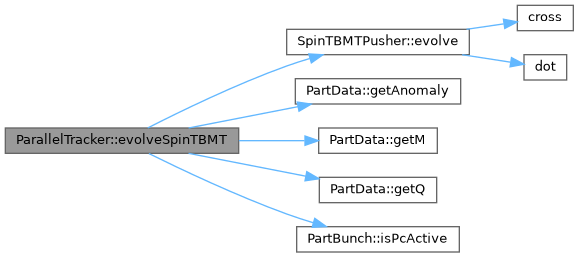

void	evolveSpinTBMT ()
	Thomas-BMT spin precession across all active containers that store Pol. Must be called after external + space-charge fields have been accumulated and before the momentum kick (so E, B at the particle are the lab-frame fields the particle sees during this step).

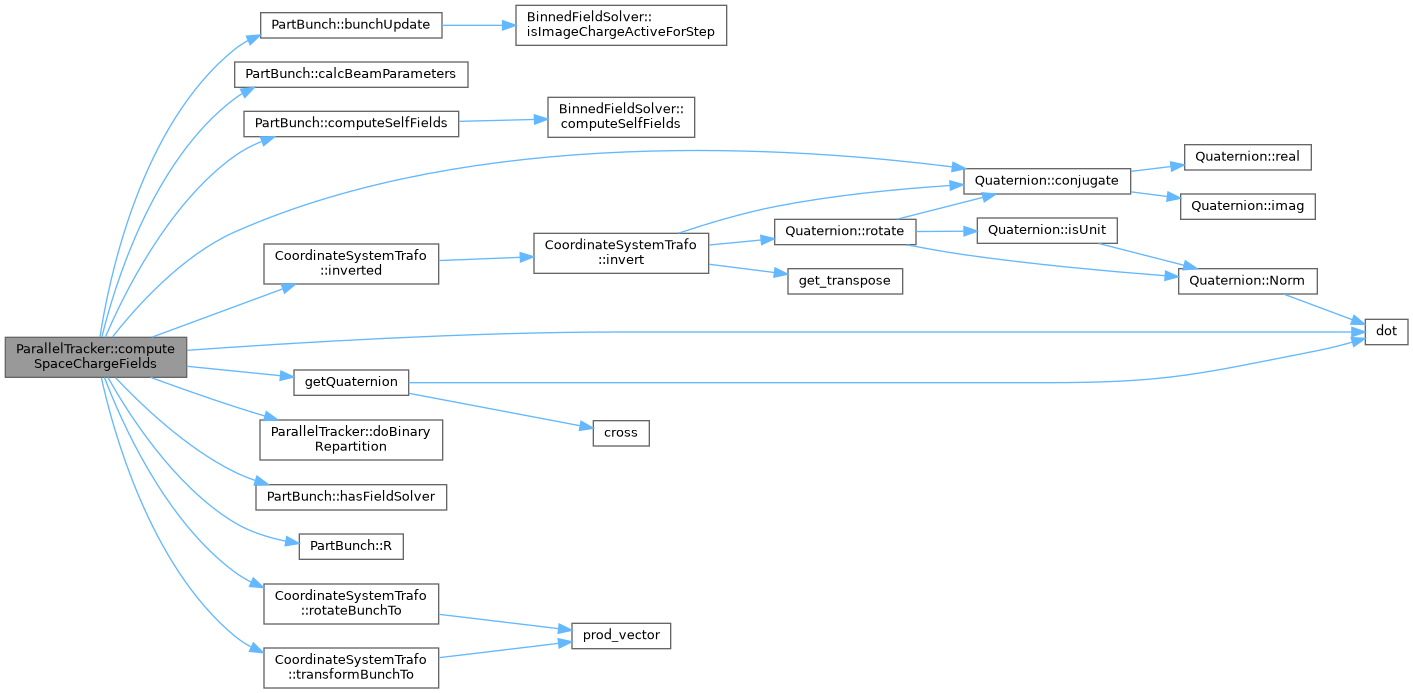

void	computeSpaceChargeFields (unsigned long long step)
	Self-fields in beam frame (primary container); optional binary repartition.

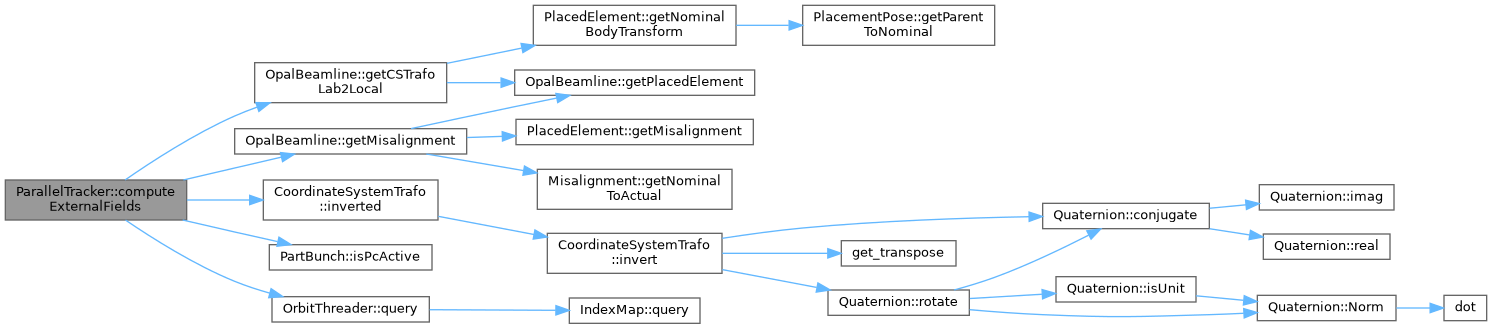

void	computeExternalFields (OrbitThreader &oth)
	Apply external fields from elements intersecting each active container.

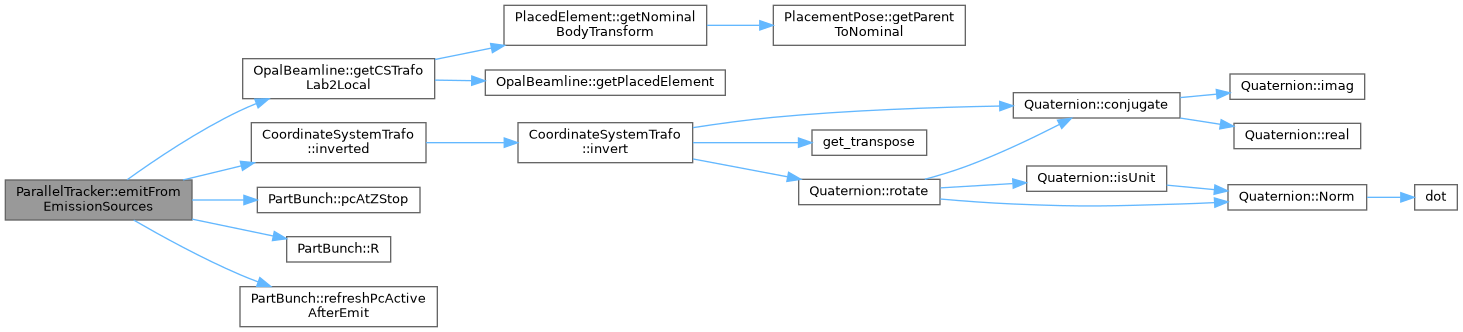

void	emitFromEmissionSources (double t, double dt)
	Emit macroparticles from configured samplers per container.

size_t	applyGlobalProcesses (double dt)
	Apply global processes and return the global number of particles marked invalid.

void	resetFields ()
	Zero E and B on all active particle containers.

void	changeDT ()
	Set bunch dt from StepSizeConfig and copy to all container dt views.

void	setTime ()
	Reset per-particle dt views to the current global bunch dt.

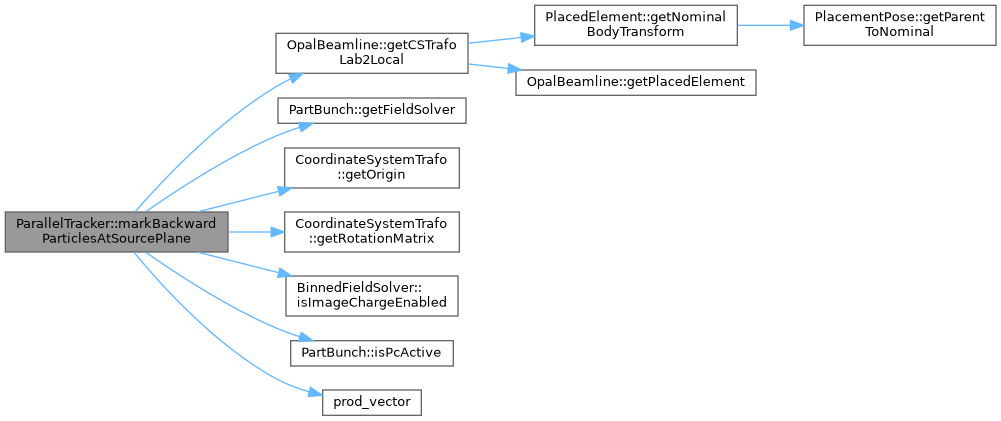

size_t	markBackwardParticlesAtSourcePlane ()
	Mark particles moving backward behind an active source/cathode plane.

PartBunch_t &	getBunch () const
	Return the currently attached borrowed bunch.

void	addToBunch (const OpalParticle &)
	Add particle to bunch.

virtual void	setNumBunch (short)
	set total number of tracked bunches

virtual short	getNumBunch ()
	get total number of tracked bunches

void	visitFlaggedElmPtr (const FlaggedElmPtr &) override
	Apply the algorithm to a FlaggedElmPtr.

void	visitRing (const Ring &) override
	Apply the algorithm to a Ring.

void	visitScalingFFAMagnet (const ScalingFFAMagnet &spiral) override
	Apply the algorithm to a scaling FFA magnet.

void	visitVerticalFFAMagnet (const VerticalFFAMagnet &) override
	Apply the algorithm to a vertical FFA magnet.

void	visitVariableRFCavity (const VariableRFCavity &) override
	Apply the algorithm to a variable RF cavity.

void	visitProbe (const Probe &prob) override
	Apply the algorithm to a Probe.

Public Attributes
FieldList	cavities_m

const Beamline &	itsBeamline_m

Protected Attributes
PartBunch_t *	itsBunch_m
	The bunch of particles to be tracked. Borrowed; lifetime is managed by TrackRun.

const Beamline &	itsLine

bool	back_beam

bool	back_track

bool	back_path

double	flip_B

double	flip_s

Private Member Functions

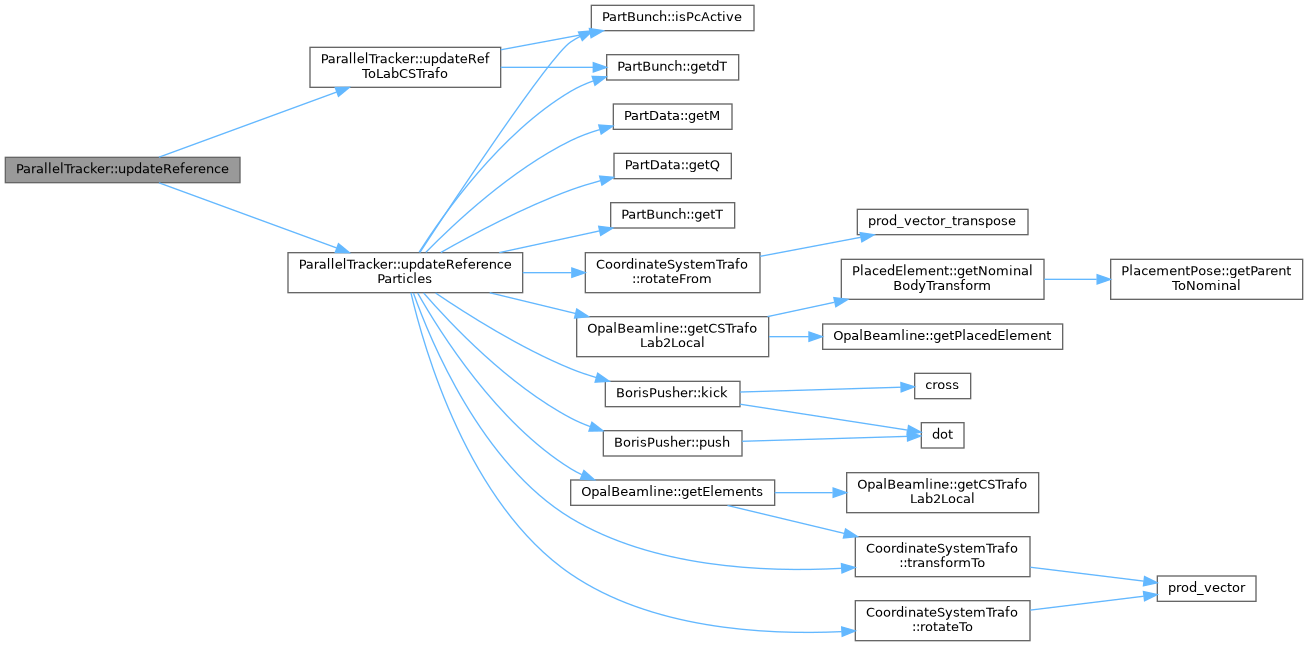

void	updateReference (const BorisPusher &pusher)
	Update reference trajectories and lab/reference coordinate transforms.

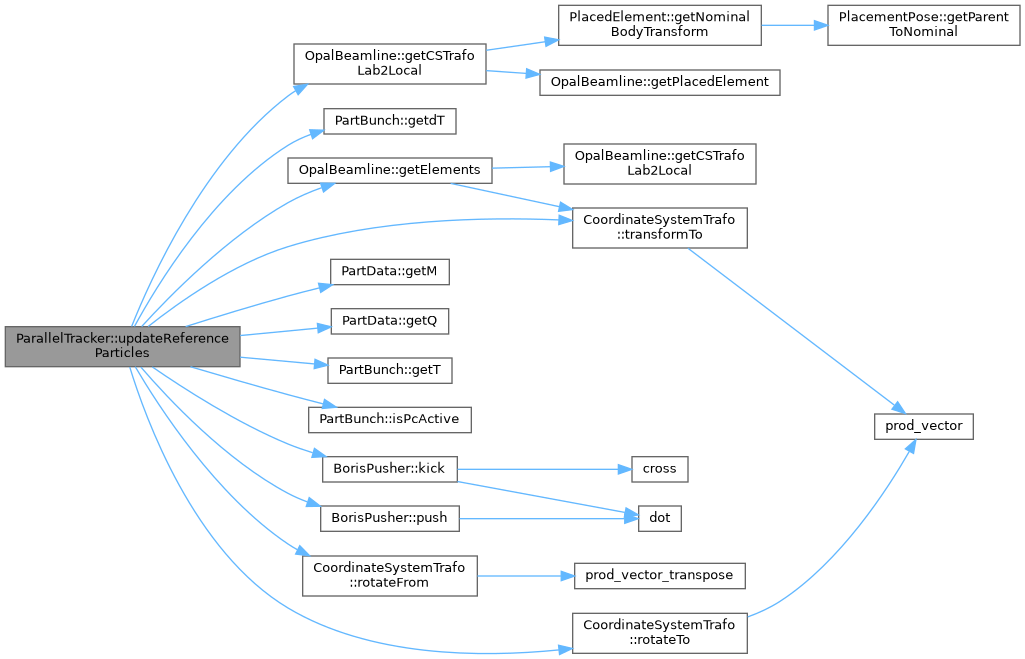

void	updateReferenceParticles (const BorisPusher &pusher)
	Advance reference positions/momenta through the beamline for one step.

void	updateRefToLabCSTrafo ()
	Refresh each container's reference-to-lab transform from current state.

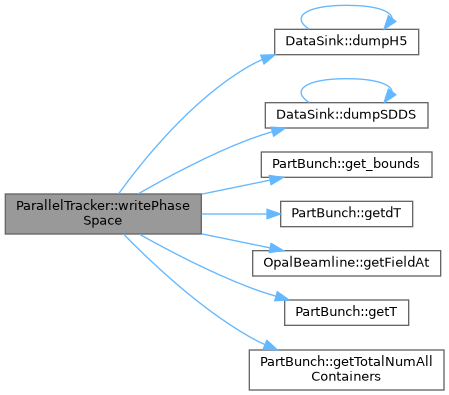

void	writePhaseSpace (const long long step, bool psDump, bool statDump)
	Write phase space and/or statistics when flags request it.

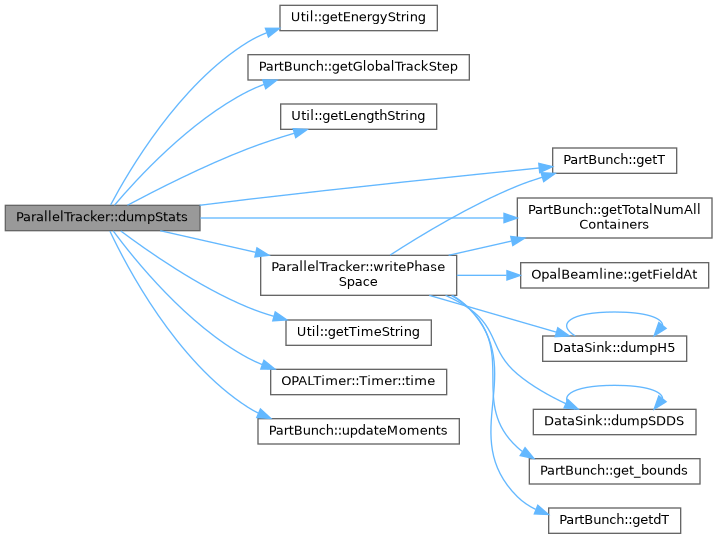

void	dumpStats (long long step, bool psDump, bool statDump)
	Log per-container stats and trigger dumps according to dump flags.

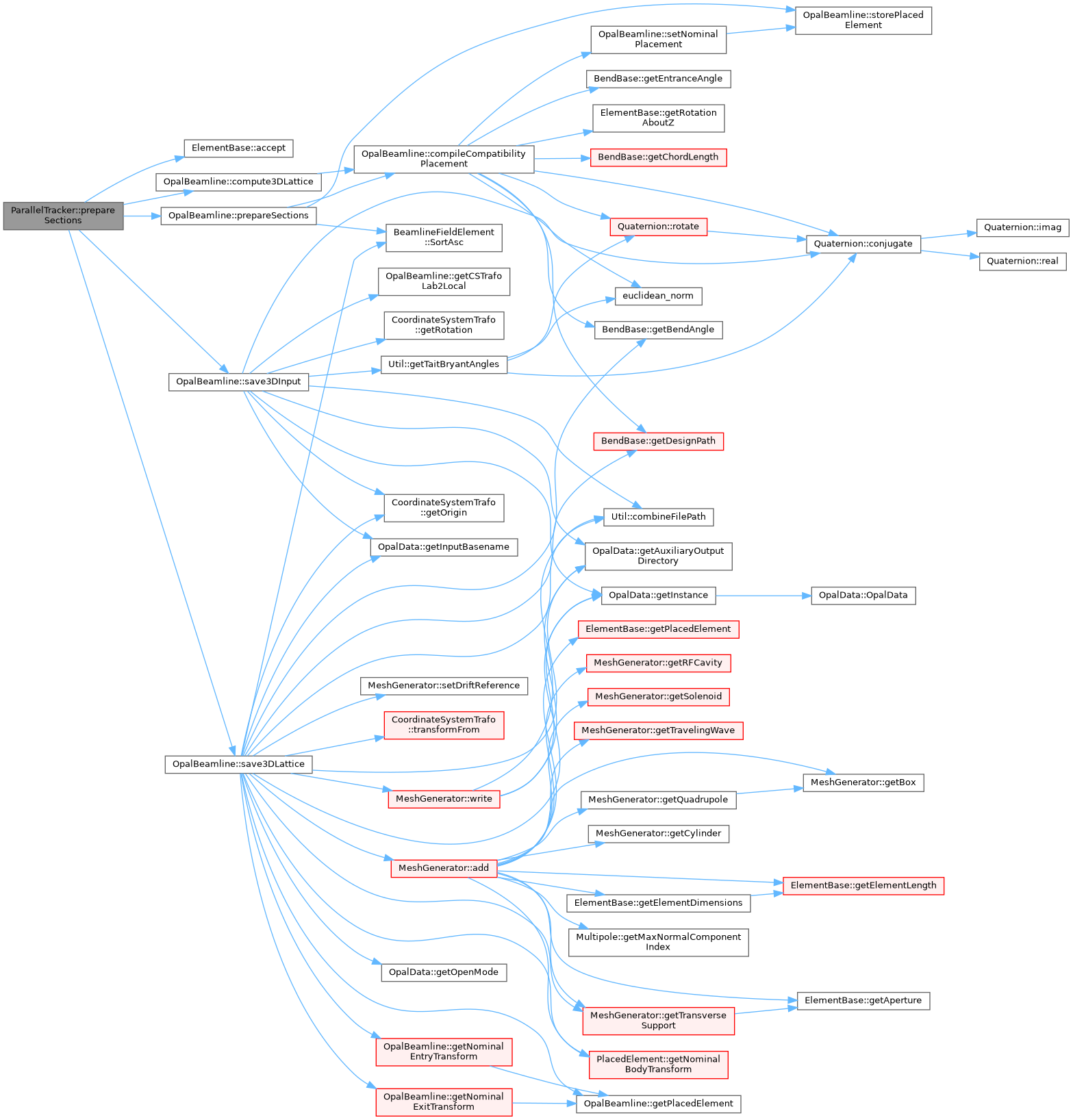

void	prepareSections ()
	Accept beamline visitor, prepare sections, compute and save 3D lattice.

void	selectDT ()
	Set global bunch dt to dtCurrentTrack_m.

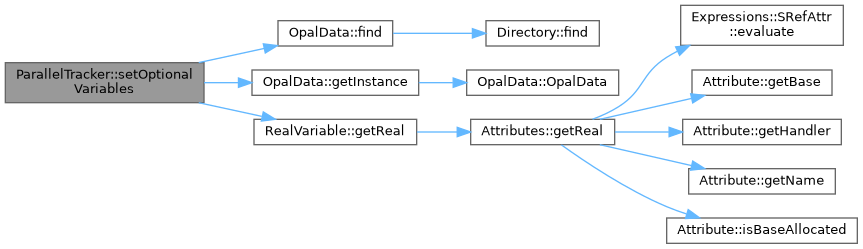

void	setOptionalVariables ()
	Load REPARTFREQ and related options from input.

bool	hasEndOfLineReached (const BoundingBox &globalBoundingBox)
	Whether tracking should stop at end-of-line (global reduction).

void	doBinaryRepartition ()
	Trigger binary repartition for the field solver if configured.

size_t	deleteInvalidParticles (bool activeOnly, Inform &m, const std::string &reason)
	Delete particles marked invalid by the central per-container mask.

void	activateEmittingContainers (double t)
	Force-activate containers whose emitting samplers have not yet finished.

void	computeInitialBounds (Vector_t< double, 3 > &rmin, Vector_t< double, 3 > &rmax)
	Union of per-container spatial bounds over MPI.

void	printInitialContainerRefs (Inform &m) const
	Log reference state for each container at track start.

void	findStartPositions (const BorisPusher &pusher)
	Integrate references in time until path length reaches zstart_m.

void	autophaseCavities (const BorisPusher &pusher)
	Autophase TRAVELINGWAVE and RFCAVITY elements along the reference orbit.

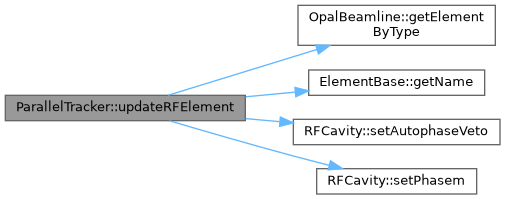

void	updateRFElement (std::string elName, double maxPhi)
	Set stored RF phase on the named cavity or traveling-wave element.

void	printRFPhases ()
	Print RF phases (debug/diagnostic hook).

void	saveCavityPhases ()
	Persist cavity phases to the data sink.

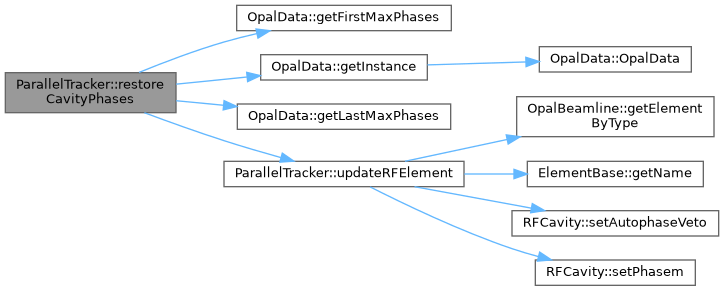

void	restoreCavityPhases ()
	Restore cavity phases from a prior track or restart.

virtual void	applyDefault (const ElementBase &)

Private Attributes
DataSink *	itsDataSink_m
	Borrowed beam statistics and phase-space output sink.

OpalBeamline	itsOpalBeamline_m
	Cloned field elements and coordinate transforms.

bool	globalEOL_m
	End-of-line flag (e.g. orbit threader out of bounds).

double	zstart_m
	Path-length start position for the track (m).

StepSizeConfig	stepSizes_m

double	dtCurrentTrack_m
	Global \(\Delta t\) for the current track segment.

unsigned long long	repartFreq_m
	Space-charge repartition period (steps); 0 disables it.

std::vector< std::vector< std::shared_ptr< SamplingBase > > >	emittingSamplers_m
	Per-container emitters.

IpplTimings::TimerRef	timeIntegrationTimer1_m

IpplTimings::TimerRef	timeIntegrationTimer2_m

IpplTimings::TimerRef	fieldEvaluationTimer_m

IpplTimings::TimerRef	WakeFieldTimer_m

IpplTimings::TimerRef	PluginElemTimer_m

IpplTimings::TimerRef	BinRepartTimer_m

IpplTimings::TimerRef	OrbThreader_m

bool	local_flip

Detailed Description

Implements the main time-based simulation loop for parallel tracking.

Note: TRACK and RUN in the input file construct a ParallelTracker and run ParallelTracker::execute().

Definition at line 71 of file ParallelTracker.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

inherited

Enumerator
X
PX
Y
PY
T
PT

Definition at line 36 of file AbstractTracker.h.

Constructor & Destructor Documentation

◆ ParallelTracker() [1/2]

ParallelTracker::ParallelTracker	(	const Beamline &	bl,
		bool	revBeam
	)

explicit

Construct tracker with beamline only (no bunch attached here).

Construct tracker from a beamline only (see class constructor overload).

Parameters

bl	Beamline definition.
revBeam	If true, reversed beam direction (s = C to 0); OPAL-T parallel tracking is forward-only; revTrack is not used.

Definition at line 70 of file ParallelTracker.cpp.

◆ ParallelTracker() [2/2]

ParallelTracker::ParallelTracker	(	const Beamline &	bl,
		PartBunch_t &	bunch,
		DataSink *	ds,
		bool	revBeam,
		const std::vector< unsigned long long > &	maxSTEPS,
		double	zstart,
		const std::vector< double > &	zstop,
		const std::vector< double > &	dt,
		const std::vector< std::vector< std::shared_ptr< SamplingBase > > > &	emittingSamplers = `{}`
	)

explicit

Construct tracker with bunch, output sink, and step-size schedule.

Construct tracker with bunch, data sink, z-segments, and optional emitters.

Parameters

bl	Beamline definition.
bunch	Borrowed particle bunch (multi-container).
ds	Borrowed data sink for statistics and dumps.
revBeam	Reversed beam flag (see single-argument constructor).
maxSTEPS	Max integration steps per z-segment (parallel to zstop/dt).
zstart	Starting path length (m).
zstop	Stop path length per segment (m).
dt	Time step per segment (s).
emittingSamplers	Optional per-container samplers for emitParticles(t, dt).

Definition at line 88 of file ParallelTracker.cpp.

References StepSizeConfig::push_back(), StepSizeConfig::resetIterator(), StepSizeConfig::sortAscendingZStop(), and stepSizes_m.

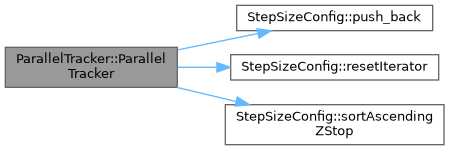

Here is the call graph for this function:

◆ ~ParallelTracker()

ParallelTracker::~ParallelTracker ( )

virtual

Destructor; releases tracker resources.

Definition at line 117 of file ParallelTracker.cpp.

Member Function Documentation

◆ activateEmittingContainers()

void ParallelTracker::activateEmittingContainers ( double t )

private

Force-activate containers whose emitting samplers have not yet finished.

Definition at line 1150 of file ParallelTracker.cpp.

References emittingSamplers_m, Tracker::itsBunch_m, and PartBunch< T, Dim >::setPcActive().

Referenced by execute().

Here is the call graph for this function:

◆ addToBunch()

void Tracker::addToBunch ( const OpalParticle & )

inherited

Add particle to bunch.

Definition at line 93 of file Tracker.cpp.

References gmsg.

◆ applyDefault()

void DefaultVisitor::applyDefault ( const ElementBase & )

privatevirtualinherited

◆ applyGlobalProcesses()

size_t ParallelTracker::applyGlobalProcesses ( double dt )

Apply global processes and return the global number of particles marked invalid.

Definition at line 837 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::getGlobalTrackStep(), and Tracker::itsBunch_m.

Referenced by execute().

Here is the call graph for this function:

◆ autophaseCavities()

void ParallelTracker::autophaseCavities ( const BorisPusher & pusher )

private

Autophase TRAVELINGWAVE and RFCAVITY elements along the reference orbit.

Definition at line 1693 of file ParallelTracker.cpp.

References Physics::c, RFCavity::getAutophaseVeto(), PartBunch< T, Dim >::getdT(), OpalBeamline::getElements(), CavityAutophaser::getPhaseAtMaxEnergy(), PartBunch< T, Dim >::getReference(), PartBunch< T, Dim >::getT(), Tracker::itsBunch_m, itsOpalBeamline_m, BorisPusher::push(), RFCAVITY, OpalBeamline::rotateToLocalCS(), OpalBeamline::transformToLocalCS(), and TRAVELINGWAVE.

Referenced by findStartPositions().

Here is the call graph for this function:

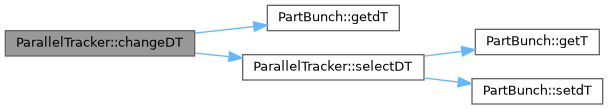

◆ changeDT()

void ParallelTracker::changeDT ( )

Set bunch dt from StepSizeConfig and copy to all container dt views.

Definition at line 1135 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::getdT(), Tracker::itsBunch_m, and selectDT().

Referenced by execute(), and findStartPositions().

Here is the call graph for this function:

◆ computeExternalFields()

void ParallelTracker::computeExternalFields ( OrbitThreader & oth )

Apply external fields from elements intersecting each active container.

Parameters

oth	Orbit threader for element queries.

Definition at line 717 of file ParallelTracker.cpp.

References fieldEvaluationTimer_m, OpalBeamline::getCSTrafoLab2Local(), OpalBeamline::getMisalignment(), globalEOL_m, gmsg, CoordinateSystemTrafo::inverted(), PartBunch< T, Dim >::isPcActive(), Tracker::itsBunch_m, itsOpalBeamline_m, and OrbitThreader::query().

Referenced by execute().

Here is the call graph for this function:

◆ computeInitialBounds()

void ParallelTracker::computeInitialBounds	(	Vector_t< double, 3 > &	rmin,
		Vector_t< double, 3 > &	rmax
	)

private

Union of per-container spatial bounds over MPI.

Parameters

[out]	rmin	Corner of the axis-aligned bounding box (min).
[out]	rmax	Corner of the axis-aligned bounding box (max).

Definition at line 1175 of file ParallelTracker.cpp.

References Tracker::itsBunch_m.

Referenced by execute().

◆ computeSpaceChargeFields()

void ParallelTracker::computeSpaceChargeFields ( unsigned long long step )

Self-fields in beam frame (primary container); optional binary repartition.

Parameters

step	Global step index (used for repartition cadence).

Frame of reference

Entry: \(R\), \(E\), \(B\) in the reference (lab) frame.
After transform to beam: \(R\) in the beam frame (origin at reference, z along momentum).
Inside computeSelfFields / bunchUpdate: mesh follows \(R\), so mesh is in the beam frame.
After transform back: \(R\), \(E\), \(B\) in the reference frame again.
After final bunchUpdate(): mesh matches reference-frame \(R\).

Definition at line 636 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::bunchUpdate(), PartBunch< T, Dim >::calcBeamParameters(), PartBunch< T, Dim >::computeSelfFields(), Quaternion::conjugate(), doBinaryRepartition(), dot(), getQuaternion(), gmsg, PartBunch< T, Dim >::hasFieldSolver(), CoordinateSystemTrafo::inverted(), Tracker::itsBunch_m, PartBunch< T, Dim >::R(), repartFreq_m, CoordinateSystemTrafo::rotateBunchTo(), and CoordinateSystemTrafo::transformBunchTo().

Referenced by execute().

Here is the call graph for this function:

◆ deleteInvalidParticles()

size_t ParallelTracker::deleteInvalidParticles	(	bool	activeOnly,
		Inform &	m,
		const std::string &	reason
	)

private

Delete particles marked invalid by the central per-container mask.

Definition at line 860 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::isPcActive(), and Tracker::itsBunch_m.

Referenced by execute().

Here is the call graph for this function:

◆ doBinaryRepartition()

void ParallelTracker::doBinaryRepartition ( )

private

Trigger binary repartition for the field solver if configured.

Definition at line 1164 of file ParallelTracker.cpp.

Referenced by computeSpaceChargeFields().

◆ dumpStats()

void ParallelTracker::dumpStats	(	long long	step,
		bool	psDump,
		bool	statDump
	)

private

Log per-container stats and trigger dumps according to dump flags.

Parameters

step	Current integration step index.
psDump	Forwarded to writePhaseSpace when logging occurs.
statDump	Forwarded to writePhaseSpace when logging occurs.

Definition at line 1424 of file ParallelTracker.cpp.

References Util::getEnergyString(), PartBunch< T, Dim >::getGlobalTrackStep(), Util::getLengthString(), PartBunch< T, Dim >::getT(), Util::getTimeString(), PartBunch< T, Dim >::getTotalNumAllContainers(), gmsg, Tracker::itsBunch_m, Options::stepInfoFreq, OPALTimer::Timer::time(), PartBunch< T, Dim >::updateMoments(), and writePhaseSpace().

Referenced by execute().

Here is the call graph for this function:

◆ emitFromEmissionSources()

void ParallelTracker::emitFromEmissionSources	(	double	t,
		double	dt
	)

Emit macroparticles from configured samplers per container.

Parameters

t	Bunch time (s).
dt	Global time step (s).

Definition at line 784 of file ParallelTracker.cpp.

References emittingSamplers_m, OpalBeamline::getCSTrafoLab2Local(), CoordinateSystemTrafo::inverted(), Tracker::itsBunch_m, itsOpalBeamline_m, PartBunch< T, Dim >::pcAtZStop(), PartBunch< T, Dim >::R(), and PartBunch< T, Dim >::refreshPcActiveAfterEmit().

Referenced by execute().

Here is the call graph for this function:

◆ evolveSpinTBMT()

void ParallelTracker::evolveSpinTBMT ( )

Thomas-BMT spin precession across all active containers that store Pol. Must be called after external + space-charge fields have been accumulated and before the momentum kick (so E, B at the particle are the lab-frame fields the particle sees during this step).

Definition at line 1045 of file ParallelTracker.cpp.

References SpinTBMTPusher::evolve(), PartData::getAnomaly(), PartData::getM(), PartData::getQ(), PartBunch< T, Dim >::isPcActive(), and Tracker::itsBunch_m.

Referenced by execute().

Here is the call graph for this function:

◆ execute()

void ParallelTracker::execute ( )

virtual

Run the main tracking loop until all step-size segments complete.

Reimplemented from DefaultVisitor.

Definition at line 165 of file ParallelTracker.cpp.

◆ findStartPositions()

void ParallelTracker::findStartPositions ( const BorisPusher & pusher )

private

Integrate references in time until path length reaches zstart_m.

Definition at line 1328 of file ParallelTracker.cpp.

References autophaseCavities(), Physics::c, changeDT(), dtCurrentTrack_m, euclidean_norm(), StepSizeConfig::getdT(), PartBunch< T, Dim >::getdT(), Util::getGamma(), PartBunch< T, Dim >::getT(), StepSizeConfig::getZStop(), Tracker::itsBunch_m, StepSizeConfig::reachedEnd(), selectDT(), PartBunch< T, Dim >::setT(), stepSizes_m, updateReferenceParticles(), and zstart_m.

Referenced by execute().

Here is the call graph for this function:

◆ getBunch()

PartBunch_t & Tracker::getBunch ( ) const

inherited

Return the currently attached borrowed bunch.

Definition at line 86 of file Tracker.cpp.

References Tracker::itsBunch_m.

◆ getNumBunch()

virtual short Tracker::getNumBunch ( )

inlinevirtualinherited

get total number of tracked bunches

Definition at line 110 of file Tracker.h.

◆ hasEndOfLineReached()

bool ParallelTracker::hasEndOfLineReached ( const BoundingBox & globalBoundingBox )

private

Whether tracking should stop at end-of-line (global reduction).

Parameters

globalBoundingBox Spatial bounds from the orbit threader.

Definition at line 1508 of file ParallelTracker.cpp.

References globalEOL_m, BoundingBox::isOutside(), and Tracker::itsBunch_m.

Here is the call graph for this function:

◆ kickParticles()

void ParallelTracker::kickParticles	(	const BorisPusher &	pusher,
		PartBunch_t::ParticleContainer_t &	pc
	)

Boris half-kick using E, B and per-particle dt on one container.

Boris velocity kick from E and B using per-particle dt.

Parameters

pusher	Boris pusher instance.
pc	Non-null particle container.
pusher	Boris pusher.
pc	Non-null target particle container.

Definition at line 1008 of file ParallelTracker.cpp.

References ParticleContainer< T, Dim >::B, ParticleContainer< T, Dim >::dt, ParticleContainer< T, Dim >::E, PartData::getM(), PartData::getQ(), ParticleContainer< T, Dim >::getReference(), BorisPusher::kick(), ParticleContainer< T, Dim >::markMomentsDirty(), and ParticleContainer< T, Dim >::P.

Referenced by timeIntegration2().

Here is the call graph for this function:

◆ markBackwardParticlesAtSourcePlane()

size_t ParallelTracker::markBackwardParticlesAtSourcePlane ( )

Mark particles moving backward behind an active source/cathode plane.

Todo:: this function should probably be integrated as a GunSource element similar to old OPAL!!!

Definition at line 885 of file ParallelTracker.cpp.

References OpalBeamline::getCSTrafoLab2Local(), PartBunch< T, Dim >::getFieldSolver(), CoordinateSystemTrafo::getOrigin(), CoordinateSystemTrafo::getRotationMatrix(), BinnedFieldSolver< T, Dim >::isImageChargeEnabled(), PartBunch< T, Dim >::isPcActive(), Tracker::itsBunch_m, itsOpalBeamline_m, and prod_vector().

Referenced by execute().

Here is the call graph for this function:

◆ prepareSections()

void ParallelTracker::prepareSections ( )

private

Accept beamline visitor, prepare sections, compute and save 3D lattice.

Definition at line 1083 of file ParallelTracker.cpp.

References ElementBase::accept(), OpalBeamline::compute3DLattice(), Tracker::itsBeamline_m, itsOpalBeamline_m, OpalBeamline::prepareSections(), OpalBeamline::save3DInput(), and OpalBeamline::save3DLattice().

Referenced by execute().

Here is the call graph for this function:

◆ printInitialContainerRefs()

void ParallelTracker::printInitialContainerRefs ( Inform & m ) const

private

Log reference state for each container at track start.

Parameters

m	Inform stream for log output.

Definition at line 1220 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::getTotalNumAllContainers(), and Tracker::itsBunch_m.

Referenced by execute().

Here is the call graph for this function:

◆ printRFPhases()

void ParallelTracker::printRFPhases ( )

private

Print RF phases (debug/diagnostic hook).

◆ pushParticles()

void ParallelTracker::pushParticles	(	const BorisPusher &	pusher,
		PartBunch_t::ParticleContainer_t &	pc
	)

Boris position push (unitless positions) on one container.

Boris position push in unitless coordinates (per-particle dt via pusher internals).

Parameters

pusher	Boris pusher instance.
pc	Non-null particle container.
pusher	Boris pusher.
pc	Non-null target particle container.

Definition at line 973 of file ParallelTracker.cpp.

References ParticleContainer< T, Dim >::markMomentsDirty(), ParticleContainer< T, Dim >::P, BorisPusher::push(), ParticleContainer< T, Dim >::switchOffUnitlessPositions(), and ParticleContainer< T, Dim >::switchToUnitlessPositions().

Referenced by timeIntegration1(), and timeIntegration2().

Here is the call graph for this function:

◆ resetFields()

void ParallelTracker::resetFields ( )

Zero E and B on all active particle containers.

Definition at line 953 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::isPcActive(), and Tracker::itsBunch_m.

Referenced by execute().

Here is the call graph for this function:

◆ restoreCavityPhases()

void ParallelTracker::restoreCavityPhases ( )

private

Restore cavity phases from a prior track or restart.

Definition at line 1678 of file ParallelTracker.cpp.

References OpalData::getFirstMaxPhases(), OpalData::getInstance(), OpalData::getLastMaxPhases(), and updateRFElement().

Here is the call graph for this function:

◆ saveCavityPhases()

void ParallelTracker::saveCavityPhases ( )

private

Persist cavity phases to the data sink.

Definition at line 1673 of file ParallelTracker.cpp.

References itsDataSink_m, and DataSink::storeCavityInformation().

Here is the call graph for this function:

◆ selectDT()

void ParallelTracker::selectDT ( )

private

Set global bunch dt to dtCurrentTrack_m.

Definition at line 1107 of file ParallelTracker.cpp.

References dtCurrentTrack_m, emittingSamplers_m, PartBunch< T, Dim >::getT(), Tracker::itsBunch_m, and PartBunch< T, Dim >::setdT().

Referenced by changeDT(), execute(), and findStartPositions().

Here is the call graph for this function:

◆ setNumBunch()

virtual void Tracker::setNumBunch ( short )

inlinevirtualinherited

set total number of tracked bunches

Definition at line 107 of file Tracker.h.

◆ setOptionalVariables()

void ParallelTracker::setOptionalVariables ( )

private

Load REPARTFREQ and related options from input.

Definition at line 1470 of file ParallelTracker.cpp.

References OpalData::find(), OpalData::getInstance(), RealVariable::getReal(), Options::repartFreq, and repartFreq_m.

Referenced by execute().

Here is the call graph for this function:

◆ setTime()

void ParallelTracker::setTime ( )

Reset per-particle dt views to the current global bunch dt.

Definition at line 1521 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::getdT(), and Tracker::itsBunch_m.

Referenced by execute().

Here is the call graph for this function:

◆ timeIntegration1()

void ParallelTracker::timeIntegration1 ( BorisPusher & pusher )

First half of the leapfrog step: push all active containers.

Definition at line 575 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::isPcActive(), Tracker::itsBunch_m, pushParticles(), and timeIntegrationTimer1_m.

Referenced by execute().

Here is the call graph for this function:

◆ timeIntegration2()

void ParallelTracker::timeIntegration2 ( BorisPusher & pusher )

Second half: kick then push all active containers.

Definition at line 596 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::getdT(), PartBunch< T, Dim >::isPcActive(), Tracker::itsBunch_m, kickParticles(), pushParticles(), and timeIntegrationTimer2_m.

Referenced by execute().

Here is the call graph for this function:

◆ updateReference()

void ParallelTracker::updateReference ( const BorisPusher & pusher )

private

Update reference trajectories and lab/reference coordinate transforms.

Definition at line 1245 of file ParallelTracker.cpp.

References updateReferenceParticles(), and updateRefToLabCSTrafo().

Referenced by execute().

Here is the call graph for this function:

◆ updateReferenceParticles()

void ParallelTracker::updateReferenceParticles ( const BorisPusher & pusher )

private

Advance reference positions/momenta through the beamline for one step.

Definition at line 1255 of file ParallelTracker.cpp.

References Physics::c, OpalBeamline::getCSTrafoLab2Local(), PartBunch< T, Dim >::getdT(), OpalBeamline::getElements(), PartData::getM(), PartData::getQ(), PartBunch< T, Dim >::getT(), globalEOL_m, gmsg, PartBunch< T, Dim >::isPcActive(), Tracker::itsBunch_m, itsOpalBeamline_m, BorisPusher::kick(), BorisPusher::push(), CoordinateSystemTrafo::rotateFrom(), CoordinateSystemTrafo::rotateTo(), and CoordinateSystemTrafo::transformTo().

Referenced by findStartPositions(), and updateReference().

Here is the call graph for this function:

◆ updateRefToLabCSTrafo()

void ParallelTracker::updateRefToLabCSTrafo ( )

private

Refresh each container's reference-to-lab transform from current state.

Definition at line 1309 of file ParallelTracker.cpp.

References PartBunch< T, Dim >::getdT(), PartBunch< T, Dim >::isPcActive(), and Tracker::itsBunch_m.

Referenced by updateReference().

Here is the call graph for this function:

◆ updateRFElement()

void ParallelTracker::updateRFElement	(	std::string	elName,
		double	maxPhi
	)

private

Set stored RF phase on the named cavity or traveling-wave element.

Parameters

elName	Element name to match.
maxPhi	RF phase to apply (rad).

Definition at line 1649 of file ParallelTracker.cpp.

References OpalBeamline::getElementByType(), ElementBase::getName(), itsOpalBeamline_m, RFCAVITY, RFCavity::setAutophaseVeto(), RFCavity::setPhasem(), and TRAVELINGWAVE.

Referenced by restoreCavityPhases().

Here is the call graph for this function:

◆ visitBeamline()

void ParallelTracker::visitBeamline ( const Beamline & bl )

virtual

Visit the full beamline (iterates elements into OpalBeamline). Overrides DefaultVisitor.

Iterate beamline elements and dispatch into OpalBeamline.

Parameters

bl	Flagged beamline whose elements are visited.

Reimplemented from DefaultVisitor.

Definition at line 142 of file ParallelTracker.cpp.

References TBeamline< T >::iterate().

Here is the call graph for this function:

◆ visitComponent()

void ParallelTracker::visitComponent ( const Component & comp )

virtual

Visit a generic component using the base tracker behavior.

Reimplemented from Tracker.

Definition at line 123 of file ParallelTracker.cpp.

References Component::getType(), LASER, and Tracker::visitComponent().

Here is the call graph for this function:

◆ visitConstantEFieldCavity()

void ParallelTracker::visitConstantEFieldCavity ( const ConstantEFieldCavity & cav )

inlinevirtual

Apply the algorithm to a constant E-field cavity.

Reimplemented from DefaultVisitor.

Definition at line 315 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitDrift()

void ParallelTracker::visitDrift ( const Drift & drift )

inlinevirtual

Apply the algorithm to a drift.

Reimplemented from DefaultVisitor.

Definition at line 319 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitFlaggedElmPtr()

void DefaultVisitor::visitFlaggedElmPtr ( const FlaggedElmPtr & fep )

overridevirtualinherited

Apply the algorithm to a FlaggedElmPtr.

Implements BeamlineVisitor.

Reimplemented in Flagger, Replacer, and RangeSelector.

Definition at line 103 of file DefaultVisitor.cpp.

References ElementBase::accept(), ElmPtr::getElement(), FlaggedElmPtr::getReflectionFlag(), and DefaultVisitor::local_flip.

Referenced by RangeSelector::handleBeamline(), RangeSelector::handleElement(), Flagger::visitFlaggedElmPtr(), and Replacer::visitFlaggedElmPtr().

Here is the call graph for this function:

◆ visitLaser()

void ParallelTracker::visitLaser ( const Laser & )

virtual

Reject laser tracking until dedicated laser tracking is implemented.

Reimplemented from DefaultVisitor.

Definition at line 132 of file ParallelTracker.cpp.

◆ visitMarker()

void ParallelTracker::visitMarker ( const Marker & marker )

inlinevirtual

Apply the algorithm to a marker.

Reimplemented from DefaultVisitor.

Definition at line 327 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitMonitor()

void ParallelTracker::visitMonitor ( const Monitor & monitor )

inlinevirtual

Apply the algorithm to a monitor.

Reimplemented from DefaultVisitor.

Definition at line 323 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitMultipole()

void ParallelTracker::visitMultipole ( const Multipole & mult )

inlinevirtual

Apply the algorithm to a multipole.

Reimplemented from DefaultVisitor.

Definition at line 331 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitMultipoleT()

void ParallelTracker::visitMultipoleT ( const MultipoleT & mult )

inlinevirtual

Apply the algorithm to a multipole (templated type).

Reimplemented from DefaultVisitor.

Definition at line 335 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitProbe()

void DefaultVisitor::visitProbe ( const Probe & prob )

overridevirtualinherited

Apply the algorithm to a Probe.

Implements BeamlineVisitor.

Definition at line 95 of file DefaultVisitor.cpp.

References DefaultVisitor::applyDefault().

Here is the call graph for this function:

◆ visitRBend()

void ParallelTracker::visitRBend ( const RBend & bend )

inlinevirtual

Apply the algorithm to a rectangular bend.

Reimplemented from DefaultVisitor.

Definition at line 339 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitRFCavity()

void ParallelTracker::visitRFCavity ( const RFCavity & as )

inlinevirtual

Apply the algorithm to an RF cavity.

Reimplemented from DefaultVisitor.

Definition at line 343 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitRing()

void DefaultVisitor::visitRing ( const Ring & ring )

overridevirtualinherited

Apply the algorithm to a Ring.

Implements BeamlineVisitor.

Definition at line 79 of file DefaultVisitor.cpp.

References DefaultVisitor::applyDefault().

Here is the call graph for this function:

◆ visitSBend()

void ParallelTracker::visitSBend ( const SBend & bend )

inlinevirtual

Apply the algorithm to a sector bend.

Reimplemented from DefaultVisitor.

Definition at line 347 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitScalingFFAMagnet()

void DefaultVisitor::visitScalingFFAMagnet ( const ScalingFFAMagnet & spiral )

overridevirtualinherited

Apply the algorithm to a scaling FFA magnet.

Implements BeamlineVisitor.

Definition at line 89 of file DefaultVisitor.cpp.

References DefaultVisitor::applyDefault().

Here is the call graph for this function:

◆ visitSolenoid()

void ParallelTracker::visitSolenoid ( const Solenoid & so )

inlinevirtual

Apply the algorithm to a solenoid.

Reimplemented from DefaultVisitor.

Definition at line 355 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitTravelingWave()

void ParallelTracker::visitTravelingWave ( const TravelingWave & tw )

inlinevirtual

Apply the algorithm to a traveling wave cavity.

Reimplemented from DefaultVisitor.

Definition at line 351 of file ParallelTracker.h.

References Tracker::itsBunch_m, itsOpalBeamline_m, and OpalBeamline::visit().

Here is the call graph for this function:

◆ visitVariableRFCavity()

void DefaultVisitor::visitVariableRFCavity ( const VariableRFCavity & cavity )

overridevirtualinherited

Apply the algorithm to a variable RF cavity.

Implements BeamlineVisitor.

Definition at line 93 of file DefaultVisitor.cpp.

References DefaultVisitor::applyDefault().

Here is the call graph for this function:

◆ visitVerticalFFAMagnet()

void DefaultVisitor::visitVerticalFFAMagnet ( const VerticalFFAMagnet & mag )

overridevirtualinherited

Apply the algorithm to a vertical FFA magnet.

Implements BeamlineVisitor.

Definition at line 91 of file DefaultVisitor.cpp.

References DefaultVisitor::applyDefault().

Here is the call graph for this function:

◆ writePhaseSpace()

void ParallelTracker::writePhaseSpace	(	const long long	step,
		bool	psDump,
		bool	statDump
	)

private

Write phase space and/or statistics when flags request it.

Parameters

step	Step index (reserved for diagnostics; may be unused in body).
psDump	If true, write phase-space snapshot when applicable.
statDump	If true, write statistics (e.g. SDDS).

Definition at line 1533 of file ParallelTracker.cpp.

References DataSink::dumpH5(), DataSink::dumpSDDS(), PartBunch< T, Dim >::get_bounds(), PartBunch< T, Dim >::getdT(), OpalBeamline::getFieldAt(), PartBunch< T, Dim >::getT(), PartBunch< T, Dim >::getTotalNumAllContainers(), gmsg, Tracker::itsBunch_m, itsDataSink_m, itsOpalBeamline_m, and Units::Vpm2MVpm.

Referenced by dumpStats(), and execute().

Here is the call graph for this function:

Member Data Documentation

◆ back_beam

bool DefaultVisitor::back_beam

protectedinherited

Definition at line 110 of file DefaultVisitor.h.

Referenced by DefaultVisitor::DefaultVisitor(), DefaultVisitor::execute(), and Tracker::visitComponent().

◆ back_path

bool DefaultVisitor::back_path

protectedinherited

Definition at line 112 of file DefaultVisitor.h.

Referenced by DefaultVisitor::DefaultVisitor().

◆ back_track

bool DefaultVisitor::back_track

protectedinherited

Definition at line 111 of file DefaultVisitor.h.

Referenced by DefaultVisitor::DefaultVisitor(), DefaultVisitor::execute(), and Tracker::visitComponent().

◆ BinRepartTimer_m

IpplTimings::TimerRef ParallelTracker::BinRepartTimer_m

private

Definition at line 92 of file ParallelTracker.h.

◆ cavities_m

FieldList Tracker::cavities_m

inherited

Definition at line 113 of file Tracker.h.

◆ dtCurrentTrack_m

double ParallelTracker::dtCurrentTrack_m

private

Global \(\Delta t\) for the current track segment.

Definition at line 81 of file ParallelTracker.h.

Referenced by execute(), findStartPositions(), and selectDT().

◆ emittingSamplers_m

std::vector<std::vector<std::shared_ptr<SamplingBase> > > ParallelTracker::emittingSamplers_m

private

Per-container emitters.

Definition at line 84 of file ParallelTracker.h.

Referenced by activateEmittingContainers(), emitFromEmissionSources(), execute(), and selectDT().

◆ fieldEvaluationTimer_m

IpplTimings::TimerRef ParallelTracker::fieldEvaluationTimer_m

private

Definition at line 89 of file ParallelTracker.h.

Referenced by computeExternalFields().

◆ flip_B

double DefaultVisitor::flip_B

protectedinherited

Definition at line 115 of file DefaultVisitor.h.

Referenced by DefaultVisitor::DefaultVisitor().

◆ flip_s

double DefaultVisitor::flip_s

protectedinherited

Definition at line 116 of file DefaultVisitor.h.

Referenced by DefaultVisitor::DefaultVisitor().

◆ globalEOL_m

bool ParallelTracker::globalEOL_m

private

End-of-line flag (e.g. orbit threader out of bounds).

Definition at line 75 of file ParallelTracker.h.

Referenced by computeExternalFields(), execute(), hasEndOfLineReached(), and updateReferenceParticles().

◆ itsBeamline_m

const Beamline& Tracker::itsBeamline_m

inherited

Definition at line 115 of file Tracker.h.

Referenced by prepareSections().

◆ itsBunch_m

PartBunch_t* Tracker::itsBunch_m

protectedinherited

The bunch of particles to be tracked. Borrowed; lifetime is managed by TrackRun.

Definition at line 119 of file Tracker.h.

Referenced by activateEmittingContainers(), applyGlobalProcesses(), autophaseCavities(), changeDT(), computeExternalFields(), computeInitialBounds(), computeSpaceChargeFields(), deleteInvalidParticles(), dumpStats(), emitFromEmissionSources(), evolveSpinTBMT(), execute(), findStartPositions(), Tracker::getBunch(), hasEndOfLineReached(), markBackwardParticlesAtSourcePlane(), printInitialContainerRefs(), resetFields(), selectDT(), setTime(), timeIntegration1(), timeIntegration2(), updateReferenceParticles(), updateRefToLabCSTrafo(), Tracker::visitComponent(), visitConstantEFieldCavity(), visitDrift(), visitMarker(), visitMonitor(), visitMultipole(), visitMultipoleT(), visitRBend(), visitRFCavity(), visitSBend(), visitSolenoid(), visitTravelingWave(), and writePhaseSpace().

◆ itsDataSink_m

DataSink* ParallelTracker::itsDataSink_m

private

Borrowed beam statistics and phase-space output sink.

Definition at line 73 of file ParallelTracker.h.

Referenced by saveCavityPhases(), and writePhaseSpace().

◆ itsLine

const Beamline& DefaultVisitor::itsLine

protectedinherited

Definition at line 107 of file DefaultVisitor.h.

Referenced by DefaultVisitor::execute().

◆ itsOpalBeamline_m

OpalBeamline ParallelTracker::itsOpalBeamline_m

private

Cloned field elements and coordinate transforms.

Definition at line 74 of file ParallelTracker.h.

Referenced by autophaseCavities(), computeExternalFields(), emitFromEmissionSources(), execute(), markBackwardParticlesAtSourcePlane(), prepareSections(), updateReferenceParticles(), updateRFElement(), visitConstantEFieldCavity(), visitDrift(), visitMarker(), visitMonitor(), visitMultipole(), visitMultipoleT(), visitRBend(), visitRFCavity(), visitSBend(), visitSolenoid(), visitTravelingWave(), and writePhaseSpace().

◆ local_flip

bool DefaultVisitor::local_flip

privateinherited

Definition at line 130 of file DefaultVisitor.h.

Referenced by DefaultVisitor::DefaultVisitor(), DefaultVisitor::execute(), DefaultVisitor::visitBeamline(), and DefaultVisitor::visitFlaggedElmPtr().

◆ OrbThreader_m

IpplTimings::TimerRef ParallelTracker::OrbThreader_m

private

Definition at line 93 of file ParallelTracker.h.

Referenced by execute().

◆ PluginElemTimer_m

IpplTimings::TimerRef ParallelTracker::PluginElemTimer_m

private

Definition at line 91 of file ParallelTracker.h.

◆ repartFreq_m

unsigned long long ParallelTracker::repartFreq_m

private

Space-charge repartition period (steps); 0 disables it.

Definition at line 82 of file ParallelTracker.h.

Referenced by computeSpaceChargeFields(), and setOptionalVariables().

◆ stepSizes_m

StepSizeConfig ParallelTracker::stepSizes_m

private

Step-size segments: z-stop, dt, and steps per segment.

Definition at line 79 of file ParallelTracker.h.

Referenced by execute(), findStartPositions(), and ParallelTracker().

◆ timeIntegrationTimer1_m

IpplTimings::TimerRef ParallelTracker::timeIntegrationTimer1_m

private

Definition at line 87 of file ParallelTracker.h.

Referenced by timeIntegration1().

◆ timeIntegrationTimer2_m

IpplTimings::TimerRef ParallelTracker::timeIntegrationTimer2_m

private

Definition at line 88 of file ParallelTracker.h.

Referenced by timeIntegration2().

◆ WakeFieldTimer_m

IpplTimings::TimerRef ParallelTracker::WakeFieldTimer_m

private

Definition at line 90 of file ParallelTracker.h.

◆ zstart_m

double ParallelTracker::zstart_m

private

Path-length start position for the track (m).

Definition at line 76 of file ParallelTracker.h.

Referenced by execute(), and findStartPositions().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ ParallelTracker() [1/2]

◆ ParallelTracker() [2/2]

◆ ~ParallelTracker()

Member Function Documentation

◆ activateEmittingContainers()

◆ addToBunch()

◆ applyDefault()

◆ applyGlobalProcesses()

◆ autophaseCavities()

◆ changeDT()

◆ computeExternalFields()

◆ computeInitialBounds()

◆ computeSpaceChargeFields()

◆ deleteInvalidParticles()

◆ doBinaryRepartition()

◆ dumpStats()

◆ emitFromEmissionSources()

◆ evolveSpinTBMT()

◆ execute()

◆ findStartPositions()

◆ getBunch()

◆ getNumBunch()

◆ hasEndOfLineReached()

◆ kickParticles()

◆ markBackwardParticlesAtSourcePlane()

◆ prepareSections()

◆ printInitialContainerRefs()

◆ printRFPhases()

◆ pushParticles()

◆ resetFields()

◆ restoreCavityPhases()

◆ saveCavityPhases()

◆ selectDT()

◆ setNumBunch()

◆ setOptionalVariables()

◆ setTime()

◆ timeIntegration1()

◆ timeIntegration2()

◆ updateReference()

◆ updateReferenceParticles()

◆ updateRefToLabCSTrafo()

◆ updateRFElement()

◆ visitBeamline()

◆ visitComponent()

◆ visitConstantEFieldCavity()

◆ visitDrift()

◆ visitFlaggedElmPtr()

◆ visitLaser()

◆ visitMarker()

◆ visitMonitor()

◆ visitMultipole()

◆ visitMultipoleT()

◆ visitProbe()

◆ visitRBend()

◆ visitRFCavity()

◆ visitRing()

◆ visitSBend()

◆ visitScalingFFAMagnet()

◆ visitSolenoid()

◆ visitTravelingWave()

◆ visitVariableRFCavity()

◆ visitVerticalFFAMagnet()

◆ writePhaseSpace()

Member Data Documentation

◆ back_beam

◆ back_path

◆ back_track

◆ BinRepartTimer_m

◆ cavities_m

◆ dtCurrentTrack_m
