#include <DataSink.h>

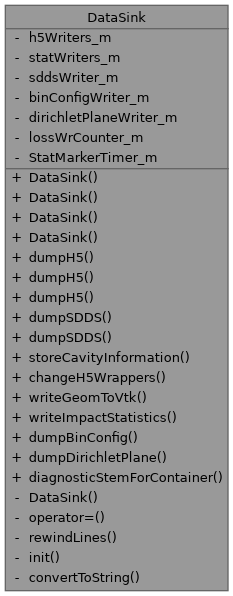

Collaboration diagram for DataSink:

Public Member Functions
	DataSink ()
	Default constructor.

	DataSink (const std::vector< H5PartWrapper * > &h5wrappers, bool restart, size_t numParticleContainers)

	DataSink (H5PartWrapper *h5wrapper, bool restart)

	DataSink (H5PartWrapper *h5wrapper)

void	dumpH5 (PartBunch_t &beam, Vector_t< double, 3 > FDext[]) const
	Write H5 phase-space data for all particle containers.

void	dumpH5 (PartBunch_t &beam, const std::vector< std::array< Vector_t< double, 3 >, 2 > > &fdextPerContainer) const
	Write H5 phase-space data with per-container external fields.

int	dumpH5 (PartBunch_t &beam, Vector_t< double, 3 > FDext[], double meanEnergy, double refPr, double refPt, double refPz, double refR, double refTheta, double refZ, double azimuth, double elevation, bool local) const
	Write single-container H5 phase-space data with reference quantities.

void	dumpSDDS (PartBunch_t &beam, const std::vector< std::array< Vector_t< double, 3 >, 2 > > &fdextPerContainer, const double &azimuth) const
	Write SDDS statistics with per-container external fields.

void	dumpSDDS (PartBunch_t &beam, const std::vector< std::array< Vector_t< double, 3 >, 2 > > &fdextPerContainer, const losses_t &losses, const double &azimuth) const
	Write SDDS statistics and losses with per-container external fields.

void	storeCavityInformation ()
	Write cavity information from H5 file.

void	changeH5Wrappers (const std::vector< H5PartWrapper * > &h5wrappers)

void	writeGeomToVtk (BoundaryGeometry &bg, std::string fn)

void	writeImpactStatistics (const PartBunch_t &beam, long long int &step, size_t &impact, double &sey_num, size_t numberOfFieldEmittedParticles, bool nEmissionMode, std::string fn)

void	dumpBinConfig (long long step, double time, bool preMerge, const std::vector< std::size_t > &binCounts, const std::vector< double > &binWidths, double xMin, const std::string &fileName)
	Append a binning configuration snapshot to a JSON file.

template<typename FieldType >
DirichletPlaneWriter::PlaneDiagnostics	dumpDirichletPlane (long long step, double time, double zPlane, const FieldType &field, const std::string &solveTag)
	Interpolate and dump potential values on a 2D z-plane.

Static Public Member Functions
static std::string	diagnosticStemForContainer (const std::string &inputBasename, size_t numContainers, size_t index)

Private Types
typedef StatWriter::losses_t	losses_t

typedef std::unique_ptr< StatWriter >	statWriter_t

typedef std::unique_ptr< SDDSWriter >	sddsWriter_t

typedef std::unique_ptr< H5Writer >	h5Writer_t

Private Member Functions
	DataSink (const DataSink &ds)=delete

DataSink &	operator= (const DataSink &)=delete

void	rewindLines ()

void	init (bool restart, const std::vector< H5PartWrapper * > &h5wrappers, size_t numParticleContainers)

Static Private Member Functions
static std::string	convertToString (int number, int setw=5)

Private Attributes
std::vector< h5Writer_t >	h5Writers_m

std::vector< statWriter_t >	statWriters_m

std::vector< sddsWriter_t >	sddsWriter_m

std::unique_ptr< BinConfigWriter >	binConfigWriter_m

std::unique_ptr< DirichletPlaneWriter >	dirichletPlaneWriter_m

unsigned int	lossWrCounter_m
	needed to create index for vtk file

IpplTimings::TimerRef	StatMarkerTimer_m
	Timer to track statistics write time.

Detailed Description

Definition at line 48 of file DataSink.h.

Member Typedef Documentation

◆ h5Writer_t

typedef std::unique_ptr<H5Writer> DataSink::h5Writer_t

private

Definition at line 53 of file DataSink.h.

◆ losses_t

typedef StatWriter::losses_t DataSink::losses_t

private

Definition at line 50 of file DataSink.h.

◆ sddsWriter_t

typedef std::unique_ptr<SDDSWriter> DataSink::sddsWriter_t

private

Definition at line 52 of file DataSink.h.

◆ statWriter_t

typedef std::unique_ptr<StatWriter> DataSink::statWriter_t

private

Definition at line 51 of file DataSink.h.

Constructor & Destructor Documentation

◆ DataSink() [1/5]

DataSink::DataSink ( )

Default constructor.

The default constructor is called at the start of a new calculation (as opposed to a calculation restart).

Definition at line 51 of file DataSink.cpp.

References init().

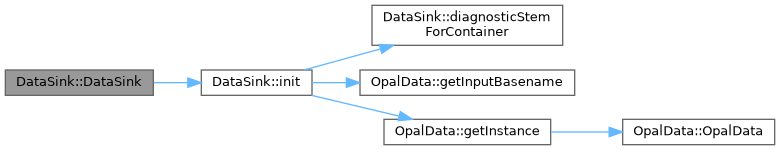

Here is the call graph for this function:

◆ DataSink() [2/5]

DataSink::DataSink	(	const std::vector< H5PartWrapper * > &	h5wrappers,
		bool	restart,
		size_t	numParticleContainers
	)

One H5 wrapper per particle container (when HDF5 enabled); sizes must match numParticleContainers.

Definition at line 53 of file DataSink.cpp.

References Options::enableHDF5, init(), and rewindLines().

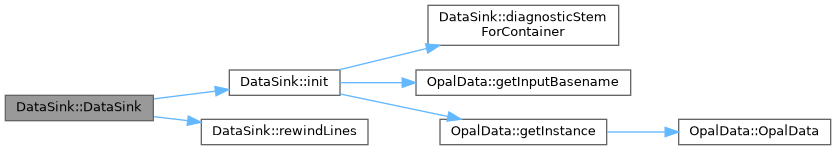

Here is the call graph for this function:

◆ DataSink() [3/5]

DataSink::DataSink	(	H5PartWrapper *	h5wrapper,
		bool	restart
	)

Definition at line 66 of file DataSink.cpp.

◆ DataSink() [4/5]

DataSink::DataSink ( H5PartWrapper * h5wrapper )

Definition at line 69 of file DataSink.cpp.

◆ DataSink() [5/5]

DataSink::DataSink ( const DataSink & ds )

privatedelete

Member Function Documentation

◆ changeH5Wrappers()

void DataSink::changeH5Wrappers ( const std::vector< H5PartWrapper * > & h5wrappers )

Definition at line 180 of file DataSink.cpp.

References Options::enableHDF5, and h5Writers_m.

Referenced by TrackRun::initDataSink().

◆ convertToString()

std::string DataSink::convertToString	(	int	number,
		int	setw = `5`
	)

inlinestaticprivate

Definition at line 207 of file DataSink.h.

◆ diagnosticStemForContainer()

std::string DataSink::diagnosticStemForContainer	(	const std::string &	inputBasename,
		size_t	numContainers,
		size_t	index
	)

static

Basename stem for per-container diagnostics: basename if numContainers<=1 else basename_cN.

Definition at line 43 of file DataSink.cpp.

Referenced by init(), and TrackRun::initDataSink().

◆ dumpBinConfig()

void DataSink::dumpBinConfig	(	long long	step,
		double	time,
		bool	preMerge,
		const std::vector< std::size_t > &	binCounts,
		const std::vector< double > &	binWidths,
		double	xMin,
		const std::string &	fileName
	)

Append a binning configuration snapshot to a JSON file.

Parameters

step	Global tracking step index.
time	Absolute simulation time (in seconds).
preMerge	true for pre-merge histogram, false for post-merge.
binCounts	Per-bin particle counts.
binWidths	Per-bin bin widths (same length as `binCounts`).
xMin	Lower bound of the histogram coordinate.
fileName	Target JSON file name (typically from BinningCmd::getDumpBinsFileName()).

Definition at line 246 of file DataSink.cpp.

References binConfigWriter_m.

◆ dumpDirichletPlane()

template<typename FieldType >

DirichletPlaneWriter::PlaneDiagnostics DataSink::dumpDirichletPlane	(	long long	step,
		double	time,
		double	zPlane,
		const FieldType &	field,
		const std::string &	solveTag
	)

Interpolate and dump potential values on a 2D z-plane.

The interpolation and plane extraction are performed on device by DirichletPlaneWriter; only the 2D plane is copied to host for output.

Template Parameters

FieldType IPPL scalar field type.

Parameters

step	Global tracking step index.
time	Absolute simulation time (seconds).
zPlane	Physical z location of the sampled plane (meters).
field	Scalar field to sample (`rho`/`phi` depending on solver).
solveTag	Label for the solver pass (e.g. `legacy`, `binned`).

Returns: Plane diagnostics (mean/variance/sample count).

Definition at line 214 of file DataSink.h.

References dirichletPlaneWriter_m.

◆ dumpH5() [1/3]

void DataSink::dumpH5	(	PartBunch_t &	beam,
		const std::vector< std::array< Vector_t< double, 3 >, 2 > > &	fdextPerContainer
	)		const

Write H5 phase-space data with per-container external fields.

Parameters

beam	Borrowed particle bunch; DataSink does not own or retain it.
fdextPerContainer	External field values indexed by particle container.

Definition at line 81 of file DataSink.cpp.

References Options::enableHDF5, and h5Writers_m.

◆ dumpH5() [2/3]

void DataSink::dumpH5	(	PartBunch_t &	beam,
		Vector_t< double, 3 >	FDext[]
	)		const

Write H5 phase-space data for all particle containers.

Parameters

beam	Borrowed particle bunch; DataSink does not own or retain it.
FDext	External magnetic/electric field values reused for each container.

Definition at line 71 of file DataSink.cpp.

References dumpH5().

Referenced by dumpH5(), and ParallelTracker::writePhaseSpace().

Here is the call graph for this function:

◆ dumpH5() [3/3]

int DataSink::dumpH5	(	PartBunch_t &	beam,
		Vector_t< double, 3 >	FDext[],
		double	meanEnergy,
		double	refPr,
		double	refPt,
		double	refPz,
		double	refR,
		double	refTheta,
		double	refZ,
		double	azimuth,
		double	elevation,
		bool	local
	)		const

Write single-container H5 phase-space data with reference quantities.

Parameters

beam	Borrowed particle bunch; DataSink does not own or retain it.

Definition at line 109 of file DataSink.cpp.

References Options::enableHDF5, and h5Writers_m.

◆ dumpSDDS() [1/2]

void DataSink::dumpSDDS	(	PartBunch_t &	beam,
		const std::vector< std::array< Vector_t< double, 3 >, 2 > > &	fdextPerContainer,
		const double &	azimuth
	)		const

Write SDDS statistics with per-container external fields.

Parameters

beam	Borrowed particle bunch; DataSink does not own or retain it.

Definition at line 122 of file DataSink.cpp.

References dumpSDDS().

Referenced by dumpSDDS(), and ParallelTracker::writePhaseSpace().

Here is the call graph for this function:

◆ dumpSDDS() [2/2]

void DataSink::dumpSDDS	(	PartBunch_t &	beam,
		const std::vector< std::array< Vector_t< double, 3 >, 2 > > &	fdextPerContainer,
		const losses_t &	losses,
		const double &	azimuth
	)		const

Write SDDS statistics and losses with per-container external fields.

Parameters

beam	Borrowed particle bunch; DataSink does not own or retain it.

Definition at line 128 of file DataSink.cpp.

References Options::beamHaloBoundary, PartBunch< T, Dim >::calcBeamParameters(), PartBunch< T, Dim >::calcNumPartsOutside(), PartBunch< T, Dim >::gatherLoadBalanceStatistics(), StatMarkerTimer_m, statWriters_m, and PartBunch< T, Dim >::updateMoments().

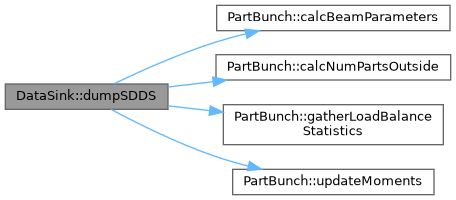

Here is the call graph for this function:

◆ init()

void DataSink::init	(	bool	restart,
		const std::vector< H5PartWrapper * > &	h5wrappers,
		size_t	numParticleContainers
	)

private

Definition at line 296 of file DataSink.cpp.

References diagnosticStemForContainer(), Options::enableHDF5, OpalData::getInputBasename(), OpalData::getInstance(), h5Writers_m, lossWrCounter_m, sddsWriter_m, StatMarkerTimer_m, and statWriters_m.

Referenced by DataSink(), and DataSink().

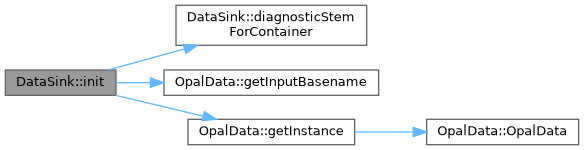

Here is the call graph for this function:

◆ operator=()

DataSink & DataSink::operator= ( const DataSink & )

privatedelete

◆ rewindLines()

void DataSink::rewindLines ( )

private

Definition at line 275 of file DataSink.cpp.

References h5Writers_m, sddsWriter_m, and statWriters_m.

Referenced by DataSink().

◆ storeCavityInformation()

void DataSink::storeCavityInformation ( )

Write cavity information from H5 file.

Definition at line 172 of file DataSink.cpp.

References Options::enableHDF5, and h5Writers_m.

Referenced by ParallelTracker::saveCavityPhases().

◆ writeGeomToVtk()

void DataSink::writeGeomToVtk	(	BoundaryGeometry &	bg,
		std::string	fn
	)

Write geometry points and surface triangles to vtk file

Parameters

fn	specifies the name of vtk file contains the geometry

Definition at line 197 of file DataSink.cpp.

References Options::enableVTK, and BoundaryGeometry::writeGeomToVtk().

Here is the call graph for this function:

◆ writeImpactStatistics()

void DataSink::writeImpactStatistics	(	const PartBunch_t &	beam,
		long long int &	step,
		size_t &	impact,
		double &	sey_num,
		size_t	numberOfFieldEmittedParticles,
		bool	nEmissionMode,
		std::string	fn
	)

Write impact number and outgoing secondaries in each time step

Parameters

fn	specifies the name of vtk file contains the geometry

Definition at line 203 of file DataSink.cpp.

References PartBunch< T, Dim >::getT(), PartBunch< T, Dim >::getTotalCharge(), and Units::s2ns.

Here is the call graph for this function:

Member Data Documentation

◆ binConfigWriter_m

std::unique_ptr<BinConfigWriter> DataSink::binConfigWriter_m

private

Definition at line 193 of file DataSink.h.

Referenced by dumpBinConfig().

◆ dirichletPlaneWriter_m

std::unique_ptr<DirichletPlaneWriter> DataSink::dirichletPlaneWriter_m

private

Definition at line 196 of file DataSink.h.

Referenced by dumpDirichletPlane().

◆ h5Writers_m

std::vector<h5Writer_t> DataSink::h5Writers_m

private

Definition at line 188 of file DataSink.h.

Referenced by changeH5Wrappers(), dumpH5(), dumpH5(), init(), rewindLines(), and storeCavityInformation().

◆ lossWrCounter_m

unsigned int DataSink::lossWrCounter_m

private

needed to create index for vtk file

Definition at line 201 of file DataSink.h.

Referenced by init().

◆ sddsWriter_m

std::vector<sddsWriter_t> DataSink::sddsWriter_m

private

Definition at line 190 of file DataSink.h.

Referenced by init(), and rewindLines().

◆ StatMarkerTimer_m

IpplTimings::TimerRef DataSink::StatMarkerTimer_m

private

Timer to track statistics write time.

Definition at line 204 of file DataSink.h.

Referenced by dumpSDDS(), and init().

◆ statWriters_m

std::vector<statWriter_t> DataSink::statWriters_m

private

Definition at line 189 of file DataSink.h.

Referenced by dumpSDDS(), init(), and rewindLines().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ h5Writer_t

◆ losses_t

◆ sddsWriter_t

◆ statWriter_t

Constructor & Destructor Documentation

◆ DataSink() [1/5]

◆ DataSink() [2/5]

◆ DataSink() [3/5]

◆ DataSink() [4/5]

◆ DataSink() [5/5]

Member Function Documentation

◆ changeH5Wrappers()

◆ convertToString()

◆ diagnosticStemForContainer()

◆ dumpBinConfig()

◆ dumpDirichletPlane()

◆ dumpH5() [1/3]

◆ dumpH5() [2/3]

◆ dumpH5() [3/3]

◆ dumpSDDS() [1/2]

◆ dumpSDDS() [2/2]

◆ init()

◆ operator=()

◆ rewindLines()

◆ storeCavityInformation()

◆ writeGeomToVtk()

◆ writeImpactStatistics()

Member Data Documentation

◆ binConfigWriter_m

◆ dirichletPlaneWriter_m

◆ h5Writers_m

◆ lossWrCounter_m

◆ sddsWriter_m

◆ StatMarkerTimer_m

◆ statWriters_m
