H5Writer Class Reference

#include <H5Writer.h>

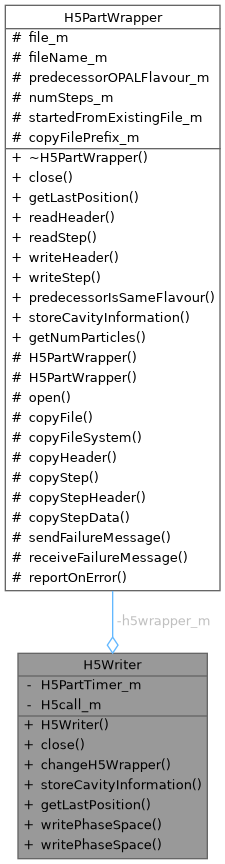

Collaboration diagram for H5Writer:

Public Member Functions
	H5Writer (H5PartWrapper *h5wrapper, bool restart)
void	close ()
void	changeH5Wrapper (H5PartWrapper *h5wrapper)
void	storeCavityInformation ()
double	getLastPosition ()
void	writePhaseSpace (PartBunch_t &beam, Vector_t< double, 3 > FDext[], size_t particleContainerIndex=0)
	Dumps Phase Space to H5 file.
int	writePhaseSpace (PartBunch_t &beam, Vector_t< double, 3 > FDext[], double E, double refPr, double refPt, double refPz, double refR, double refTheta, double refZ, double azimuth, double elevation, bool local, size_t particleContainerIndex=0)
	Dumps phase space to H5 file in OPAL cyclotron calculation.

Private Attributes
IpplTimings::TimerRef	H5PartTimer_m
	Timer to track particle data/H5 file write time.
H5PartWrapper *	h5wrapper_m
int	H5call_m
	Current record, or time step, of H5 file.

Detailed Description

Definition at line 25 of file H5Writer.h.

Constructor & Destructor Documentation

H5Writer()

H5Writer::H5Writer	(	H5PartWrapper *	h5wrapper,
		bool	restart
	)

Definition at line 20 of file H5Writer.cpp.

References H5PartWrapper::close(), and H5PartWrapper::writeHeader().

Here is the call graph for this function:

Member Function Documentation

changeH5Wrapper()

void H5Writer::changeH5Wrapper ( H5PartWrapper *  h5wrapper )

inline

Definition at line 83 of file H5Writer.h.

References h5wrapper_m.

close()

void H5Writer::close ( )

inline

Definition at line 81 of file H5Writer.h.

References H5PartWrapper::close(), and h5wrapper_m.

Here is the call graph for this function:

getLastPosition()

double H5Writer::getLastPosition ( )

inline

Definition at line 87 of file H5Writer.h.

References H5PartWrapper::getLastPosition(), and h5wrapper_m.

Here is the call graph for this function:

storeCavityInformation()

void H5Writer::storeCavityInformation ( )

inline

Definition at line 85 of file H5Writer.h.

References h5wrapper_m, and H5PartWrapper::storeCavityInformation().

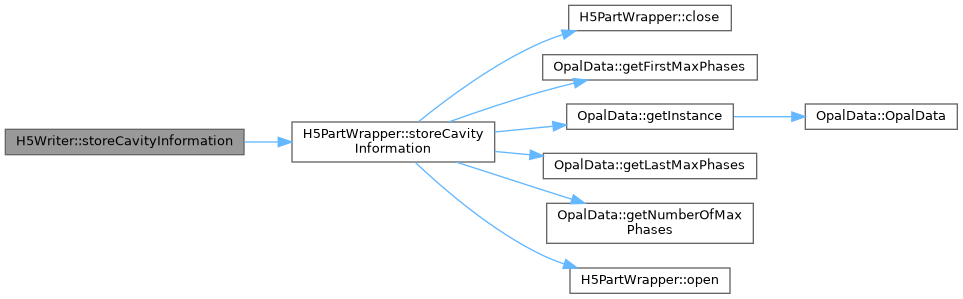

Here is the call graph for this function:

writePhaseSpace() [1/2]

int H5Writer::writePhaseSpace	(	PartBunch_t &	beam,
		Vector_t< double, 3 >	FDext[],
		double	E,
		double	refPr,
		double	refPt,
		double	refPz,
		double	refR,
		double	refTheta,
		double	refZ,
		double	azimuth,
		double	elevation,
		bool	local,
		size_t	particleContainerIndex = 0
	)

Dumps phase space to H5 file in OPAL cyclotron calculation.

Parameters

beam	The beam.
FDext	The external E and B field for the head, reference and tail particles. The vector array has the following layout: FDext[0] = B at head particle location (in x, y and z). FDext[1] = E at head particle location (in x, y and z). FDext[2] = B at reference particle location (in x, y and z). FDext[3] = E at reference particle location (in x, y and z). FDext[4] = B at tail particle location (in x, y, and z). FDext[5] = E at tail particle location (in x, y, and z).
E	average energy (MeB)

Returns

Returns the number of the time step just written.

Definition at line 40 of file H5Writer.cpp.

References H5call_m, H5PartTimer_m, h5wrapper_m, and H5PartWrapper::writeStep().

Here is the call graph for this function:

writePhaseSpace() [2/2]

void H5Writer::writePhaseSpace	(	PartBunch_t &	beam,
		Vector_t< double, 3 >	FDext[],
		size_t	particleContainerIndex = 0
	)

Dumps Phase Space to H5 file.

Parameters

beam

The beam.

FDext

The external E and B field for the head, reference and tail particles. The vector array has the following layout: FDext[0] = B at head particle location (in x, y and z). FDext[1] = E at head particle location (in x, y and z). FDext[2] = B at reference particle location (in x, y and z). FDext[3] = E at reference particle location (in x, y and z). FDext[4] = B at tail particle location (in x, y, and z). FDext[5] = E at tail particle location (in x, y, and z).

Definition at line 28 of file H5Writer.cpp.

References H5PartTimer_m, h5wrapper_m, and H5PartWrapper::writeStep().

Here is the call graph for this function:

Member Data Documentation

H5call_m

int H5Writer::H5call_m

private

Current record, or time step, of H5 file.

Definition at line 78 of file H5Writer.h.

Referenced by writePhaseSpace().

H5PartTimer_m

IpplTimings::TimerRef H5Writer::H5PartTimer_m

private

Timer to track particle data/H5 file write time.

Definition at line 73 of file H5Writer.h.

Referenced by writePhaseSpace(), and writePhaseSpace().

h5wrapper_m

H5PartWrapper* H5Writer::h5wrapper_m

private

Definition at line 75 of file H5Writer.h.

Referenced by changeH5Wrapper(), close(), getLastPosition(), storeCavityInformation(), writePhaseSpace(), and writePhaseSpace().

---

The documentation for this class was generated from the following files:

• H5Writer.h
• H5Writer.cpp
