H5PartWrapper Class Reference

#include <H5PartWrapper.h>

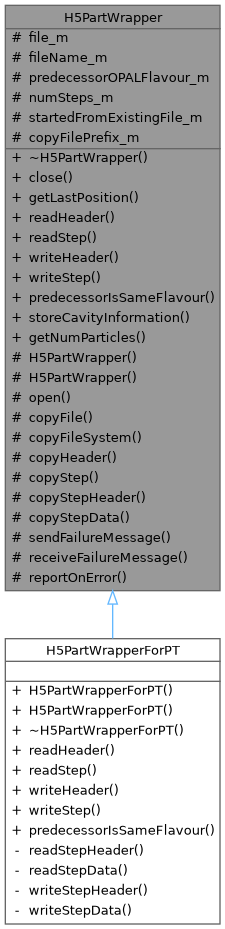

Inheritance diagram for H5PartWrapper:

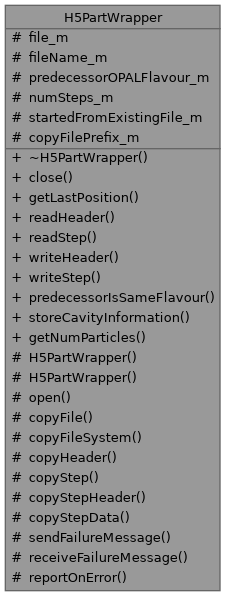

Collaboration diagram for H5PartWrapper:

Public Member Functions
virtual	~H5PartWrapper ()
void	close ()
double	getLastPosition ()
virtual void	readHeader ()=0
virtual void	readStep (PartBunch_t *, h5_ssize_t firstParticle, h5_ssize_t lastParticle)=0
virtual void	writeHeader ()=0
virtual void	writeStep (PartBunch_t *, const std::map< std::string, double > &, size_t particleContainerIndex=0)=0
virtual bool	predecessorIsSameFlavour () const =0
void	storeCavityInformation ()
size_t	getNumParticles () const

Protected Member Functions
	H5PartWrapper (const std::string &fileName, h5_int32_t flags=H5_O_WRONLY)
	H5PartWrapper (const std::string &fileName, int restartStep, std::string sourceFile, h5_int32_t flags=H5_O_RDWR)
void	open (h5_int32_t flags)
void	copyFile (const std::string &sourceFile, int lastStep=-1, h5_int32_t flags=H5_O_WRONLY)
void	copyFileSystem (const std::string &sourceFile)
void	copyHeader (h5_file_t source)
void	copyStep (h5_file_t source, int step)
void	copyStepHeader (h5_file_t source)
void	copyStepData (h5_file_t source)
void	sendFailureMessage (bool failed, const std::string &where, const std::string &what)
void	receiveFailureMessage (int sourceNode, const std::string &where, const std::string &what)

Static Protected Member Functions
static void	reportOnError (h5_int64_t rc, const char *file, int line)

Protected Attributes
h5_file_t	file_m
std::string	fileName_m
std::string	predecessorOPALFlavour_m
h5_int64_t	numSteps_m
bool	startedFromExistingFile_m

Static Protected Attributes
static std::string	copyFilePrefix_m = ".copy"

Detailed Description

Definition at line 38 of file H5PartWrapper.h.

Constructor & Destructor Documentation

~H5PartWrapper()

H5PartWrapper::~H5PartWrapper ( )

virtual

Definition at line 54 of file H5PartWrapper.cpp.

References close().

Here is the call graph for this function:

H5PartWrapper() [1/2]

H5PartWrapper::H5PartWrapper ( const std::string &  fileName, h5_int32_t  flags = H5_O_WRONLY  )

protected

Definition at line 29 of file H5PartWrapper.cpp.

References open().

Here is the call graph for this function:

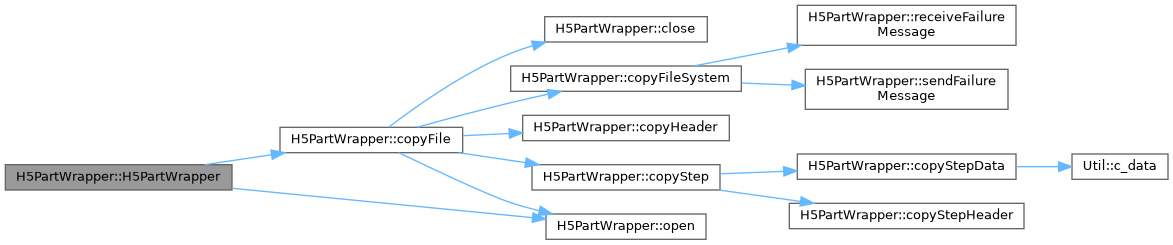

H5PartWrapper() [2/2]

H5PartWrapper::H5PartWrapper ( const std::string &  fileName, int  restartStep, std::string  sourceFile, h5_int32_t  flags = H5_O_RDWR  )

protected

Definition at line 38 of file H5PartWrapper.cpp.

References copyFile(), fileName_m, and open().

Here is the call graph for this function:

Member Function Documentation

close()

void H5PartWrapper::close

(

)

Definition at line 56 of file H5PartWrapper.cpp.

References file_m, and REPORTONERROR.

Referenced by H5Writer::close(), copyFile(), H5Writer::H5Writer(), storeCavityInformation(), H5PartWrapperForPT::writeStep(), and ~H5PartWrapper().

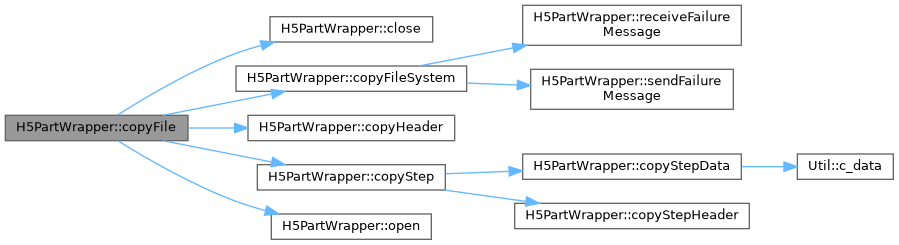

copyFile()

void H5PartWrapper::copyFile ( const std::string &  sourceFile, int  lastStep = -1, h5_int32_t  flags = H5_O_WRONLY  )

protected

Definition at line 121 of file H5PartWrapper.cpp.

References close(), copyFilePrefix_m, copyFileSystem(), copyHeader(), copyStep(), fileName_m, numSteps_m, open(), predecessorOPALFlavour_m, READSTEPATTRIB, and REPORTONERROR.

Referenced by H5PartWrapper().

Here is the call graph for this function:

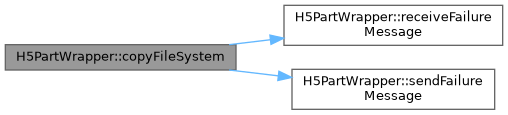

copyFileSystem()

void H5PartWrapper::copyFileSystem ( const std::string &  sourceFile )

protected

Definition at line 244 of file H5PartWrapper.cpp.

References fileName_m, receiveFailureMessage(), and sendFailureMessage().

Referenced by copyFile().

Here is the call graph for this function:

copyHeader()

void H5PartWrapper::copyHeader ( h5_file_t  source )

protected

Definition at line 279 of file H5PartWrapper.cpp.

References file_m, READFILEATTRIB, REPORTONERROR, WRITEFILEATTRIB, and WRITESTRINGFILEATTRIB.

Referenced by copyFile().

copyStep()

void H5PartWrapper::copyStep ( h5_file_t  source, int  step  )

protected

Definition at line 345 of file H5PartWrapper.cpp.

References copyStepData(), copyStepHeader(), file_m, numSteps_m, and REPORTONERROR.

Referenced by copyFile().

Here is the call graph for this function:

copyStepData()

void H5PartWrapper::copyStepData ( h5_file_t  source )

protected

Definition at line 435 of file H5PartWrapper.cpp.

References Util::c_data(), file_m, READDATA, REPORTONERROR, and WRITEDATA.

Referenced by copyStep().

Here is the call graph for this function:

copyStepHeader()

void H5PartWrapper::copyStepHeader ( h5_file_t  source )

protected

Definition at line 353 of file H5PartWrapper.cpp.

References file_m, predecessorOPALFlavour_m, READSTEPATTRIB, REPORTONERROR, WRITESTEPATTRIB, and WRITESTRINGSTEPATTRIB.

Referenced by copyStep().

getLastPosition()

double H5PartWrapper::getLastPosition ( )

inline

Definition at line 92 of file H5PartWrapper.h.

References file_m, open(), readStep(), READSTEPATTRIB, and REPORTONERROR.

Referenced by H5Writer::getLastPosition().

Here is the call graph for this function:

getNumParticles()

size_t H5PartWrapper::getNumParticles

(

)

const

Definition at line 511 of file H5PartWrapper.cpp.

References file_m, numSteps_m, and REPORTONERROR.

Referenced by H5PartWrapperForPT::readStepData().

open()

void H5PartWrapper::open ( h5_int32_t  flags )

protected

Definition at line 66 of file H5PartWrapper.cpp.

References file_m, and fileName_m.

Referenced by copyFile(), getLastPosition(), H5PartWrapper(), H5PartWrapper(), storeCavityInformation(), and H5PartWrapperForPT::writeStep().

predecessorIsSameFlavour()

virtual bool H5PartWrapper::predecessorIsSameFlavour ( ) const

pure virtual

Implemented in H5PartWrapperForPT.

readHeader()

virtual void H5PartWrapper::readHeader ( )

pure virtual

Implemented in H5PartWrapperForPT.

readStep()

virtual void H5PartWrapper::readStep ( PartBunch_t *  , h5_ssize_t  firstParticle, h5_ssize_t  lastParticle  )

pure virtual

Implemented in H5PartWrapperForPT.

Referenced by getLastPosition().

receiveFailureMessage()

void H5PartWrapper::receiveFailureMessage ( int  sourceNode, const std::string &  where, const std::string &  what  )

protected

Definition at line 499 of file H5PartWrapper.cpp.

Referenced by copyFileSystem().

reportOnError()

void H5PartWrapper::reportOnError ( h5_int64_t  rc, const char *  file, int  line  )

inlinestaticprotected

Definition at line 87 of file H5PartWrapper.h.

sendFailureMessage()

void H5PartWrapper::sendFailureMessage ( bool  failed, const std::string &  where, const std::string &  what  )

protected

Definition at line 488 of file H5PartWrapper.cpp.

Referenced by copyFileSystem().

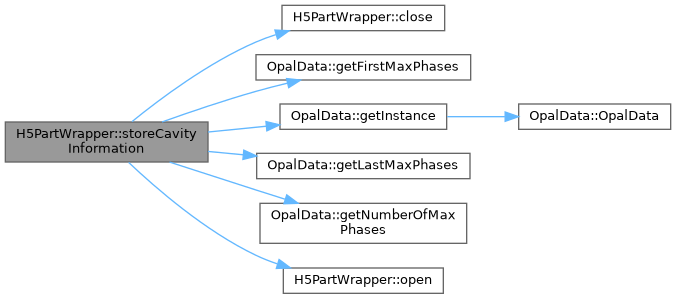

storeCavityInformation()

void H5PartWrapper::storeCavityInformation

(

)

Write number of Cavities with autophase information

Definition at line 79 of file H5PartWrapper.cpp.

References close(), file_m, OpalData::getFirstMaxPhases(), OpalData::getInstance(), OpalData::getLastMaxPhases(), OpalData::getNumberOfMaxPhases(), open(), WRITEFILEATTRIB, and WRITESTRINGFILEATTRIB.

Referenced by H5Writer::storeCavityInformation().

Here is the call graph for this function:

writeHeader()

virtual void H5PartWrapper::writeHeader ( )

pure virtual

Implemented in H5PartWrapperForPT.

Referenced by H5Writer::H5Writer().

writeStep()

virtual void H5PartWrapper::writeStep ( PartBunch_t *  , const std::map< std::string, double > &  , size_t  particleContainerIndex = 0  )

pure virtual

Implemented in H5PartWrapperForPT.

Referenced by H5Writer::writePhaseSpace(), and H5Writer::writePhaseSpace().

Member Data Documentation

copyFilePrefix_m

std::string H5PartWrapper::copyFilePrefix_m = ".copy"

staticprotected

Definition at line 84 of file H5PartWrapper.h.

Referenced by copyFile().

file_m

h5_file_t H5PartWrapper::file_m

protected

Definition at line 78 of file H5PartWrapper.h.

Referenced by close(), copyHeader(), copyStep(), copyStepData(), copyStepHeader(), getLastPosition(), getNumParticles(), H5PartWrapperForPT::H5PartWrapperForPT(), open(), H5PartWrapperForPT::readHeader(), H5PartWrapperForPT::readStep(), H5PartWrapperForPT::readStepData(), H5PartWrapperForPT::readStepHeader(), storeCavityInformation(), H5PartWrapperForPT::writeHeader(), H5PartWrapperForPT::writeStepData(), and H5PartWrapperForPT::writeStepHeader().

fileName_m

std::string H5PartWrapper::fileName_m

protected

Definition at line 79 of file H5PartWrapper.h.

Referenced by copyFile(), copyFileSystem(), H5PartWrapper(), and open().

numSteps_m

h5_int64_t H5PartWrapper::numSteps_m

protected

Definition at line 81 of file H5PartWrapper.h.

Referenced by copyFile(), copyStep(), getNumParticles(), and H5PartWrapperForPT::writeStepHeader().

predecessorOPALFlavour_m

std::string H5PartWrapper::predecessorOPALFlavour_m

protected

Definition at line 80 of file H5PartWrapper.h.

Referenced by copyFile(), copyStepHeader(), and H5PartWrapperForPT::predecessorIsSameFlavour().

startedFromExistingFile_m

bool H5PartWrapper::startedFromExistingFile_m

protected

Definition at line 82 of file H5PartWrapper.h.

---

The documentation for this class was generated from the following files:

• H5PartWrapper.h
• H5PartWrapper.cpp
