interpolation::TriLinearInterpolator Class Reference

#include <TriLinearInterpolator.h>

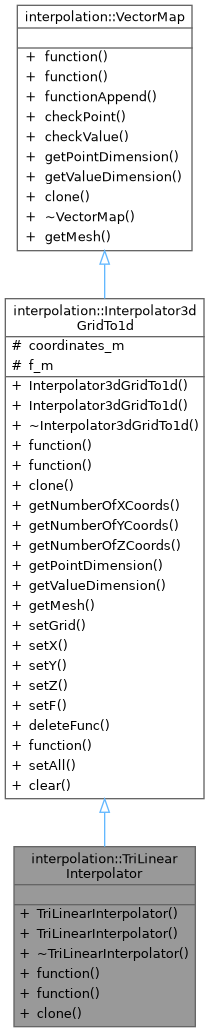

Inheritance diagram for interpolation::TriLinearInterpolator:

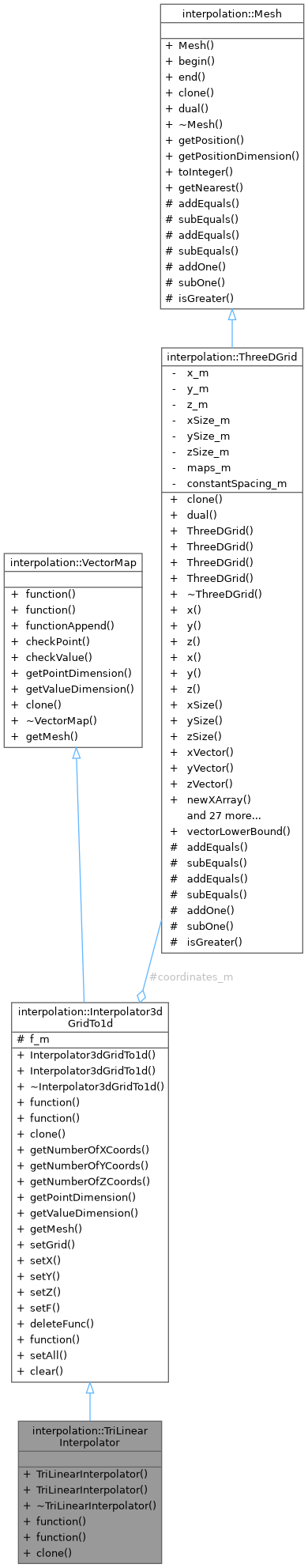

Collaboration diagram for interpolation::TriLinearInterpolator:

Public Member Functions
	TriLinearInterpolator (ThreeDGrid *grid, double ***F)
	TriLinearInterpolator (const TriLinearInterpolator &tli)
	~TriLinearInterpolator ()
void	function (const double Point[3], double Value[1]) const
virtual void	function (const Mesh::Iterator &point, double *value) const
TriLinearInterpolator *	clone () const
double ***	function () const
virtual void	function (const double *point, double *value) const =0
int	getNumberOfXCoords () const
int	getNumberOfYCoords () const
int	getNumberOfZCoords () const
unsigned int	getPointDimension () const
unsigned int	getValueDimension () const
ThreeDGrid *	getMesh () const
void	setGrid (ThreeDGrid *grid)
void	setX (int nCoords, double *x)
void	setY (int nCoords, double *y)
void	setZ (int nCoords, double *z)
void	setF (double ***inF)
void	deleteFunc (double ***func)
void	setAll (ThreeDGrid *grid, double ***F)
void	clear ()
virtual void	functionAppend (const std::vector< std::vector< double > > &point_vec, std::vector< std::vector< double > > &value_vec) const
virtual bool	checkPoint (const std::vector< double > &point) const
virtual bool	checkValue (const std::vector< double > &value) const

Protected Attributes
ThreeDGrid *	coordinates_m
double ***	f_m

Detailed Description

TriLinearInterpolator performs a linear interpolation in x then y then z

Performs a linear interpolation in x then y then z returning a 1D value.

Definition at line 38 of file TriLinearInterpolator.h.

Constructor & Destructor Documentation

TriLinearInterpolator() [1/2]

interpolation::TriLinearInterpolator::TriLinearInterpolator ( ThreeDGrid *  grid, double ***  F  )

inline

Constructor for grids with constant spacing

Parameters

grid	3d mesh on which data is stored - adds a reference to *this into the mesh smart pointer thing.
F	function data with points on each element of the grid. Indexing goes like [index_x][index_y][index_z]. Interpolator3dGridTo1d now owns this memory All the data handling is done at Interpolator3dGridTo1d

Definition at line 82 of file TriLinearInterpolator.h.

TriLinearInterpolator() [2/2]

interpolation::TriLinearInterpolator::TriLinearInterpolator

(

const TriLinearInterpolator &

tli

)

Copy constructor

Deep copies the mesh and the function data

Definition at line 32 of file TriLinearInterpolator.cpp.

References interpolation::ThreeDGrid::add(), interpolation::Interpolator3dGridTo1d::coordinates_m, interpolation::Interpolator3dGridTo1d::f_m, interpolation::ThreeDGrid::xSize(), interpolation::ThreeDGrid::ySize(), and interpolation::ThreeDGrid::zSize().

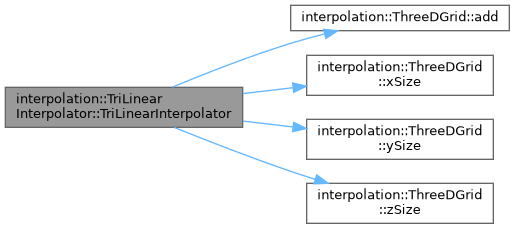

Here is the call graph for this function:

~TriLinearInterpolator()

interpolation::TriLinearInterpolator::~TriLinearInterpolator ( )

inline

Destructor - removes reference from the mesh and from the function data

Definition at line 85 of file TriLinearInterpolator.h.

Member Function Documentation

checkPoint()

bool interpolation::VectorMap::checkPoint ( const std::vector< double > &  point ) const

inlinevirtualinherited

Return true if point.size() is the same as this->PointDimension()

Definition at line 94 of file VectorMap.h.

checkValue()

bool interpolation::VectorMap::checkValue ( const std::vector< double > &  value ) const

inlinevirtualinherited

Return true if value.size() is the same as this->ValueDimension()

Definition at line 98 of file VectorMap.h.

clear()

void interpolation::Interpolator3dGridTo1d::clear ( )

inlineinherited

Clear all private data

Definition at line 194 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::coordinates_m, interpolation::Interpolator3dGridTo1d::deleteFunc(), interpolation::Interpolator3dGridTo1d::f_m, and interpolation::ThreeDGrid::remove().

Referenced by interpolation::Interpolator3dGridTo1d::~Interpolator3dGridTo1d().

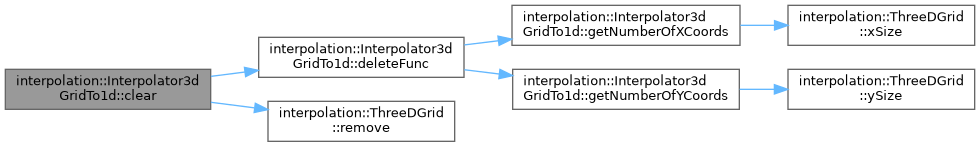

Here is the call graph for this function:

clone()

TriLinearInterpolator * interpolation::TriLinearInterpolator::clone ( ) const

inlinevirtual

Copy function (can be called on parent class)

Implements interpolation::Interpolator3dGridTo1d.

Definition at line 87 of file TriLinearInterpolator.h.

deleteFunc()

void interpolation::Interpolator3dGridTo1d::deleteFunc ( double ***  func )

inherited

Delete any existing function data

Definition at line 31 of file Interpolator3dGridTo1d.cpp.

References interpolation::Interpolator3dGridTo1d::getNumberOfXCoords(), and interpolation::Interpolator3dGridTo1d::getNumberOfYCoords().

Referenced by interpolation::Interpolator3dGridTo1d::clear(), and interpolation::Interpolator3dGridTo1d::setF().

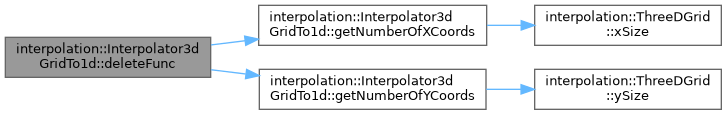

Here is the call graph for this function:

function() [1/4]

double *** interpolation::Interpolator3dGridTo1d::function ( ) const

inlineinherited

Return a pointer to the function data

Definition at line 187 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::f_m.

function() [2/4]

virtual void interpolation::VectorMap::function ( const double *  point, double *  value  ) const

pure virtualinherited

Pure virtual function to fill the array value with data evaluated at point.

Implemented in interpolation::PolynomialPatch.

Referenced by interpolation::Interpolator3dGridTo1d::function(), interpolation::Interpolator3dGridTo3d::function(), interpolation::PolynomialPatch::function(), function(), interpolation::VectorMap::function(), and interpolation::VectorMap::functionAppend().

function() [3/4]

void interpolation::TriLinearInterpolator::function ( const double  Point[3], double  Value[1]  ) const

virtual

Get the interpolated value of the function at some point

First does bound checking, then makes linear interpolations using the standard 1d interpolation formula
\(y(x) \approx \frac{\Delta y}{\Delta x} dx + y_0\)
\(y(x) \approx \frac{y_1(x_1)-y_0(x_0)}{dx}(x-x_0) + y_0\)
Interpolate along 4 x grid lines to make a 2D problem, then interpolate along 2 y grid lines to make a 1D problem, then finally interpolate in z to get the value.

Implements interpolation::Interpolator3dGridTo1d.

Definition at line 47 of file TriLinearInterpolator.cpp.

References interpolation::Interpolator3dGridTo1d::coordinates_m, interpolation::Interpolator3dGridTo1d::f_m, interpolation::ThreeDGrid::lowerBound(), interpolation::ThreeDGrid::x(), interpolation::ThreeDGrid::xSize(), interpolation::ThreeDGrid::y(), interpolation::ThreeDGrid::ySize(), interpolation::ThreeDGrid::z(), and interpolation::ThreeDGrid::zSize().

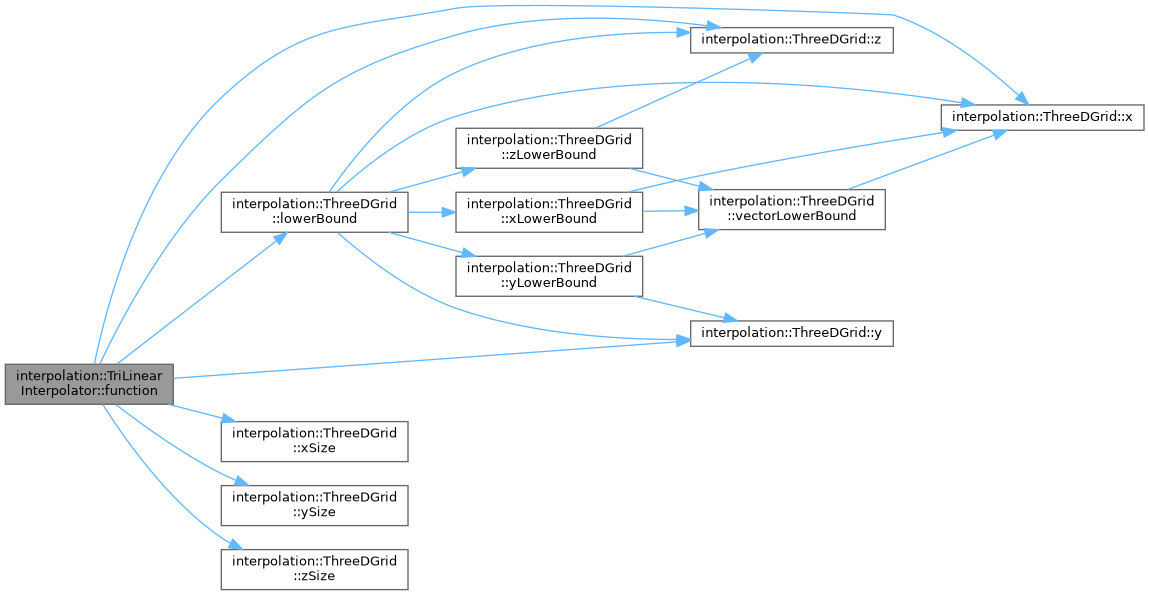

Here is the call graph for this function:

function() [4/4]

virtual void interpolation::TriLinearInterpolator::function ( const Mesh::Iterator &  point, double *  value  ) const

inlinevirtual

Call function at a particular point in the mesh

Reimplemented from interpolation::Interpolator3dGridTo1d.

Definition at line 74 of file TriLinearInterpolator.h.

References interpolation::VectorMap::function().

Here is the call graph for this function:

functionAppend()

void interpolation::VectorMap::functionAppend ( const std::vector< std::vector< double > > &  point_vec, std::vector< std::vector< double > > &  value_vec  ) const

inlinevirtualinherited

Calculate F, appending output values to value_vec.

For each item in point_vec not in value_vec, calculate value_vec (urgh)

Definition at line 109 of file VectorMap.h.

References interpolation::VectorMap::function(), and interpolation::VectorMap::getValueDimension().

Here is the call graph for this function:

getMesh()

ThreeDGrid * interpolation::Interpolator3dGridTo1d::getMesh ( ) const

inlinevirtualinherited

Return a pointer to the mesh

Reimplemented from interpolation::VectorMap.

Definition at line 162 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::coordinates_m.

getNumberOfXCoords()

int interpolation::Interpolator3dGridTo1d::getNumberOfXCoords ( ) const

inlineinherited

Number of x coordinates in the grid

Definition at line 152 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::coordinates_m, and interpolation::ThreeDGrid::xSize().

Referenced by interpolation::Interpolator3dGridTo1d::deleteFunc().

Here is the call graph for this function:

getNumberOfYCoords()

int interpolation::Interpolator3dGridTo1d::getNumberOfYCoords ( ) const

inlineinherited

Number of y coordinates in the grid

Definition at line 154 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::coordinates_m, and interpolation::ThreeDGrid::ySize().

Referenced by interpolation::Interpolator3dGridTo1d::deleteFunc().

Here is the call graph for this function:

getNumberOfZCoords()

int interpolation::Interpolator3dGridTo1d::getNumberOfZCoords ( ) const

inlineinherited

Number of z coordinates in the grid

Definition at line 156 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::coordinates_m, and interpolation::ThreeDGrid::zSize().

Here is the call graph for this function:

getPointDimension()

unsigned int interpolation::Interpolator3dGridTo1d::getPointDimension ( ) const

inlinevirtualinherited

Dimension of input points

Implements interpolation::VectorMap.

Definition at line 158 of file Interpolator3dGridTo1d.h.

getValueDimension()

unsigned int interpolation::Interpolator3dGridTo1d::getValueDimension ( ) const

inlinevirtualinherited

Dimension of output values

Implements interpolation::VectorMap.

Definition at line 160 of file Interpolator3dGridTo1d.h.

setAll()

void interpolation::Interpolator3dGridTo1d::setAll ( ThreeDGrid *  grid, double ***  F  )

inlineinherited

Set function and mesh data

Definition at line 189 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::setF(), and interpolation::Interpolator3dGridTo1d::setGrid().

Referenced by interpolation::Interpolator3dGridTo1d::Interpolator3dGridTo1d().

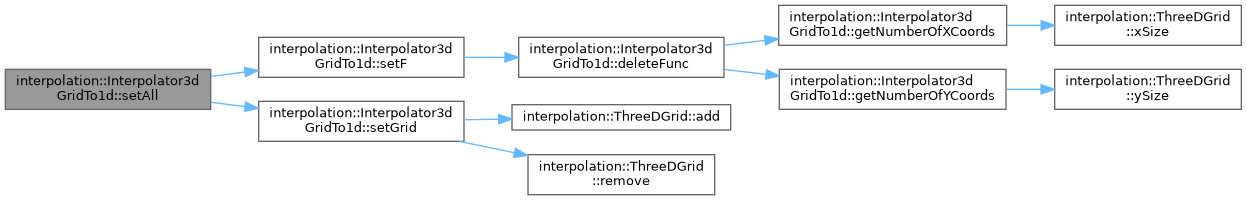

Here is the call graph for this function:

setF()

void interpolation::Interpolator3dGridTo1d::setF ( double ***  inF )

inlineinherited

Set function data, deleting any existing function data

Definition at line 164 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::deleteFunc(), and interpolation::Interpolator3dGridTo1d::f_m.

Referenced by interpolation::Interpolator3dGridTo1d::setAll().

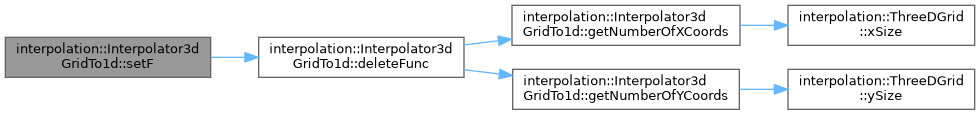

Here is the call graph for this function:

setGrid()

void interpolation::Interpolator3dGridTo1d::setGrid ( ThreeDGrid *  grid )

inlineinherited

Reset the mesh

Removes reference to this from mesh smart pointer if appropriate

Definition at line 169 of file Interpolator3dGridTo1d.h.

References interpolation::ThreeDGrid::add(), interpolation::Interpolator3dGridTo1d::coordinates_m, and interpolation::ThreeDGrid::remove().

Referenced by interpolation::Interpolator3dGridTo1d::setAll().

Here is the call graph for this function:

setX()

void interpolation::Interpolator3dGridTo1d::setX ( int  nCoords, double *  x  )

inlineinherited

Set x coordinates in the mesh to an arbitrary set of points

If mesh is nullptr, does nothing

Definition at line 175 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::coordinates_m, and interpolation::ThreeDGrid::setX().

Here is the call graph for this function:

setY()

void interpolation::Interpolator3dGridTo1d::setY ( int  nCoords, double *  y  )

inlineinherited

Set y coordinates in the mesh to an arbitrary set of points

If mesh is nullptr, does nothing

Definition at line 179 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::coordinates_m, and interpolation::ThreeDGrid::setY().

Here is the call graph for this function:

setZ()

void interpolation::Interpolator3dGridTo1d::setZ ( int  nCoords, double *  z  )

inlineinherited

Set z coordinates in the mesh to an arbitrary set of points

If mesh is nullptr, does nothing

Definition at line 183 of file Interpolator3dGridTo1d.h.

References interpolation::Interpolator3dGridTo1d::coordinates_m, and interpolation::ThreeDGrid::setZ().

Here is the call graph for this function:

Member Data Documentation

coordinates_m

ThreeDGrid* interpolation::Interpolator3dGridTo1d::coordinates_m

protectedinherited

Definition at line 139 of file Interpolator3dGridTo1d.h.

Referenced by interpolation::Interpolator3dGridTo1d::clear(), function(), interpolation::Interpolator3dGridTo1d::getMesh(), interpolation::Interpolator3dGridTo1d::getNumberOfXCoords(), interpolation::Interpolator3dGridTo1d::getNumberOfYCoords(), interpolation::Interpolator3dGridTo1d::getNumberOfZCoords(), interpolation::Interpolator3dGridTo1d::setGrid(), interpolation::Interpolator3dGridTo1d::setX(), interpolation::Interpolator3dGridTo1d::setY(), interpolation::Interpolator3dGridTo1d::setZ(), and TriLinearInterpolator().

f_m

double*** interpolation::Interpolator3dGridTo1d::f_m

protectedinherited

Definition at line 140 of file Interpolator3dGridTo1d.h.

Referenced by interpolation::Interpolator3dGridTo1d::clear(), interpolation::Interpolator3dGridTo1d::function(), function(), interpolation::Interpolator3dGridTo1d::setF(), and TriLinearInterpolator().

---

The documentation for this class was generated from the following files:

• TriLinearInterpolator.h
• TriLinearInterpolator.cpp
