#include <Interpolator3dGridTo1d.h>

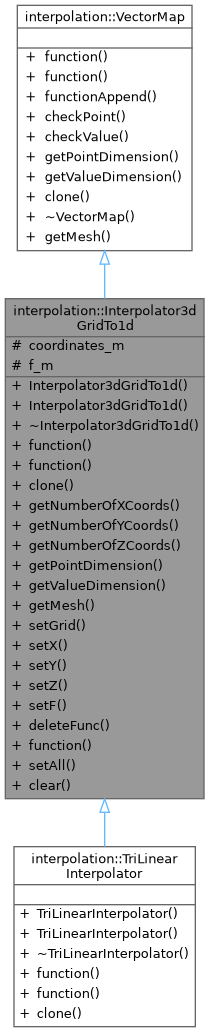

Inheritance diagram for interpolation::Interpolator3dGridTo1d:

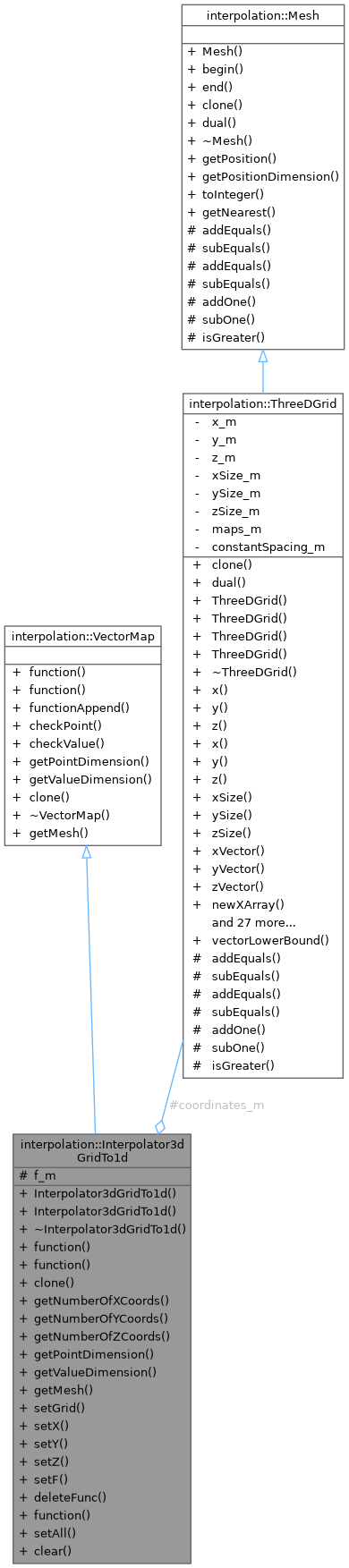

Collaboration diagram for interpolation::Interpolator3dGridTo1d:

Public Member Functions
	Interpolator3dGridTo1d (ThreeDGrid grid, double **F)

	Interpolator3dGridTo1d ()

virtual	~Interpolator3dGridTo1d ()

virtual void	function (const Mesh::Iterator &point, double *value) const

virtual void	function (const double Point[3], double Value[1]) const =0

virtual Interpolator3dGridTo1d *	clone () const =0

int	getNumberOfXCoords () const

int	getNumberOfYCoords () const

int	getNumberOfZCoords () const

unsigned int	getPointDimension () const

unsigned int	getValueDimension () const

ThreeDGrid *	getMesh () const

void	setGrid (ThreeDGrid *grid)

void	setX (int nCoords, double *x)

void	setY (int nCoords, double *y)

void	setZ (int nCoords, double *z)

void	setF (double ***inF)

void	deleteFunc (double ***func)

double ***	function () const

void	setAll (ThreeDGrid grid, double **F)

void	clear ()

virtual void	function (const double point, double value) const =0

virtual void	functionAppend (const std::vector< std::vector< double > > &point_vec, std::vector< std::vector< double > > &value_vec) const

virtual bool	checkPoint (const std::vector< double > &point) const

virtual bool	checkValue (const std::vector< double > &value) const

Protected Attributes
ThreeDGrid *	coordinates_m

double ***	f_m

Detailed Description

Interpolator3dGridTo1d is an abstraction for lookup on a 3D mesh to get a 1D value.

Interpolator3dGridTo1d abstracts the lookup from a 3D mesh to get a 1D value This is a building block for higher dimension (e.g. field vector lookup) where we can do multiple lookups one for each field, at the cost of doing multiple access/interpolation operations to the grid.

Definition at line 44 of file Interpolator3dGridTo1d.h.

Constructor & Destructor Documentation

◆ Interpolator3dGridTo1d() [1/2]

interpolation::Interpolator3dGridTo1d::Interpolator3dGridTo1d	(	ThreeDGrid *	grid,
		double ***	F
	)

inline

Constructor for grids with constant spacing

Parameters

grid	3d mesh on which data is stored - adds a reference to *this into the mesh smart pointer thing.
F	function data with points on each element of the grid. Indexing goes like [index_x][index_y][index_z]. Interpolator3dGridTo1d now owns this memory

Definition at line 143 of file Interpolator3dGridTo1d.h.

References setAll().

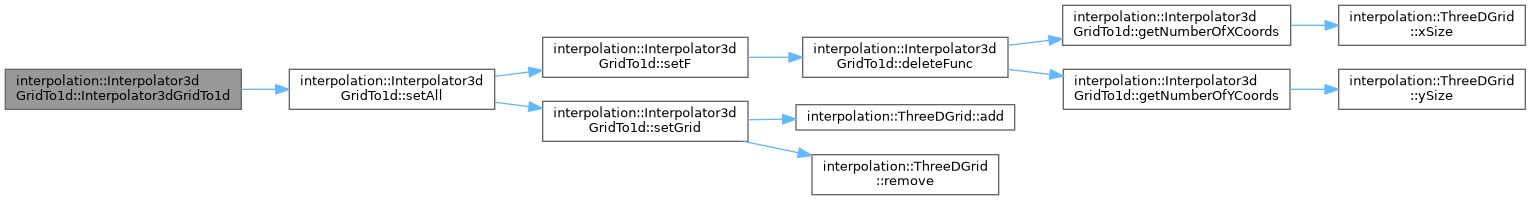

Here is the call graph for this function:

◆ Interpolator3dGridTo1d() [2/2]

interpolation::Interpolator3dGridTo1d::Interpolator3dGridTo1d ( )

inline

Default constructor - initialises data to nullptr

Note I have no nullptr checking on most member functions so be careful

Definition at line 148 of file Interpolator3dGridTo1d.h.

◆ ~Interpolator3dGridTo1d()

interpolation::Interpolator3dGridTo1d::~Interpolator3dGridTo1d ( )

inlinevirtual

Deletes F data and removes *this from ThreeDGrid smart pointer thing.

Definition at line 150 of file Interpolator3dGridTo1d.h.

References clear().

Here is the call graph for this function:

Member Function Documentation

◆ checkPoint()

bool interpolation::VectorMap::checkPoint ( const std::vector< double > & point ) const

inlinevirtualinherited

Return true if point.size() is the same as this->PointDimension()

Definition at line 94 of file VectorMap.h.

◆ checkValue()

bool interpolation::VectorMap::checkValue ( const std::vector< double > & value ) const

inlinevirtualinherited

Return true if value.size() is the same as this->ValueDimension()

Definition at line 98 of file VectorMap.h.

◆ clear()

void interpolation::Interpolator3dGridTo1d::clear ( )

inline

Clear all private data

Definition at line 194 of file Interpolator3dGridTo1d.h.

References coordinates_m, deleteFunc(), f_m, and interpolation::ThreeDGrid::remove().

Referenced by ~Interpolator3dGridTo1d().

Here is the call graph for this function:

◆ clone()

virtual Interpolator3dGridTo1d * interpolation::Interpolator3dGridTo1d::clone ( ) const

pure virtual

Copy constructor

Implements interpolation::VectorMap.

Implemented in interpolation::TriLinearInterpolator.

Referenced by interpolation::Interpolator3dGridTo3d::Interpolator3dGridTo3d().

◆ deleteFunc()

void interpolation::Interpolator3dGridTo1d::deleteFunc ( double *** func )

Delete any existing function data

Definition at line 31 of file Interpolator3dGridTo1d.cpp.

References getNumberOfXCoords(), and getNumberOfYCoords().

Referenced by clear(), and setF().

Here is the call graph for this function:

◆ function() [1/4]

double *** interpolation::Interpolator3dGridTo1d::function ( ) const

inline

Return a pointer to the function data

Definition at line 187 of file Interpolator3dGridTo1d.h.

References f_m.

◆ function() [2/4]

virtual void interpolation::VectorMap::function	(	const double *	point,
		double *	value
	)		const

pure virtualinherited

Pure virtual function to fill the array value with data evaluated at point.

Implemented in interpolation::PolynomialPatch.

Referenced by function(), interpolation::Interpolator3dGridTo3d::function(), interpolation::PolynomialPatch::function(), interpolation::TriLinearInterpolator::function(), interpolation::VectorMap::function(), and interpolation::VectorMap::functionAppend().

◆ function() [3/4]

virtual void interpolation::Interpolator3dGridTo1d::function	(	const double	Point[3],
		double	Value[1]
	)		const

pure virtual

Get the interpolated function data

Implemented in interpolation::TriLinearInterpolator.

◆ function() [4/4]

virtual void interpolation::Interpolator3dGridTo1d::function	(	const Mesh::Iterator &	point,
		double *	value
	)		const

inlinevirtual

Call function at a particular point in the mesh

Reimplemented from interpolation::VectorMap.

Reimplemented in interpolation::TriLinearInterpolator.

Definition at line 66 of file Interpolator3dGridTo1d.h.

References interpolation::VectorMap::function().

Referenced by interpolation::Interpolator3dGridTo3d::function().

Here is the call graph for this function:

◆ functionAppend()

void interpolation::VectorMap::functionAppend	(	const std::vector< std::vector< double > > &	point_vec,
		std::vector< std::vector< double > > &	value_vec
	)		const
