#include <VectorMap.h>

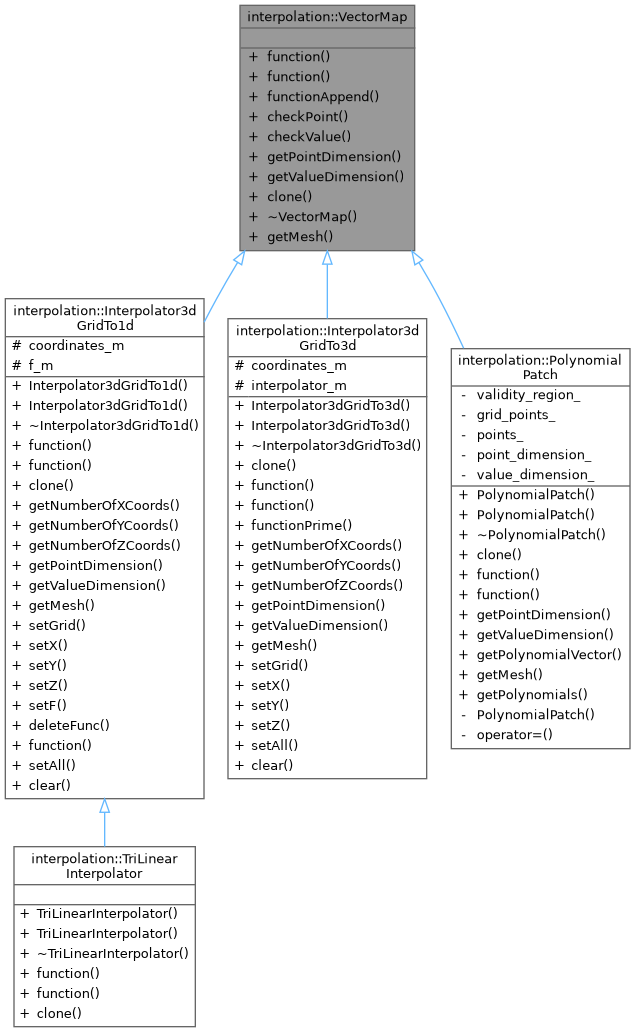

Inheritance diagram for interpolation::VectorMap:

Collaboration diagram for interpolation::VectorMap:

Public Member Functions
virtual void	function (const double point, double value) const =0

virtual void	function (const Mesh::Iterator &point, double *value) const

virtual void	functionAppend (const std::vector< std::vector< double > > &point_vec, std::vector< std::vector< double > > &value_vec) const

virtual bool	checkPoint (const std::vector< double > &point) const

virtual bool	checkValue (const std::vector< double > &value) const

virtual unsigned int	getPointDimension () const =0

virtual unsigned int	getValueDimension () const =0

virtual VectorMap *	clone () const =0

virtual	~VectorMap ()

virtual Mesh *	getMesh () const

Detailed Description

VectorMap is an abstract class that defines mapping from one vector to another.

VectorMap is base class primarily envisaged for mesh interpolation that defines interfaces to get interpolated data at a given point, access the mesh, etc.

Input and output dimensions (vector lengths) are arbitrary.

Definition at line 46 of file VectorMap.h.

Constructor & Destructor Documentation

◆ ~VectorMap()

virtual interpolation::VectorMap::~VectorMap ( )

inlinevirtual

Destructor

Definition at line 86 of file VectorMap.h.

Member Function Documentation

◆ checkPoint()

bool interpolation::VectorMap::checkPoint ( const std::vector< double > & point ) const

inlinevirtual

Return true if point.size() is the same as this->PointDimension()

Definition at line 94 of file VectorMap.h.

◆ checkValue()

bool interpolation::VectorMap::checkValue ( const std::vector< double > & value ) const

inlinevirtual

Return true if value.size() is the same as this->ValueDimension()

Definition at line 98 of file VectorMap.h.

◆ clone()

virtual VectorMap * interpolation::VectorMap::clone ( ) const

pure virtual

Clone() is like a copy constructor - but copies the child class

Implemented in interpolation::Interpolator3dGridTo3d, interpolation::PolynomialPatch, interpolation::TriLinearInterpolator, and interpolation::Interpolator3dGridTo1d.

◆ function() [1/2]

virtual void interpolation::VectorMap::function	(	const double *	point,
		double *	value
	)		const

pure virtual

Pure virtual function to fill the array value with data evaluated at point.

Implemented in interpolation::PolynomialPatch.

Referenced by interpolation::Interpolator3dGridTo1d::function(), interpolation::Interpolator3dGridTo3d::function(), interpolation::PolynomialPatch::function(), interpolation::TriLinearInterpolator::function(), function(), and functionAppend().

◆ function() [2/2]

void interpolation::VectorMap::function	(	const Mesh::Iterator &	point,
		double *	value
	)		const

inlinevirtual

Fill the array value with function data at a point on the mesh.

Implemented for default case where Mesh point dimension is the same as this point dimension (usual case). No default checking for array sizes.

Reimplemented in interpolation::Interpolator3dGridTo1d, interpolation::Interpolator3dGridTo3d, interpolation::PolynomialPatch, and interpolation::TriLinearInterpolator.

Definition at line 102 of file VectorMap.h.

References function(), getPointDimension(), and interpolation::Mesh::Iterator::getPosition().

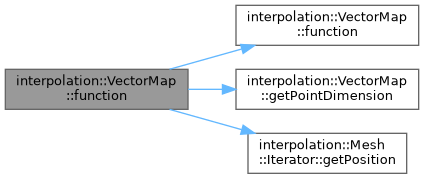

Here is the call graph for this function:

◆ functionAppend()

void interpolation::VectorMap::functionAppend	(	const std::vector< std::vector< double > > &	point_vec,
		std::vector< std::vector< double > > &	value_vec
	)		const
