Attributes::BoolArray Class Reference

Parser for an attribute of type logical array. More...

#include <BoolArray.h>

Inheritance diagram for Attributes::BoolArray:

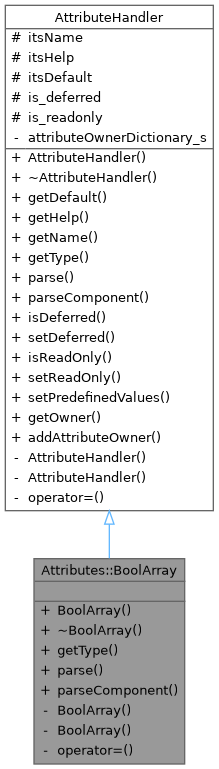

Collaboration diagram for Attributes::BoolArray:

Public Types
enum	OwnerType {   ELEMENT , COMMAND , SUB_COMMAND , STATEMENT ,   NONE }

Public Member Functions
	BoolArray (const std::string &name, const std::string &help)
	Constructor.
virtual	~BoolArray ()
virtual const std::string &	getType () const
	Return attribute type string `‘logical array’'.
virtual void	parse (Attribute &, Statement &, bool) const
	Parse the attribute.
virtual void	parseComponent (Attribute &, Statement &, bool, int) const
	Parse a component of the array.
virtual AttributeBase *	getDefault () const
	Return default value.
virtual const std::string &	getHelp () const
	Return help string.
virtual const std::string &	getName () const
	Return attribute name.
bool	isDeferred () const
	Return defer flag.
void	setDeferred (bool)
	Set or reset defer flag.
bool	isReadOnly () const
	Return read-only flag.
void	setReadOnly (bool)
	Set or reset read-only flag.
void	setPredefinedValues (const std::set< std::string > &, const std::string &)
	Add predefined strings values to the help.

Static Public Member Functions
static std::multimap< OwnerType, std::string >	getOwner (const std::string &att)
static void	addAttributeOwner (const std::string &owner, const OwnerType &type, const std::string &name)

Protected Attributes
const std::string	itsName
	Attribute name.
const std::string	itsHelp
	Help text.
std::shared_ptr< AttributeBase >	itsDefault
	Default value.
bool	is_deferred
	Defer flag.
bool	is_readonly
	Read-only flag.

Private Member Functions
	BoolArray ()
	BoolArray (const BoolArray &)
void	operator= (const BoolArray &)

Static Private Attributes
static std::multimap< std::string, std::pair< OwnerType, std::string > >	attributeOwnerDictionary_s

Detailed Description

Parser for an attribute of type logical array.

Definition at line 31 of file BoolArray.h.

Member Enumeration Documentation

OwnerType

enum AttributeHandler::OwnerType

inherited

Enumerator
ELEMENT
COMMAND
SUB_COMMAND
STATEMENT
NONE

Definition at line 109 of file AttributeHandler.h.

Constructor & Destructor Documentation

BoolArray() [1/3]

Attributes::BoolArray::BoolArray	(	const std::string &	name,
		const std::string &	help
	)

Constructor.

Definition at line 36 of file BoolArray.cpp.

~BoolArray()

Attributes::BoolArray::~BoolArray ( )

virtual

Definition at line 39 of file BoolArray.cpp.

BoolArray() [2/3]

Attributes::BoolArray::BoolArray ( )

private

BoolArray() [3/3]

Attributes::BoolArray::BoolArray ( const BoolArray &  )

private

Member Function Documentation

addAttributeOwner()

void AttributeHandler::addAttributeOwner ( const std::string &  owner, const OwnerType &  type, const std::string &  name  )

staticinherited

Definition at line 101 of file AttributeHandler.cpp.

References AttributeHandler::attributeOwnerDictionary_s.

Referenced by OpalElement::OpalElement(), OpalElement::registerOwnership(), Object::registerOwnership(), and TrackCmd::TrackCmd().

getDefault()

AttributeBase * AttributeHandler::getDefault ( ) const

virtualinherited

Return default value.

Definition at line 40 of file AttributeHandler.cpp.

References AttributeHandler::itsDefault, and AttributeHandler::itsName.

getHelp()

const std::string & AttributeHandler::getHelp ( ) const

virtualinherited

Return help string.

Definition at line 50 of file AttributeHandler.cpp.

References AttributeHandler::itsHelp.

Referenced by Attribute::getHelp().

getName()

const std::string & AttributeHandler::getName ( ) const

virtualinherited

Return attribute name.

Definition at line 52 of file AttributeHandler.cpp.

References AttributeHandler::itsName.

getOwner()

std::multimap< AttributeHandler::OwnerType, std::string > AttributeHandler::getOwner ( const std::string &  att )

staticinherited

Definition at line 84 of file AttributeHandler.cpp.

References AttributeHandler::attributeOwnerDictionary_s.

Referenced by OpalParser::getHint().

getType()

const std::string & Attributes::BoolArray::getType ( ) const

virtual

Return attribute type string `‘logical array’'.

Implements AttributeHandler.

Definition at line 41 of file BoolArray.cpp.

isDeferred()

bool AttributeHandler::isDeferred ( ) const

inherited

Return defer flag.

Definition at line 61 of file AttributeHandler.cpp.

References AttributeHandler::is_deferred.

Referenced by Attributes::Real::parse().

isReadOnly()

bool AttributeHandler::isReadOnly ( ) const

inherited

Return read-only flag.

Definition at line 65 of file AttributeHandler.cpp.

References AttributeHandler::is_readonly.

operator=()

void Attributes::BoolArray::operator= ( const BoolArray &  )

private

parse()

void Attributes::BoolArray::parse ( Attribute &  attr, Statement &  stat, bool  eval  ) const

virtual

Parse the attribute.

Implements AttributeHandler.

Definition at line 46 of file BoolArray.cpp.

References AttributeHandler::is_deferred, Expressions::parseBoolArray(), and Attribute::set().

Here is the call graph for this function:

parseComponent()

void Attributes::BoolArray::parseComponent ( Attribute &  attr, Statement &  stat, bool  eval, int  index  ) const

virtual

Parse a component of the array.

Reimplemented from AttributeHandler.

Definition at line 60 of file BoolArray.cpp.

References Attribute::getBase(), Expressions::parseBool(), Attribute::set(), and Expressions::ADeferred< T >::setComponent().

Here is the call graph for this function:

setDeferred()

void AttributeHandler::setDeferred ( bool  flag )

inherited

Set or reset defer flag.

Definition at line 63 of file AttributeHandler.cpp.

References AttributeHandler::is_deferred.

setPredefinedValues()

void AttributeHandler::setPredefinedValues ( const std::set< std::string > &  predefinedValues, const std::string &  defaultValue  )

inherited

Add predefined strings values to the help.

Definition at line 69 of file AttributeHandler.cpp.

References AttributeHandler::itsHelp.

Referenced by Attributes::PredefinedString::PredefinedString().

setReadOnly()

void AttributeHandler::setReadOnly ( bool  flag )

inherited

Set or reset read-only flag.

Definition at line 67 of file AttributeHandler.cpp.

References AttributeHandler::is_readonly.

Member Data Documentation

attributeOwnerDictionary_s

std::multimap< std::string, std::pair< AttributeHandler::OwnerType, std::string > > AttributeHandler::attributeOwnerDictionary_s

staticprivateinherited

Definition at line 138 of file AttributeHandler.h.

Referenced by AttributeHandler::addAttributeOwner(), and AttributeHandler::getOwner().

is_deferred

bool AttributeHandler::is_deferred

protectedinherited

Defer flag.

Definition at line 126 of file AttributeHandler.h.

Referenced by AttributeHandler::isDeferred(), Attributes::Bool::parse(), parse(), Attributes::RealArray::parse(), and AttributeHandler::setDeferred().

is_readonly

bool AttributeHandler::is_readonly

protectedinherited

Read-only flag.

Definition at line 129 of file AttributeHandler.h.

Referenced by AttributeHandler::isReadOnly(), and AttributeHandler::setReadOnly().

itsDefault

std::shared_ptr<AttributeBase> AttributeHandler::itsDefault

protectedinherited

Default value.

Definition at line 123 of file AttributeHandler.h.

Referenced by AttributeHandler::getDefault().

itsHelp

const std::string AttributeHandler::itsHelp

protectedinherited

Help text.

Definition at line 120 of file AttributeHandler.h.

Referenced by AttributeHandler::getHelp(), and AttributeHandler::setPredefinedValues().

itsName

const std::string AttributeHandler::itsName

protectedinherited

Attribute name.

Definition at line 117 of file AttributeHandler.h.

Referenced by AttributeHandler::getDefault(), AttributeHandler::getName(), and AttributeHandler::parseComponent().

---

The documentation for this class was generated from the following files:

• BoolArray.h
• BoolArray.cpp
