Attribute Class Reference

A representation of an Object attribute. More...

#include <Attribute.h>

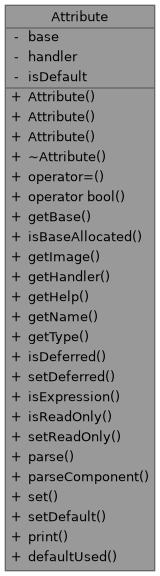

Collaboration diagram for Attribute:

Public Member Functions
	Attribute ()
	Default constructor.
	Attribute (const Attribute &rhs)
	Copy constructor.
	Attribute (AttributeHandler *h, AttributeBase *b=nullptr)
	Constructor defining a parser and an optional value.
	~Attribute ()
const Attribute &	operator= (const Attribute &)
	operator bool () const
	Test for valid pointer.
AttributeBase &	getBase () const
	Return reference to polymorphic value.
bool	isBaseAllocated () const
std::string	getImage () const
	Return printable representation.
AttributeHandler &	getHandler () const
	Return a reference to the parser.
const std::string &	getHelp () const
	Return the help string.
const std::string &	getName () const
	Return the attribute name.
const std::string &	getType () const
	Return the attribute type.
bool	isDeferred () const
	Return [b]deferred[/b] flag.
void	setDeferred (bool)
	Set read-only flag.
bool	isExpression () const
	Test for expression.
bool	isReadOnly () const
	Test for read only.
void	setReadOnly (bool)
	Set read-only flag.
void	parse (Statement &stat, bool eval)
	Parse attribute.
void	parseComponent (Statement &stat, bool eval, int index)
	Parse array component.
void	set (AttributeBase *newBase)
	Define new value.
void	setDefault ()
	Assign default value.
void	print (int &len) const
	Print attribute.
bool	defaultUsed () const

Private Attributes
std::shared_ptr< AttributeBase >	base
std::shared_ptr< AttributeHandler >	handler
bool	isDefault

Detailed Description

A representation of an Object attribute.

Definition at line 52 of file Attribute.h.

Constructor & Destructor Documentation

Attribute() [1/3]

Attribute::Attribute

(

)

Default constructor.

Definition at line 33 of file Attribute.cpp.

Attribute() [2/3]

Attribute::Attribute

(

const Attribute &

rhs

)

Copy constructor.

Definition at line 35 of file Attribute.cpp.

Attribute() [3/3]

Attribute::Attribute	(	AttributeHandler *	h,
		AttributeBase *	b = nullptr
	)

Constructor defining a parser and an optional value.

Definition at line 38 of file Attribute.cpp.

~Attribute()

Attribute::~Attribute

(

)

Definition at line 41 of file Attribute.cpp.

Member Function Documentation

defaultUsed()

bool Attribute::defaultUsed ( ) const

inline

Definition at line 168 of file Attribute.h.

References isDefault.

getBase()

AttributeBase & Attribute::getBase

(

)

const

Return reference to polymorphic value.

Definition at line 52 of file Attribute.cpp.

References base.

Referenced by Attributes::getBool(), Attributes::getBoolArray(), Attributes::getPlace(), Attributes::getRange(), Attributes::getReal(), Attributes::getRealArray(), Attributes::getString(), Attributes::getStringArray(), Attributes::getTableRow(), Attributes::getTokenList(), Attributes::getTokenListArray(), operator<<(), Attributes::BoolArray::parseComponent(), Attributes::RealArray::parseComponent(), Attributes::StringArray::parseComponent(), Attributes::TokenListArray::parseComponent(), Attributes::UpperCaseStringArray::parseComponent(), OpalElement::printMultipoleStrength(), Attributes::setBool(), Attributes::setPredefinedString(), Attributes::setReal(), Attributes::setString(), and Attributes::setUpperCaseString().

getHandler()

AttributeHandler & Attribute::getHandler

(

)

const

Return a reference to the parser.

Definition at line 56 of file Attribute.cpp.

References handler.

Referenced by Attributes::getBool(), Attributes::getReal(), Attributes::getRealArray(), Attributes::getString(), Attributes::getStringArray(), Attributes::getTokenList(), Attributes::getTokenListArray(), Attributes::setBool(), Attributes::setBoolArray(), Attributes::setPlace(), Attributes::setPredefinedString(), Attributes::setRange(), Attributes::setReal(), Attributes::setRealArray(), Attributes::setString(), Attributes::setStringArray(), Attributes::setTableRow(), Attributes::setTokenList(), Attributes::setUpperCaseString(), and Attributes::setUpperCaseStringArray().

getHelp()

const std::string & Attribute::getHelp

(

)

const

Return the help string.

Definition at line 58 of file Attribute.cpp.

References AttributeHandler::getHelp(), and handler.

Here is the call graph for this function:

getImage()

std::string Attribute::getImage

(

)

const

Return printable representation.

Definition at line 60 of file Attribute.cpp.

References base.

Referenced by print(), and OpalElement::printMultipoleStrength().

getName()

const std::string & Attribute::getName

(

)

const

Return the attribute name.

Definition at line 62 of file Attribute.cpp.

References handler.

Referenced by Attributes::getBool(), Attributes::getBoolArray(), Attributes::getPlace(), Attributes::getRange(), Attributes::getReal(), Attributes::getRealArray(), Attributes::getString(), Attributes::getStringArray(), Attributes::getTableRow(), Attributes::getTokenList(), Attributes::getTokenListArray(), print(), Attributes::setBool(), Attributes::setBoolArray(), Attributes::setPlace(), Attributes::setPredefinedString(), Attributes::setRange(), Attributes::setReal(), Attributes::setRealArray(), Attributes::setString(), Attributes::setStringArray(), Attributes::setTableRow(), Attributes::setTokenList(), Attributes::setUpperCaseString(), Attributes::setUpperCaseStringArray(), and OpalElement::updateUnknown().

getType()

const std::string & Attribute::getType

(

)

const

Return the attribute type.

Definition at line 64 of file Attribute.cpp.

References handler.

isBaseAllocated()

bool Attribute::isBaseAllocated

(

)

const

Definition at line 54 of file Attribute.cpp.

References base.

Referenced by Attributes::getBool(), Attributes::getBoolArray(), Attributes::getPlace(), Attributes::getRange(), Attributes::getReal(), Attributes::getRealArray(), Attributes::getString(), Attributes::getStringArray(), Attributes::getTableRow(), Attributes::getTokenList(), Attributes::getTokenListArray(), Attributes::setBool(), Attributes::setPredefinedString(), Attributes::setReal(), Attributes::setString(), and Attributes::setUpperCaseString().

isDeferred()

bool Attribute::isDeferred

(

)

const

Return [b]deferred[/b] flag.

Definition at line 66 of file Attribute.cpp.

References handler.

isExpression()

bool Attribute::isExpression

(

)

const

Test for expression.

Definition at line 70 of file Attribute.cpp.

References base.

Referenced by print().

isReadOnly()

bool Attribute::isReadOnly

(

)

const

Test for read only.

Definition at line 72 of file Attribute.cpp.

References handler.

operator bool()

Attribute::operator bool ( ) const

inline

Test for valid pointer.

Definition at line 166 of file Attribute.h.

operator=()

const Attribute & Attribute::operator=

(

const Attribute &

rhs

)

Definition at line 43 of file Attribute.cpp.

References base, and handler.

parse()

void Attribute::parse	(	Statement &	stat,
		bool	eval
	)

Parse attribute.

Definition at line 76 of file Attribute.cpp.

References handler, and isDefault.

Referenced by IfStatement::execute(), WhileStatement::execute(), OpalElement::parse(), and Line::parse().

parseComponent()

void Attribute::parseComponent	(	Statement &	stat,
		bool	eval,
		int	index
	)

Parse array component.

Definition at line 81 of file Attribute.cpp.

References handler, and isDefault.

Referenced by OpalElement::parse().

print()

void Attribute::print

(

int &

len

)

const

Print attribute.

Definition at line 96 of file Attribute.cpp.

References getImage(), getName(), gmsg, and isExpression().

Here is the call graph for this function:

set()

void Attribute::set

(

AttributeBase *

newBase

)

Define new value.

Definition at line 86 of file Attribute.cpp.

References base, and isDefault.

Referenced by Attributes::Bool::parse(), Attributes::BoolArray::parse(), Attributes::String::parse(), Attributes::Place::parse(), Attributes::Range::parse(), Attributes::Real::parse(), Attributes::RealArray::parse(), Attributes::Reference::parse(), Attributes::TableRow::parse(), Attributes::TokenList::parse(), Attributes::BoolArray::parseComponent(), Attributes::RealArray::parseComponent(), Attributes::setBool(), Attributes::setBoolArray(), Attributes::setPlace(), Attributes::setPredefinedString(), Attributes::setRange(), Attributes::setReal(), Attributes::setRealArray(), Attributes::setString(), Attributes::setStringArray(), Attributes::setTableRow(), Attributes::setTokenList(), Attributes::setTokenListArray(), Attributes::setUpperCaseString(), and Attributes::setUpperCaseStringArray().

setDefault()

void Attribute::setDefault

(

)

Assign default value.

Definition at line 91 of file Attribute.cpp.

References base, handler, and isDefault.

Referenced by OpalElement::parse(), and Line::parse().

setDeferred()

void Attribute::setDeferred

(

bool

flag

)

Set read-only flag.

Definition at line 68 of file Attribute.cpp.

References handler.

setReadOnly()

void Attribute::setReadOnly

(

bool

flag

)

Set read-only flag.

Definition at line 74 of file Attribute.cpp.

References handler.

Member Data Documentation

base

std::shared_ptr<AttributeBase> Attribute::base

private

Definition at line 155 of file Attribute.h.

Referenced by getBase(), getImage(), isBaseAllocated(), isExpression(), operator=(), set(), and setDefault().

handler

std::shared_ptr<AttributeHandler> Attribute::handler

private

Definition at line 158 of file Attribute.h.

Referenced by getHandler(), getHelp(), getName(), getType(), isDeferred(), isReadOnly(), operator=(), parse(), parseComponent(), setDefault(), setDeferred(), and setReadOnly().

isDefault

bool Attribute::isDefault

private

Definition at line 160 of file Attribute.h.

Referenced by defaultUsed(), parse(), parseComponent(), set(), and setDefault().

---

The documentation for this class was generated from the following files:

• Attribute.h
• Attribute.cpp
