AttributeHandler Class Reference

Abstract base class for attribute parsers. More...

#include <AttributeHandler.h>

Inheritance diagram for AttributeHandler:

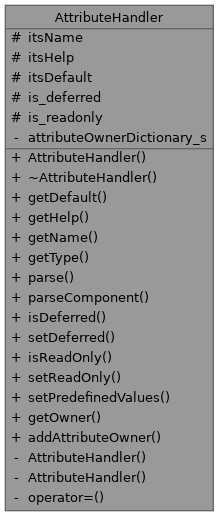

Collaboration diagram for AttributeHandler:

Public Types
enum	OwnerType {   ELEMENT , COMMAND , SUB_COMMAND , STATEMENT ,   NONE }

Public Member Functions
	AttributeHandler (const std::string &name, const std::string &help, AttributeBase *def)
	Constructor.
virtual	~AttributeHandler ()
virtual AttributeBase *	getDefault () const
	Return default value.
virtual const std::string &	getHelp () const
	Return help string.
virtual const std::string &	getName () const
	Return attribute name.
virtual const std::string &	getType () const =0
	Return attribute type.
virtual void	parse (Attribute &a, Statement &s, bool eval) const =0
	Parse new value.
virtual void	parseComponent (Attribute &a, Statement &s, bool eval, int i) const
	Parse component value.
bool	isDeferred () const
	Return defer flag.
void	setDeferred (bool)
	Set or reset defer flag.
bool	isReadOnly () const
	Return read-only flag.
void	setReadOnly (bool)
	Set or reset read-only flag.
void	setPredefinedValues (const std::set< std::string > &, const std::string &)
	Add predefined strings values to the help.

Static Public Member Functions
static std::multimap< OwnerType, std::string >	getOwner (const std::string &att)
static void	addAttributeOwner (const std::string &owner, const OwnerType &type, const std::string &name)

Protected Attributes
const std::string	itsName
	Attribute name.
const std::string	itsHelp
	Help text.
std::shared_ptr< AttributeBase >	itsDefault
	Default value.
bool	is_deferred
	Defer flag.
bool	is_readonly
	Read-only flag.

Private Member Functions
	AttributeHandler ()
	AttributeHandler (const AttributeHandler &)
void	operator= (const AttributeHandler &)

Static Private Attributes
static std::multimap< std::string, std::pair< OwnerType, std::string > >	attributeOwnerDictionary_s

Detailed Description

Abstract base class for attribute parsers.

Definition at line 49 of file AttributeHandler.h.

Member Enumeration Documentation

OwnerType

enum AttributeHandler::OwnerType

Enumerator
ELEMENT
COMMAND
SUB_COMMAND
STATEMENT
NONE

Definition at line 109 of file AttributeHandler.h.

Constructor & Destructor Documentation

AttributeHandler() [1/3]

AttributeHandler::AttributeHandler	(	const std::string &	name,
		const std::string &	help,
		AttributeBase *	def
	)

Constructor.

Definition at line 30 of file AttributeHandler.cpp.

~AttributeHandler()

AttributeHandler::~AttributeHandler ( )

virtual

Definition at line 38 of file AttributeHandler.cpp.

AttributeHandler() [2/3]

AttributeHandler::AttributeHandler ( )

private

AttributeHandler() [3/3]

AttributeHandler::AttributeHandler ( const AttributeHandler &  )

private

Member Function Documentation

addAttributeOwner()

void AttributeHandler::addAttributeOwner ( const std::string &  owner, const OwnerType &  type, const std::string &  name  )

static

Definition at line 101 of file AttributeHandler.cpp.

References attributeOwnerDictionary_s.

Referenced by OpalElement::OpalElement(), OpalElement::registerOwnership(), Object::registerOwnership(), and TrackCmd::TrackCmd().

getDefault()

AttributeBase * AttributeHandler::getDefault ( ) const

virtual

Return default value.

Definition at line 40 of file AttributeHandler.cpp.

References itsDefault, and itsName.

getHelp()

const std::string & AttributeHandler::getHelp ( ) const

virtual

Return help string.

Definition at line 50 of file AttributeHandler.cpp.

References itsHelp.

Referenced by Attribute::getHelp().

getName()

const std::string & AttributeHandler::getName ( ) const

virtual

Return attribute name.

Definition at line 52 of file AttributeHandler.cpp.

References itsName.

getOwner()

std::multimap< AttributeHandler::OwnerType, std::string > AttributeHandler::getOwner ( const std::string &  att )

static

Definition at line 84 of file AttributeHandler.cpp.

References attributeOwnerDictionary_s.

Referenced by OpalParser::getHint().

getType()

virtual const std::string & AttributeHandler::getType ( ) const

pure virtual

Return attribute type.

Implemented in Attributes::Bool, Attributes::BoolArray, Attributes::String, Attributes::Place, Attributes::PredefinedString, Attributes::Range, Attributes::Real, Attributes::RealArray, Attributes::Reference, Attributes::StringArray, Attributes::TableRow, Attributes::TokenList, Attributes::TokenListArray, Attributes::UpperCaseString, and Attributes::UpperCaseStringArray.

isDeferred()

bool AttributeHandler::isDeferred

(

)

const

Return defer flag.

Definition at line 61 of file AttributeHandler.cpp.

References is_deferred.

Referenced by Attributes::Real::parse().

isReadOnly()

bool AttributeHandler::isReadOnly

(

)

const

Return read-only flag.

Definition at line 65 of file AttributeHandler.cpp.

References is_readonly.

operator=()

void AttributeHandler::operator= ( const AttributeHandler &  )

private

parse()

virtual void AttributeHandler::parse ( Attribute &  a, Statement &  s, bool  eval  ) const

pure virtual

Parse new value.

Implemented in Attributes::Bool, Attributes::BoolArray, Attributes::String, Attributes::Place, Attributes::PredefinedString, Attributes::Range, Attributes::Real, Attributes::RealArray, Attributes::Reference, Attributes::StringArray, Attributes::TableRow, Attributes::TokenList, Attributes::TokenListArray, Attributes::UpperCaseString, and Attributes::UpperCaseStringArray.

parseComponent()

void AttributeHandler::parseComponent ( Attribute &  a, Statement &  s, bool  eval, int  i  ) const

virtual

Parse component value.

Reimplemented in Attributes::BoolArray, Attributes::RealArray, Attributes::StringArray, Attributes::TokenListArray, and Attributes::UpperCaseStringArray.

Definition at line 54 of file AttributeHandler.cpp.

References itsName.

setDeferred()

void AttributeHandler::setDeferred

(

bool

flag

)

Set or reset defer flag.

Definition at line 63 of file AttributeHandler.cpp.

References is_deferred.

setPredefinedValues()

void AttributeHandler::setPredefinedValues	(	const std::set< std::string > &	predefinedValues,
		const std::string &	defaultValue
	)

Add predefined strings values to the help.

Definition at line 69 of file AttributeHandler.cpp.

References itsHelp.

Referenced by Attributes::PredefinedString::PredefinedString().

setReadOnly()

void AttributeHandler::setReadOnly

(

bool

flag

)

Set or reset read-only flag.

Definition at line 67 of file AttributeHandler.cpp.

References is_readonly.

Member Data Documentation

attributeOwnerDictionary_s

std::multimap< std::string, std::pair< AttributeHandler::OwnerType, std::string > > AttributeHandler::attributeOwnerDictionary_s

staticprivate

Definition at line 138 of file AttributeHandler.h.

Referenced by addAttributeOwner(), and getOwner().

is_deferred

bool AttributeHandler::is_deferred

protected

Defer flag.

Definition at line 126 of file AttributeHandler.h.

Referenced by isDeferred(), Attributes::Bool::parse(), Attributes::BoolArray::parse(), Attributes::RealArray::parse(), and setDeferred().

is_readonly

bool AttributeHandler::is_readonly

protected

Read-only flag.

Definition at line 129 of file AttributeHandler.h.

Referenced by isReadOnly(), and setReadOnly().

itsDefault

std::shared_ptr<AttributeBase> AttributeHandler::itsDefault

protected

Default value.

Definition at line 123 of file AttributeHandler.h.

Referenced by getDefault().

itsHelp

const std::string AttributeHandler::itsHelp

protected

Help text.

Definition at line 120 of file AttributeHandler.h.

Referenced by getHelp(), and setPredefinedValues().

itsName

const std::string AttributeHandler::itsName

protected

Attribute name.

Definition at line 117 of file AttributeHandler.h.

Referenced by getDefault(), getName(), and parseComponent().

---

The documentation for this class was generated from the following files:

• AttributeHandler.h
• AttributeHandler.cpp
