Abstract base class for attribute values of different types. More...

#include <AttributeBase.h>

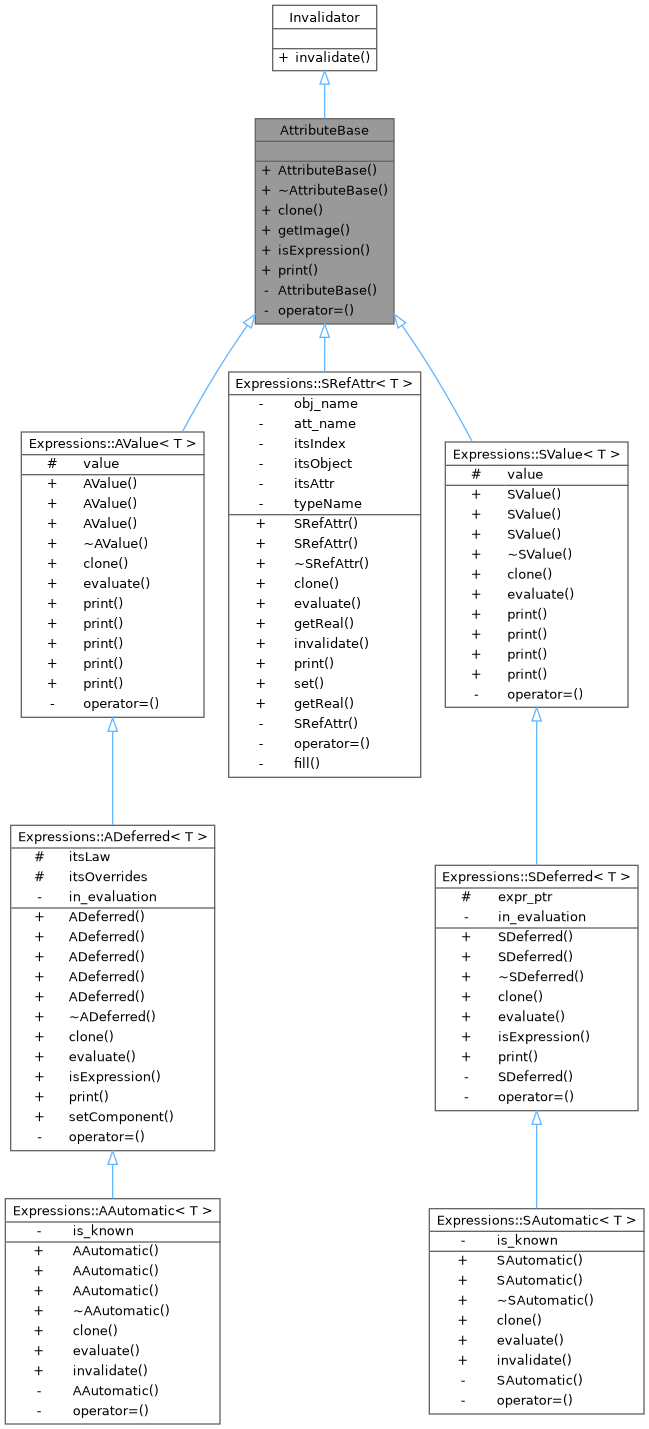

Inheritance diagram for AttributeBase:

Collaboration diagram for AttributeBase:

Public Member Functions
	AttributeBase ()

virtual	~AttributeBase ()

virtual AttributeBase *	clone () const =0
	Make clone.

std::string	getImage () const
	Convert to string.

virtual bool	isExpression () const
	Test for expression.

virtual void	print (std::ostream &) const =0
	Print value.

virtual void	invalidate ()
	Force re-evaluation.

Private Member Functions
	AttributeBase (AttributeBase &)

void	operator= (AttributeBase &)

Detailed Description

Abstract base class for attribute values of different types.

Definition at line 31 of file AttributeBase.h.

Constructor & Destructor Documentation

◆ AttributeBase() [1/2]

AttributeBase::AttributeBase ( )

Definition at line 25 of file AttributeBase.cpp.

◆ ~AttributeBase()

AttributeBase::~AttributeBase ( )

virtual

Definition at line 27 of file AttributeBase.cpp.

◆ AttributeBase() [2/2]

AttributeBase::AttributeBase ( AttributeBase & )

private

Member Function Documentation

◆ clone()

virtual AttributeBase * AttributeBase::clone ( ) const

pure virtual

Make clone.

Implemented in Expressions::AAutomatic< T >, Expressions::ADeferred< T >, Expressions::AValue< T >, Expressions::SAutomatic< T >, Expressions::SDeferred< T >, Expressions::SRefAttr< T >, and Expressions::SValue< T >.

◆ getImage()

std::string AttributeBase::getImage ( ) const

Convert to string.

Definition at line 29 of file AttributeBase.cpp.

References print().

Here is the call graph for this function:

◆ invalidate()

void Invalidator::invalidate ( )

virtualinherited

Force re-evaluation.

Reimplemented in Expressions::AAutomatic< T >, Expressions::SAutomatic< T >, Expressions::SRefAttr< T >, and Expressions::SRefExpr< T >.

Definition at line 25 of file Invalidator.cpp.

◆ isExpression()

bool AttributeBase::isExpression ( ) const

virtual

Test for expression.

Reimplemented in Expressions::ADeferred< T >, and Expressions::SDeferred< T >.

Definition at line 36 of file AttributeBase.cpp.

Referenced by OpalElement::printMultipoleStrength().

◆ operator=()

void AttributeBase::operator= ( AttributeBase & )

private

◆ print()

virtual void AttributeBase::print ( std::ostream & ) const

pure virtual

Print value.

Implemented in Expressions::ADeferred< T >, Expressions::AValue< T >, Expressions::SDeferred< T >, Expressions::SRefAttr< T >, Expressions::SValue< T >, Expressions::AValue< T >, Expressions::AValue< T >, Expressions::AValue< T >, Expressions::AValue< T >, Expressions::SValue< T >, Expressions::SValue< T >, and Expressions::SValue< T >.

Referenced by getImage(), and operator<<().

The documentation for this class was generated from the following files:
