Expressions::AValue< T > Class Template Reference

Object attribute with a constant array value. More...

#include <AValue.h>

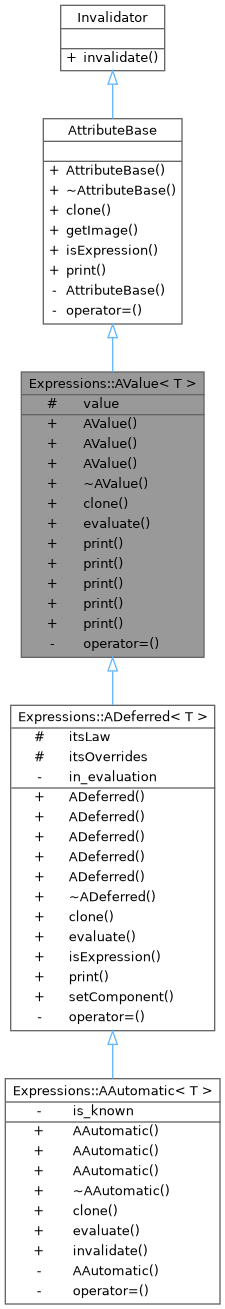

Inheritance diagram for Expressions::AValue< T >:

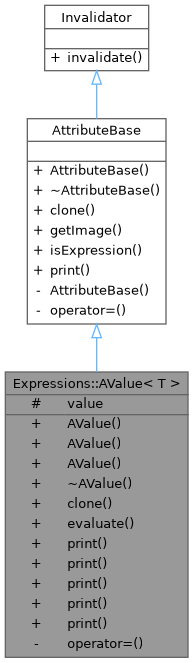

Collaboration diagram for Expressions::AValue< T >:

Public Member Functions
	AValue ()
	Default constructor.
	AValue (const std::vector< T > &val)
	Constructor.
	AValue (const AValue &)
virtual	~AValue ()
virtual AValue *	clone () const
	Make clone.
virtual std::vector< T >	evaluate ()
	Evaluate.
virtual void	print (std::ostream &) const
	Print the attribute value.
void	print (std::ostream &os) const
	Print value.
void	print (std::ostream &os) const
	Print value.
void	print (std::ostream &os) const
	Print value.
void	print (std::ostream &os) const
	Print value.
std::string	getImage () const
	Convert to string.
virtual bool	isExpression () const
	Test for expression.
virtual void	invalidate ()
	Force re-evaluation.

Protected Attributes
std::vector< T >	value
	The value of the attribute.

Private Member Functions
void	operator= (const AValue< T > &)

Detailed Description

template<class T>
class Expressions::AValue< T >

Object attribute with a constant array value.

Definition at line 35 of file AValue.h.

Constructor & Destructor Documentation

AValue() [1/3]

template<class T >

Expressions::AValue< T >::AValue

(

)

Default constructor.

Definition at line 71 of file AValue.h.

AValue() [2/3]

template<class T >

Expressions::AValue< T >::AValue ( const std::vector< T > &  val )

explicit

Constructor.

Definition at line 77 of file AValue.h.

AValue() [3/3]

template<class T >

Expressions::AValue< T >::AValue

(

const AValue< T > &

)

~AValue()

template<class T >

Expressions::AValue< T >::~AValue ( )

virtual

Definition at line 80 of file AValue.h.

Member Function Documentation

clone()

template<class T >

AValue< T > * Expressions::AValue< T >::clone ( ) const

virtual

Make clone.

Implements AttributeBase.

Reimplemented in Expressions::AAutomatic< T >, and Expressions::ADeferred< T >.

Definition at line 83 of file AValue.h.

evaluate()

template<class T >

std::vector< T > Expressions::AValue< T >::evaluate ( )

virtual

Evaluate.

Reimplemented in Expressions::AAutomatic< T >, and Expressions::ADeferred< T >.

Definition at line 88 of file AValue.h.

getImage()

std::string AttributeBase::getImage ( ) const

inherited

Convert to string.

Definition at line 29 of file AttributeBase.cpp.

References AttributeBase::print().

Here is the call graph for this function:

invalidate()

void Invalidator::invalidate ( )

virtualinherited

Force re-evaluation.

Reimplemented in Expressions::AAutomatic< T >, Expressions::SAutomatic< T >, Expressions::SRefAttr< T >, and Expressions::SRefExpr< T >.

Definition at line 25 of file Invalidator.cpp.

isExpression()

bool AttributeBase::isExpression ( ) const

virtualinherited

Test for expression.

Reimplemented in Expressions::ADeferred< T >, and Expressions::SDeferred< T >.

Definition at line 36 of file AttributeBase.cpp.

Referenced by OpalElement::printMultipoleStrength().

operator=()

template<class T >

void Expressions::AValue< T >::operator= ( const AValue< T > &  )

private

print() [1/5]

template<class T >

virtual void Expressions::AValue< T >::print ( std::ostream &  ) const

virtual

Print the attribute value.

Implements AttributeBase.

Reimplemented in Expressions::ADeferred< T >.

print() [2/5]

void Expressions::AValue< bool >::print ( std::ostream &  ) const

inlinevirtual

Print value.

Implements AttributeBase.

Definition at line 96 of file AValue.h.

print() [3/5]

void Expressions::AValue< double >::print ( std::ostream &  ) const

inlinevirtual

Print value.

Implements AttributeBase.

Definition at line 111 of file AValue.h.

print() [4/5]

void Expressions::AValue< std::string >::print ( std::ostream &  ) const

inlinevirtual

Print value.

Implements AttributeBase.

Definition at line 128 of file AValue.h.

print() [5/5]

void Expressions::AValue< std::list< Token > >::print ( std::ostream &  ) const

inlinevirtual

Print value.

Implements AttributeBase.

Definition at line 143 of file AValue.h.

Member Data Documentation

value

template<class T >

std::vector<T> Expressions::AValue< T >::value

mutableprotected

The value of the attribute.

Definition at line 60 of file AValue.h.

---

The documentation for this class was generated from the following file:

• AValue.h
