Expressions::SRefExpr< T > Class Template Reference

An expression defined as a reference to a scalar. More...

#include <SRefExpr.h>

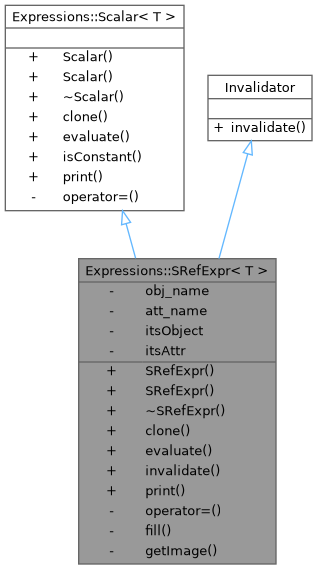

Inheritance diagram for Expressions::SRefExpr< T >:

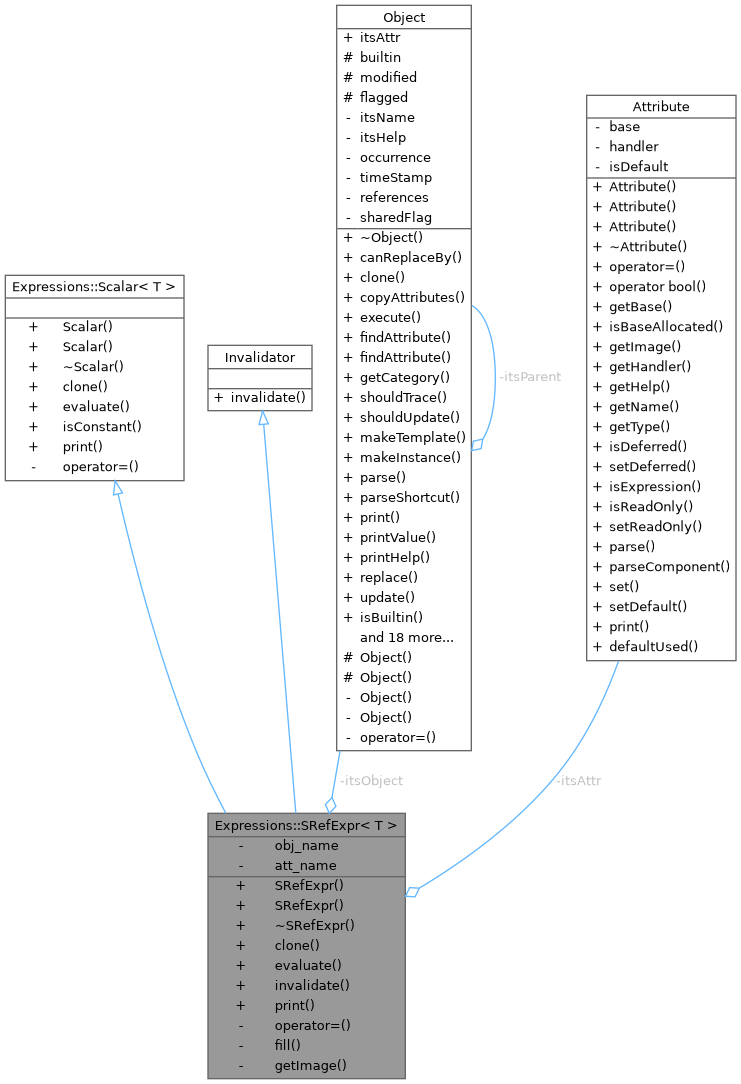

Collaboration diagram for Expressions::SRefExpr< T >:

Public Member Functions
	SRefExpr (const std::string &objName, const std::string &attName)
	Constructor.
	SRefExpr (const SRefExpr< T > &rhs)
virtual	~SRefExpr ()
virtual Scalar< T > *	clone () const
	Make clone.
virtual T	evaluate () const
	Evaluate.
virtual void	invalidate ()
	Invalidate.
virtual void	print (std::ostream &os, int precedence=99) const
	Print expression.
virtual bool	isConstant () const
	Test for constant.

Private Member Functions
void	operator= (const SRefExpr &)
void	fill () const
const std::string	getImage () const

Private Attributes
const std::string	obj_name
const std::string	att_name
Object *	itsObject
Attribute *	itsAttr

Detailed Description

template<class T>
class Expressions::SRefExpr< T >

An expression defined as a reference to a scalar.

Definition at line 40 of file SRefExpr.h.

Constructor & Destructor Documentation

SRefExpr() [1/2]

template<class T >

Expressions::SRefExpr< T >::SRefExpr	(	const std::string &	objName,
		const std::string &	attName
	)

Constructor.

Definition at line 86 of file SRefExpr.h.

SRefExpr() [2/2]

template<class T >

Expressions::SRefExpr< T >::SRefExpr

(

const SRefExpr< T > &

rhs

)

Definition at line 90 of file SRefExpr.h.

~SRefExpr()

template<class T >

Expressions::SRefExpr< T >::~SRefExpr ( )

virtual

Definition at line 99 of file SRefExpr.h.

Member Function Documentation

clone()

template<class T >

Scalar< T > * Expressions::SRefExpr< T >::clone ( ) const

virtual

Make clone.

Implements Expressions::Scalar< T >.

Definition at line 104 of file SRefExpr.h.

evaluate()

template<class T >

T Expressions::SRefExpr< T >::evaluate ( ) const

inlinevirtual

Evaluate.

Implements Expressions::Scalar< T >.

Definition at line 109 of file SRefExpr.h.

fill()

template<class T >

void Expressions::SRefExpr< T >::fill ( ) const

private

Definition at line 147 of file SRefExpr.h.

References OpalData::find(), and OpalData::getInstance().

Here is the call graph for this function:

getImage()

template<class T >

const std::string Expressions::SRefExpr< T >::getImage ( ) const

private

Definition at line 126 of file SRefExpr.h.

invalidate()

template<class T >

void Expressions::SRefExpr< T >::invalidate ( )

virtual

Invalidate.

Reimplemented from Invalidator.

Definition at line 134 of file SRefExpr.h.

isConstant()

template<class T >

bool Expressions::Scalar< T >::isConstant ( ) const

inlinevirtualinherited

Test for constant.

Reimplemented in Expressions::SConstant< T >.

Definition at line 287 of file AbstractObjects/Expressions.h.

operator=()

template<class T >

void Expressions::SRefExpr< T >::operator= ( const SRefExpr< T > &  )

private

print()

template<class T >

void Expressions::SRefExpr< T >::print ( std::ostream &  os, int  precedence = 99  ) const

virtual

Print expression.

Implements Expressions::Scalar< T >.

Definition at line 140 of file SRefExpr.h.

Member Data Documentation

att_name

template<class T >

const std::string Expressions::SRefExpr< T >::att_name

private

Definition at line 75 of file SRefExpr.h.

itsAttr

template<class T >

Attribute* Expressions::SRefExpr< T >::itsAttr

mutableprivate

Definition at line 79 of file SRefExpr.h.

itsObject

template<class T >

Object* Expressions::SRefExpr< T >::itsObject

mutableprivate

Definition at line 78 of file SRefExpr.h.

obj_name

template<class T >

const std::string Expressions::SRefExpr< T >::obj_name

private

Definition at line 74 of file SRefExpr.h.

---

The documentation for this class was generated from the following file:

• SRefExpr.h
