Expressions::SValue< T > Class Template Reference

Object attribute with a constant scalar value. More...

#include <SValue.h>

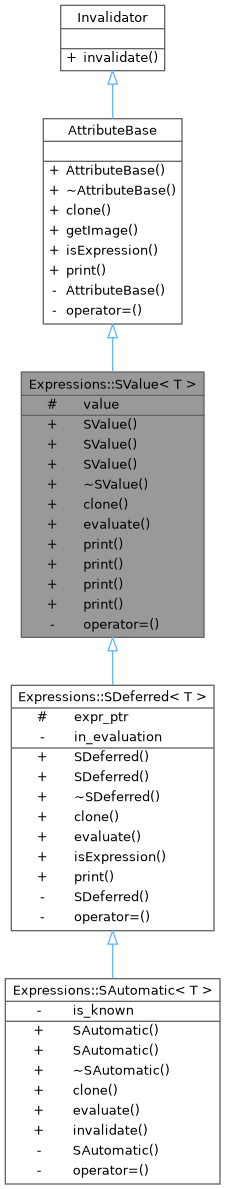

Inheritance diagram for Expressions::SValue< T >:

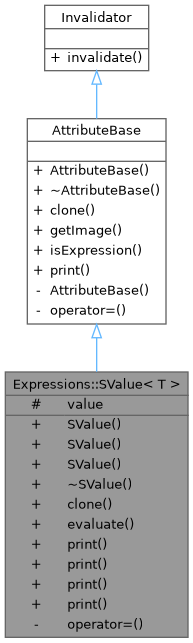

Collaboration diagram for Expressions::SValue< T >:

Public Member Functions
	SValue ()
	Default constructor.
	SValue (const T &val)
	Constructor.
	SValue (const SValue< T > &)
virtual	~SValue ()
virtual SValue< T > *	clone () const
	Make clone.
virtual T	evaluate ()
	Evaluate.
virtual void	print (std::ostream &) const
	Print the attribute value.
void	print (std::ostream &os) const
	Print value.
void	print (std::ostream &os) const
	Print value.
void	print (std::ostream &os) const
	Print value.
std::string	getImage () const
	Convert to string.
virtual bool	isExpression () const
	Test for expression.
virtual void	invalidate ()
	Force re-evaluation.

Protected Attributes
T	value
	The value of the attribute.

Private Member Functions
void	operator= (const SValue< T > &)

Detailed Description

template<class T>
class Expressions::SValue< T >

Object attribute with a constant scalar value.

Definition at line 34 of file SValue.h.

Constructor & Destructor Documentation

SValue() [1/3]

template<class T >

Expressions::SValue< T >::SValue

(

)

Default constructor.

Definition at line 70 of file SValue.h.

SValue() [2/3]

template<class T >

Expressions::SValue< T >::SValue ( const T &  val )

explicit

Constructor.

Definition at line 76 of file SValue.h.

SValue() [3/3]

template<class T >

Expressions::SValue< T >::SValue

(

const SValue< T > &

rhs

)

Definition at line 73 of file SValue.h.

~SValue()

template<class T >

Expressions::SValue< T >::~SValue ( )

virtual

Definition at line 79 of file SValue.h.

Member Function Documentation

clone()

template<class T >

SValue< T > * Expressions::SValue< T >::clone ( ) const

virtual

Make clone.

Implements AttributeBase.

Reimplemented in Expressions::SAutomatic< T >, and Expressions::SDeferred< T >.

Definition at line 82 of file SValue.h.

evaluate()

template<class T >

T Expressions::SValue< T >::evaluate ( )

virtual

Evaluate.

Reimplemented in Expressions::SAutomatic< T >, and Expressions::SDeferred< T >.

Definition at line 87 of file SValue.h.

Referenced by Attributes::setBool(), Attributes::setPredefinedString(), Attributes::setReal(), Attributes::setString(), and Attributes::setUpperCaseString().

getImage()

std::string AttributeBase::getImage ( ) const

inherited

Convert to string.

Definition at line 29 of file AttributeBase.cpp.

References AttributeBase::print().

Here is the call graph for this function:

invalidate()

void Invalidator::invalidate ( )

virtualinherited

Force re-evaluation.

Reimplemented in Expressions::AAutomatic< T >, Expressions::SAutomatic< T >, Expressions::SRefAttr< T >, and Expressions::SRefExpr< T >.

Definition at line 25 of file Invalidator.cpp.

isExpression()

bool AttributeBase::isExpression ( ) const

virtualinherited

Test for expression.

Reimplemented in Expressions::ADeferred< T >, and Expressions::SDeferred< T >.

Definition at line 36 of file AttributeBase.cpp.

Referenced by OpalElement::printMultipoleStrength().

operator=()

template<class T >

void Expressions::SValue< T >::operator= ( const SValue< T > &  )

private

print() [1/4]

template<class T >

void Expressions::SValue< T >::print ( std::ostream &  os ) const

virtual

Print the attribute value.

Implements AttributeBase.

Reimplemented in Expressions::SDeferred< T >.

Definition at line 95 of file SValue.h.

print() [2/4]

void Expressions::SValue< std::list< Token > >::print ( std::ostream &  ) const

inlinevirtual

Print value.

Implements AttributeBase.

Definition at line 101 of file SValue.h.

print() [3/4]

void Expressions::SValue< bool >::print ( std::ostream &  ) const

inlinevirtual

Print value.

Implements AttributeBase.

Definition at line 110 of file SValue.h.

print() [4/4]

void Expressions::SValue< std::string >::print ( std::ostream &  ) const

inlinevirtual

Print value.

Implements AttributeBase.

Definition at line 116 of file SValue.h.

Member Data Documentation

value

template<class T >

T Expressions::SValue< T >::value

mutableprotected

The value of the attribute.

Definition at line 59 of file SValue.h.

---

The documentation for this class was generated from the following file:

• SValue.h
