Expressions::ARefExpr< T > Class Template Reference

An expression defined as a reference to an array. More...

#include <ARefExpr.h>

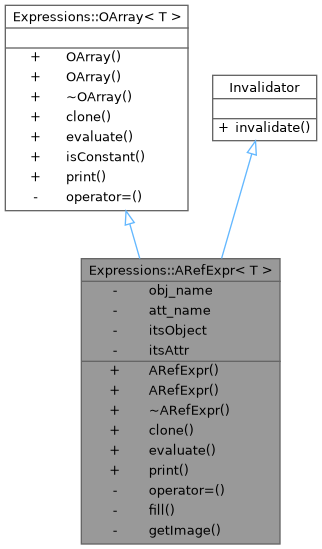

Inheritance diagram for Expressions::ARefExpr< T >:

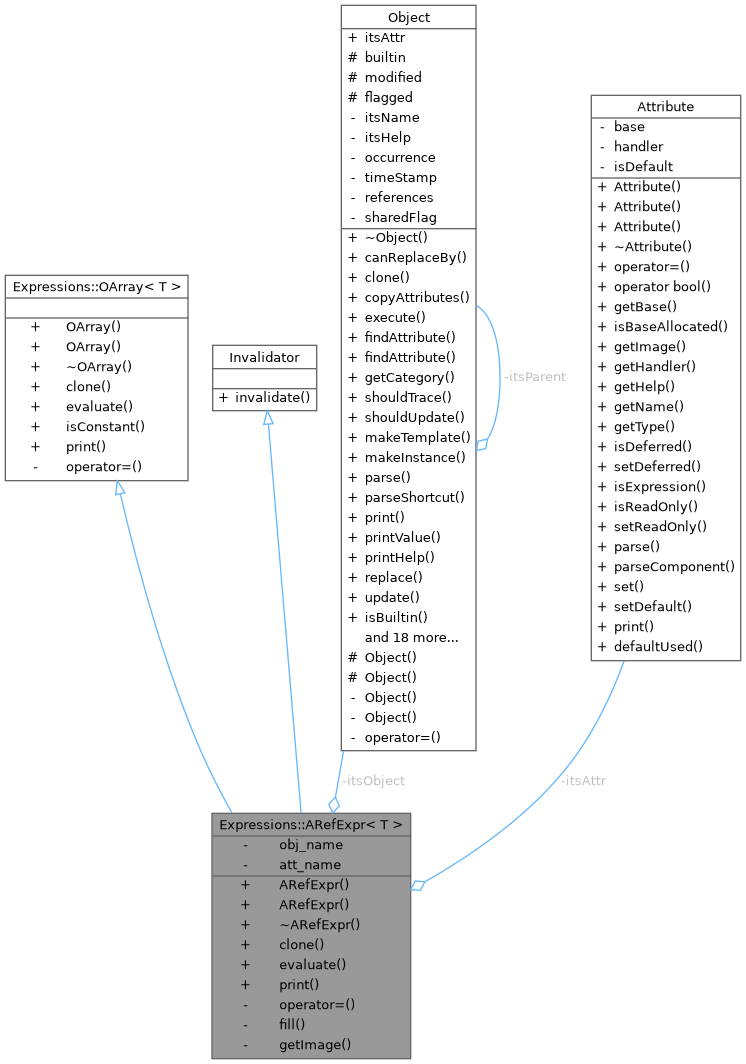

Collaboration diagram for Expressions::ARefExpr< T >:

Public Member Functions
	ARefExpr (const std::string &objName, const std::string &attName)
	Constructor.
	ARefExpr (const ARefExpr< T > &rhs)
virtual	~ARefExpr ()
virtual OArray< T > *	clone () const
	Make clone.
virtual std::vector< T >	evaluate () const
	Evaluate the reference and return the value referred to.
virtual void	print (std::ostream &os, int precedence=99) const
	Print expression.
virtual bool	isConstant () const
	Test for constant.
virtual void	invalidate ()
	Force re-evaluation.

Private Member Functions
void	operator= (const ARefExpr &)
void	fill () const
const std::string	getImage () const

Private Attributes
const std::string	obj_name
const std::string	att_name
Object *	itsObject
Attribute *	itsAttr

Detailed Description

template<class T>
class Expressions::ARefExpr< T >

An expression defined as a reference to an array.

Definition at line 41 of file ARefExpr.h.

Constructor & Destructor Documentation

ARefExpr() [1/2]

template<class T >

Expressions::ARefExpr< T >::ARefExpr	(	const std::string &	objName,
		const std::string &	attName
	)

Constructor.

Definition at line 83 of file ARefExpr.h.

ARefExpr() [2/2]

template<class T >

Expressions::ARefExpr< T >::ARefExpr

(

const ARefExpr< T > &

rhs

)

Definition at line 87 of file ARefExpr.h.

~ARefExpr()

template<class T >

Expressions::ARefExpr< T >::~ARefExpr ( )

virtual

Definition at line 96 of file ARefExpr.h.

Member Function Documentation

clone()

template<class T >

OArray< T > * Expressions::ARefExpr< T >::clone ( ) const

virtual

Make clone.

Implements Expressions::OArray< T >.

Definition at line 101 of file ARefExpr.h.

evaluate()

template<class T >

std::vector< T > Expressions::ARefExpr< T >::evaluate ( ) const

inlinevirtual

Evaluate the reference and return the value referred to.

Implements Expressions::OArray< T >.

Definition at line 106 of file ARefExpr.h.

fill()

template<class T >

void Expressions::ARefExpr< T >::fill ( ) const

private

Definition at line 139 of file ARefExpr.h.

References OpalData::find(), and OpalData::getInstance().

Here is the call graph for this function:

getImage()

template<class T >

const std::string Expressions::ARefExpr< T >::getImage ( ) const

private

Definition at line 125 of file ARefExpr.h.

invalidate()

void Invalidator::invalidate ( )

virtualinherited

Force re-evaluation.

Reimplemented in Expressions::AAutomatic< T >, Expressions::SAutomatic< T >, Expressions::SRefAttr< T >, and Expressions::SRefExpr< T >.

Definition at line 25 of file Invalidator.cpp.

isConstant()

template<class T >

bool Expressions::OArray< T >::isConstant ( ) const

inlinevirtualinherited

Test for constant.

Definition at line 304 of file AbstractObjects/Expressions.h.

operator=()

template<class T >

void Expressions::ARefExpr< T >::operator= ( const ARefExpr< T > &  )

private

print()

template<class T >

void Expressions::ARefExpr< T >::print ( std::ostream &  os, int  precedence = 99  ) const

virtual

Print expression.

Implements Expressions::OArray< T >.

Definition at line 133 of file ARefExpr.h.

Member Data Documentation

att_name

template<class T >

const std::string Expressions::ARefExpr< T >::att_name

private

Definition at line 72 of file ARefExpr.h.

itsAttr

template<class T >

Attribute* Expressions::ARefExpr< T >::itsAttr

mutableprivate

Definition at line 76 of file ARefExpr.h.

itsObject

template<class T >

Object* Expressions::ARefExpr< T >::itsObject

mutableprivate

Definition at line 75 of file ARefExpr.h.

obj_name

template<class T >

const std::string Expressions::ARefExpr< T >::obj_name

private

Definition at line 71 of file ARefExpr.h.

---

The documentation for this class was generated from the following file:

• ARefExpr.h
