Euclid3DGeometry Class Reference

#include <Euclid3DGeometry.h>

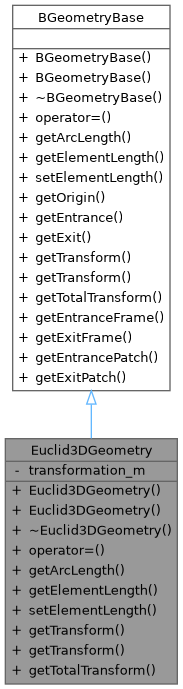

Inheritance diagram for Euclid3DGeometry:

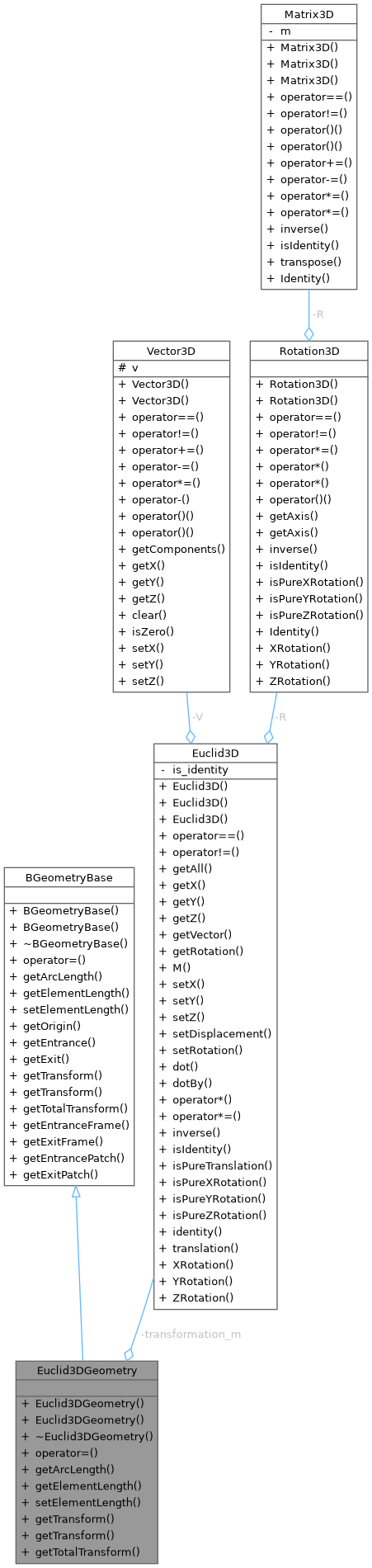

Collaboration diagram for Euclid3DGeometry:

Public Member Functions
	Euclid3DGeometry (Euclid3D transformation)
	Euclid3DGeometry (const Euclid3DGeometry &right)
virtual	~Euclid3DGeometry ()
const Euclid3DGeometry &	operator= (const Euclid3DGeometry &right)
virtual double	getArcLength () const
	Get arc length.
virtual double	getElementLength () const
	Get geometry length.
virtual void	setElementLength (double length)
	Set geometry length.
virtual Euclid3D	getTransform (double fromS, double toS) const
virtual Euclid3D	getTransform (double fromS) const
	Get transform.
virtual Euclid3D	getTotalTransform () const
	Get total transform from beginning to end.
virtual double	getOrigin () const
	Get origin position.
virtual double	getEntrance () const
	Get entrance position.
virtual double	getExit () const
	Get exit position.
virtual Euclid3D	getEntranceFrame () const
	Get transform.
virtual Euclid3D	getExitFrame () const
	Get transform.
virtual Euclid3D	getEntrancePatch () const
	Get patch.
virtual Euclid3D	getExitPatch () const
	Get patch.

Private Attributes
Euclid3D	transformation_m

Detailed Description

class Euclid3DGeometry

Euclid3DGeometry is a straight line from input to output followed by a rotation.

Definition at line 43 of file Euclid3DGeometry.h.

Constructor & Destructor Documentation

Euclid3DGeometry() [1/2]

Euclid3DGeometry::Euclid3DGeometry

(

Euclid3D

transformation

)

Definition at line 34 of file Euclid3DGeometry.cpp.

Euclid3DGeometry() [2/2]

Euclid3DGeometry::Euclid3DGeometry

(

const Euclid3DGeometry &

right

)

Definition at line 37 of file Euclid3DGeometry.cpp.

~Euclid3DGeometry()

Euclid3DGeometry::~Euclid3DGeometry ( )

virtual

Definition at line 40 of file Euclid3DGeometry.cpp.

Member Function Documentation

getArcLength()

double Euclid3DGeometry::getArcLength ( ) const

virtual

Get arc length.

Implements BGeometryBase.

Definition at line 49 of file Euclid3DGeometry.cpp.

References dot(), Euclid3D::getVector(), and transformation_m.

Referenced by getElementLength(), and setElementLength().

Here is the call graph for this function:

getElementLength()

double Euclid3DGeometry::getElementLength ( ) const

virtual

Get geometry length.

Implements BGeometryBase.

Definition at line 53 of file Euclid3DGeometry.cpp.

References getArcLength().

Here is the call graph for this function:

getEntrance()

double BGeometryBase::getEntrance ( ) const

virtualinherited

Get entrance position.

Reimplemented in PlanarArcGeometry, StraightGeometry, and BeamlineGeometry.

Definition at line 33 of file Geometry.cpp.

References BGeometryBase::getOrigin().

Referenced by ElementBase::getEntrance(), BGeometryBase::getEntranceFrame(), and BGeometryBase::getTotalTransform().

Here is the call graph for this function:

getEntranceFrame()

Euclid3D BGeometryBase::getEntranceFrame ( ) const

virtualinherited

Get transform.

Reimplemented in PlanarArcGeometry, RBendGeometry, StraightGeometry, and BeamlineGeometry.

Definition at line 41 of file Geometry.cpp.

References BGeometryBase::getEntrance(), and BGeometryBase::getTransform().

Referenced by ElementBase::getEntranceFrame().

Here is the call graph for this function:

getEntrancePatch()

Euclid3D BGeometryBase::getEntrancePatch ( ) const

virtualinherited

Get patch.

Reimplemented in RBendGeometry.

Definition at line 45 of file Geometry.cpp.

References Euclid3D::identity().

Referenced by ElementBase::getEntrancePatch().

Here is the call graph for this function:

getExit()

double BGeometryBase::getExit ( ) const

virtualinherited

Get exit position.

Reimplemented in PlanarArcGeometry, StraightGeometry, and BeamlineGeometry.

Definition at line 35 of file Geometry.cpp.

References BGeometryBase::getArcLength(), and BGeometryBase::getOrigin().

Referenced by ElementBase::getExit(), BGeometryBase::getExitFrame(), and BGeometryBase::getTotalTransform().

Here is the call graph for this function:

getExitFrame()

Euclid3D BGeometryBase::getExitFrame ( ) const

virtualinherited

Get transform.

Reimplemented in PlanarArcGeometry, RBendGeometry, StraightGeometry, and BeamlineGeometry.

Definition at line 43 of file Geometry.cpp.

References BGeometryBase::getExit(), and BGeometryBase::getTransform().

Referenced by ElementBase::getExitFrame().

Here is the call graph for this function:

getExitPatch()

Euclid3D BGeometryBase::getExitPatch ( ) const

virtualinherited

Get patch.

Reimplemented in RBendGeometry.

Definition at line 47 of file Geometry.cpp.

References Euclid3D::identity().

Referenced by ElementBase::getExitPatch().

Here is the call graph for this function:

getOrigin()

double BGeometryBase::getOrigin ( ) const

virtualinherited

Get origin position.

Reimplemented in NullGeometry, PlanarArcGeometry, StraightGeometry, and BeamlineGeometry.

Definition at line 31 of file Geometry.cpp.

References BGeometryBase::getArcLength().

Referenced by BGeometryBase::getEntrance(), BGeometryBase::getExit(), and ElementBase::getOrigin().

Here is the call graph for this function:

getTotalTransform()

Euclid3D Euclid3DGeometry::getTotalTransform ( ) const

virtual

Get total transform from beginning to end.

Reimplemented from BGeometryBase.

Definition at line 73 of file Euclid3DGeometry.cpp.

References transformation_m.

getTransform() [1/2]

Euclid3D Euclid3DGeometry::getTransform ( double  s ) const

virtual

Get transform.

Reimplemented from BGeometryBase.

Definition at line 69 of file Euclid3DGeometry.cpp.

getTransform() [2/2]

Euclid3D Euclid3DGeometry::getTransform ( double  fromS, double  toS  ) const

virtual

Not Implemented - raises GeneralOpalException Get transform.

Implements BGeometryBase.

Definition at line 65 of file Euclid3DGeometry.cpp.

operator=()

const Euclid3DGeometry & Euclid3DGeometry::operator=

(

const Euclid3DGeometry &

right

)

Definition at line 42 of file Euclid3DGeometry.cpp.

References transformation_m.

setElementLength()

void Euclid3DGeometry::setElementLength ( double  length )

virtual

Set geometry length.

Reimplemented from BGeometryBase.

Definition at line 55 of file Euclid3DGeometry.cpp.

References getArcLength(), Euclid3D::getVector(), Euclid3D::setDisplacement(), and transformation_m.

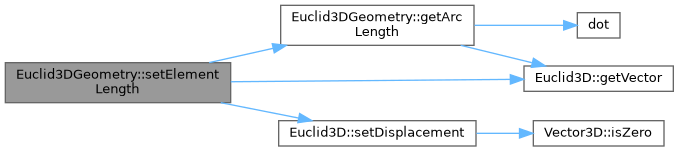

Here is the call graph for this function:

Member Data Documentation

transformation_m

Euclid3D Euclid3DGeometry::transformation_m

private

Definition at line 79 of file Euclid3DGeometry.h.

Referenced by getArcLength(), getTotalTransform(), operator=(), and setElementLength().

---

The documentation for this class was generated from the following files:

• Euclid3DGeometry.h
• Euclid3DGeometry.cpp
