RBendGeometry Class Reference

The geometry for a RBend element. More...

#include <RBendGeometry.h>

Inheritance diagram for RBendGeometry:

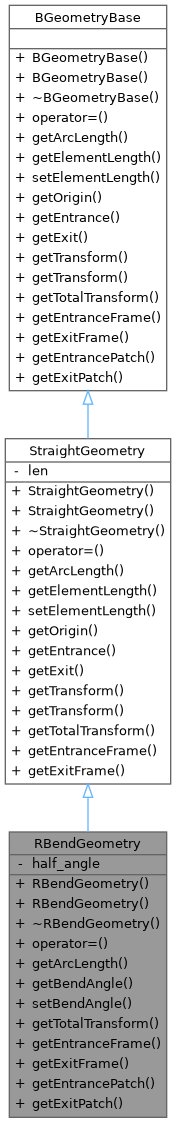

Collaboration diagram for RBendGeometry:

Public Member Functions
	RBendGeometry (double length, double angle)
	Constructor.
	RBendGeometry (const RBendGeometry &)
virtual	~RBendGeometry ()
const RBendGeometry &	operator= (const RBendGeometry &)
virtual double	getArcLength () const
	Get arc length.
virtual double	getBendAngle () const
	Get angle.
void	setBendAngle (double angle)
	Set angle.
Euclid3D	getTotalTransform () const
	Get transform.
Euclid3D	getEntranceFrame () const
	Get transform.
Euclid3D	getExitFrame () const
	Get transform.
Euclid3D	getEntrancePatch () const
	Get patch.
Euclid3D	getExitPatch () const
	Get patch.
virtual double	getElementLength () const
	Get design length.
virtual void	setElementLength (double length)
	Set design length.
double	getOrigin () const
	Get origin.
double	getEntrance () const
	Get entrance.
double	getExit () const
	Get exit.
Euclid3D	getTransform (double fromS, double toS) const
	Get transform.
Euclid3D	getTransform (double s) const
	Get transform.

Private Attributes
double	half_angle
double	len

Detailed Description

The geometry for a RBend element.

Definition at line 41 of file RBendGeometry.h.

Constructor & Destructor Documentation

RBendGeometry() [1/2]

RBendGeometry::RBendGeometry	(	double	length,
		double	angle
	)

Constructor.

Definition at line 29 of file RBendGeometry.cpp.

RBendGeometry() [2/2]

RBendGeometry::RBendGeometry

(

const RBendGeometry &

rhs

)

Definition at line 32 of file RBendGeometry.cpp.

~RBendGeometry()

RBendGeometry::~RBendGeometry ( )

virtual

Definition at line 35 of file RBendGeometry.cpp.

Member Function Documentation

getArcLength()

double RBendGeometry::getArcLength ( ) const

virtual

Get arc length.

Reimplemented from StraightGeometry.

Definition at line 37 of file RBendGeometry.cpp.

References StraightGeometry::getElementLength(), and half_angle.

Here is the call graph for this function:

getBendAngle()

double RBendGeometry::getBendAngle ( ) const

virtual

Get angle.

Definition at line 42 of file RBendGeometry.cpp.

References half_angle.

getElementLength()

double StraightGeometry::getElementLength ( ) const

virtualinherited

Get design length.

Implements BGeometryBase.

Definition at line 35 of file StraightGeometry.cpp.

References StraightGeometry::len.

Referenced by getArcLength(), getEntrancePatch(), getExitPatch(), Corrector::goOnline(), Corrector::setDesignEnergy(), and TEST_F().

getEntrance()

double StraightGeometry::getEntrance ( ) const

virtualinherited

Get entrance.

Reimplemented from BGeometryBase.

Definition at line 48 of file StraightGeometry.cpp.

References StraightGeometry::len.

getEntranceFrame()

Euclid3D RBendGeometry::getEntranceFrame ( ) const

virtual

Get transform.

Reimplemented from BGeometryBase.

Definition at line 52 of file RBendGeometry.cpp.

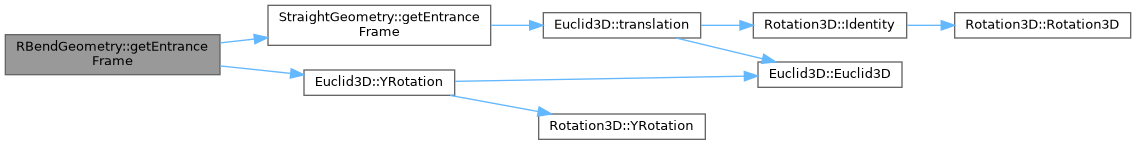

References StraightGeometry::getEntranceFrame(), half_angle, and Euclid3D::YRotation().

Here is the call graph for this function:

getEntrancePatch()

Euclid3D RBendGeometry::getEntrancePatch ( ) const

virtual

Get patch.

Reimplemented from BGeometryBase.

Definition at line 60 of file RBendGeometry.cpp.

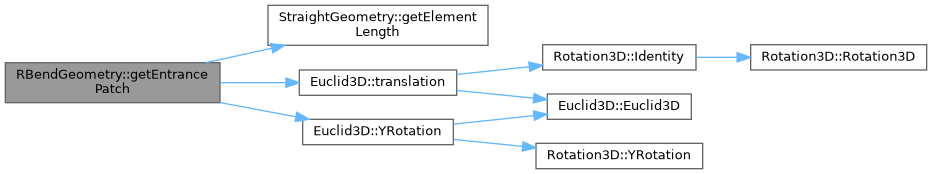

References StraightGeometry::getElementLength(), half_angle, Euclid3D::translation(), and Euclid3D::YRotation().

Here is the call graph for this function:

getExit()

double StraightGeometry::getExit ( ) const

virtualinherited

Get exit.

Reimplemented from BGeometryBase.

Definition at line 50 of file StraightGeometry.cpp.

References StraightGeometry::len.

getExitFrame()

Euclid3D RBendGeometry::getExitFrame ( ) const

virtual

Get transform.

Reimplemented from BGeometryBase.

Definition at line 56 of file RBendGeometry.cpp.

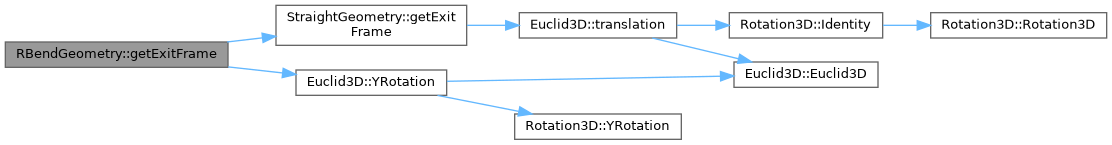

References StraightGeometry::getExitFrame(), half_angle, and Euclid3D::YRotation().

Here is the call graph for this function:

getExitPatch()

Euclid3D RBendGeometry::getExitPatch ( ) const

virtual

Get patch.

Reimplemented from BGeometryBase.

Definition at line 65 of file RBendGeometry.cpp.

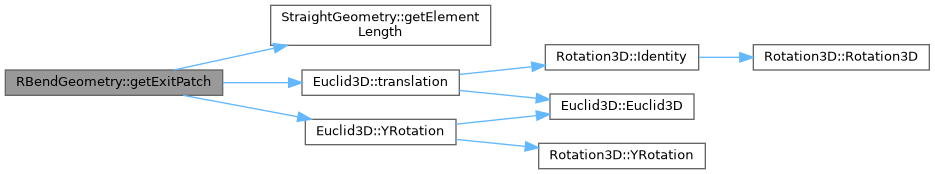

References StraightGeometry::getElementLength(), half_angle, Euclid3D::translation(), and Euclid3D::YRotation().

Here is the call graph for this function:

getOrigin()

double StraightGeometry::getOrigin ( ) const

virtualinherited

Get origin.

Reimplemented from BGeometryBase.

Definition at line 46 of file StraightGeometry.cpp.

References StraightGeometry::len.

getTotalTransform()

Euclid3D RBendGeometry::getTotalTransform ( ) const

virtual

Get transform.

Reimplemented from BGeometryBase.

Definition at line 46 of file RBendGeometry.cpp.

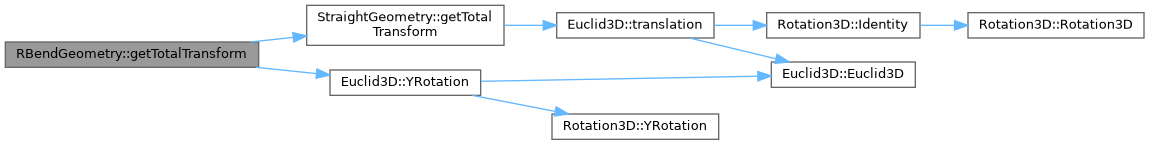

References StraightGeometry::getTotalTransform(), half_angle, and Euclid3D::YRotation().

Here is the call graph for this function:

getTransform() [1/2]

Euclid3D StraightGeometry::getTransform ( double  fromS, double  toS  ) const

virtualinherited

Get transform.

Implements BGeometryBase.

Definition at line 52 of file StraightGeometry.cpp.

References Euclid3D::translation().

Here is the call graph for this function:

getTransform() [2/2]

Euclid3D StraightGeometry::getTransform ( double  s ) const

virtualinherited

Get transform.

Reimplemented from BGeometryBase.

Definition at line 58 of file StraightGeometry.cpp.

References Euclid3D::translation().

Here is the call graph for this function:

operator=()

const RBendGeometry & RBendGeometry::operator=

(

const RBendGeometry &

)

setBendAngle()

void RBendGeometry::setBendAngle

(

double

angle

)

Set angle.

Definition at line 44 of file RBendGeometry.cpp.

References half_angle.

Referenced by OpalRBend::update().

setElementLength()

void StraightGeometry::setElementLength ( double  length )

virtualinherited

Set design length.

Reimplemented from BGeometryBase.

Definition at line 37 of file StraightGeometry.cpp.

References StraightGeometry::len.

Referenced by VerticalFFAMagnet::initialise(), MultipoleTStraight::initialise(), ConstantEFieldCavityRep::setElementLength(), VariableRFCavity::setLength(), TestMonitor::setLength(), TestMonitor::TestMonitor(), TestMonitor::TestMonitor(), and OpalRBend::update().

Member Data Documentation

half_angle

double RBendGeometry::half_angle

private

Definition at line 94 of file RBendGeometry.h.

Referenced by getArcLength(), getBendAngle(), getEntranceFrame(), getEntrancePatch(), getExitFrame(), getExitPatch(), getTotalTransform(), and setBendAngle().

len

double StraightGeometry::len

privateinherited

Definition at line 102 of file StraightGeometry.h.

Referenced by StraightGeometry::getArcLength(), StraightGeometry::getElementLength(), StraightGeometry::getEntrance(), StraightGeometry::getEntranceFrame(), StraightGeometry::getExit(), StraightGeometry::getExitFrame(), StraightGeometry::getOrigin(), StraightGeometry::getTotalTransform(), StraightGeometry::operator=(), and StraightGeometry::setElementLength().

---

The documentation for this class was generated from the following files:

• RBendGeometry.h
• RBendGeometry.cpp
