23  Multi Objective Optimization

View:

Optimization problems with more than one criterion are treated in OPAL as multi-objective optimization problems. The legacy implementation is based on opt-pilot, integrated into OPAL.

23.1 Definition

A general multi-objective optimization problem is written as

\[ \begin{aligned} \min \quad & f_m(\mathbf{x}), & m &= \{1, \ldots, M\}, \\ \text{subject to} \quad & g_j(\mathbf{x}) \ge 0, & j &= \{1, \ldots, J\}, \\ & -\infty \le x_i^L \le x_i \le x_i^U \le \infty, & i &= \{0, \ldots, n\}. \end{aligned} \tag{23.1}\]

The objectives are minimized over a bounded design space, optionally subject to constraints. OPAL treats the mapping from design variables to objective space as a black-box evaluation driven by accelerator simulations.

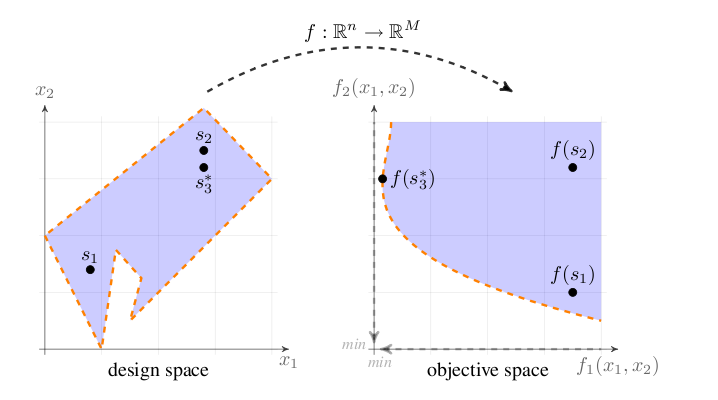

Figure 23.1: Mapping from design space to objective space.

23.2 Pareto Optimality

In most practical cases the objectives are conflicting, so no single design point minimizes all objectives at once. The optimization therefore seeks a set of non-dominated points approximating the Pareto front.

The legacy discussion emphasizes the dominance relation:

  • a solution dominates another if it is no worse in all objectives
  • and strictly better in at least one objective

This is the ordering relation that drives the multi-objective search.

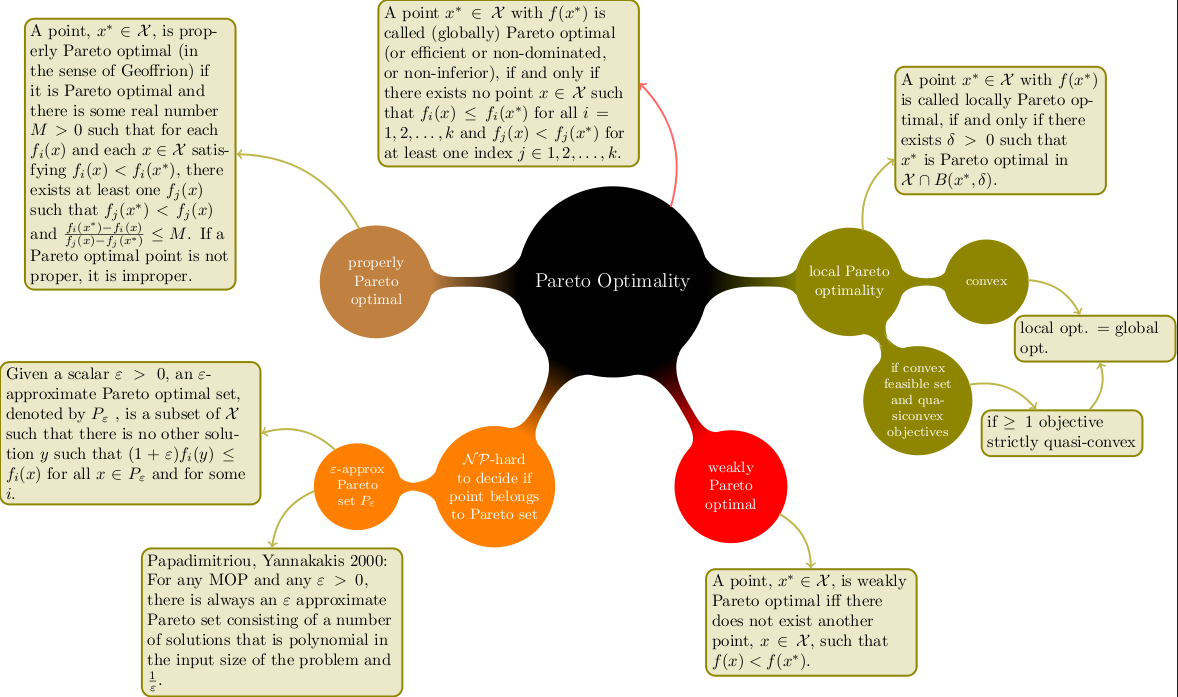

Figure 23.2: Different notions of Pareto optimality used in the legacy discussion.

23.3 MOGA Theory

The chapter frames the optimizer as a multi-objective genetic algorithm workflow. The focus is practical rather than theoretical: population management, mutation, crossover, and evaluation of the objective and constraint expressions on top of ordinary OPAL simulations.

23.4 Optimiser OPAL Commands

The optimization workflow is defined by:

  • DVAR for design variables
  • OBJECTIVE for the quantities to minimize
  • CONSTRAINT for admissibility conditions
  • OPTIMIZE for the optimization run itself

23.4.1 Basic Syntax

Design variables are introduced one by one:

d1: DVAR, VARIABLE="x1", LOWERBOUND=-1.0, UPPERBOUND=1.0;
d2: DVAR, VARIABLE="x2", LOWERBOUND=-1.0, UPPERBOUND=1.0;
d3: DVAR, VARIABLE="x3", LOWERBOUND=-1.0, UPPERBOUND=1.0;

Objectives are then defined as expressions to minimize:

obj1: OBJECTIVE, EXPR="-statVariableAt('energy', 1.0)";
obj2: OBJECTIVE, EXPR="statVariableAt('emit_x', 1.0)";

and constraints in the same expression language:

con1: CONSTRAINT, EXPR="statVariableAt('rms_x', 1.0) < 1.0";
con2: CONSTRAINT, EXPR="statVariableAt('numParticles', 1.0) > 1000";

Template files must contain placeholder variables such as _x1_ for the corresponding DVAR entries.

23.4.2 OPTIMIZE Command

OPTIMIZE starts the optimization run.

Important attributes include:

Attribute Meaning
INPUT Path to the template or input file
OUTPUT Base name for generated result files
OUTDIR Output directory for generations and results
OBJECTIVES List of objective definitions
DVARS List of design variables
CONSTRAINTS List of constraints
INITIALPOPULATION Initial population size
STARTPOPULATION Optional restart population in JSON format
NUM_MASTERS Number of master ranks
NUM_COWORKERS Number of worker ranks per individual
DUMP_DAT Dump legacy plain-text generation format
DUMP_FREQ Generation dump frequency
DUMP_OFFSPRING Dump offspring instead of parents
NUM_IND_GEN Individuals per generation
MAXGENERATIONS Maximum number of generations
EPSILON Hypervolume tolerance
EXPECTED_HYPERVOL Reference hypervolume
HYPERVOLREFERENCE Hypervolume reference point
CONV_HVOL_PROG Hypervolume-based convergence threshold
ONE_PILOT_CONVERGE Single-pilot convergence mode
SOL_SYNCH Solution-exchange frequency
INITIAL_OPTIMIZATION Speed up generation of the first population
BIRTH_CONTROL Enforce strict population sizes
MUTATION_PROBABILITY Mutation probability per individual
MUTATION Mutation type
GENE_MUTATION_PROBABILITY Mutation probability per gene
RECOMBINATION_PROBABILITY Crossover probability
CROSSOVER Crossover model
SIMBIN_CROSSOVER_NU Simulated binary crossover parameter
SIMTMPDIR Simulation scratch directory
TEMPLATEDIR Template directory
FIELDMAPDIR Field-map directory
DISTDIR Distribution directory
RESTART_FILE Optional H5 restart file
RESTART_STEP Restart step inside the H5 restart file

23.4.3 DVAR Command

DVAR defines a design variable.

Attribute Meaning
VARIABLE Variable name used in the template
LOWERBOUND Lower admissible value
UPPERBOUND Upper admissible value

23.4.4 OBJECTIVE Command

OBJECTIVE defines one quantity to minimize.

Attribute Meaning
EXPR Objective expression

23.4.5 CONSTRAINT Command

CONSTRAINT defines one admissibility condition.

Attribute Meaning
EXPR Constraint expression

23.4.6 Available Expressions

The expression language supports both ordinary mathematical functions and data accessors for simulation output.

Standard mathematical functions include:

  • sqrt
  • pow
  • exp
  • log
  • ceil
  • floor
  • fabs
  • fmod
  • sin
  • asin
  • cos
  • acos
  • tan
  • atan
  • sq

The legacy manual also documents output-access functions such as:

  • fromFile(file)
  • sddsVariableAt(var, refpos, sdds_file)
  • sddsVariableAt(var, refvar, refpos, sdds_file)
  • statVariableAt(var, refpos)
  • statVariableAt(var, refvar, refpos)
  • sumErrSq(meas_file, var_name, sdds_file)
  • radialPeak(file, turn)
  • sumErrSqRadialPeak(meas_file, sim_file, begin, end)
  • probVariableWithID(var, id, probe_file)
  • septum(probe)

These allow optimization directly against .stat, SDDS, probe, and measurement-derived quantities.

23.4.7 Example Input File

The original manual includes a full example based on the files 05-DL_QN3.in and tmpl/05-DL_QN3.tmpl. The example optimizes three quadrupole strengths through DVAR definitions, evaluates beam statistics as objectives, and runs OPTIMIZE with a small initial population and generation count.

The corresponding runtime pattern is:

OPTIMIZE, INPUT="tmpl/05-DL_QN3.tmpl", OBJECTIVES={...}, DVARS={...},
          INITIALPOPULATION=5, MAXGENERATIONS=3, NUM_IND_GEN=3,
          NUM_MASTERS=1, NUM_COWORKERS=1, TEMPLATEDIR="tmpl",
          FIELDMAPDIR="fieldmaps", OUTPUT="optLinac", OUTDIR="results";

23.4.8 Output

The optimizer writes generation data in JSON format and optionally in the legacy plain-text format. The Pareto-front data are written to ParetoFront_.json, while runtime logs such as opt.trace.0, opt-progress.0, and pilot.trace.0 record job dispatch and validity.

This optimization feature is not yet available in OPALX.
