#include <MeshGenerator.h>

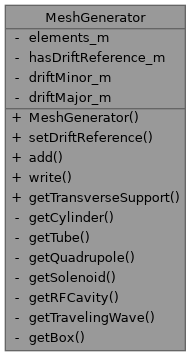

Collaboration diagram for MeshGenerator:

Public Member Functions
	MeshGenerator ()

void	setDriftReference (double minor, double major)
	Set the drift support radius used when meshing drift spaces.

void	add (const ElementBase &element)

void	write (const std::string &fname)

Static Public Member Functions
static bool	getTransverseSupport (const ElementBase &element, double &minor, double &major)
	Extract a transverse support size suitable for placement/export meshes.

Private Types
enum	MeshType { OTHER = 0 , DIPOLE , QUADRUPOLE , SEXTUPOLE , OCTUPOLE , SOLENOID , RFCAVITY , TRAVELINGWAVE , DRIFT }

Static Private Member Functions
static MeshData	getCylinder (double length, double minor, double major, double formFactor, const unsigned int numSegments=36)

static MeshData	getTube (double length, double innerMinor, double innerMajor, double outerMinor, double outerMajor, const unsigned int numSegments=36)
	Build a hollow tube aligned with the local z-axis.

static MeshData	getQuadrupole (double length, double minor, double major, double formFactor)
	Build a quadrupole-like body from four longitudinal pole blocks.

static MeshData	getSolenoid (double length, double minor, double major)
	Build a solenoid body as a hollow tube with short end collars.

static MeshData	getRFCavity (double length, double minor, double major)
	Build a standing-wave cavity body from a sequence of bulged cells.

static MeshData	getTravelingWave (double length, double minor, double major)
	Build a traveling-wave structure with repeated shallow corrugations.

static MeshData	getBox (double length, double width, double height, double formFactor)

Private Attributes
std::vector< MeshData >	elements_m

bool	hasDriftReference_m

double	driftMinor_m

double	driftMajor_m

Detailed Description

Definition at line 29 of file MeshGenerator.h.

Member Enumeration Documentation

◆ MeshType

enum MeshGenerator::MeshType

private

Enumerator
OTHER
DIPOLE
QUADRUPOLE
SEXTUPOLE
OCTUPOLE
SOLENOID
RFCAVITY
TRAVELINGWAVE
DRIFT

Definition at line 64 of file MeshGenerator.h.

Constructor & Destructor Documentation

◆ MeshGenerator()

MeshGenerator::MeshGenerator ( )

Definition at line 42 of file MeshGenerator.cpp.

Member Function Documentation

◆ add()

void MeshGenerator::add ( const ElementBase & element )

Definition at line 87 of file MeshGenerator.cpp.

References CONIC_ELLIPTICAL, CONIC_RECTANGULAR, MeshData::decorations_m, DIPOLE, DRIFT, DRIFT, driftMajor_m, driftMinor_m, elements_m, ELLIPTICAL, ElementBase::getAperture(), getBox(), getCylinder(), ElementBase::getElementDimensions(), ElementBase::getElementLength(), Multipole::getMaxNormalComponentIndex(), PlacedElement::getNominalBodyTransform(), ElementBase::getPlacedElement(), getQuadrupole(), getRFCavity(), getSolenoid(), getTransverseSupport(), getTravelingWave(), getTube(), ElementBase::getType(), hasDriftReference_m, CoordinateSystemTrafo::inverted(), MULTIPOLE, OCTUPOLE, OTHER, QUADRUPOLE, RBEND, RBEND3D, RECTANGULAR, RFCAVITY, RFCAVITY, CoordinateSystemTrafo::rotateTo(), SBEND, SEXTUPOLE, SOLENOID, SOLENOID, CoordinateSystemTrafo::transformTo(), TRAVELINGWAVE, TRAVELINGWAVE, MeshData::type_m, and MeshData::vertices_m.

Referenced by OpalBeamline::save3DLattice(), TEST_F(), and TEST_F().

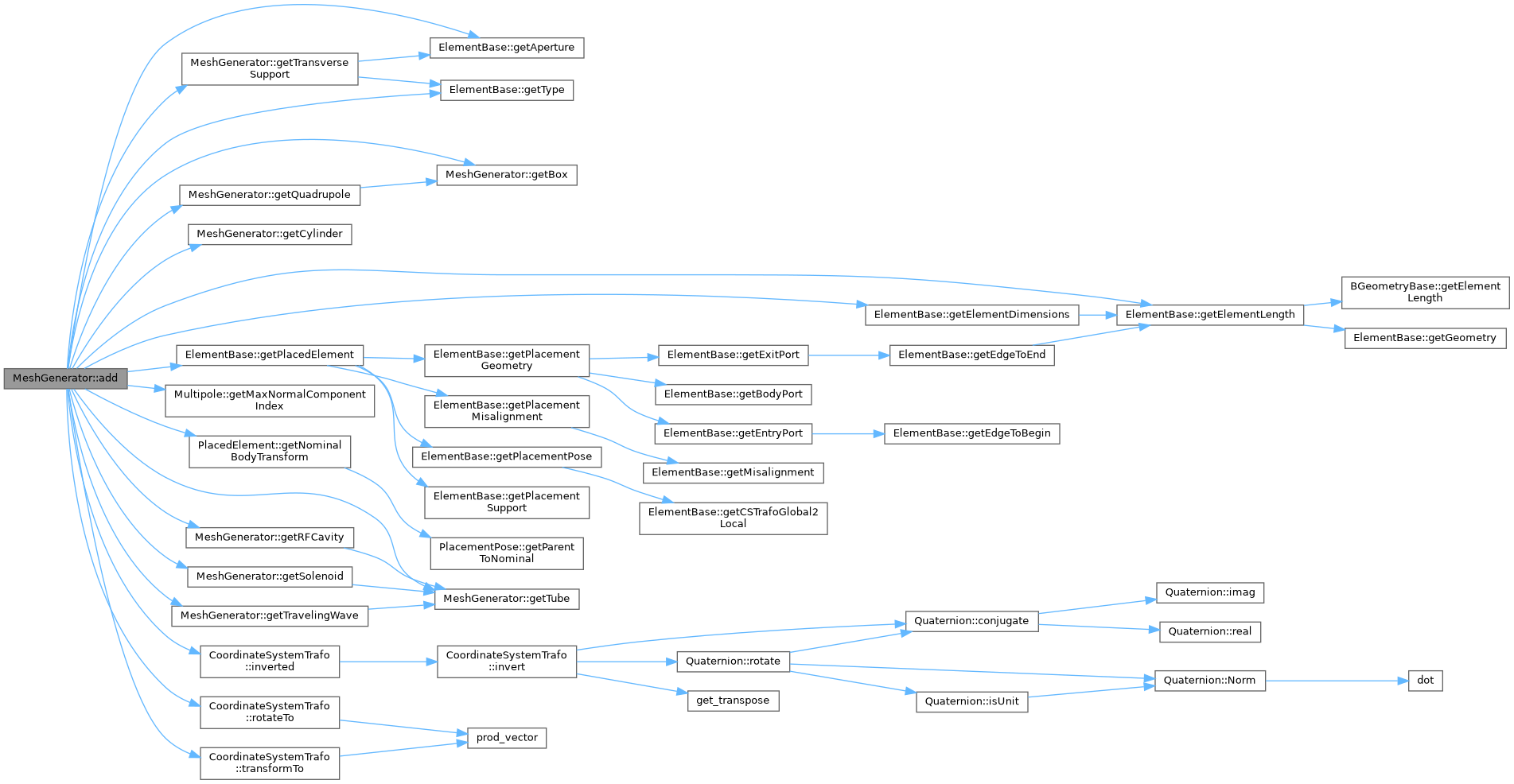

Here is the call graph for this function:

◆ getBox()

MeshData MeshGenerator::getBox	(	double	length,
		double	width,
		double	height,
		double	formFactor
	)

staticprivate

Definition at line 1357 of file MeshGenerator.cpp.

References MeshData::decorations_m, MeshData::triangles_m, and MeshData::vertices_m.

Referenced by add(), and getQuadrupole().

◆ getCylinder()

MeshData MeshGenerator::getCylinder	(	double	length,
		double	minor,
		double	major,
		double	formFactor,
		const unsigned int	numSegments = `36`
	)

staticprivate

Definition at line 1160 of file MeshGenerator.cpp.

References MeshData::decorations_m, MeshData::triangles_m, Physics::two_pi, and MeshData::vertices_m.

Referenced by add().

◆ getQuadrupole()

MeshData MeshGenerator::getQuadrupole	(	double	length,
		double	minor,
		double	major,
		double	formFactor
	)

staticprivate

Build a quadrupole-like body from four longitudinal pole blocks.

The pole blocks are scaled from the element aperture and extruded along the full element length so that the resulting shape remains meaningful when the quadrupole length changes.

Parameters

length	Body length along the local z-axis.
minor	Aperture semi-axis in the local y-direction.
major	Aperture semi-axis in the local x-direction.
formFactor	Exit scaling factor used for conic apertures.

Returns: Triangulated quadrupole body mesh.

Definition at line 1251 of file MeshGenerator.cpp.

References getBox().

Referenced by add().

Here is the call graph for this function:

◆ getRFCavity()

MeshData MeshGenerator::getRFCavity	(	double	length,
		double	minor,
		double	major
	)

staticprivate

Build a standing-wave cavity body from a sequence of bulged cells.

The body is assembled from hollow tube segments with alternating neck and cell radii. This produces a programmer-facing standing-wave cavity shape while remaining purely geometric and length-scaled.

Parameters

length	Body length along the local z-axis.
minor	Outer semi-axis in the local y-direction.
major	Outer semi-axis in the local x-direction.

Returns: Triangulated standing-wave cavity mesh.

Definition at line 1307 of file MeshGenerator.cpp.

References getTube().

Referenced by add().

Here is the call graph for this function:

◆ getSolenoid()

MeshData MeshGenerator::getSolenoid	(	double	length,
		double	minor,
		double	major
	)

staticprivate

Build a solenoid body as a hollow tube with short end collars.

The body is scaled from the transverse support envelope and extruded over the full element length. Short end collars make the solenoid visually distinct from both drifts and plain cylindrical supports.

Parameters

length	Body length along the local z-axis.
minor	Outer semi-axis in the local y-direction.
major	Outer semi-axis in the local x-direction.

Returns: Triangulated solenoid body mesh.

Definition at line 1281 of file MeshGenerator.cpp.

References getTube().

Referenced by add().

Here is the call graph for this function:

◆ getTransverseSupport()

bool MeshGenerator::getTransverseSupport	(	const ElementBase &	element,
		double &	minor,
		double &	major
	)

static

Extract a transverse support size suitable for placement/export meshes.

The returned radii are in the element-local transverse frame. This is used both for direct meshing and for deriving a representative drift radius from the first non-drift element in the lattice.

Parameters

element	Beamline element to inspect.
minor	Output minor transverse radius.
major	Output major transverse radius.

Returns: true if a finite support size is available, false otherwise.

Definition at line 45 of file MeshGenerator.cpp.

References CONIC_ELLIPTICAL, CONIC_RECTANGULAR, DRIFT, ELLIPTICAL, ElementBase::getAperture(), ElementBase::getType(), RECTANGULAR, and SOLENOID.

Referenced by add(), and OpalBeamline::save3DLattice().

Here is the call graph for this function:

◆ getTravelingWave()

MeshData MeshGenerator::getTravelingWave	(	double	length,
		double	minor,
		double	major
	)

staticprivate

Build a traveling-wave structure with repeated shallow corrugations.

Compared to the standing-wave cavity, the modulation is more uniform and elongated to suggest a periodic accelerating structure.

Parameters

length	Body length along the local z-axis.
minor	Outer semi-axis in the local y-direction.
major	Outer semi-axis in the local x-direction.

Returns: Triangulated traveling-wave cavity mesh.

Definition at line 1332 of file MeshGenerator.cpp.

References getTube().

Referenced by add().

Here is the call graph for this function:

◆ getTube()

MeshData MeshGenerator::getTube	(	double	length,
		double	innerMinor,
		double	innerMajor,
		double	outerMinor,
		double	outerMajor,
		const unsigned int	numSegments = `36`
	)

staticprivate

Build a hollow tube aligned with the local z-axis.

The tube is represented by triangulated inner and outer walls without end caps. This is used for drift sections to visualise the beam pipe rather than a solid support body.

Parameters

length	Tube length along the local z-axis.
innerMinor	Inner semi-axis in the local y-direction.
innerMajor	Inner semi-axis in the local x-direction.
outerMinor	Outer semi-axis in the local y-direction.
outerMajor	Outer semi-axis in the local x-direction.
numSegments	Number of azimuthal segments.

Returns: Hollow triangulated tube mesh.

Definition at line 1202 of file MeshGenerator.cpp.

References MeshData::triangles_m, Physics::two_pi, and MeshData::vertices_m.

Referenced by add(), getRFCavity(), getSolenoid(), and getTravelingWave().

◆ setDriftReference()

void MeshGenerator::setDriftReference	(	double	minor,
		double	major
	)

Set the drift support radius used when meshing drift spaces.

Drifts do not carry their own physical support envelope. For visualisation we derive a representative cylindrical radius from the first non-drift element in the beamline and reuse it for all drifts.

Parameters

minor	Minor transverse radius.
major	Major transverse radius.

Definition at line 81 of file MeshGenerator.cpp.

References driftMajor_m, driftMinor_m, and hasDriftReference_m.

Referenced by OpalBeamline::save3DLattice().

◆ write()

void MeshGenerator::write ( const std::string & fname )

Definition at line 205 of file MeshGenerator.cpp.

References Util::base64_encode(), Util::combineFilePath(), elements_m, OpalData::getAuxiliaryOutputDirectory(), and OpalData::getInstance().

Referenced by OpalBeamline::save3DLattice(), TEST_F(), and TEST_F().

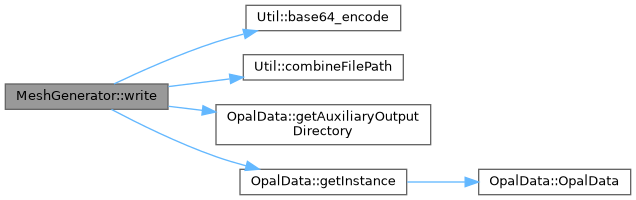

Here is the call graph for this function:

Member Data Documentation

◆ driftMajor_m

double MeshGenerator::driftMajor_m

private

Definition at line 160 of file MeshGenerator.h.

Referenced by add(), and setDriftReference().

◆ driftMinor_m

double MeshGenerator::driftMinor_m

private

Definition at line 159 of file MeshGenerator.h.

Referenced by add(), and setDriftReference().

◆ elements_m

std::vector<MeshData> MeshGenerator::elements_m

private

Definition at line 157 of file MeshGenerator.h.

Referenced by add(), and write().

◆ hasDriftReference_m

bool MeshGenerator::hasDriftReference_m

private

Definition at line 158 of file MeshGenerator.h.

Referenced by add(), and setDriftReference().

The documentation for this class was generated from the following files:
