Orchestrates primary and image-charge scatter deposition. More...

#include <ImageChargeScatterController.h>

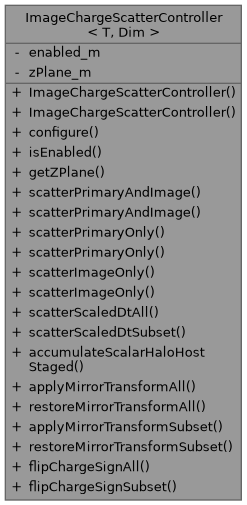

Collaboration diagram for ImageChargeScatterController< T, Dim >:

Public Types
using	ParticleCtr_t = ParticleContainer< T, Dim >

using	PositionAttr_t = typename ippl::ParticleBase< ippl::ParticleSpatialLayout< T, Dim >, Kokkos::DefaultExecutionSpace::memory_space >::particle_position_type

using	RhoField_t = Field_t< Dim >

using	BinPolicy_t = Kokkos::RangePolicy<>

using	Hash_t = typename ParticleBinning::AdaptBinsBase< ParticleCtr_t >::hash_type

Public Member Functions
	ImageChargeScatterController ()=default
	Construct disabled controller at `zPlane=0`.

	ImageChargeScatterController (bool enabled, double zPlane)
	Construct controller with explicit image-charge settings.

void	configure (bool enabled, double zPlane)
	Update runtime settings.

bool	isEnabled () const
	Returns whether image-charge scatter is enabled.

double	getZPlane () const
	Returns the mirror plane position in z.

void	scatterPrimaryAndImage (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, RhoField_t &rho) const
	Scatter all local particles with optional image pass.

void	scatterPrimaryAndImage (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, RhoField_t &rho, const BinPolicy_t &policy, const Hash_t &hash) const
	Scatter a bin-restricted particle subset with optional image pass.

void	scatterPrimaryOnly (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, RhoField_t &rho) const
	Scatter only the primary (real) charges for all local particles.

void	scatterPrimaryOnly (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, RhoField_t &rho, const BinPolicy_t &policy, const Hash_t &hash) const
	Scatter only the primary (real) charges for a bin-restricted subset.

void	scatterImageOnly (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, RhoField_t &rho) const
	Scatter only the image (mirrored) charges for all local particles.

void	scatterImageOnly (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, RhoField_t &rho, const BinPolicy_t &policy, const Hash_t &hash) const
	Scatter only the image (mirrored) charges for a bin-restricted subset.

void	scatterScaledDtAll (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, RhoField_t &rho) const
	Scatter all local particles using the standard `dt*Q` workflow.

void	scatterScaledDtSubset (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, RhoField_t &rho, const BinPolicy_t &policy, const Hash_t &hash) const
	Scatter a hashed particle subset using the standard `dt*Q` workflow.

void	accumulateScalarHaloHostStaged (RhoField_t &rho) const
	Accumulate scalar field halo contributions through host-staged MPI buffers.

void	applyMirrorTransformAll (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions) const
	Apply z-mirror and charge sign flip for all local particles.

void	restoreMirrorTransformAll (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions) const
	Restore z-mirror and charge sign flip for all local particles.

void	applyMirrorTransformSubset (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, const BinPolicy_t &policy, const Hash_t &hash) const
	Apply z-mirror and charge sign flip for a hashed particle subset.

void	restoreMirrorTransformSubset (std::shared_ptr< ParticleCtr_t > pc, PositionAttr_t &positions, const BinPolicy_t &policy, const Hash_t &hash) const
	Restore z-mirror and charge sign flip for a hashed particle subset.

void	flipChargeSignAll (std::shared_ptr< ParticleCtr_t > pc) const
	Flip charge sign for all local particles.

void	flipChargeSignSubset (std::shared_ptr< ParticleCtr_t > pc, const BinPolicy_t &policy, const Hash_t &hash) const
	Flip charge sign for a hashed particle subset.

Private Attributes
bool	enabled_m = false

double	zPlane_m = 0.0

Detailed Description

template<typename T, unsigned Dim>
class ImageChargeScatterController< T, Dim >

Orchestrates primary and image-charge scatter deposition.

The controller performs: 1) primary scatter using the existing dt * Q deposition workflow, and 2) optional image scatter by reflecting particle z positions around an xy plane and flipping the sign of charge Q.

The particle state is restored after the image deposition pass.

Template Parameters

T	Scalar type (typically `double`).
Dim	Spatial dimension (currently constrained to 3).

Definition at line 26 of file ImageChargeScatterController.h.

Member Typedef Documentation

◆ BinPolicy_t

template<typename T , unsigned Dim>

using ImageChargeScatterController< T, Dim >::BinPolicy_t = Kokkos::RangePolicy<>

Definition at line 35 of file ImageChargeScatterController.h.

◆ Hash_t

template<typename T , unsigned Dim>

using ImageChargeScatterController< T, Dim >::Hash_t = typename ParticleBinning::AdaptBinsBase<ParticleCtr_t>::hash_type

Definition at line 36 of file ImageChargeScatterController.h.

◆ ParticleCtr_t

template<typename T , unsigned Dim>

using ImageChargeScatterController< T, Dim >::ParticleCtr_t = ParticleContainer<T, Dim>

Definition at line 30 of file ImageChargeScatterController.h.

◆ PositionAttr_t

template<typename T , unsigned Dim>

using ImageChargeScatterController< T, Dim >::PositionAttr_t = typename ippl::ParticleBase< ippl::ParticleSpatialLayout<T, Dim>, Kokkos::DefaultExecutionSpace::memory_space>::particle_position_type

Definition at line 31 of file ImageChargeScatterController.h.

◆ RhoField_t

template<typename T , unsigned Dim>

using ImageChargeScatterController< T, Dim >::RhoField_t = Field_t<Dim>

Definition at line 34 of file ImageChargeScatterController.h.

Constructor & Destructor Documentation

◆ ImageChargeScatterController() [1/2]

template<typename T , unsigned Dim>

ImageChargeScatterController< T, Dim >::ImageChargeScatterController ( )

default

Construct disabled controller at zPlane=0.

◆ ImageChargeScatterController() [2/2]

template<typename T , unsigned Dim>

ImageChargeScatterController< T, Dim >::ImageChargeScatterController	(	bool	enabled,
		double	zPlane
	)

inline

Construct controller with explicit image-charge settings.

Parameters

enabled	Enable image scatter pass when true.
zPlane	Mirror plane location in z (meters).

Definition at line 49 of file ImageChargeScatterController.h.

Member Function Documentation

◆ accumulateScalarHaloHostStaged()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::accumulateScalarHaloHostStaged ( RhoField_t & rho ) const

Accumulate scalar field halo contributions through host-staged MPI buffers.

This mirrors rho.accumulateHalo() for scalar rho fields, but avoids the device-buffer MPI path used by IPPL HaloCells. It is used by the all-local binned scatter workaround on GH200/Daint.

◆ applyMirrorTransformAll()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::applyMirrorTransformAll	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions
	)		const

Apply z-mirror and charge sign flip for all local particles.

Parameters

pc	Shared particle container.
positions	Particle positions attribute.

◆ applyMirrorTransformSubset()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::applyMirrorTransformSubset	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		const BinPolicy_t &	policy,
		const Hash_t &	hash
	)		const

Apply z-mirror and charge sign flip for a hashed particle subset.

Parameters

pc	Shared particle container.
positions	Particle positions attribute.
policy	Bin iteration policy.
hash	Mapping from policy index to particle index.

◆ configure()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::configure	(	bool	enabled,
		double	zPlane
	)

inline

Update runtime settings.

Parameters

enabled	Enable image scatter pass when true.
zPlane	Mirror plane location in z (meters).

Definition at line 57 of file ImageChargeScatterController.h.

References ImageChargeScatterController< T, Dim >::enabled_m, and ImageChargeScatterController< T, Dim >::zPlane_m.

◆ flipChargeSignAll()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::flipChargeSignAll ( std::shared_ptr< ParticleCtr_t > pc ) const

Flip charge sign for all local particles.

In single-value Q mode, only the shared scalar is flipped.

Parameters

pc	Shared particle container.

◆ flipChargeSignSubset()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::flipChargeSignSubset	(	std::shared_ptr< ParticleCtr_t >	pc,
		const BinPolicy_t &	policy,
		const Hash_t &	hash
	)		const

Flip charge sign for a hashed particle subset.

In single-value Q mode, only the shared scalar is flipped.

Parameters

pc	Shared particle container.
policy	Bin iteration policy.
hash	Mapping from policy index to particle index.

◆ getZPlane()

template<typename T , unsigned Dim>

double ImageChargeScatterController< T, Dim >::getZPlane ( ) const

inline

Returns the mirror plane position in z.

Definition at line 65 of file ImageChargeScatterController.h.

References ImageChargeScatterController< T, Dim >::zPlane_m.

◆ isEnabled()

template<typename T , unsigned Dim>

bool ImageChargeScatterController< T, Dim >::isEnabled ( ) const

inline

Returns whether image-charge scatter is enabled.

Definition at line 63 of file ImageChargeScatterController.h.

References ImageChargeScatterController< T, Dim >::enabled_m.

◆ restoreMirrorTransformAll()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::restoreMirrorTransformAll	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions
	)		const

Restore z-mirror and charge sign flip for all local particles.

The operation is its own inverse.

Parameters

pc	Shared particle container.
positions	Particle positions attribute.

◆ restoreMirrorTransformSubset()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::restoreMirrorTransformSubset	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		const BinPolicy_t &	policy,
		const Hash_t &	hash
	)		const

Restore z-mirror and charge sign flip for a hashed particle subset.

The operation is its own inverse.

Parameters

pc	Shared particle container.
positions	Particle positions attribute.
policy	Bin iteration policy.
hash	Mapping from policy index to particle index.

◆ scatterImageOnly() [1/2]

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::scatterImageOnly	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		RhoField_t &	rho
	)		const

Scatter only the image (mirrored) charges for all local particles.

Applies the mirror transform, scatters, and restores. Does nothing if image charges are disabled.

◆ scatterImageOnly() [2/2]

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::scatterImageOnly	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		RhoField_t &	rho,
		const BinPolicy_t &	policy,
		const Hash_t &	hash
	)		const

Scatter only the image (mirrored) charges for a bin-restricted subset.

Applies the mirror transform, scatters, and restores. Does nothing if image charges are disabled.

◆ scatterPrimaryAndImage() [1/2]

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::scatterPrimaryAndImage	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		RhoField_t &	rho
	)		const

Scatter all local particles with optional image pass.

Primary pass deposits with the nominal charge. If enabled, image pass deposits mirrored particles with flipped charge sign.

Parameters

pc	Shared particle container.
positions	Particle positions attribute (typically `pc->R`).
rho	Target charge-density mesh field.

◆ scatterPrimaryAndImage() [2/2]

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::scatterPrimaryAndImage	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		RhoField_t &	rho,
		const BinPolicy_t &	policy,
		const Hash_t &	hash
	)		const

Scatter a bin-restricted particle subset with optional image pass.

Parameters

pc	Shared particle container.
positions	Particle positions attribute (typically `pc->R`).
rho	Target charge-density mesh field.
policy	Bin iteration policy (index-space for hash access).
hash	Mapping from policy index to particle index.

◆ scatterPrimaryOnly() [1/2]

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::scatterPrimaryOnly	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		RhoField_t &	rho
	)		const

Scatter only the primary (real) charges for all local particles.

◆ scatterPrimaryOnly() [2/2]

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::scatterPrimaryOnly	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		RhoField_t &	rho,
		const BinPolicy_t &	policy,
		const Hash_t &	hash
	)		const

Scatter only the primary (real) charges for a bin-restricted subset.

◆ scatterScaledDtAll()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::scatterScaledDtAll	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		RhoField_t &	rho
	)		const

Scatter all local particles using the standard dt*Q workflow.

This helper applies scaleDtByCharge(), scatters dt, and restores dt.

Parameters

pc	Shared particle container.
positions	Particle positions attribute.
rho	Target charge-density field.

◆ scatterScaledDtSubset()

template<typename T , unsigned Dim>

void ImageChargeScatterController< T, Dim >::scatterScaledDtSubset	(	std::shared_ptr< ParticleCtr_t >	pc,
		PositionAttr_t &	positions,
		RhoField_t &	rho,
		const BinPolicy_t &	policy,
		const Hash_t &	hash
	)		const

Scatter a hashed particle subset using the standard dt*Q workflow.

Parameters

pc	Shared particle container.
positions	Particle positions attribute.
rho	Target charge-density field.
policy	Bin iteration policy.
hash	Mapping from policy index to particle index.

Member Data Documentation

◆ enabled_m

template<typename T , unsigned Dim>

bool ImageChargeScatterController< T, Dim >::enabled_m = false

private

Definition at line 228 of file ImageChargeScatterController.h.

Referenced by ImageChargeScatterController< T, Dim >::configure(), and ImageChargeScatterController< T, Dim >::isEnabled().

◆ zPlane_m

template<typename T , unsigned Dim>

double ImageChargeScatterController< T, Dim >::zPlane_m = 0.0

private

Definition at line 229 of file ImageChargeScatterController.h.

Referenced by ImageChargeScatterController< T, Dim >::configure(), and ImageChargeScatterController< T, Dim >::getZPlane().

The documentation for this class was generated from the following file:

ImageChargeScatterController.h

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ BinPolicy_t

◆ Hash_t

◆ ParticleCtr_t

◆ PositionAttr_t

◆ RhoField_t

Constructor & Destructor Documentation

◆ ImageChargeScatterController() [1/2]

◆ ImageChargeScatterController() [2/2]

Member Function Documentation

◆ accumulateScalarHaloHostStaged()

◆ applyMirrorTransformAll()

◆ applyMirrorTransformSubset()

◆ configure()

◆ flipChargeSignAll()

◆ flipChargeSignSubset()

◆ getZPlane()

◆ isEnabled()

◆ restoreMirrorTransformAll()

◆ restoreMirrorTransformSubset()

◆ scatterImageOnly() [1/2]

◆ scatterImageOnly() [2/2]

◆ scatterPrimaryAndImage() [1/2]

◆ scatterPrimaryAndImage() [2/2]

◆ scatterPrimaryOnly() [1/2]

◆ scatterPrimaryOnly() [2/2]

◆ scatterScaledDtAll()

◆ scatterScaledDtSubset()

Member Data Documentation

◆ enabled_m

◆ zPlane_m
