TestFM2DDynamic.cpp File Reference

Unit tests for FM2DDynamic fieldmap class. More...

#include <gtest/gtest.h>
#include "Fields/FM2DDynamic.h"
#include "Fields/Fieldmap.h"
#include "Ippl.h"
#include "Physics/Units.h"
#include "Utilities/GeneralOpalException.h"
#include <cmath>
#include <filesystem>
#include <fstream>
#include <vector>

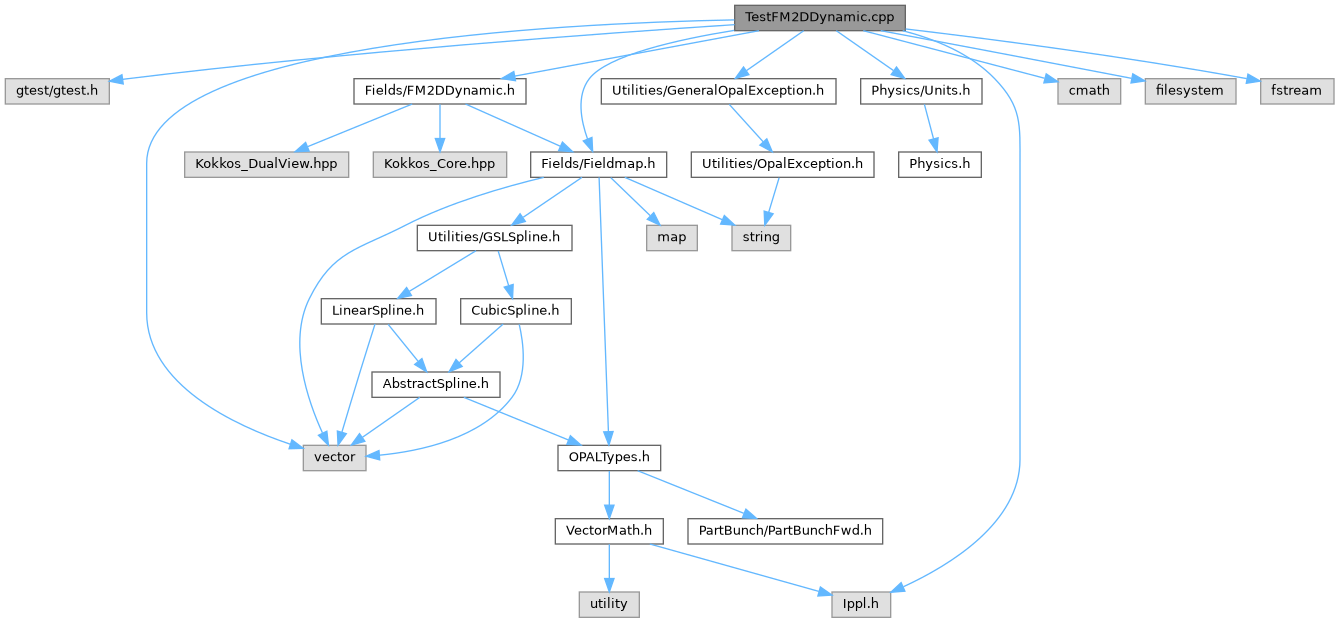

Include dependency graph for TestFM2DDynamic.cpp:

Go to the source code of this file.

Classes
class	FM2DDynamicTest

Functions
	TEST_F (FM2DDynamicTest, ParseXZOrientation)
	TEST_F (FM2DDynamicTest, ParseZXOrientation)
	TEST_F (FM2DDynamicTest, FrequencyParsing)
	TEST_F (FM2DDynamicTest, UniformFieldStrength)
	TEST_F (FM2DDynamicTest, OutsideZRange)
	TEST_F (FM2DDynamicTest, OutsideRadialRange)
	TEST_F (FM2DDynamicTest, IsInside)
	TEST_F (FM2DDynamicTest, SwapToggle)
	TEST_F (FM2DDynamicTest, Normalization)
	TEST_F (FM2DDynamicTest, BilinearInterpolation)
	TEST_F (FM2DDynamicTest, ComputeFieldStatic)
	TEST_F (FM2DDynamicTest, GetFieldDerivativeThrows)
	TEST_F (FM2DDynamicTest, GetFieldDimensions6ArgThrows)
	TEST_F (FM2DDynamicTest, GetInfoNoCrash)
	TEST_F (FM2DDynamicTest, MissingFile)
	TEST_F (FM2DDynamicTest, DictionaryCaching)
	TEST_F (FM2DDynamicTest, ReadFreeCycle)
	TEST_F (FM2DDynamicTest, GridPointAccuracy)
	TEST_F (FM2DDynamicTest, XZvsZXConsistency)
	TEST_F (FM2DDynamicTest, FieldProjection)
	TEST_F (FM2DDynamicTest, FieldAccumulation)

Detailed Description

Unit tests for FM2DDynamic fieldmap class.

Tests cover:

Parsing & metadata:

• File parsing (XZ and ZX orientations)
• Frequency parsing and conversion (MHz → angular frequency)
• Field dimension retrieval (z-bounds)

Field evaluation:

• Point field evaluation via getFieldstrength()
• Uniform field correctness (on-axis behaviour)
• Bilinear interpolation for spatially varying fields
• Exact values at grid points (GridPointAccuracy)

Geometry & bounds:

• Behaviour outside z-range (no modification, outside flag)
• Behaviour outside radial range
• isInside() helper (including boundary semantics)

Physical behaviour:

• Normalization and scaling:
  • Electric field: MV/m → V/m
  • Magnetic field: Bt → μ0 scaling
• Projection of cylindrical components (Er, Bt) into Cartesian (x,y)
• Consistency between XZ and ZX orientations

Low-level kernel:

• Static computeField() correctness (host views, interpolation, projection)

API behaviour:

• swap() toggle (orientation handling)
• getFieldDerivative() throws (not implemented)
• getFieldDimensions(6-arg) throws
• getFrequency() correctness
• getInfo() does not crash

Robustness:

• Missing / invalid file handling
• Fieldmap dictionary caching (singleton behaviour)
• readMap() / freeMap() lifecycle correctness

Semantics:

• Field accumulation: E and B are accumulated, not overwritten

Definition in file TestFM2DDynamic.cpp.

Function Documentation

TEST_F() [1/21]

TEST_F	(	FM2DDynamicTest	,
		BilinearInterpolation
	)

Definition at line 474 of file TestFM2DDynamic.cpp.

References Units::cm2m, Fieldmap::getFieldstrength(), Physics::mu_0, and nr.

Here is the call graph for this function:

TEST_F() [2/21]

TEST_F	(	FM2DDynamicTest	,
		ComputeFieldStatic
	)

Definition at line 570 of file TestFM2DDynamic.cpp.

TEST_F() [3/21]

TEST_F	(	FM2DDynamicTest	,
		DictionaryCaching
	)

Definition at line 730 of file TestFM2DDynamic.cpp.

References nr.

TEST_F() [4/21]

TEST_F	(	FM2DDynamicTest	,
		FieldAccumulation
	)

Definition at line 928 of file TestFM2DDynamic.cpp.

References Fieldmap::getFieldstrength(), and nr.

Here is the call graph for this function:

TEST_F() [5/21]

TEST_F	(	FM2DDynamicTest	,
		FieldProjection
	)

Definition at line 871 of file TestFM2DDynamic.cpp.

References Fieldmap::getFieldstrength(), Physics::mu_0, and nr.

Here is the call graph for this function:

TEST_F() [6/21]

TEST_F	(	FM2DDynamicTest	,
		FrequencyParsing
	)

Definition at line 228 of file TestFM2DDynamic.cpp.

References Units::MHz2Hz, nr, and Physics::two_pi.

TEST_F() [7/21]

TEST_F	(	FM2DDynamicTest	,
		GetFieldDerivativeThrows
	)

Definition at line 664 of file TestFM2DDynamic.cpp.

References DX, Fieldmap::getFieldDerivative(), and nr.

Here is the call graph for this function:

TEST_F() [8/21]

TEST_F	(	FM2DDynamicTest	,
		GetFieldDimensions6ArgThrows
	)

Definition at line 685 of file TestFM2DDynamic.cpp.

References Fieldmap::getFieldDimensions(), and nr.

Here is the call graph for this function:

TEST_F() [9/21]

TEST_F	(	FM2DDynamicTest	,
		GetInfoNoCrash
	)

Definition at line 704 of file TestFM2DDynamic.cpp.

References Fieldmap::getInfo(), and nr.

Here is the call graph for this function:

TEST_F() [10/21]

TEST_F	(	FM2DDynamicTest	,
		GridPointAccuracy
	)

Definition at line 784 of file TestFM2DDynamic.cpp.

References Units::cm2m, Fieldmap::getFieldstrength(), and nr.

Here is the call graph for this function:

TEST_F() [11/21]

TEST_F	(	FM2DDynamicTest	,
		IsInside
	)

Definition at line 384 of file TestFM2DDynamic.cpp.

References nr.

TEST_F() [12/21]

TEST_F	(	FM2DDynamicTest	,
		MissingFile
	)

Definition at line 722 of file TestFM2DDynamic.cpp.

TEST_F() [13/21]

TEST_F	(	FM2DDynamicTest	,
		Normalization
	)

Definition at line 438 of file TestFM2DDynamic.cpp.

References Fieldmap::getFieldstrength(), and nr.

Here is the call graph for this function:

TEST_F() [14/21]

TEST_F	(	FM2DDynamicTest	,
		OutsideRadialRange
	)

Definition at line 350 of file TestFM2DDynamic.cpp.

References Fieldmap::getFieldstrength(), and nr.

Here is the call graph for this function:

TEST_F() [15/21]

TEST_F	(	FM2DDynamicTest	,
		OutsideZRange
	)

Definition at line 294 of file TestFM2DDynamic.cpp.

References Fieldmap::getFieldstrength(), and nr.

Here is the call graph for this function:

TEST_F() [16/21]

TEST_F	(	FM2DDynamicTest	,
		ParseXZOrientation
	)

Definition at line 181 of file TestFM2DDynamic.cpp.

References Units::cm2m, Fieldmap::getFieldDimensions(), Fieldmap::getType(), nr, and T2DDynamic.

Here is the call graph for this function:

TEST_F() [17/21]

TEST_F	(	FM2DDynamicTest	,
		ParseZXOrientation
	)

Definition at line 205 of file TestFM2DDynamic.cpp.

References Units::cm2m, Fieldmap::getFieldDimensions(), and nr.

Here is the call graph for this function:

TEST_F() [18/21]

TEST_F	(	FM2DDynamicTest	,
		ReadFreeCycle
	)

Definition at line 747 of file TestFM2DDynamic.cpp.

References Fieldmap::freeMap(), Fieldmap::getFieldstrength(), nr, and Fieldmap::readMap().

Here is the call graph for this function:

TEST_F() [19/21]

TEST_F	(	FM2DDynamicTest	,
		SwapToggle
	)

Definition at line 417 of file TestFM2DDynamic.cpp.

References nr.

TEST_F() [20/21]

TEST_F	(	FM2DDynamicTest	,
		UniformFieldStrength
	)

Definition at line 251 of file TestFM2DDynamic.cpp.

References Fieldmap::getFieldstrength(), and nr.

Here is the call graph for this function:

TEST_F() [21/21]

TEST_F	(	FM2DDynamicTest	,
		XZvsZXConsistency
	)

Definition at line 832 of file TestFM2DDynamic.cpp.

References Fieldmap::getFieldstrength(), and nr.

Here is the call graph for this function:
