LinearBreitWheelerBenchmarkCommon.h File Reference

#include "Physics/LinearBreitWheeler.h"
#include "Physics/Physics.h"
#include <cmath>
#include <cstdint>
#include <filesystem>
#include <fstream>
#include <random>
#include <sstream>
#include <stdexcept>
#include <string>
#include <vector>

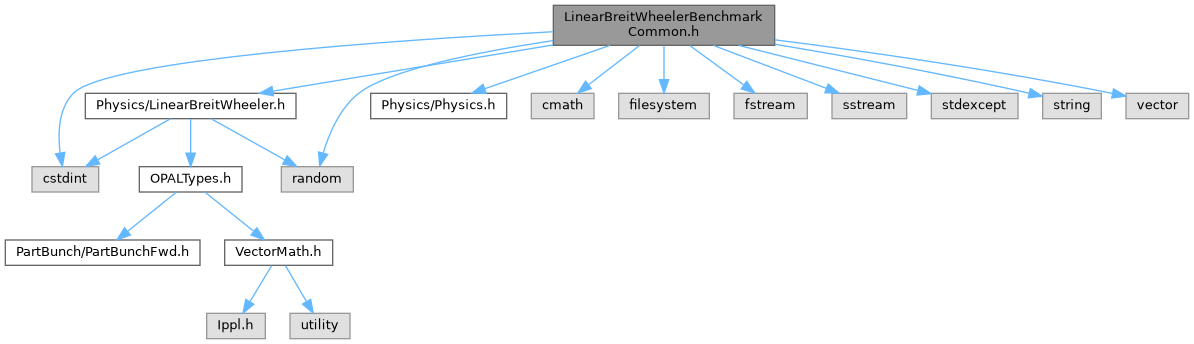

Include dependency graph for LinearBreitWheelerBenchmarkCommon.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	LinearBreitWheelerBenchmark::FinitePhotonBeamConfig
	Configuration for folding the linear Breit-Wheeler kernel over a finite incoming photon beam. More...
struct	LinearBreitWheelerBenchmark::HistogramConfig
struct	LinearBreitWheelerBenchmark::Histogram
struct	LinearBreitWheelerBenchmark::JointHistogramConfig
struct	LinearBreitWheelerBenchmark::FinitePhotonBeamJointConfig
struct	LinearBreitWheelerBenchmark::JointHistogram
struct	LinearBreitWheelerBenchmark::SampledPhotonBeamState

Namespaces
namespace	LinearBreitWheelerBenchmark

Enumerations
enum class	LinearBreitWheelerBenchmark::FinalState { LinearBreitWheelerBenchmark::Electron , LinearBreitWheelerBenchmark::Positron }
enum class	LinearBreitWheelerBenchmark::Observable { LinearBreitWheelerBenchmark::Energy , LinearBreitWheelerBenchmark::Theta }

Functions
double	LinearBreitWheelerBenchmark::polarAngleRad (const Vector_t< double, 3 > &momentum)
double	LinearBreitWheelerBenchmark::sampledObservable (const Physics::LinearBreitWheeler::SampledEvent &event, FinalState state, Observable observable)
double	LinearBreitWheelerBenchmark::sampleHighEnergyPhotonEnergyGeV (double centralEnergyGeV, double relativeEnergySpread, std::mt19937_64 &engine)
void	LinearBreitWheelerBenchmark::buildTransverseBasis (const Vector_t< double, 3 > &referenceDirection, Vector_t< double, 3 > &axis1, Vector_t< double, 3 > &axis2)
SampledPhotonBeamState	LinearBreitWheelerBenchmark::samplePhotonBeamState (const Vector_t< double, 3 > &referenceDirection, double sigmaThetaXRad, double sigmaThetaYRad, double sigmaX_m, double sigmaY_m, double sigmaS_m, double centralEnergyGeV, double relativeEnergySpread, std::mt19937_64 &engine)
Vector_t< double, 3 >	LinearBreitWheelerBenchmark::samplePhotonBeamDirection (const Vector_t< double, 3 > &referenceDirection, double sigmaThetaXRad, double sigmaThetaYRad, std::mt19937_64 &engine)
double	LinearBreitWheelerBenchmark::effectiveSpatialOverlapSigma (double beamSigma_m, double waist_m)
double	LinearBreitWheelerBenchmark::effectiveTemporalOverlapSigma (double beamSigmaS_m, double laserSigmaT_m)
SampledPhotonBeamState	LinearBreitWheelerBenchmark::sampleOverlapPhotonBeamState (const FinitePhotonBeamConfig &config, std::mt19937_64 &engine)
SampledPhotonBeamState	LinearBreitWheelerBenchmark::sampleOverlapPhotonBeamState (const FinitePhotonBeamJointConfig &config, std::mt19937_64 &engine)
Histogram	LinearBreitWheelerBenchmark::sampleFinitePhotonBeamHistogram (const FinitePhotonBeamConfig &config, FinalState state, Observable observable, std::size_t sampleCount, std::uint64_t streamIndex=0)
	Sample a one-dimensional Breit-Wheeler histogram for a finite incoming photon beam.
Histogram	LinearBreitWheelerBenchmark::sampleHistogram (const HistogramConfig &config, FinalState state, Observable observable, std::size_t sampleCount, std::uint64_t streamIndex=0)
	Sample a one-dimensional Breit-Wheeler benchmark histogram.
JointHistogram	LinearBreitWheelerBenchmark::sampleFinitePhotonBeamJointHistogram (const FinitePhotonBeamJointConfig &config, FinalState state, std::size_t sampleCount, std::uint64_t streamIndex=0)
	Sample the joint Breit-Wheeler laboratory distribution in energy and polar angle.
JointHistogram	LinearBreitWheelerBenchmark::sampleJointHistogram (const JointHistogramConfig &config, FinalState state, std::size_t sampleCount, std::uint64_t streamIndex=0)
void	LinearBreitWheelerBenchmark::writeHistogramCSV (const Histogram &histogram, const std::filesystem::path &outputPath)
void	LinearBreitWheelerBenchmark::writeJointHistogramCSV (const JointHistogram &histogram, const std::filesystem::path &outputPath)
Histogram	LinearBreitWheelerBenchmark::readHistogramCSV (const std::filesystem::path &inputPath)
JointHistogram	LinearBreitWheelerBenchmark::readJointHistogramCSV (const std::filesystem::path &inputPath)
double	LinearBreitWheelerBenchmark::histogramArea (const Histogram &histogram)
double	LinearBreitWheelerBenchmark::histogramMean (const Histogram &histogram)
double	LinearBreitWheelerBenchmark::histogramL1Distance (const Histogram &lhs, const Histogram &rhs)
double	LinearBreitWheelerBenchmark::jointHistogramArea (const JointHistogram &histogram)
double	LinearBreitWheelerBenchmark::jointHistogramMeanEnergyGeV (const JointHistogram &histogram)
double	LinearBreitWheelerBenchmark::jointHistogramMeanThetaRad (const JointHistogram &histogram)
double	LinearBreitWheelerBenchmark::jointHistogramL1Distance (const JointHistogram &lhs, const JointHistogram &rhs)

---

Class Documentation

LinearBreitWheelerBenchmark::FinitePhotonBeamConfig

struct LinearBreitWheelerBenchmark::FinitePhotonBeamConfig

Configuration for folding the linear Breit-Wheeler kernel over a finite incoming photon beam.

This benchmark keeps the laser photon fixed and samples only the incoming high-energy photon beam. The present implementation models the beam by a Gaussian spread in the transverse photon slopes around the reference beam axis and, optionally, by a Gaussian relative energy spread.

The benchmark intentionally stays momentum-space only. It does not model photon-beam position spread or laser-overlap weighting yet.

Definition at line 41 of file LinearBreitWheelerBenchmarkCommon.h.

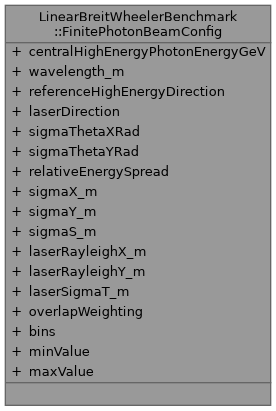

Collaboration diagram for LinearBreitWheelerBenchmark::FinitePhotonBeamConfig:

Class Members
size_t	bins = 80
double	centralHighEnergyPhotonEnergyGeV = 0.5
Vector_t< double, 3 >	laserDirection
double	laserRayleighX_m = 1.0e-6
double	laserRayleighY_m = 1.0e-6
double	laserSigmaT_m = 5.0e-12 * Physics::c
double	maxValue = 0.5
double	minValue = 0.0
bool	overlapWeighting = false
Vector_t< double, 3 >	referenceHighEnergyDirection
double	relativeEnergySpread = 0.0
double	sigmaS_m = 0.0
double	sigmaThetaXRad = 1.0e-3
double	sigmaThetaYRad = 1.0e-3
double	sigmaX_m = 0.0
double	sigmaY_m = 0.0
double	wavelength_m = 1.0e-9

LinearBreitWheelerBenchmark::HistogramConfig

struct LinearBreitWheelerBenchmark::HistogramConfig

Definition at line 69 of file LinearBreitWheelerBenchmarkCommon.h.

Collaboration diagram for LinearBreitWheelerBenchmark::HistogramConfig:

Class Members
size_t	bins = 80
Vector_t< double, 3 >	highEnergyDirection
double	highEnergyPhotonEnergyGeV = 0.5
Vector_t< double, 3 >	laserDirection
double	maxValue = 0.5
double	minValue = 0.0
double	wavelength_m = 1.0e-9

LinearBreitWheelerBenchmark::Histogram

struct LinearBreitWheelerBenchmark::Histogram

Definition at line 87 of file LinearBreitWheelerBenchmarkCommon.h.

Collaboration diagram for LinearBreitWheelerBenchmark::Histogram:

Class Members
double	binWidth = 0.0
vector< double >	centers
vector< double >	counts
vector< double >	density
double	totalWeight = 0.0

LinearBreitWheelerBenchmark::JointHistogramConfig

struct LinearBreitWheelerBenchmark::JointHistogramConfig

Definition at line 95 of file LinearBreitWheelerBenchmarkCommon.h.

Collaboration diagram for LinearBreitWheelerBenchmark::JointHistogramConfig:

Class Members
size_t	energyBins = 80
double	energyMaxGeV = 0.5
double	energyMinGeV = 0.0
Vector_t< double, 3 >	highEnergyDirection
double	highEnergyPhotonEnergyGeV = 0.5
Vector_t< double, 3 >	laserDirection
size_t	thetaBins = 80
double	thetaMaxRad = 0.0045
double	thetaMinRad = 0.0
double	wavelength_m = 1.0e-9

LinearBreitWheelerBenchmark::FinitePhotonBeamJointConfig

struct LinearBreitWheelerBenchmark::FinitePhotonBeamJointConfig

Definition at line 116 of file LinearBreitWheelerBenchmarkCommon.h.

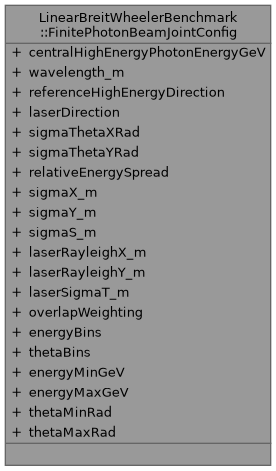

Collaboration diagram for LinearBreitWheelerBenchmark::FinitePhotonBeamJointConfig:

Class Members
double	centralHighEnergyPhotonEnergyGeV = 0.5
size_t	energyBins = 80
double	energyMaxGeV = 0.5
double	energyMinGeV = 0.0
Vector_t< double, 3 >	laserDirection
double	laserRayleighX_m = 1.0e-6
double	laserRayleighY_m = 1.0e-6
double	laserSigmaT_m = 5.0e-12 * Physics::c
bool	overlapWeighting = false
Vector_t< double, 3 >	referenceHighEnergyDirection
double	relativeEnergySpread = 0.0
double	sigmaS_m = 0.0
double	sigmaThetaXRad = 1.0e-3
double	sigmaThetaYRad = 1.0e-3
double	sigmaX_m = 0.0
double	sigmaY_m = 0.0
size_t	thetaBins = 80
double	thetaMaxRad = 0.0060
double	thetaMinRad = 0.0
double	wavelength_m = 1.0e-9

LinearBreitWheelerBenchmark::JointHistogram

struct LinearBreitWheelerBenchmark::JointHistogram

Definition at line 147 of file LinearBreitWheelerBenchmarkCommon.h.

Collaboration diagram for LinearBreitWheelerBenchmark::JointHistogram:

Class Members
vector< vector< double > >	counts
vector< vector< double > >	densityPerGeVRad
double	energyBinWidthGeV = 0.0
vector< double >	energyCentersGeV
double	thetaBinWidthRad = 0.0
vector< double >	thetaCentersRad
double	totalWeight = 0.0

LinearBreitWheelerBenchmark::SampledPhotonBeamState

struct LinearBreitWheelerBenchmark::SampledPhotonBeamState

Definition at line 174 of file LinearBreitWheelerBenchmarkCommon.h.

Collaboration diagram for LinearBreitWheelerBenchmark::SampledPhotonBeamState:

Class Members
Vector_t< double, 3 >	direction
double	energyGeV = 0.0
double	s_m = 0.0
double	slopeXRad = 0.0
double	slopeYRad = 0.0
double	x_m = 0.0
double	y_m = 0.0
