#include <algorithm>
#include <cmath>
#include <cstdio>
#include <stdexcept>
#include <vector>

Include dependency graph for GSLHistogram.h:

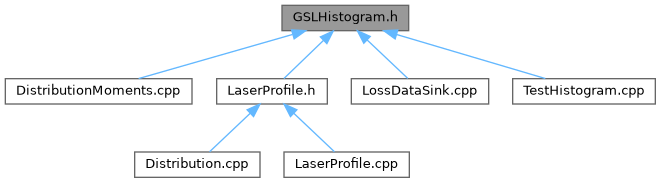

This graph shows which files directly or indirectly include this file:

Classes
class	gsl_histogram
	1D histogram with explicit bin edges. More...

class	gsl_histogram2d
	2D histogram with explicit x/y bin edges. More...

class	gsl_histogram2d_pdf
	2D PDF derived from histogram for sampling. More...

Functions
gsl_histogram *	gsl_histogram_alloc (size_t n)
	Allocate a 1D histogram with `n` bins.

void	gsl_histogram_set_ranges_uniform (gsl_histogram *h, double xmin, double xmax)
	Set uniform bin edges over \([x_{\min}, x_{\max}]\).

void	gsl_histogram_increment (gsl_histogram *h, double x)
	Increment the bin containing `x` by 1.

double	gsl_histogram_get (const gsl_histogram *h, size_t i)
	Get the bin count for index `i`.

void	gsl_histogram_free (gsl_histogram *h)
	Free a histogram allocated by `gsl_histogram_alloc`.

size_t	gsl_histogram_bins (const gsl_histogram *h)
	Number of bins in the histogram.

int	gsl_histogram_get_range (const gsl_histogram h, size_t i, double lower, double *upper)
	Get the \([x_i, x_{i+1})\) range for a bin.

int	gsl_histogram_set_ranges (gsl_histogram h, const double range, size_t n)
	Set explicit bin edges for a histogram.

gsl_histogram2d *	gsl_histogram2d_alloc (size_t nx, size_t ny)
	Allocate a 2D histogram with `nx` by `ny` bins.

void	gsl_histogram2d_set_ranges_uniform (gsl_histogram2d *h, double xmin, double xmax, double ymin, double ymax)
	Set uniform x/y bin edges.

int	gsl_histogram2d_set_ranges (gsl_histogram2d h, const double xrange, size_t nx, const double *yrange, size_t ny)
	Set explicit x/y bin edges.

size_t	gsl_histogram2d_nx (const gsl_histogram2d *h)
	Number of x bins.

size_t	gsl_histogram2d_ny (const gsl_histogram2d *h)
	Number of y bins.

void	gsl_histogram2d_increment (gsl_histogram2d *h, double x, double y)
	Increment the bin containing `x`,`y` by 1.

double	gsl_histogram2d_get (const gsl_histogram2d *h, size_t i, size_t j)
	Get the bin count for index \((i,j)\).

void	gsl_histogram2d_accumulate (gsl_histogram2d *h, double x, double y, double weight)
	Accumulate a weighted sample into the 2D histogram.

void	gsl_histogram2d_fprintf (FILE fh, const gsl_histogram2d h, const char xformat, const char yformat)
	Print the 2D histogram in a simple text table.

void	gsl_histogram2d_free (gsl_histogram2d *h)
	Free a 2D histogram.

gsl_histogram2d_pdf *	gsl_histogram2d_pdf_alloc (size_t, size_t)
	Allocate a 2D histogram PDF.

void	gsl_histogram2d_pdf_init (gsl_histogram2d_pdf p, const gsl_histogram2d h)
	Initialize a PDF from a histogram.

void	gsl_histogram2d_pdf_sample (const gsl_histogram2d_pdf p, double u, double v, double x, double *y)
	Sample from the PDF using two uniform variates.

void	gsl_histogram2d_pdf_free (gsl_histogram2d_pdf *p)
	Free a 2D histogram PDF.

Function Documentation

◆ gsl_histogram2d_accumulate()

void gsl_histogram2d_accumulate	(	gsl_histogram2d *	h,
		double	x,
		double	y,
		double	weight
	)

inline

Accumulate a weighted sample into the 2D histogram.

Parameters

h	Input/Output: histogram to update.
x	Input: x sample value.
y	Input: y sample value.
weight	Input: weight to add.

Definition at line 428 of file GSLHistogram.h.

References gsl_histogram2d::accumulate().

Referenced by LaserProfile::fillHistrogram().

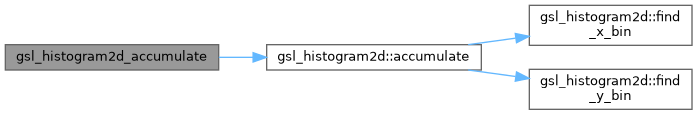

Here is the call graph for this function:

◆ gsl_histogram2d_alloc()

gsl_histogram2d * gsl_histogram2d_alloc	(	size_t	nx,
		size_t	ny
	)

inline

Allocate a 2D histogram with nx by ny bins.

Parameters

nx	Input: number of x bins.
ny	Input: number of y bins.

Returns: Output: histogram pointer.

Definition at line 364 of file GSLHistogram.h.

References gsl_histogram2d::bin_, gsl_histogram2d::nx_, and gsl_histogram2d::ny_.

Referenced by LaserProfile::fillHistrogram(), TEST_F(), TEST_F(), and TEST_F().

◆ gsl_histogram2d_fprintf()

void gsl_histogram2d_fprintf	(	FILE *	fh,
		const gsl_histogram2d *	h,
		const char *	xformat,
		const char *	yformat
	)

inline

Print the 2D histogram in a simple text table.

Parameters

fh	Input: output file handle.
h	Input: histogram.
xformat	Input: printf-style format string for x values.
yformat	Input: printf-style format string for y values.

Definition at line 437 of file GSLHistogram.h.

References gsl_histogram2d::bin(), gsl_histogram2d::nx(), gsl_histogram2d::ny(), gsl_histogram2d::xrange(), and gsl_histogram2d::yrange().

Referenced by LaserProfile::saveHistogram().

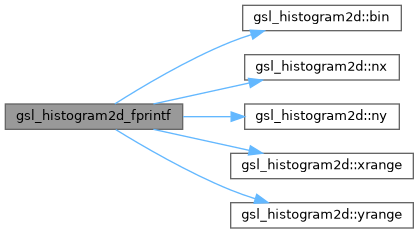

Here is the call graph for this function:

◆ gsl_histogram2d_free()

void gsl_histogram2d_free ( gsl_histogram2d * h )

inline

Free a 2D histogram.

Parameters

h	Input: histogram to release (can be null).

Definition at line 454 of file GSLHistogram.h.

Referenced by TEST_F(), TEST_F(), TEST_F(), and LaserProfile::~LaserProfile().

◆ gsl_histogram2d_get()

double gsl_histogram2d_get	(	const gsl_histogram2d *	h,
		size_t	i,
		size_t	j
	)

inline

Get the bin count for index \((i,j)\).

Parameters

h	Input: histogram.
i	Input: x bin index.
j	Input: y bin index.

Returns: Output: bin count.

Definition at line 419 of file GSLHistogram.h.

References gsl_histogram2d::get().

Referenced by TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

◆ gsl_histogram2d_increment()

void gsl_histogram2d_increment	(	gsl_histogram2d *	h,
		double	x,
		double	y
	)

inline

Increment the bin containing x,y by 1.

Parameters

h	Input/Output: histogram to update.
x	Input: x sample value.
y	Input: y sample value.

Definition at line 410 of file GSLHistogram.h.

References gsl_histogram2d::increment().

Referenced by TEST_F(), TEST_F(), and TEST_F().

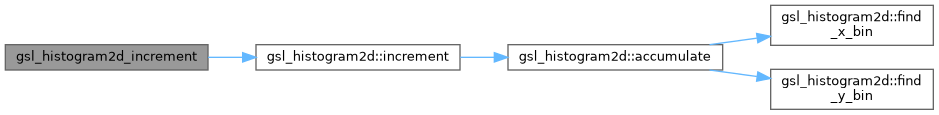

Here is the call graph for this function:

◆ gsl_histogram2d_nx()

size_t gsl_histogram2d_nx ( const gsl_histogram2d * h )

inline

Number of x bins.

Parameters

h	Input: histogram.

Returns: Output: x bin count.

Definition at line 399 of file GSLHistogram.h.

References gsl_histogram2d::nx().

Referenced by TEST_F().

Here is the call graph for this function:

◆ gsl_histogram2d_ny()

size_t gsl_histogram2d_ny ( const gsl_histogram2d * h )

inline

Number of y bins.

Parameters

h	Input: histogram.

Returns: Output: y bin count.

Definition at line 404 of file GSLHistogram.h.

References gsl_histogram2d::ny().

Referenced by TEST_F().

Here is the call graph for this function:

◆ gsl_histogram2d_pdf_alloc()

gsl_histogram2d_pdf * gsl_histogram2d_pdf_alloc	(	size_t	,
		size_t
	)

inline

Allocate a 2D histogram PDF.

Parameters

nx	Input: number of x bins (unused).
ny	Input: number of y bins (unused).

Returns: Output: PDF pointer.

Definition at line 460 of file GSLHistogram.h.

Referenced by LaserProfile::setupRNG().

◆ gsl_histogram2d_pdf_free()

void gsl_histogram2d_pdf_free ( gsl_histogram2d_pdf * p )

inline

Free a 2D histogram PDF.

Parameters

p	Input: PDF to release (can be null).

Definition at line 484 of file GSLHistogram.h.

Referenced by LaserProfile::~LaserProfile().

◆ gsl_histogram2d_pdf_init()

void gsl_histogram2d_pdf_init	(	gsl_histogram2d_pdf *	p,
		const gsl_histogram2d *	h
	)

inline

Initialize a PDF from a histogram.

Parameters

p	Input/Output: PDF to initialize.
h	Input: source histogram.

Definition at line 467 of file GSLHistogram.h.

References gsl_histogram2d_pdf::init().

Referenced by LaserProfile::setupRNG().

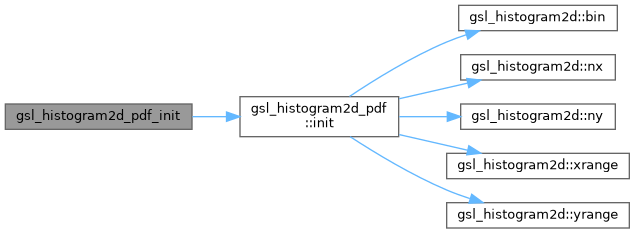

Here is the call graph for this function:

◆ gsl_histogram2d_pdf_sample()

void gsl_histogram2d_pdf_sample	(	const gsl_histogram2d_pdf *	p,
		double	u,
		double	v,
		double *	x,
		double *	y
	)

inline

Sample from the PDF using two uniform variates.

Parameters

p	Input: PDF.
u	Input: uniform variate in \([0,1]\).
v	Input: uniform variate in \([0,1]\).
x	Output: sampled x value.
y	Output: sampled y value.

Definition at line 477 of file GSLHistogram.h.

Referenced by LaserProfile::getXY().

◆ gsl_histogram2d_set_ranges()

int gsl_histogram2d_set_ranges	(	gsl_histogram2d *	h,
		const double *	xrange,
		size_t	nx,
		const double *	yrange,
		size_t	ny
	)

inline

Set explicit x/y bin edges.

Parameters

h	Input/Output: histogram to configure.
xrange	Input: x edges array ( \(n_x+1\)).
nx	Input: number of x edges.
yrange	Input: y edges array ( \(n_y+1\)).
ny	Input: number of y edges.

Returns: Output: 0 on success, -1 on error.

Definition at line 390 of file GSLHistogram.h.

References gsl_histogram2d::set_ranges().

Referenced by TEST_F().

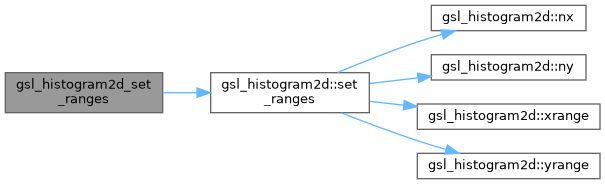

Here is the call graph for this function:

◆ gsl_histogram2d_set_ranges_uniform()

void gsl_histogram2d_set_ranges_uniform	(	gsl_histogram2d *	h,
		double	xmin,
		double	xmax,
		double	ymin,
		double	ymax
	)

inline

Set uniform x/y bin edges.

Parameters

h	Input/Output: histogram to configure.
xmin	Input: x lower bound (inclusive).
xmax	Input: x upper bound (exclusive).
ymin	Input: y lower bound (inclusive).
ymax	Input: y upper bound (exclusive).
