2D histogram with explicit x/y bin edges. More...

#include <GSLHistogram.h>

Collaboration diagram for gsl_histogram2d:

Public Member Functions
	gsl_histogram2d ()

void	set_ranges_uniform (double xmin, double xmax, double ymin, double ymax)
	Set uniform x/y bin edges over \([x_{\min},x_{\max}]\) and \([y_{\min},y_{\max}]\).

void	accumulate (double x, double y, double weight)
	Accumulate a weighted sample into the 2D histogram.

void	increment (double x, double y)
	Increment the bin containing `x`,`y` by 1.

void	set_ranges (const double xrange, size_t nx, const double yrange, size_t ny)
	Set explicit x/y bin edges.

double	get (size_t i, size_t j) const
	Get the bin count for index \((i,j)\).

size_t	nx () const
	Number of x bins.

size_t	ny () const
	Number of y bins.

const std::vector< double > &	xrange () const
	X-axis bin edges.

const std::vector< double > &	yrange () const
	Y-axis bin edges.

const std::vector< double > &	bin () const
	Bin count array.

Public Attributes
size_t	nx_

size_t	ny_

std::vector< double >	xrange_

std::vector< double >	yrange_

std::vector< double >	bin_

Private Member Functions
size_t	find_x_bin (double x) const

size_t	find_y_bin (double y) const

Detailed Description

2D histogram with explicit x/y bin edges.

Definition at line 176 of file GSLHistogram.h.

Constructor & Destructor Documentation

◆ gsl_histogram2d()

gsl_histogram2d::gsl_histogram2d ( )

inline

Definition at line 178 of file GSLHistogram.h.

Member Function Documentation

◆ accumulate()

void gsl_histogram2d::accumulate	(	double	x,
		double	y,
		double	weight
	)

inline

Accumulate a weighted sample into the 2D histogram.

Parameters

x	Input: x sample value.
y	Input: y sample value.
weight	Input: weight to add to the bin.

Definition at line 206 of file GSLHistogram.h.

References bin_, find_x_bin(), find_y_bin(), nx_, and ny_.

Referenced by gsl_histogram2d_accumulate(), and increment().

Here is the call graph for this function:

◆ bin()

const std::vector< double > & gsl_histogram2d::bin ( ) const

inline

Bin count array.

Returns: Output: reference to counts of size \(n_x n_y\).

Definition at line 257 of file GSLHistogram.h.

References bin_.

Referenced by gsl_histogram2d_fprintf(), and gsl_histogram2d_pdf::init().

◆ find_x_bin()

size_t gsl_histogram2d::find_x_bin ( double x ) const

inlineprivate

Definition at line 266 of file GSLHistogram.h.

References nx_, and xrange_.

Referenced by accumulate().

◆ find_y_bin()

size_t gsl_histogram2d::find_y_bin ( double y ) const

inlineprivate

Definition at line 274 of file GSLHistogram.h.

References ny_, and yrange_.

Referenced by accumulate().

◆ get()

double gsl_histogram2d::get	(	size_t	i,
		size_t	j
	)		const

inline

Get the bin count for index \((i,j)\).

Parameters

i	Input: x bin index.
j	Input: y bin index.

Returns: Output: bin count.

Definition at line 236 of file GSLHistogram.h.

References bin_, nx_, and ny_.

Referenced by gsl_histogram2d_get().

◆ increment()

void gsl_histogram2d::increment	(	double	x,
		double	y
	)

inline

Increment the bin containing x,y by 1.

Parameters

x	Input: x sample value.
y	Input: y sample value.

Definition at line 217 of file GSLHistogram.h.

References accumulate().

Referenced by gsl_histogram2d_increment().

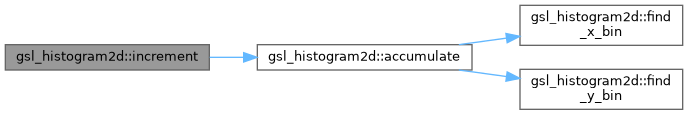

Here is the call graph for this function:

◆ nx()

size_t gsl_histogram2d::nx ( ) const

inline

Number of x bins.

Returns: Output: x bin count.

Definition at line 245 of file GSLHistogram.h.

References nx_.

Referenced by gsl_histogram2d_fprintf(), gsl_histogram2d_nx(), gsl_histogram2d_pdf::init(), set_ranges(), and LaserProfile::setupRNG().

◆ ny()

size_t gsl_histogram2d::ny ( ) const

inline

Number of y bins.

Returns: Output: y bin count.

Definition at line 248 of file GSLHistogram.h.

References ny_.

Referenced by gsl_histogram2d_fprintf(), gsl_histogram2d_ny(), gsl_histogram2d_pdf::init(), set_ranges(), and LaserProfile::setupRNG().

◆ set_ranges()

void gsl_histogram2d::set_ranges	(	const double *	xrange,
		size_t	nx,
		const double *	yrange,
		size_t	ny
	)

inline

Set explicit x/y bin edges.

Parameters

xrange	Input: x edges array ( \(n_x+1\)).
nx	Input: number of x edges.
yrange	Input: y edges array ( \(n_y+1\)).
ny	Input: number of y edges.

Definition at line 224 of file GSLHistogram.h.

References nx(), nx_, ny(), ny_, xrange(), xrange_, yrange(), and yrange_.

Referenced by gsl_histogram2d_set_ranges().

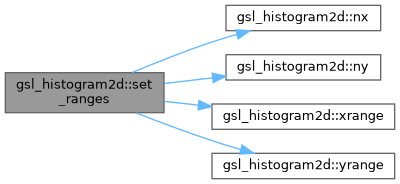

Here is the call graph for this function:

◆ set_ranges_uniform()

void gsl_histogram2d::set_ranges_uniform	(	double	xmin,
		double	xmax,
		double	ymin,
		double	ymax
	)

inline

Set uniform x/y bin edges over \([x_{\min},x_{\max}]\) and \([y_{\min},y_{\max}]\).

Parameters

xmin	Input: x lower bound (inclusive).
xmax	Input: x upper bound (exclusive).
ymin	Input: y lower bound (inclusive).
ymax	Input: y upper bound (exclusive).

Definition at line 186 of file GSLHistogram.h.

References nx_, ny_, xrange_, and yrange_.

Referenced by gsl_histogram2d_set_ranges_uniform().

◆ xrange()

const std::vector< double > & gsl_histogram2d::xrange ( ) const

inline

X-axis bin edges.

Returns: Output: reference to x edges.

Definition at line 251 of file GSLHistogram.h.

References xrange_.

Referenced by gsl_histogram2d_fprintf(), gsl_histogram2d_pdf::init(), and set_ranges().

◆ yrange()

const std::vector< double > & gsl_histogram2d::yrange ( ) const

inline

Y-axis bin edges.

Returns: Output: reference to y edges.

Definition at line 254 of file GSLHistogram.h.

References yrange_.

Referenced by gsl_histogram2d_fprintf(), gsl_histogram2d_pdf::init(), and set_ranges().

Member Data Documentation

◆ bin_

std::vector<double> gsl_histogram2d::bin_

Definition at line 263 of file GSLHistogram.h.

Referenced by accumulate(), bin(), get(), and gsl_histogram2d_alloc().

◆ nx_

size_t gsl_histogram2d::nx_

Definition at line 260 of file GSLHistogram.h.

Referenced by accumulate(), find_x_bin(), get(), gsl_histogram2d_alloc(), nx(), set_ranges(), and set_ranges_uniform().

◆ ny_

size_t gsl_histogram2d::ny_

Definition at line 260 of file GSLHistogram.h.

Referenced by accumulate(), find_y_bin(), get(), gsl_histogram2d_alloc(), ny(), set_ranges(), and set_ranges_uniform().

◆ xrange_

std::vector<double> gsl_histogram2d::xrange_

Definition at line 261 of file GSLHistogram.h.

Referenced by find_x_bin(), set_ranges(), set_ranges_uniform(), and xrange().

◆ yrange_

std::vector<double> gsl_histogram2d::yrange_

Definition at line 262 of file GSLHistogram.h.

Referenced by find_y_bin(), set_ranges(), set_ranges_uniform(), and yrange().

The documentation for this class was generated from the following file:

GSLHistogram.h
