SDDS::column Struct Reference

#include <column.hpp>

Collaboration diagram for SDDS::column:

Classes
struct	complainUnsupported

Public Types
enum	attributes {   NAME , SYMBOL , UNITS , DESCRIPTION ,   FORMAT_STRING , TYPE , FIELD_LENGTH }

Public Member Functions
bool	checkMandatories () const
bool	parse (const std::string &input, size_t &pos)

Public Attributes
unsigned int	order_m
std::optional< std::string >	name_m
std::optional< std::string >	units_m
std::optional< std::string >	description_m
std::optional< ast::datatype >	type_m
ast::columnData_t	values_m

Static Public Attributes
static unsigned int	count_m

Detailed Description

Definition at line 30 of file column.hpp.

Member Enumeration Documentation

attributes

enum SDDS::column::attributes

Enumerator
NAME
SYMBOL
UNITS
DESCRIPTION
FORMAT_STRING
TYPE
FIELD_LENGTH

Definition at line 31 of file column.hpp.

Member Function Documentation

checkMandatories()

bool SDDS::column::checkMandatories ( ) const

inline

Definition at line 41 of file column.hpp.

References name_m, and type_m.

parse()

bool SDDS::column::parse ( const std::string &  input, size_t &  pos  )

inline

Definition at line 65 of file column.hpp.

References SDDS::ast::CHARACTER, SDDS::ast::DOUBLE, SDDS::ast::FLOAT, SDDS::parser::ValueParser::getPosition(), SDDS::ast::LONG, SDDS::parser::ValueParser::parseChar(), SDDS::parser::ValueParser::parseDouble(), SDDS::parser::ValueParser::parseFloat(), SDDS::parser::ValueParser::parseLong(), SDDS::parser::ValueParser::parseQuotedString(), SDDS::parser::ValueParser::parseShort(), SDDS::ast::SHORT, and SDDS::ast::STRING.

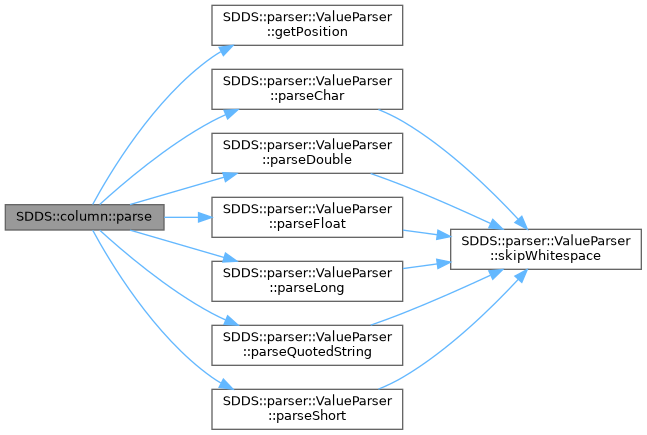

Here is the call graph for this function:

Member Data Documentation

count_m

unsigned int SDDS::column::count_m

static

Definition at line 39 of file column.hpp.

Referenced by SDDS::columnOrder< Iterator >::operator()().

description_m

std::optional<std::string> SDDS::column::description_m

Definition at line 36 of file column.hpp.

Referenced by SDDS::operator<<(), and SDDS::parser::SimpleParser::parseColumn().

name_m

std::optional<std::string> SDDS::column::name_m

Definition at line 34 of file column.hpp.

Referenced by checkMandatories(), SDDS::operator<<(), and SDDS::parser::SimpleParser::parseColumn().

order_m

unsigned int SDDS::column::order_m

Definition at line 33 of file column.hpp.

Referenced by SDDS::columnOrder< Iterator >::operator()(), and SDDS::operator<<().

type_m

std::optional<ast::datatype> SDDS::column::type_m

Definition at line 37 of file column.hpp.

Referenced by checkMandatories(), SDDS::operator<<(), and SDDS::parser::SimpleParser::parseColumn().

units_m

std::optional<std::string> SDDS::column::units_m

Definition at line 35 of file column.hpp.

Referenced by SDDS::operator<<(), and SDDS::parser::SimpleParser::parseColumn().

values_m

ast::columnData_t SDDS::column::values_m

Definition at line 38 of file column.hpp.

---

The documentation for this struct was generated from the following file:

• column.hpp
