#include <MMatrix.h>

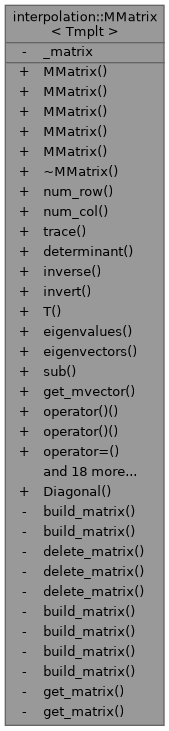

Collaboration diagram for interpolation::MMatrix< Tmplt >:

Public Member Functions
	MMatrix ()
	default constructor makes an empty MMatrix of size (0,0)

	MMatrix (const MMatrix< Tmplt > &mv)
	Copy constructor makes a deep copy of mv.

	MMatrix (size_t nrows, size_t ncols, Tmplt *data_beginning)
	Construct a matrix and fill with data from memory data_beginning.

	MMatrix (size_t nrows, size_t ncols, Tmplt value)
	Construct a matrix and fill with identical data.

	MMatrix (size_t nrows, size_t ncols)
	Construct a matrix and fill all fields with 0.

	~MMatrix ()
	destructor

size_t	num_row () const
	returns number of rows in the matrix

size_t	num_col () const
	returns number of columns in the matrix

Tmplt	trace () const
	returns sum of terms with row == column, even if matrix is not square

Tmplt	determinant () const
	returns matrix determinant; throws an exception if matrix is not square

MMatrix< Tmplt >	inverse () const
	returns matrix inverse leaving this matrix unchanged

void	invert ()
	turns this matrix into its inverse

MMatrix< Tmplt >	T () const
	returns matrix transpose T (such that M(i,j) = T(j,i))

MVector< m_complex >	eigenvalues () const
	returns a vector of eigenvalues. Throws an exception if either this matrix is not square or the eigenvalues could not be found (e.g. singular matrix or whatever).

std::pair< MVector< m_complex >, MMatrix< m_complex > >	eigenvectors () const

MMatrix< Tmplt >	sub (size_t min_row, size_t max_row, size_t min_col, size_t max_col) const

MVector< Tmplt >	get_mvector (size_t column) const

const Tmplt &	operator() (size_t row, size_t column) const

Tmplt &	operator() (size_t row, size_t column)

MMatrix< Tmplt > &	operator= (const MMatrix< Tmplt > &mm)

MMatrix< double > &	operator= (const MMatrix< double > &mm)

MMatrix< m_complex > &	operator= (const MMatrix< m_complex > &mm)

	MMatrix (const MMatrix< double > &mm)

	MMatrix (const MMatrix< m_complex > &mm)

m_complex	determinant () const

double	determinant () const

void	invert ()

void	invert ()

MMatrix< double >	T () const

MMatrix< m_complex >	T () const

size_t	num_row () const

size_t	num_row () const

size_t	num_col () const

size_t	num_col () const

const double inline &	operator() (size_t i, size_t j) const

const m_complex inline &	operator() (size_t i, size_t j) const

double inline &	operator() (size_t i, size_t j)

m_complex inline &	operator() (size_t i, size_t j)

Static Public Member Functions
static MMatrix< Tmplt >	Diagonal (size_t i, Tmplt diag_value, Tmplt off_diag_value)
	Construct a square matrix filling on and off diagonal values.

Private Member Functions
void	build_matrix (size_t i, size_t j)

void	build_matrix (size_t i, size_t j, Tmplt *temp)

void	delete_matrix ()

void	delete_matrix ()

void	delete_matrix ()

void	build_matrix (size_t i, size_t j)

void	build_matrix (size_t i, size_t j)

void	build_matrix (size_t i, size_t j, double *data)

void	build_matrix (size_t i, size_t j, m_complex *data)

Static Private Member Functions
static gsl_matrix *	get_matrix (const MMatrix< double > &m)

static gsl_matrix_complex *	get_matrix (const MMatrix< m_complex > &m)

Private Attributes
void *	_matrix

Friends
class	MMatrix< double >

MMatrix< m_complex > &	operator*= (MMatrix< m_complex > &m, m_complex c)

MMatrix< double > &	operator*= (MMatrix< double > &m, double d)

MMatrix< m_complex > &	operator*= (MMatrix< m_complex > &m1, MMatrix< m_complex > m2)

MMatrix< double > &	operator*= (MMatrix< double > &m1, MMatrix< double > m2)

MVector< m_complex >	operator* (MMatrix< m_complex > m, MVector< m_complex > v)

MVector< double >	operator* (MMatrix< double > m, MVector< double > v)

MMatrix< m_complex > &	operator+= (MMatrix< m_complex > &m1, const MMatrix< m_complex > &m2)

MMatrix< double > &	operator+= (MMatrix< double > &m1, const MMatrix< double > &m2)

template<class Tmplt2 >
MMatrix< Tmplt2 >	operator+ (MMatrix< Tmplt2 > m1, const MMatrix< Tmplt2 > m2)

Detailed Description

template<class Tmplt>
class interpolation::MMatrix< Tmplt >

C++ wrapper for GSL matrix MMatrix class handles matrix algebra, maths operators and some higher level calculation like matrix inversion, eigenvector analysis etc

Use template to define two types:
(i) MMatrix<double> is a matrix of doubles
(ii) MMatrix<m_complex> is a matrix of m_complex
Maths operators and a few others are defined, but maths operators don't allow operations between types - i.e. you can't multiply a complex matrix by a double matrix. Instead use interface methods like real() and complex() to convert between types first

Definition at line 62 of file MMatrix.h.

Constructor & Destructor Documentation

◆ MMatrix() [1/7]

template<class Tmplt >

template interpolation::MMatrix< Tmplt >::MMatrix ( )

default constructor makes an empty MMatrix of size (0,0)

Definition at line 41 of file MMatrix.cpp.

◆ MMatrix() [2/7]

template<class Tmplt >

interpolation::MMatrix< Tmplt >::MMatrix ( const MMatrix< Tmplt > & mv )

Copy constructor makes a deep copy of mv.

◆ MMatrix() [3/7]

template<class Tmplt >

interpolation::MMatrix< Tmplt >::MMatrix	(	size_t	nrows,
		size_t	ncols,
		Tmplt *	data_beginning
	)

Construct a matrix and fill with data from memory data_beginning.

Parameters

nrows	number of rows
ncols	number of columns
data_beginning	pointer to the start of a memory block of size nrows*ncols with data laid out <row> <row> <row>. Note MMatrix does not take ownership of memory in data_beginning.

Definition at line 119 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::build_matrix().

Here is the call graph for this function:

◆ MMatrix() [4/7]

template<class Tmplt >

interpolation::MMatrix< Tmplt >::MMatrix	(	size_t	nrows,
		size_t	ncols,
		Tmplt	value
	)

Construct a matrix and fill with identical data.

Parameters

nrows	number of rows
ncols	number of columns
value	variable to be copied into all items in the matrix

Definition at line 124 of file MMatrix.cpp.

◆ MMatrix() [5/7]

template<class Tmplt >

interpolation::MMatrix< Tmplt >::MMatrix	(	size_t	nrows,
		size_t	ncols
	)

Construct a matrix and fill all fields with 0.

Parameters

nrows	number of rows
ncols	number of columns

Definition at line 132 of file MMatrix.cpp.

◆ ~MMatrix()

template<class Tmplt >

template interpolation::MMatrix< Tmplt >::~MMatrix ( )

destructor

Definition at line 150 of file MMatrix.cpp.

◆ MMatrix() [6/7]

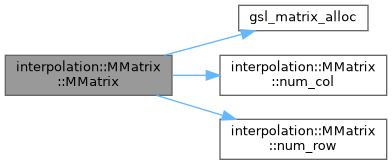

interpolation::MMatrix< double >::MMatrix ( const MMatrix< double > & mm )

Definition at line 102 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::_matrix, gsl_matrix_alloc(), interpolation::MMatrix< Tmplt >::num_col(), and interpolation::MMatrix< Tmplt >::num_row().

Here is the call graph for this function:

◆ MMatrix() [7/7]

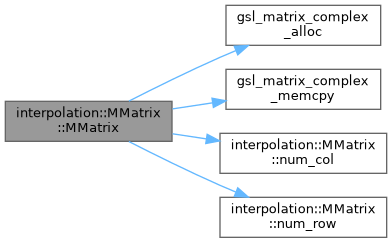

interpolation::MMatrix< m_complex >::MMatrix ( const MMatrix< m_complex > & mm )

Definition at line 110 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::_matrix, gsl_matrix_complex_alloc(), gsl_matrix_complex_memcpy(), interpolation::MMatrix< Tmplt >::num_col(), and interpolation::MMatrix< Tmplt >::num_row().

Here is the call graph for this function:

Member Function Documentation

◆ build_matrix() [1/6]

void interpolation::MMatrix< double >::build_matrix	(	size_t	i,
		size_t	j
	)

private

Definition at line 157 of file MMatrix.cpp.

References gsl_matrix_alloc().

Here is the call graph for this function:

◆ build_matrix() [2/6]

void interpolation::MMatrix< m_complex >::build_matrix	(	size_t	i,
		size_t	j
	)

private

Definition at line 162 of file MMatrix.cpp.

References gsl_matrix_complex_alloc().

Here is the call graph for this function:

◆ build_matrix() [3/6]

template<class Tmplt >

void interpolation::MMatrix< Tmplt >::build_matrix	(	size_t	i,
		size_t	j
	)

private

Referenced by interpolation::MMatrix< Tmplt >::MMatrix().

◆ build_matrix() [4/6]

void interpolation::MMatrix< double >::build_matrix	(	size_t	i,
		size_t	j,
		double *	data
	)

private

Definition at line 167 of file MMatrix.cpp.

◆ build_matrix() [5/6]

void interpolation::MMatrix< m_complex >::build_matrix	(	size_t	i,
		size_t	j,
		m_complex *	data
	)

private

Definition at line 175 of file MMatrix.cpp.

References gsl_matrix_complex_alloc().

Here is the call graph for this function:

◆ build_matrix() [6/6]

template<class Tmplt >

void interpolation::MMatrix< Tmplt >::build_matrix	(	size_t	i,
		size_t	j,
		Tmplt *	temp
	)

private

◆ delete_matrix() [1/3]

void interpolation::MMatrix< double >::delete_matrix ( )

private

Definition at line 63 of file MMatrix.cpp.

References gsl_matrix_free().

Here is the call graph for this function:

◆ delete_matrix() [2/3]

void interpolation::MMatrix< m_complex >::delete_matrix ( )

private

Definition at line 69 of file MMatrix.cpp.

References gsl_matrix_complex_free().

Here is the call graph for this function:

◆ delete_matrix() [3/3]

template<class Tmplt >

void interpolation::MMatrix< Tmplt >::delete_matrix ( )

private

◆ determinant() [1/3]

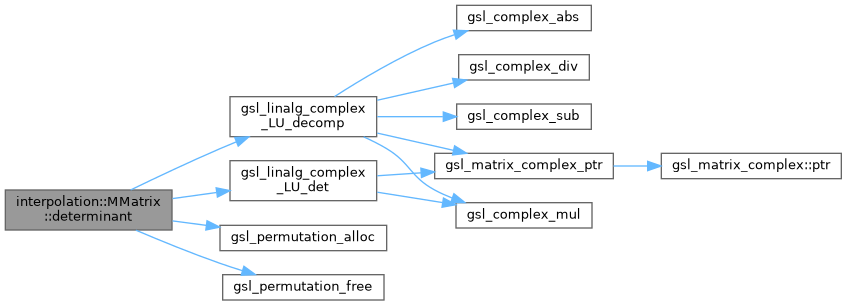

m_complex interpolation::MMatrix< m_complex >::determinant ( ) const

Definition at line 185 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::_matrix, gsl_linalg_complex_LU_decomp(), gsl_linalg_complex_LU_det(), gsl_permutation_alloc(), and gsl_permutation_free().

Here is the call graph for this function:

◆ determinant() [2/3]

double interpolation::MMatrix< double >::determinant ( ) const

Definition at line 199 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::_matrix, gsl_linalg_LU_decomp(), gsl_linalg_LU_det(), gsl_permutation_alloc(), and gsl_permutation_free().

Here is the call graph for this function:

◆ determinant() [3/3]

template<class Tmplt >

Tmplt interpolation::MMatrix< Tmplt >::determinant ( ) const

returns matrix determinant; throws an exception if matrix is not square

◆ Diagonal()

template<class Tmplt >

MMatrix< Tmplt > interpolation::MMatrix< Tmplt >::Diagonal	(	size_t	i,
		Tmplt	diag_value,
		Tmplt	off_diag_value
	)

static

Construct a square matrix filling on and off diagonal values.

Parameters

i	number of rows and number of columns
diag_value	fill values with row == column (i.e. on the diagonal) with this value
off_diag_value	fill values with row != column (i.e. off the diagonal) with this value

Definition at line 137 of file MMatrix.cpp.

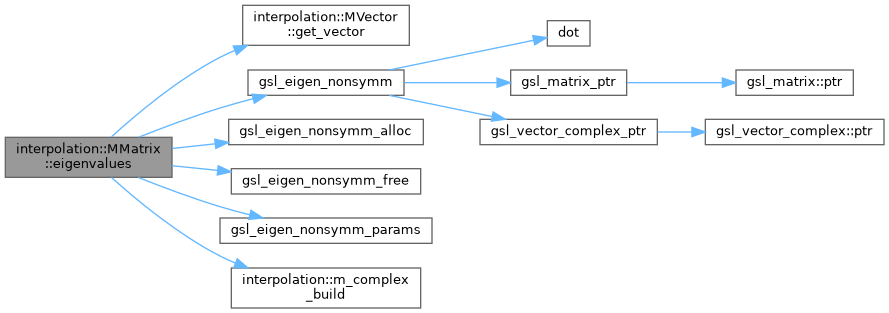

◆ eigenvalues()

template<class Tmplt >

template MVector< m_complex > interpolation::MMatrix< Tmplt >::eigenvalues ( ) const

returns a vector of eigenvalues. Throws an exception if either this matrix is not square or the eigenvalues could not be found (e.g. singular matrix or whatever).

Definition at line 296 of file MMatrix.cpp.

References interpolation::MVector< Tmplt >::get_vector(), gsl_eigen_nonsymm(), gsl_eigen_nonsymm_alloc(), gsl_eigen_nonsymm_free(), gsl_eigen_nonsymm_params(), and interpolation::m_complex_build().

Here is the call graph for this function:

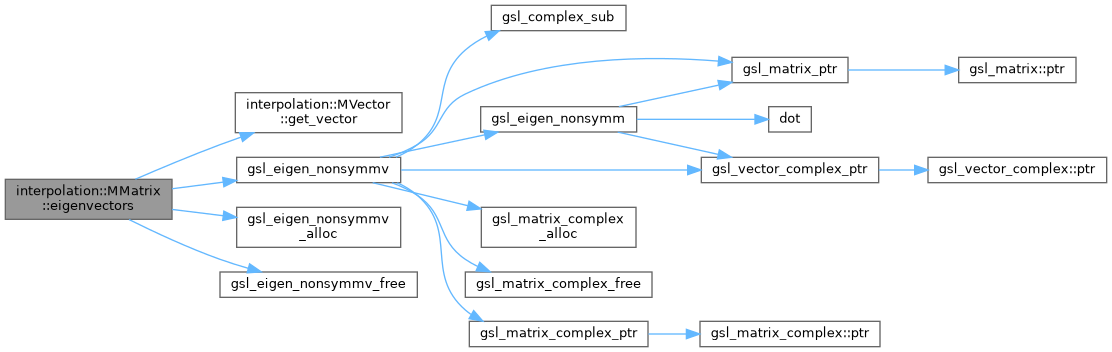

◆ eigenvectors()

template<class Tmplt >

template std::pair< MVector< m_complex >, MMatrix< m_complex > > interpolation::MMatrix< Tmplt >::eigenvectors ( ) const

Definition at line 315 of file MMatrix.cpp.

References interpolation::MVector< Tmplt >::get_vector(), gsl_eigen_nonsymmv(), gsl_eigen_nonsymmv_alloc(), and gsl_eigen_nonsymmv_free().

Here is the call graph for this function:

◆ get_matrix() [1/2]

template<class Tmplt >

gsl_matrix inline * interpolation::MMatrix< Tmplt >::get_matrix ( const MMatrix< double > & m )

staticprivate

Definition at line 396 of file MMatrix.h.

References interpolation::MMatrix< Tmplt >::_matrix.

◆ get_matrix() [2/2]

template<class Tmplt >

gsl_matrix_complex inline * interpolation::MMatrix< Tmplt >::get_matrix ( const MMatrix< m_complex > & m )

staticprivate

Definition at line 404 of file MMatrix.h.

References interpolation::MMatrix< Tmplt >::_matrix.

◆ get_mvector()

template<class Tmplt >

template MVector< m_complex > interpolation::MMatrix< Tmplt >::get_mvector ( size_t column ) const

Definition at line 421 of file MMatrix.cpp.

◆ inverse()

template<class Tmplt >

MMatrix< Tmplt > interpolation::MMatrix< Tmplt >::inverse ( ) const

returns matrix inverse leaving this matrix unchanged

Definition at line 213 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::invert().

Here is the call graph for this function:

◆ invert() [1/3]

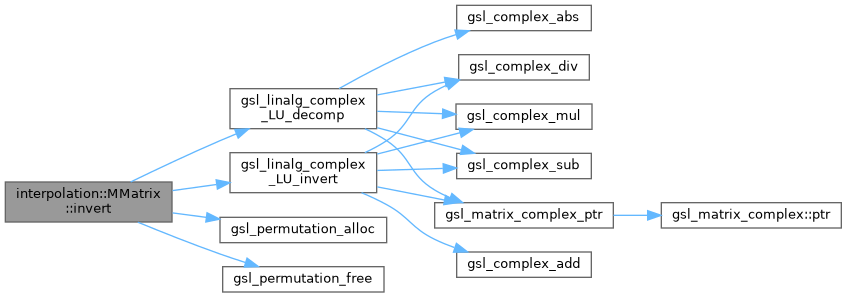

void interpolation::MMatrix< m_complex >::invert ( )

Definition at line 220 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::_matrix, gsl_linalg_complex_LU_decomp(), gsl_linalg_complex_LU_invert(), gsl_permutation_alloc(), and gsl_permutation_free().

Here is the call graph for this function:

◆ invert() [2/3]

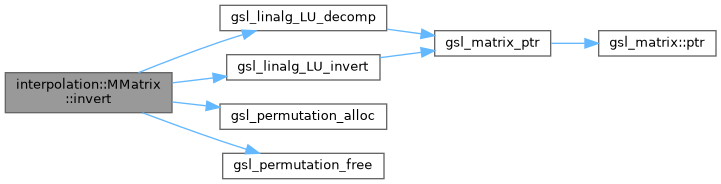

void interpolation::MMatrix< double >::invert ( )

Definition at line 239 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::_matrix, gsl_linalg_LU_decomp(), gsl_linalg_LU_invert(), gsl_permutation_alloc(), and gsl_permutation_free().

Here is the call graph for this function:

◆ invert() [3/3]

template<class Tmplt >

void interpolation::MMatrix< Tmplt >::invert ( )

turns this matrix into its inverse

Referenced by interpolation::SolveFactory::BuildHInvMatrix(), and interpolation::MMatrix< Tmplt >::inverse().

◆ num_col() [1/3]

template<class Tmplt >

size_t interpolation::MMatrix< Tmplt >::num_col ( ) const

returns number of columns in the matrix

◆ num_col() [2/3]

size_t interpolation::MMatrix< double >::num_col ( ) const

inline

Definition at line 263 of file MMatrix.h.

◆ num_col() [3/3]

size_t interpolation::MMatrix< m_complex >::num_col ( ) const

inline

Definition at line 269 of file MMatrix.h.

◆ num_row() [1/3]

template<class Tmplt >

size_t interpolation::MMatrix< Tmplt >::num_row ( ) const

returns number of rows in the matrix

Referenced by interpolation::complex(), interpolation::complex(), interpolation::SquarePolynomialVector::Deriv(), interpolation::im(), interpolation::MMatrix< Tmplt >::MMatrix(), interpolation::MMatrix< Tmplt >::MMatrix(), interpolation::operator-(), interpolation::operator<<(), interpolation::operator==(), interpolation::re(), interpolation::SquarePolynomialVector::SetCoefficients(), and interpolation::SquarePolynomialVector::ValueDimension().

◆ num_row() [2/3]

size_t interpolation::MMatrix< double >::num_row ( ) const

inline

Definition at line 253 of file MMatrix.h.

◆ num_row() [3/3]

size_t interpolation::MMatrix< m_complex >::num_row ( ) const

inline

Definition at line 258 of file MMatrix.h.

◆ operator()() [1/6]

double inline & interpolation::MMatrix< double >::operator()	(	size_t	i,
		size_t	j
	)

Definition at line 368 of file MMatrix.h.

References gsl_matrix_ptr().

Here is the call graph for this function:

◆ operator()() [2/6]

m_complex inline & interpolation::MMatrix< m_complex >::operator()	(	size_t	i,
		size_t	j
	)

Definition at line 372 of file MMatrix.h.

References gsl_matrix_complex_ptr().

Here is the call graph for this function:

◆ operator()() [3/6]

const double inline & interpolation::MMatrix< double >::operator()	(	size_t	i,
		size_t	j
	)		const

Definition at line 359 of file MMatrix.h.

References gsl_matrix_ptr().

Here is the call graph for this function:

◆ operator()() [4/6]

const m_complex inline & interpolation::MMatrix< m_complex >::operator()	(	size_t	i,
		size_t	j
	)		const

Definition at line 363 of file MMatrix.h.

References gsl_matrix_complex_ptr().

Here is the call graph for this function:

◆ operator()() [5/6]

template<class Tmplt >

Tmplt & interpolation::MMatrix< Tmplt >::operator()	(	size_t	row,
		size_t	column
	)

◆ operator()() [6/6]

template<class Tmplt >

const Tmplt & interpolation::MMatrix< Tmplt >::operator()	(	size_t	row,
		size_t	column
	)		const

◆ operator=() [1/3]

MMatrix< double > & interpolation::MMatrix< double >::operator= ( const MMatrix< double > & mm )

Definition at line 75 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::_matrix.

◆ operator=() [2/3]

MMatrix< m_complex > & interpolation::MMatrix< m_complex >::operator= ( const MMatrix< m_complex > & mm )

Definition at line 88 of file MMatrix.cpp.

◆ operator=() [3/3]

template<class Tmplt >

MMatrix< Tmplt > & interpolation::MMatrix< Tmplt >::operator= ( const MMatrix< Tmplt > & mm )

◆ sub()

template<class Tmplt >

template MMatrix< m_complex > interpolation::MMatrix< Tmplt >::sub	(	size_t	min_row,
		size_t	max_row,
		size_t	min_col,
		size_t	max_col
	)		const

Definition at line 272 of file MMatrix.cpp.

◆ T() [1/3]

MMatrix< double > interpolation::MMatrix< double >::T ( ) const

Definition at line 257 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::_matrix, and gsl_matrix_transpose_memcpy().

Here is the call graph for this function:

◆ T() [2/3]

MMatrix< m_complex > interpolation::MMatrix< m_complex >::T ( ) const

Definition at line 264 of file MMatrix.cpp.

References interpolation::MMatrix< Tmplt >::_matrix, and gsl_matrix_complex_transpose_memcpy().

Here is the call graph for this function:

◆ T() [3/3]

template<class Tmplt >

MMatrix< Tmplt > interpolation::MMatrix< Tmplt >::T ( ) const

returns matrix transpose T (such that M(i,j) = T(j,i))

◆ trace()

template<class Tmplt >

template m_complex interpolation::MMatrix< Tmplt >::trace ( ) const

returns sum of terms with row == column, even if matrix is not square

Definition at line 286 of file MMatrix.cpp.

Friends And Related Symbol Documentation

◆ MMatrix< double >

template<class Tmplt >

friend class MMatrix< double >

friend

Definition at line 175 of file MMatrix.h.

◆ operator* [1/2]

template<class Tmplt >

MVector< double > operator*	(	MMatrix< double >	m,
		MVector< double >	v
	)

friend

Definition at line 293 of file MMatrix.h.

◆ operator* [2/2]

template<class Tmplt >

MVector< m_complex > operator*	(	MMatrix< m_complex >	m,
		MVector< m_complex >	v
	)

friend

Definition at line 284 of file MMatrix.h.

◆ operator*= [1/4]

template<class Tmplt >

MMatrix< double > & operator*=	(	MMatrix< double > &	m,
		double	d
	)

friend

Definition at line 279 of file MMatrix.h.

◆ operator*= [2/4]

template<class Tmplt >

MMatrix< double > & operator*=	(	MMatrix< double > &	m1,
		MMatrix< double >	m2
	)

friend

Definition at line 337 of file MMatrix.cpp.

◆ operator*= [3/4]

template<class Tmplt >

MMatrix< m_complex > & operator*=	(	MMatrix< m_complex > &	m,
		m_complex	c
	)

friend

Definition at line 274 of file MMatrix.h.

◆ operator*= [4/4]

template<class Tmplt >

MMatrix< m_complex > & operator*=	(	MMatrix< m_complex > &	m1,
		MMatrix< m_complex >	m2
	)

friend

Definition at line 346 of file MMatrix.cpp.

◆ operator+

template<class Tmplt >

template<class Tmplt2 >

MMatrix< Tmplt2 > operator+	(	MMatrix< Tmplt2 >	m1,
		const MMatrix< Tmplt2 >	m2
	)

friend

◆ operator+= [1/2]

template<class Tmplt >

MMatrix< double > & operator+=	(	MMatrix< double > &	m1,
		const MMatrix< double > &	m2
	)

friend

Definition at line 306 of file MMatrix.h.

◆ operator+= [2/2]

template<class Tmplt >

MMatrix< m_complex > & operator+=	(	MMatrix< m_complex > &	m1,
		const MMatrix< m_complex > &	m2
	)

friend

Definition at line 301 of file MMatrix.h.

Member Data Documentation

◆ _matrix

template<class Tmplt >

void* interpolation::MMatrix< Tmplt >::_matrix

private

Definition at line 192 of file MMatrix.h.

Referenced by interpolation::MMatrix< Tmplt >::determinant(), interpolation::MMatrix< Tmplt >::get_matrix(), interpolation::MMatrix< Tmplt >::get_matrix(), interpolation::MMatrix< Tmplt >::invert(), interpolation::MMatrix< Tmplt >::MMatrix(), interpolation::MMatrix< Tmplt >::MMatrix(), interpolation::MMatrix< double >::MMatrix(), interpolation::MMatrix< Tmplt >::operator=(), and interpolation::MMatrix< Tmplt >::T().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ MMatrix() [1/7]

◆ MMatrix() [2/7]

◆ MMatrix() [3/7]

◆ MMatrix() [4/7]

◆ MMatrix() [5/7]

◆ ~MMatrix()

◆ MMatrix() [6/7]

◆ MMatrix() [7/7]

Member Function Documentation

◆ build_matrix() [1/6]

◆ build_matrix() [2/6]

◆ build_matrix() [3/6]

◆ build_matrix() [4/6]

◆ build_matrix() [5/6]

◆ build_matrix() [6/6]

◆ delete_matrix() [1/3]

◆ delete_matrix() [2/3]

◆ delete_matrix() [3/3]

◆ determinant() [1/3]

◆ determinant() [2/3]

◆ determinant() [3/3]

◆ Diagonal()

◆ eigenvalues()

◆ eigenvectors()

◆ get_matrix() [1/2]

◆ get_matrix() [2/2]

◆ get_mvector()

◆ inverse()

◆ invert() [1/3]

◆ invert() [2/3]

◆ invert() [3/3]

◆ num_col() [1/3]

◆ num_col() [2/3]

◆ num_col() [3/3]

◆ num_row() [1/3]

◆ num_row() [2/3]

◆ num_row() [3/3]

◆ operator()() [1/6]

◆ operator()() [2/6]

◆ operator()() [3/6]

◆ operator()() [4/6]

◆ operator()() [5/6]

◆ operator()() [6/6]

◆ operator=() [1/3]

◆ operator=() [2/3]

◆ operator=() [3/3]

◆ sub()

◆ T() [1/3]

◆ T() [2/3]

◆ T() [3/3]

◆ trace()

Friends And Related Symbol Documentation

◆ MMatrix< double >

◆ operator* [1/2]

◆ operator* [2/2]

◆ operator*= [1/4]

◆ operator*= [2/4]

◆ operator*= [3/4]

◆ operator*= [4/4]

◆ operator+

◆ operator+= [1/2]

◆ operator+= [2/2]

Member Data Documentation

◆ _matrix
