#include <AsymmetricEnge.h>

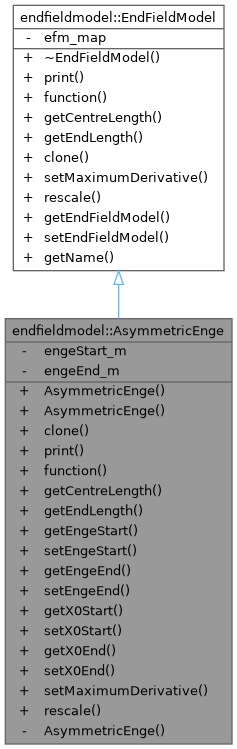

Inheritance diagram for endfieldmodel::AsymmetricEnge:

Collaboration diagram for endfieldmodel::AsymmetricEnge:

Public Member Functions
	AsymmetricEnge ()

	AsymmetricEnge (const std::vector< double > aStart, double x0Start, double lambdaStart, const std::vector< double > aEnd, double x0End, double lambdaEnd)

AsymmetricEnge *	clone () const

std::ostream &	print (std::ostream &out) const

double	function (double x, int n) const

double	getCentreLength () const

double	getEndLength () const

std::shared_ptr< Enge >	getEngeStart () const

void	setEngeStart (std::shared_ptr< Enge > eStart)

std::shared_ptr< Enge >	getEngeEnd () const

void	setEngeEnd (std::shared_ptr< Enge > eEnd)

double	getX0Start () const

void	setX0Start (double x0)

double	getX0End () const

void	setX0End (double x0)

void	setMaximumDerivative (size_t n)

void	rescale (double scaleFactor)

Static Public Member Functions
static std::shared_ptr< EndFieldModel >	getEndFieldModel (std::string name)

static void	setEndFieldModel (std::string name, std::shared_ptr< EndFieldModel > efm)

static std::string	getName (std::shared_ptr< EndFieldModel > efm)

Private Member Functions
	AsymmetricEnge (const AsymmetricEnge &rhs)

Private Attributes
std::shared_ptr< Enge >	engeStart_m

std::shared_ptr< Enge >	engeEnd_m

Static Private Attributes
static std::map< std::string, std::shared_ptr< EndFieldModel > >	efm_map

Detailed Description

Calculate the AsymmetricEnge function (e.g. for multipole end fields).

AsymmetricEnge function is given by
\(T(x) = (tanh( (x+x0)/\lambda )-tanh( (x-x0)/\lambda ))/2\)
The derivatives of tanh(x) are given by
\(d^p tanh(x)/dx^p = \sum_q I_{pq} tanh^{q}(x)\)
where \(I_{pq}\) are calculated using some recursion relation. Using these expressions, one can calculate a recursion relation for higher order derivatives and hence calculate analytical derivatives at arbitrary order.

Definition at line 50 of file AsymmetricEnge.h.

Constructor & Destructor Documentation

◆ AsymmetricEnge() [1/3]

endfieldmodel::AsymmetricEnge::AsymmetricEnge ( )

Default constructor

Definition at line 5 of file AsymmetricEnge.cpp.

Referenced by clone().

◆ AsymmetricEnge() [2/3]

endfieldmodel::AsymmetricEnge::AsymmetricEnge	(	const std::vector< double >	aStart,
		double	x0Start,
		double	lambdaStart,
		const std::vector< double >	aEnd,
		double	x0End,
		double	lambdaEnd
	)

Constructor taking enge parameters

Definition at line 10 of file AsymmetricEnge.cpp.

References engeEnd_m, and engeStart_m.

◆ AsymmetricEnge() [3/3]

endfieldmodel::AsymmetricEnge::AsymmetricEnge ( const AsymmetricEnge & rhs )

private

Definition at line 7 of file AsymmetricEnge.cpp.

Member Function Documentation

◆ clone()

AsymmetricEnge * endfieldmodel::AsymmetricEnge::clone ( ) const

inlinevirtual

Inheritable copy constructor. We take a deep copy of the engeStart and engeEnd

Implements endfieldmodel::EndFieldModel.

Definition at line 141 of file AsymmetricEnge.h.

References AsymmetricEnge().

Here is the call graph for this function:

◆ function()

double endfieldmodel::AsymmetricEnge::function	(	double	x,
		int	n
	)		const

inlinevirtual

Return the value of enge at some point x

Implements endfieldmodel::EndFieldModel.

Definition at line 125 of file AsymmetricEnge.h.

References engeEnd_m, and engeStart_m.

◆ getCentreLength()

double endfieldmodel::AsymmetricEnge::getCentreLength ( ) const

inlinevirtual

Centre length is the average of x0End and x0Start

Implements endfieldmodel::EndFieldModel.

Definition at line 145 of file AsymmetricEnge.h.

References engeEnd_m, and engeStart_m.

◆ getEndFieldModel()

std::shared_ptr< EndFieldModel > endfieldmodel::EndFieldModel::getEndFieldModel ( std::string name )

staticinherited

Look up the EndFieldModel that has a given name

Parameters

name	name of the EndFieldModel

Returns: shared_ptr to the appropriate EndFieldModel.

Exceptions

GeneralOpalException if name is not recognised

Definition at line 63 of file EndFieldModel.cpp.

References endfieldmodel::EndFieldModel::efm_map.

Referenced by ScalingFFAMagnet::setupEndField().

◆ getEndLength()

double endfieldmodel::AsymmetricEnge::getEndLength ( ) const

inlinevirtual

End length is the average of lambdaEnd and lambdaStart

Implements endfieldmodel::EndFieldModel.

Definition at line 149 of file AsymmetricEnge.h.

References engeEnd_m, and engeStart_m.

◆ getEngeEnd()

std::shared_ptr< Enge > endfieldmodel::AsymmetricEnge::getEngeEnd ( ) const

inline

Get the enge function for the magnet exit

Definition at line 113 of file AsymmetricEnge.h.

References engeEnd_m.

◆ getEngeStart()

std::shared_ptr< Enge > endfieldmodel::AsymmetricEnge::getEngeStart ( ) const

inline

Get the enge function for the magnet entrance

Definition at line 112 of file AsymmetricEnge.h.

References engeStart_m.

◆ getName()

std::string endfieldmodel::EndFieldModel::getName ( std::shared_ptr< EndFieldModel > efm )

staticinherited

Get the name corresponding to a given EndFieldModel

Parameters

efm	EndFieldModel to lookup

Returns: name corresponding to the EndFieldModel. Note that this just does a dumb loop over the stored map values; so O(N).

Exceptions

GeneralOpalException if efm is not recognised

Definition at line 77 of file EndFieldModel.cpp.

References endfieldmodel::EndFieldModel::efm_map.

◆ getX0End()

double endfieldmodel::AsymmetricEnge::getX0End ( ) const

inline

Return x0End, offset of the end Enge

Definition at line 119 of file AsymmetricEnge.h.

References engeEnd_m.

◆ getX0Start()

double endfieldmodel::AsymmetricEnge::getX0Start ( ) const

inline

Return x0Start, offset of the start Enge

Definition at line 117 of file AsymmetricEnge.h.

References engeStart_m.

◆ print()

std::ostream & endfieldmodel::AsymmetricEnge::print ( std::ostream & out ) const

virtual

Print a human-readable description of the end field model

Implements endfieldmodel::EndFieldModel.

Definition at line 28 of file AsymmetricEnge.cpp.

References engeStart_m.

◆ rescale()

void endfieldmodel::AsymmetricEnge::rescale ( double scaleFactor )

virtual

Rescale the Enge to a new length scale

Implements endfieldmodel::EndFieldModel.

Definition at line 23 of file AsymmetricEnge.cpp.

References engeEnd_m, and engeStart_m.

◆ setEndFieldModel()

void endfieldmodel::EndFieldModel::setEndFieldModel	(	std::string	name,
		std::shared_ptr< EndFieldModel >	efm
	)

staticinherited

Add a value to the lookup table

Parameters

name	name of the EndFieldModel. If name already exists in the map, it is overwritten with the new value.
efm	shared_ptr to the EndFieldModel.

Definition at line 73 of file EndFieldModel.cpp.

References endfieldmodel::EndFieldModel::efm_map.

◆ setEngeEnd()

void endfieldmodel::AsymmetricEnge::setEngeEnd ( std::shared_ptr< Enge > eEnd )

inline

Set the enge function for the magnet exit

Definition at line 115 of file AsymmetricEnge.h.

References engeEnd_m.

◆ setEngeStart()

void endfieldmodel::AsymmetricEnge::setEngeStart ( std::shared_ptr< Enge > eStart )

inline

Set the enge function for the magnet entrance

Definition at line 114 of file AsymmetricEnge.h.

References engeStart_m.

◆ setMaximumDerivative()

void endfieldmodel::AsymmetricEnge::setMaximumDerivative ( size_t n )

inlinevirtual

Setup the Enge recursion for derivatives

Implements endfieldmodel::EndFieldModel.

Definition at line 143 of file AsymmetricEnge.h.

References endfieldmodel::Enge::setEngeDiffIndices().

Here is the call graph for this function:

◆ setX0End()

void endfieldmodel::AsymmetricEnge::setX0End ( double x0 )

inline

Set x0End, offset of the end Enge

Definition at line 123 of file AsymmetricEnge.h.

References engeEnd_m.

◆ setX0Start()

void endfieldmodel::AsymmetricEnge::setX0Start ( double x0 )

inline

Set x0Start, offset of the start Enge

Definition at line 121 of file AsymmetricEnge.h.

References engeStart_m.

Member Data Documentation

◆ efm_map

std::map< std::string, std::shared_ptr< EndFieldModel > > endfieldmodel::EndFieldModel::efm_map

staticprivateinherited

Definition at line 108 of file EndFieldModel.h.

Referenced by endfieldmodel::EndFieldModel::getEndFieldModel(), endfieldmodel::EndFieldModel::getName(), and endfieldmodel::EndFieldModel::setEndFieldModel().

◆ engeEnd_m

std::shared_ptr<Enge> endfieldmodel::AsymmetricEnge::engeEnd_m

private

Definition at line 109 of file AsymmetricEnge.h.

Referenced by AsymmetricEnge(), function(), getCentreLength(), getEndLength(), getEngeEnd(), getX0End(), rescale(), setEngeEnd(), and setX0End().

◆ engeStart_m

std::shared_ptr<Enge> endfieldmodel::AsymmetricEnge::engeStart_m

private

Definition at line 108 of file AsymmetricEnge.h.

Referenced by AsymmetricEnge(), function(), getCentreLength(), getEndLength(), getEngeStart(), getX0Start(), print(), rescale(), setEngeStart(), and setX0Start().
