#include <MultipoleTCurvedConstRadius.h>

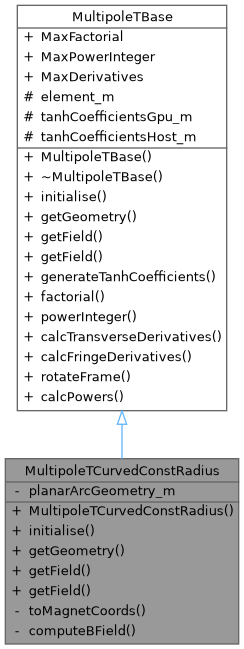

Inheritance diagram for MultipoleTCurvedConstRadius:

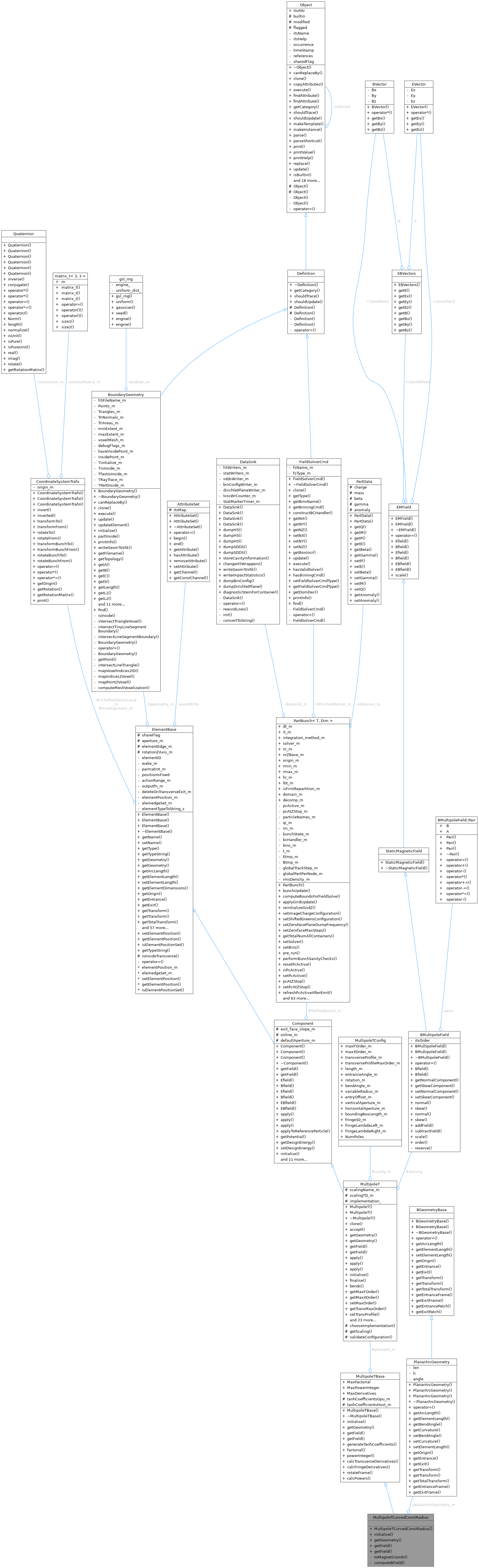

Collaboration diagram for MultipoleTCurvedConstRadius:

Public Member Functions
	MultipoleTCurvedConstRadius (MultipoleT *element)

void	initialise () override

BGeometryBase *	getGeometry () override

void	getField (Kokkos::View< Vector_t< double, 3 > * > R, Kokkos::View< Vector_t< double, 3 > * > E, Kokkos::View< Vector_t< double, 3 > * > B, double scaling, size_t count) override

bool	getField (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &E, Vector_t< double, 3 > &B, double scaling) override

void	generateTanhCoefficients (unsigned int numDerivatives)

Static Public Member Functions
static KOKKOS_INLINE_FUNCTION double	factorial (unsigned int n)

static KOKKOS_INLINE_FUNCTION double	powerInteger (double x, unsigned int n)

static KOKKOS_INLINE_FUNCTION void	calcTransverseDerivatives (const Kokkos::Array< double, MultipoleTConfig::NumPoles > &poles, unsigned int numDerivatives, double x, Kokkos::Array< double, MaxDerivatives > &derivatives)

template<class ViewType >
static KOKKOS_INLINE_FUNCTION void	calcFringeDerivatives (const double &s0, const double &lambdaLeft, const double &lambdaRight, double s, const ViewType &tanhCoefficients, Kokkos::Array< double, MaxDerivatives > &derivatives)

static KOKKOS_INLINE_FUNCTION Vector_t< double, 3 >	rotateFrame (const Vector_t< double, 3 > &R, const MultipoleTConfig &config)

static KOKKOS_INLINE_FUNCTION void	calcPowers (double value, unsigned int maxPower, Kokkos::Array< double, MaxPowerInteger > &powers)

Static Public Attributes
static constexpr size_t	MaxFactorial = 20

static constexpr size_t	MaxPowerInteger = 20

static constexpr unsigned int	MaxDerivatives = 20

Protected Attributes
MultipoleT *	element_m

Kokkos::View< double ** >	tanhCoefficientsGpu_m

Kokkos::View< double ** >::host_mirror_type	tanhCoefficientsHost_m

Static Private Member Functions
static KOKKOS_INLINE_FUNCTION Vector_t< double, 3 >	toMagnetCoords (const Vector_t< double, 3 > &R, const MultipoleTConfig &config)

template<class ViewType >
static KOKKOS_INLINE_FUNCTION bool	computeBField (const Vector_t< double, 3 > &R, Vector_t< double, 3 > &B, double scaling, const MultipoleTConfig &config, const ViewType &tanhCoefficients)

Private Attributes
PlanarArcGeometry	planarArcGeometry_m

Detailed Description

MultipoleT defines a curved combined function magnet with constant radius
of curvature, (up to arbitrary multipole component) with fringe fields

Class category: AbsBeamline
$Author: Titus Dascalu, Martin Duy Tat, Chris Rogers

The field is obtained from the scalar potential

\[ V = f_0(x,s) z + f_1 (x,s) \frac{z^3}{3!} + f_2 (x,s) \frac{z^5}{5!} + ... \]

(x,z,s) -> Frenet-Serret local coordinates along the magnet
z -> vertical component
assume mid-plane symmetry
set field on mid-plane -> $ B_z = f_0(x,s) = T(x) \cdot S(s) $
T(x) -> transverse profile; this is a polynomial describing the field expansion on the mid-plane inside the magnet (not in the fringe field); 1st term is the dipole strength, 2nd term is the quadrupole gradient * x, etc.
-> when setting the magnet, one gives the multipole coefficients of this polynomial (i.e. dipole strength, quadrupole gradient, etc.)

----------— example --------------------------------------------—
Setting a combined function magnet with dipole, quadrupole and sextupole components:
$ T(x) = B_0 + B_1 \cdot x + B_2 \cdot x^2 $
user gives $ B_0, B_1, B_2 $
----------— example end ----------------------------------------—

S(s) -> fringe field
recursion -> $ f_n (x,s) = (-1)^n \cdot \sum_{i=0}^{n} C_n^i \cdot T^{(2i)} \cdot S^{(2n-2i)} $
for curved magnets the above recursion is more complicated
$ C_n^i $ -> binomial coeff; $ T^{(n)} $ -> n-th derivative

Definition at line 69 of file MultipoleTCurvedConstRadius.h.

Constructor & Destructor Documentation

◆ MultipoleTCurvedConstRadius()

MultipoleTCurvedConstRadius::MultipoleTCurvedConstRadius ( MultipoleT * element )

explicit

Constructor

Definition at line 21 of file MultipoleTCurvedConstRadius.cpp.

Member Function Documentation

◆ calcFringeDerivatives()

template<class ViewType >

KOKKOS_INLINE_FUNCTION void MultipoleTBase::calcFringeDerivatives	(	const double &	s0,
		const double &	lambdaLeft,
		const double &	lambdaRight,
		double	s,
		const ViewType &	tanhCoefficients,
		Kokkos::Array< double, MaxDerivatives > &	derivatives
	)

staticinherited

Definition at line 186 of file MultipoleTBase.h.

Referenced by computeBField(), and MultipoleTStraight::computeBField().

◆ calcPowers()

KOKKOS_INLINE_FUNCTION void MultipoleTBase::calcPowers	(	double	value,
		unsigned int	maxPower,
		Kokkos::Array< double, MaxPowerInteger > &	powers
	)

staticinherited

Definition at line 235 of file MultipoleTBase.h.

Referenced by computeBField().

◆ calcTransverseDerivatives()

KOKKOS_INLINE_FUNCTION void MultipoleTBase::calcTransverseDerivatives	(	const Kokkos::Array< double, MultipoleTConfig::NumPoles > &	poles,
		unsigned int	numDerivatives,
		double	x,
		Kokkos::Array< double, MaxDerivatives > &	derivatives
	)

staticinherited

Helper function that calculates transverse derivatives for multipole fields

Definition at line 166 of file MultipoleTBase.h.

References MultipoleTConfig::NumPoles, and MultipoleTBase::powerInteger().

Referenced by computeBField(), and MultipoleTStraight::computeBField().

Here is the call graph for this function:

◆ computeBField()

template<class ViewType >

KOKKOS_INLINE_FUNCTION bool MultipoleTCurvedConstRadius::computeBField	(	const Vector_t< double, 3 > &	R,
		Vector_t< double, 3 > &	B,
		double	scaling,
		const MultipoleTConfig &	config,
		const ViewType &	tanhCoefficients
	)

staticprivate

Definition at line 117 of file MultipoleTCurvedConstRadius.h.

References MultipoleTConfig::bendAngle_m, MultipoleTConfig::boundingBoxLength_m, MultipoleTBase::calcFringeDerivatives(), MultipoleTBase::calcPowers(), MultipoleTBase::calcTransverseDerivatives(), MultipoleTBase::factorial(), MultipoleTConfig::fringeLambdaLeft_m, MultipoleTConfig::fringeLambdaRight_m, MultipoleTConfig::fringeS0_m, MultipoleTConfig::horizontalAperture_m, MultipoleTConfig::length_m, MultipoleTConfig::maxFOrder_m, MultipoleTBase::powerInteger(), toMagnetCoords(), MultipoleTConfig::transverseProfile_m, and MultipoleTConfig::verticalAperture_m.

Referenced by getField().

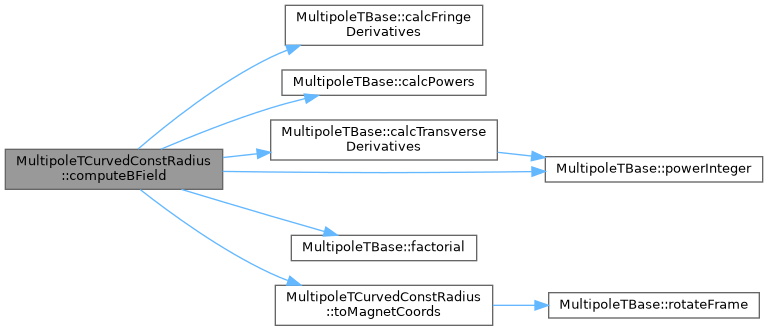

Here is the call graph for this function:

◆ factorial()

KOKKOS_INLINE_FUNCTION double MultipoleTBase::factorial ( unsigned int n )

staticinherited

Helper function that returns factorial of n for n<=20 on both host and GPU

Definition at line 126 of file MultipoleTBase.h.

References MultipoleTBase::MaxFactorial.

Referenced by computeBField(), and MultipoleTStraight::computeBField().

◆ generateTanhCoefficients()

void MultipoleTBase::generateTanhCoefficients ( unsigned int numDerivatives )

inherited

Definition at line 23 of file MultipoleTBase.cpp.

References MultipoleTBase::tanhCoefficientsGpu_m, and MultipoleTBase::tanhCoefficientsHost_m.

Referenced by initialise(), and MultipoleTStraight::initialise().

◆ getField() [1/2]

bool MultipoleTCurvedConstRadius::getField	(	const Vector_t< double, 3 > &	,
		Vector_t< double, 3 > &	,
		Vector_t< double, 3 > &	,
		double
	)

overridevirtual

Return the field for a single point

Implements MultipoleTBase.

Definition at line 43 of file MultipoleTCurvedConstRadius.cpp.

References computeBField(), MultipoleTBase::element_m, MultipoleT::getConfig(), and MultipoleTBase::tanhCoefficientsHost_m.

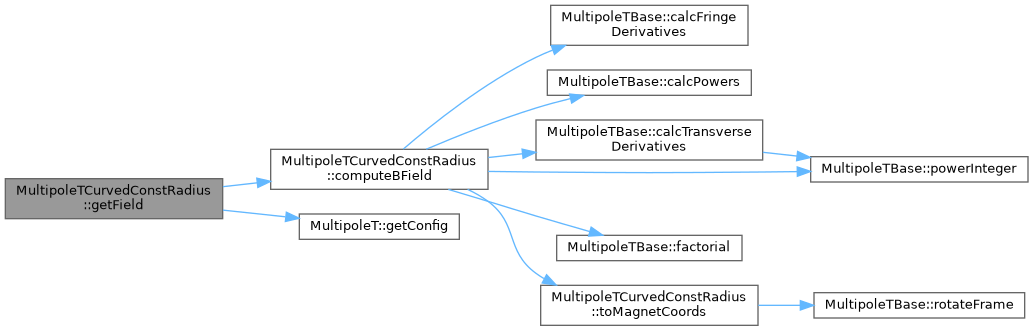

Here is the call graph for this function:

◆ getField() [2/2]

void MultipoleTCurvedConstRadius::getField	(	Kokkos::View< Vector_t< double, 3 > * >	R,
		Kokkos::View< Vector_t< double, 3 > * >	E,
		Kokkos::View< Vector_t< double, 3 > * >	B,
		double	scaling,
		size_t	count
	)

overridevirtual

Return the field for an array of points

Implements MultipoleTBase.

◆ getGeometry()

BGeometryBase * MultipoleTCurvedConstRadius::getGeometry ( )

inlineoverridevirtual

Return the cell geometry

Implements MultipoleTBase.

Definition at line 76 of file MultipoleTCurvedConstRadius.h.

References planarArcGeometry_m.

◆ initialise()

void MultipoleTCurvedConstRadius::initialise ( )

overridevirtual

Initialise the element

Implements MultipoleTBase.

Definition at line 24 of file MultipoleTCurvedConstRadius.cpp.

References MultipoleTBase::element_m, MultipoleTBase::generateTanhCoefficients(), MultipoleT::getBendAngle(), MultipoleT::getLength(), MultipoleT::getMaxFOrder(), planarArcGeometry_m, PlanarArcGeometry::setCurvature(), and PlanarArcGeometry::setElementLength().

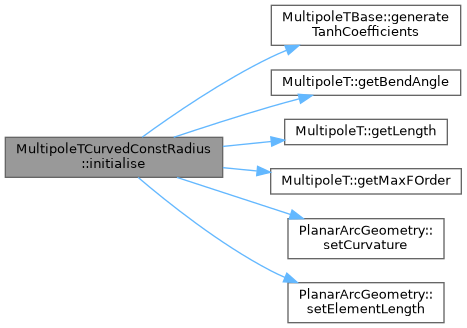

Here is the call graph for this function:

◆ powerInteger()

KOKKOS_INLINE_FUNCTION double MultipoleTBase::powerInteger	(	double	x,
		unsigned int	n
	)

staticinherited

Helper function that returns x^n for 0<=n<=20 on both host and GPU

Definition at line 153 of file MultipoleTBase.h.

Referenced by MultipoleTBase::calcTransverseDerivatives(), computeBField(), and MultipoleTStraight::computeBField().

◆ rotateFrame()

KOKKOS_INLINE_FUNCTION Vector_t< double, 3 > MultipoleTBase::rotateFrame	(	const Vector_t< double, 3 > &	R,
		const MultipoleTConfig &	config
	)

staticinherited

Apply two 2D rotation matrices to coordinate vector Rotate around central axis => skew fields Rotate azimuthally => entrance angle

Definition at line 217 of file MultipoleTBase.h.

References MultipoleTConfig::entranceAngle_m, and MultipoleTConfig::rotation_m.

Referenced by toMagnetCoords(), and MultipoleTStraight::toMagnetCoords().

◆ toMagnetCoords()

KOKKOS_INLINE_FUNCTION Vector_t< double, 3 > MultipoleTCurvedConstRadius::toMagnetCoords	(	const Vector_t< double, 3 > &	R,
		const MultipoleTConfig &	config
	)

staticprivate

Definition at line 99 of file MultipoleTCurvedConstRadius.h.

References MultipoleTConfig::bendAngle_m, MultipoleTConfig::length_m, and MultipoleTBase::rotateFrame().

Referenced by computeBField().

Here is the call graph for this function:

Member Data Documentation

◆ element_m

MultipoleT* MultipoleTBase::element_m

protectedinherited

Definition at line 81 of file MultipoleTBase.h.

Referenced by getField(), MultipoleTStraight::getField(), initialise(), and MultipoleTStraight::initialise().

◆ MaxDerivatives

constexpr unsigned int MultipoleTBase::MaxDerivatives = 20

staticconstexprinherited

Definition at line 103 of file MultipoleTBase.h.

Referenced by MultipoleT::validateConfiguration().

◆ MaxFactorial

constexpr size_t MultipoleTBase::MaxFactorial = 20

staticconstexprinherited

Definition at line 101 of file MultipoleTBase.h.

Referenced by MultipoleTBase::factorial().

◆ MaxPowerInteger

constexpr size_t MultipoleTBase::MaxPowerInteger = 20

staticconstexprinherited

Definition at line 102 of file MultipoleTBase.h.

◆ planarArcGeometry_m

PlanarArcGeometry MultipoleTCurvedConstRadius::planarArcGeometry_m

private

Geometry

Definition at line 88 of file MultipoleTCurvedConstRadius.h.

Referenced by getGeometry(), and initialise().

◆ tanhCoefficientsGpu_m

Kokkos::View<double**> MultipoleTBase::tanhCoefficientsGpu_m

protectedinherited

Definition at line 82 of file MultipoleTBase.h.

Referenced by MultipoleTBase::generateTanhCoefficients().

◆ tanhCoefficientsHost_m

Kokkos::View<double**>::host_mirror_type MultipoleTBase::tanhCoefficientsHost_m

protectedinherited

Definition at line 83 of file MultipoleTBase.h.

Referenced by MultipoleTBase::generateTanhCoefficients(), getField(), MultipoleTStraight::getField(), and MultipoleTBaseTest::tanhCoefficients().

The documentation for this class was generated from the following files:
