LinearSpline Class Reference

#include <LinearSpline.h>

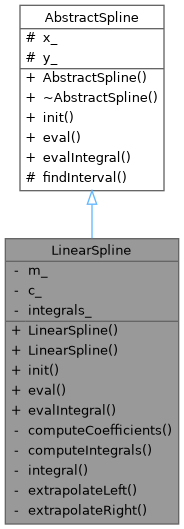

Inheritance diagram for LinearSpline:

Collaboration diagram for LinearSpline:

Public Member Functions
	LinearSpline ()=default
	Default constructor.
	LinearSpline (const std::vector< double > &x, const std::vector< double > &y)
	Construct and initialize from tabulated data.
void	init (const std::vector< double > &x, const std::vector< double > &y) override
	Initialize from tabulated data (natural spline).
double	eval (double x, Accelerator &accel) const override
	Evaluate the spline at x using an accelerator.
double	evalIntegral (double xa, double xb, Accelerator &accel) const override
	Evaluate the integral of the spline at x.

Protected Member Functions
size_t	findInterval (double x, size_t &intervalCache) const
	Return the interval index for the given x-coordinate, using the supplied cached value if possible.

Protected Attributes
std::vector< double >	x_ {}
std::vector< double >	y_ {}

Private Member Functions
void	computeCoefficients ()
	Compute linear spline coefficients.
void	computeIntegrals ()
	Compute the integrals of the intervals.
double	integral (size_t i, double dx) const
	Calculate the integral from x_[i] to x_[i]+dx.
double	extrapolateLeft (double x) const
	Linear extrapolation to the left of the data range.
double	extrapolateRight (double x) const
	Linear extrapolation to the right of the data range.

Private Attributes
std::vector< double >	m_ {}
std::vector< double >	c_ {}
std::vector< double >	integrals_ {}

Detailed Description

Definition at line 26 of file LinearSpline.h.

Constructor & Destructor Documentation

LinearSpline() [1/2]

LinearSpline::LinearSpline ( )

default

Default constructor.

LinearSpline() [2/2]

LinearSpline::LinearSpline	(	const std::vector< double > &	x,
		const std::vector< double > &	y
	)

Construct and initialize from tabulated data.

Parameters

x	Input: strictly increasing x-coordinates.
y	Input: y-values corresponding to x.

Definition at line 21 of file LinearSpline.cpp.

References init().

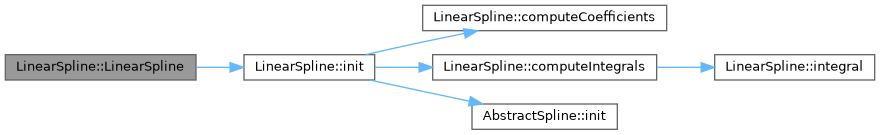

Here is the call graph for this function:

Member Function Documentation

computeCoefficients()

void LinearSpline::computeCoefficients ( )

private

Compute linear spline coefficients.

Definition at line 89 of file LinearSpline.cpp.

References c_, m_, AbstractSpline::x_, and AbstractSpline::y_.

Referenced by init().

computeIntegrals()

void LinearSpline::computeIntegrals ( )

private

Compute the integrals of the intervals.

Definition at line 98 of file LinearSpline.cpp.

References integral(), integrals_, and AbstractSpline::x_.

Referenced by init().

Here is the call graph for this function:

eval()

double LinearSpline::eval ( double  x, Accelerator &  accel  ) const

overridevirtual

Evaluate the spline at x using an accelerator.

Parameters

x	Input: x-coordinate.
accel	Input/Output: cached interval index.

Returns

Output: interpolated value.

Implements AbstractSpline.

Definition at line 34 of file LinearSpline.cpp.

References c_, extrapolateLeft(), extrapolateRight(), AbstractSpline::findInterval(), AbstractSpline::Accelerator::last_index_, m_, and AbstractSpline::x_.

Referenced by TEST_F(), TEST_F(), TEST_F(), and TEST_F().

Here is the call graph for this function:

evalIntegral()

double LinearSpline::evalIntegral ( double  xa, double  xb, Accelerator &  accel  ) const

overridevirtual

Evaluate the integral of the spline at x.

Parameters

xa	Input: x-coordinate lower bound.
xb	Input: x-coordinate upper bound.
accel	Input/output: accelerator for interval caching.

Returns

Output: interpolated integral value (with linear extrapolation).

Implements AbstractSpline.

Definition at line 50 of file LinearSpline.cpp.

References extrapolateLeft(), extrapolateRight(), AbstractSpline::findInterval(), integral(), integrals_, AbstractSpline::Accelerator::last_index_, AbstractSpline::Accelerator::last_upper_index_, AbstractSpline::x_, and AbstractSpline::y_.

Referenced by TEST_F().

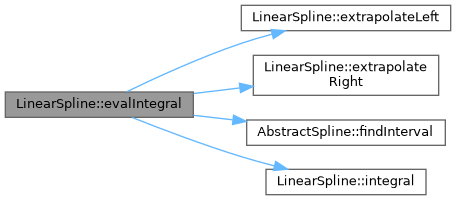

Here is the call graph for this function:

extrapolateLeft()

double LinearSpline::extrapolateLeft ( double  x ) const

private

Linear extrapolation to the left of the data range.

Parameters

x	Input: x-coordinate.

Returns

Output: extrapolated value.

Definition at line 110 of file LinearSpline.cpp.

References c_, and m_.

Referenced by eval(), and evalIntegral().

extrapolateRight()

double LinearSpline::extrapolateRight ( double  x ) const

private

Linear extrapolation to the right of the data range.

Parameters

x	Input: x-coordinate.

Returns

Output: extrapolated value.

Definition at line 112 of file LinearSpline.cpp.

References c_, and m_.

Referenced by eval(), and evalIntegral().

findInterval()

size_t AbstractSpline::findInterval ( double  x, size_t &  intervalCache  ) const

protectedinherited

Return the interval index for the given x-coordinate, using the supplied cached value if possible.

Parameters

x	Input: x-coordinate.
intervalCache	Input/output: The cached interval index.

Returns

Output: The index of the interval containing x.

Definition at line 39 of file AbstractSpline.cpp.

References AbstractSpline::x_.

Referenced by CubicSpline::eval(), eval(), CubicSpline::evalIntegral(), and evalIntegral().

init()

void LinearSpline::init ( const std::vector< double > &  x, const std::vector< double > &  y  )

overridevirtual

Initialize from tabulated data (natural spline).

Parameters

x	Input: strictly increasing x-coordinates.
y	Input: y-values corresponding to x.

Reimplemented from AbstractSpline.

Definition at line 25 of file LinearSpline.cpp.

References computeCoefficients(), computeIntegrals(), and AbstractSpline::init().

Referenced by LinearSpline(), and TEST_F().

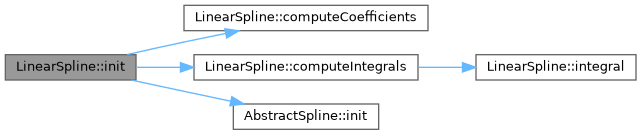

Here is the call graph for this function:

integral()

double LinearSpline::integral ( size_t  i, double  dx  ) const

private

Calculate the integral from x_[i] to x_[i]+dx.

Parameters

i	Input: the interval index
dx	Input: the distance in the interval over which to calculate

Returns

Output: The integral.

Definition at line 105 of file LinearSpline.cpp.

References c_, m_, and AbstractSpline::x_.

Referenced by computeIntegrals(), and evalIntegral().

Member Data Documentation

c_

std::vector<double> LinearSpline::c_ {}

private

Definition at line 79 of file LinearSpline.h.

Referenced by computeCoefficients(), eval(), extrapolateLeft(), extrapolateRight(), and integral().

integrals_

std::vector<double> LinearSpline::integrals_ {}

private

Definition at line 80 of file LinearSpline.h.

Referenced by computeIntegrals(), and evalIntegral().

m_

std::vector<double> LinearSpline::m_ {}

private

Definition at line 78 of file LinearSpline.h.

Referenced by computeCoefficients(), eval(), extrapolateLeft(), extrapolateRight(), and integral().

x_

std::vector<double> AbstractSpline::x_ {}

protectedinherited

Definition at line 73 of file AbstractSpline.h.

Referenced by CubicSpline::computeCoefficients(), computeCoefficients(), CubicSpline::computeIntegrals(), computeIntegrals(), CubicSpline::eval(), eval(), CubicSpline::evalIntegral(), evalIntegral(), CubicSpline::extrapolateLeft(), CubicSpline::extrapolateRight(), AbstractSpline::findInterval(), AbstractSpline::init(), and integral().

y_

std::vector<double> AbstractSpline::y_ {}

protectedinherited

Definition at line 74 of file AbstractSpline.h.

Referenced by CubicSpline::computeCoefficients(), computeCoefficients(), CubicSpline::eval(), CubicSpline::evalIntegral(), evalIntegral(), CubicSpline::extrapolateLeft(), CubicSpline::extrapolateRight(), AbstractSpline::init(), and CubicSpline::integral().

---

The documentation for this class was generated from the following files:

• LinearSpline.h
• LinearSpline.cpp
